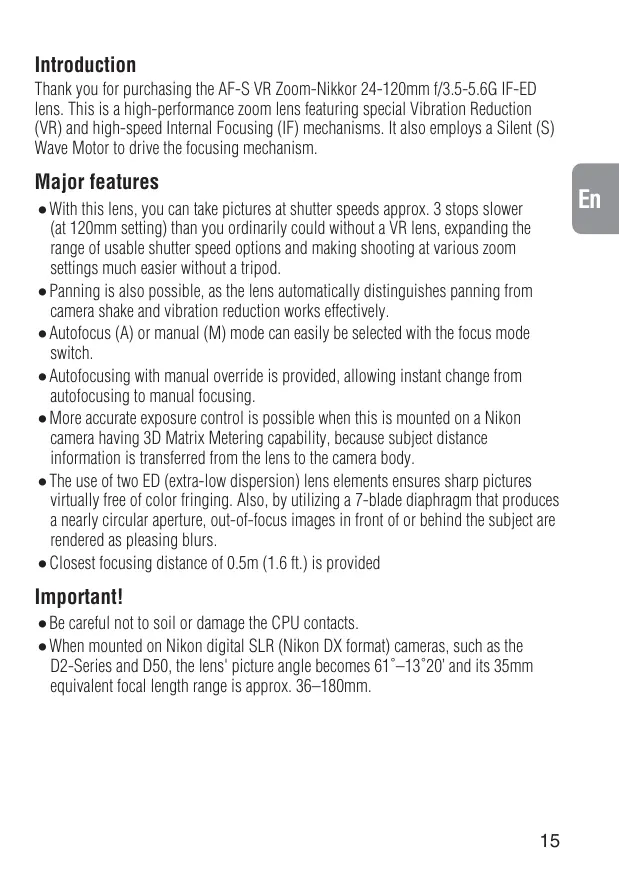

○: Possible ×: Impossible Introduction Thank you for purchasing the AF-S VR Zoom-Nikkor 24-120mm f/3.5-5.6G IF-ED lens. This is a high-performance zoom lens featuring special Vibration Reduction (VR) and high-speed Internal Focusing (IF) mechanisms. It also employs a Silent (S) Wave Motor to drive the focusing mechanism. Major features With this lens, you can take pictures at shutter speeds approx. 3 stops slower (at 120mm setting) than you ordinarily could without a VR lens, expanding the range of usable shutter speed options and making shooting at various zoom settings much easier without a tripod. ● Panning is also possible, as the lens automatically distinguishes panning from camera shake and vibration reduction works effectively. ● Autofocus (A) or manual (M) mode can easily be selected with the focus mode switch. ● Autofocusing with manual override is provided, allowing instant change from autofocusing to manual focusing. ● More accurate exposure control is possible when this is mounted on a Nikon camera having 3D Matrix Metering capability, because subject distance information is transferred from the lens to the camera body. ● The use of two ED (extra-low dispersion) lens elements ensures sharp pictures virtually free of color fringing. Also, by utilizing a 7-blade diaphragm that produces a nearly circular aperture, out-of-focus images in front of or behind the subject are rendered as pleasing blurs. ● Closest focusing distance of 0.5m (1.6 ft.) is provided

Be careful not to soil or damage the CPU contacts. When mounted on Nikon digital SLR (Nikon DX format) cameras, such as the D2-Series and D50, the lens' picture angle becomes 61˚–13˚20’ and its 35mm equivalent focal length range is approx. 36–180mm.

Focusing Set your camera's focus mode selector according to this chart: Camera’s focus mode Cameras

Autofocus with manual priority Manual focus (Focus assist is available.)

Manual focus (Focus assist is available.)

Manual focus (Focus assist is available.)

• Sold exclusively in the U.S.A. Autofocus with manual override (M/A mode) 1 Set the focus mode switch to M/A. (Fig. B) 2 Autofocus is provided, but you can manually override the focus by operating the separate focus ring while lightly depressing the shutter release button or AF start (AF-ON) button on the camera body of cameras so equipped. 3 To cancel manual override, remove your finger from the shutter release button or the AF start button. Vibration reduction mode The following cameras are usable: 35mm SLR cameras: F6, F5, F100, F80-Series/N80-Series, F75-Series/ N75-Series, F65-Series/N65-Series; Digital SLR cameras: D2-Series, D1-Series, D200, D100, D80, D70-Series, D50, D40 ･ When using the lens with cameras other than those listed above, set the vibration reduction ON/OFF switch to OFF to cancel the vibration reduction mode. With the Pronea 600i/6i camera, in particular, battery power may become depleted quickly if this switch is left ON.

Setting the vibration reduction ON/OFF switch (Fig. B) ON: Vibration is reduced while the shutter release button is lightly pressed and also at the instant the shutter is released. Because vibration is reduced in the viewfinder while depressing the shutter release button, auto/manual focusing and exact framing of the subject are easier. OFF: Vibration is not reduced. Notes on using vibration reduction ● Wait until the image in the viewfinder stops vibrating before fully depressing the shutter release button after you have lightly pressed the shutter release button. ● If you move the camera in a wide arc when taking panning shots, vibration in the direction of that movement is not affected. For example, if you pan the camera horizontally, only vibration in the vertical direction is reduced, making smooth pans much easier. ● Due to the characteristics of the vibration reduction mechanism, the image in the viewfinder may become blurred after releasing the shutter. ● Do not turn the camera power OFF while the vibration reduction mode is in operation. Otherwise, the lens may emit a chattering noise if the camera is shaken. This is not a malfunction. Turn the camera power ON again to correct this. ● If the lens is removed from the camera while the vibration reduction mode is in operation, the same thing may happen as stated above. Just mount the lens to eliminate the chattering noise. ● With F80-Series/N80-Series, F75-Series/N75-Series, F65-Series/N6Series, D200, D100, D80, D70-Series, D50 and D40 cameras, vibration reduction does not work while the built-in flash is recycling. ● When the lens is mounted on a tripod, set the vibration reduction ON/OFF switch to OFF. However, set the switch to ON when using a tripod without securing the tripod head, or when using a monopod. ● If you set the AF start (AF-ON) button to ON on the body of cameras so equipped, vibration reduction does not operate. Focusing, zooming, and depth of field First turn the zoom ring until the desired composition is framed in the viewfinder before focusing. If your camera has a depth of field preview (stop-down) button or lever, depth of field can be observed while looking through the camera viewfinder. Due to the optical characteristics of this lens, as the lens is focused closer, the focal length decreases.

Variable maximum apertures Zooming the lens from 24mm to 120mm decreases the maximum aperture approx. 1-1/3 of an f/stop. For cameras with TTL metering, there is no need to adjust the aperture. Likewise, for TTL auto flash photography with Nikon Speedlights, no adjustment is required. When using a separate exposure meter or taking photographs in the non-TTL flash mode, select the appropriate aperture value according to the focal length setting as displayed on the camera. En Setting the aperture Because this lens does not have an aperture ring, you must set the aperture on the camera. Taking flash pictures with cameras having built-in flash When using the following cameras, check the focal length and shooting distance before taking flash pictures to prevent vignetting since the light emitted from the flash may be obstructed by the lens barrel. Cameras Usable focal length / Shooting distance F80-Series/N80-Series* 28mm / 2m (6.6 ft.) or greater 35mm or longer / No restriction 28mm / 3m (9.8 ft.) or greater 35mm or longer / No restriction 50mm / 1m (3.3 ft.) or greater 70mm or longer / No restriction F70-Series/N70* F65-Series/N65-Series*, F60-Series/N60*, F55-Series/N55-Series* F50-Series/N50* F75-Series/N75-Series* Pronea 600i/6i* D80/D40 D70s/D70/D50 35mm / 1.5m (4.9 ft.) or greater 50mm or longer / No restriction 28mm / 3m (9.8 ft.) or greater 35mm / 1m (3.3 ft.) or greater 50mm or longer / No restriction 24mm/1m (3.3 ft.) or greater 28mm or longer / No restriction 24mm / 0.8m (2.6 ft.) or greater 28mm or longer / No restriction

• Sold exclusively in the U.S.A. ･ Pronea S: Vignetting occurs at any focal length and shooting distance. Using this lens is not recommended.

Recommended focusing screens Various interchangeable focusing screens are available for certain Nikon SLR cameras to suit any picture-taking situation. The ones recommended for use with this lens are:

◎： Excellent focusing – ： Not available ( ) ： Indicates degree of exposure compensation needed (Center-Weighted metering only). For F6 cameras, compensate by selecting “Other screen” in Custom Setting “b6: Screen comp.” and setting the EV level to –2.0 to +2.0 in 0.5 EV steps. When using screens other than type B or E, “Other screen” must be selected even when the required compensation value is “0” (no compensation required). For F5 cameras, compensate using Custom Setting #18 on the camera body. For F4-Series cameras, compensate using the Exposure Compensation Dial for the focusing screen. See instruction manual of the camera body for more details. Blank box means not applicable. Since type M screen can be used for both macrophotography at a 1:1 magnification ratio and for photomicrography, it has different applications than other screens.

• When using the B2/B3, E2/E3 and K2/K3 focusing screens in cameras other than those listed above, refer to the columns for the B, E and K screens. Using bayonet hood HB-25 Attaching the hood Align the lens hood attachment index ( ) on the hood with the lens hood mounting index on the lens, and turn the hood counterclockwise (as viewed from the camera side) until it click stops. (Fig. A) Make sure that the lens hood mounting index aligns with the lens hood setting index ( ). If the lens hood is not correctly attached, vignetting can occur. ● To facilitate attachment or removal of the hood, hold it by its base rather than its outer edge. ● To store the lens hood, attach it in the reverse position.

Detaching the hood While holding its base rather than its edge, turn the hood clockwise (as viewed from the camera side) to detach.

Lens care Clean the lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from center to outer edge, taking care not to leave traces or touch other parts of the lens. ● Never use thinner or benzene to clean the lens as this might damage it, result in a fire, or cause health problems. ● To protect the front lens element, an NC filter is recommended at all times. A lens hood also helps protect the front of the lens. ● When storing the lens in its lens case, attach both front and rear caps. ● When the lens will not be used for a long time, store it in a cool, dry place to prevent mold. Also store the lens away from direct sunlight or chemicals such as camphor or naphthalene. ● Do not get water on the lens or drop it in water as this will cause it to rust and malfunction. ● Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place.

Supplied accessories 72mm snap-on front lens cap LC-72 Rear lens cap LF-1 ● Bayonet hood HB-25

Optional accessories

72mm screw-in filters, including circular polarizing filter II Soft case CL-S2

Incompatible accessories These accessories cannot be attached or may become damaged if attached. Teleconverters: TC-14B, TC-14EII, TC-17EII, TC-20EII, TC-301 Auto Extension Rings: PK-1, PK-11, PK-11A, K-1 Auto Ring: BR-4 ● These accessories can be attached, but will not work properly. Teleconverters: TC-14A, TC-201 Auto Extension Rings: PK-12, PK-13, PN-11, and other K Rings Bellows Focusing Attachment

Other accessories may not be suitable for use with this lens. For details, carefully read your accessories instruction manual. Specifications Type of lens: G-type AF-S Zoom-Nikkor lens having built-in CPU and Nikon bayonet mount. Special vibration reduction (VR) mechanism incorporated. Focal length: 24 to 120mm Maximum aperture: f/3.5 to f/5.6 Lens construction: 15 elements in 13 groups (including 2 ED lens elements) Picture angle: 84˚–20˚30’ [61˚– 13˚20’ with Nikon digital SLR cameras (Nikon DX format); 71˚– 16˚20’ with IX240 system cameras] Focal length scale: 24, 28, 35, 50, 70, 85, 120mm Distance information: Output to camera body Zooming: Manually via separate zoom ring Focusing: Nikon Internal Focusing (IF) system (utilizing an internal Silent Wave Motor); manually via separate focus ring. Vibration reduction: Lens-shift method using voice coil motors (VCMs) Shooting distance scale: Graduated in meters and feet from 0.5m (2 ft.) to infinity (∞) Closest focusing distance: 0.5m (1.6 ft.) (at all zoom settings) Diaphragm: Fully automatic Aperture range: f/3.5 to f/22 (at 24mm), f/5.6 to f/32 (at 120mm) Exposure measurement: Via full-aperture method with cameras with CPU interface system Attachment size: 72mm (P = 0.75mm) Dimensions: Approx. 77mm dia. x 94mm extension from the camera’s lens mounting flange (at 24mm focal length) Weight: Approx. 575g (20.3 oz.) Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.
