Product Type	Paint Sprayer
Brand	Bosch
Model	PFS 105 E
Rated Power Input	350 W
Spray Power	105 W
Flow Rate	150 g/min
Spray Time for 5 m²	6 min
Container Volume	800 ml (600 ml with accessory)
Hose Length	3.4 m
Weight (EPTA 01/2003)	4.9 kg
Protection Class	II (double insulation)
Air Flow Adjustment	Knob on base unit
Material Quantity Adjustment	Knob (positions I to III)
Spray Pattern Adjustment	Vertical flat, horizontal flat, round
Interchangeable Nozzle	Yes (specified nozzle insert)
SDS Closure System	For quick hose connection
Sound Level	74 dB(A) (uncertainty K=1.5 dB)
Vibration (hand-arm)	< 2.5 m/s²
Power Supply	Mains 220-230 V, 50 Hz
Intended Use	Paints, varnishes, glazes, paint strippers, oils, plant protection products
Not Recommended Paint Type	Dispersion paints, latex, alkaline cleaners, granular products
Cleaning	With suitable thinner (solvent or water) after each use
Air Filter	Replaceable (behind cover)
Included Accessories	Spray gun, base unit, flexible hose, 800 ml and 600 ml containers, measuring cup
After-sales Service	Bosch SAV: 126 rue Stalingrad, 93705 Drancy Cedex, Toll-free 0800 05 50 51

Frequently Asked Questions - PFS 105 E BOSCH

Can this sprayer be used for latex or dispersion paints?

No, the PFS 105 E is not suitable for dispersion or latex paints, nor for alkaline cleaners, acidic products, or non-drip materials. It is designed for water- or solvent-thinnable paints, varnishes, glazes, paint strippers, oils, and plant protection products.

How to dilute paint before spraying?

For most paints, dilute at least 10% with the appropriate thinner. Use the provided measuring cup. For example, for 300 ml of paint, add 30 ml of thinner. Always perform a test spray on a test surface.

What to do if paint does not come out of the nozzle?

First check that the air flow adjustment knob (16) is not turned too far to the left. Make sure the container is screwed on tightly and the suction tube is correctly positioned. If necessary, clean the nozzle or suction tube. If the problem persists, dilute the paint further (additional 10%).

How to achieve a uniform spray pattern?

Hold the spray gun 5 to 15 cm from the surface. Make regular passes from left to right or top to bottom, overlapping each strip by 4 to 5 cm. Do not start or stop spraying on the surface to be painted.

What type of thinner to use for cleaning?

Use the thinner corresponding to the spray material: water for water-based paints, solvent for solvent-based paints. Never immerse the spray gun completely in thinner. Clean thoroughly after each use.

How to adjust the amount of paint sprayed?

Use the preselection knob (5) on the spray gun: turn towards I to reduce the amount, towards III to increase it. If the material runs after application, reduce the amount; if the surface is not covered, increase it.

Why does the spray pattern pulsate?

Pulsations can be caused by insufficient paint level in the container, a blocked suction tube, a dirty air filter, or paint that is too viscous. Fill the container, clean the tube and filter, or dilute the paint.

Can the sprayer be used for overhead work?

Yes, orient the suction tube backwards (towards the handle) to work overhead. This allows almost residue-free spraying. Always maintain a distance of 5-15 cm.

How to replace the air filter?

Remove the air filter cover (21) on the base unit. Replace the dirty filter with a new one. Replace the cover. It is recommended to check the filter regularly and change it if heavily soiled.

Where to find spare parts and after-sales service?

Contact Bosch after-sales service: 126 rue Stalingrad, 93705 Drancy Cedex. Tel. [phone], Toll-free 0800 05 50 51. Original spare parts are available from authorized dealers. Provide the 10-digit article number of the device.

USER MANUAL PFS 105 E BOSCH

Power Tools Division

70745 Leinfelden-Echterdingen

www.bosch-pt.com

1 609 929 L50 (2008.02) PS / 304

PFS 105E

BOSCH

de Originalbetriebsanleitung en Original instructions fr Notice originale es Manual original pt Manual original it Istruzioni originali nl Oorspronkelijke gebruiksaanwijzing da Original brugsanvisning sv Bruksanvisning i original no Original driftsinstruks fi Alkuperäiset ohjeet

el Πρωτότυπο οδηγίες χρήσης tr Orijinal işletme talimatı pl Instrukcja oryginalna cs Původním návodem k používání sk Pôvodný návod na použitie hu Eredeti használati utasítás ru Оригинальное руководство по эксплуатации uk Оригінальна інструкція з експлуатації

ro Instrucțiuni de folosire originale bg Оригинално ръководство за експлоатация sr Originalno uputstvo za rad sl Izvirna navodila hr Originalne upute za rad et Algupärane kasutusjuhend lv Originalā lietošanas pamācība lt Originali instrukcija

Deutsch . 7

English. 18

Français. 29

Español. Página 41

Português. Página 52

Italiano . 63

Dutch.. 75

Danish. 86

Swedish Page 96

Norwegian . 106

Finnish. .Page 116

Greek Page 126

Turkish Page 138

Polish . Page 149

Czech Page 161

Slovak. Page 171

Hungarian .Page 183

Russian .. Page 194

Ukrainian. Page 206

Romanian . 218

Bulgarian ... Page 229

Serbian. Page 240

Slovenian. Page 251

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. 11. i.v. uogcu

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions including Material

Safety Data Sheets (MSDS), and container labels provided with the paints and solvents.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Workplace safety

a) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock. b) Protect the machine from rain and moisture. The penetration of water into a power tool increases the risk of electric shock. c) Do not misuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep the cord away from heat, oil, sharp edges, and moving parts. Damaged or entangled cords increase the risk of electric shock. d) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. e) When operating the power tool in damp or moist environments is unavoidable, use a residual current device (RCD). Use of a residual current device reduces the risk of electric shock.

3) Personal Safety

a) Use safety equipment. Always wear eye protection. Safety equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection used for appropriate conditions will reduce personal injuries.

4) Use and Care of the Power Tool

a) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. b) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. c) Use the power tool, accessories, and application tools etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of power tools for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Fine-spray Systems

• Keep the area clean, well lit, and free of paint or solvent containers, rags, and other flammable materials. Spontaneous combustion may occur. Fire extinguisher equipment shall be present and working at all times.
• Provide for good ventilation in the spraying area and for sufficient fresh air in the complete room. Evaporating inflammable solvents create an explosive environment.

• Do not use materials with a flashpoint below 21°C for spraying and cleaning. Use water-based materials, non-volatile hydrocarbons, or similar materials. Fast evaporating solvents create an explosive environment.
• Do not spray in the vicinity of ignition sources, such as static electricity sparks, open flames, pilot lights, hot objects, engines/motors, cigarettes, and sparks from plugging in or unplugging power cords or operating switches. Such spark sources can ignite the spraying vicinity/environment. Do not spray any liquid of unknown hazard potential. Unknown materials can create hazardous conditions.
• Wear additional protective equipment such as appropriate protective gloves and protective masks or respirators when spraying or handling chemicals. Wearing protective equipment for the appropriate conditions reduces exposure to hazardous substances.

• Never point the spray jet against yourself, towards other persons, or animals. Keep your hands and other body parts away from the spray jet. If the spray jet should penetrate the skin, seek medical attention immediately from a doctor. The material being sprayed can even penetrate the skin through a glove and be injected into your body. Do not treat injection as a simple cut. High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that injection occurs, seek medical attention immediately.

Be aware of possible hazards from the spray material. Observe the information on drums/tanks/tins as well as manufacturer information of the spray material, including the request to wear personal protective equipment. The manufacturer's instructions are to be observed in order to reduce the risk of fire as well as injuries caused through toxins, carcinogens, etc. - Use only nozzles/nozzle inserts specified by the manufacturer. Never spray without the nozzle protection mounted. Use of a special nozzle insert with the corresponding nozzle protection reduces the probability that a high-pressure jet penetrates the skin and injects toxins into the body. Exercise caution when cleaning and changing nozzle inserts. If the nozzle insert should become clogged during spraying, follow the manufacturer's instructions for switching off the system and relieving the pressure before removing the nozzle. Fluids under high pressure can penetrate the skin, inject toxins into the body, and lead to serious injury. - Keep the plug of the mains cord and the trigger switch of the spray gun clear of paint and other fluids. Never hold the cord by its connectors to support it. Failure to follow the instruction can lead to electric shock.

Functional Description

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

Intended Use

The power tool is intended for atomising solvent-based and water-dilutable paints, finishes, primers, clear finishes, automotive finishes, staining sealers, wood sealer-preservatives, plant protectives, oil and disinfection agents. The power tool is not suitable for spraying dispersions and latex paint, caustic solutions, acidic coating materials, coating materials with granules or solids as well as spray and drip-impeding materials.

Use the machine only when you can fully assess all functions and handle them without limitation, or after having received appropriate instructions.

Noise/Vibration Information

Measured values determined according to EN 60745.

Typically the A-weighted sound pressure level of the product is 74 dB(A). Uncertainty K = 1.5 dB. The noise level when working can exceed 80 dB(A).

Wear hearing protection!

The hand-arm acceleration is typically below 2.5m / s²

Product Features

The numbering of the components shown refers to the representation of the power tool on the graphic pages.

1 Spray gun

2 Air cap 3 Union nut 4 Mark for SDS connection 5 Thumbwheel for spraying capacity 6 Hose port (spray gun) 7 Handle extension (only for 800 ml container) 8 Container for spray material, 800 ml Container for spray material, 600 ml* 9 Trigger switch

10 Suction tube with container seal green: for 800 ml container white: for 600 ml container*

11 Nozzle

12 Nozzle seal

13 Air hose

14 SDS connector

15 Base unit

16 Control knob for On/Off and air-flow control 17 Set-down port for spray gun 18 Hose connection (base unit) 19 Handle 20 Accessory compartment 21 Air filter cover 22 Measuring cup

*The accessories illustrated or described are not included as standard delivery.

English | 21

Technical Data

Fine-spray System		PFS 105 E
Article number		3 603 B06 2..
Rated power input	W	350
Spraying capacity	g/min	150
Atomising output	W	105
Required time for 5 m² paint application	min	6
Container capacity for spray material	ml	800
Length of air hose	m	3.4
Weight according to EPTA-Procedure 01/2003	kg	4.9

Protection class

□/II

Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.

Declaration of Conformity

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardization documents: EN 60335 according to the provisions of the directives 2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on).

Technical file at:

Robert Bosch GmbH, Dept. PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider

Dr. Eckerhard Strötgen

Senior Vice President

Head of Product

Engineering

Certification

ppa. 11. i.v. uogcu

06.02.2008, Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Assembly

Before any work on the machine itself, pull the mains plug.

Connecting the Air hose

(see figures A1 - A2)

Take the air hose 13 out of the accessory compartment 20. - Remove the protective caps from both ends of the air hose.

Connecting to the spray gun:

• Firmly insert an SDS connector 14 of the air hose in alignment with the arrow mark into the hose port of the spray gun 6.
• Turn the SDS connector until the lock can be heard to latch.

Connecting the base unit:

• Firmly insert the second SDS connector of the air hose in alignment with the arrow mark into the port of the base unit 18.
• Turn the SDS connector until the lock can be heard to latch.

Note: After use, reattach the protective hose caps to the hose ends.

Operation

Preparing for Operation

Spraying on the sides of water bodies (lakes, rivers, etc.) or neighbouring surfaces in the direct catchment area is not permitted.

When purchasing paint, varnish and spray material, pay attention to their environmental compatibility.

Preparing the Spray Surface

Note: Cover off the vicinity of the spray surface thoroughly and generously.

The spray mist contaminates the environment. When spraying in enclosures, surfaces not covered can become contaminated.

The spray surface must be clean, dry and grease-free.

• Roughen smooth surfaces and then remove the sanding dust.

Diluting Spray Material

• When diluting, pay attention that the spray material and the diluting agent correspond. When using a faulty diluting agent, lumps can develop that can lead to clogging of the spray gun.

Spray material	Recommended dilution
Wood preservatives, strip-pers, oils, finishes	undiluted
Disinfectants, plant protectants	undiluted
Solvent- or water-dilutable paints, primers, automobile spray paint, thick-coat finishes	At least 10 % diluted

For spray material that needs to be diluted, proceed as follows:

Take the measuring cup 22. - Stir the spray material thoroughly. - Fill a sufficient quantity of spray material into the spray-material container 8. (see "Filling in Spray Material", page 22) - Dilute the spray material by 10% with paint thinner. Examples:

Amount of spray material [ml]	200	300	400	500
Paint thinner [ml]	20	30	40	50

• Stir the spray material thoroughly.
• Carry out a test-spray run on a test surface. (see "Spraying", page 23)

When the spraying pattern is perfect, start the spray job.

or

When the spraying result is not satisfactory or when no paint comes out, please continue as described under "Correction of Malfunctions" on page 26.

Filling in Spray Material (see figures C1-C2)

Before any work on the machine itself, pull the mains plug. - Unscrew the container 8 from the spray gun. - Turn the suction tube 10 so that the spray material can be sprayed with almost no residue:

For spray jobs on horizontal surfaces/objects	toward the frontin nozzle direction
For spray jobsoverhead	toward the rear inhandle direction

• Fill the spray material into the container and screw the container firmly to the spray gun.

Starting Operation

Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230V can also be operated with 220V. During operation, the base unit must always stand horizontally on a level surface. Never tilt the base unit or set it upright when switched on. Pay attention that the base unit cannot draw in dust or other contamination during operation. Make sure never to spray on the base unit.

Switching On

Always place the base unit horizontally on a level and clean surface. Plug the mains plug into a socket outlet. Grasp the spray gun by the handle and point it at the spray surface. To switch on, turn the control knob 16 on the base unit to the right until it stops. It is recommended to start with the maximum air flow. ("Adjusting the Air Flow", see page 24) Pull the trigger switch 9 on the spray gun.

Note: When the base unit is switched on, air always flows out at the nozzle 11.

Switching Off

• Release the trigger switch 9 and turn the control knob 16 to the left until it stops.
• Place the spray gun in the set-down port 17.
• Pull the mains plug from the socket outlet.

Working Advice

Spraying (see figures D-E)

Note: Observe the wind direction when operating the power tool outdoors.

• First, carry out a test spray run and adjust the spray pattern and the spray material quantity according to the spray material. (For adjustments, see the following sections)
• Make sure to hold the spray gun vertical to the spray object at a uniform distance of 5-15 cm.
• Begin the spraying procedure outside the target area.
• Move the spray gun evenly crosswise or up-and-down, depending on the spray pattern setting.

An even surface quality is achieved when the paths overlap by 4-5 cm.

• Avoid interruptions inside the target area.

An even movement of the spray gun results in an even surface quality.

Non-uniform clearance and spray angle lead to heavy formation of paint mist and thus to an uneven surface.

• End the spraying procedure outside the target area.

Never spray the container completely empty.

When the suction tube no longer immerses in the spray material, the spray jet will break off, resulting in a non-uniform surface.

When coating material builds up on the nozzle and air cap, clean both parts with the corresponding solvent.

Adjusting the Spray Pattern (see figure F)

• Never actuate the trigger switch 9 while adjusting the air cap 2.
• Loosen the union nut 3.
• Turn the air cap 2 to the requested position.
• Firmly retighten the union nut.

Air cap Jet

Application

A

Vertical flat jet for horizontal working direction

B

Horizontal flat jet for vertical working direction

Round jet for corners, edges and hard to reach locations

Adjusting the Spraying Capacity (see figure G)

• To adjust the requested spraying capacity, turn the thumbwheel 5: I: Min. spraying capacity, III: Max. spraying capacity.

Spraying capacity

Adjustment

Too much material on target area:

The spraying capacity must be reduced.

• Turn the thumbwheel 5 in direction I.

Not enough material on target area:

The spraying capacity must be increased.

Turn the thumbwheel 5 in direction III.

Adjusting the Air Flow (see figure H)

• Turn control knob 16 to adjust the air flow and the pressure for the spray material being used.

Minimal air flow

Maximum air flow

It is recommended to start with the maximum air flow.

Air Flow

Adjustment

Too much fog of coating material:

The air flow must be reduced.

• Turn control knob 16 toward the left.

Atomisation too coarse:

The air flow must be increased.

• Turn control knob 16 toward the right.

Transport

The filled spray gun or a closed container with spray material can be placed in the set-down port 17 for transport. The holding fixture retains the spray gun firmly in the set-down port. Spray material cannot run out.

• Place down the spray gun on the set-down port and push in against the resistance until tightly seated.

English | 25

Maintenance and Service

Maintenance and Cleaning

Before any work on the machine itself, pull the mains plug.

Cleaning (see figures I-K)

Proper cleaning is the requirement for flawless operation of the spray gun. Improper or lack of cleaning voids warranty claims.

Always clean the spray gun and the container with the respective diluting agent (paint thinner or water) for the spray material being used.

Never immerse the complete spray gun into the cleaning agent.

Never clean the nozzle and air holes of the spray gun with pointed metal objects.

Do not pour diluted spray material back into the original spray material drum/tin for storage.

Clean the spray gun thoroughly after having sprayed material hazardous to one's health.

• Switch the base unit off and pull the trigger switch 9 of the spray gun so that the spray material can flow back into the container.
• Unscrew the container 8 and empty the remaining spray material.
• Fill diluting agent (paint thinner or water) into the container and screw it to the spray gun.
• Shake the spray gun several times.
• Switch the base unit on and spray the diluting agent into an empty material tin.
• Repeat the last three steps until clear diluting agent emerges from the spray gun.
• Switch the base unit off again.
• Completely empty the container 8.
• Check if the suction tube with the container seal 10 is free of spray material and undamaged.
• Clean the outside of the container and the spray gun with a cloth moistened in paint thinner.
• Unscrew the union nut 3 and the air cap 2.
• Clean the nozzle 11 and the nozzle needle with diluting agent.

From time to time, the nozzle seal 12 must also be cleaned.

• Remove the nozzle 11 and the nozzle seal 12. If required, use a pointed object, as the nozzle seal is seated firmly to the spray gun.
• Clean the nozzle seal with diluting agent.
• Reinstall the nozzle seal in the spray gun. Pay attention that the groove points away from the spray gun.
• Mount the nozzle onto the spray gun body and turn it to the correct position.
• Mount the air cap 2 onto the nozzle and tighten with the union nut 3.

Changing the Air Filter (see figure L)

The air filter must be replaced when soiled.

• Remove the air filter cover 21.
• Change the air filter.
• Remount the air filter cover.

Material Disposal

Diluting agent and remainders of spray material must be disposed of in an environmentally-friendly manner. Observe the manufacturer's disposal information and the local regulations for disposal of hazardous waste.

Chemicals harmful to the environment may not be disposed of into soil, groundwater or bodies of water. Never pour chemicals harmful to the environment into the sewerage system!

Correction of Malfunctions

Problem	Cause	Corrective Measure
Spray material does not cover properly	Spraying capacity too low	Turning the thumbwheel 5 in direction III
	Clearance to target area too large	Reduce spray distance
	Not enough spray material on target area, too few spray paths sprayed over target area	Apply more spray paths over target area
	Spray material too viscous	Thin down the spray material by 10% again and carry out a test-spray run
Spray material runs off after coating	Too much spray material applied	Turning the thumbwheel 5 in direction I
	Clearance to target area too close	Increase spray distance
	Viscosity of spray material too low	Add original spray material
	Spray material applied too often over same spot	Remove spray material; reduce number of spray paths over same spot
Atomisation too course	Spraying capacity too high	Turning the thumbwheel 5 in direction I
	Air flow too low	Turn control knob 16 toward the right
	Nozzle 11 soiled	Clean nozzle
	Too little pressure build-up in container 8	Screw container firmly against spray gun
	Spray material too viscous	Thin down the spray material by 10% again and carry out a test-spray run
	Air filter heavily soiled	Changing the Air Filter
Too much fog of coating material	Too much spray material applied	Turning the thumbwheel 5 in direction I
	Clearance to spray surface too large	Reduce spray distance
	Viscosity of spray material too low	Reduce air flow; turn control knob 16 toward the left

Problem	Cause	Corrective Measure
Spray jet pulsates	Not enough spray material in container	Refill spray material
	Venting hole on suction tube 10 clogged	Clean suction tube and hole
	Air filter heavily soiled	Changing the Air Filter
	Spray material too viscous	Thin down the spray material by 10% again and carry out a test-spray run
Spray material drips from the nozzle	Build-up of spray material on nozzle 11 and air cap 2	Clean nozzle and air cap
	Nozzle 11 worn	Replace nozzle
	Nozzle 11 loose	Tighten union nut 3
No spray material emerges from the nozzle	Control knob 16 for air-flow control turned too far to the left	Turn control knob 16 toward the right
	No pressure build-up in container 8	Screw container firmly against spray gun
	Suction tube 10 loose	Insert suction tube properly
	Nozzle 11 clogged	Clean nozzle
	Suction tube 10 clogged	Clean suction tube
	Venting hole on suction tube 10 clogged	Clean suction tube and hole
	Spray material too viscous	Thin down the spray material by 10% again and carry out a test-spray run

Maintenance

If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

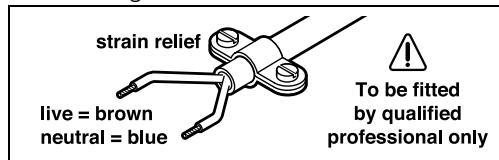

WARNING! Important instructions for connecting a new 3-pin plug to the 2-wire cable.

The wires in the cable are coloured according to the following code:

Do not connect the blue or brown wire to the earth terminal of the plug.

Important: If for any reason the moulded plug is removed from the cable of this power tool, it must be disposed of safely.

28 | English

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

1609929L50|(12.2.08)

Disposal

Spray gun, base unit, accessories and packaging should be sorted for environmental-friendly recycling.

The plastic components are labelled for categorized recycling.

Only for EC countries:

Do not dispose of power tools into household waste! According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national

right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Robert Bosch (France) S.A.S.

Robert Bosch GmbH, Dept. PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider

Dr. Eckerhard Strötgen

Senior Vice President

Head of Product

Engineering

Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Assembly

Robert Bosch GmbH, Dept. PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider

Dr. Eckerhard Strötgen

Senior Vice President

Head of Product

Engineering

Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Assembly

• Before any work on the power tool, pull the mains plug out of the socket.

Dr. Egbert Schneider Dr. Eckerhard Ströttgen Senior Vice President Head of Product Engineering Certification

ppa. Mee

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Mounting

Robert Bosch GmbH, Dept. PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Mounting

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Maee i.v. Nogcu

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Pull the plug out of the mains socket before carrying out any work on the power tool.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Noise and vibration information

The noise and vibration values have been determined in accordance with EN 60745.

The typical A-weighted noise level of the power tool is 74 dB(A).

Uncertainty K=1.5 dB.

When working, the noise level may exceed 80 dB(A).

Wear ear protection!

The typical hand-arm vibration value is less than 2.5 m/s².

Greek | 129

Declared vibration values

The numbering of the declared vibration values refers to the illustration of the power tool on the pages with the graphics.

1 609 92A 0L0

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

Paa.

i.v. Moju:

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Euvaipoloynon

ByaTeTo pic ano TnV npizapiv ano onoiadhnoTe epyaia oTo nAektpiko epyaleio.

Tnpoume to 6ikaiwa aalayov.

Eλaδa

Robert Bosch A.E.

Knphioo 162

12131 Tepiotepi-Ahva

Tel.: [phone] KENTPO

Tel.: [phone] - 83 KENTPO

Fax: [phone]

Fax: [phone]

www.bosch.gr

ABZ Service A.E.

Tel.: [phone] - 378 SERVICE

Fax: [phone]

Bosch Power Tools

1609929L50|(12.2.08)

Dr. Egbert Schneider Dr. Eckerhard Ströttgen Senior Vice President Head of Product Engineering Certification

ppa. Maee i.v. Nogcu

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montaj

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Müsteri Danismani: [phone]

Müsteri Servis Hatti: [phone]

1609929L50|（12.2.08)

Bosch Power Tools

Polski | 149

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

1609929L50|（12.2.08)

Bosch Power Tools

Polski | 153

Montaž

Robert Bosch Sp. z o.o.

Dr. Egbert Schneider Dr. Eckerhard Ströttgen Senior Vice President Head of Product Engineering Certification

ppa. 11. i.v. uogcu

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montáž

Always pull the plug out of the socket before carrying out any work on the power tool.

Bosch Service Center PT

K Vapence 1621/16

692 01 Mikulov

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch.cz

Slovak | 171

General warnings and safety instructions

CAUTION

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Maaee i.v. Nooey

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

a) Do not work with a power tool with a defective switch. A power tool that cannot be switched on or off is dangerous and must be repaired.

Russian | 195

b) Store unused

Power tools must be kept out of reach of children. Do not allow persons unfamiliar with these instructions to use the tool.

Power tools are dangerous in the hands of untrained users.

Explosive atmosphere.

Do not place near sources of

Ignition, such as, static

Electric sparks, open flames

or glowing embers, motors,

objects, moving parts, cigarettes, and sparks from

Material Safety Data Sheets

Do not spread materials, danger

whose properties are unknown. Unknown

materials can create hazardous conditions.

Use appropriate

personal protective equipment, such as

protective gloves

and protective clothing or respiratory

protection when working with chemicals.

Use of

protective equipment for the corresponding

conditions reduces the possibility of exposure

to hazardous substances.

Do not direct the spray stream at yourself, other people, or animals.

Keep away from the spray stream.

If the skin is punctured,

seek medical attention immediately. The jet can

puncture the skin even through gloves.

It can inject a spreading substance into you. Do not treat such an injection as a simple skin wound. The high-pressure jet can inject toxic substances and lead to serious injuries. In case of injection through the skin, seek medical help immediately. Consider possible hazards arising from the substance being sprayed. Consider the labeling on the containers for information about the substance being sprayed, including the requirement for wearing personal protective equipment. Follow the manufacturer's instructions to reduce the risk of injuries caused by fire, flames, corrosion, etc. Use only the nozzle sets specified by the manufacturer. Never work with the sprayer without the installed nozzle guard. Using a specially designed nozzle set with the appropriate nozzle guard reduces the likelihood of jet punctures and injections of poison. Be careful when cleaning and changing nozzle sets. If the nozzle set becomes clogged during spraying, before removing the nozzle for cleaning, follow the manufacturer's instructions for de-energizing the tool and releasing pressure. Under high pressure, liquids can puncture the skin and inject poison into the body, leading to serious injuries. Keep the power cord and trigger switch of the spray gun away from paint and other liquids. Do not hold the cord by the plug connection. Damaged or tangled cords can cause electric shock.

Consider such an injection as a simple skin wound. High-pressure fluid can inject hazardous substances and lead to serious injuries. In case of injection through the skin, seek medical help immediately. ▸ Consider possible hazards arising from the sprayed substance. Consider the labeling on containers for information about the sprayed substance, including requirements for the use of personal protective equipment. Follow the manufacturer's instructions to reduce the risk of injuries caused by fire, flames, explosions, etc. ▸ Use only manufacturer-specified nozzle sets. Never work with the sprayer without the installed protective nozzle. Using the specified nozzle set with the appropriate protective nozzle reduces the likelihood of high-pressure fluid leaks and injections. Be careful when cleaning and changing nozzle sets. If the nozzle set becomes clogged during spraying, before removing the nozzle for cleaning, follow the manufacturer's instructions for depressurizing the tool and releasing pressure. Under high pressure, liquids can penetrate the skin and inject into the body, leading to serious injuries. ▸ Keep the power cord and trigger switch of the sprayer away from paint and other liquids. Do not hold the cord by the plug connection. Damaged or tangled cords can cause electric shock.

Function description

The numbering of the components corresponds to the illustration on the page with the figures.

1 Spray gun

13 Air cap

15 Base block

2 Air cap ring 3 Trigger 4 Marking for SDS lock 5 Adjustment knob for paint quantity 6 Connection for hose (spray gun) 7 Extension (only for 800 ml cup) 8 Cup for spray material, 800 ml Cup for spray material, 600 ml* 9 Trigger lock 10 Stand with cup seal Green: for 800 ml cup White: for 600 ml* cup 11 Nozzle 12 Nozzle extension 14 SDS lock 16 Handle for switching on/off the air supply 17 Holder for spray gun 18 Connection for container (base block) 19 Handle 20 Compartment for accessories 21 Cover of air filter 22 Cup scale *The accessories shown or described are not included in the standard delivery.

Technical data

Dr. Egbert Schneider Dr. Eckerhard Ströttgen Senior Vice President Head of Product Engineering Certification

ppa. Maee i.v. Nogcu

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Before starting maintenance work on the power tool, disconnect the plug from the mains socket.

Note: The surrounding area must be carefully protected.

Spray mist will contaminate the surroundings. When working in enclosed spaces, all unprotected surfaces may become contaminated.

The surface to be treated must be clean, dry, and free of grease.

• Give such surfaces a rough texture and then clean them of dust.

Diluting the coating material

When diluting, pay attention to the combination of the coating material with the thinner. If the wrong thinner is used, lumps may form that will clog the spray gun.

Coating material

Recommended dilution

Wood preservative, stain, varnish, paint

Undiluted

Degreasing agent, plant protection agent

Undiluted

Dilutable

paint coatings,

less than 10%

primers, coatings

automotive paints,

decorative paints for

the rabbit of spray material (see fig. C1-C2)

Before starting maintenance or adjustment of the power tool, unplug it from the power outlet. Remove the cup 8 from the spray gun. Turn the nozzle 10 so that the material can be sprayed without any residue.

Instructions for use

Spraying (see fig. D-E)

Note: When using the power tool outdoors, take into account the direction of the wind.

• First, perform a test spray and adjust the spray pattern and material flow. (The adjustment values are given in the following sections.)
• Hold the spray gun at a distance of 5 to 15 cm vertically to the surface to be painted. Start spraying and move the gun evenly over the surface. Move the spray gun according to the spray pattern, evenly from side to side or up and down. An even surface quality is achieved by making overlapping passes of 4-5 cm. Do not interrupt the spraying within the area to be painted.

Even movement of the spray gun ensures uniform surface quality.

Uneven distance and angle of spraying lead to the formation of fog and, as a result, to an uneven surface.

Remove the sprayed material from the glass. If the nozzle is not immersed in the sprayed material, the spray is interrupted and an uneven surface occurs.

Remove accumulated sprayed material from the nozzle with the adjusting key.

Adjusting the spray pattern (see Fig. F)

Do not actuate the trigger 9 when adjusting the air cap 2.

• Loosen the knurled nut 3. Turn the air cap 2 to the desired position. Tighten the knurled nut firmly.

Air jet adjustment cap

A

Vertical flat jet

For horizontal spraying

B

Horizontal flat jet

For vertical spraying

Kpyraa CtpyA DnayrAOB, KpOMOK INTpyaHOOCTYINbIX MecT

Round jet for corners, edges and hard-to-reach places

Adjusting the amount of sprayed material (see Fig. G)

Set the adjusting screw 5 to the desired amount of sprayed material: I: minimum amount, III: maximum amount.

Amount of sprayed material

Spraying too little material onto the treated surface:

Adjustment

Reduce the amount of sprayed material.

-Turn the adjusting screw 5 in the direction

Spraying too much material onto the treated surface:

Increase the amount of sprayed material.

-Turn the adjusting screw 5 in the direction III.

Air consumption

Strong fog droplets:

Adjustment

Reduce air consumption.

-Turn the handle 16 clockwise.

Coarse atomization:

Air flow rate.

YI. Forotov, building 14,

620017, Yekaterinburg

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Belarus

ACU YI-18

220064 Minsk, st. Kurchatova, 7

Tel.: [phone]

Fax: [phone]

UTILIZATION

The product is a base unit, accessories and packaging should be sent for ecological recycling of waste.

For sorting of waste for utilization, the details of synthetic materials are marked accordingly.

Only for EC member states:

Do not dispose of electrical tools in household waste!

According to European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE), and its implementation in national law,

electrical tools that have reached the end of their service life must be collected separately and sent for environmentally sound recycling.

We reserve the right to make changes.

Mystery warnings for electric grinders

The numbering of the depicted components follows the illustration of the electric grinder on pages 3 and 4.

1 Spray gun

13 Paint container

15 Base nozzle

2 Paint container lid 3 Locking ring 4 Spray gun trigger 5 Lock for adjusting the spray material quantity 6 Trigger lock (spray gun) 7 Spray gun handle (for containers up to 800 ml) 8 Container for spray material, 800 ml Container for spray material, 600 ml 9 Stirrer 10 Tube with lock for container, green: for containers up to 800 ml, blue: for containers up to 600 ml 11 Nozzle 12 Nozzle lock 14 Trigger lock 16 Rotary knob for switching on/off and for adjusting the spray material quantity 17 Storage for spray gun 18 Socket for hose (base nozzle) 19 Handle 20 Spray gun section 21 Cover of paint container 22 Measuring cup *The illustration and description of the device do not correspond to the standard delivery scope.

Technical data

Mikropo3ПИЮВАьнacnTeMa	PFS 105 E
Товарни homер		3 603 B06 2..
HOM. сpoживаHAпOTужнICTь	Вт	350
ПOTужнICTь пОдчi	r/xВиλ.	150
ПOTужнICTь рОЗПиLEннЯ	Вт	105
ВИтраTN chasy ha 5 M2фapбоВOrO пОКрпTTя	xВиλ.	6
ОБ'ЕМ 6ачka дЯpoЗпriСkyваногOMaTeРiaIaY	мλ	800
ДовжиHA пОВітprЯногОшlaнгA	M	3,4
Bara BiДПОВIДно доEPTA-Procedure01/2003	КГ	4,9

Classification

□/II

Disposal: Follow the product label and the information on the manufacturer's nameplate of your electric grinder. The trade name of some parts may differ.

Information about conformity

We declare under our sole responsibility that the product described in the "Technical" product complies with the following norms or normative documents: EN 60335 in accordance with the provisions of Directives 2004/108/EG, 98/37/EG (until 28.12.2009), 2006/42/EG (from 29.12.2009).

Technical documents at: Robert Bosch GmbH, Dept. PT/ESC, D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Dr. Eckerhard Ströttgen Senior Vice President Head of Product Engineering Certification

ppa. Maee i.v. Nogcu

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

MOUNTING

Before any work on the machine, pull the plug out of the socket.

Connecting the air hose (see figures A1-A2)

Blow out the air hose before connecting it. Remove the protective caps from both ends of the air hose.

Fastening the protective device for wood, oil, and lacquer

Not included

Fastening the protective device for paint

Not included

Lacquer colors that may be sprayed

Minimum

po3uHHKamn a6o BOdoIO, rpyHTOBKn, aBToMOi6iHbHi TOKPbIH IaKi, TOBCTOshaopoBI Ia3ypi

po3uHHnHn

3diHouTe po3piJxKeHHPO3PnCKyBaHoMaTepiAly HaCyTHM UHOM:

Bi3bMitbMpHy cKaHKy 22. - Do6pe nepemiwaTe po3npckyBaHm maTepiA. - 3aIInTe DoCTaTHbO po3πPnCKyBaHOro MaTepiAly y 6aOk dAЯ po3πPnCKyBaHOro MaTepiAly 8. (ДИВ. «3aIINBaHnЯ po3πPnCKyBaHOro MaTepiAly», CTOp. 211)

• Po36aBte po3πpncyBaHm MaTepiA
• po3piJxCyBaueM ha 10%. HApnKkaA:

KpyIaN CTpyMInb AIA KyTIB,KpaIBi BaXKOCTyTHNX MICuB

YkpaIHcbka | 213

HactpoIOBAHH KIAbKOci po3pncyBaHOro MaTepiAly (MnB.Ma. G)

HikoHa He ouHuyTe OTBOPn COIIa I OTBOPn AIOBITpr NiCTOLeTa-PO3PnCKyBaVa RoCTpIMM MeTaeBmN TpeDMeTamn.

He nepelinaBate 3 meto1o 36epiraHnHa p03piJxKeHH p03pncyBaHm MaTePiaA Haa3aD oOpriHaBHorO p03pncyBaHOrO MaTePiaAly.

AyuKe peTeIbHo OuyuYte NiCToIeTpo3PiNcKByauchio Bn BV NKOpNCTOBvBaHnkiAINBi IAA 3DOPOB'po3PiNcKByaHipeOBOHH.

BIMKhitb6a3OBHBy3oIHaTNCHTbHa TepeMnKau 9 NiCTOLeTa-po3PnCKyBaCu,io6 po3PnCKyBaHm MaTepiA MIR PepeTeKTn Ha3aD B 6aQK. Bikpyitb 6aoyk 8 i BnHne 3aHnKn po3npncyBaHoro MaTepiay. - 3aHnIte po3piJxBya (po3uHHNK a6o BDOy) B 6aOk i O6pe pInKpyiTb Noro Do nictoAeTa-p03pncKyBa4. - DekiIbKa pa3iB CTpyCITb NiCToIeTpo3IpiNcKBya. - YbIMKHiTb 6a3OBn By3oI i po3PiuNcKaIte po3piJxJyBaU y IopOxHIO 6aHky 3-πiMaTepiAly.

-Повторів OCTангі TrпДи Heо6xIDHy KIAbKICTb pa3iB, ПOKи 3пICToTe-a-р03пprnСkyBaЧа He BHXOaHTmE Пpo3Opи рo3piJxBuay. 3HOBy BmKHiTb 6a3OBn By3oA. -Повпсгспорхнltьбayok8. IpeBipTe, Hn He MICTNb Tpy6ka DAn 3acMOKtyBaHHaPiINH 3 yUINbHIOBauem 6aUka 10 po3npckyBaHoro MaTepiay iuH He ITOWKoJKeHa BOHa. - Ptoptb 6aok i nictoaeT-po3npckyBauchBHI rAniipkoO, 3Moueho y po3piKyBaui. -BiKpyiTb haknHy raiKy 3 i IOBipraHH KOBnaQOK 2. IpoNCTiTb coNIO 11 i roAnK coNla 3a AOtonOMOrO PO3piJxKyBaA.

Yac BiD yacy Heo6xiaHDoaATKOBO OunuataN yuihOBau cOIIa 12.

• 3. To clean the nozzle, use a pointed object, as the nozzle can become clogged. Clean the nozzle with a brush. Reinstall the nozzle into the spray gun. Be careful that the nozzle is correctly inserted into the spray gun. Place the nozzle on the spray gun and turn it to the correct position. Press the trigger guard 2 onto the nozzle and tighten it with the tightening nut.

Despite careful manufacturing and testing procedures, if the product malfunctions, repair should be carried out by an authorized after-sales service for Bosch power tools.

When making any inquiries or ordering spare parts, please be sure to include the product number and the type designation on the rating plate of the power tool.

After-sales service and customer service

In the after-sales service, you will receive answers to your questions regarding repair and maintenance of your product. You can find spare parts and information about accessories at:

www.bosch-pt.com

Bosch consultants will be happy to help you with questions regarding purchasing, use, and adjustment of products and accessories.

Disposal

The spray gun, battery, accessories, and packaging should be sorted for environmentally friendly recycling.

To improve sorting before recycling, plastic parts are marked with the corresponding symbols.

EU Declaration of Conformity:

The power tool complies with the European Directive 2002/96/EC on waste electrical and electronic equipment and its transposition into national law.

According to national regulations, electrical appliances that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Subject to modifications.

Ukraine

Bouc Cepbic LHeTp EKeTpoHCTpymeHTBBy. KpaHn, 1, 02660, KnIB-60

TeA.: [phone]

TeA.: [phone]

TeA.: [phone]

ΦaKc: [phone]

E-Mail: [e-mail]

Aapeca PeriohaBnHex rapaTniHnHex cepBichix MaIcTepeHb 3a3HaueHa B HaioHaBHomy rapaTniHOMy TaIoHi.

218 | Roman

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montare

Bosch Service Center

Str. Horia Macelariu Nr. 30-34,

013937 Bucureşti

Tel. Service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Tel. Consultanta tehnica: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-romania.ro

Eliminare

CToHocHTte Ca n3MepeHn cbIaHcHO EN 60745.

PaBnIeToAHa3ByKOBOToHaIraHeO6nKHOBeHo e 74 dB(A).HeOpTePeLeHocT K=1,5dB. ITo BpeMe Ha pa6ota paBnIeTo Ha n3AubHnIy mOme Da HAnxBpnn 80 dB(A).

Pa6oTeTe c wymo3aIyuIHTeIa!

ПпебаанITE на рьцete Вибрацио obнковенocа пс-саби ot 2,5 m/s².

232 |Блогарский

H3o6pa3eHH eAeMeHTn

HomepnpaHTo Ha n3o6pa3eHTe Moayn Ce OTHacdOΦnpynte Ha eAekTpOHnCTpymEnTa Ha rpaΦnHTe cTpaHn.

1 Pistol for paint spraying 2 Air membrane 3 Union nut 4 Marking for SDS tool 5 Regulator for the amount of sprayed material 6 Lever for switching the marking (on the spray gun) 7 Ventilation cap (only for 800 ml reservoir) 8 Reservoir for 800 ml, 800 ml Reservoir for 600 ml 9 Drain 10 Suction tube with filter reservoir a green: for 800 ml reservoir b black: for 600 ml reservoir 11 Nozzle 12 Filter nozzle 13 Air marking 14 SDS connection lever 15 Base module 16 Turn the handle for switching on/off and for adjusting the air flow rate 17 Socket for connecting the spray gun 18 Lever for switching the marking (on the base module) 19 Handle 20 Socket for additional accessories 21 Air filter cap 22 Measuring cup

*The illustrations of the accessories or descriptions in the operating instructions for additional accessories are not included in the scope of delivery.

Technical data

Систema за Финогаразпрыквае	PFS 105 E
Катохен Homep		3 603 B06 2..
НомнаннаюWA	W	350
КонсуmpраноМошноCT
Прoinьковские на засмунке	g/min	150
Прoinьковские на разимьке	W	105
Вреем за покр��ны на 5 m² с 6сяя	min	6
Обем на pezerервобая за 6сяя	ml	800
Дыжina на на маркуа за Вьздух	m	3,4
Маça сълacrnoEPTA-Procedure01/2003	kg	4,9

Classification

□/II

Please read the type and article number of your power tool from the nameplate. The trade names of individual power tools may vary.

Declaration of conformity

CE

We declare under our sole responsibility that the product described in "Technical Data" complies with the following standards or normative documents: EN 60335 according to the provisions of Directives 2004/108/EG, 98/37/EG (until 28.12.2009), 2006/42/EG (from 29.12.2009).

Technical file at: Robert Bosch GmbH, Dept. PT/ESC, D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Dr. Eckerhard Ströttgen Senior Vice President Head of Product Engineering Certification

ppa. Maee i.v. Nogcu

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Bulgarian | 233

Mounting

This device is designed for professional use only. Keep it away from children.

Connecting the air hose (Fig. A1-A2)

Remove the air hose from the storage compartment. Slide the quick-connect fittings onto both ends of the air hose.

Connecting to the spray gun:

• Insert the male connector with SDS coupling into the spray gun's inlet, aligning it with the marking on the connector.
• Tighten the SDS coupling until the locking mechanism engages.

Connecting to the base unit:

Insert the second SDS coupling of the hose into the base unit's inlet, aligning it with the marking on the connector. Tighten the SDS coupling until the locking mechanism engages.

Note: Keep the connectors clean and close them with the caps to prevent clogging.

Operation

Preparation for operation

Do not spray near the edge of the water tank or into water.

When using paint or other spray materials, pay attention to the viscosity and the nozzle.

Preparing the surface for spraying

Note: Clean the surface thoroughly and dry it before spraying.

Place the device near the spraying zone. When working in an enclosed area, it is possible for the spray to cover nearby surfaces.

Never press the trigger 9 until you have adjusted the air membrane 2.

• Unscrew the hose cap 3.
• Close the air membrane 2 in the housing.
• Tighten the hose cap again.

Press a lot of material onto the spraying surface:

Adjustment

Press more material onto the spraying surface:

The quantity must be increased.

Close the regulator valve 5.

Adjusting the air flow (see Figure H)

• To adjust the air flow to the spraying pressure, turn the knob 16.

Миниме leiEN ДeбiT

MaKсиmaLEH ДeбiT

First, set the maximum air flow.

Air flow

High-pressure system:

Procedure for paint spraying:

Adjustment

The sound level must be set first.

-Press the switch to increase the volume.

The sound level must be increased.

-Press the switch to decrease the volume.

Transport

Before transporting, ensure that the fuel tank is empty and the engine is turned off. Secure the spray gun in its holder to prevent damage. Be careful of the risk of tipping.

• Place the spray gun in its holder and press it until it is securely locked.

Maintenance and service

Cleaning

● Perform cleaning of the device and its accessories after each use. Use a soft cloth for storage.

Lubrication (see figure I-K)

Proper lubrication is a prerequisite for trouble-free operation of the spray gun. If the spray gun is not lubricated or is not lubricated properly, warranty claims will not be accepted.

Before cleaning the spray gun, remove the pressure from the reservoir (solvent container) for spraying.

Never immerse the entire spray gun in the solvent.

Never clean the openings of the spray gun and the air vent with sharp metal objects.

When cleaning, do not exceed the permitted pressure value in the reverse direction.

If you are a professional, take extra care when cleaning the spray gun.

Disconnect the main power supply of the spray gun so that the set value can be returned to the reverse reservoir. - Open the reservoir 8 and pour out the remaining liquid in it. Then clean the reservoir with solvent (thinner) and wipe the spray gun. Rinse the spray gun several times. Turn on the main power and spray the solvent at different angles of 60°. Repeat the last three steps until the spray gun starts to spray clean solvent. Disconnect the main power. - Fill the reservoir 8 completely. - Make sure that the suction tube 10 of the reservoir has enough material left. Clean the spray gun for spraying with a cloth soaked in solvent. - Open the adjusting knob 3 and the air membrane 2. - Clean the nozzle 11 and the nozzle needle with solvent.

Replacing the air filter (see fig. L)

When the air filter is clogged, it must be replaced.

• Remove the cover of the air filter 21.
• Replace the air filter. Reinstall the cover of the air filter.

Disposal of used materials

The solvent and the remaining paint material must not be disposed of in the sewer system.

The cleaning solvent must not penetrate into the soil, groundwater, or open water basins. Never dispose of cleaning solvent in the household sewage system!

Right to make changes reserved.

General Power Tool Safety Warnings

WARNING Read all safety warnings and instructions, as well as

the safety data sheets and warning labels on the packaging of paints and solvents. Failure to follow the safety warnings and instructions could result in electric shock, fire, and/or serious injury.

Save all safety warnings and instructions for future reference.

In the following text, the term "power tool" refers to power tools that are connected to the mains (with a power cord) and power tools that are powered by a rechargeable battery (without a power cord).

1) Work area safety

a) Keep children and other persons away from the work area while using the power tool. Distractions can cause you to lose control of the device.

2) Electrical safety

a) The plug of the power tool must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock. b) Keep the device away from rain or moisture. Water entering a power tool will increase the risk of electric shock. c) Do not use the cord for carrying, hanging, or unplugging the power tool. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.

d) If operating the power tool outdoors, use only an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. e) If operating the power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

Assembly

Pull the mains plug out of the socket before carrying out any work on the power tool.

Assembly

Assembly

Pull the mains plug out of the socket before carrying out any work on the power tool.

General safety instructions

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Maae i.v. Nogcu

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Before any work on the power tool, pull the mains plug out of the socket.

Robert Bosch GmbH, Dept. PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider

Dr. Eckerhard Strötgen

Senior Vice President

Head of Product

Engineering

Certification

06.02.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montavimas
