HT6010 - Hand tool BLAUPUNKT - Free user manual and instructions

Product Type	Hedge Trimmer
Brand	Blaupunkt
Model	HT6010
Power Source	Mains powered (corded)
Voltage	230 V ~ 50 Hz
Blade Length	550 mm
Max Cutting Thickness	20 mm
No-Load Speed	1700 /min
Sound Pressure Level (LpA)	85.00 dB(A)
Measured Sound Power Level (LwA)	95.60 dB(A)
Guaranteed Sound Power Level (LwA)	99.00 dB(A)
Vibration Level (Upper Limbs)	3.646 m/s², K=1.5 m/s²
Safety Features	Dual switch (front and rear handles), hand guard, blade brake
Intended Use	Home gardening: trimming hedges and decorative shrubs
Maintenance	Lubricate blades after each use; clean blades regularly
Cleaning	Clean blades after each use; keep handles dry and free of oil/grease
Accessories Included	Hand guard
Weight	Approx. 3.5 kg (estimated)
Certification	CE, EU Declaration of Conformity (2014/30/EU, 2014/35/EU, 2006/42/EC, 2011/65/EU)

Frequently Asked Questions - HT6010 BLAUPUNKT

How do I turn on the hedge trimmer?

Press simultaneously the power switch on the front handle (3) and the power switch on the rear handle (1). The trimmer will start.

What should I do if the blades jam?

Release both switches to turn off the trimmer, unplug it from the power source, then carefully remove the jammed material using gloves.

Can I use this hedge trimmer in the rain?

No. The device is not waterproof. Do not expose it to rain or humid conditions to avoid electric shock.

What type of oil should I use for blade lubrication?

Use maintenance oil, thin general purpose lubricating oil, or special spray cleaning and lubricating agents. Do not use solid grease.

Is the hedge trimmer suitable for cutting thick branches?

No. The maximum cutting thickness is 20 mm. For branches thicker than that, use secateurs first.

What personal protective equipment should I wear?

Wear safety glasses (EN166), protective gloves, ear protection, non-slip footwear, long trousers, and a protective mask if necessary.

How often should I take breaks while using the trimmer?

After every 15 minutes of work, take a 15-minute break to reduce fatigue and vibration exposure.

What should I do if the power cord is damaged?

Immediately unplug the device. Do not use it. Have the cord replaced by a professional service center to avoid electric shock.

Can I use an extension cord with this hedge trimmer?

Yes, but use a waterproof extension cord rated for outdoor use. Ensure the total power consumption does not exceed the cord's rating. Minimum conductor cross-section: 1.5 mm² for cables under 20 m, 2.5 mm² for 20-50 m.

How do I clean the blades after use?

Unplug the trimmer. Remove debris with a brush or cloth. Clean blades with a damp cloth if needed, then dry and apply light lubrication.

USER MANUAL HT6010 BLAUPUNKT

Blue and red hatched tool with a long metal rod extending diagonally (no text or symbols visible)

Enjoy it.

НОЖИЦА ЗА ЖИВ ПЛЕТ

NOŽNICE NA ŽIVÝ PLOT

ΨΑΛΙΔΙ ΜΠΟΡΝΤΟΥΡΑΣ

HEKIKÄÄRID

ŠKARE ZA ŽIVICU

DZÍVŽOGU ŠKĚRES

NOŻYCE DO ŻYWOPŁOTU

HEDGE TRIMMER

ŠKARJE ZA ŽIVO MEJO

GYVATVORIŲ ŽIRKLĖS

NÜŽKY NA ŽIVÝ PLOT

SÖVÉNYNYÍRÓ

FOARFECĂ DE TUNS GARDUL VIU

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.
• The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.
  • Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.
• Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Keep your workplace tidy and well lit.

• Disorder and insufficient lighting lead to accidents.

- Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.

- A moment of carelessness may cause losing control of your tool.

- If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.

- Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.

- Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.

- Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.

- Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating

part of the power tool may cause personal injury.

• Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.
• Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.
• Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.
• Ensure that the vents are free from debris.
• The device may only be used in a dry, well-lit environment.
  • This tool should not be used by anyone under the age of 16.

Electrical safety

Connect the device only to an electrical supply of characteristics in accordance with the information on the data plate.

The power tool plugs must match the power sockets. Never alter the power cord plug in any way. Unmodified plugs and suitable electrical sockets reduce the risk of an electric shock. Avoid touching grounded or shorted to ground surfaces such as piping, radiators, radiators and refrigerators. If parts that are grounded or shorted to ground are touched, the risk of electric shock increases.

Do not expose electric devices to rain or humid conditions. If water enters the power tool, the risk of an electric shock increases.

Do not tighten the connection cables. Never use the connection cable to carry, pull electrical equipment or pull the

plug out of the socket. Keep the connection cable away from heat sources, oils, sharp edges or moving parts. Damaged or entangled connection cables increase the risk of an electric shock.

Before starting the work, check the power cord before starting the work. Do not operate if the power cord or extension cord is abraded, cut or otherwise damaged. If the power cord is damaged during use, switch off the device and unplug it from the socket.

If the power tool is used outdoors, the connection cables should be extended with waterproof extension cords designed to operate outdoors. Using such an extension cord reduces the risk of an electric shock. The cross-section area of the extension cord conductors should be at least 1.5 mm when the length of the cable is less than 20 m, and if the length of the cable is between 20 and 50 m, the minimum cross-section is 2.5 mm. ² A residual current protection device (RCD) must be used as protection against shock from the supply voltage. Using the RCD reduces the risk of electric shock. The equipment should be supplied through an RCD with a rated current not exceeding 30 mA.

General information

The device is intended for house gardening use only as described and protected by these instructions for use After switching off the trimmer, the string/blade rotates for some time. Wait until the motor and the string/blade completely stop before restarting the device.

Do not turn the trimmer on or off at short intervals.

The operator of the trimmer should wear proper footwear with non-slip soles and long trousers to protect the legs. Do not work barefoot or in flip-flops, sandals.

Always use the trimmer holding it with both hands.

Operate the device only during the day or in good artificial lighting.

	Read the user manual.		Use ear protection
			Wear protective glovesGeneral warning
	Fire hazard		Wear protective clothing
	Electric shock hazard		Wear a protective mask
	Wear safety glasses		Wear respiratory protection

SYMBOLS

• The following symbols may appear in the operating instructions or on the tool's nameplate.
  • These signs contain important information about the product and instructions on how to use it.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Intended use:

The garden tool is intended for home use for trimming and cutting hedges and decorative shrubs in gardens. Do not use the trimmer for cutting branches with the thickness of more than 20 mm.

Before starting the device:

1. The cutting elements should always be free of dirt. Clean the blades after each use.
2. Clean blades correctly interoperate with each other and reduce the risk of jamming on the cut plants.
3. Keep the cutting element away from the body and the power cord when cutting. The device can easily cut off fingers or cut objects which gen in between the blades.

4. Do not remove jammed material while the blades are operating. Before removing the jammed material, make sure that the device cannot be accidentally turned on. Although the device is fitted with a safety device against accidental start-up, there is always a risk of turning it on. Therefore, it is necessary to take an additional precaution in the form of removing the plug from the socket.

5. Check the technical condition of the cutting blade before each use. Chipped, bent or otherwise damaged blades create additional danger. In case of any damage to the cutting unit replace it or buy a new device. Using the power tool with a damaged cutting bar is dangerous for the health and life of the operator.

6. When cutting, hold the device only by the front handle and the rear handle as the cutting bar may cut the hidden electrical wires or its power cord.
7. Before starting work, make sure that there are no objects in the hedge that are not part of the plant. - Wires, fence elements and other foreign objects may damage the cutting blades.
8. Carry the hedge trimmer by the front handle and with the motor turned off. When transporting or storing fit the provided guard on the cutting element. - Proper operation of the device reduces the risk of injuries.
9. Do not use the cutting bar as a lever for lifting or moving objects, as well as for shredding plants. - The device has been designed to perform specific activities. The use of the power tool for purposes for which it was not intended creates the possibility of hazardous situations.
10. If the power tool falls or is hit hard, it is recommended to contact a service centre.
11. Do not allow yourself for getting into a rut when using the device often. Getting into a rut may result in ignoring safety principles which may lead to accidents during work.

WEAR PERSONAL PROTECTIVE EQUIPMENT

• Wear safety glasses according to En166
• Use protective masks in accordance with En149
• Use other types of proper personal protective equipment, depending on the type of work involved.

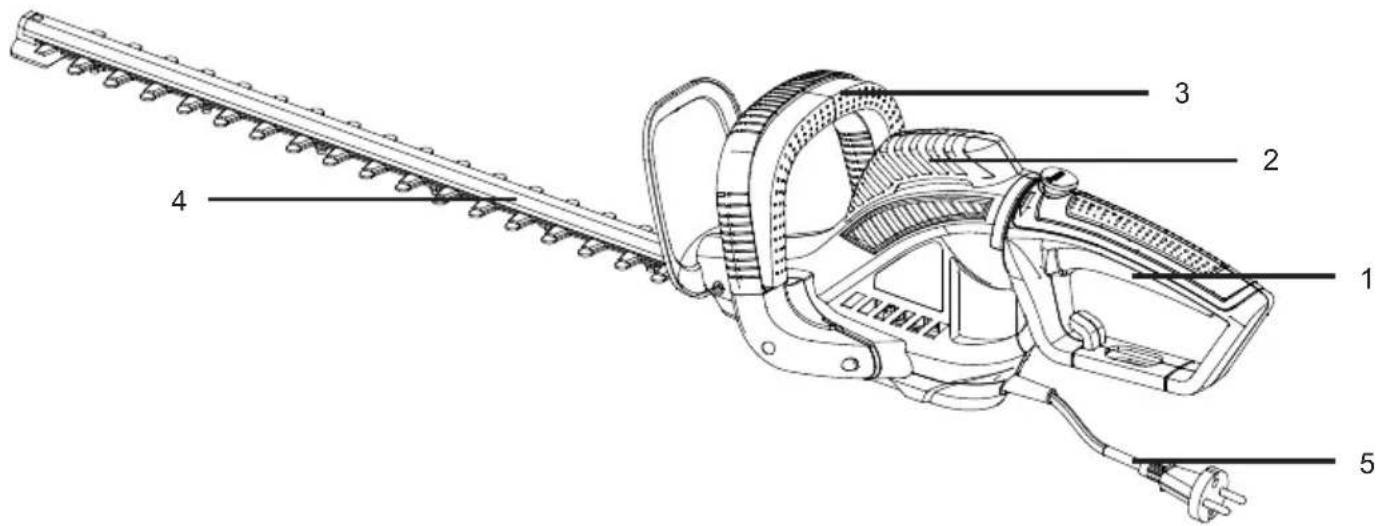

Description of the device

1. Rear handle with power switch
2. Motor housing

3. Front handle with power switch

4. Blade

DEVICE OPERATION

Hand guard.

First, check that the hand guard is correctly installed before starting work. The guard must be firmly installed so that it is not possible to accidentally slide it off the device. To do so, check the tightening

-Turning on:

Press simultaneously the power switch (3) of the front handle and the power switch (1) of the rear handle.

Turning off:

Release any of the power switches (3) or (1). The blade brake will stop the teeth.

Hedge trimming

Select branches with a diameter greater than 20 mm and cut them with secateurs before starting work. It is recommended to start trimming the hedge from the sides. First move the trimmer from the top to the bottom, removing the main shoots of the plants, then correct the lines by moving the trimmer upwards. After trimming the sides of the hedge, you can start trimming its top.

Maintenance.

Do not use solid grease for lubricating the bar. After each use, in addition to cleaning, the cutting blade also requires light lubrication. Use maintenance oil, thin general purpose lubricating oil or special spray cleaning and lubricating agents.

Keep grip surfaces dry, clean, and free of oil and grease.

TECHNICAL DATA:

Speed without load 1700 /min

Max. cutting width: 20 mm

Cutting element length: 550 mm

Noise and vibrations.

The noise and vibrations have been measured in accordance with EN ISO 3744:2010

Noise emission: Sound pressure level (LpA): 85.00 dB (A)

KpA deviation: 3.00 dB (A)

Measured sound power level LwA: 95.60 dB (A)

KwA deviation: 3.00 dB (A)

Guaranteed sound power level: LwA: 99.00 dB (A)

Total vibration value and measurement uncertainty (K)= 1.5 m/s ²

The value of vibrations acting on the upper limbs: 3.646 m / s² , k = 1.50 m / s²

The declared total vibration value has been measured according to the standard test method and can be used to compare

one device to another. The given vibration emission value may be used for the preliminary estimation of the negative impact.

After every 15 minutes of work allow 15 minutes break.

WAŻNE INFORMACJE

POUŽÍVAJTE OSOBNÉ OCHRANNÉ PROSTRIEDKY

EU – DECLARATION OF CONFORMITY

01/2022/HT6010

MANUFACTURER:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

Authorized person to prepare the technical documentation:

Tomasz Jakóbczyk

ul. Puławska 403A

02-801 Warsaw, Poland

We declare under our sole responsibility that our product:

Type of device:

Name:

Hedge trimmer

HT6010

If used for its intended use complies with the essential protection requirements relating to the:

2014/30/EU (EMC Directive)

2014/35/EU (LVD Directive)

2006/42/EC (MD Machinery Directive)

2011/65/EU (RoHS Directive) and its Annex II amending directive 2015/863/EU

The assessment of this product has been based on the following standards:

EMC standards:

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN 55014-1:2017+A1:2020

EN 55014-2:2015

MD and LVD standards:

ISO 12100:2010

EN 62841-1:2015

EN 62841-4-2:2019

EN 62233:2008

RoHS standards:

EN IEC 63000:2018

Warsaw, 15.12.2022

BLAUPUNKT

Blaupunkt Competence Center 2N-Everpol Sp. z o.o.

Registered office:

Puławska 403A

02-801 Warsaw, Poland

Corespondence address:

Puławska 12

05-532 Baniocha, Poland

Phone [phone]

DEKLARACJA ZGODNOŚCI UE

01/2022/HT6010

PRODUCENT:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warszawa, Polska

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

Email:[e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
