USER MANUAL JU 650D MOULINEX

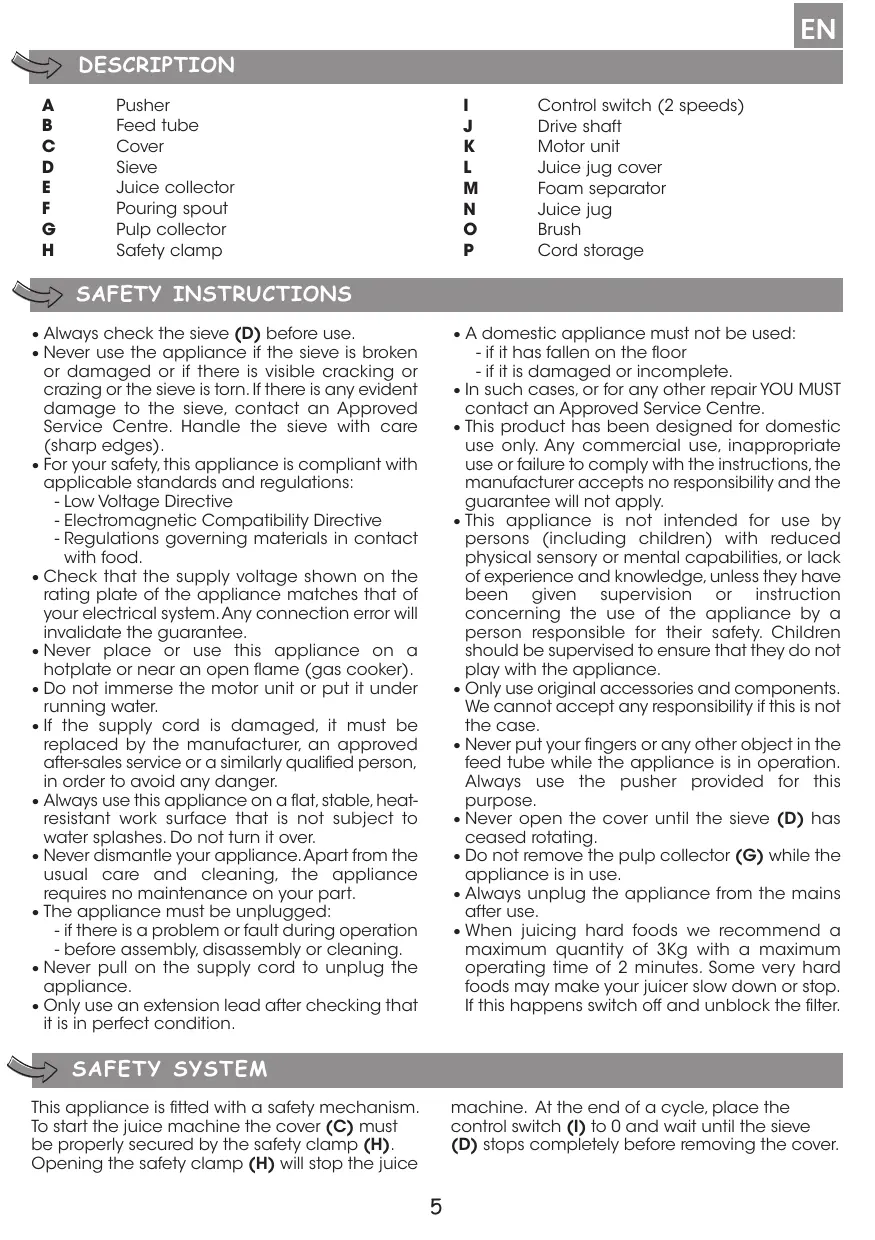

A Pusher
B Feed tube
C Cover
D Sieve
E Juice collector
F Pouring spout
G Pulp collector
H Safety clamp

Control switch (2 speeds)
J Drive shaft
K Motor unit
L Juice jug cover
M Foam separator
N Juice jug
0 Brush
P Cord storage

SAFETY INSTRUCTIONS

• Always check the sieve (D) before use.
• Never use the appliance if the sieve is broken or damaged or if there is visible cracking or crazing or the sieve is torn. If there is any evident damage to the sieve, contact an Approved Service Centre. Handle the sieve with care (sharp edges).

• For your safety, this appliance is compliant with applicable standards and regulations:

• Low Voltage Directive

• Electromagnetic Compatibility Directive

• Regulations governing materials in contact with food.

• Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee.

• Never place or use this appliance on a hotplate or near an open flame (gas cooker).
• Do not immerse the motor unit or put it under running water.
• If the supply cord is damaged, it must be replaced by the manufacturer, an approved after-sales service or a similarly qualified person, in order to avoid any danger.
  Always use this appliance on a flat, stable, heat-resistant work surface that is not subject to water splashes. Do not turn it over.
• Never dismantle your appliance. Apart from the usual care and cleaning, the appliance requires no maintenance on your part.
• The appliance must be unplugged:
• if there is a problem or fault during operation
• before assembly, disassembly or cleaning.
• Never pull on the supply cord to unplug the appliance.

• Only use an extension lead after checking that it is in perfect condition.

• A domestic appliance must not be used:

• if it has fallen on the floor

• if it is damaged or incomplete.

• In such cases, or for any other repair YOU MUST contact an Approved Service Centre.

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Only use original accessories and components. We cannot accept any responsibility if this is not the case.
• Never put your fingers or any other object in the feed tube while the appliance is in operation. Always use the pusher provided for this purpose.
• Never open the cover until the sieve (D) has ceased rotating.
• Do not remove the pulp collector (G) while the appliance is in use.
  Always unplug the appliance from the mains after use.
• When juicing hard foods we recommend a maximum quantity of 3Kg with a maximum operating time of 2 minutes. Some very hard foods may make your juicer slow down or stop. If this happens switch off and unblock the filter.

SAFETY SYSTEM

This appliance is fitted with a safety mechanism. To start the juice machine the cover (C) must be properly secured by the safety clamp (H). Opening the safety clamp (H) will stop the juice

machine. At the end of a cycle, place the control switch (I) to 0 and wait until the sieve (D) stops completely before removing the cover.

• We recommend that you wash all the removable parts (A, C, D, E, G, L, M, N) in warm soapy water (see cleaning §). Rinse and dry them carefully.

• Unpack the appliance and then place it on a flat, stable, heat-resistant work surface.

• Ensure that all packaging has been removed before starting the appliance.

USING THE APPLIANCE

• Fit the juice collector (E) on the drive shaft (J) (see Fig. 1).
• Place the sieve (D) in the juice collector (E). Ensure that the sieve is correctly clipped onto the drive shaft (J). You can hear an audible click (see Fig. 2).
• Fit the cover (C) on the appliance, ejection spout to the rear (see Fig. 3).
• Click the safety clamp (H) into place over the cover (C) (see Fig.4).
• Fit the pulp collector (G) on the rear of the appliance (see Fig. 5).

• Slide the pusher (A) into the feed tube (B), aligning the groove on the pusher with the small ridge in the feed tube.

• If you wish to separate the juice from the froth, slide the foam separator (M) in the juice jug (N) and fit the cover onto the juice jug (see Fig. 6). The foam separator allows you to keep the froth into the juice jug when you pour the juice into a glass.

• Position the juice jug (N) under the pouring spout in front of the appliance as shown on Fig. 7.
• Plug in the appliance. You can use the cord storage (P) to adjust the length of the cord (see Fig. 8).

WHICH SPEED TO USE?

Ingredients	Speed	Approx. weight (in kg)	Quantity of juice obtained in cl (*)
Apples	2	1	65
Pears	2	1	60
Carrots	2	1	60
Cucumbers	1	1 (about 2 cucumbers)	60
Pineapple	2	1	30
Grapes	1	1	45
Tomatoes	1	1,5	90
Celery	2	1,5	35
Uncorrect choice of speed can induce abnormal vibrations of the appliance

• The quality and quantity of juice varies greatly according to the date of harvest and the particular variety of fruits or vegetables. The quantities of juice indicated above are given as an indication.

• Start the appliance using the control switch (1).

• Insert the fruits or vegetables through the feed tube (B).
  The fruits and vegetables must be inserted while the motor is running.

• Do not press too hard on the pusher (A). Do not use any other utensil. NEVER push with your fingers.

• When you have finished, stop the appliance, turning the control switch (I) to 0.

• When the pulp collector (G) is full, or the juice flow slows, empty the pulp collector and clean the sieve.

• Wash the fruits carefully before stoning.

• You do not need to remove the skin or peel. You only need to peel fruits with thick (and bitter) skin: citrus fruits, pineapple (remove the stalk).
• Certain types of apples, pears, tomatoes, etc. will fit in the feed tube whole, thanks to the "Direct Fruit System" (74.5 mm maximum diameter), so choose the appropriate size of fruits or vegetables.
• It is difficult to extract juice from bananas, avocados, blackberries, figs, aubergines and strawberries.

• The appliance should not be used for sugar cane and excessively hard or fibrous fruits.

• Choose fresh, ripe fruits and vegetables, they will yield more juice. This appliance is suitable for such fruits as apples, pears, oranges, grapes, pomegranates and pineapple; for vegetables such as carrots, cucumbers, tomatoes, beetroot and celery.

• If you juice over-ripe fruit, the sieve will be blocked more quickly.
• Important: All juice must be consumed immediately. On contact with air, the juice quickly oxidises which can change the taste, colour and the nutritional value. Apple and pear juices quickly turn brown. Add a few drops of lemon juice to slow this discoloration.

CLEANING AND MAINTENANCE

• All removable parts (A, C, D, G, L, M & N) can be cleaned in the dishwasher except for the juice collector (E). The juice collector (E) must be cleaned straight after use in soapy water.
• This appliance is easier to clean immediately after use.

• Do not use scouring pads, acetone, alcohol (spirit) etc. to clean the appliance.

• The sieve must be handled with care. Avoid any mishandling that may damage it as it will alter the performance. The sieve can be cleaned with the aid of the brush (O). Change your sieve at the first sign of wear or damage.

• Wipe the motor unit down with a damp cloth. Dry carefully.
• Never plunge the motor unit under running water.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK ?

PROBLEM	CAUSES	SOLUTIONS
The appliance does not work.	The plug is not inserted correctly, the control switch (I) is not on speed “1” or “2”.	Plug the appliance into a socket with the correct voltage. Turn the control switch to speed “1” or “2”.
	The cover (C) is not properly secured.	Check that the cover (C) is properly fitted and secured by the safety clamp (H).
The appliance is giving off a smell or is very hot to touch, is making an abnormal noise or smoking.	The sieve (D) is not properly fitted.	Check that the sieve (D) has been fitted properly onto the drive shaft (J).
	The quantity of food being processed is too great.	Leave the appliance to cool down and reduce the quantity of food to be processed.
Juice flow decreases.	The sieve (D) is blocked.	Switch off the appliance, clean the feed tube (B) and the sieve (D).
For any other problem or abnormality, please contact your nearest Approved Service Centre

RECYCLING

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point so that it can be recycled.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

[phone] - Ireland - or consult our website www.moulinex.co.uk
