Brand	Klipsch
Model	Reference Premiere RP-250S
Product type	Surround / side speaker
Dimensions (H x W x D)	33.5 cm x 25.4 cm x 20.3 cm
Weight	8.2 kg
Power type	Passive (requires external amplifier)
Impedance	8 ohms
Power handling (continuous / peak)	100 W / 400 W
Frequency response	58 Hz - 25 kHz (± 3 dB)
Sensitivity	94 dB
Drivers	Tractrix horn tweeter 90° x 90°, 2 x 13.3 cm (5.25") Cerametallic woofers
Key features	Wide surround sound, Tractrix horn for optimal dispersion, lightweight Cerametallic diaphragm
Maintenance and cleaning	Dust with a soft, dry cloth, avoid abrasive products
Safety	Do not expose to moisture, do not block vents, disconnect before cleaning
Spare parts and repairability	Contact Klipsch customer service for spare parts and repairs
General information	Finishes: black wood grain, recommended use as surround channel in a home theater system

Frequently Asked Questions - Reference Premiere RP-250S KLIPSCH

How to connect the RP-250S speaker to an amplifier?

Use standard speaker cables. Connect the red (positive) and black (negative) terminals of the speaker to the corresponding terminals on the amplifier, observing polarity.

What is the impedance of the speaker?

The nominal impedance is 8 ohms, compatible with most home theater amplifiers.

Can I use this speaker as a main speaker?

It is designed for surround channels, but can be used as a side speaker in a 5.1 or 7.1 system. For main speaker use, prefer floor-standing or bookshelf models.

How to clean the speaker?

Use a soft, dry cloth to dust. Never use liquid or abrasive products that could damage the cabinet or drivers.

What is the recommended amplifier power?

An amplifier delivering between 50 and 200 watts per channel is recommended to fully utilize the speaker's performance without risk of distortion.

Is the speaker magnetically shielded?

No, it is not shielded. Avoid placing it near CRT screens (cathode ray tubes) to avoid image distortion.

Can I mount it on a wall?

Yes, the speaker has integrated wall mounts. Consult the manual for mounting instructions and ensure the wall can support the weight.

What is the warranty on this product?

Klipsch generally offers a 5-year warranty from the date of purchase. Check specific conditions with your dealer or on the official website.

How to improve sound quality?

Position the speakers at ear height and aim them towards the listening area. Keep them away from walls to avoid unwanted reflections.

What to do in case of distorted sound?

Check the connections, ensure the amplifier is not clipping (overdriven) and that the power delivered does not exceed the speaker's capacity.

USER MANUAL Reference Premiere RP-250S KLIPSCH

RAK EST. 1946 HOPE, AR

USER MANUAL

Klipsch®

REFERENCE

PREMIERE

$$ \frac{1}{2} = \frac{1}{2}\left( \frac{\ln x}{2} - \frac{\ln y}{2} \right) + \frac{1}{2}\left( \frac{\ln z}{2} - \frac{\ln y}{2} \right) $$

REFERENCE (n):

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference Series.

We are the Keepers of the Sound®.

ENGLISH

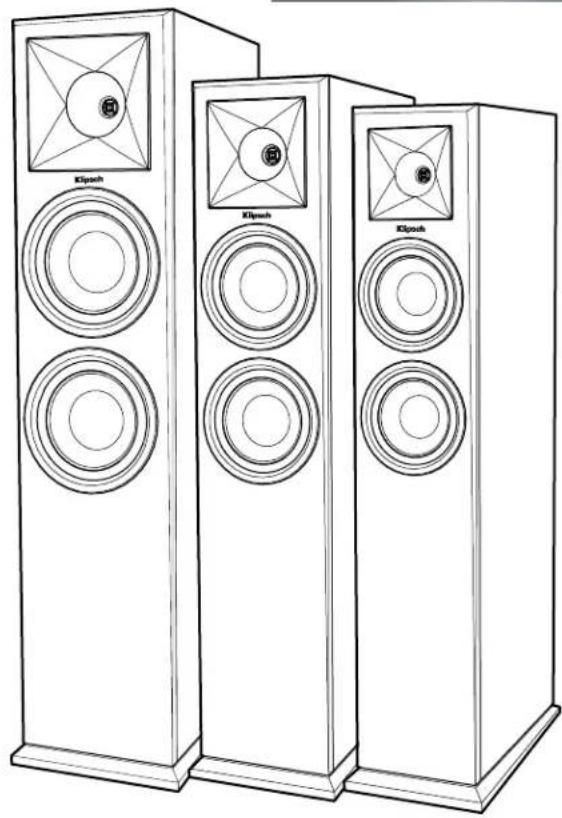

Line drawing of three identical Kiposh speakers with circular speaker holes and matching square tops (no text or symbols)

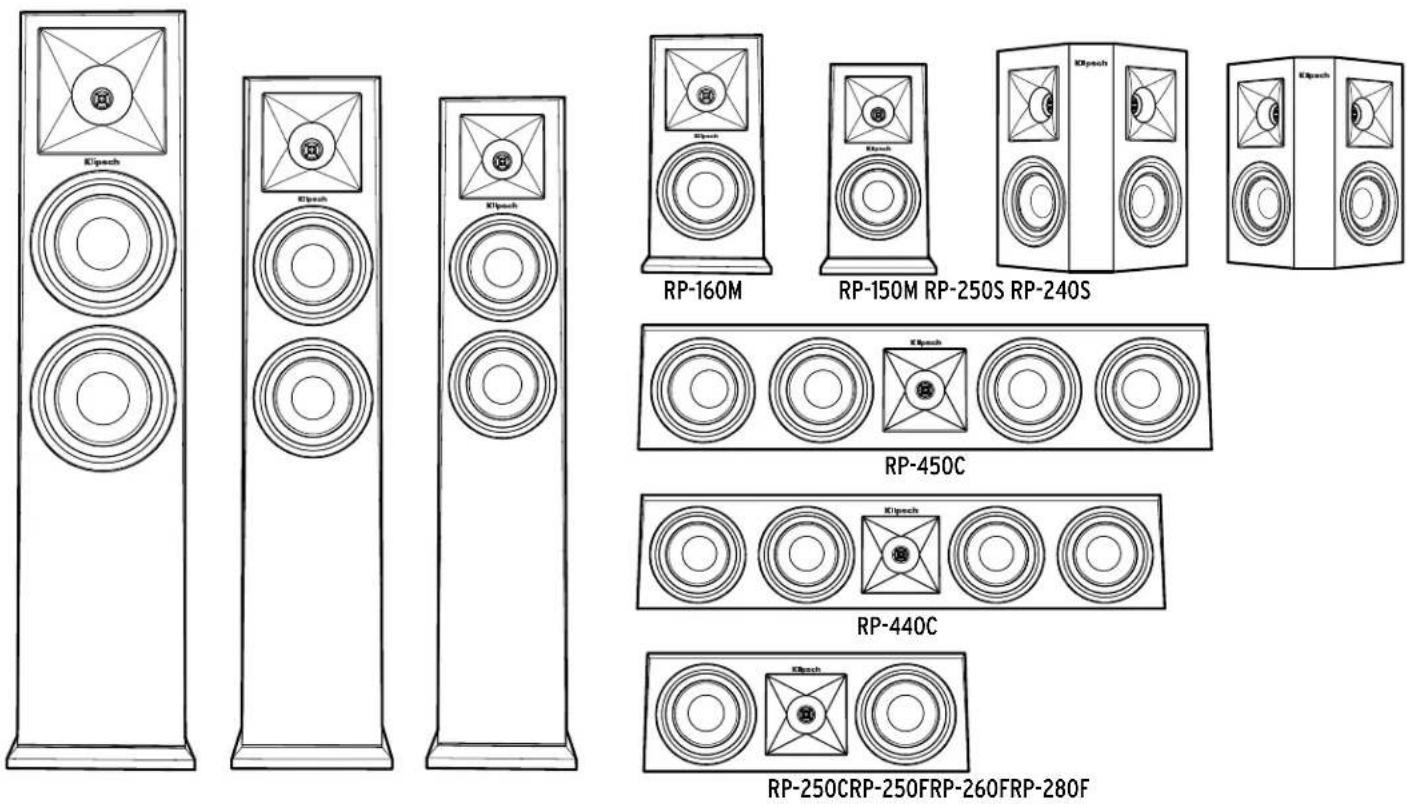

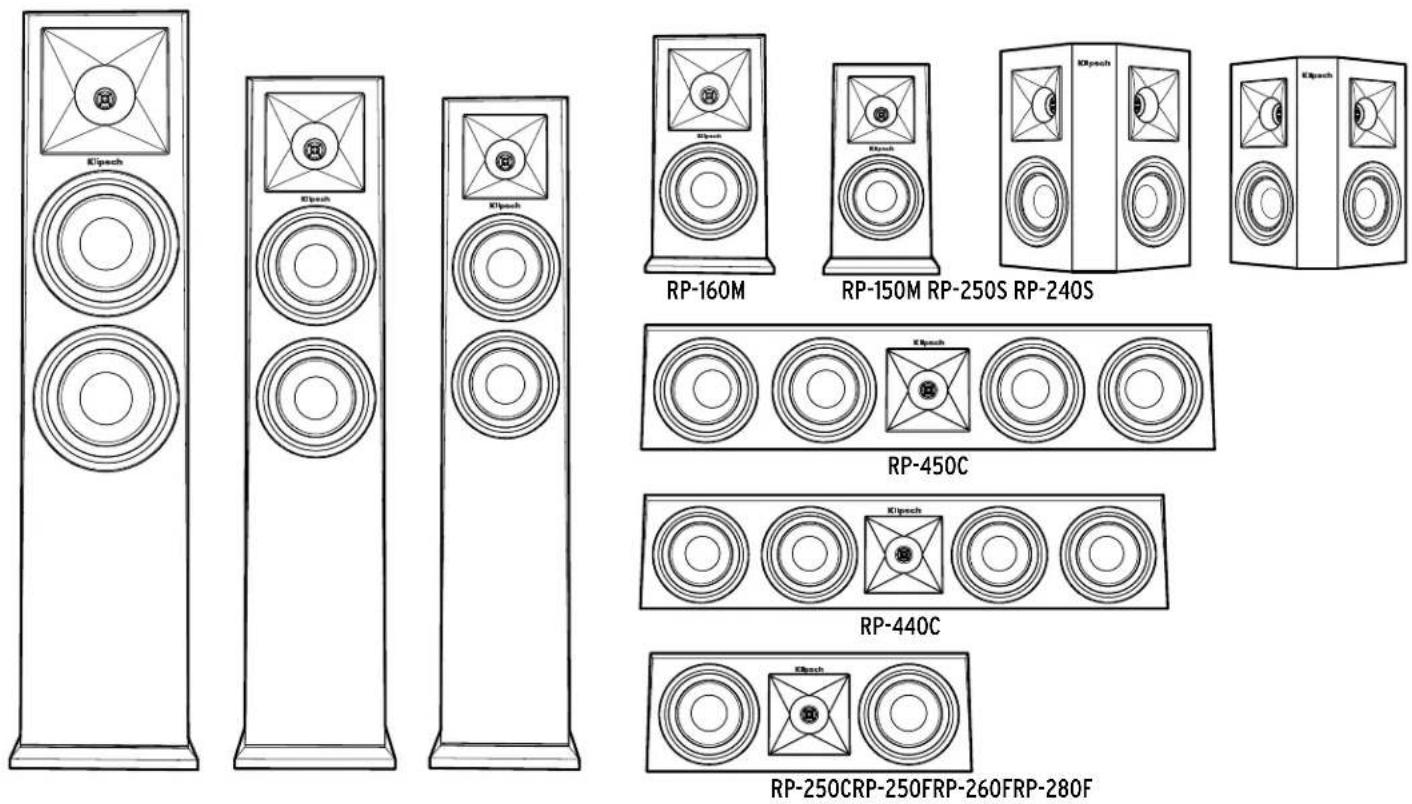

REFERENCE PREMIERE SPEAKERS

BEFORE YOU START

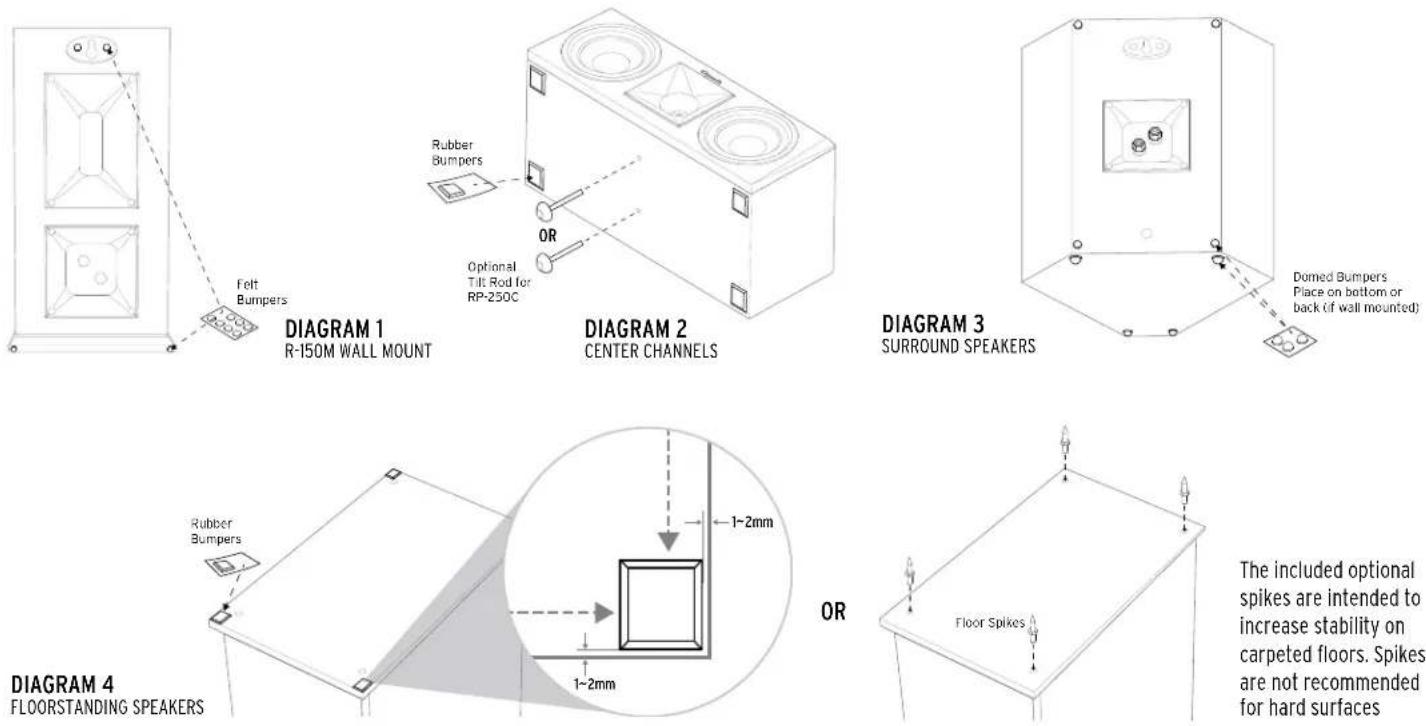

Some Klipsch ^® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation.

ROOM PLACEMENT

Left and Right Main Channel Speakers – For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

Center Channel Speakers – Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers – Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

CONNECTION

Conventional Connection – Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Reference Premiere models RP-280F, RP-260F, RP-250F and RP-160M are equipped with dual binding posts. If single wire connection is used, the terminal connecting bar should remain in place. If Bi-wire or Bi-amp connection is used, the terminal connecting bar must be removed. Please see your receiver's manual for further instructions.

Amplifier Requirements – Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

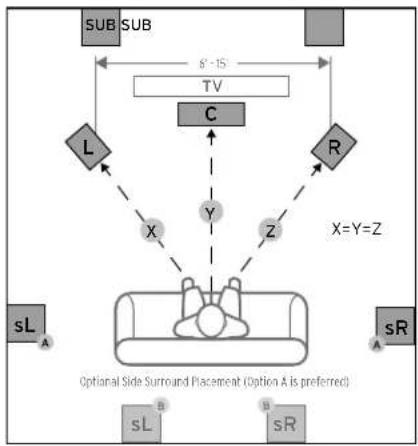

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA


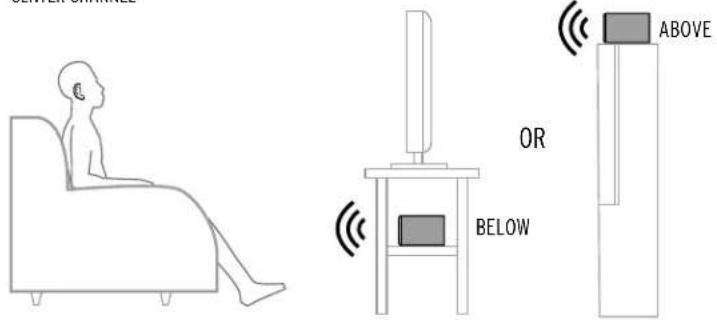

FIGURE 2 CENTER CHANNEL

ABOVE OR BELOW

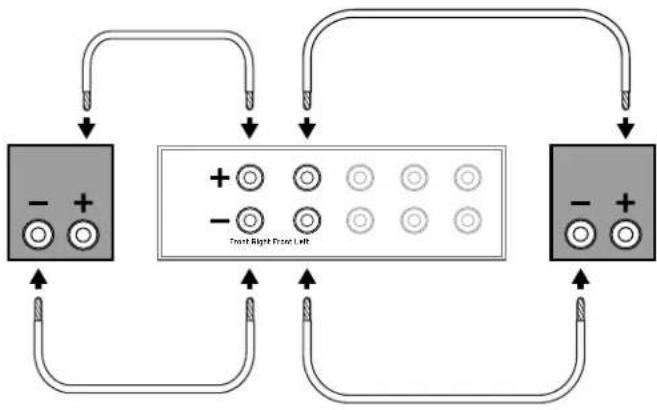

FIGURE 3 STANDARD CONNECTIONS


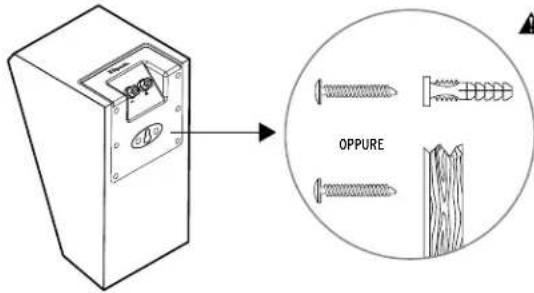

FIGURE 4 WALL MOUNTING

VIA KEYHOLE VIA THREADED INSERT CAUTION! Do not use keyhole for ceiling mounting! #10 2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed 3/8-16 x 0.5" "Wall brackets not included

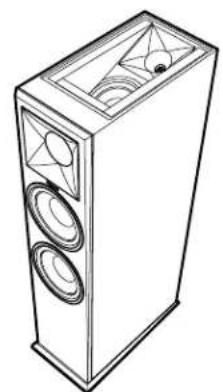

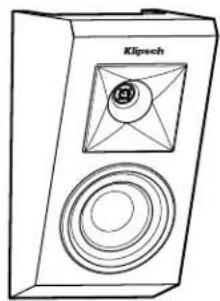

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

Line drawing of a multi-tiered speaker tower with visible sound waves and mounting holes (no text or symbols)

Technical line drawing of a Klipsch speaker with two circular components (no text or symbols)

RP-140SARP-280FA

RP-280FARP-140SARP-140SQ OR OR SUROUND SPEAKER sBRsBLRL sLsR

1 MANDATORY
2 SECONDARY
3 OPTIONAL

SUBSUB TV C L 1 90° - 120° 30° 120° - 150° sL4R 3 sB L 2 2 sB R

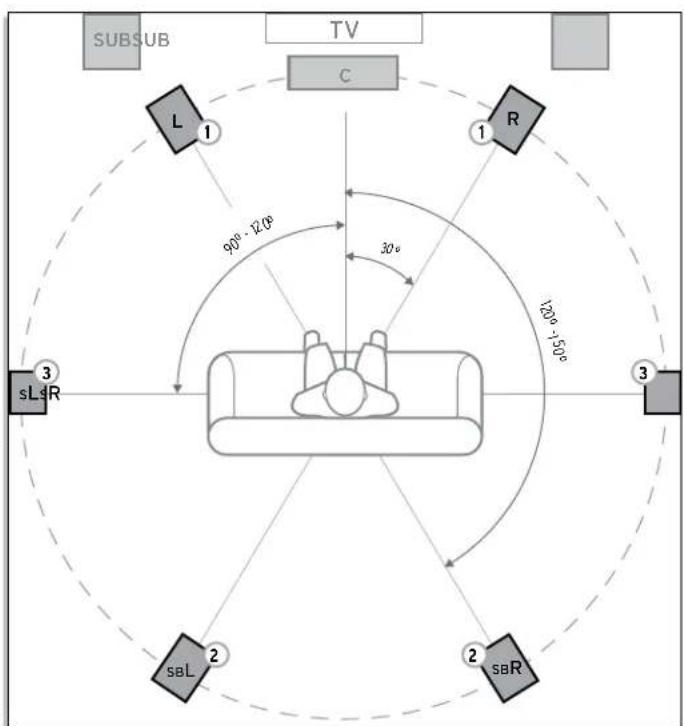

SPEAKER PLACEMENT IN LISTENING AREA

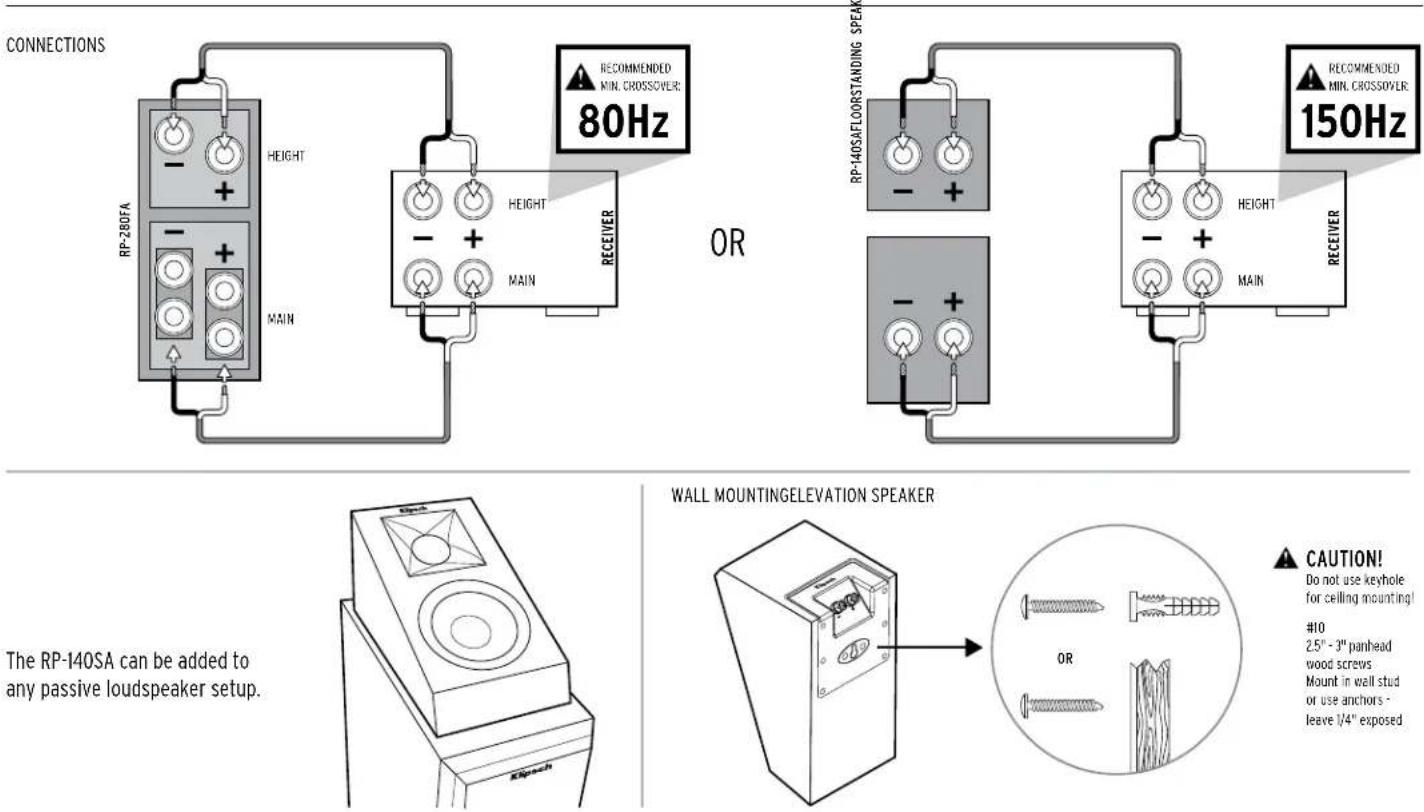

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

The RP-140SA can be added to any passive loudspeaker setup.
CAUTION! Do not use keyhole for ceiling mounting!

10

2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register
- Keep up-to-date on new products and promotions.
- Your personal information will never be resold.
- This registration information is not used for warranty purposes.
Please retain your receipt for warranty claims.

REFERENCE

Line drawing of three identical Kiposh speakers with circular speaker holes and matching square tops (no text or symbols)

ENCEINTES REFERENCE PREMIERE

AVANT DE COMMENCER

Line drawing of a speaker with two circular components, no text or symbols present

MONTAGE MURAL DES ENCEINTES SURROUNDECIENTE D'ÉLÉVATION

Diagram showing a component with screw fasteners and its magnified view of a wooden post with screws, labeled '0U'.

ATTENTION!

We are the Keepers of the Sound ^® .

DEUTSCH

Line drawing of three identical speakers with circular speaker holes and a central logo (no text or symbols on the devices themselves)

REFERENCE PREMIERE-LAUTSPRECHER

ERSTE SCHRITTE

Line drawing of a speaker tower with two circular speakers and a star-shaped logo on top (no text or symbols)

Diagram showing a device with screw fasteners and a magnified view of ODER (overwood) components.

VORSICHT!

Verwenden Sie das

Line drawing of three identical speakers with circular speaker holes and a logo on top (no text or symbols on the devices themselves)

ALTAVOCES REFERENCE PREMIERE

ANTES DE EMPEZAR

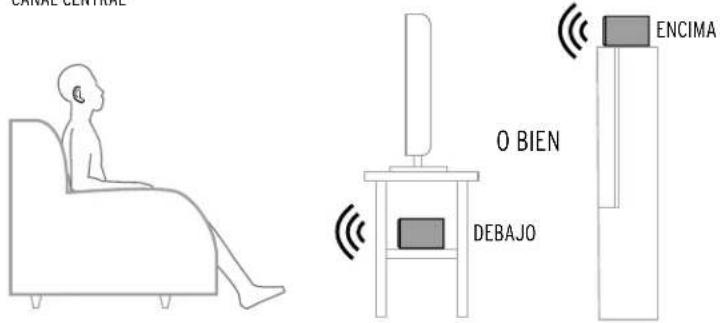

FIGURA 2 CANAL CENTRAL

ONION SALADAS O BIEN DEBAJO ENCIMA

FIGURA 3 CONEXIONES ESTÁNDAR

FIGURA 4 MONTAJE DE LOS ALTAVOCES SURROUND EN LA PARED

RANURA EN FORMA DE OJO DE CERRADURA O BIEN INSERTO ROSCADO

Line drawing of a speaker with two circular components and a square aperture (no text or symbols)

MONTAJE DE LOS ALTAVOCES SURROUND EN LA PAREDALTAVOZ DE ALTURA

O BIEN

PRECAUCIÓN

Somos os Keepers of the Sound ^8 .

PORTUGUÊS

Line drawing of three identical speakers with circular speaker holes and a logo on top (no text or symbols on the devices themselves)

CAIXAS ACÚSTICAS REFERENCE PREMIERE

ANTES DE COMEÇAR

FIGURA 2 CANAL CENTRAL

OU ABAIXO ACIMA

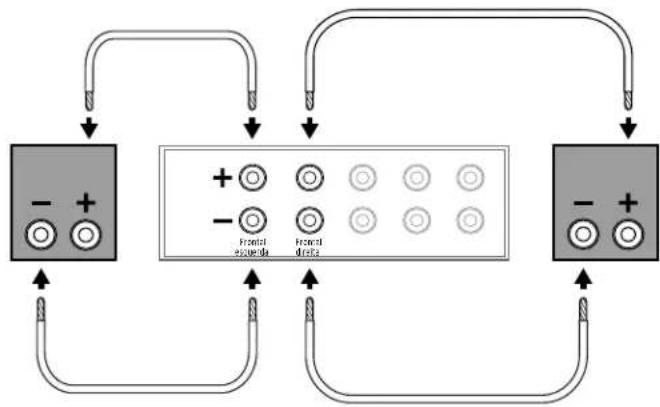

FIGURA 3 CONEXÕES PADRÃO

FIGURA 4 INSTALAÇÃO DAS CAIXAS ACÚSTICAS SURROUND EM PAREDE

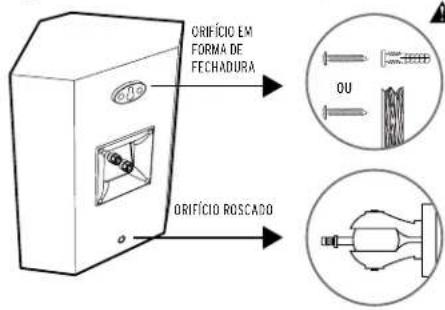

ORIFÍCIO EM FORMA DE FECHADURA ORIFÍCIO ROSCADO

Line drawing of a speaker with two circular components and a diamond-shaped inset (no text or symbols)

Technical diagram showing a screw installation with magnified detail of two screws, one labeled '0U' (no text or symbols on the diagram itself)

CUIDADO!

Line drawing of three identical speakers with circular speaker holes and a logo on top (no text or symbols on the devices themselves)

ALTOPARLANTI REFERENCE PREMIERE

OPERAZIONI PRELIMINARI

Line drawing of a speaker with two circular components, no text or symbols present

FISSAGGIO A PARETE DEGLI ALTOPARLANTI SURROUNDALTOPARLANTI ELEVATO

OPPURE

ATTENZIONE

Line drawing of three identical speakers with circular speaker holes and a central screen (no text or symbols)

参考系列扬声器

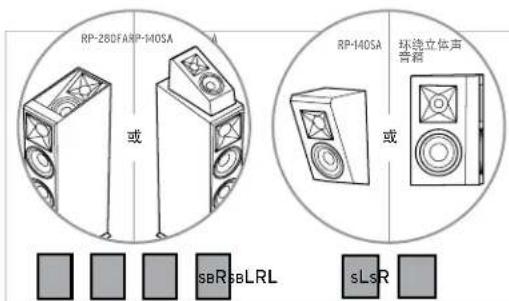

开始使用之前

Line drawing of a multi-tiered speaker tower with visible sound waves and mounting holes (no text or symbols)

Technical line drawing of a Klipsch speaker with two circular components (no text or symbols)

RP-140SARP-280FA

RP-280FARP-140SA 或 RP-140SA 环绕立体声音器 或 sbRsbLRL sLsR

① 必备
2 次要
3 可选

SUBSUB TV C L 1 1 R 90° - 120° 30° 120° - 150° sL4R 3 sB L 2 2 sB R

在聆听区域放置扬声器

Line drawing of a speaker with two circular components, no text or symbols present

墙面安装环绕音箱

Diagram showing a screw installation with an arrow pointing to a magnified view of two screws, one labeled '或' (or).
