Operating Instructions

Bedienungsanleitung

FM-AM 2-Band Receiver

UKW/MW-Receiver

Ricevitore a 2 bande FM-AM

FM-AM 2-bånds receiver

Thank you for purchasing this product.

For optimum performance and safety, please read the instructions carefully.

Supplied accessories

Please check and identify the supplied accessories.

1 AC power supply code

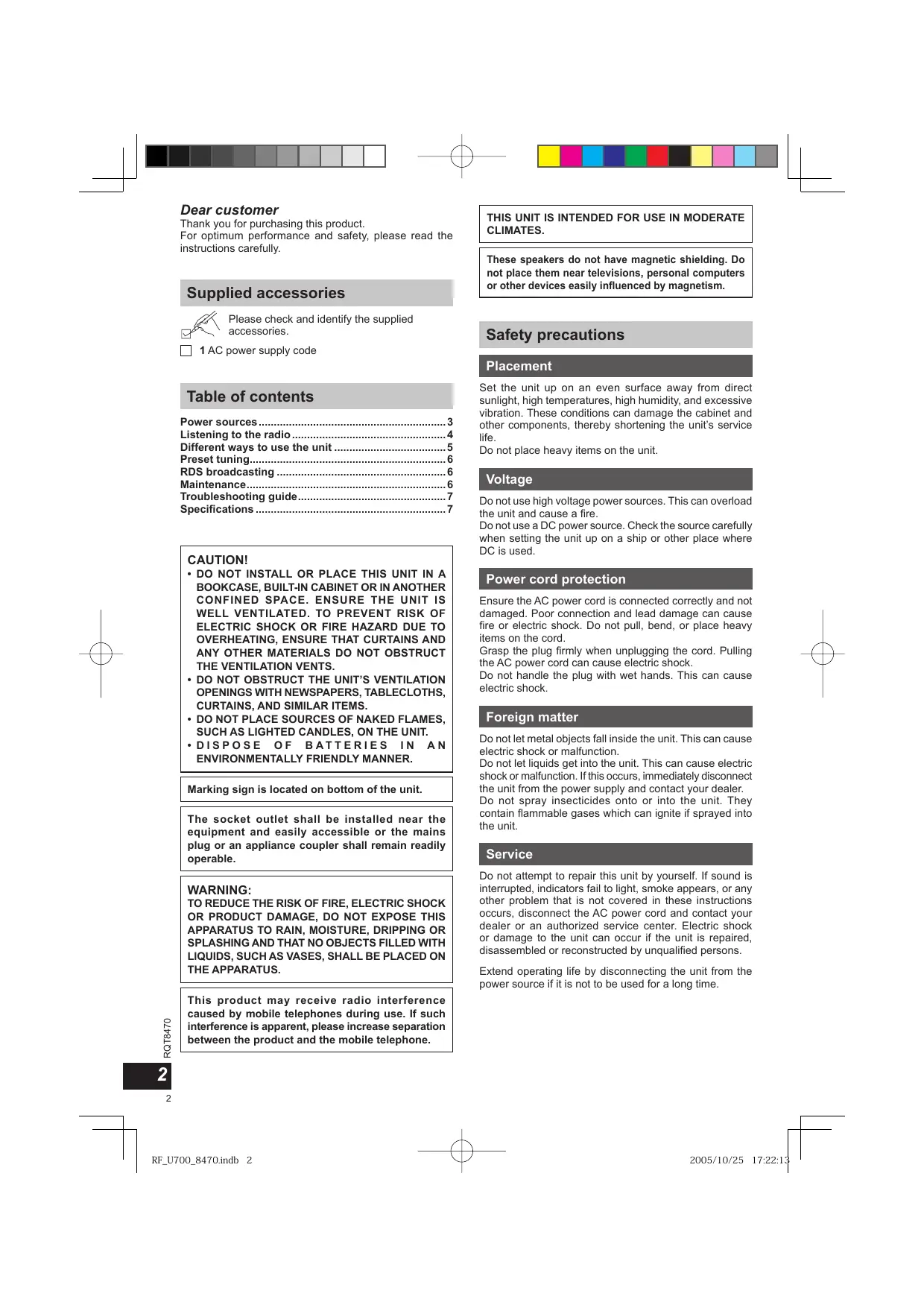

Table of contents

Power sources....3

Listening to the radio....4

Different ways to use the unit 5

Preset tuning....6

RDS broadcasting 6

Maintenance....6

Troubleshooting guide....7

Specifications 7

CAUTION!

• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT'S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.
  • DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

Marking sign is located on bottom of the unit.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily influenced by magnetism.

Safety precautions

Placement

Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit's service life.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit and cause a fire.

Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.

Power cord protection

Ensure the AC power cord is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the cord.

Grasp the plug firmly when unplugging the cord. Pulling the AC power cord can cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC power cord and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

The unit can be powered with household AC power or dry cell batteries (not included).

Using a household AC outlet

Connect the AC power supply cord firmly to the unit and the outlet.

1 Plug one end of the power cord (included) into the unit's AC IN socket.
2 Plug the other end into the household AC outlet.

Household AC outlet (AC 230 V, 50 Hz) AC power supply cord (included)

Note

• The included AC power supply cord is for use with this unit only. Do not use it with other equipment.
  Do not use an AC power supply cord from any other type of equipment with this unit.
• If you are not going to use the unit for a prolonged time, it is recommended that you unplug the power cord from the AC outlet. Power will still be consumed even when the unit's power is not turned on. (Approx. 1.8 W)

Using dry cell batteries (not included)

1 Unplug the power cord from the unit's AC IN socket.

- When the power cord is connected to the unit, the unit cannot be powered by the dry cell batteries.

2 Remove the battery cover.
3 Insert six R14/LR14 batteries (not included) in the numerical sequence.
- Insert the batteries correctly with their “⊕” and “⊖” poles aligned as displayed.
4 Put the battery cover back in its original position.

■ Removing the batteries

1 Push down on the “⊕” side of battery 4 using your finger, and remove batteries 3 and 4.
2 Put your finger into the cutout inside the compartment, and remove batteries 6, 5, 1 and 2.

Note

Insert the batteries in numerical sequence while pushing down on their "⊖" sides. Bottom row at the back

1 + 6 5 4 3

② 6 5

When the charge of the dry cell batteries is depleted, "LOW BATTERY" appears and "☐" flashes on the display panel.

Dry cell battery

- Align the poles (+ and -) properly when inserting the batteries.

- Do not mix old and new batteries or different types of batteries.

- Do not recharge ordinary dry cell batteries.

- Do not heat or disassemble the batteries. Do not allow them to contact flame or water.

- If the unit is not going to be used for a long time or if the unit is to be powered exclusively by AC power, remove the batteries and store them in a cool dark place.

- Do not keep together with metallic objects such as necklaces.

- Do not use rechargeable type batteries.

- Do not use batteries if the covering has been peeled off.

Mishandling of batteries can damage other items, cause damage to the unit, and may cause a fire through short-circuiting or electrolyte leakage.

If electrolyte leaks from the batteries, consult your dealer.

Wash thoroughly with water if electrolyte comes in contact with any part of your body.

1 Turn on the unit's power.

To turn the power off, press the button again.

Note

When the power is turned on again, the broadcast station that was last tuned in when the power was turned off, will be tuned in.

2 Select AM or FM.

Each time this button is pressed, the setting changes in the following sequence:

$$ \mathrm{AM} \rightarrow \mathrm{FM} \rightarrow \mathrm{AM} $$

3 Select the broadcast station.

TUNING Turn to select the desired station.

■ Automatic tuning

When AUTO _MONO^-FM is pressed, automatic tuning starts, and it stops at the station which is tuned in first. Repeat this until the station you want to listen to is tuned in.

Note

Depending on the quality of the reception, automatic tuning may not be possible.

• During tuning press AUTO ^-FM MONO to stop.
• Automatic tuning is not available during "PRESET" mode.

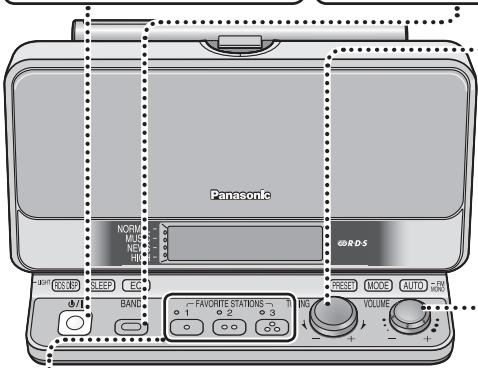

Panasonic NORM PLUS NEW HIND WORDS + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Standby/on switch (⚡/I)

Press to switch the unit from on to standby mode or vice versa.

In standby mode, the unit is still consuming a small amount of power.

4 Adjust the volume.

VOLUME Turn to adjust the volume. (0 to 50)

VOLUME 28

Registering your favorite stations and listening to their programs

You can register your favorite stations and make it easier to select them. (3 stations for AM and FM together)

Registering a station

FAVORITE STATIONS ● 1 ● 2 ● 3

The lamp of the button you are pressing ——○ 1

down lights to indicate the station is now registered to the button.

Example:

When a station has been registered in 1

■ Listening to a station which you have registered

After turning on the unit's power, press the button with the number corresponding to the registered station.

- The registered station is now tuned in.

■ Changing a station which you have registered

- With the new station you want to register already tuned in, press and hold the button with the number whose registered station is to be changed so that you will overwrite the existing station with the new one.

To improve reception

For AM broadcasts

Turn the gyro antenna in the direction that obtains the best reception.

Gyro antenna

Illustration of a desktop computer with a scroll and a paperclip, no text or symbols present

For FM broadcasts

Adjust the length, direction and angle of the rod antenna to obtain the best reception.

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Note

User tip: Picking up the unit or moving it by its gyro antenna may cause malfunctioning. To move the unit, always pick it up using the grip on the rear panel.

Grip

Turning off the display panel light

Press and hold

To turn on the display panel light, press and hold -LIGHT (RDS DISP) until "LCD LIGHT ON" is displayed.

Even when the display panel light has been turned off, it will come back on for about 10 seconds when any of the buttons is pressed.

Selecting the sound quality that suits the broadcast

Each time this button is pressed, the position of “◀” changes.

When FM stereo broadcasts have a high level of noise

Press and hold AUTO - FM MONO until "MONO" is displayed.

• Monaural sound is now heard and the level of noise is reduced to make listening easier.
• Under normal circumstances, ensure that “MONO” is not displayed.
• To restore the original setting, press and hold AUTO _MONO^-FM again until “MONO” is not displayed.

Panasonic NORMAL - MUSIC - MIPS - 8-RDS RIS 102 SLEEP EQ BAND FAVORITE STATIONS TUNING PRESS MODE AUTO - TO +1 2 3 VOLUME - + - + - +

Using the sleep timer

The unit's power is automatically turned off when the set time is reached.

Each time the button is pressed, the setting changes in the following sequence: 30 (minutes)→60→90→120 OFF (released)

■ To display how much time remains until the set time

Note

When the power is turned on again, the broadcast station that was last tuned in when the power was turned off, will be tuned in.

Listening to sound through headphones (not included)

Plug type: 3.5 mm stereo

- Turn the volume down before connecting the headphones.

Note

Avoid listening for prolonged periods of time to prevent hearing damage.

A total of 20 FM stations and 12 AM stations can be preset.

BAND NORLES NORMAL - MUSIC - NEWS - HIGH - RORS TUNING FAVORITE STATIONS - 1 2 3 + - + - + PRESET MODE AUTO - FM MONO TUNING - +

Preset stations

1 Press BAND to select "AM" or "FM".
2 Press MODE to display "MANUAL". FM 87.50 MANUAL 3 Select the station to be preset using or AUTO FM MONO.
4 When (PRESET) is pressed, "M01" flashes for about 10 seconds.
5 While "M01" is flashing, select the number of the station to be preset using ⏻, and press PRESET. If the "M01" display was cleared before you selected the number, press PRESET to display it again. *FM 87.60 M02 MANUAL
6 "MEMORY" now appears to indicate that the station has been preset.
*FM 87.60-M01 MANUAL
, and press to display
*FM 87.60 M02 MEMORY

To preset another station, repeat steps 3 to 6.

Listening to a preset station

BAND

1 Press ☐ to select "AM" or "FM".
2 Press MODE to display "PRESET".
3 Select the number of the preset station using 104nd. *FM 87.60 M02 PRESET

RDS broadcasting

This unit can display the text data transmitted by the radio data system (RDS) available in some areas.

Press -LIGHT RDS DISP.

Every time you press the button: Station name (PS) → Radio text

*FM 87.60 RDS PS XXXXXX

Note

RDS displays may not be available if reception is poor.

Maintenance

If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

Before requesting service, make the following checks. If you are in doubt about any of the check points, or if the solutions indicated in the chart do not solve the problem, consult your dealer for instructions.

The reception is poor. There is too much noise and distortion.

• (For AM broadcasts) Try changing the direction of the gyro antenna.
• (For FM broadcasts) Try changing the length, direction and angle of the rod antenna.
• Inside some buildings and on some means of transport, the signals may be weak, making it hard to hear the stations. In such cases, use the unit as close to the windows as possible.
• If this unit is used close to another radio, TV, VCR or other electrical appliance, noise may be heard from the resulting mutual interference. Try turning off the power of the radio, TV or VCR, etc. in the vicinity.
• This unit may not operate properly after it has been moved from a cold location to a warm place. This happens because condensation has formed on the unit's operating parts: The unit will return to normal in about 60 minutes.
• Noise may be caused if a mobile telephone is brought close to the unit. Use the unit at a distance from mobile telephones.

No sound is heard.

Is the volume control at the lowest position? Adjust the volume level using

■ The display panel is dark.

Has the display panel light been turned off? Try pressing ^-LIGHT RDS DISP. (page 5)

Dry cell batteries were installed in the unit, but the unit won't work.

Is the power cord connected to the unit? To power the unit using the batteries, unplug the power cord from the unit.

When the unit's power is turned on, the "BATTERY PLEASE CHANGE" message is displayed.

Replace the existing batteries with new ones or use a household AC outlet.

The unit's power is not turned off even when the set time is reached.

Is "SLEEP" displayed on the display panel? ( page 5)

If it is, press SLEEP, and check the remaining time.

Specifications

Frequency range			Dimensions (W x D x H)
	FM	87.50-108.00 MHz (50 kHz steps)	276.5 mm x 175.0 mm x 149.5 mm
	AM	522-1629 kHz (9 kHz steps)	Mass
Speakers			with batteries	2000 g
			without batteries	1800 g
Terminals
	Output	PHONES: 3.5 mm stereo (32 Ω)	Power consumption if power off: 1.8 W
Power supply
	AC	230 V, 50 Hz	Note
		Power consumption: 6.0 W
	Battery	9 V (Six R14/LR14 batteries)	Specifications are subject to change without notice.Mass and dimensions are approximate.

-If you see this symbol-

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Sehr geehrter Kunde

Diagram showing a device with labeled parts including a paper clip, cable, and paper holder, with numbered annotations.

FAVORITE STATIONS ● 1 ● 2 ● 3

Illustration of a desktop computer with a scroll and antenna, no text or symbols present

UKW-Empfang

Illustration of a portable electronic device with a scroll and antenna (no text or symbols)

Griff

UKW	87,50-108,00 MHz (50-kHz-Raster)
MW	522-1629 kHz (9-kHz-Raster)

Lautsprecher

Diagram showing a device with labeled parts including a paper clip, printer, and cable, illustrating assembly or installation steps.

Illustration of a desktop computer with a scroll and antenna, no text or symbols present

Trasmissioni FM

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Nota

Illustration of a computer monitor with ventilation slots and a paper clip (no text or symbols)

Diagram showing a printer's internal structure with labeled parts and arrows indicating assembly steps

Illustration of a desktop computer with a scroll and a paperclip, no text or symbols present

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Remarque

Illustration of a portable electronic device with ventilation slots and a scroll wheel (no text or symbols)

Dimensions (L x P x H)

276,5 mm × 175,0 mm × 149,5 mm

Poids

Diagram showing a device with labeled parts including a paper clip, cable, and paper holder, with numbered annotations.

FAVORITE STATIONS ● 1 ● 2 ● 3

Illustration of a desktop computer with a scroll and control panel (no text or symbols)

Pararadiodifusiones de FM

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Nota

Illustration of a portable electronic device with a cable inserted, showing front panel and side panels (no text or symbols)

Diagram showing a device with labeled parts, including a cable inserted into a device and a close-up of the internal structure.

Illustration of a printer with a paper roll and scroll, no text or symbols present

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Handgreep

Illustration of a computer monitor with a paper tab and scroll (no text or symbols)

FAVORITE STATIONS ● 1 ● 2 ● 3

Illustration of a desktop computer with a scroll and a paperclip, no text or symbols present

FM-udsendelser

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Bemærk

Illustration of a portable electronic device with ventilation slots and a handle (no text or symbols)

TENTO PŘÍSTROJ JE KONSTRUOVÁN PRO POUŽITÍ V MÍRNÉM KLIMATU.

Diagram showing a device with labeled parts including a paper clip, cable, and paper holder, with numbered annotations.

FAVORITE STATIONS ● 1 ● 2 ● 3

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Držadlo

Illustration of a portable electronic device with a cable inserted, showing front panel and side panels (no text or symbols)

Diagram showing a device's internal components with numbered labels indicating parts of the device.

Illustration of a desktop computer with a scroll and antenna, no visible text or symbols

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Uchwyt

Illustration of a computer monitor with a scroll wheel and ventilation slots (no text or symbols)

FAVORITE STATIONS ● 1 ● 2 ● 3

Illustration of a desktop computer with a scroll and a paperclip, no text or symbols present

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Примечание

Illustration of a computer monitor with ventilation slots and a paper clip (no text or symbols)

Diagram showing a device with labeled parts, including a cable inserted into a device and a close-up of the internal structure.

Illustration of a printer with a scroll and paperclip, no text or symbols present

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Nota

Se as superfícies estiverem sujas

Diagram showing a device with labeled parts including a paper clip, cable, and paper holder, with numbered annotations.

Illustration of a desktop computer with a scroll and antenna, no text or symbols present

Illustration of a portable electronic device with a scroll and control panel (no text or symbols)

Ручка

Illustration of a computer monitor with a scroll wheel and ventilation slots (no text or symbols)

Diagram showing a device with labeled parts including a paper clip, cable connector, and paper holder assembly.

FAVORITE STATIONS ● 1 ● 2 ● 3

Illustration of a computer monitor with a cable inserted, showing front panel and side panels (no text or symbols)
