Product type	Shotgun microphone
Brand	Sennheiser
Model	MKE 600
Polar pattern	Super-cardioid/lobar
Frequency response	40 Hz to 20 kHz
Sensitivity (P48 phantom)	21 mV/Pa
Sensitivity (battery)	19 mV/Pa
Max. SPL (P48)	132 dB SPL
Max. SPL (battery)	126 dB SPL
Equivalent noise (P48)	15 dB(A)
Equivalent noise (battery)	16 dB(A)
Power supply	Phantom power P48 (48V) or AA battery 1.5V/1.2V
Current consumption (P48)	4.4 mA
Battery life	Approx. 150 hours
Low battery indication	Continuous red LED; approx. 8 hours remaining
Diameter	20 mm
Length	256 mm
Weight (without battery)	128 g
Operating temperature	-10°C to +60°C
Low cut filter	Switchable, attenuates frequencies below 100 Hz
Included accessories	Windscreen MZW 600, shock mount MZS 600, carrying case, manual
Maintenance	Clean with a soft, dry cloth; avoid any liquid

Frequently Asked Questions - MKE 600 SENNHEISER

How to power the MKE 600?

The MKE 600 can be powered either via P48 phantom power through the XLR connector, or by an AA battery (1.5V or 1.2V) placed in the compartment under the lower part.

How to use the Low Cut filter?

The Low Cut switch is located on the side of the microphone. Position '—' for a linear response, position with the cut symbol to attenuate frequencies below 100 Hz, reducing wind and mechanical noise.

What does the indicator LED mean?

With P48 power, the LED lights up steady green. With battery power, it lights up red for 1 second at power-on, then turns off. A continuous red indicates Low Batt (approx. 8 hours remaining). A red flash at start-up means dead battery.

How to change the battery of the MKE 600?

Unscrew the lower part of the microphone (5) by turning it in the direction of the arrow. Insert an AA battery observing the correct polarity. Set the BATT ON/OFF switch to ON to use the battery.

Can the microphone be used without a battery if phantom power is available?

Yes, when P48 phantom power is supplied via the XLR connection, the battery is not needed. The microphone then operates continuously and the BATT ON/OFF switch has no effect.

What is the weight of the MKE 600?

The microphone weighs 128 g without battery. It is lightweight and suitable for use on a camcorder.

How to clean the MKE 600?

Use a soft, dry cloth. Avoid any liquid, solvent, or detergent that could damage the surfaces. Store it in a clean, dry place.

What accessories are included with the MKE 600?

Included: a foam windscreen MZW 600, an elastic suspension MZS 600 with flash shoe adapter, an instruction manual, and a carrying case.

What is the polar pattern of the MKE 600?

The microphone has a super-cardioid/lobar polar pattern, allowing it to pick up sound mainly from the front while attenuating side and rear noise.

What to do if the LED does not light up when powering on with battery?

Check that the battery is correctly inserted with the correct polarity and that the BATT ON/OFF switch is set to ON. If the LED flashes briefly red, the battery is empty; replace it. If the problem persists, contact Sennheiser service.

USER MANUAL MKE 600 SENNHEISER

Microphone for Video Journalists

Bedienungsanleitung
Instruction manual
Notice d'emploi
Istruzioni per l'uso
Instrucciones de uso
Manual de instruções
Gebruiksaanwijzing
Руковозговп по заци
使用说明

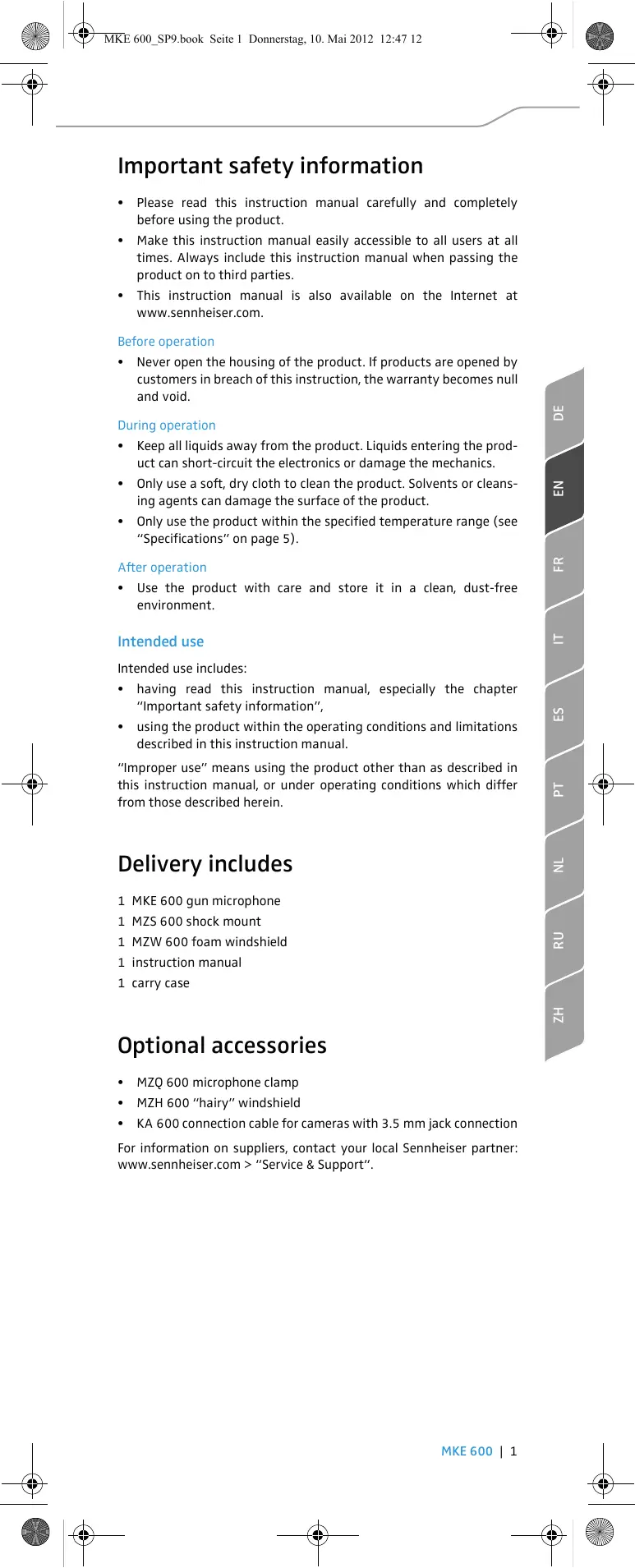

Important safety information

• Please read this instruction manual carefully and completely before using the product.
• Make this instruction manual easily accessible to all users at all times. Always include this instruction manual when passing the product on to third parties.
• This instruction manual is also available on the Internet at www.sennheiser.com.

Before operation

• Never open the housing of the product. If products are opened by customers in breach of this instruction, the warranty becomes null and void.

During operation

• Keep all liquids away from the product. Liquids entering the product can short-circuit the electronics or damage the mechanics.
• Only use a soft, dry cloth to clean the product. Solvents or cleansing agents can damage the surface of the product.
• Only use the product within the specified temperature range (see "Specifications" on page 5).

After operation

• Use the product with care and store it in a clean, dust-free environment.

Intended use

Intended use includes:

• having read this instruction manual, especially the chapter "Important safety information",
• using the product within the operating conditions and limitations described in this instruction manual.

"Improper use" means using the product other than as described in this instruction manual, or under operating conditions which differ from those described herein.

Delivery includes

1 MKE 600 gun microphone
1 MZS 600 shock mount
1 MZW 600 foam windshield
1 instruction manual
1 carry case

Optional accessories

• MZQ 600 microphone clamp
• MZH 600 "hairy" windshield
  KA 600 connection cable for cameras with 3.5mm jack connection

For information on suppliers, contact your local Sennheiser partner: www.sennheiser.com > "Service & Support".

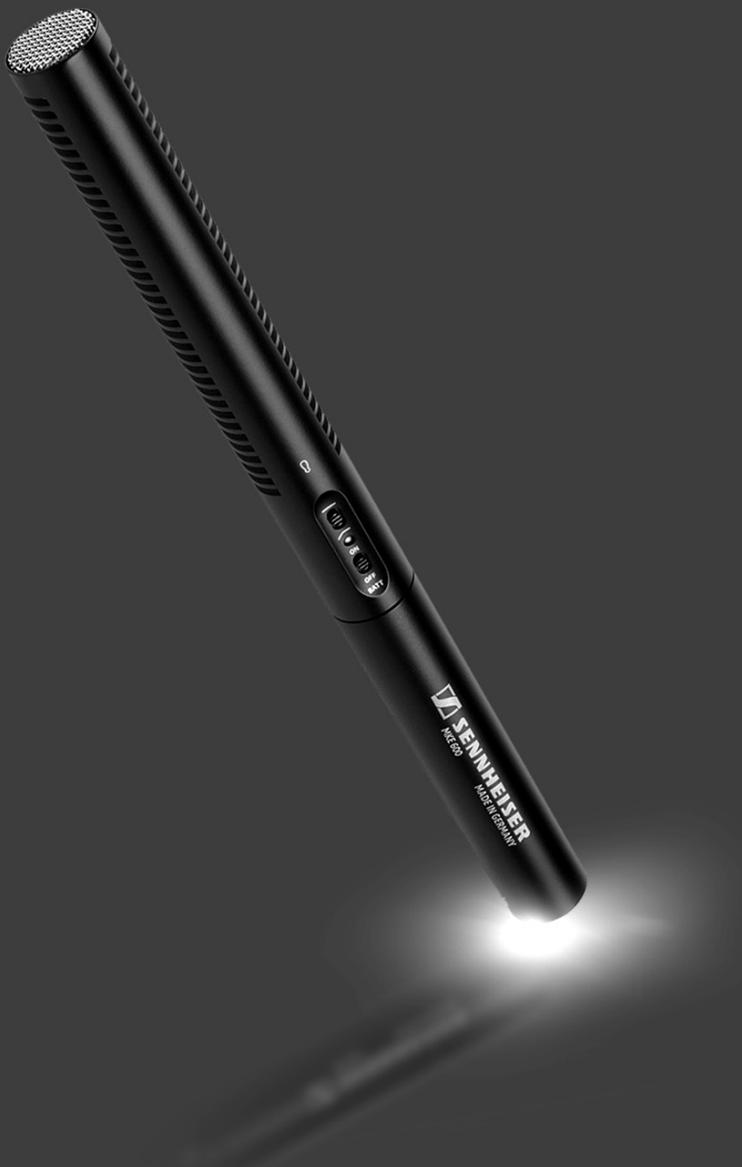

The MKE 600 gun microphone

The MKE 600 is the ideal video camera/camcorder microphone able to handle even demanding filmic challenges. Due to its high directivity, the MKE 600 picks up sounds coming from the direction in which the camera is pointing and effectively attenuates noise coming from the sides and rear. The switchable "Low Cut" filter additionally minimizes wind noise.

Because some video cameras/camcorders do not provide phantom power, the MKE 600 can also be battery powered. A battery on/off switch prevents the battery from discharging prematurely; "Low Batt" is displayed.

Features

• Pronounced directivity
• Maximal rejection of side noise
• Switchable "Low Cut" filter minimizes wind noise
• Phantom or battery powering
• Battery switch with "Low Batt" indicator
  Rugged all-metal housing
• Very good suppression of structure-borne noise
• Supplied with foam windshield and shock mount

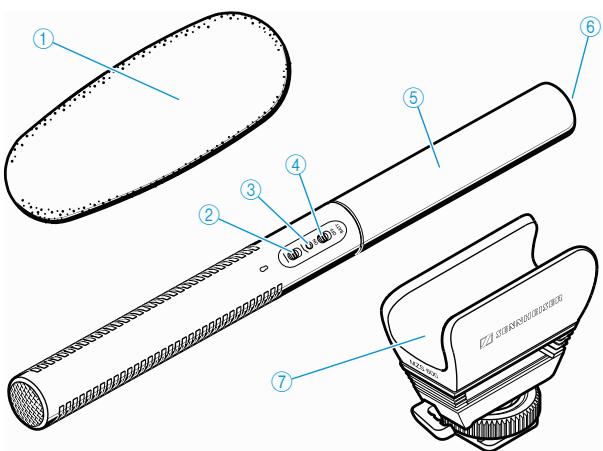

Product overview

① Foam windshield attenuates wind noise by approx. 25 dB
② "Low Cut" switch
③ LED operation indicator
④ BATT ON/OFF battery switch
Lower part of the microphone body (covers the battery compartment)
⑥ XLR-3 socket (male)
⑦ Shock mount with flash mount adapter

Putting the MKE 600 into operation

The MKE 600 offers a choice of phantom powering via the XLR connection or internal battery powering.

P48 phantom powering via XLR connection

Connect the XLR-3 socket (female) of the microphone cable to the XLR-3 socket (male) of the microphone ⑥.
Connect the connector of the microphone cable to the video camera/camcorder or recording device. The LED ③ provides the following information:

LED P48 phantom powering

lights up	switched on; the microphone is operational
green

If phantom powered via the XLR connection, the microphone is continuously in operation (the BATT ON/OFF battery switch has no function).

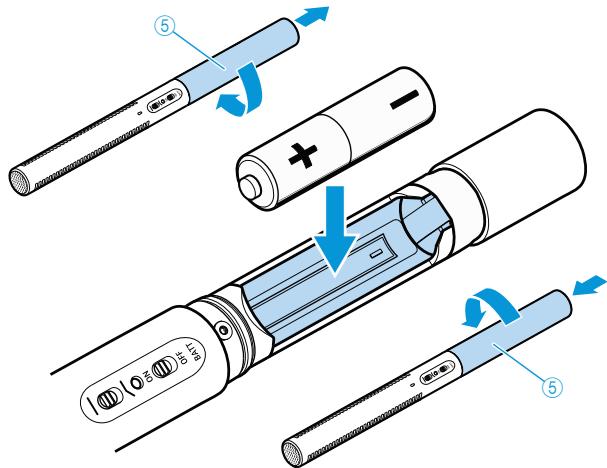

Internal battery powering

Unscrew the lower part of the microphone body ⑤ by turning it in the direction of the arrow.
Insert a battery/rechargeable battery (AA size, 1.5V / 1.2V ). Observe correct polarity when inserting the battery.
Screw the lower part of the microphone body ⑤ back to the microphone by turning it in the direction of the arrow.

Set the battery switch 4 to ON to switch the internal battery on or set the battery switch to OFF to switch the battery power off.

The LED ③ provides the following information:

LED	Internal battery power
lights up red for approx. 1 second after switch-on and then goes off	switched on; operating time: up to approx. 150 h
lights up red permanently	"Low Batt", battery is almost empty; approx. 8 h of remaining operat- ing time after initial display
flashes briefly red on switch-on	battery is empty; the microphone is not operational

When not using the microphone for extended periods of time, remove the battery to prevent self-discharge.

Using the "Low Cut" filter

Set the "Low Cut" switch ② to the desired position.

Switch position	Frequency response of the microphone
—	linear frequency response
—	frequencies below 100 Hz are attenuated to reduce wind and impact noise

Cleaning and maintaining the MKE 600

CAUTION

Damage to the product due to liquids!

Liquids entering the product can short-circuit the electronics or damage the mechanics. Solvents or cleansing agents can damage the surface of the product.

Keep all liquids away from the product.
Only use a soft, dry cloth to clean the product.

Specifications

Pick-up pattern	super-cardioid/lobar
Frequency response	40 Hz to 20 kHz
Sensitivity	with P48 powering: 21 mV/Pa with battery powering: 19 mV/Pa
Max. SPL	with P48 powering: 132 dB SPL with battery powering: 126 dB SPL
Equivalent noise level	with P48 powering: 15 dB (A)
A-weighted	with battery powering: 16 dB (A)
Power supply	48 V ± 4 V (P48, IEC 61938) via XLR-3 or battery/rechargeable battery (AA size, 1.5 V/1.2 V)
Current consumption	with P48 powering: 4.4 mA
Operating time with battery	approx. 150 h
“Low Batt” indicator	< 1.05 V; approx. 8 h of remaining oper-ating time after initial display
Diameter	20 mm
Length	256 mm
Weight	128 g (without battery)
Operating temperature	-10°C to +60°C

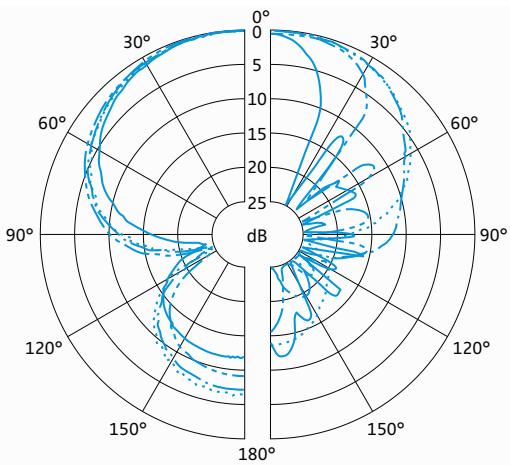

Polar diagram

125 Hz	2000 Hz
250 Hz	4000 Hz
500 Hz	8000 Hz
1000 Hz	16000 Hz

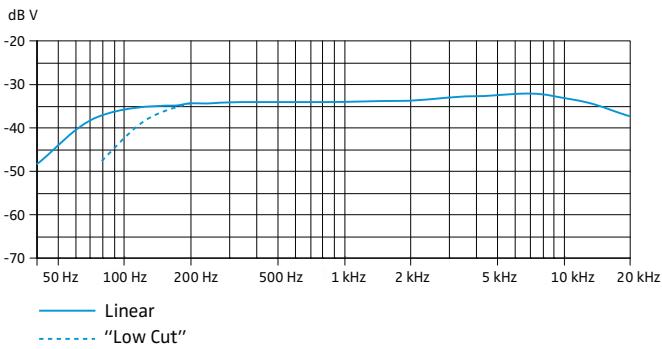

Frequency response curve

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.

For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

In compliance with the following requirements

RoHS Directive (2002/95/EC)
- WEEE Directive (2002/96/EC)

Please dispose of this product by taking it to your local collection point or recycling center for such equipment.

Battery Directive (2006/66/EC)

The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose of exhausted batteries.

CE Declaration of Conformity

EMC Directive (2004/108/EC)

The declaration is available at www.sennheiser.com.

In compliance with

Europe	EMC EN 55103-1/-2
USA	FCC 47 CFR 15 subpart B
Canada	Industry Canada ICES-003
China	15
Australia/New Zealand	CN340

Directive RoHS (2002/95/CE)
Directive WEEE (2002/96/CE)

Directive CEM (2004/108/CE)

• Directa RoHS (2002/95/CE)
• Directa WEEE (2002/96/CE)

• Directa CEM (2004/108/CE)

• Directa RoHS (2002/95/CE)
• Directa REEE (2002/96/CE)

Entregue este produit no seu punto de recolha local ou num ecoponto, se aplicável.

- Directa Pilhas (2006/66/CE)

• Direcita CEM (2004/108/CE)
