Product Type	Universal Wall Bracket for Flat Screen TV
Brand	Acme United
Model	PLB110S
Compatible TV Bolt Sizes	M4, M5, M6, M8 (flat back); M4, M5, M6, M8 with spacers (curved back)
Mount Type	Fixed (non-articulating)
Wall Compatibility	Brick, Solid Concrete, Concrete Block, Wood Stud (min. 16" apart)
Installation Tools Required	Drill, 5/32" and 3/8" drill bits, screwdriver, wrench, level, stud finder
Included Components	Wall plate, left & right monitor brackets, hex key, bolts (M4x12, M5x12, M6x12, M8x16; M4x30, M5x30, M6x35, M8x40), lock washers, washers, spacers, concrete anchors, lag bolts, lag bolt washers, warranty card
Safety Features	Safety bolt locking mechanism to prevent accidental dislodging
Leveling Adjustment	Yes, via rotating front plate (slight tilt allowed after loosening 5 screws)
Installation Method	DIY, requires drilling into wall surface
Warranty	Included with product (see warranty card for details)
Recommended Use	Indoor, vertical wall mounting
Package Weight	Approx. 4.5 kg (10 lbs) based on typical contents
Material	Steel (assumed, based on standard mounts)
Color	Black (typical)
Country of Origin	Not specified; likely China
Compliance	CE, RoHS (assumed)

Frequently Asked Questions - PLB110S Acme United

How do I determine the correct bolt size for my TV?

Check the screw hole size on your TV. The mount includes bolts M4, M5, M6, and M8. For flat back TVs, use bolts from bag e-h (M4x12, M5x12, M6x12, M8x16). For curved back TVs, use bolts from bag i-l (M4x30, M5x30, M6x35, M8x40) along with spacers.

Can this mount be used on a curved back TV?

Yes, the mount includes longer bolts and spacers specifically for curved back TVs. Follow the instructions for 'Mounting the monitor brackets to a TV with curved back' to ensure proper fit.

What tools are required for installation?

You will need a drill, 5/32" (4mm) and 3/8" (10mm) drill bits, a screwdriver, a wrench or socket set, a carpenter’s level, and a stud finder (for wood stud walls).

How do I install the wall plate on a concrete wall?

Use the wall plate as a template to mark 6 hole locations (3 top, 3 bottom). Pre-drill holes with a 3/8" (10mm) masonry bit at least 3" (75mm) deep. Insert concrete anchors flush with the surface. Attach the plate using 6 lag bolts and washers.

How do I install on wood studs?

Locate two studs at least 16" (406mm) apart. Pre-drill 5/32" (4mm) pilot holes 3" (75mm) deep at each stud center. Use the wall plate to mark the second hole in each stud. Attach the plate with 4 lag bolts and washers.

How do I level the mount after installation?

Remove the TV from the mount. Slightly loosen the 5 screws on the front plate using the Allen key. Place a level on top of the plate and rotate to adjust. Tighten the screws without over-tightening.

Are safety bolts included and how do I use them?

Yes, safety bolts are included. After hooking the monitor brackets over the wall plate, use the Allen key to tighten the safety bolts. The brackets will then sit behind the bottom tab on the wall plate for secure locking.

What is the maximum TV size this mount supports?

The mount supports most TVs with VESA patterns up to 600x400mm. The included bolts and hardware accommodate TVs with standard screw holes. Maximum weight capacity is not specified, but typical mounts of this type support up to 100 lbs (45 kg).

Does this mount tilt or swivel?

This is a fixed mount with a leveling adjustment feature. It allows slight rotation of the front plate for levelling but does not provide tilt or swivel functionality.

How do I clean or maintain the mount?

No specific cleaning instructions are provided. For maintenance, periodically check that all bolts are tight and the mount is secure. Wipe with a dry or slightly damp cloth as needed.

USER MANUAL PLB110S Acme United

Universal wall bracket

GB 4 Installation Instruction 100 Warranty card

LT 12 Montavimo instrukcija 101 Garantinis lapas

Unpacking instructions

• Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.
• Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
  • Carefully read all instructions before attempting installation.

Important safety information

Install and operate this device with care. Please read this instruction before beginning the installation, and carefully follow all instructions contained herein. Use proper safety equipment during installation.

Please call a qualified installation contractor for help if you:

• If you don't understand these directions or have any doubts about the safety of the installation.
• If you are uncertain about the nature of your wall, consult a qualified installation contractor.

Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. We hereby disclaim any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

4

WARNING	This TV mount must be securely attached to the vertical wall. If the mount is not properly installed it may fall, resulting in possible injury and/or damage.
Tools Required	5/32"(4mm) Drill BitScrewdriver	3/8"(10mm) Masonry BitStud Finder	Wrench or Socket SetCarpenter's Level

Note: The mounting components and hardware supplied in this package are not designed for installations to walls with steel studs or to cinder block walls. If the hardware you need for your installation is not included, please consult your local hardware store for proper mounting hardware for the application.

GB

5

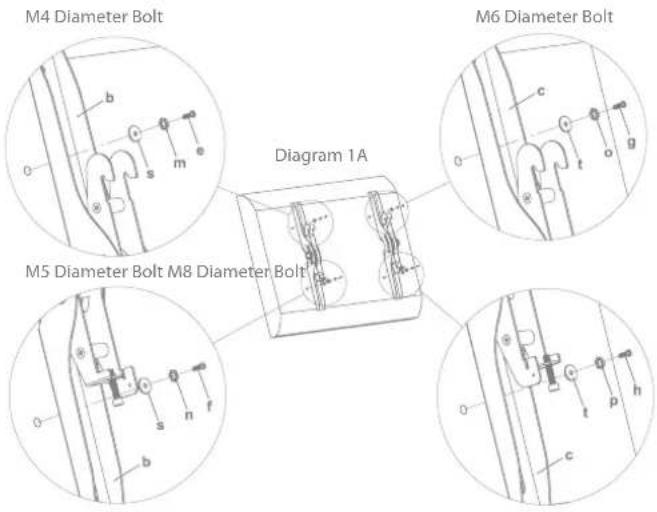

Supplied parts list Mounting the monitor

brackets to a TV with flat back

First of all, make sure the diameter of the Bolt (e,f,g,h) your TV requires. Once you have determined the correct diameter, please see the relative diagram as below. You will thread the Bolt into the TV using the correct Lock Washer (m,n,o,p) and Washer (s,t). Please make sure the Monitor Brackets (b,c) are vertically centered and level with each other.

Mounting the monitor brackets to a TV with curved back

First of all, make sure the diameter of the Bolt (i,j,k,l) your TV requires. Once you have determined the correct diameter, please see the relative diagram as below. You will thread the Bolt into the TV using the correct Lock Washer(m,n,o,p), Washer(s,t) and spacer (q,r). For the M4 or M5 diameter bolt, you will need another M4/M5 Washer between the Monitor Bracket and the Spacer. Please make sure the Monitor Brackets are vertically centered and level with each other.

Mounting the wall plate to the wall

Brick, Solid Concrete and Concrete Block mounting:

Use the Wall Plate(a) as a template to mark 6 hole locations on the wall. Three in the top row of slots and three more in the bottom row. Make sure these holes are level and there is at least 6"(150mm) distance between any two holes. Pre-Drill these holes with a 3/8"(10mm) masonry bit to at least 3"(75mm) in depth. Insert a Concrete Anchor(w) into each of these holes. Make sure the anchor is seated completely flush with the concrete surface even if there is a layer of drywall or other material in front. Attach the Wall Plate to the wall using 6pcs Lag Bolts(u) and 6pcs Lag Bolt Washers(v), shown in Diagram 2A.

Wood Stud mounting:

The Wall Plate(a) must be mounted to two wood studs at least 16"(406mm) apart. Use a stud finder to locate two adjacent studs. It is a good idea to verify where the studs are located with an awl or thin nail shown in Diagram 2B. Pre-drill a 3"(75mm) deep hole at the desired height in each stud using a 5/32"(4mm) drill bit. Make sure these holes are in the center area of the studs and level with each other. Use the Wall Plate as a template to mark the location of the second hole in each stud. Drill 3"(75mm) deep holes using the 5/32"(4mm) drill bit in the marked locations. Attach the Wall Plate to the wall using the 4pcs Lag Bolts(u) and 4pcs Lag Bolt Washers(v).

Attaching monitor to wall plate and adding the safety bolts

Warning: Some TVs may require two people to lift! We are not responsible for personal injury or product damage.

First hook the Monitor Brackets(b,c) over the top of the wall Plate(a), then let the bottom of the Monitor Brackets rotate to the bottom of the Wall Plate as shown in the Diagram 3A. Use the Allen Key(d) to tighten the safety bolts. Then the Monitor Bracket will sit behind the bottom tab on the Wall Plate as shown in the Diagram 3B.

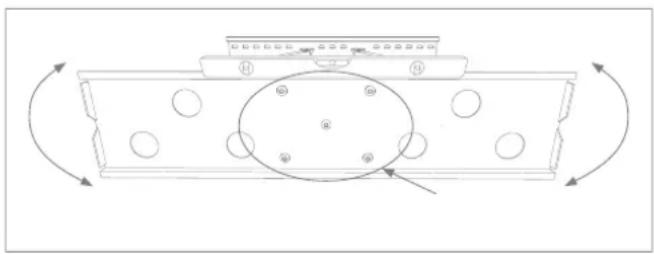

Levelling mount

You can re-level the mount after the mount has been installed on wall. Levelling is achieved by rotating the front plate the TV sits on. First, remove the TV from mount. Then slightly loosen the 5 screws using the Allen Key. Place level on top front of plate as shown and level accordingly. Tighten the 5 screws, do not over tighten.

Diagram 4

WARNING!
Use two people to lift and position the TV onto the Wall Plate.

Thanks for choosing our products, enjoy the using.

LT

(1)Plytka naścienna-a (1) Lewy uchwyt monitora-b (1) Prawy uchwyt monitora-c (1) Klucz imbusowy-d

(4)M4x12 Šruba-e (4)M5x12 Šruba-f (4)M6x12 Šruba-g (4)M8x16 Šruba-h

(4)M4x30 Sruba-I (4)M5x30 Sruba-J (4)M6x35 Sruba-k (4)M8x40 Sruba-I

(4)644

Warranty card www.acme.eu/warranty

Product Product model
Product purchase date Seller name, address
Failures (date, description, position of the person who accepts the product, first name, last name and signature)

1. Warranty period

Warranty enters into force starting with the day when the buyer acquires the product from the seller. Warranty period is indicated on the package of the product.

2. Warranty conditions

The warranty is valid only by providing an original document of the product acquisition and this warranty sheet, which includes name of the product model, product purchase date, name and address of the seller.

If it is noticed during the warranty period that the product has faults and these faults where not caused by any of the reasons when the warranty is not applied as indicated in the paragraphs below, manufacturer undertakes to replace the product.

The warranty is not applied to regular testing, maintenance and repair or replacement of the parts which are worn out naturally.

The warranty is not applied if damage or failures occurred due to the following reasons:

• Inappropriate installation of the product, inappropriate usage and/or product without following the manual, technical requirements and safety standards as provided by the manufacturer, and additionally, inappropriate warehousing, falling from heights as well as hard strikes.
  • Corrosion, mud, water and sand.
  • Repair works, modifications or cleaning, which were performed by authorised by the manufacturer.
  • Usage of the spare parts, software or consumptive materials which do not apply to the product.
• Accidents or events or any other reasons which do not depend on the manufacturer, which includes lightning, water, fire, magnetic field and inappropriate ventilation.
• If the product does not meet standards and specifications of a p which it was not bought. Any attempt to adjust the product in order to meet technical and safety requirements such as those in the other countries withdraws all the rights to the warranty service.
  If no failures are detected in the product, all the expenses in relation to the service are covered by the buyer.

Garantinis lapas www.acme.eu/warranty
