Product Type	Car Seat Adapter
Brand	Emmaljunga
Model	Carseat Adapter
Compatible Strollers	Emmaljunga strollers (e.g., NXT90, V5, Edge C, etc.)
Compatible Car Seats	Maxi-Cosi, Cybex, BeSafe, Britax, Joie, and other popular brands (via adapters)
Material	High-strength plastic and metal brackets
Dimensions (approx.)	28 x 18 x 8 cm (11 x 7 x 3 in)
Weight (approx.)	0.6 kg (1.3 lbs)
Maximum Load Capacity	Up to 13 kg (29 lbs) – car seat plus child
Installation Type	Snap-on or lock-in mechanism without tools
Primary Function	Attaches infant car seat securely to stroller frame
Safety Features	Audible click confirmation, secondary locking pin, stability test passed
Maintenance	Wipe with damp cloth; do not use abrasive cleaners
Storage	Store in a dry place away from direct sunlight
Spare Parts Availability	Contact Emmaljunga or authorized dealers for replacements
Repairability	Non-repairable; replace if damaged
Warranty	2 years (subject to terms)
Country of Origin	Sweden

Frequently Asked Questions - Carseat Adapter Emmaljunga

How do I install the Emmaljunga Carseat Adapter on my stroller?

Align the adapter with the stroller’s attachment points and push until you hear a click. Ensure the locking pins are fully engaged. Refer to your stroller manual for specific steps.

Which car seats are compatible with this adapter?

The adapter works with most Maxi-Cosi, Cybex, BeSafe, Britax, and Joie infant car seats. Check your car seat’s compatibility list on Emmaljunga’s website.

Can I use the adapter with a toddler seat?

No, this adapter is designed exclusively for infant car seats with a carry handle. It is not intended for toddler seats or bassinets.

Is the adapter safe for my baby?

Yes, when installed correctly. The adapter has passed safety tests and includes a secondary lock. Always ensure the car seat is firmly attached before each use.

How do I remove the adapter from the stroller?

Press the release buttons (usually on the sides) and pull the adapter away from the stroller. Some models may require lifting a lever. Consult your manual.

Can I fold the stroller with the adapter attached?

Most Emmaljunga strollers can fold with the adapter installed. However, it is recommended to remove the car seat first. Check your stroller’s folding instructions.

What is the weight limit for the adapter?

The adapter can support a combined weight of 13 kg (29 lbs) for the car seat and child. Do not exceed this limit.

How do I clean the adapter?

Wipe with a damp cloth and mild soap if needed. Avoid harsh chemicals or submerging in water. Dry thoroughly before storage.

Where can I buy replacement parts?

Replacement parts are available from Emmaljunga retailers or the official website. Contact customer service for specific part numbers.

Does the adapter fit all Emmaljunga stroller models?

The adapter is designed for recent models such as NXT90, V5, Edge C, and All Terrain. For older models, check compatibility with Emmaljunga support.

USER MANUAL Carseat Adapter Emmaljunga

→ Fits chassis from Model Year 2022

Adapter

← Fits chassis Model Year 2021 and older

Black and white photo of a baby stroller with silver wheels and a blue tray (no text or symbols visible)

	NXT60	NXT90	NXT TWIN1 Car seat	NXT TWIN2 Car seats
Maxi Cosi CabrioFix	√	√	√	√ 1*
Maxi Cosi Coral	√	√	√	√ 1*
Maxi Cosi Pebble	√	√	√	√ 1*
Cybex Aton4	√	√	√	√ 2*
Cybex Cloud Q	√	√	√	√ 2*
Cybex CLOUD Z i-SIZE	√	√	√	√ 2*
BeSafeiZi Go Modular	√	√	√	√ 1*
Britax BABY-SAFE iSENSE	√	√	√	√ 2*
Britax BABY-SAFE 3 iSIZE	√	√	√	√ 2*
Avionaut Pixel	√	√	√	√ 2*
Heyner Germany	√	√	√	√ 2*

* 1= Less tight between adapters, 2= Tight between adapters. For the latest information: www.emmaljunga.com

SE: VIKTIG INFORMATION - LÄS DESSA INSTRUKTIONER NOGGRANT FÖRE ANVÄNDNING OCH SPARA DE FÖR FRAMTIDA BRUK.

DITT BARNS SÄKERHET KAN PÄVERKAS OM DU INTE FÖLJER DESSA INSTRUKTIONER.

EN: IMPORTANT INFORMATION- READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS. This product complies with EN 1888-1:2018 when the accessory is used in the manner described and only with the Emmaljunga prams stated in this instruction manual. Sales or marketing of the product outside the EU, EFTA countries is not allowed. Please visit www.emmaljunga.com for the latest version of this manual before using the product.

Close-up of a hand holding a black mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels

Close-up of a hand adjusting a black athletic suit with a numbered component (no visible text or symbols)

Black and white photo of a baby stroller with attached straps and buttons (no visible text or symbols)

Close-up of hands adjusting a mechanical device with a numbered arrow pointing to the component (no visible text or symbols)

Four black plastic electronic components with mounting brackets, arranged side by side on a plain background (no text or symbols visible)

WARNING!

Hand holding a black car seatbelt device with a hand pointing to it, next to a mechanical device (no visible text or symbols)

Person adjusting a two-back stroller with a hand pointing to the tray (no visible text or symbols)

3. Klicka in Bilstolen på Adaptern

WARNING!

Black stroller with two seats and a strap, displayed on a wooden surface (no visible text or symbols)

Interior view of a baby stroller with hand adjusting the front panel (no text or symbols visible)

Close-up of hands installing a black plastic component with arrows indicating assembly (no text or symbols visible)

Close-up of hands adjusting a mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels

2

Close-up of a hand adjusting a car seatbelt with a numbered label (3) and brand logo visible (no readable text or symbols beyond labels)

3

Black and white photo of a baby stroller with attached straps and a logo (no visible text or symbols)

4

5

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (7), no visible text or symbols.

8

Four black plastic mechanical components with mounting brackets, arranged on a plain white background (no text or symbols visible)

WARNUNG

Hand holding a black car seat with a hand pointing to it, next to a small mechanical device (no visible text or symbols)

Person adjusting a two-back car stroller with a hand adjusting the frame (no visible text or symbols)

Close-up of a black and white baby stroller with two handles, placed on a wooden surface (no visible text or symbols)

Two black strollers with hand adjusting handles, no visible text or symbols

Close-up of hands installing a black plastic component with an arrow indicating upward motion (no text or symbols visible)

Important safety information

Please read this information carefully before use of the pram and save the instruction manual for future reference. Always read the pram manual together with this manual. Always read this manual together with the pram manual that applies to your pram and the Car Seat.

WARNING!

Failure to follow the instructions may cause serious injury to your child and/or the product.

WARNING! The Adaptor is only to be attached on to Emmaljunga chassis NXT90/NXT60/NXT TWIN.

WARNING! For usage of the car seat you must read the corresponding manual for this car seat. For usage of the chassis you must read the corresponding manual for the pram. Safety information that is included in these two manuals should be applied in conjunction with the information in the Adaptor manual.

WARNING! Never leave your child unattended.

WARNING! Do not let your child play with this product.

WARNING! Always use the restraint system.

WARNING! Any load attached to the handle affects the stability of the pram/pushchair

WARNING! This product is not suitable for running or skating.

WARNING! Accessories and spare parts which have not been approved by the manufacturer cannot be used.

WARNING! Never lift the carseat when it is attached to the Adaptor/chassis.

WARNING! Always position the carseat and the Adaptor so that the child's feet are facing towards the pram handle.

WARNING! Never use the product if parts are missing or broken.

WARNING! Make sure before use that the Adaptor and the carseat are correctly assembled and that all locks are locked into position.

WARNING! Never detach the Adaptor from the chassis when the car seat is secured on it.

WARNING! Follow the instructions of the manufacturer.

WARNING! Do not carry extra children or bags on the stroller other than what the stroller is intended to carry.

WARNING! Make sure that children stay clear of moving parts if you need to adjust the Adaptor. Otherwise they are at risk of injury.

WARNING! Keep away from fire.

Important safety information

• This product is intended for one (1) child from the age of 0 months up to a maximum weight of 13kg . The product is intended for transportation only.
• The safeguards and instructions in this manual cannot cover all possible conditions and unforeseeable situations which may occur. It must be understood that common sense, caution and care are factors which cannot be built into this product. These factors must be provided by the person(s) caring for and operating the product.
• It is IMPORTANT that these instructions are understood by all people who will use the product. Always inform and instruct each person using the product, even if the person will only use it for a short while. If anything is unclear or needs further explanation, please contact your authorised retailer.
• Do not allow the baby to lie for long periods of time in the car seat. On long walks the baby should always be transported in the pram utilising the fully laid back position.
• The child's/children's safety is your responsibility.
• Never leave the pram without first engaging the parking device.
• The parking device should always be engaged whilst placing your child/children into and removing them from the pram.
• Avoid parking on a hill.
  • Overloading, incorrect usage of the adaptor and use of non-approved accessories may cause injury to your child/children and/or break the pram.
• Stairs and escalators should be avoided as they may pose an element of risk to your child.
• Be aware of the risk of open fire and other strong sources of heat, such as electric bar fires, gas fires etc. in close proximity to the carrycot.
• The adaptor must be taken care of, checked and maintained on a regular basis.
• The pram is only intended for the transportation. Place it without reach from children and never let them play in it or nearby it.
• When adjusting the and folding and unfolding, no children should be nearby and kept away from moving parts.
• Use a maximum of one accessory on the pram at any one time e.g. Toddler Roller or car seat adaptor.
• Always contact your authorised retailer to replace damaged or worn parts on the Adaptor with new spare parts.
• Follow the care and maintenance instructions.
• If you need to identify this product there is a sticker showing model name and serial number placed on the product.
• For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a bed.

Care and maintenance

General care

- Should the adaptor become wet, dry it promptly. Make sure the adaptor is completely dry before storing.

Check before use that:

- All locking devices are functioning properly between the car seat and Adaptor and between the Adaptor and chassis.

- All rivets, nuts and bolts are firmly tightened and not broken.

- All plastic parts are not cracked or broken.

PLEASE OBSERVE!

- When in need of servicing with original parts and when other technical issues arise that require a professional decision, always get in touch with the retailer from which your Emmaljunga product was purchased.

Usage of the Adapter

1

Close-up of a hand adjusting a mechanical clamp or bracket device (no visible text or symbols)

2

Close-up of a person adjusting a black safety harness with a numbered component (no visible text or symbols)

3

Black and white photo of a baby stroller with attached straps and a logo (no visible text or symbols)

4

5

Close-up of hands adjusting a mechanical device with a numbered arrow pointing to the component (no visible text or symbols)

12

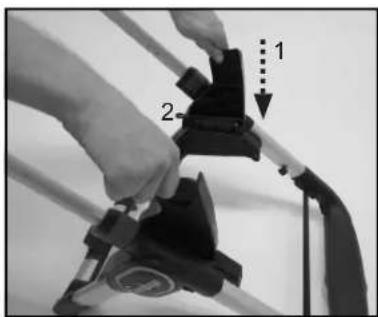

Attaching the car seat adapter on to the chassis

• Engage the brake
• Remove the carry-cot or seat-unit in accordance with the pram manual
• Attach the adaptor onto the chassis by pushing the adapter into the Easy Fix locking mechanism (1).
• The adapter should be turned so that the plastic ring (2) points towards the handle of the pram.

WARNING!

• Make sure that the adapter is attached into both locking mechanisms of the chassis.
• Never lift the carseat when it is assembled onto the chassis.
• Always engage the brake when you attach the adapter onto the chassis.

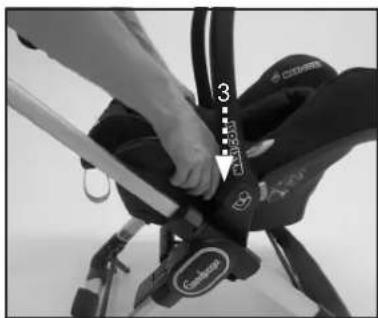

- Click the car seat onto the adapter

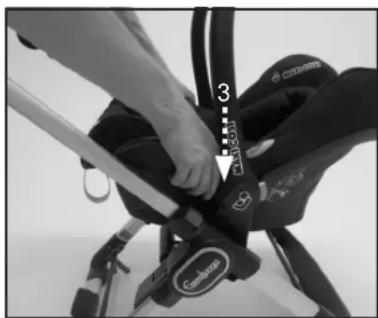

• Hold the car seat by the handle and assemble it onto the adapter (3) so that the foot end of the car seat is facing the handle of the pram.
• Click in the car seat into the adapter by pressing it straight down into the adapter until you hear a clicking sound. Make sure that the car seat clicks in properly into the adapters two attachment points.
• Hold the car seat at all times by the carrying handle. Do not release your grip until you have secured the car seat into position.

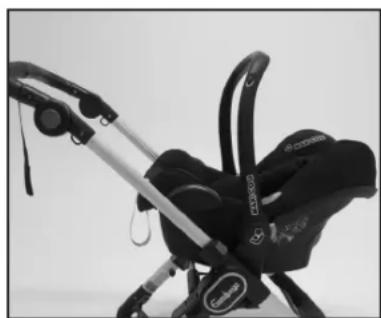

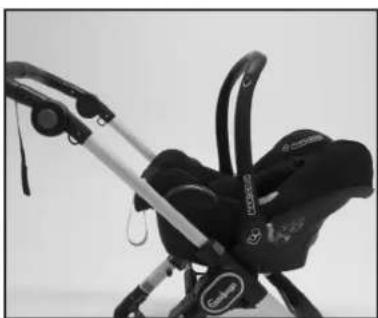

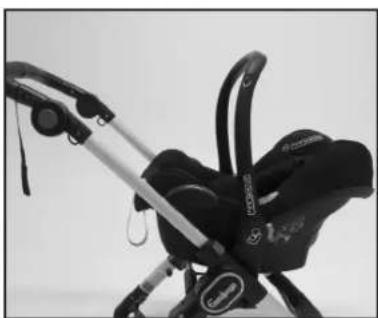

Now the car seat is in place onto the adapter.

WARNING!

- The foot end on the car seat must always be the same way as the handle of the pram (facing the handle).

Note that the adapter may only be used with the car seat in an upright position if the baby car seat offers several sitting / lying positions

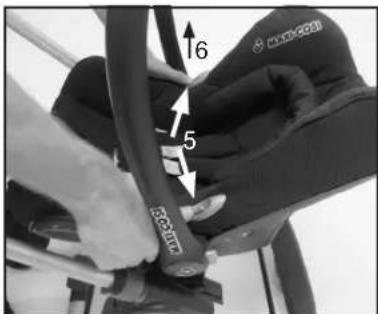

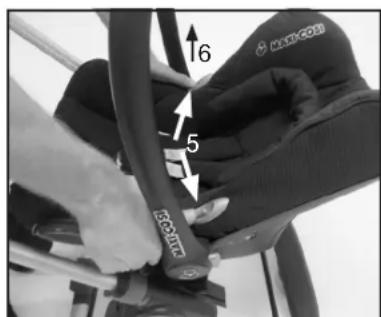

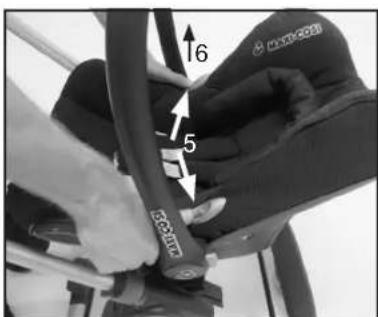

Remove the car seat from the adapter

• Engage the brake
• Press the buttons on the car seat (5) and lift the car seat straight up (6).

WARNING!

• Always engage the brake before you attach and detach the car seat.

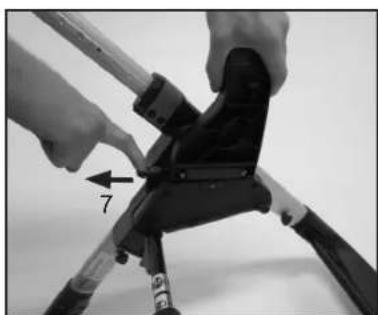

Release the adapter from the chassis

• Release the adapter from the chassis by pulling the plastic rings (7) which are located on the outside of the adapter
  • Pull the adapter up from the chassis

IMPORTANT!

- Before you fold the chassis in accordance with the instructions of the pram manual, you must remove the car seat. You do not need to remove the adaptor before you fold the chassis.

Usage of the Adapter on NXT Twin

1. Attaching the car seat adapter on to the chassis

Two sets of adapters are needed to use two car seats. Note 2 car seats together can be tight.

• Engage the brake
• Remove the carry-cot or seat-unit in accordance with the pram manual

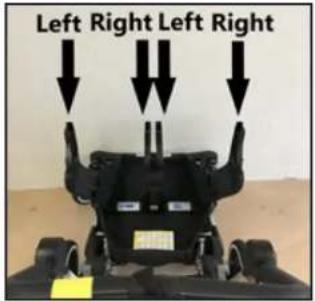

• Attach the adaptor onto the chassis by pushing the adapter into the Easy Fix locking mechanism.
• The adapter should be turned so that the plastic ring points towards the handle of the pram.

Four black plastic mechanical components with mounting brackets, displayed against a plain background (no text or symbols visible)

WARNING

• Make sure that the adapter is attached into all locking mechanisms of the chassis.
• Never lift the car seat when it is assembled onto the chassis.
  • Always engage the brake when you attach the adapter onto the chassis.

2. Click the car seat onto the adapter

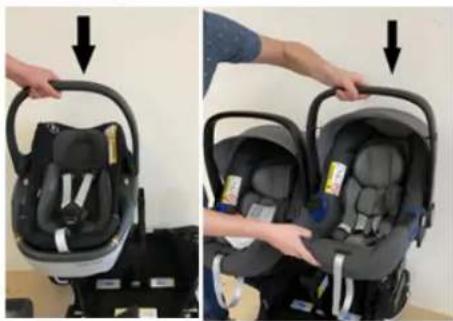

• Hold the car seat by the handle and assemble it onto the adapter (2) so that the foot end of the car seat is facing the handle of the pram.
• Click in the car seat into the adapter by pressing it straight down into the adapter until you hear a clicking sound. Make sure that the car seat clicks in properly into the adapters two attachment points.
• Hold the car seat at all times by the carrying handle. Do not release your grip until you have secured the car seat into position

Two-step photo showing a child in a stroller being adjusted for the interior of a car (no text or symbols visible)

3. The car seat is in place onto the adapter

WARNING

• The foot end on the car seat must always be the same way as the handle of the pram (facing the handle). Make sure that the car seat clicks in properly into the adapters two attachment points.
  Maxi Cosi- and Britax adapters may not be combined at the same time. Note that the adapter may only be used with the car seat in an upright position if the baby car seat offers several sitting / lying positions

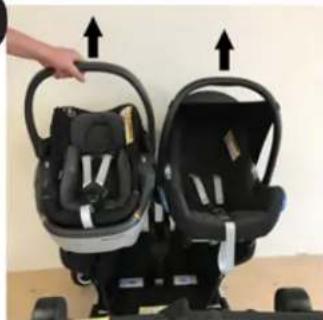

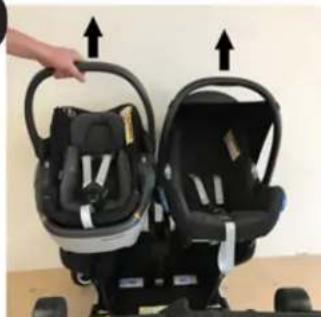

4. Remove the car seat from the adapter

• Engage the brake

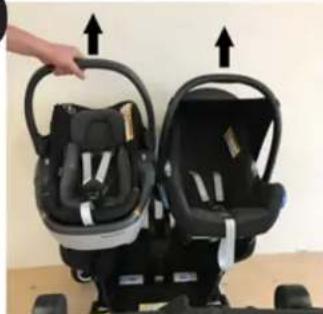

• Press the buttons on the car seat and lift the car seat straight up (4).

WARNING

• Always engage the brake before you attach and detach the car seat.

Close-up of a black and white baby stroller with handles and seat, placed on a wooden surface (no visible text or symbols)

Interior view of a two-back stroller with hand adjusting the front panel (no text or symbols visible)

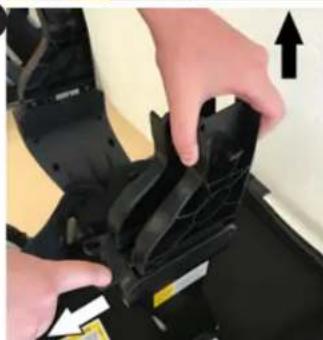

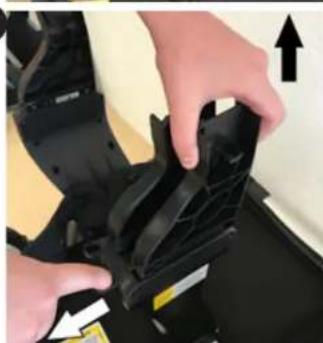

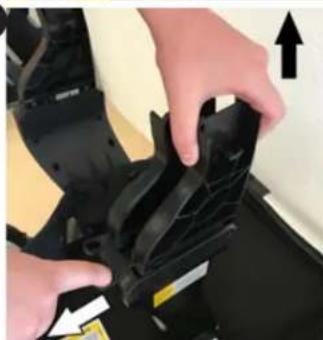

5. Release the adapter from the chassis

• Release the adapter from the chassis by pulling the plastic rings which are located on the outside of the adapter
• Pull the adapter up from the chassis.

IMPORTANT

Before you fold the chassis in accordance with the instructions of the pram manual, you must remove the car seat. You do not need to remove the adaptor before you fold the chassis.

Close-up of hands installing or adjusting a black plastic component with arrows indicating assembly (no text or symbols visible)

Close-up of a hand using a mechanical clamp to adjust a device (no text or symbols visible)

2

Close-up of a person adjusting a black sports equipment with a numbered label (3) and 'COWNS' logo, no readable text or symbols beyond the number.

3

Black and white photo of a baby car seat with visible straps and branding (no text or symbols)

4

5

Close-up of hands adjusting a mechanical device with a numbered arrow pointing to the component (no visible text or symbols)

16

Fest Adapteren på understellet

Four black plastic mechanical components with mounting brackets, displayed against a plain background (no text or symbols visible)

ADVARSEL

• Kontroller alltid at adapteren sitter fast i låsefestene på understellet.
• Løft aldri i bilstolen når den er montert på understellet.
• Sett alltid på bremsen på vognen før du fester Adapteren på understellet.

Close-up of a car seatbelt device with a hand adjusting the seatbelt (no visible text or symbols)

Person adjusting a baby stroller with a hand adjusting the frame (no visible text or symbols)

3. Nu sidder autostolen fast på adapteren

ADVARSEL

Black stroller with two seats and a handle, displayed on a wooden surface (no visible text or symbols)

Two baby strollers with hand adjusting handles, no visible text or symbols

5. Afmonter adapteren fra stellet

Close-up of hands installing or adjusting a black plastic component with an upward arrow (no visible text or symbols)

Close-up of a hand using a mechanical clamp device to adjust a component, with no visible text or symbols.

2

Close-up of a person adjusting a black sports equipment with a numbered label (3) and 'Cousins' logo, no readable text or symbols beyond the label.

3

Black and white photo of a baby stroller with attached straps and buttons (no visible text or symbols)

4

5

Close-up of hands adjusting a mechanical device with a numbered arrow pointing to the component (no visible text or symbols)

20

Fest Adapteren på understellet

• Sett på bremsen på vognen
  • Ta av bagen eller sportsvogndelen iflg. vognens manual.
• Sett fast Adaptern på understellet ved å trykke ned den i understellets Easy Fix läsefeste (1).
• Adapteren skal være vendt slik at plastringene(2) peker mot handtaket.

ADVARSEL!

• Kontroller alltid at Adaptern sitter fast i låsefestene på understellet.
• Løft aldri i bilstolen när den er montert på understellet.
• Sett alltid på bremsen på vognen før du fester Adapteren på understellet.

Four black plastic mechanical components with mounting brackets, shown from different angles (no text or symbols visible)

ADVARSEL

• Kontroller alltid at Adaptern sitter fast i låsefestene på understellet.
• Løft aldri i bilstolen når den er montert på understellet.
• Sett alltid på bremsen på vognen før du fester Adapteren på understellet.

Two-step photo showing a child in a baby car seat being adjusted for a larger seat (no text or symbols visible)

Close-up of a black and white baby stroller with handles and seat, placed on a wooden surface (no visible text or symbols)

Interior view of a two-stride baby stroller with hand adjusting the front panel (no text or symbols visible)

Close-up of hands installing or adjusting a black plastic component with an arrow indicating upward motion (no text or symbols visible)

Close-up of a hand holding a black mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels

2

Close-up of a person adjusting a car seatbelt with a numbered label (3, 4, 5) and 'Cotton' logo on the seat (no readable text beyond labels)

3

Black and white photo of a baby stroller with adjustable arms and buttons (no visible text or symbols)

4

5

Close-up of hands adjusting a mechanical device with a numbered arrow pointing to the component (no visible text or symbols)

24

Four black plastic mechanical components with mounting brackets, arranged in a 2x2 grid (no text or symbols visible)

VAROITUS

Close-up of a baby car seat with a hand adjusting the handle (no visible text or symbols)

Person adjusting a baby stroller with a hand holding the tray (no visible text or symbols)

Black stroller with black frame and white seat, mounted on a wooden surface (no visible text or symbols)

Two black baby strollers with hand adjusting the front panel, no visible text or symbols

Close-up of hands installing a black plastic component with arrows indicating assembly (no text or symbols visible)

Oluline ohutuse alane teave

Close-up of a hand using a mechanical clamp device to adjust a component, with no visible text or symbols.

Close-up of a person adjusting a black sports equipment with a numbered label (3) and 'Cousins' logo, no readable text or symbols beyond the label.

Black and white photo of a baby stroller with attached straps and buttons (no visible text or symbols)

Close-up of hands adjusting a mechanical component with a numbered arrow indicating '7' (no text or symbols present)

Four black plastic mechanical components with mounting brackets, displayed against a plain white background (no text or symbols visible)

HOIATUS

Two-step photo showing a child's seat replacement in a stroller, with no visible text or symbols.

Black and white photo of a baby stroller with handles and seat, placed on a wooden surface (no visible text or symbols)

Interior view of a two-stride baby stroller with hand pointing to the front panel (no text or symbols visible)

Close-up of hands installing or adjusting a black plastic component with an arrow indicating upward motion (no text or symbols visible)

Close-up of a person using a mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels.

2

Close-up of a hand adjusting a black athletic suit with a numbered component (no visible text or symbols)

3

Black and white photo of a baby stroller with adjustable arms and seat (no visible text or symbols)

4

5

Close-up of hands adjusting a mechanical component with a numbered arrow indicating '7' (no text or symbols present)

32

Four black plastic mechanical components with metal brackets, displayed against a plain white background (no text or symbols visible)

BRĪDINĀJUMS!

Hand holding a car seatbelt device with a hand pointing to it, no visible text or symbols

Person adjusting a baby car seat using a lift device (no visible text or symbols)

Black and white photo of a two-story baby stroller with handles and seat, no visible text or symbols

Interior view of a two-wheeled baby car with hand adjusting the front panel (no text or symbols visible)

SVARİGI!

Close-up of hands installing a black plastic component with arrows indicating assembly (no text or symbols visible)

Svarbi saugos informacija

Close-up of a hand using a mechanical clamp device to adjust a component, with no visible text or symbols.

2

Close-up of a person adjusting a black athletic suit with a belt, no visible text or symbols

3

Close-up of a black and silver baby stroller with attached straps and buttons (no visible text or symbols)

4

5

Close-up of hands installing or adjusting a mechanical component with a tool, no visible text or symbols

Four black plastic mechanical components with mounting brackets, displayed against a plain white background (no text or symbols visible)

ISPÉJIMAS!

Two-step photo showing a child's seatbelt being adjusted for a car, with no visible text or symbols.

Close-up of a black stroller with two seats and a handle, mounted on a wooden surface (no visible text or symbols)

Interior view of a two-stride baby stroller with hand adjusting the front panel (no text or symbols visible)

Close-up of hands assembling a black plastic component with directional arrows indicating assembly (no text or symbols visible)

Close-up of a hand using a mechanical device to adjust a component, labeled with numbers 1 and 2 (no text or symbols on the device itself)

2

Close-up of a person adjusting a car seatbelt device with a numbered label (3), no visible text or symbols on the device itself.

3

Black and white photo of a baby stroller with attached straps and accessories (no visible text or symbols)

4

5

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (7), no visible text or symbols.

Four black plastic electronic components with mounting brackets, arranged side by side on a plain background (no text or symbols visible)

OSTRZEŻENIE!

Hand holding a car seatbelt device with a hand pointing to it, no visible text or symbols

Person adjusting a two-back car stroller with a hand pointing to the handle (no visible text or symbols)

Black stroller with two seats and a handle, mounted on a wooden surface (no visible text or symbols)

Two baby strollers with hand adjusting the front panel (no text or symbols visible)

Close-up of hands installing a black plastic component with an arrow indicating upward motion (no text or symbols visible)

Close-up of a hand adjusting a mechanical component with labeled parts (1 and 2), no readable text or symbols present.

2

Close-up of a person adjusting a black athletic suit with a belt, no visible text or symbols

3

Black and white photo of a baby stroller with attached straps and buttons (no visible text or symbols)

4

5

Close-up of hands adjusting a mechanical device with a numbered arrow pointing to the component (no visible text or symbols)

46

Four black plastic electronic components with mounting brackets, arranged side by side on a plain background (no text or symbols visible)

Hand holding a car seatbelt device with a hand pointing to it, no visible text or symbols

Person adjusting a two-back car stroller with a hand pointing to the handle (no visible text or symbols)

Black and white photo of a stroller with front seats and wheels (no visible text or symbols)

Two baby strollers with hand adjusting the front panel (no text or symbols visible)

Close-up of hands installing or adjusting a black plastic component with an upward arrow (no visible text or symbols)

DŮLEŽITÉ!

Close-up of a hand adjusting a mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels.

2

Close-up of a hand adjusting a car seatbelt with a numbered label (3) and brand logo visible (no readable text or symbols beyond labels)

3

Black and white photo of a baby stroller with attached straps and accessories (no visible text or symbols)

4

5

Close-up of hands assembling a mechanical device with a numbered arrow indicating component 7 (no text or symbols visible)

50

Four black plastic mechanical components with mounting brackets, displayed against a plain background (no text or symbols visible)

¡ADVERTENCIA!

Hand holding a black car seat with a handle, next to a small mechanical device (no visible text or symbols)

Person adjusting a two-back car stroller with a hand pointing to the handle (no visible text or symbols)

Close-up of a black stroller with front-mounted buttons and a small white strap (no visible text or symbols)

Two baby strollers with hand adjusting handles, no visible text or symbols

Close-up of hands installing a black plastic component with an upward arrow (no text or symbols visible)

Emmaljunga®

nXT Twin

© 2022 Emmaljunga Barnvagnsfabrik AB
