Brand	BRAUN
Model	TEXSTYLE 710
Product type	Iron
Power supply	220-240 V, 50-60 Hz (check compatibility)
Water tank	Fill up to "max" level (capacity not specified)
Steam functions	Steam jet, Spray, Precision Shot (extreme steam), steam regulator (0-6), dry ironing
Textile Protector function	Available on model 730 only
Temperature	Temperature selector with zones, level indicator light
Vertical steaming	Yes, via Precision Shot
Recommended water type	Tap water; mix 50% tap water + 50% distilled water if hard water; do not use distilled water alone
Soleplate cleaning	With steel wool; do not use scouring pad, vinegar or chemicals
Descaling anti-calc rod	Immerse in vinegar or lemon juice for at least 30 min, rinse with water
Descaling vaporization chamber	Procedure described in the manual (diagram H)
Safety	Unplug before filling; do not immerse; do not leave unattended; use on stable surface; store on heel; do not iron worn clothes
Warranty	2 years (contractual) + legal warranty for hidden defects (France)
After-sales service	Braun Authorized Service Centers (contact: 0 800 944 802)
Use	Domestic only
Weight	Not specified

Frequently Asked Questions - TEXSTYLE 710 BRAUN

How to fill the water tank of the Braun TexStyle 710 iron?

Turn the steam regulator to position "0", open the tank, tilt the iron and fill up to the "max" level with tap water or a 50% distilled water mixture if the water is hard. Do not exceed this level.

What type of water to use in the Braun TexStyle 710 iron?

Use tap water preferably. If the water is very hard, mix 50% tap water and 50% distilled water. Never use distilled water alone or chemicals (starch, etc.).

How to clean the anti-calc rod of the iron?

Turn the steam regulator clockwise beyond position "6" until it lifts, then remove it. Immerse the rod in vinegar or lemon juice for at least 30 minutes. Scrub off residues, rinse with water and put it back.

What to do if the iron does not produce steam?

Check the water level in the tank. If the tank is full, clean the anti-calc rod as described in the manual. Make sure the steam regulator is not on "0" and the temperature is in the red zone.

How to use the Precision Shot function?

Press the Precision Shot button (4) 3 to 4 times to activate it. Then press with intervals of at least 5 seconds. The temperature selector must be in full red zone. This function can also be used in vertical position to de-wrinkle hanging clothes.

Is the Textile Protector function available on this model?

The Textile Protector function (iron without creating shine) is only available on the TexStyle 730 model. For the 710 model, this function is not present.

How to descale the vaporization chamber?

Follow the procedure in diagram H of the manual: remove the steam regulator, fill with water, heat and activate the Precision Shot several times. Use vinegar or lemon juice, never commercial descaler. Wait for the soleplate to cool before cleaning.

Can I iron hanging clothes with this iron?

Yes, use the Precision Shot function in vertical position. The temperature selector must be in full red zone. Caution: hot steam comes out of the jet, keep the iron away from hands.

What to do if water droplets come out of the soleplate?

Reduce the steam flow by turning the regulator counterclockwise. Use the Precision Shot function with longer intervals and select a higher temperature.

What is the warranty period for the Braun TexStyle 710 iron?

Braun offers a 2-year contractual warranty from the date of purchase, covering manufacturing defects. In France, the legal warranty for hidden defects (articles 1641 et seq. of the Civil Code) also applies. For any claims, contact a Braun Authorized Service Center.

USER MANUAL TEXSTYLE 710 BRAUN

(Audio Supplies Company Ltd.)

Internet:

www.braun.com

www.service.braun.com

Braun GmbH

Frankfurter StraBe 145

61476 Kronberg / Germany

A

B

C

D Textile Protector (730 only)

E

F

G
Cleaning the anti-calc valve

H
Anticalc system

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design.

We hope you enjoy your new Braun steam iron.

Important Safeguards

• Before using the iron, read the use instructions completely. Keep the use instructions during the entire life of the appliance.
• This appliance is designed for household use only.
  Make sure your voltage corresponds to the voltage printed on the iron.
• Caution: Due to the high power of this steam iron please make sure that your mains supply is sufficient. Please contact your local electric power company to make sure that the so called mains impedance is not higher than 0.31 Ohm.
  Always unplug the iron before filling with water. Always pull the plug, not the cord.
• The cord should never come in contact with hot objects or the sole plate.
• Never immerse the iron in water or other liquids.
• The iron must be used and rested on a stable surface.
• During ironing pauses, always place the iron upright on its heel rest and ensure that the heel rest is placed on a stable surface.
• The iron must not be left unattended while it is connected to the mains supply.
• This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Keep the iron away from children, especially when using the Precision Shot function. Electric irons combine high temperatures and hot steam that could lead to burns.
• Never iron or dampen clothes while wearing them.
• The iron is not to be used if it has dropped, if there are visible signs of damage or if it is leaking. Regularly check the cord for damage.
• If the appliance (including cord) shows any defect, stop using it and take it to a Braun Service Centre for repair. Faulty or unqualified repair work may cause accidents or injury to the user. Braun electric appliances meet applicable safety standards.

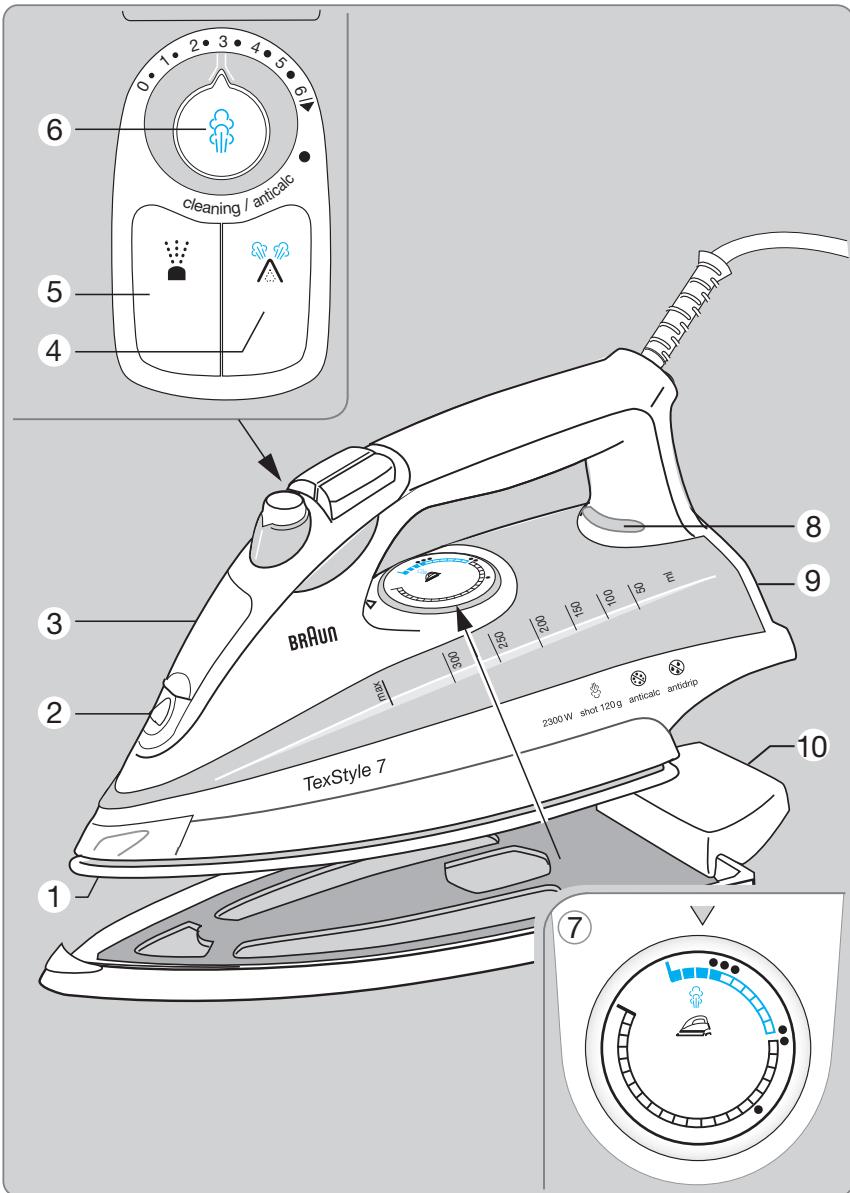

A Description

1 Preconditioning nozzles
2 Spray nozzle
3 Water tank opening
4 Precision Shot button
5 Spray button
6 Steam regulator
7 Temperature selector
8 Temperature pilot light
9 Heel rest
0 Textile Protector (only with 730 model)

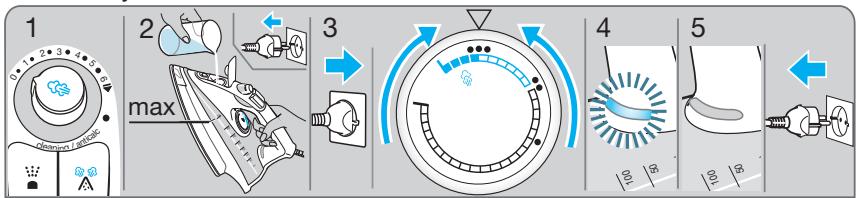

B Before starting off

This iron is designed for tap water. If you have extremely hard water, we recommend that you use a mixture of 50% tap water and 50% distilled water. Fill the water tank to «max» marking. Never use distilled water exclusively. Do not add any additives (e.g. starch). Do not use condensation water from a tumble dryer.

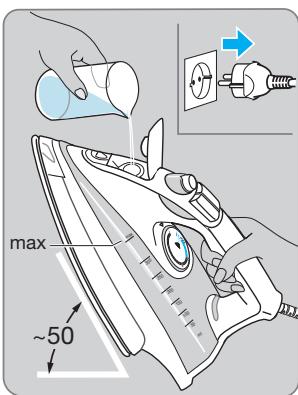

Before filling with water, turn off the steam regulator ( 0 = steam off).
- Holding the iron slightly inclined (as shown in B), fill the water tank up to the «max» marking.
- Place the iron upright on its heel rest and connect it to the mains.

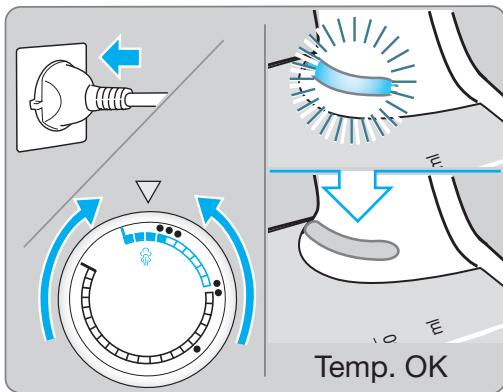

Select the temperature according to the ironing guide on the heel rest of the iron or on the label in your garments.

The pilot light (8) goes off when the desired temperature is reached (after approx. 1 1/2 min.).

C Ironing

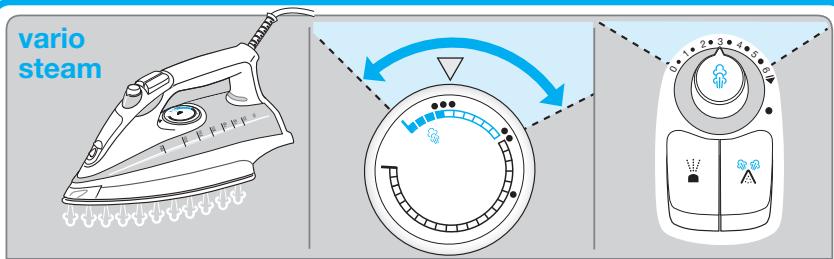

Vario steam

You can select the steam quantity by turning the steam regulator (6) in a range from 0 to 6

The temperature selector (7) has to be set within the red range.

We recommend a medium steam setting for all normal ironing. Only when ironing linen, thick cotton or similar fabrics we recommend the maximum steam setting. Notice: While ironing, do not turn the steam regulator beyond setting «6».

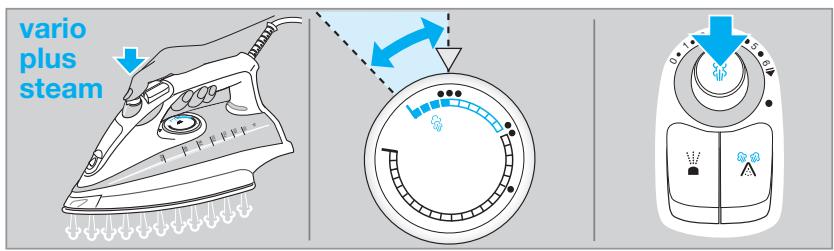

Vario plus steam

For extra steam, press the steam regulator (6) for max. 30 seconds.

The temperature selector (7) has to be set within the solid red range.

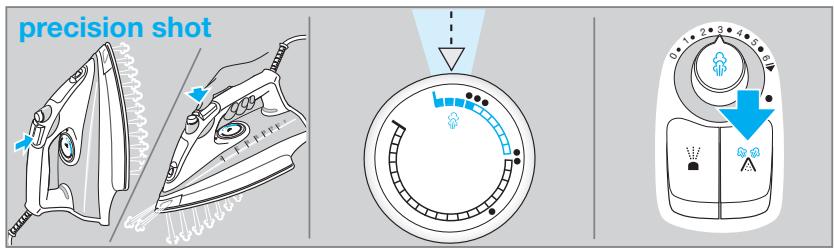

Precision Shot

Prior to use, press the Precision Shot button (4) 3 to 4 times to activate it.

Press the Precision Shot button in intervals of at least 5 seconds for a powerful steam shot with preconditioning steam.

Precision Shot can be activated when dry ironing. However, the temperature selector has to be within the solid red range.

The Precision Shot function can also be used in the vertical position for steaming hanging clothes.

Caution: Hot steam comes out from the preconditioning nozzles.

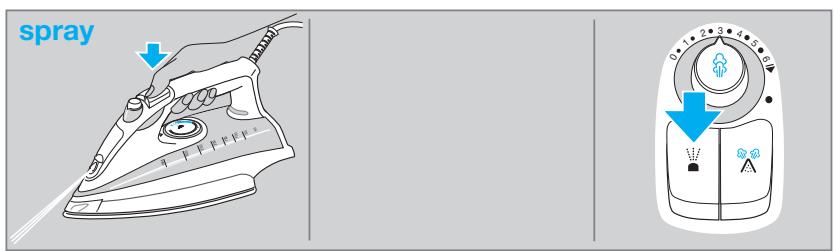

Spray function

Press the spray button (5).

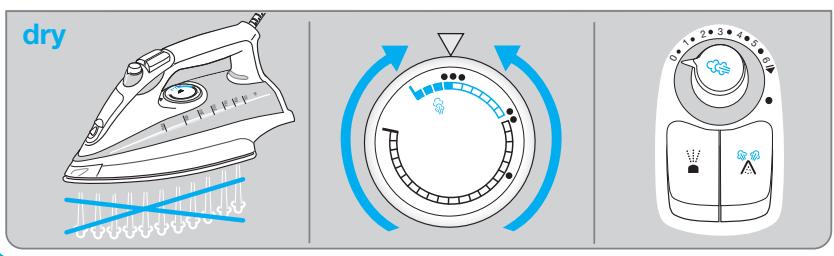

Dry ironing

Set the steam regulator (6) on position «0» (= steam off).

D Textile Protector

(730 model only)

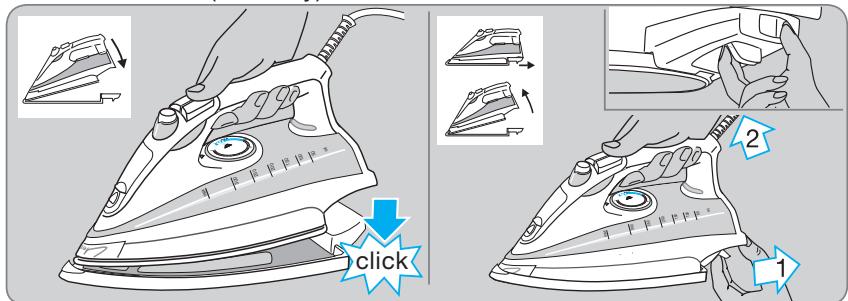

Before attaching the Textile Protector (10) for the first time, iron approximately 2 minutes without Textile Protector. The Braun Textile Protector protects delicate fabrics from heat damage and makes it possible to iron most dark fabrics without an intermediate cloth.

A special coating avoids shiny patches. However, in order not to damage the coating, avoid ironing over e.g. zippers, metal buttons/rivets or strass with the Textile Protector attached.

To check the reaction of your fabrics before you start ironing, we recommend that you iron a small section of material on the reverse side. With the Protector, you are able to iron delicate fabrics with the temperature setting within the solid red range so that you can use all steam functions your iron offers.

After having attached the Textile Protector, wait about 1 1/2 minutes before you start ironing. Always store your iron with the Textile Protector detached.

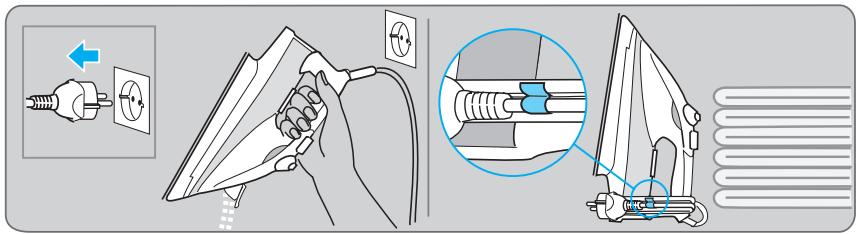

E After ironing

Unplug the iron and turn the steam regulator to position «0». To prolong the life of the iron, empty the water tank. Store the cool iron in a dry place always standing on its heel rest.

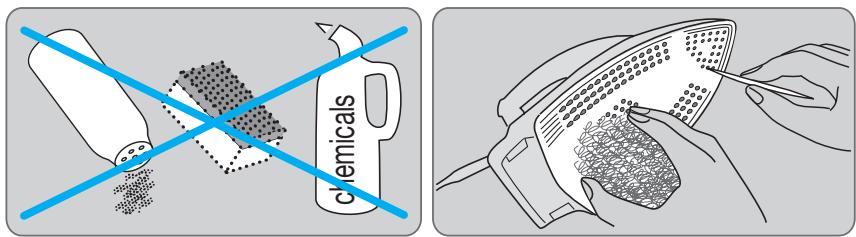

F Maintenance and cleaning

To clean the sole plate, use steel wool. Never use a scouring pad, vinegar or other chemicals.

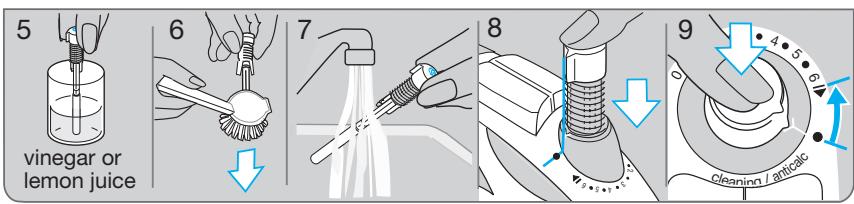

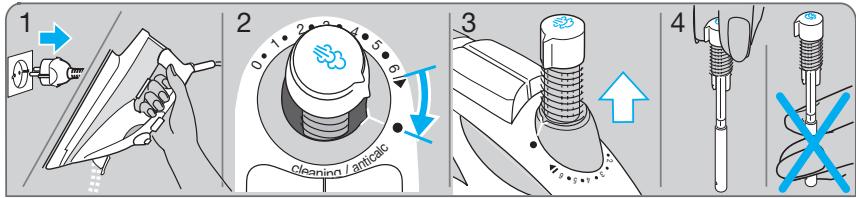

G Cleaning the anticalc valve

The anticalc valve located on the lower end of the steam regulator has to be decalcified regularly (e.g. whenever steam development is insufficient). For this, the water tank has to be empty.

Removing the steam regulator with the anticalc valve

Turn the steam regulator clockwise towards the steam setting «6», Keep on turning firmly beyond the resistance until the steam regulator is lifted. When positioned at , pull it out vertically.

Do not touch the anticalc valve at its lower end. Immerse the anticalc valve in vinegar (not vinegar essence) or lemon juice for a minimum of 30 minutes. Brush off remaining residues and rinse under running water (fig. G, 1-7).

Re-inserting the steam regulator

When re-inserting the steam regulator, make sure the steam regulator base still points on setting (fig. G 8). Firmly push down the steam regulator until it turns back to setting «6» (fig. G) where it catches.

Notice: The iron must never be used without steam regulator.

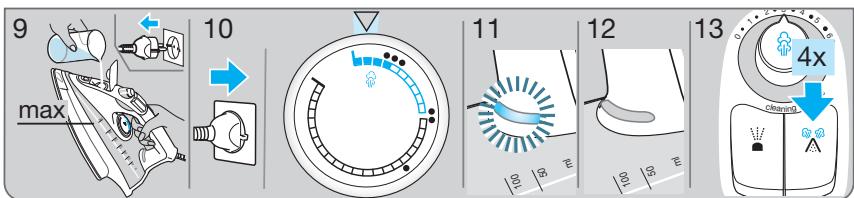

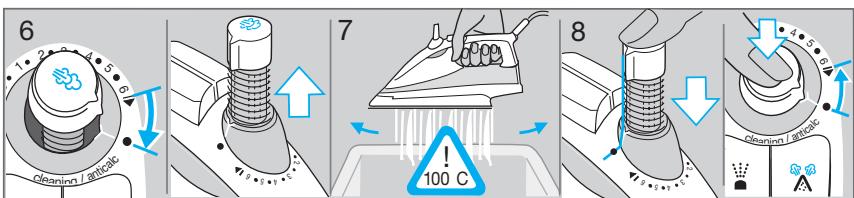

H Decalcifying/anticalc system

In order to clean the steam chamber from residues, decalcify it as shown in picture section H, 1-8.

Caution: Hot water and steam will come out from the sole plate when the steam regulator is turned clockwise beyond setting «6».

Wait for the sole plate to cool down, then clean it as described above. Then refill the tank with water, heat up the iron and press the precision shot button 4 times to rinse the iron before ironing (fig. H, 9-13).

Do not use commercial decalcifiers, they may damage the iron.

Trouble-shooting guide

Problem	Remedy
Drops coming out of the steam vents.	Turn the steam regulator anti-clockwise to reduce the steam or turn it off. Take longer intervals when pressing the Precision Shot button. Select a higher temperature setting.
Less steam develops or no steam at all.	Check water level. Clean the anticalc valve.
Calcium particles coming through the steam vents.	Decalcify the steam chamber.

Subject to change without notice.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance.

The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

François

Merc & Dujmovic, 21000, SPLIT

Alojza Stepinca 6, 021 53 77 80

Slovenski

Naši izdelki so zasnovani takó, da ustrezajnojavižim standardom kakovosti, funkcional-nosti in dizajna. Želimo vam, da bi vaš novi Braunov parni likalnik z veseljem uporabljali.

ChyTne napopereYJrTaTOPa BmEcTe C KJIanaHOM, PpeDToBpaUaIOuIM KaJIbUHHPOBaHnE:

ПовернITE napoperуларop no yacobov стpenke do 3nauchenia «6».Проблжайт nobopaunbtahe cemotpr ha copotn- велен.Когдастpenka peryilapora doctinnetno3niibullet,Вьиltbe napoper- rylaltop,poindHmair ergoBepTknaklbHo Вberpx. He kacaitec b nKHeu actn knapana naIbzaam. Onyctnte knanahan В yKcyc (He yKcchyIO 3ccEHnIO) nIN В Лимонькoc mHmym Ha 30 MnHT. Выт pine octabniЯ саадokи onoJONCHITe knanah noD CTpye BODbl (pnc.G,1-7).

UcTaHOBKa napoperyIaTopa o6paTHo:
Ipeed TEM, KaK yCTaHOBtB
napoperyIaTOp o6paTHO, y6eINTeCb,
yTO CTpeNk peYIaTOp ya3bIaEBaET Ha
no3nIuO O, daJIeB bblONHInTe DeJcTBn
I3o6BaXeHNHe Ia nC. G 8.
IpeOcTepeXeHne: yTOr HeJIb3r
IcNoJIb3ObAtb 6e3 napoperyIaTopa.

H CnCTeMa npeDoTbpaaIouaKaIbCuHHPOBaHne

UTo6bO uOncTntb napOByIO kAmepy yTHoRa OT ocaJaKa, IeKaJIbCuHnHyPe Te ee KaK noka3aHO Ha pnc. H 1-8.

IpeoctepexHne:KOrda napoperynT-Top 6ydt NobepHyT no yacobOY CTpeJIke B NOIOJXeHne «6》，Yepe3 OTBepCTnB BNOOwBE yTOra 6ydt BbIXoNTb RopnA BOa n nap.

Bupi6 He miCTnTb uKiDnVBnx dIy 3OpOB'peuOBnH

O6bIaHaHHB iDnOBiJaE BmMOram TexHiyHOro perIaMeHTy o6MeXeHHB BkOpNCTaHHa DeKHX NHe6eNeHHx peoBuH B eJeKtPruHOMy Ta eJeKtPOHHOMy o6bIaHaHHi.

001

Даразиюбнцтва порукць Braun Вka3a7а 6e3nosepeHbAo habиюbi (В мicci MapkyBaHnI) i КладаeTсьс 3 Трboxифр: перша сфра e OCTaHHBOO ncfpoTOPO kpy Виюбнцтва, iHsi DBi сфрп e NOPДКOBМ HomepOM TnKнY y poci

Kpaɪnva Bɪpɒbɪnɪtɪba:
VIDEOTON Holding RT, Izzo u.3, H-7400 Kaposvar

TapaHTiHi 306OB'3aHHBHpO6HnKa

ДлЯ BCIX BIVO6Ib Mн ДаeMo rapaHTiIO Ha IBaPOKи, NOUHnAIOuN 3 MoMEnTHy PrnIb6HnB BIVO6bI aObo 3 DTaN HrO BIVo6BnTBA, y pa3i BiIDCyTHoCTI aObo HeNAleJxHO OΦOpMJIeHnRApaHrtiHOrO TAnOHy HA BIVi6.

IpoTAROM rapaHTiHoro nepioy Mn 6e3KOuTBOH YCyBaeMO UJRAXOM pEMOHTy, 3aMIHN DeTaJIeN a60 3aMIHN BcBOrO BInpOby 6bY-baK3 aBooCbKi DepeKTN, BVKNIkaHi HeIOCTaTHBOIO RaICtHO MaTePiaJIIB a60 CKlaJaAHHa.

YBnnaIky HEmoXJIbIOCTi peMOHTy B rapaHTIINH nepioD bnpio M0Ke 6byT3aMHeHn Ha HOBn aOo aHaJIoIuHn BiNDOBIDNo do 3aKohy npo 3axNCT npab CNOXBauiv.

Rapantia ha6ybae cnIi InIe, kIIO daTa KynIbI niTbepJxcyTbcN neaTkoTo Ta nIINCOM dInepa (MarazHy) Ha opriHaIbHomy raptiHomy TaIonoHi Braun ao H ocTaNHI cTOpIHcO npriHaIbHO iHCTpyKuii 3 ekCnIyatauII Braun, kA taKoX MoKe 6ytn rapaTIHNm TaIohom.

Lγ rapaTπiδncha y 6ydb-λki KpaHl, B kky cei BvpiO NcSTabIeTbCpIepCTaBHKOM KOMnAHI BVPOBnKa aO bPn3HaueHm INCTprN6'TOpOM, Ta JeXoDi OmbexeHH3 imnpOby aO Hi npaBOi INoJoxeHH He nepeWkoJxaoTb HaadHIO rapaHTiHorO 06cnyroByBaHH.

「rapahtiHa 3aMiHeni YactHn 3akIyuTbcB MOMeHT 3akIHueHHra papaTii Ha daHn BnuPi6.「rapaHTi He NOKpHbAe NoUkOJxHeHH, BKNlKAnHi HeBipHm BNKOpNCTaHHM (INB. TaKoX nepeNik HnXy) HopMaJIbHe 3HOuYBaHn CITOK Ta HOXIB dNra fOniHH, DepeKTn, 10 He3NaHm YHOM BPNJBaOTb Ha JkiCTb pOboTn npJaNy. Lr rapaHTi

Btpaac cnly, kIpo pemOH 3iiCHIOeTbcr He BNOHBoBAxKeHOIO IJIra OTOOCO6OIO Ta, kIIO BIKOPNCOTBOyOTbcr HeOpriHaJIbHi 3anachi YactHn H BpO6HnKa.

YBnnaKny nped'YBHeHnpeKlamaQii 3a yMOBaMn daHOI rapaNTi, npepaTe Bnpi6 y NOBHOMy KOMPJIeKTi 3rIgHO OINMCY B opnHaNbHi IHCTpyKcII 3 EKnPlyatau i pa30m 3 rapaHTiHnM TaHOm y 6bIb-RAH CepBicHNI CEHTP, RKnO ophiHIO BNOBHOBAKeHn npedCTabHNKOM KOMNaH IIIBPO6NtKA.

Bci iHusi BmMOrn, pa30m 3 BmMoraMn BiiuKoDyBaHHN 3bNtKIB, He DiiChi, JAKUO Haua BiINObiJaIbHcTb He BCTaHOBNeHa 3aKOHNHM YInHom.

BnpaKn,Ha aKi He po3noBcOJxUeTbcra rapaHTi:

-ДeФЕKTи,ВИКЛИКаHI φорс-MaxхорнIMN oБCTaBnHaM;
- BIVOKOPINCTAHN3IPOOpeciHIO MToIO a6o3 MeTOIO OTPMaHHn pnp6yKy;
- NOPYUeHnB BmOr IHCTpyKu3 3 ekCnJyatau;
- HeBipHe BCTaHOBJIeHnHa npyrM MepeXi JINBJIeHHN (JKUO Ue BmMaTaεTbC);
-3ДиСHEHHaTexHicHNx 3MiH;
-MexaHHi N0UKOJKeHHra
-ДЯпиади,юпрацють на 6batapeкax - робота 3 HeiДNOBIHIMn abo cnpaцьовимпьатapeйсам,удякі пожcodжehн,ВКлИКаHi cnpaцьовимпьао ngТIkaIOUHMN 6batapeikam;
- NOUKOJXeHn3 BINH TBaPnH, rpn3yHiB Ta KOMax (B TOMy uCnI y BIna,Ikax 3haoJXeHHrpn3yHiB Ta KOMax ycepeDnHi npnla,Ib)
-ДлгбпгВ-3im'Ятабo npванca itka.

Ybara!IpaantHmTanoHn iJnlaeBnUyehHHIOBa3i 3BepHeHHaDOcePBicHOrO ceHTpy 3 npoxAHmnp BOVKoHaHHraPapHTHOpeMOHTy.PicnIpoBeJeHHpeMOHTy paantHmTaNoHOMbyeBBaKaTc3aONBHeHHOpriHaJI NCTBaVKoHaHOpeMOHTy 3i StAmNOMcePBicHOrO ceHTpy Ta nDnncAHn CNOXHBaem npoOTpMaHnBnPo6y 3 peMOHTy. IpaantHmTePMInnoDBKycbRaHa nepio, kyn daHnBvip3haxoDbcB aCEPBichOMy ceHTpi BpeMOHTI.

Bpa3i BnHKnHeHH TpyDnOuij 3 BnKoHaHHaR
rahpantHoro Ta nicJrahpantHoro
obcnyroBaYbAHn, npoxAHn 3BepTaTncsdo
inHpmauiHO CIyXbC cepBiCy
npedCTabHnKa KOMnHII BpObHnKa BYKpaHi.
TepeOHrapaoyoi nii0 800 505000.

ДзынклуКраиHi 3i StaioHapHnx TeleфоHHNX HOMePIB e63KOuTOBHmN.Дзынк 3 MObIbHnx TeleфoHIB onJIayOTbc3rIHDToPnOiv BiIDNoBIdHOrO onepaTopa.

TakoMoxKHa OTPMaTn DoaTkoBy iHOpMaIIO Ha cepBICHOMy IopTaJI BIno6HnKa B INTePheti www.service.braun.com.

Country of origin: Hungary

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of the manufacture.

Example: "635" - The product was manufactured in week 35 of 2006.
