Product type	Rechargeable electric shaver with self-cleaning system
Brand	Braun
Model	799CC-6WD / Series 7 799CC-7 Wet&Dry
Usage	Dry shaving or in the shower (cordless only)
Battery life	Up to 50 minutes of cordless shaving
Charging time	Approximately 1 hour for a full charge
Power supply	Cord with built-in power adapter (100-240 V)
Cleaning system	Clean&Renew: automatic cleaning, drying and charging
Cartridge capacity	Up to 30 cleaning cycles
Cartridge lifespan	Approximately 8 weeks if not used daily
Shaving head	70S shaving cassette (replace every 18 months recommended)
Trimmer	Retractable trimmer for long hair
Settings	Sensitive (-) and intensive (+) buttons with indicator light (dark blue, light blue, white)
Display	Screen with 6 battery level segments and 6 hygiene segments
Head lock	Yes, for difficult areas (e.g., under nose)
Pivot	Flexible pivoting head to adapt to facial contours
Dimensions (approx.)	Height 17 cm, Width 6.5 cm, Depth 4 cm (shaver only)
Weight (approx.)	200 g (shaver only)
Warranty	2 years
Maintenance	Automatic cleaning (Clean&Renew) or manual (running water)
Safety	Can be used in the shower (cordless only); do not use with damaged foil
Spare parts	70S shaving cassette, Clean&Renew CCR cleaning cartridge
Repairability	Braun authorized service centers
Included accessories	Self-cleaning system, power cord, travel case, cleaning brush
Environmental class	Rechargeable battery; do not dispose of in household waste

Frequently Asked Questions - 799CC-6WD, SERIES 7 799CC-7 WET&DRY BRAUN

How to use the shaver in the shower?

For shaving in the shower, use the shaver without the power cord. Turn it on and shave as you would dry. After use, rinse the head under running water. The shaver is designed for cordless use in the bath or shower.

How to clean the shaver manually?

Turn on the shaver (cordless) and rinse the head under running water. You can use non-abrasive liquid soap. Rinse well, then turn off the shaver. Remove the shaving cassette by pressing the release button and let it dry. If you clean under water regularly, apply one drop of sewing machine oil once a year on top of the cassette.

How to replace the shaving cassette?

When the replacement symbol lights up on the display (approximately every 18 months), press the release button to remove the old cassette. Insert a new 70S shaving cassette by snapping it into place. Then use a pen to press the reset button for at least 3 seconds until the indicator flashes and then turns off.

How to reset the counter after replacing the cassette?

After installing a new cassette, take a pen and press the reset button on the shaver (button 15) for at least 3 seconds. The replacement indicator flashes and then turns off, indicating the counter is reset.

How long does the battery last after a full charge?

A full charge provides up to 50 minutes of cordless shaving. The remaining capacity is shown by 6 segments on the display. When the red low charge light flashes (less than 20%), you still have 2 to 3 shaves left.

How to know when to replace the cleaning cartridge?

The fluid level indicator on the Clean&Renew station shows the remaining amount. When it shows one segment, there are up to 7 cycles left. The 'new cartridge needed' light turns on. With daily use, one cartridge lasts about 30 cycles; otherwise, replace it every 8 weeks.

What if the cassette replacement indicator lights up?

The indicator means it's time to change the shaving cassette (approximately every 18 months). You have 7 shaves to replace it. After installing a new cassette, reset the counter by pressing the reset button for 3 seconds.

Can I use the shaver without the self-cleaning system?

Yes, the shaver works perfectly without the Clean&Renew station. You can charge it directly with the power cord and clean it manually under water or dry with the included brush. However, the self-cleaning system ensures optimal cleaning and maintains the hygiene segments.

How to adjust the shaving sensitivity?

Use the sensitive (-) and intensive (+) buttons on the shaver. The switch light changes color: dark blue for powerful shave, light blue for normal, white for gentle shave. The last setting is remembered for next use.

What is the warranty period?

Braun provides a 2-year warranty from the date of purchase, covering manufacturing defects. It does not cover normal wear (foil, cutter block) or damage due to improper use. In France, the legal warranty for hidden defects also applies.

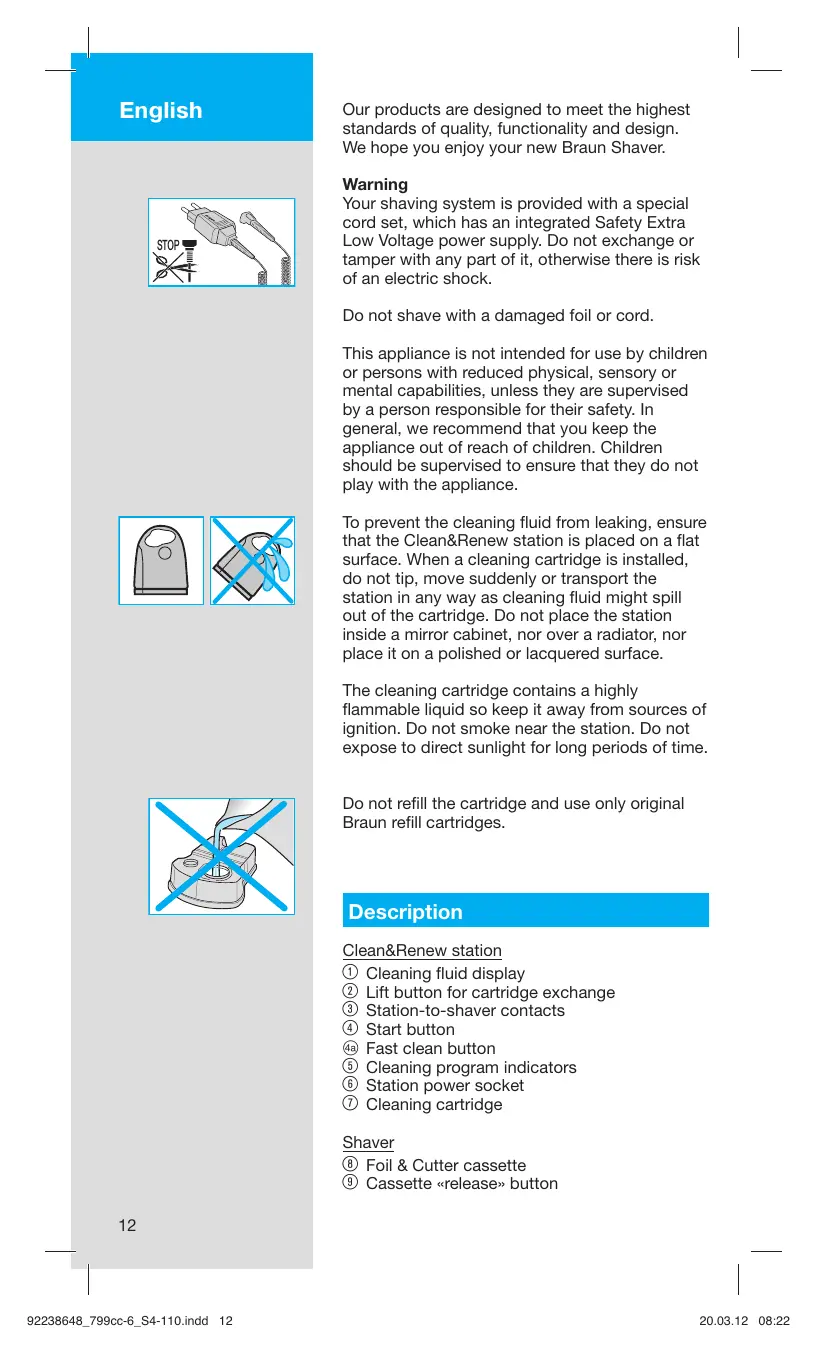

USER MANUAL 799CC-6WD, SERIES 7 799CC-7 WET&DRY BRAUN

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Warning

Your shaving system is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock.

Do not shave with a damaged foil or cord.

This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are supervised by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.

To prevent the cleaning fluid from leaking, ensure that the Clean&Renew station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor over a radiator, nor place it on a polished or lacquered surface.

The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not smoke near the station. Do not expose to direct sunlight for long periods of time.

Do not refill the cartridge and use only original Braun refill cartridges.

Description

Clean&Renew station

① Cleaning fluid display
② Lift button for cartridge exchange
③ Station-to-shaver contacts
④ Start button
4a Fast clean button
⑤ Cleaning program indicators
⑥ Station power socket
⑦ Cleaning cartridge

Shaver

⑧ Foil & Cutter cassette
Cassette «release» button

10 Shaver head «lock» switch
⑪ Pop-out long hair trimmer
⑫ On/off switch
() setting button (sensitive)
14 (+) setting button (intensive)
⑮ Reset button
16 Shaver display
⑦ Shaver-to-station contacts
18 Shaver power socket
19 Travel case
② Special cord set

Before shaving

Prior to first use you must connect the shaver to an electrical outlet using the special cord set ⑧ or alternatively proceed as below.

Installing the Clean&Renew station

• Using the special cord set ② , connect the station power socket ⑥ to an electrical outlet.
• Press the lift button ② to open the housing.
• Hold the cleaning cartridge ⑦ down on a flat, stable surface (e.g. table).
• Carefully remove the lid from the cartridge.
• Slide the cartridge into the base of the station as far as it will go.
• Slowly close the housing by pushing it down until it locks.

The cleaning fluid display ① will show how much fluid is in the cartridge:

up to 30 cleaning cycles available
up to 7 cleaning cycles remaining
new cartridge required

Charging and cleaning the shaver

Insert the shaver head down into the cleaning station. (The contacts ① on the back of the shaver will align with the contacts ③ in the cleaning station.) Important: The shaver needs to be dry and free from any foam or soap residue!

If required, the Clean&Renew station will automatically charge the shaver. The hygiene status of the shaver will also be analyzed and one of the following cleaning program indicators ⑤ will light up:

<

shaver is clean

short economical cleaning required

normal level of cleaning required

high intensive cleaning required

If the station selects one of the required cleaning programs, it will not start unless you press the start button ④ . For best shaving results, we recommend cleaning after each shave.

Whilst cleaning is in progress, the respective cleaning program indicator will blink. Each cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head and a heat drying process dries the shaver. Depending on the program selected the total cleaning time will range from 32 to 43 minutes.

The cleaning programs should not be interrupted. Please note that whilst the shaver is drying, the shaver head may be hot and wet. When the program is finished, the blue «√» indicator will light up. Your shaver is now clean and ready for use.

Fast cleaning

Push the fast clean button 45 to activate the fast clean program without drying. This program takes about 25 seconds only and is recommended when you do not have time to wait for one of the automatic cleaning programs. If you remove the shaver just after the program has finished, wipe off the shaver head with a tissue to avoid dripping.

Stand-by mode

10 minutes after completing the charging or cleaning session, the Clean&Renew station switches to the stand-by mode: The indicators of the Clean&Renew station turn off.

Shaver display

The shaver display ⑥ shows the charge status of the battery on the left, and the hygiene status on the right. (6 dark segments are shown on each side when the battery is fully charged and the shaver is hygienically clean).

Battery segments:

During charging or when using the shaver, the respective battery segments will blink. When fully charged all 6 segments are shown. With decreasing charge the segments gradually disappear.

Low charge indicator:

The low charge indicator provided with a red frame blinks to indicate that the charge has dropped below 20% . The remaining battery capacity is sufficient for 2 to 3 shaves.

Hygiene segments:

All 6 hygiene segments will appear after the shaver has been cleaned in the Clean&Renew station. When the shaver is being used, the hygiene segments will gradually disappear. Once the shaver is returned to the station, the system will automatically select the appropriate cleaning program and restore the segments to maximum hygiene. Given that rinsing the shaver under tap water is not as hygienic as the cleaning station, the hygiene segments will only restore themselves when the shaver has been cleaned in the Clean&Renew station.

Charging information

• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth.
• The best environmental temperature for charging is between 5^ to 35^ . Do not expose the shaver to temperatures higher than 50^ for extended periods of time.

Personalizing your shaver

Personalizing your shaver

With the (-) 13 and (+) 14 buttons you can choose the best setting for shaving different areas of your face and as per your specific needs. The different settings are indicated by the pilot light incorporated in the on/off switch 12:

• dark blue (powerful shave)
• light blue (normal)
• white (for a thorough comfortable shave in sensitive areas of your face such as neck)

For a thorough and fast shave we recommend the (+) setting.

When switching on next time, the last used setting will be activated.

Tips for the perfect shave

For best shaving results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90^) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

How to use

Press the on/off switch ② to operate the shaver:

• The pivoting shaver head and floating foils automatically adjust to every contour of your face.
• To shave hard to reach areas (e.g. under the nose) slide the shaver head «lock» switch ⑩ to the back position to lock the pivoting head at an angle.
• To trim sideburns, moustache or beard, slide the pop-out long hair trimmer upwards.

This appliance is suitable for use in a bath or shower. For safety reasons this appliance can only be operated cordlessly.

Cleaning

Automatic cleaning

After each shave, return the shaver to the Clean&Renew station and proceed as described above in the section «Before shaving».

All charging and cleaning needs are then automatically taken care of. With daily use, a cleaning cartridge should be sufficient for about 30 cleaning cycles.

The hygienic cleaning cartridge contains alcohol, which once opened will naturally evaporate slowly into the surrounding air. Each cartridge, if not used daily, should be replaced after approximately 8 weeks.

The cleaning cartridge also contains lubricants, which may leave residual marks on the outer foil frame after cleaning. However, these marks can

be removed easily by wiping gently with a cloth or soft tissue paper.

Manual cleaning

Rinsing the shaving head under running water is an alternative way to keep the shaver clean, especially when travelling:

• Switch the shaver on (cordless) and rinse the shaving head under hot running water. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, press the «release» button to remove the Foil & Cutter cassette and let it dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette.

Alternatively, you may clean the shaver using the brush provided:
- Switch off the shaver. Remove the Foil & Cutter cassette ⑧ and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. However, do not clean the cassette with the brush as this may damage it.

Cleaning the housing

From time to time clean the housing of the shaver and the Clean&Renew station with a damp cloth, especially inside the cleaning chamber where the shaver rests.

Replacing the cleaning cartridge

After having pressed the lift button ② to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution.

Keeping your shaver in top shape

Replacing the Foil & Cutter cassette/reset

To maintain 100% shaving performance, replace the Foil & Cutter cassette (8), when the replacement symbol lights up on the shaver display (16) (after about 18 months) or when cassette is worn.

The replacement symbol will remind you during the next 7 shaves to replace the Foil & Cutter cassette. Then the shaver will automatically reset the display.

After you have replaced the Foil & Cutter cassette, use a ball-pen to push the reset button ⑤ for at least 3 seconds to reset the counter. While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time.

Accessories

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette 70S
• Cleaning cartridge Clean&Renew CCR

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

The cleaning cartridge can be disposed with regular household waste.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.
