Product type	Ice cream maker with built-in compressor
Capacity	1 L
Voltage	220-240 V ~ 50 Hz
Power consumption (cooling)	100 W
Power consumption (heating)	22.8 W
Refrigerant	R600a (isobutene), 18 g
Operating modes	Ice cream, Cooling, Blend, Yogurt
Default ice cream time	1 hour
Ice cream preparation	Automatic mixing and freezing cycle, motor stops when frozen
Yogurt mode	8-hour fermentation at ~42°C, then cooling
Motor protection	Stops mixing if ingredients are too frozen
Overfill protection	Ingredients should not exceed 60% of bowl for ice cream, 80% for yogurt
Safety features	Thermal fuse, automatic shut-off, flammable refrigerant caution
Material	Plastic housing, transparent cover, stainless steel mixing blade, removable bowl
Cleaning	Removable bowl and blade: hand wash only; wipe body with damp cloth
Accessories included	Transparent cover with motor, mixing blade, removable bowl
Dimensions	Approx. 30 x 25 x 35 cm
Weight	Approx. 5 kg
Noise level	Approx. 45 dB (compressor)
Warranty	2 years

Frequently Asked Questions - ICM401 BLAUPUNKT

How long does it take to make ice cream?

The default ice cream program lasts 1 hour. You can adjust the time using the +/- buttons in 1-minute increments.

Can I make yogurt with this machine?

Yes, the Yogurt mode maintains a temperature of ~42°C for 8 hours to ferment milk, then switches to cooling. Use 600ml milk and starter or 50ml plain yogurt.

What is the maximum capacity for ice cream?

Do not fill the bowl more than 60% because the mixture expands during freezing. Overfilling may cause spillage or motor issues.

How do I clean the ice cream maker?

Remove the bowl and mixing blade and wash them with warm soapy water. Wipe the transparent cover and housing with a damp cloth. Never immerse the motor body in water.

The mixing blade stopped during operation. What should I do?

This is the motor protection function. If the ice cream is too frozen, the motor stops to prevent damage. Pause the machine, let it soften slightly, then restart.

Can I use metal utensils with the bowl?

No, avoid metal cutlery or sharp tools as they can scratch the non-stick surface of the bowl. Use plastic or silicone spatulas.

Is the refrigerant flammable?

Yes, the unit uses R600a (isobutene), which is flammable. If you suspect a leak, avoid open flames, ventilate the room, and contact a service professional.

The appliance does not turn on. What should I check?

First, ensure it is plugged into a grounded outlet and the socket has power. Press the On/Off button on the front. If still off, check the fuse or circuit breaker.

Can I use the appliance to cool drinks without making ice cream?

Yes, the Cooling mode (default 10 minutes) chills the bowl and contents. You can use it to cool ingredients or pre-chill the bowl.

What does the Blend mode do?

The Blend mode mixes ingredients without freezing, useful for combining complex recipes. Default duration is 30 minutes, but you can adjust it.

USER MANUAL ICM401 BLAUPUNKT

White BAUPUNKT kitchen appliance with black and white casing, no visible text or symbols on body

Enjoy it.

Maszyna do lodów Ice cream maker Производител на сладолед Aparat za sladoled Výrobník zmrzliny Jäätise valmistaja Параσκευαστής παγωτού

Ledų gaminimo aparatas Saldėjuma gatavotājs Eismaschine Aparat de inghetata Výrobník zmrzliny Izdelovalec sladoleda Jégkrém készítő

IMPORTANT NOTES

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product.

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

• The device should only be connected to an earthed socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

• Make sure the cable is grounded, 3-cores with a socket and an earth cable.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

• Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.
• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.
  • Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

- All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- The device should be placed on even, temperature resistant surface, away from inflammable materials (curtains, wallpapers, etc.). In order to provide proper air circulation keep free space of at least 10 cm on each side of the device and at least 30 cm above the oven. Do not cover ventilation holes of the appliance, as this can cause overheat and damage of the device.

- Do not touch hot surfaces of the appliance. Protective gloves should be worn while taking out or touching any hot elements.

- Do not insert food portions that use whole volume of the basket, as it may cause fire and destruction of the device.

- Do not put cardboard, paper, plastic items or other inflammable or fusible objects into the appliance.

- Clean the device after every use.

- Do not clean the casing using aggressive detergents in the form of emulsion, lotion, etc. They can remove graphic symbols placed on the casing, such as: scale, markings,

• Do not use metal scrub pads for cleaning. Broken-off pieces of scrub pads can get in contact with electric parts, causing electric shock risk.
• Due to the high temperature you should be careful when removing the basket with dishes, removing hot grease or other hot liquids from pan.
• Do not use any metal cutlery or other sharp kitchen tools to avoid scratching of the non-stick surface of the pan and basket.
  • This is an air fryer that works on hot air. Do not fill the pan with oil or frying fat.
• Do not fill the pan with water or any other liquid.
• Keep the cable out of reach of children and babies to avoid the risk of electrocution and strangulation, keep the appliance and its cable out of the reach of children under 8 years of age.
  • The unit is not intended for outdoor use.
  • This device is intended for use:

- at home,

- in kitchens for staff in shops, offices and other working environments

- by customers in hotels, motels and other residential-type environments

• The appliance must not be cleaned by children unless they are over 8 years old and supervised.
- Caution: risk of fire, the refrigerant (R600a) is flammable.
- Do not switch the unit on and off in small time intervals. The compressor should run for at least 2-3 minutes before switching off.
- Do not freeze the ingredients before the ice cream preparation process. The ingredients should be at room temperature or slightly chilled.

Alert type: WARNING

Description:

This symbol indicates that the device contains flammable refrigerant. A fire hazard exists if the refrigerant leaks and comes into contact with an external ignition source.

Caution: risk of fire

• The refrigerant circuit of the appliance contains isobutene (R600a), which is however flammable. When transporting and installing the appliance, make sure that none of the components of the refrigerant circuit are damaged. If the refrigerant circuit is damaged:
• Avoid open flames and sources of ignition.
• Thoroughly ventilate the room in which the unit is located.

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Capacity: 1 l

Voltage: 220-240 V \~ 50 Hz

Power consumption: 100W (cooling); 22.8W (heating).

Refrigerant: R600a, 18g

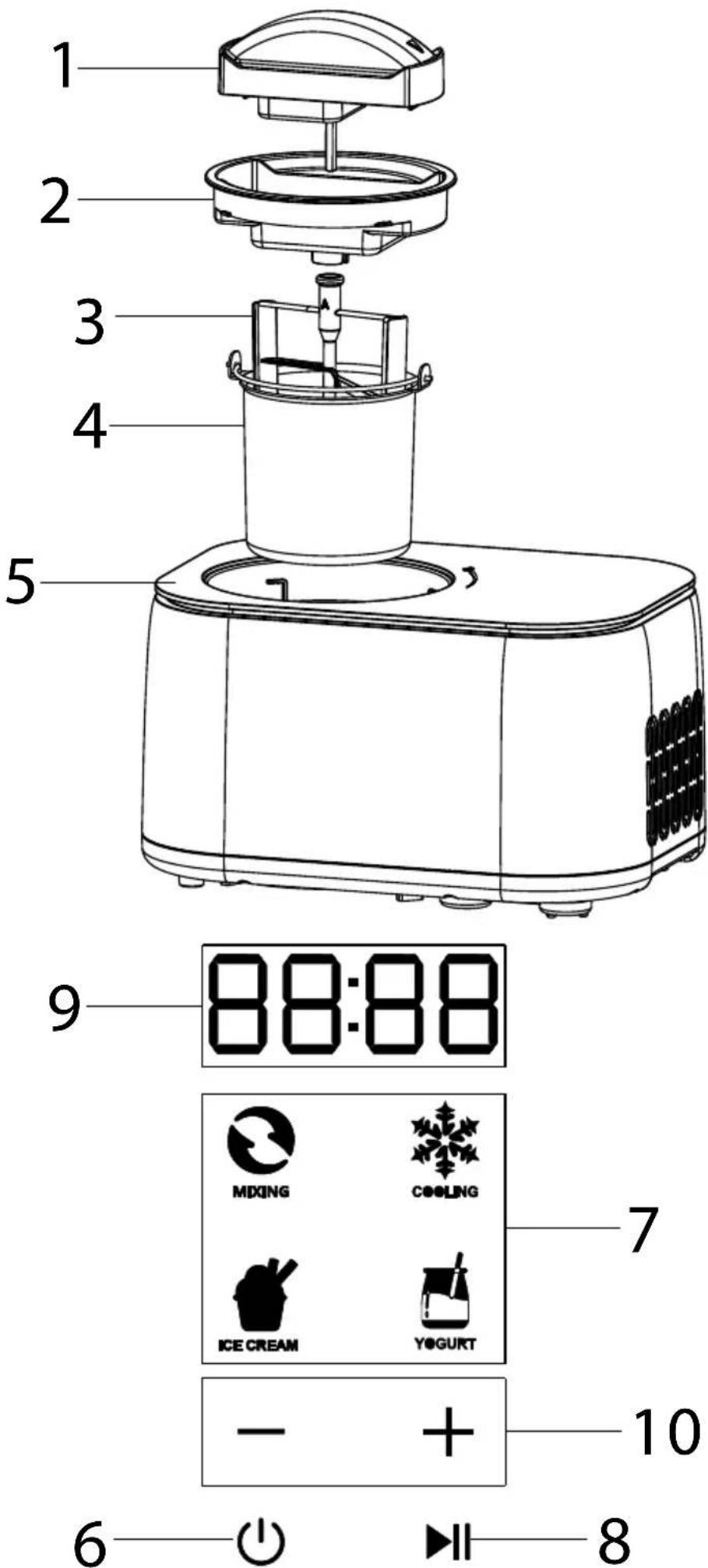

Product description:

1. Motor body

2. Transparent cover

3. Mixing blade

4. Removable bowl

5. Housing

6. On/off button

Operating modes:

Cooling mode

Mixing mode

Ice cream preparation mode

Yoghurt mode

7 Mode selection buttons

8 Start/pause button

1. Display

2. Operation time adjustment buttons

OPERATING THE APPLIANCE

1. Connect to the power supply. The appliance will remain in sleep mode. Press the on/off button to switch on the appliance.
2. Select an operation mode on the touch screen mode selection panel.
3. To start the programme, press the START/PAUSE button. To pause the appliance, press the button again. NOTE: The cooling function can remain active for one minute after the pause time.
4. To change the operating time after selecting the programme, use the operating time adjustment buttons, after pressing +/-, the time will change in 1 minute increments on the display.
5. When the selected operating mode programme has been completed, the appliance will beep and go into stand-by mode.

DESCRIPTION OF OPERATING MODES

1. Ice cream preparation mode

The ice cream preparation mode is a complete procedure consisting of a mixing and freezing phase. By default, this mode lasts for 1 hour. In the first phase, the ingredients are mixed, the temperature is lowered. In the last preparation phase, mixing is stopped.

1. Cooling mode:

This mode allows you to start cooling independently. By default, this mode lasts for 10 minutes. It is used to chill the ingredients in the bowl or to additionally freeze the prepared ice cream.

1. Blend mode ( premix mode when you want to combine ingredients):

This mode is used to mix the ingredients for more complex recipes when the standard mixing phase in the ice cream preparation programme is insufficient. The default duration is 30 minutes.

1. Yoghurt mode

In yoghurt mode, the machine maintains a higher temperature for a period of 8 hours to speed up fermentation. After this time, it switches to cooling mode to maintain a lower temperature and slow down the fermentation process.

MOTOR PROTECTION FUNCTION

When the ingredients are heavily frozen, motor operation and mixing will be stopped.

CONTROLLING THE VOLUME OF INGREDIENTS

To avoid overfilling and boiling, make sure that the ingredients do not exceed 60% of the container capacity (ice cream expands during moulding). It is recommended that the ingredients for yoghurt do not exceed 80% of the volume of the inner bowl.

HOW TO PREPARE THE ICE CREAM:

Step 1.

Prepare the ingredients:

Cream: 180g

Milk powder: 120g

Water: 200g

Mix thoroughly together, pour into a cooling bowl.

Step 2.

Place the bowl in the ice cream machine, both ends of the bowl handle should be aligned with the groove of the top lid (11).

Step 3.

Place the motor body on the transparent cover.

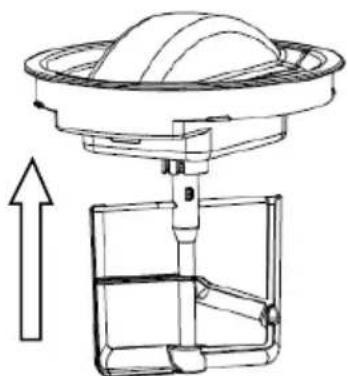

Step 4.

Attach the mixing blade.

Technical line drawing of a mechanical device with a dome top and internal structure, showing an upward arrow (no text or symbols)

Step 5.

Place the lid over the ice cream maker, making sure that the centre of the bowl and the motor parts of the mixing blade are in the same line. Lock the lid by turning it clockwise.

Step 6.

Start the ice cream preparation programme.

Step 7.

Switch off the appliance when the programme has finished and a beep sounds. Turn the transparent lid with the motor body counterclockwise. remove the components and then remove the bowl.

HOW TO PREPARE YOGHURT

(1) Yoghurt is made from milk that has undergone pasteurisation and homogenisation processes. The lactic acid bacteria that are added to the milk convert the lactose into lactic acid, which leads to the characteristic structure of yoghurt.

(2) The optimum temperature for ripening plain yoghurt is around 42-44°C, while for vegan or lactose-free yoghurt a temperature of around 38°C is recommended. The maturation

time may vary depending on the ingredients used and the desired consistency of the yoghurt.

(3) the density of the yoghurt depends on the fat content of the milk. Yoghurt made from milk with a fat content of 3.5% will be rather firm, while that from milk with a fat content of 1.5% will be softer.
(4) In order to obtain good results in yoghurt production, it is important to ensure excellent hygiene of all tools and ingredients, as dairy products are particularly sensitive.
(5) only milk and bacterial cultures should be used to make yoghurt. Additives such as sugar, fruit or flavourings are only added to the finished yoghurt.
(6) Longer maturation time ensures a firmer yoghurt texture and a more intense flavour.
(7) disturbances during maturation, such as vibration and shaking, can cause the yoghurt to remain liquid and not achieve the right consistency.

- 600 l milk

- Starter or 50 ml of plain yoghurt stored in cold storage.

Notes:

Before adding the above ingredients, check that they are not out of date or spoiled. Adjust the amount of lactic acid bacteria starter according to the starter instructions.
