Product Type	Ice Maker
Brand	Blaupunkt
Model	IMB201
Voltage	220-240 V / 50 Hz
Power	120 W
Daily Ice Capacity	12 kg / 24 hrs
Ice Storage Capacity	1.0 L / 600 g
Water Tank Capacity	1.0 L
Weight	6.2 kg
Refrigerant	R600a (isobutane), 0.014 kg
Control Panel	START/PAUSE button, ICE FULL, ADD WATER, LARGE/SMALL indicators
Ice Cube Size Selection	Large or small cubes
Cleaning Function	Yes, activated by holding START/PAUSE for 2 seconds
Automatic Shut-off	When ice basket full or water tank empty
Safety Features	Flammable refrigerant (R600a) warning, grounded plug, child safety
Maintenance	Clean with vinegar/water solution; do not immerse

Frequently Asked Questions - IMB201 BLAUPUNKT

How do I start the ice maker?

Connect the power, press the START/PAUSE button. The SMALL and LARGE lights will flash. Select your desired ice cube size by pressing START/PAUSE again when the corresponding light is on.

What does the ADD WATER indicator mean?

The ADD WATER light turns on when the water tank is empty. Add water up to the MAX level and press START/PAUSE to resume operation.

What does the ICE FULL indicator mean?

The ICE FULL light illuminates when the ice basket is full. Empty the basket; the machine will automatically restart when the ice level drops below the sensor.

How do I clean the ice maker?

Unplug the appliance. Use a diluted solution of water and vinegar or a small amount of dishwashing liquid to clean the interior and exterior. Rinse thoroughly. Do not immerse the unit in water.

Can I use the ice maker with hot water?

No, never use hot water to fill the tank. Only use cold, fresh water to avoid damaging the appliance.

Why does the ice maker take 3 minutes to restart?

The compressor has a built-in 3-minute delay before restarting after a power interruption, water shortage, or when the ice basket is emptied.

What type of refrigerant does this ice maker use?

It uses R600a (isobutane), a flammable but environmentally friendly refrigerant. If a leak is suspected, disconnect power, avoid flames, and ventilate the room.

How much space should I leave around the ice maker?

Ensure at least 15 cm of free space on all sides for proper air circulation. Do not cover the ventilation openings.

Can I make ice from anything other than water?

No, this appliance is designed only for making ice cubes from pure water. Do not use it to cool other foodstuffs.

How often should I change the water?

Change the water in the tank at least once a day to keep the ice clean. If not using for a long period, drain and dry the tank.

USER MANUAL IMB201 BLAUPUNKT

White BAUPUNKT appliance with open lid and ventilation slots (no visible text or symbols on body)

Enjoy it.

IMPORTANT NOTES

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product.

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an earthed socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

• Make sure the cable is grounded, 3-cores with a socket and an earth cable.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

• Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.
• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.
  • Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

- All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- The device should be placed on even, temperature resistant surface, away from inflammable materials (curtains, wallpapers, etc.). In order to provide proper air circulation keep free space of at least 10 cm on each side of the device and at least 30 cm above the oven. Do not cover ventilation holes of the appliance, as this can cause overheat and damage of the device.

- Do not touch hot surfaces of the appliance. Protective gloves should be worn while taking out or touching any hot elements.

- Do not insert food portions that use whole volume of the basket, as it may cause fire and destruction of the device.

- Do not put cardboard, paper, plastic items or other inflammable or fusible objects into the appliance.

- Clean the device after every use.

- Do not clean the casing using aggressive detergents in the form of emulsion, lotion, etc. They can remove graphic symbols placed on the casing, such as: scale, markings,

• Do not use metal scrub pads for cleaning. Broken-off pieces of scrub pads can get in contact with electric parts, causing electric shock risk.
• Due to the high temperature you should be careful when removing the basket with dishes, removing hot grease or other hot liquids from pan.
• Do not use any metal cutlery or other sharp kitchen tools to avoid scratching of the non-stick surface of the pan and basket.
  • This is an air fryer that works on hot air. Do not fill the pan with oil or frying fat.
• Do not fill the pan with water or any other liquid.
• Keep the cable out of reach of children and babies to avoid the risk of electrocution and strangulation, keep the appliance and its cable out of the reach of children under 8 years of age.
  • The unit is not intended for outdoor use.
  • This device is intended for use:

- at home,

- in kitchens for staff in shops, offices and other working environments

- by customers in hotels, motels and other residential-type environments

• The appliance must not be cleaned by children unless they are over 8 years old and supervised.
- The appliance is intended for the production of ice cubes from pure water and should not be used to cool other foodstuffs.
- It is not intended for industrial or laboratory use.
- Do not switch on the appliance without water to avoid damaging it.
• Always unplug the appliance before cleaning, moving or adding water to it.

• Do not use hot water to fill the tank with water! Do not tip the appliance over the top to avoid damaging it. Tipping the appliance may cause water to spill from the tank.
  • After moving the appliance, wait approximately two hours before starting it up again.

Alert type: WARNING Description:

This symbol indicates that the device contains flammable refrigerant. A fire hazard exists if the refrigerant leaks and comes into contact with an external ignition source.

Caution: risk of fire

• Fire hazard! This appliance contains a small amount of isobutane as a refrigerant (R600a), which is a flammable, natural and environmentally friendly gas. In the event of a leak, disconnect the power plug, avoid sources of fire and ignition, ventilate the room where the unit is located and contact the service department.
• Warning: Risk of ignition! Flammable material!

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Voltage: 220-240 V/50 Hz

Power: 120 W

Daily ice capacity: 12 kg/24 hrs.

Ice storage capacity: 1.0 l/600 g

Water tank capacity: 1,0 l

Weight: 6.2 kg

Refrigerant: R600a, 0,014 kg

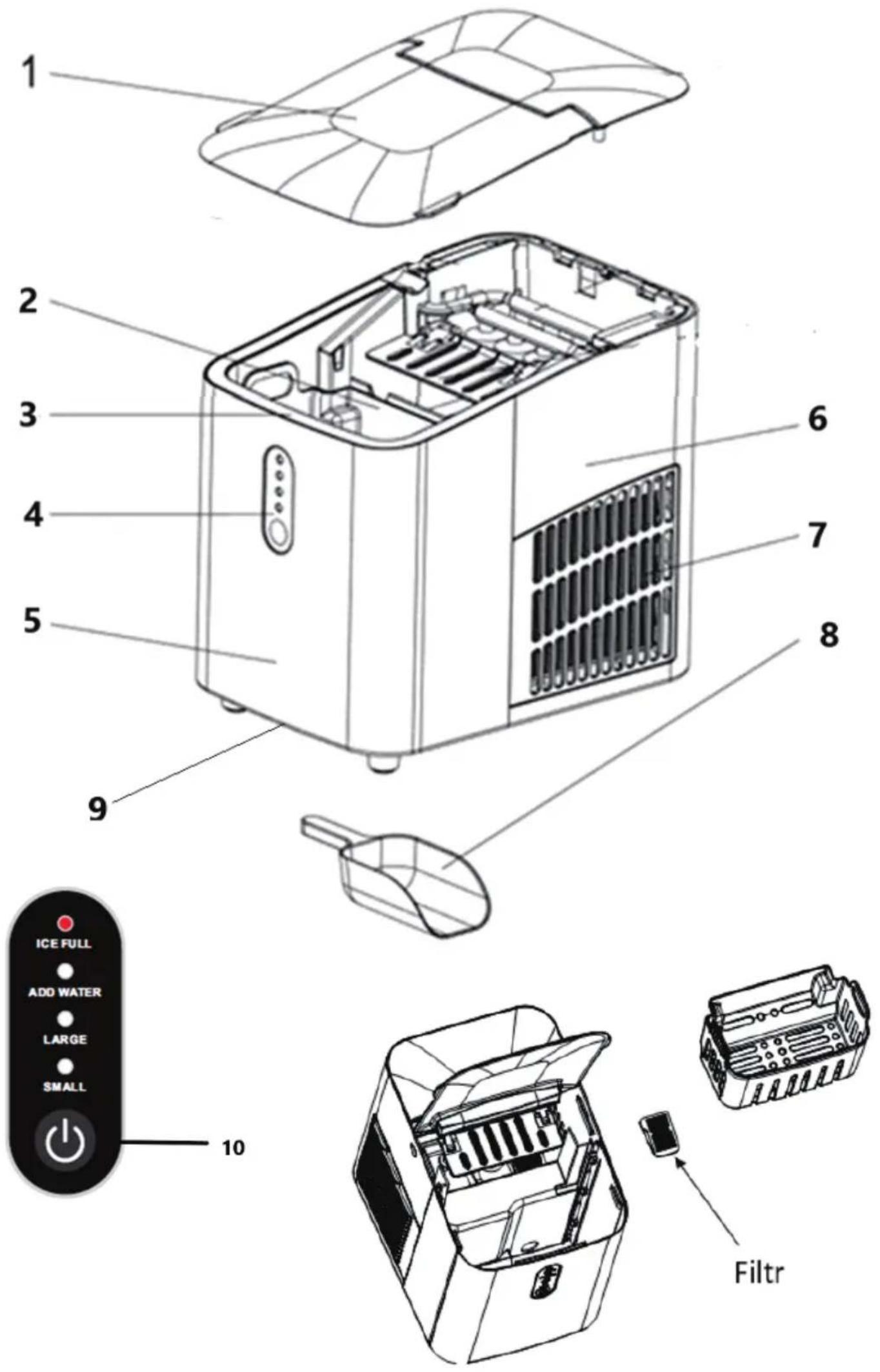

Unit description:

1. Transparent lid

2. Ice basket

3. Water tank

4. Control panel

5. Front casing

6. Rear casing

7. Ventilation opening

8. Ice paddle

9. Lower drain plug

10. START/PAUSE button

11. Filter

Before initial start-up:

1. Remove any stickers and adhesive tape from the appliance. Open the transparent window and check that all accessories (ice costs, ice paddle) are in place.

2. Thoroughly clean the inside of the appliance, including the water tank.

3 Place the appliance on a level countertop, away from sunlight and heat sources. Ensure a clear space of at least 15 cm around the appliance to allow free airflow.

Control panel description

ICE FULL: Light indicating full ice container

ADD WATER: Indicator light for lack of water

LARGE / SMALL: Choice of larger or smaller ice cubes

Using the appliance:

1. When the power is connected, the appliance is in standby mode and the SMALL indicator flashes green. When the START/PAUSE button is pressed, the SMALL and LARGE ice lights will flash alternately, waiting for the ice cube size to be selected. When the appropriate indicator corresponding to the expected size lights up, press the START/PAUSE button again and the machine will start. The corresponding indicator will be active and the production of ice cubes will begin.
2. Cleaning function: Connect the power, press the START/PAUSE button to start the machine and then hold the START/PAUSE button for 2 seconds. The unit will enter the cleaning function and the four lights will flash alternately. Do not disconnect the power supply during cleaning. When cleaning is complete, the unit will automatically enter standby mode.
3. ADD WATER: low water alarm: the light will come on to indicate that there is no water in the tank. Add water and press the START/PAUSE button to restart the appliance.
4. ICE FULL: full ice container alarm. When the ice container is all full, the "ICE FULL" light will illuminate and the unit will stop. The ice must be emptied from the container for the appliance to resume operation. When the ice level drops below the sensor position, the appliance will restart automatically.
5. Open the lid, remove the ice tray and add water to the reservoir.
6. Note: There is a mark on the "MAX" scale in the reservoir. The water should not exceed the MAX level. If the water exceeds the maximum MAX level, open the bottom drain plug, let the excess water out.
7. Connect the power supply, press the START/PAUSE button to switch on the unit.

CLEANING AND MAINTENANCE

1 Clean the ice basket, water tank regularly. When cleaning, unplug the appliance from the power supply and remove the ice cubes. Use a diluted solution of water and vinegar, citric acid or a small amount of dishwashing liquid to clean the inside and outside surface of the ice cube maker. Rinse thoroughly before use.

CAUTION: Do not immerse the appliance in water or wash it under running water!

1. The ventilation openings in the appliance housing or in the enclosure should be free of dirt blocking the air flow.

2. Do not use mechanical devices or other means to accelerate the defrosting process.

3. Using the appliance again after a prolonged break from operation may cause the pump to take longer and may run louder to draw in water and remove air from the circuit. If this happens, a low water indicator is displayed, simply press the START/PAUSE button to restart the ice maker.

5 To keep the ice clean, change the water in the tank at least once a day. If the unit is not going to be used for a long period of time, drain the water and clean it.

6) If the compressor does not operate due to lack of water, filling with ice, power failure, etc., its restart will be delayed by 3 minutes.

1. Always use fresh water before starting ice production when first installing or after a long shutdown period.

2. Depending on the frequency of use of the machine, the filter screen in the water tank should be cleaned regularly after removal to prevent limescale from blocking the water inlet. As shown in the figure below.

Remove the ice tray, filter cover from the water tank, clean the filter cover with clean water using a brush and then put them back in place.

Caution: risk of fire

Caution: risk of fire

Uwaga: OSTRZEŻENIE

:Objasnienie

Caution: risk of fire

Pozor: VÝSTRAHA

Vysvetlenia:

Caution: risk of fire

Warning sign depicting a flame inside a triangle (no text or symbols)

Caution: risk of fire

Tip opozorila: POZOR!

Pojasnilo:

Caution: risk of fire

Caution: risk of fire

Napomena: UPOZORENJE Objašnjenje:

Ovaj simbol označava da se u uređaju nalazi lako zapaljivo rashladno sredstvo. U slučaju curenja rashladnog sredstva i njegovog kontakta s vanjskim izvorom paljenja, postoji opasnost od požara.

- Požar! Ovaj uređaj sadrži malu količinu izobutana kao rashladnog sredstva (R600a), koji je zapaljiv, prirodan i ekološki prihvatljiv plin. U slučaju curenja, izvucite utikač iz utičnice, izbjegavajte izvore vatre i paljenja, prozračite

Caution: risk of fire

Забележка ПРЕДУПРЕЖДЕНИЕ:

:Обяснение

Caution: risk of fire

Caution: risk of fire

Notă: AVERTISMENT

Explicatie:

Dèmesio: JSPÈJIMAS

Paaiškinimas:

Caution: risk of fire

Caution: risk of fire

Tähelepanu: HOIATUS Selgitus:

Veepaagi maht: 1,0 l

Kaal: 6,2 kg

Klmutusaine: R600a, 0,014 kg

Seadme kirjeldus:

Caution: risk of fire
