Metz Mini - Range hood Thermex - Free user manual and instructions

Product Type	Range Hood
Brand	Thermex
Model	Metz Mini
Width	60 cm
Depth	50 cm
Height (min-max)	60-110 cm
Weight	15 kg
Power Supply	220-240 V, 50 Hz
Maximum Extraction Rate	650 m³/h
Number of Speed Levels	3
Lighting	2 x 3 W LED
Grease Filter Type	Washable aluminium
Charcoal Filter (optional)	For recirculation mode
Noise Level (max speed)	58 dB(A)
Controls	Electronic push buttons
Air Duct Diameter	150 mm
Energy Efficiency Class	A+
Grease Filter Cleaning	Manual dishwashing or dishwasher
Safety Features	Automatic shut-off, safety switches
Spare Parts Available	Grease filters, charcoal filters, LED lamps
Installation Type	Wall-mounted or recirculation
Certification	CE, WEEE

Frequently Asked Questions - Metz Mini Thermex

How do I install the Thermex Metz Mini range hood?

The hood can be installed as a ducted or recirculation model. Follow the mounting template and ensure a minimum distance of 65 cm from the hob. Use appropriate wall anchors and connect the duct to a 150 mm outlet.

How often should I clean the grease filters?

The aluminium grease filters should be cleaned every 3 months or more frequently if used heavily. They are dishwasher safe at low temperatures.

What type of charcoal filter do I need for recirculation mode?

For recirculation, use a compatible charcoal filter (e.g., Thermex replacement part). Replace every 6-12 months depending on usage.

Can I use the hood without a duct?

Yes, the Metz Mini can operate in recirculation mode by installing a charcoal filter. The filtered air is then returned to the kitchen.

What is the noise level of this hood?

The noise level ranges from 35 dB on the lowest speed to 58 dB on the highest speed, which is typical for a compact hood.

How do I replace the LED lamps?

Turn off power, remove the lamp cover, and replace the LED module with a compatible 3W LED (e.g., G4 base). Ensure the hood is disconnected.

Why is my hood not extracting properly?

Check that the grease filters are clean and the duct is not blocked. For recirculation, ensure the charcoal filter is not saturated. Also verify that the speed setting is adequate.

What are the dimensions and weight of the hood?

The hood measures 60 cm wide, 50 cm deep, and has an adjustable height from 60 to 110 cm. It weighs approximately 15 kg.

Is the hood compatible with a remote control?

No, the Metz Mini comes with electronic push buttons on the front panel. It does not support remote control.

How do I reset the filter saturation alarm?

After cleaning or replacing filters, press and hold the filter reset button (usually the 'speed' or 'light' button) for 3 seconds until the indicator turns off.

USER MANUAL Metz Mini Thermex

INDHOLD

Dansk	4
Norsk	13
Svenska	22
Suomi	31
Español	40
Nederlands	49
English	58

4 THERMEX METz MINI M 423195601225112021

INDHOLD

Generel adversel 5

3D diagram of a ceiling-mounted device with a small inset showing its internal components (no text or symbols)

Isometric diagram of a ceiling structure with a central panel and vertical supports (no text or symbols)

3D diagram of a ceiling structure with a screwdriver inserted, showing no text or symbols

3D architectural rendering of a modern building roof with mounting feet and structural supports (no text or symbols)

3D rendering of a mechanical press or clamping device with a threaded component and base platform (no text or symbols visible)

3D diagram of a mechanical assembly with a screw and upward arrow, no text or symbols present

2

Mechanical component with a screw and a blue arrow indicating direction, shown with a magnified inset of a screw labeled 'x4' (no text or symbols on the main diagram)

3D diagram of a mechanical component with a screw and directional arrow, labeled 'x4' (no text or symbols on the object itself)

3D mechanical assembly diagram showing a cube with screwdriver and a highlighted component, plus a magnified inset labeled 'x4' (no text or symbols on the main components)

5

3D rendering of a mechanical device with a screw and circular opening, shown with an inset image labeled 'x4' (no text or symbols on the device itself)

Diagram of a mechanical setup with a box, screwdriver, and a magnified inset showing a bolt (no text or symbols)

Mechanical assembly diagram showing a vertical platform with a base and top component, no visible text or symbols

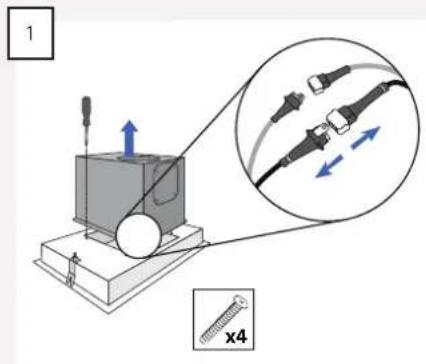

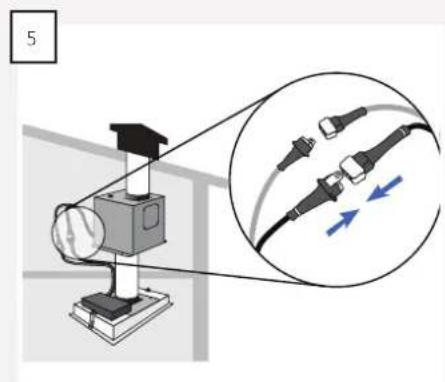

Diagram of a mechanical device with an inset showing cable routing (no text or symbols present)

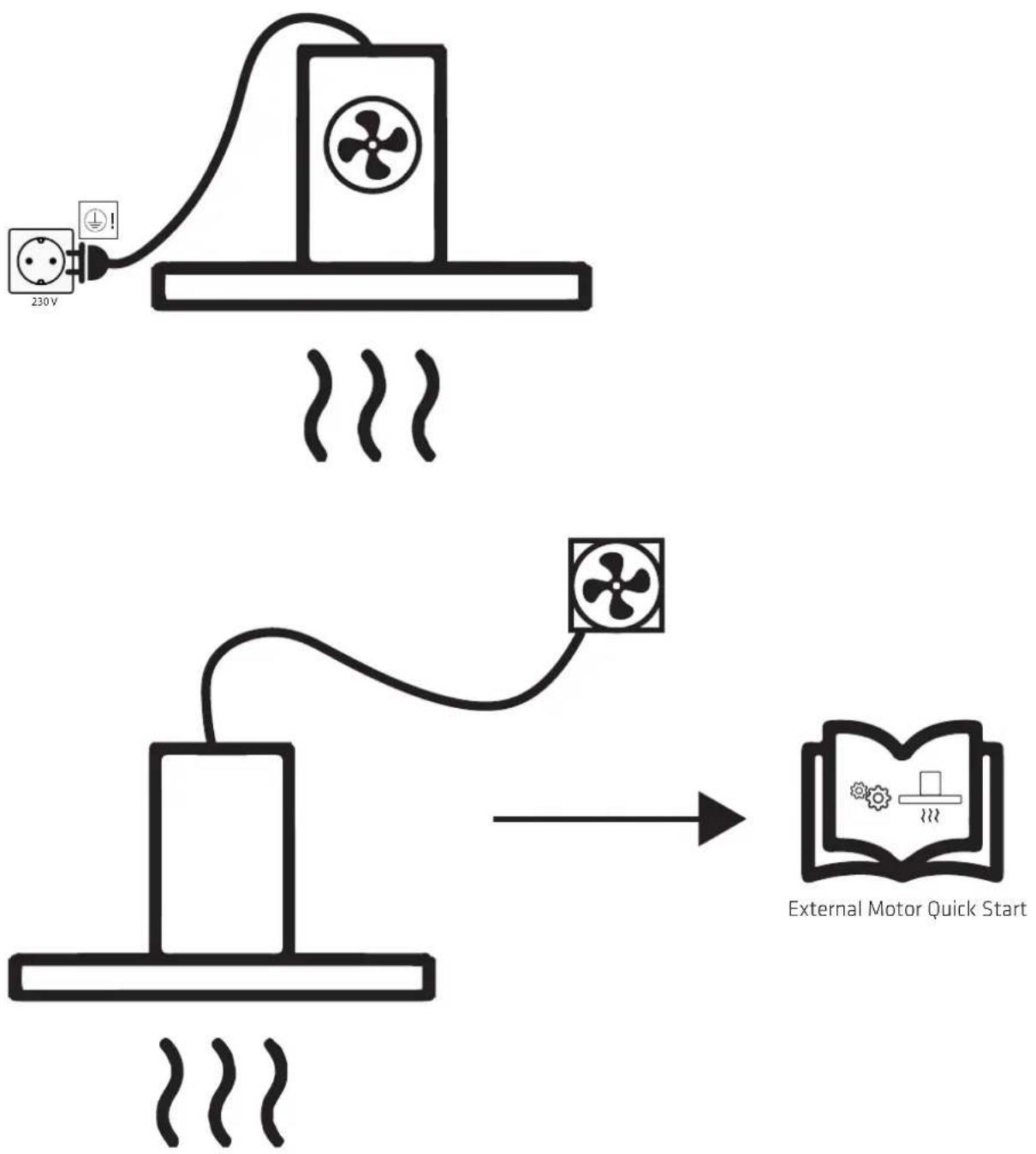


RENG∅RING OG VEDLIGEHOLD

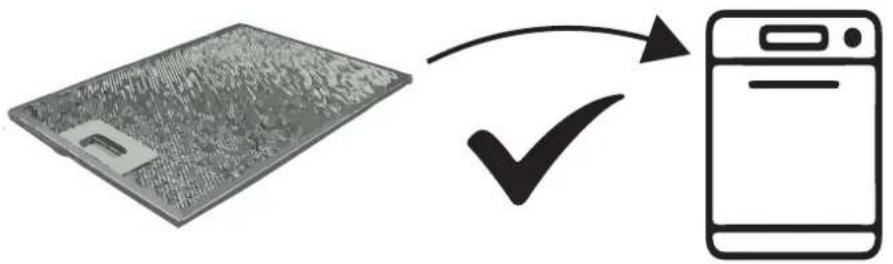


SERVICE

3D diagram of a rectangular panel with dashed lines and an inset image showing a mechanical component (no text or symbols)

Isometric diagram of a room with ceiling, walls, and a ladder (no text or symbols)

3D diagram of a ceiling-mounted device with a screwdriver inserted, showing internal components and no text or symbols.

3D architectural rendering of a modern building with a grid floor and mounting fixtures (no text or symbols)

3D diagram of a mechanical press or clamping device with a cylindrical component and base platform (no text or symbols)

3D diagram of a mechanical assembly with a screw and upward arrow, no text or symbols present

3D diagram of a mechanical component with a screw and a blue arrow indicating direction, labeled 'x4' (no text or symbols on the object itself)

3

Mechanical assembly diagram showing a cube with a screw and directional arrow, plus a magnified inset of a screw labeled 'x4' (no text or symbols on the diagram itself)

3D diagram of a mechanical assembly with a screwdriver and a square component, showing a magnified inset labeled 'x4' (no text or symbols on the main components)

3D rendering of a mechanical component with a screw and housing, shown with an inset image of a screw (no text or symbols)

3D diagram of a mechanical assembly with a screw and a blue arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a vertical column mounted on a base with a top component, no visible text or symbols.

Diagram of a mechanical device with an inset showing cable connectors and directional arrows (no text or symbols)

VEDLIKEHOLD OG RENGJ∅RING

SERVICE

3D diagram of a room corner with a dashed-line ceiling and an inset image showing a small mechanical component (no text or symbols)

Isometric diagram of a room interior with ceiling, walls, and a ladder (no text or symbols)

3D diagram of a ceiling structure with a screwdriver inserted, showing no text or symbols

3D architectural rendering of a modern building with ceiling and floor markers, showing structural details (no text or symbols)

3D mechanical assembly diagram showing a presser pressing a component on a base platform (no text or symbols visible)

Diagram of a mechanical device with a 3D box and sensor, showing an upward arrow and a separate screw labeled 'x4' (no text or symbols on the diagram itself)

2

3D rendering of a mechanical component with a screwdriver and a highlighted cylindrical part, labeled 'x4' (no text or symbols on the object itself)

3D diagram of a mechanical component with a screw and directional arrow, labeled 'x4' (no text or symbols on the object itself)

3D diagram of a mechanical assembly with a screw and a square base, showing a tool inserted into a component (no text or symbols)

5

Mechanical component with a screw and housing, shown with a magnified inset labeled 'x4' (no text or symbols on the main diagram)

Technical illustration of a mechanical assembly with a screw and a component, showing no text or symbols.

Mechanical assembly diagram showing a vertical platform with a base and top component, no visible text or symbols

Diagram of a mechanical device with an inset showing cable connections (no text or symbols present)

UNDERHÅLL OCH RENGÖRING

BYTE AV RECIRKULATIONSFILTER

SERVICE

3D diagram of a corner-mounted device with a dashed-line panel and a small inset image showing a mechanical component (no text or symbols)

Isometric diagram of a room with ceiling, walls, and a ladder (no text or symbols)

3D diagram of a ceiling structure with screwdriver and floor panel, no text or symbols present

3D architectural rendering of a modern building with ventilation grilles and mounting feet, showing structural details (no text or symbols)

3D mechanical assembly diagram showing a presser pressing a component on a base platform (no text or symbols visible)

3D diagram of a mechanical setup with a box, screw, and upward arrow, labeled 'x4' (no text or symbols on the diagram itself)

Mechanical component with screwdriver and mounting base, shown with magnified inset of a screw (no text or symbols)

3D mechanical assembly diagram showing a cube with screwdriver and internal component, plus a close-up of a bolt head (no text or symbols)

3D diagram of a mechanical assembly with a screw and a pin, showing a component with a magnified inset labeled 'x4' (no text or symbols on the main diagram)

3D rendering of a mechanical component with a screw and housing, shown with an inset image labeled 'x4' (no text or symbols on the main diagram)

Mechanical assembly diagram showing a component mounted on a base with a screw and a blue arrow indicating direction (no text or symbols)

Mechanical device with a top-mounted platform and base mount (no visible text or symbols)

Diagram of a mechanical device with an inset showing cable routing (no text or symbols present)

HUOLTO JA PUHDISTUS

HUOLTO

Advertencia general 41

3D diagram of a ceiling structure with a dashed-line panel and a small inset image of a device (no text or symbols)

Isometric architectural diagram of a modern room with ceiling and wall panels (no text or symbols)

3D diagram of a ceiling structure with screwdriver and grid pattern (no text or symbols)

3D architectural rendering of a modern building with ceiling and floor markers, showing structural elements and mounting points (no text or symbols)

3D diagram of a mechanical press or clamping device with a threaded component and base platform (no text or symbols visible)

Mechanical assembly diagram showing a component with a screw and upward arrow, mounted on a base (no text or symbols)

Retire la caja del motor del extractor.

2

3D diagram of a mechanical component with a screw and a blue arrow indicating direction, labeled 'x4' (no text or symbols on the object itself)

Mechanical assembly diagram showing a cube with a screw and directional arrow, plus a separate inset image of a screw labeled 'x4' (no text or symbols on the diagram itself)

3D diagram of a mechanical assembly with a screw and a square housing, showing a tool inserted into it (no text or symbols present)

3D rendering of a mechanical component with a screw and housing, shown with an inset image labeled 'x4' (no text or symbols on the object itself)

Mechanical assembly diagram showing a component with a screw and a blue arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a vertical column mounted on a base with a top component, no visible text or symbols.

Diagram of a mechanical device with an inset showing cable routing (no text or symbols present)

MANTENIMIENTO Y LIMPIEZA

SERVICIO

ALGEMENE WAARSCHUWING

3D diagram of a ceiling structure with dashed lines indicating hidden edges, and an inset image of a mechanical component (no text or symbols)

Isometric diagram of a ceiling structure with a central platform and wall, no text or symbols present

3D diagram of a ceiling structure with screwdriver and measurement lines (no text or symbols)

3D diagram of a ceiling-mounted device with mounting feet and a small inset showing two circular components labeled 'x2' (no text or symbols on the main structure)

3D rendering of a mechanical assembly with a threaded component and base platform (no text or symbols visible)

3D diagram of a mechanical assembly with a screw and upward arrow, no text or symbols present

2

Mechanical component with screwdriver and mounting base, shown with magnified inset of a screw (no text or symbols)

3

3D diagram of a mechanical component with a screw and directional arrow, shown with an inset image labeled 'x4' (no text or symbols on the main diagram)

3D diagram of a mechanical assembly with a screw and a square component, showing a blue arrow indicating direction (no text or symbols)

5

3D rendering of a mechanical component with a screw and housing, shown with an inset image labeled 'x4' (no text or symbols on the main diagram)

6

Diagram of a mechanical assembly with a screw and a component, showing a 3D model and a magnified inset labeled 'x4' (no text or symbols on the diagram itself)

Mechanical device with a top-mounted platform and base mount (no visible text or symbols)

Diagram of a mechanical device with an inset showing cable fastening (no text or symbols)

ONDERHOUD EN REINIGING

SERVICE

Included in the box 60

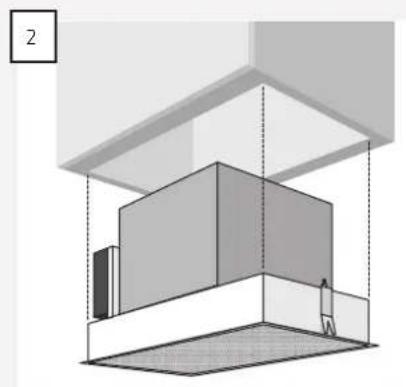

Installation

61

Electrical Installation 64

Maintenance and cleaning 65

Service

66

GENERAL WARNING

• This hood has been developed and produced in accordance with DS/EN 60335-1.
• This hood is intended for home use only. Using for other purposes will make the warranty invalid.
• All installations must be carried out by a qualified technician in accordance with the instructions set out by Thermex Scandinavia A/S (Thermex) and the Laws in force.
• Thermex disclaims any liability for damage resulting from improper installation, assembly, operation or incorrect settings.

BEFORE INSTALLATION/OPERATION

• Check the hood for transport damage, defects and missing parts immediately upon receipt.
• Transport damage should be reported immediately to the transport company and Thermex upon receipt.
• Any defects and/or missing parts should be reported to Thermex within 8 days of receipt and prior to installation/operation.

INSTALLATION

• The hood is designed to operate at 230 volts ± 10% \~ 50 Hz ± 10% in accordance with EN 50160
• Connect the hood with the attached plug. NOTE: If the plug has an Earth terminal, the hood MUST be earthed.
• For models with an external motor it is important NOT to use common zero when installing the hood and motor, as this will affect operation.
• When using an external motor from another supplier, the motor MUST be compatible with the selected hood. Failure to comply with this will invalidate the warranty.
• The hood must not be connected to the mains before installation is complete.
• The air must not be discharged from the hood into a pipe used for extraction from devices using gas or other combustible materials. Such devices must have a separate vent.
• The national law and building regulations etc. for air emissions must be observed.

• Always use the original exhaust measurements. Reduction of the exhaust size will reduce performance and increase sound levels.
- The exhaust from the hood to the outside should be as short as possible in order to maximise the efficiency of the hood.
- The number of bends on the exhaust should be minimal in order to maximise the efficiency of the hood.
- Thermex recommends that vent hoses insulated against noise and condensation for all bushings in unheated rooms are always used.
- Thermex recommends using a silencer when flexible hoses are used in order to minimise sound levels.
- When using flexible hoses, always ensure that they have been fully extended in order to minimise air resistance and thereby maximise suction performance.
- Different materials require different rawlplugs and screws. Rawlplugs and screws suitable for the material onto which the hood will be mounted on must be used.
- If the instructions for the installation of screws and fittings are not followed, it may result in electrical shock.
- The minimum distance to gas hobs from the burner's edge to the underside of the hood MUST be a minimum of 65 cm in accordance with EN 60335-2-31.
- For cupboard-integrated, suspended and wall-mounted hoods, Thermex recommends that the distance between the hob and cooker hood is between 50 cm and 70 cm in order to ensure maximum suction.
• Always check the minimum distance between the hob and the cooker hood, as indicated in the instructions for the hob. The instructions for the hob MUST be observed if a greater distance than that recommended by Thermex is indicated in this manual.
• Thermex recommends that the distance between the hob and the hood should not exceed 3 metres for ceiling-integrated models.

INCLUDED IN THE BOX

Metz Mini with internal motor:

• 1 Metz Mini
• 1 set of operating instructions
• 1 set of installation instructions
- 1 remote with battery
- Cord extension
- 2 plugs

INSTALLATION

There are different models of the Metz Mini available, which come with either an internal motor or alternatively are designed for an external motor. The kitchen hood can either vent exhaust out into the open air or re-circulate the air. The hood must be installed in a wall cabinet. Follow the steps that match the type of hood and exhaust you have chosen.

3D diagram of a rectangular panel with dashed lines and an inset image showing a small mechanical component (no text or symbols)

Measure out and cut a hole in the cupboard using the chosen model's measure.

Isometric diagram of a ceiling structure with a wall-mounted unit and a small hanging component (no text or symbols)

Push the hood up into the cut out hole in the cupboard.
NOTE: Make sure that the Thermex logo is facing out towards the room before you install the hood in the cupboard.

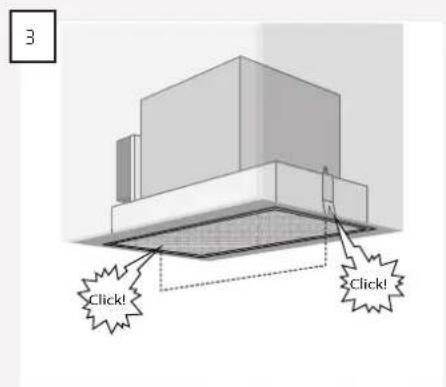

The hood must be pushed up until the brackets 'click' up over the cupboard.

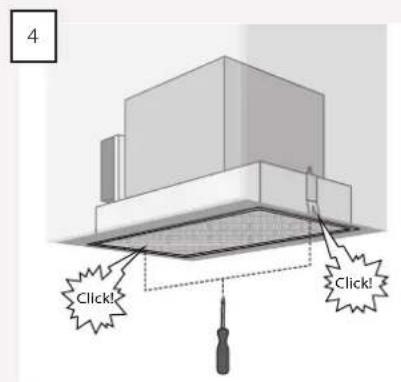

If the brackets do not 'click', they must be pushed into place by pressing up on the installation screws holding the brackets. This is done by pressing a screwdriver through the two holes in the hood.

3D diagram of a ceiling structure with screwdriver and support bracket (no text or symbols)

Adjust the brackets so that the edge of the hood is flush with the bottom of the cupboard. This is done by tightening the screws with a screwdriver through the holes in the hood.

3D diagram of a mechanical assembly with mounting holes and a cross-sectional view labeled 'x2' (no text or symbols on the diagram itself)

After final adjustment, plugs are mounted in the screw holes, as increased noise might otherwise be noticed.

3D mechanical assembly diagram showing a threaded component pressing into a base block (no text or symbols)

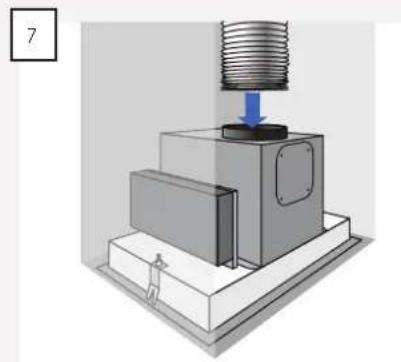

Place the extraction pipe on the hood. Take special care to ensure the non-return valve can open and close freely.
NOTE: This does not apply if the hood is used for recirculation.

REVERSIBLE EXHAUST OUTLET

The exhaust on this model can be turned around. The exhaust outlet is turned around in the following way:

1

Diagram of a mechanical device with a screw and upward arrow, no text or symbols present

2

3D diagram of a mechanical component with a screw and a pin, showing a base with a blue arrow indicating direction (no text or symbols)

3

3D diagram of a mechanical component with a screw and directional arrow, labeled 'x4' (no text or symbols on the object itself)

Remove the motor box from the hood. Undo the screws and remove the motor from the motor box.

Undo the screws and remove the flange on the side of the motor box.

NOTE: Pay attention to the nuts on the inner side of the motor housing.

4

3D diagram of a mechanical assembly with a screwdriver and a square component, showing a magnified inset labeled 'x4' (no text or symbols on the main components)

5

3D rendering of a mechanical device with a screw and cylindrical housing (no text or symbols visible)

6

3D diagram of a mechanical assembly with a screw and a blue arrow indicating direction (no text or symbols)

Install the flange on the motor housing.

Fasten the motor in place in the motor box so that the exhaust comes out from the side of the motor box..

Re-install the motor box on the hood.

MOVING THE MOTOR

The motor on this model can be moved up to 5 meters, thereby using as an external motor. The motor is moved as follows:

Disconnect the motor box from the hood, and disconnect the wires connecting the motor and the hood.

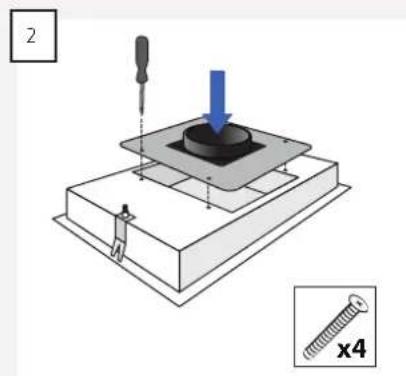

Mount the supplied flange on the hood where the motor was previously connected.

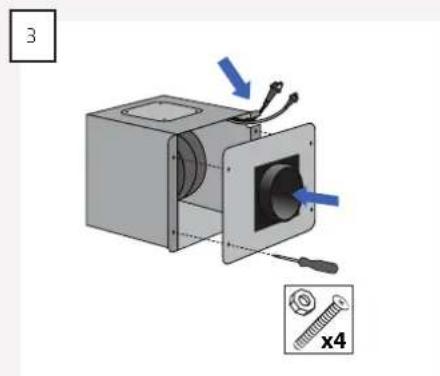

Mount the supplied flange on the motor. NOTE: Make sure the wires are routed as shown in the drawing.

Mechanical assembly diagram showing a vertical column mounted on a base with a top component, no visible text or symbols.

Place the engine max. 5 meters from the hood, and connect the units with suitable piping in accordance with the applicable building element.

Diagram of a mechanical device with an inset showing cable connections (no text or symbols present)

Connect the motor and hood using the supplied extension cords. When the hood and the motor are connected, the hood can be operated in the usual way.
NOTE: The motor case must be insulated to prevent condensation.

ELECTICAL INSTALLATION

MAINTENANCE AND CLEANING

• Always disconnect power before cleaning.
- The hood must be cleaned regularly to ensure optimal operation and long service life.
- Grease and dust debris are collected in the filter and may risk igniting with insufficient cleaning.
- The hood should be cleaned inside and out frequently to avoid grease stains on walls or other surfaces.

DAILY CLEANING

• For cupboard-integrated, free-hanging and wall-mounted hoods, Thermex recommends that the grease filter be wiped with a damp cloth after each cooking session. It requires very little effort every day to keep your cooker hood clean and effective.
  • Steel surfaces are cleaned with a damp cloth with detergent and treated with 3M Polish.
• Lacquered surfaces should be cleaned with a damp cloth with detergent/washing-up liquid. Never use abrasives.

CLEANING THE GREASE FILTERS

Grease filters should be cleaned as needed. Thermex recommends as a minimum that the filter is cleaned at the following intervals, depending on the fat used for frying:

• Frying margarine - filter cleaned every 3 weeks
• Liquid margarine - filter cleaned every 2 weeks
• Oil - filter cleaned once per week
- Deep fat frying - filter cleaned 2-3 times per week

The grease filters are cleaned in the following way:

• Remove the grease filter behind the glass plate and the filter in the base by pulling on the filter-locking mechanism to loosen the filter from the hood.
• Place the filters in warm soapy water and clean if necessary with a soft brush.
• Rinse with warm water.
• Leave the filters to dry on a dishcloth or similar.
• Repeat the process if necessary.
• Re-attach the filters..

The filters can also be washed in the dishwasher, although please note that machine washing can result in discolouration of the filters. Discolouration of the filters does not affect performance.

REPLACING THE RECIRCULATION FILTERS

If recirculation filters are used, these cannot be washed, but must be replaced when needed. Thermex recommends that the recirculation filters are replaced at least 2-4 times per year.

SERVICE

Before reporting service on your Thermex range hood, it is important that you read the installation and/or user instructions carefully. It ensures that Thermex can provide you the best possible assistance.

Service department at Thermex can be contacted in preparation to:

• Technical support for installation and installation of your range hood.
• Clarification of functionalities in your hood.
  • Service Request during the warranty on your hood.

Before a service request during the warranty always try to disconnect the power to the hood for about 5 min. Then plug the power back on to see if the problem is corrected.

If the problem is not corrected, disconnect the power supply to the hood for one hour. If the hood is still not functioning properly, and the troubleshooting charts are reviewed, contact the service department.

NOTE: For inquiries within the warranty, you will be asked for proof of your purchase in the form of a sales receipt. Therefore, always store your sales receipt

Before the request for service within the warranty, it is important to have all the necessary information ready:

• Error Description
• Model
  • The type and serial number of the hood (on the chassis plate)
  • Information of purchase

THERMEX SCANDINAVIA A/S
