Product Type	Range Hood
Brand	Thermex
Model	Preston Lux
Width	90 cm
Depth	50 cm
Height (min-max)	60-110 cm
Weight	15 kg
Power Supply	220-240 V ~ 50 Hz
Maximum Extraction Rate	650 m³/h
Noise Level (max)	65 dB(A)
Number of Motors	1
Lighting	2 x 1.5 W LED
Filter Type	Aluminum grease filter
Charcoal Filter Option	Yes (sold separately)
Controls	Electronic push buttons
Number of Speeds	3 + intensive
Installation Type	Wall-mounted / Ducted or recirculating
Energy Class	A
Annual Energy Consumption	45 kWh/a
Grease Filter Cleaning	Monthly in dishwasher or by hand
Charcoal Filter Replacement	Every 3-6 months depending on use
Safety Features	Thermal protection, motor overload protection
Repairability Index	7.5/10
Included Accessories	Grease filter, outlet adapter, installation kit

Frequently Asked Questions - Preston Lux Thermex

How do I clean the grease filter?

The aluminum grease filter should be cleaned monthly. Remove it from the hood and wash it with warm water and mild detergent, or place it in the dishwasher at a low temperature.

How often should I replace the charcoal filter?

If using the hood in recirculation mode, replace the charcoal filter every 3 to 6 months depending on cooking frequency. The filter is not washable.

What is the recommended installation height above the hob?

For electric hobs, the minimum height is 50 cm; for gas hobs, it is 65 cm. Follow the exact measurements in the manual for safety.

Can I use the hood without ducting?

Yes, the Preston Lux can be used in recirculation mode by installing a charcoal filter (sold separately). The air is filtered and returned to the kitchen.

How do I change the LED bulbs?

The LED lights are integrated and should be replaced by a qualified technician. Contact Thermex support for service.

What does the intensive speed do?

The intensive speed runs at maximum power for a limited time (usually 10 minutes) to quickly remove strong odors or steam, then automatically returns to the previous setting.

Why is the hood not working after installation?

Check if the power cord is plugged in and the circuit breaker is on. If the display is off, ensure the unit is properly connected. Refer to the wiring diagram in the manual.

How do I reset the filter alarm?

After cleaning or replacing the filters, press and hold the filter reset button (usually the '-' button) for 3 seconds until the indicator turns off.

What is the maximum duct length for efficient extraction?

For optimal performance, keep the duct length under 4 meters with minimal bends. Use smooth, rigid ducts of the same diameter as the outlet.

Where can I find spare parts?

Spare parts such as filters, motors, and control boards can be ordered from authorized Thermex dealers or the official website using the model number Preston Lux.

USER MANUAL Preston Lux Thermex

Silhouette of a person reading a book (no text or symbols)

Icon of an open book with gears and a small box, symbolizing knowledge or process (no text or symbols)

Simple line drawing of a rectangular block with two vertical arrows indicating width, no text or symbols present.

THERMEX SCANDINAVIA A/S

www.thermex.dk

THERMEX SCANDINAVIA AS

www.thermex.no

THERMEX SCANDINAVIA AB

www.thermex.se

THERMEX SCANDINAVIA S.L.U.

www.thermex.es

THERMEX SCANDINAVIA A/S

www.thermex.fi

THERMEX SCANDINAVIA A/S

www.thermexscandinavia.nl

3 THERMEX PRESTON LUx M 540232168231032022

INDHOLD

Dansk 4

Norsk 14

Svenska 25

Suomi 36

Español 47

Nederlands 58

English 68

4 THERMEX Preston Lux M 540232168231032022

INDHOLD

Generel adversel 5

Montering 6

Elinstallation 10

Kelvin justering og Thermex VoiceLink® 10

Service 12

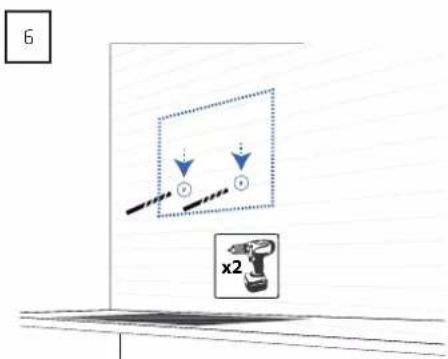

Simple line drawing of a room with a wall, a circular object, and a small rectangular panel (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow indicating motion (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow pointing to the screen area (no text or symbols)

Diagram showing a cylindrical object being inserted into a base, with an inset magnified view of the component (no text or symbols)

Architectural diagram of a double door mounted on a wall, showing structural components and floor level (no text or labels)

Diagram of a mechanical or architectural component with an upward arrow and shaded internal section (no text or symbols)

Technical diagram of a 3D mechanical assembly with an inset showing a cross-sectional view of a rectangular component (no text or symbols present)

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Diagram of a mechanical or architectural component with a blue upward arrow and shaded internal area (no text or symbols)

Technical diagram of a 3D mechanical assembly with an inset showing a cross-sectional view of a rectangular component (no text or symbols present)

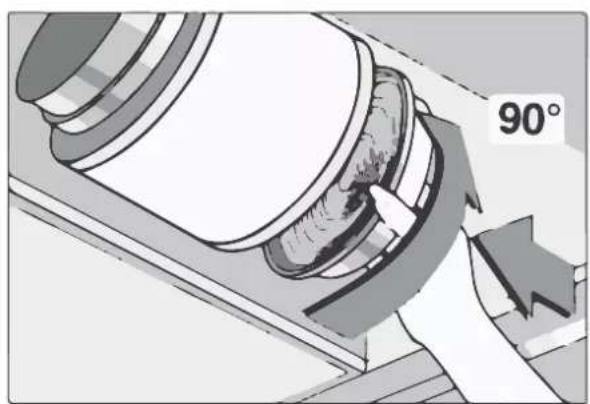

Mechanical component diagram showing a rotating arm with directional arrows and a 90° angle label (no readable text or symbols)

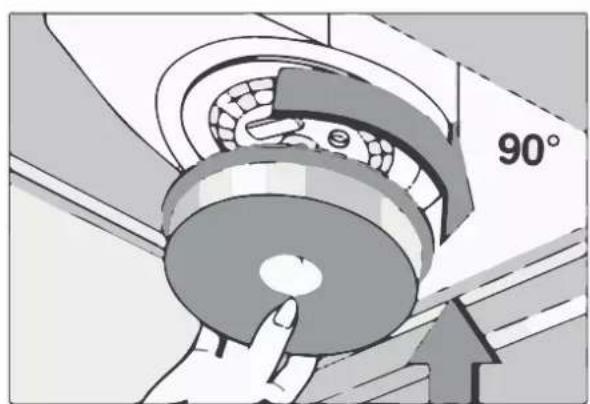

Illustration of a hand holding a circular mechanical component with a 90-degree angle label (no text or symbols on the diagram itself)

VENDBART AFTRÆK

Diagram of a screwdriver on a circular component with a wire, showing measurement annotation (no text or symbols present)

Technical line drawing of a cabinet and fan assembly (no text or symbols)

Løft motoren ud.

5

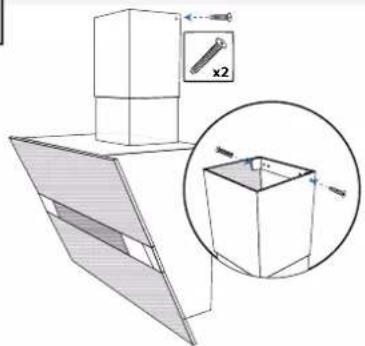

Technical line drawing of a 3D box with ventilation slots and a side-view inset showing internal fan structure (no text or symbols)

Diagram of a screwdriver with a wire and magnified view showing a circular component (no text or symbols)

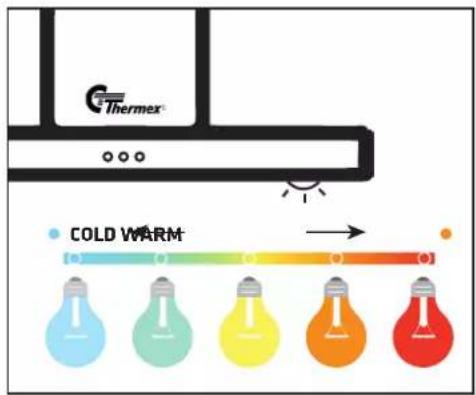

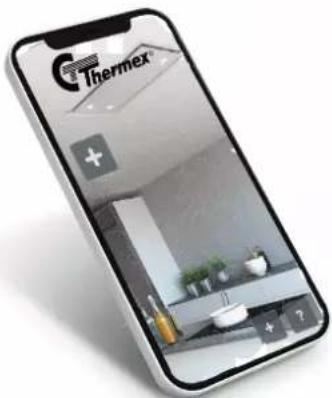

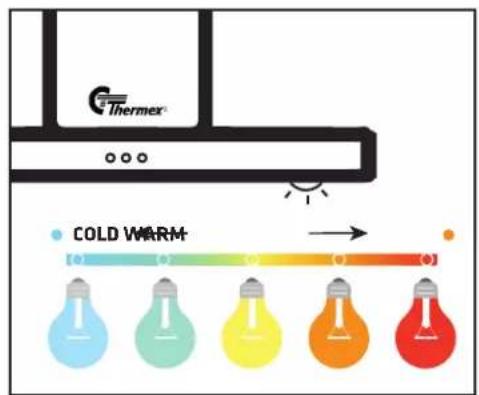

Kelvin ajustment in Remote App

Thermex VoiceLink® setup in Remote App

Simple line drawing of a human head with sound waves, no text or symbols present

Hey Google

control hood via voice commands

FJERNBETJENING

14 THERMEX Preston Lux M 540232168231032022

INNHOLD

Generell advarsel 15

Installasjon 16

Strømtilkobling 20

Kelvin-justering og Thermex VoiceLink® 20

Simple line drawing of a room with a wall, a circular inset showing a CD or DVD, and a small diagram on the floor (no text or symbols)

Diagram of a laptop with a screen and a blue arrow indicating motion (no text or symbols)

Diagram of a laptop with an open lid and a blue arrow pointing to the screen area (no text or symbols)

Diagram showing a cylindrical object being placed on a base with an inset magnified view of its internal structure (no text or symbols)

Architectural diagram of a double door mounted on a wall, showing structural components and floor level (no text or symbols)

Skru braketten fast til veggen.

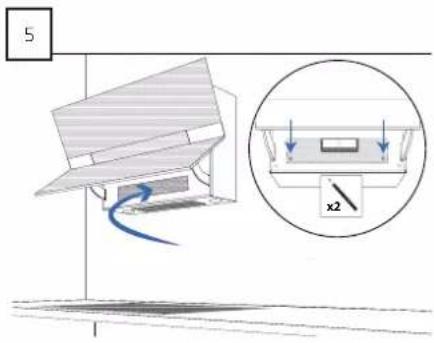

Diagram of a mechanical assembly with a box and folded panel, showing an upward force arrow (no text or symbols)

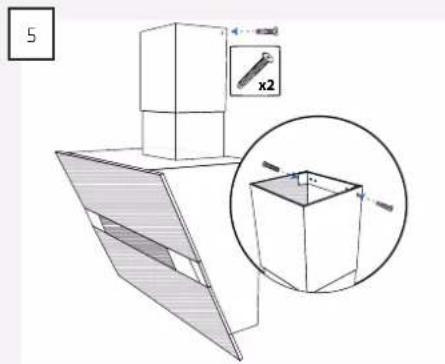

Sett kanalen på viften. Skyv kanalens overdel oppover, og fest den i

Technical line drawing of a 3D mechanical assembly with an inset showing a cross-sectional view of a rectangular component (no text or symbols present)

braketten med de to selvborende skruene.

18 THERMEX Preston Lux M 540232168231032022

INSTALLASJON AV KANAL NÅR VIFTEN BRUKES TIL Å RESIRKULERE LUFTEN

Pure technical line drawing of a mechanical assembly with no text or symbols

Skru braketten og dekkplaten fast til veggen.

4

Diagram of a mechanical or electrical component with an upward arrow and shaded internal section (no text or symbols)

Sett kanalen på viften.

Technical diagram showing a 3D mechanical assembly with a magnified inset of a cube detail (no text or symbols)

Skyv kanalens overdel oppover, og fest den i braketten med de to selvborende skruene.

Mechanical component diagram showing a rotating arm with a 90-degree angle indicator (no text or symbols on the diagram itself)

Illustration of a hand holding a circular mechanical component with a 90-degree angle label (no text or symbols on the diagram itself)

VENDBART AVTREKK

Technical diagram showing a circular component mounted on a base plate with a screwdriver icon labeled 'x2' (no text or symbols beyond the label)

Diagram of a screwdriver with a coiled cable and two blue arrows indicating motion (no text or symbols)

Løsne strekkavlasteren fra ledningen.

4

Technical line drawing of a cabinet and fan assembly (no text or symbols)

Technical line drawing of a cabinet with ventilation grilles and a side-view inset showing fan structure (no text or symbols)

Diagram of a cable being inserted into a circular component on a base plate, with a magnified inset showing the screwdriver (no text or symbols)

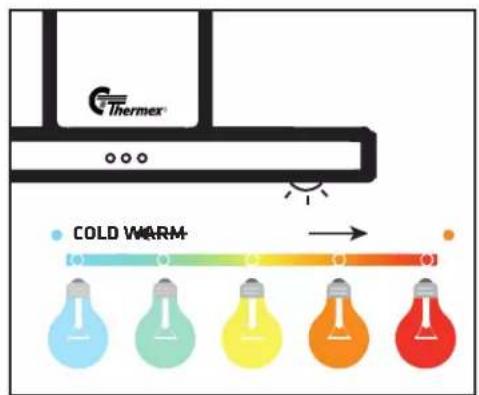

Kelvin ajustment
in Remote App

Thermex VoiceLink®
setup in Remote App

Simple line drawing of a human head with sound waves, no text or symbols present

control hood via voice commands

Hey Google

FJERNKONTROL

SERVICE

Simple line drawing of a room with a wall, a circular object, and a small figure on the floor (no text or symbols)

Diagram of a laptop with an open screen and a grid-patterned panel, showing a blue arrow indicating direction (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow pointing to the screen (no text or symbols present)

Diagram showing a cylindrical object being placed on a base with an inset magnified view of its internal structure (no text or symbols)

Architectural diagram of a double door mounted on a wall, showing structural components and floor level (no text or labels)

Diagram of a mechanical or architectural component with an upward arrow and shaded cross-section (no text or symbols)

Technical diagram of a mechanical assembly with a 3D inset showing a cross-section view (no text or symbols)

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Diagram of a mechanical or electrical component with an upward arrow and shaded internal section (no text or symbols)

Technical diagram of a mechanical assembly with a 3D box and a magnified inset showing internal components (no text or symbols)

Mechanical component diagram showing a rotating arm with a 90-degree angle indicator (no text or symbols on the diagram itself)

Illustration of a hand pressing down on a circular mechanical component with a 90-degree angle label (no text or symbols beyond the angle marker)

VÄNDBART UTSUG

Technical line drawing of a mechanical component with a side view showing internal components (no text or symbols)

Technical line drawing of a 3D box with a side view showing internal components (no text or symbols)

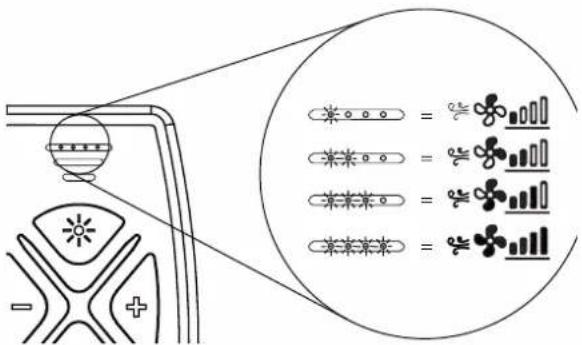

Kelvin ajustment in Remote App

Simple line drawing of a human head with sound waves, no text or symbols present

Thermex VoiceLink® setup in Remote App

Hey Google

control hood via voice commands

FJERNKONTROL

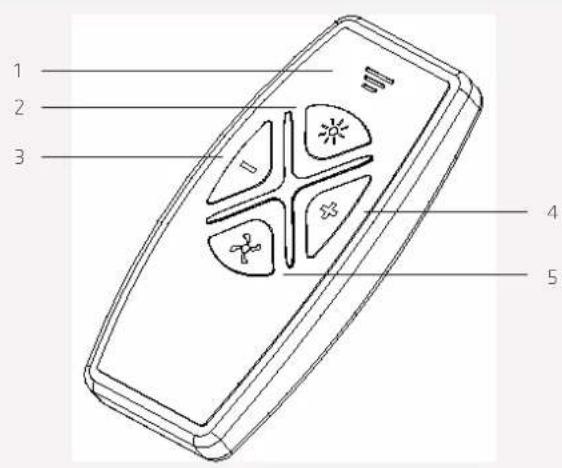

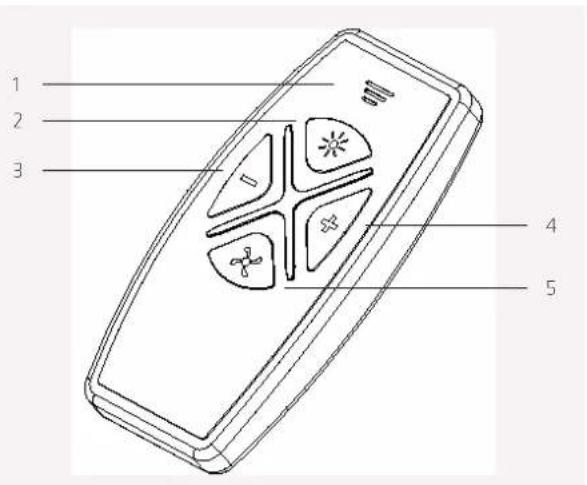

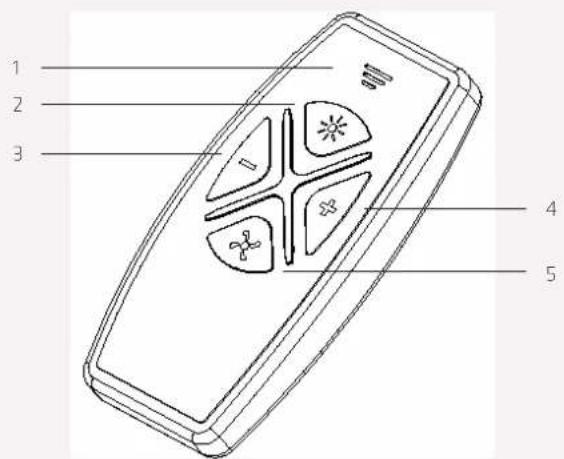

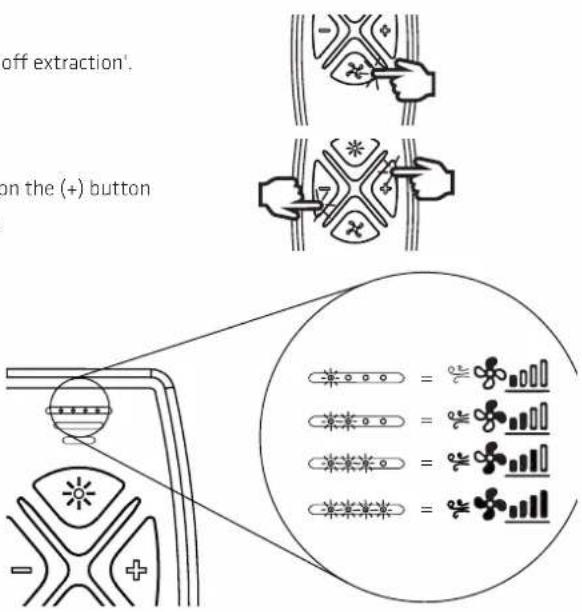

1. Diode
2. Slà av/pá lys
3. Plussknapp (+)
4. Minusknapp (-)
5. Slá av/pá avtrekk

UNDERHÄLL OCH RENGÖRING

BYTE AV RECIRKULATIONSFILTER

SERVICE

Simple line drawing of a room with a window, a circular object, and a small dark spot on the floor (no text or symbols)

Diagram of a laptop with a screen and a blue arrow indicating motion (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow pointing to the screen area (no text or symbols)

Diagram showing a cylindrical object being placed on a base with an inset magnified view of its internal structure (no text or symbols)

Architectural diagram of a double door mounted on a wall, showing structural components and floor level (no text or symbols)

Diagram of a mechanical assembly with a box and folded panel, showing an upward force arrow (no text or symbols)

Technical line drawing of a 3D mechanical assembly with an inset showing a cross-sectional view of a rectangular component (no text or symbols present)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Diagram of a mechanical or electrical component with an upward arrow and shaded internal section (no text or symbols)

Technical diagram showing a 3D mechanical assembly with a magnified inset of a cube detail (no text or symbols)

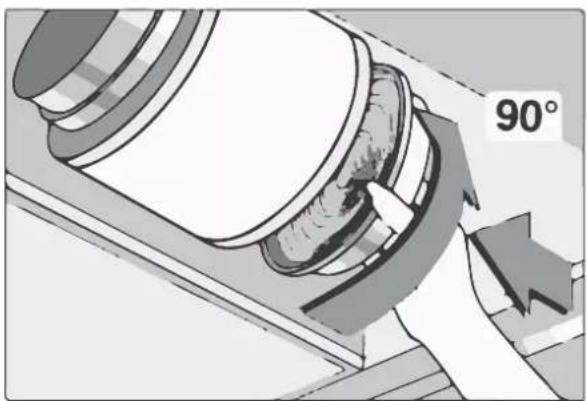

Mechanical component diagram showing a rotating arm with a 90-degree angle indicator (no text or symbols on the diagram itself)

Illustration of a hand pressing down on a circular mechanical component with a 90° angle label (no text or symbols beyond the angle marker)

KÄÄNNETTÄVÄ POISTOAUKKÖ

Diagram of a screwdriver with a coiled cable and two blue arrows indicating motion (no text or symbols)

Technical line drawing of a cabinet and fan assembly (no text or symbols)

Technical line drawing of a 3D box with ventilation slots and a side-view inset showing internal fan structure (no text or symbols)

Diagram of a cable being inserted into a circular component on a base plate, with a magnified inset showing the screwdriver (no text or symbols)

Kelvin ajustment in Remote App

Thermex VoiceLink® setup in Remote App

Simple line drawing of a human head with sound waves, no text or symbols present

Hey Google

control hood via voice commands

KAUKOSÄÄDIN

HUOLTO

Simple line drawing of a room with a wall, a circular object, and a small rectangular panel (no text or symbols)

Diagram of a laptop with a screen and directional arrow, no text or symbols present

Diagram of a laptop with an open screen and a blue arrow pointing to the screen (no text or symbols)

Diagram showing a cylindrical object being inserted into a base, with an inset magnified view of the component (no text or symbols)

Architectural diagram of a kitchen with a double door mounted on a shelf, no text or symbols present

Diagram of a mechanical or architectural component with a blue upward arrow and shaded cross-section (no text or symbols)

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Diagram of a mechanical or electrical component with an upward arrow and shaded internal section (no text or symbols)

Technical diagram of a 3D mechanical assembly with a magnified inset showing internal components (no text or symbols)

Mechanical component diagram showing a rotating arm with directional arrows and a 90° angle label (no readable text or symbols)

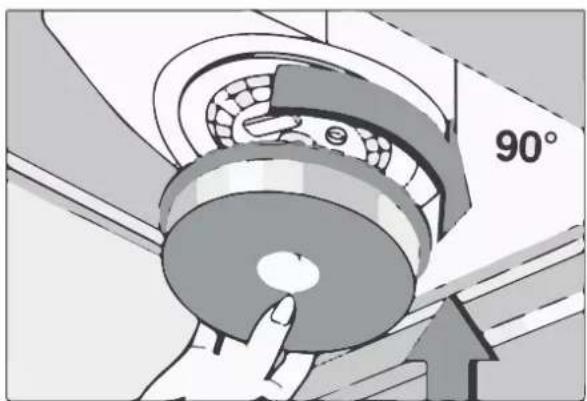

Illustration of a hand pressing a circular component with a 90° angle label (no text or symbols on the diagram itself)

52 THERMEX Preston Lux M 540232168231032022

SALIDA GIRABLE

Technical line drawing of a mechanical component with a side view showing internal components (no text or symbols)

Technical line drawing of a 3D box with a side view showing internal components (no text or symbols)

Kelvin ajustment in Remote App

Simple line drawing of a human head with sound waves, no text or symbols present

Thermex VoiceLink® setup in Remote App

Hey Google

control hood via voice commands

MANDO A DISTANCIA

SERVICIO

Simple line drawing of a room with a wall, two circular objects, and a floor plan (no text or symbols)

OPMERKING: DE SCHROEVEN MOGEN NIET VERDER WORDEN GESCHROEFD DAN DE KAP KAN WORDEN GEINSTALLEERD.

Diagram of a laptop with an open screen and a blue arrow indicating motion (no text or symbols)

Diagram of a laptop with a slide and screen, showing internal components (no text or symbols)

Diagram showing a cylindrical object being processed into a base, with an inset magnified view of the process (no text or symbols)

Architectural diagram of a double door mounted on a wall, showing structural components and floor level (no text or labels)

Diagram of a mechanical or architectural component with an upward arrow and shaded internal section (no text or symbols)

Technical diagram of a 3D mechanical assembly with a magnified inset showing a cross-section view (no text or symbols)

Measure the placement of the bracket and mark the position of the holes on the wall.
NOTE: The bracket must be positioned so that it matches the holes in the duct.

2

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Diagram of a mechanical or architectural component with a blue upward arrow and hatched base, no visible text or symbols.

Technical diagram showing a 3D mechanical assembly with a magnified inset of a cube detail (no text or symbols)

Mechanical component diagram showing a rotating arm with a 90-degree angle indicator (no text or symbols on the diagram itself)

Illustration of a hand pressing down on a circular mechanical component with a 90° angle label (no text or symbols beyond the angle marker)

EVERBRUIKBARE UITLAAT

Diagram of a screwdriver on a circular component with a wire, showing measurement annotation (no text or symbols present)

Technical line drawing of a cabinet and fan assembly (no text or symbols)

Technical line drawing of a cabinet with ventilation grilles and a side-view inset showing fan structure (no text or symbols)

Diagram showing a screwdriver with a magnified view of a cylindrical component connected to a wire, mounted on a base plate (no text or symbols)

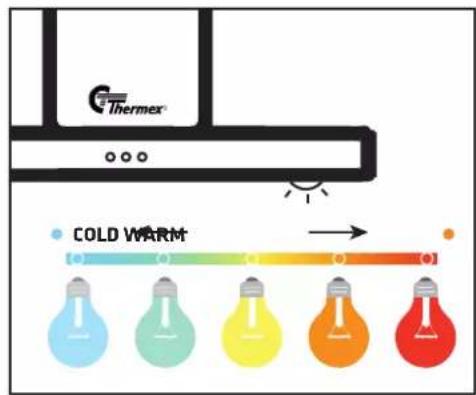

Kelvin ajustment in Remote App

Simple line drawing of a human head with sound waves, no text or symbols present

Thermex VoiceLink® setup in Remote App

Hey Google

control hood via voice commands

AFSTANDSBEDIENING

68 THERMEX Preston Lux M 540232168231032022

CONTENTS

Warnings 69

Installation 70

Electrical installation 74

Kelvin Adjustment and Thermex Voicelink® 74

Maintenance and cleaning 77

Service 78

WARNINGS

• The range hood is designed and manufactured according to DS/EN 60335-1.
• This range hood is only for use in private house holdings, if used for other purposes the warranty will be repealed.
• Installation must be performed by a skilled electrician in accordance with the specifications given by Thermex Scandinavia A/S (Thermex) and legislation in force.
• Thermex disclaims all responsibility in regards to damages caused by wrong installation, mounting or use.

BEFORE MOUNTING/COMMISSIONING

• Inspect the range hood for transport damages, flaws and defects immediately after the receipt.
• Transport damages must be filed to the haulage contractor and Thermex immediately after the receipt.
• Flaws and defects must be filed to Thermex within 8 days the receipt, and not later than mounting/commissioning.

MOUNTING

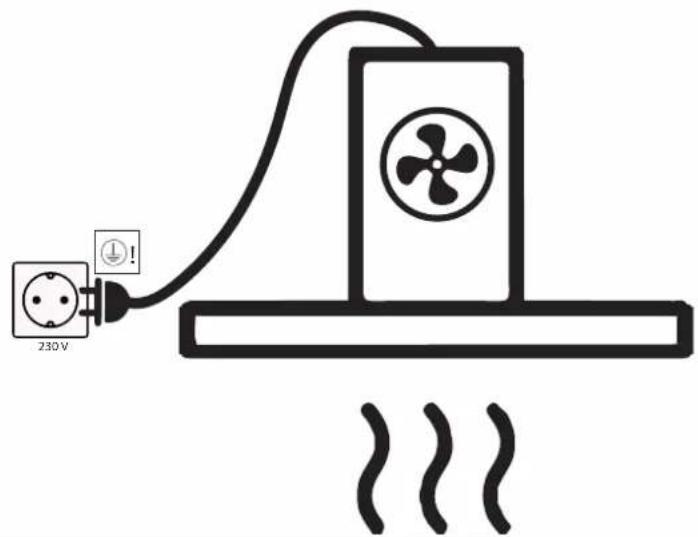

• The range hood is intended for working at 230 Volt ±10%\~50 HZ in referring to EN 50160.
• Connect the hood with the attached plug. NOTE: The hood MUST have earth if the plug has an earth connection.
• For models with external motor applies that NOT to use common zero by installing the hood and engine, as this will affect the control.
• It MUST be ensured that the motor can be used with the selected range hood when using an external motor from another supplier. Otherwise the warranty no longer apply.
• Do not plug in the range hood until the mounting is complete.

• The air must not be discharged from the hood into a pipe used for extraction from devices using gas or other fuels. Such devices must have a separate vent.
  • The national legislation on air emissions must be observed.

• Always use the original dimension of the vent. By reducing the dimension of the vent, the performance will be reduced and the sound level will be increased.

• The vent to the open air, must be as short as possible in order to get the greatest possible capacity of the range hood.
• The number of bends on the vent ought to be minimised, to gain the greatest possible capacity of the range hood.
• Thermex recommends to always use sound and condensation insulated vent hose at the carrying through in unheated spaces.
• Thermex recommends that there is used for a muffler to minimize the noise level when using flexible hose.
• Using the flexible hose must always ensure that this is fully extended to minimize air resistance and thereby achieve maximum absorbency.
• Different materials takes different rawlplugs and screws. Use rawlplugs and screws intended for the material the range hood is to be mounted in.
• If the instructions for the installation of screws and fittings are not followed, it may result in electrical shock.
• The minimum distance to gas stoves from the burner's edge to the underside of the hood MUST be minimum 65 cm in accordance with EN 60335-2-31.
• Thermex recommends that the space between the lower edge of the range hood and cooker is between 50 cm and 70 cm, valid for all cabinet range hoods, islands and wall mounted range hoods.
  • Always control the stated minimum distance between cooker and range hood in the manual for the cooker. If the manual for the cooker states a greater distance than what Thermex recommends the manual for the cooker MUST be followed.
• Thermex recommends that the space between cooker and range hood does not exceed 3 meters for range hoods integrated in the ceiling

INSTALLATION

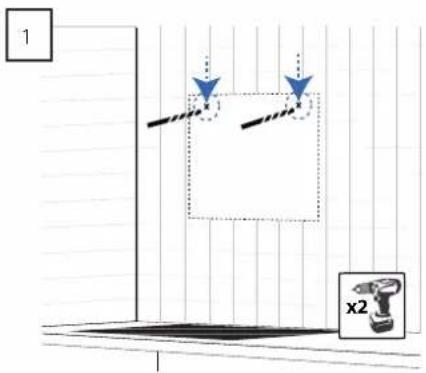

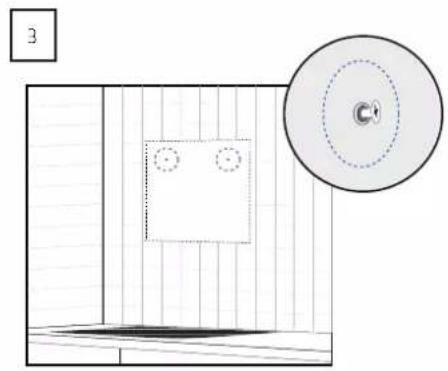

Measure out and mark the two "keyholes" on the wall. NOTE: For a rear-facing exhaust outlet, the holes are marked out in relation to the exhaust outlet's position on wall

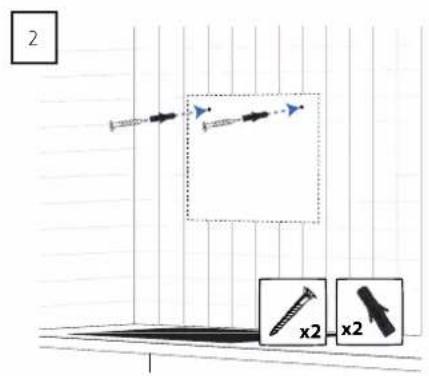

Ensure that the rawlplugs and screws are suitable for the wall material in question and insert them into the pre-drilled holes.

Simple line drawing of a room with a wall, a window, and a circular object (no text or symbols)

NOTE: The screws must not be screwed in further than the hood can be installed.

Diagram of a laptop with a screen and a blue arrow indicating motion (no text or symbols)

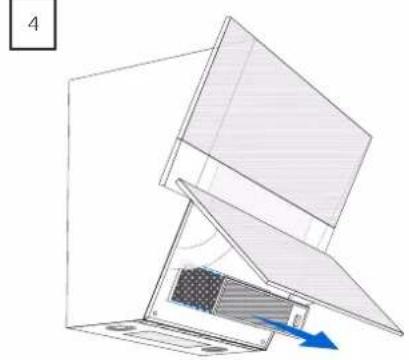

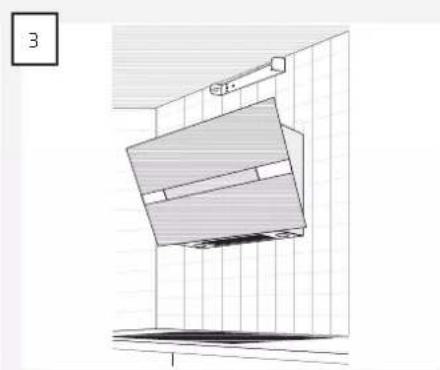

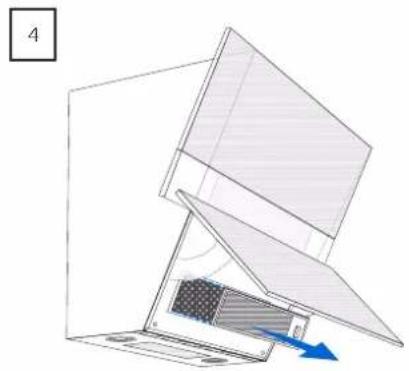

Hang the hood on the screws. Open the glass door and remove the filter.

Mark the position of the two lock-holes on the wall and then remove the hood from the wall once again.

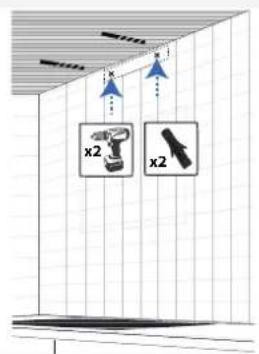

Pre-drill the holes and insert the rawlplugs.

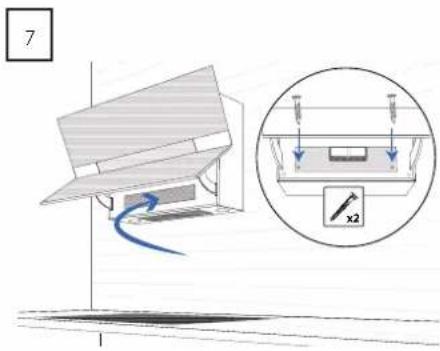

Re-hang the hood.
NOTE: For a rear-facing exhaust outlet, the exhaust outlet should be installed on the hood in this step.

Diagram of a laptop with an open screen and a blue arrow pointing to the screen (no text or symbols present)

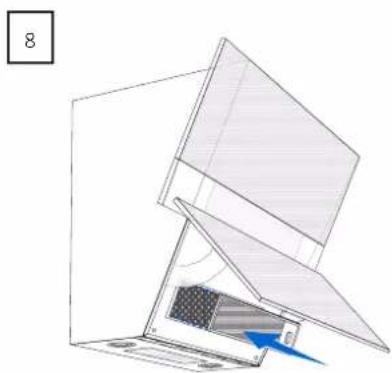

Reinstal the filter in the hood and close the glass door.

Diagram showing a cylindrical object being placed on a base with an inset magnified view of its internal structure (no text or symbols)

Install the exhaust outlet on the hood.
NOTE: This only applies when venting into open air and with the exhaust outlet facing upwards.

INSTALLING THE DUCT

Measure the placement of the bracket and mark the position of the holes on the wall.
NOTE: The bracket must be positioned so that it matches the holes in the duct.

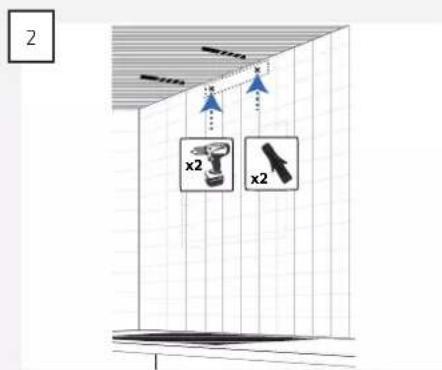

Pre-drill the holes and insert the rawlplugs.

Architectural diagram of a ceiling-mounted tower with diagonal beam and support structure (no text or symbols)

Screw the bracket onto the wall.

Diagram of a mechanical assembly with a box and folded panel, featuring an upward arrow symbol (no text or labels)

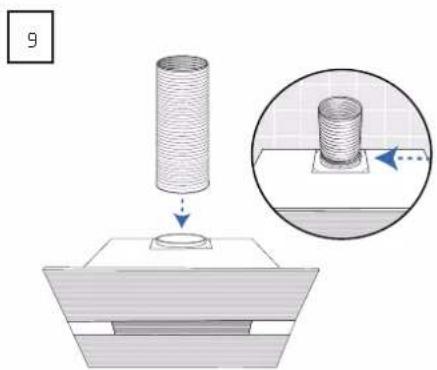

Place the duct on the hood.

Push the topmost section of the duct upwards and attach it to the bracket with the two self-tapping screws.

72 THERMEX Preston Lux M 540232168231032022

INSTALLING THE DUCT WHEN THE HOOD IS TO BE USED FOR RECIRCULATION

If the hood is going to be used for recirculation, the cover panel must be installed up to the ceiling to cover the duct.

The duct is therefore installed as follows:

1

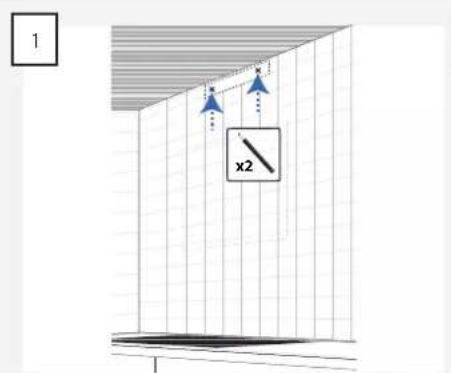

Measure the placement of the bracket and mark the position of the holes on the wall.
NOTE: The bracket must be positioned so that it matches the holes in the duct.

2

Pre-drill the holes and insert the rawlplugs.

3

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Screw the bracket and cover panel onto the wall.

4

Diagram of a mechanical or architectural component with a blue upward arrow and hatched base, no visible text or symbols.

Place the duct on the hood. Push the topmost section of the duct upwards

5

Technical diagram showing a 3D mechanical assembly with a magnified inset of a cube detail (no text or symbols)

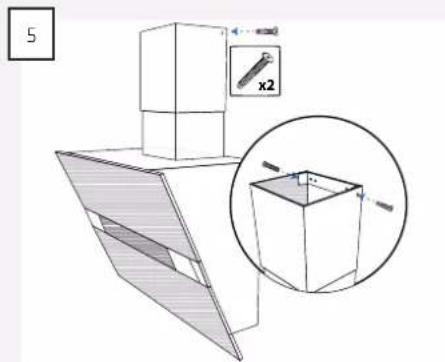

and attach it to the bracket with the two self-tapping screws.

Mechanical component diagram showing a rotating arm with directional arrows and a 90° angle label (no readable text or symbols)

Illustration of a hand pressing down on a circular mechanical component with a 90° angle label (no text or symbols beyond the angle marker)

EVERSIBLE EXHAUST OUTLET

The exhaust outlet on the range hood can be reversed so that the exhaust outlet faces towards the rear.

1

Screw the bracket of the planet on the hood.

2

Unscrew the screws holding the panel onto the hood.
NOTE: Make sure not to unscrew the screws holding the motor to the panel.
3

Diagram of a screwdriver on a circular component with a wire, showing measurement annotation (no text or symbols present)

Remove the strain relief on the electrical cable.

4

Technical line drawing of a cabinet and fan assembly (no text or symbols)

Lift out the motor and remove its plug.

5

Technical line drawing of a cabinet with ventilation grilles and a side-view inset showing fan structure (no text or symbols)

Place the motor on the hood with the exhaust outlet facing backwards.
6

Screw the panel with the motor onto the hood.

7

Diagram showing a screwdriver with a magnified view of a cylindrical component connected to a wire, mounted on a base plate (no text or symbols)

Place the strain relief back on the cable.

ELECTRICAL INSTALLATION

KELVIN ADJUSTMENT AND THERMEX VOICELINK®

Thermex Remote App®

Kelvin ajustment in Remote App

Simple line drawing of a human head with sound waves, no text or symbols present

Thermex VoiceLink® setup in Remote App

Hey Google

control hood via voice commands

REMOTE CONTROL

1. LED
2. On/off light
3. (+) button
4. (-) button
5. On/off extraction

The remote control uses a radio frequency system

that enables the hood's functions to be controlled up to a distance of 8 metres (this distance can be reduced if the signal is disrupted by a wall and/or furniture, or if the batteries are almost dead).

When a button is activated on the remote control, the LED will light on the remote control.

When using the remote control for the first time, the accompanying battery must be inserted first:

• Remove the protective film that surrounds the battery.
• Remove the battery cover on the bottom of the remote control by loosening the small clip.
• Insert the battery. NOTE: take care to position the battery correctly.
• Replace the battery cover on the remote control.
  • The remote control is now ready for use.

EXTRACTION

The motor is activated by pressing on 'on/off extraction'.

The motor speed is increased by pressing on the (+) button and reduced by pressing on the (-) button.

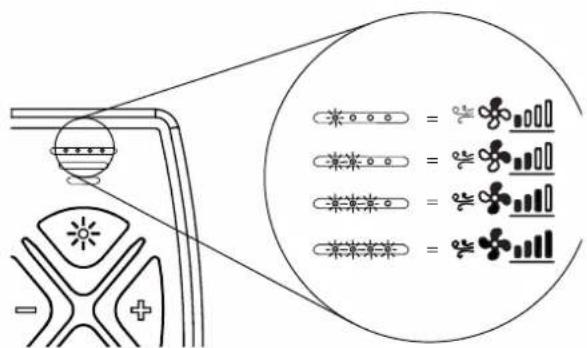

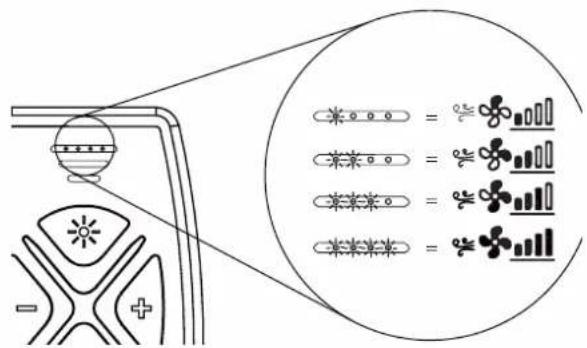

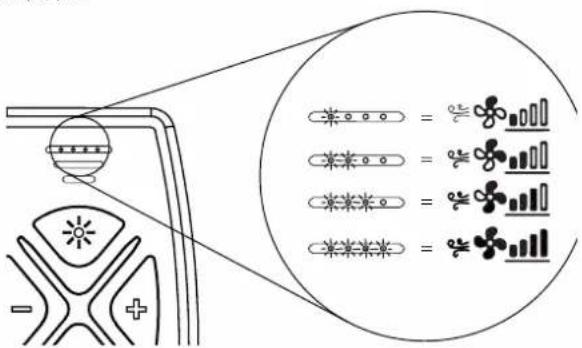

The LED-indicator on the remote shows which extraction level the hood is currently on (step 1-4)

The light on the hood is turned on and off by pressing on the 'on/off light' button. This can be done independently of whether the motor is running.

As a radio frequency system is used between the remote control and the hood, the two units must be coupled up to each other. The manufacturer has already coupled the hood up to the remote control when you receive it. The connection between the two units can however be lost, and must subsequently be coupled back together again.

This is done in the following steps:

• Ensure that the remote control is ready for use and the batteries are correctly inserted.
• Switch off the mains power to the hood (it is not enough for the light and extraction on the hood are turned off).
• Reconnect the power to the hood.
• Click the "PAIR" button behind the battery cover on the remote. This must be done within 8 seconds of the power being reconnected to the hood.
• If coupling is done correctly, the remote control will start to control the hood's functions.
• If the coupling fails, start the process again.

MAINTENANCE AND CLEANING

• Always disconnect power before cleaning.
- The hood must be cleaned regularly to ensure optimal operation and long service life.
- Grease and dust debris are collected in the filter and may risk igniting with insufficient cleaning.
- The hood should be cleaned inside and out frequently to avoid grease stains on walls or other surfaces.

DAILY CLEANING

• For cupboard-integrated, free-hanging and wall-mounted hoods, Thermex recommends that the grease filter be wiped with a damp cloth after each cooking session. It requires very little effort every day to keep your cooker hood clean and effective.
• Steel surfaces are cleaned with a damp cloth with detergent and treated with 3M Polish.
• Lacquered surfaces should be cleaned with a damp cloth with detergent/washing-up liquid. Never use abrasives.

CLEANING THE GREASE FILTERS

Grease filters should be cleaned as needed. Thermex recommends as a minimum that the filter is cleaned at the following intervals, depending on the fat used for frying:

• Frying margarine - filter cleaned every 3 weeks
• Liquid margarine - filter cleaned every 2 weeks
• Oil - filter cleaned once per week
- Deep fat frying - filter cleaned 2-3 times per week

The grease filters are cleaned in the following way:

• Open the glass door
• Rinse with warm water.
• Leave the filters to dry on a dishcloth or similar.
• Repeat the process if necessary.
• Re-attach the filters..

- Remove the grease filter behind the glass plate and the filter in the base by pulling on the filter-locking mechanism to loosen the filter from the hood.

- Place the filters in warm soapy water and clean if necessary with a soft brush.

The filters can also be washed in the dishwasher, although please note that machine washing can result in discolouration of the filters. Discolouration of the filters does not affect performance.

REPLACING THE RECIRCULATION FILTERS

If recirculation filters are used, these cannot be washed, but must be replaced when needed. Thermex recommends that the recirculation filters are replaced at least 2-4 times per year.

SERVICE

Before reporting service on your Thermex range hood, it is important that you read the installation and/or user instructions carefully. It ensures that Thermex can provide you the best possible assistance.

Service department at Thermex can be contacted in preparation to:

• Technical support for installation and installation of your range hood.
• Clarification of functionalities in your hood.
  • Service Request during the warranty on your hood.

Before a service request during the warranty always try to disconnect the power to the hood for about 5 min. Then plug the power back on to see if the problem is corrected.

If the problem is not corrected, disconnect the power supply to the hood for one hour. If the hood is still not functioning properly, and the troubleshooting charts are reviewed, contact the service department.

NOTE: For inquiries within the warranty, you will be asked for proof of your purchase in the form of a sales receipt. Therefore, always store your sales receipt

Before the request for service within the warranty, it is important to have all the necessary information ready:

• Error Description
• Model
  • The type and serial number of the hood (on the chassis plate)
  • Information of purchase

MILJ∅HENSYN

EMBALLAGE

SKROTNING AF PRODUKTET

The packaging must be disposed of in accordance with local regulations on waste management.

SCRAPPING OF THE PRODUCT

The symbol _1 on the product or accompanying documentation indicates that this product may not be disposed of as household waste but must be delivered to the nearest collection center for the recycling of electrical and electronic equipment.

THERMEX sCanDlnavla a/s

THERMEX sCanDinavia as

Tel. [phone]

www.thermex.no

[e-mail]

THERMEX sCanDInavia aB

Importgatan 12 A ■ 442 46 Hisings Backa ■ Sverige

Tel. [phone]

www.thermex.se

[e-mail]

THERMEX sCanDInavia s.L.u.

Noi del Sucre 42 ■ 08840 Viladecans ■ España

Tel. [phone]

www.thermex.es

[e-mail]

THERMEX sCanDInavia a/s

Puhelin [phone]

www.thermex.fi

[e-mail]

THERMEX sCanDInavia a/s

Tel. [phone]

www.thermexscandinavia.nl

[e-mail]
