Product type	Upright freezer
Brand	Bosch
Model	GSN36VIFP
Dimensions (H × W × D)	Approximately 180 cm × 60 cm × 65 cm
Weight	Approximately 70 kg
Power supply	220-240 V, 50/60 Hz
Interior lighting	LED, replaceable
Ice making	Yes, with removable ice tray and ice maker
Quick freeze function	Not specified
Door gasket	Replaceable, with groove
Door handle	Replaceable, screw mounting
Hinges	Replaceable, adjustable
Interior shelves	Replaceable
Frozen food bin	Removable and replaceable
Care and cleaning	Clean with a damp cloth and mild detergent
Safety	Disconnect before any repair, wear protective gloves
Spare parts available	Gaskets, handles, hinges, shelves, bins, ice maker, LED lighting
Repairability	Repairable by the consumer for the listed parts
User manual	Available in PDF, 543 pages

Frequently Asked Questions - GSN36VIFP BOSCH

How to replace the door gasket of the Bosch GSN36VIFP freezer?

To replace the door gasket, open the door and remove the old gasket from the groove at the corners. Then, slightly warm the new gasket to reshape it, then gradually press it into the groove starting from the corners. Make sure the groove is not damaged.

How to change the door handle?

First, unplug the appliance and open the door. Remove the screw caps, unscrew the two screws with a Torx TX20 bit, then remove the handle. Assembly is done in reverse order.

Can I repair the LED lighting myself?

The LED lighting is considered maintenance-free. Its replacement must be carried out by the after-sales service or a qualified technician. However, the manual details the removal procedure if you are qualified.

How to defrost my GSN36VIFP freezer?

The manual does not mention a specific defrosting procedure. In general, it is recommended to unplug the appliance, remove the food, and leave the door open for the ice to melt. See the full manual for more details.

What are the safety precautions before a repair?

Always disconnect the appliance from the mains at least 60 seconds before intervening. Wear cut-resistant protective gloves and safety shoes for heavy parts. Use only original spare parts.

Where can I find the complete manual for the Bosch GSN36VIFP?

The complete 543-page manual is available for free download in PDF format on the notice-facile.com website. You can also request a translation in your language.

How to replace the frozen food bin?

Open the door, fully pull out the bin, then remove it. The new bin is installed in reverse order. No tools are required.

Can I adjust the hinges if the door does not close properly?

The upper and lower hinges are adjustable. You can replace the hinges if necessary. The manual describes the complete replacement with a Torx TX20 bit.

How to clean the inside of the freezer?

Unplug the appliance, remove the food and shelves. Clean with a damp cloth and mild detergent. Dry thoroughly before restarting.

Where to buy spare parts for this model?

Original Bosch spare parts can be ordered from the after-sales service or authorized dealers. The manual provides the part numbers (e.g., [00342013] for the protective cover).

USER MANUAL GSN36VIFP BOSCH

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon pointing to the top panel (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

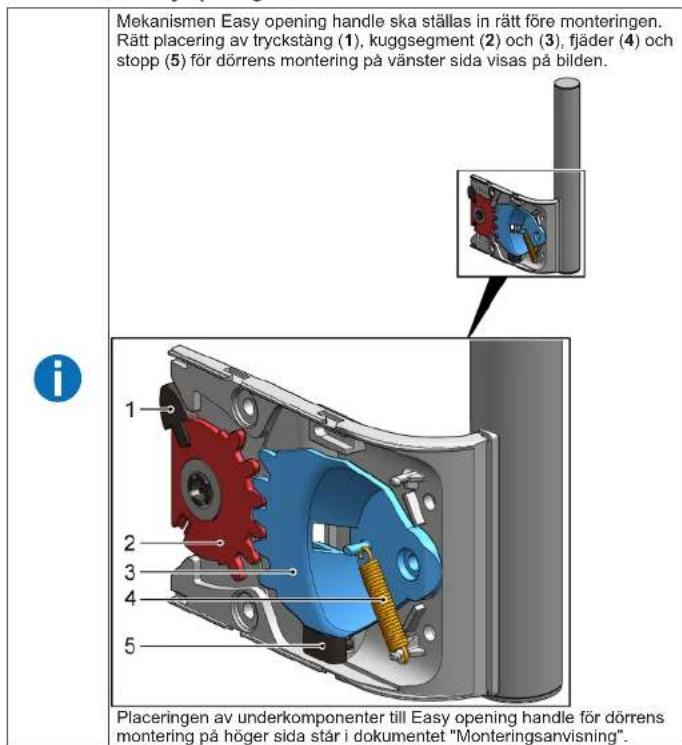

Easy opening handle e свалена.

Ремонт

1. 1. Развийте двата винта (1).

2. Свалете горната панта (2).

Ремонт

3D diagram of a rectangular box with a black arrow pointing upward on top, no text or symbols present

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram of a vertical structure with a red rectangular component and an arrow pointing to it, no visible text or symbols.

Diagram of a screwdriver interacting with a red component, no text or symbols present

Ремонт

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted device with multiple shelves and an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Brtva vrata je postavljena.

Popravak

Ručka easy opening handle je uklonjena.

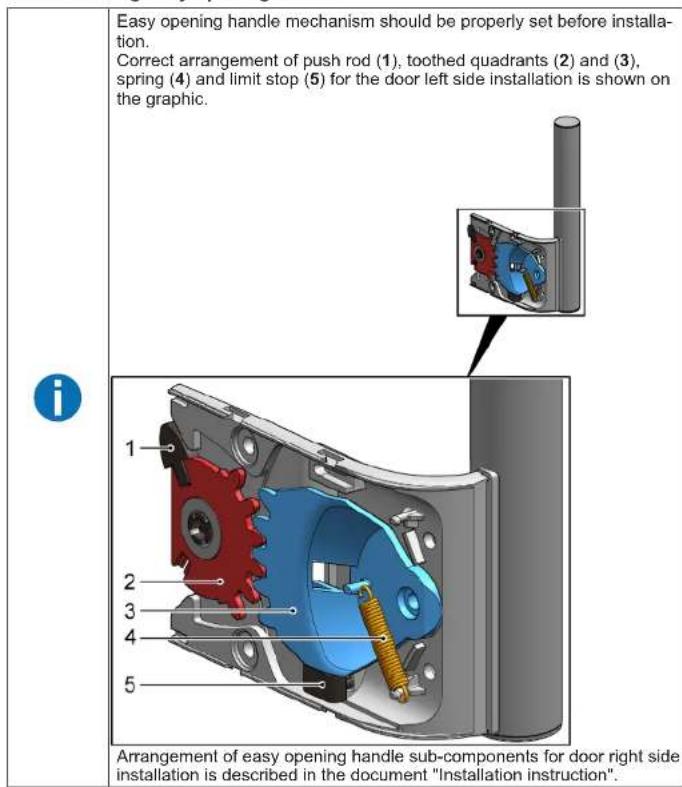

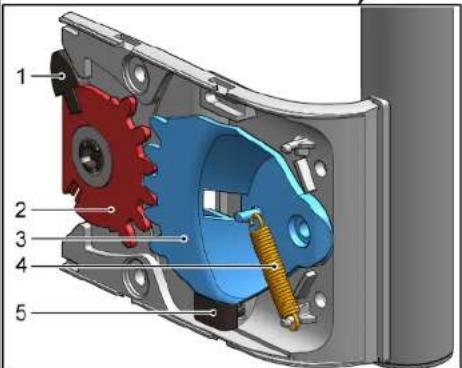

4.3.2 Postavljanje ručke easy opening handle

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Uklonite poklopac gornjeg zgloba (3).

Popravak

1. 1. Odvijte dva vijka (1).

2. Uklonite gornji zglob (2).

Gornji zglob vrata je uklonjen.

4.4.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Popravak

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Uklonite poklopac gornjeg zgloba (3).

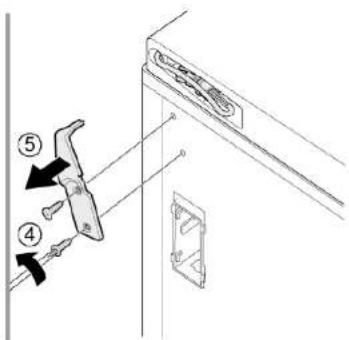

1. 1. Uklonite poklopac kutije za kabele (1).

2. Uklonite zaštitu kabela (2).

3. Odvojite električni priključak (3).
4. Odvijte dva vijka (4).
5. Uklonite gornji zglob (5).

Gornji zglob vrata je uklonjen.

4.5.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena donjeg zgloba vrata

Specijalni alati:

Nastavak Torx TX20 6,3 mm (1/4") [00340865]

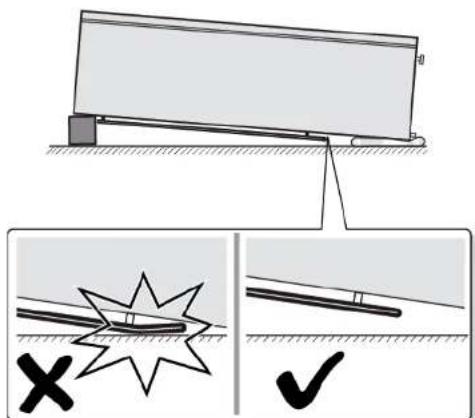

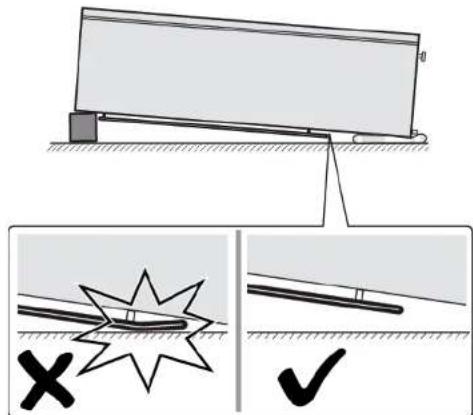

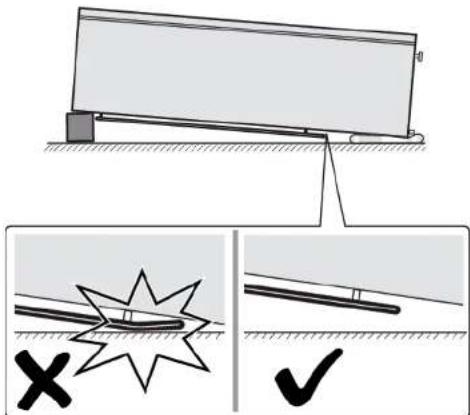

Teški, veliki uređaji!

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

1. 1. Odvijte vijak (1).

2. Izvadite donji zglob (2).

3. Uklonite donji zglob (3).

Donji je zglob uklonjen.

4.6.2 Postavljanje donjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police

- Izvucite policu.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Spremnik za zamrznute namirnice je uklonjen.

4.8.2 Postavljanje spremnika za zamrznute namirnice

▶ Postavite obratnim redoslijedom.

Popravak

4.9 Zamjena ledomata

Zahtjev:

Vrata su otvorena.

4.9.1 Uklanjanje ledomata

1. Izvucite policu spremnika za zamrznute namirnice s ledomatom (1).
2. Otpustite kuke (2)
3. Uklonite ledomat (3).

Ledomat je uklonjen.

4.9.2 Postavljanje ledomata

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver interacting with a red component, no text or symbols present

Popravak

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Oprava

Oprava

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a red component and a black arrow pointing to it (no text or symbols present)

Diagram of a tool interacting with a red rectangular object, possibly a component or device (no text or symbols visible)

Oprava

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Reparation

Reparation

Diagram of a mechanical device with a black arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram of a mechanical or electrical component with a red rectangular block and an arrow pointing to it, no visible text or symbols.

Diagram of a screwdriver inserted into a red component, with no visible text or symbols

Reparation

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Reparatie

Reparatie

Illustration of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical or electrical component with a tool inserted, showing no visible text or symbols.

Reparatie

Diagram of a mechanical assembly with a red component and a black arrow indicating direction (no text or symbols)

Repair hints - Freezer

i Concerning this document.... 116

1.1 Important information.... 116

1.1.1 Purpose.... 116

1.2 Explanation of symbols 116

1.2.1 Danger levels.... 116

1.2.2 Hazard symbols 116

1.2.3 Structure of the warnings.... 117

1.2.4 General symbols.... 117

Safety.... 118

2.1 General Safety instructions 118

2.1.1 All domestic appliances 118

Tools and aids.... 119

Repair 120

4.5 Replacing door upper hinge (door with display) 128

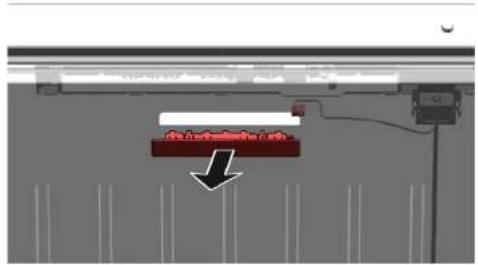

4.10.1 Removing LED light.... 136

4.10.2 Installing top LED light 137

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!
■ Only use original spare parts.
Risk of damage to electrostatically sensitive components (ESDs)!
- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Phillips screwdriverPH2
Torx Bit TX20[00340865]	6,3 mm (1/4")
Slotted screwdriver	Blade 2.4 mm x 0.4 mm x60 mm, in the kit [00341820]

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

1. (if) If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing door handle

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Slotted screwdriver Blade 10 mm x 1.6 mm x 200 mm

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Door handle is removed.

▶ Install in reverse order.

Repair

4.3 Replacing easy opening handle

Required tools:

Phillips screwdriver PH2

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.

4.3.1 Removing easy opening handle

▶ 1. Remove easy opening handle cover (1).

1. Unscrew two screws (2).

Easy opening handle is removed.

4.3.2 Installing easy opening handle

▶ Install in reverse order.

Repair

4.4 Replacing door upper hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by trained specialists.
▶ To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries ▶ Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

1. 1. Press upper hinge cover on both sides (1).

2. Move out upper hinge cover (2).

3. Remove upper hinge cover (3).

Repair

1. 1. Unscrew two screws (1).
2. Remove upper hinge (2).

Door upper hinge is removed.

▶ Install in reverse order.

Repair

4.5 Replacing door upper hinge (door with display)

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by
trained specialists.
To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

- Secure component from falling down.

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.
▶ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Danger

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

Repair

1. Place appliance on the back side.

Repair

2.1. Press upper hinge cover on both sides (1).

1. Move out upper hinge cover (2).
2. Remove upper hinge cover (3).


1. 1. Remove cable box cover (1).
2. Remove cable protection (2).
3. Disconnect electrical connection (3).
4. Unscrew two screws (4).
5. Remove upper hinge (5).

Door upper hinge is removed.

▶ Install in reverse order.

Repair

4.6 Replacing door lower hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Appliance is placed on the back side.

√ Upper hinge is removed.→ Page 128

4.6.1 Replacing door lower hinge

1. Remove door.

Simple line drawing of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

1. 1. Unscrew the screw (1).

2. Turn lower hinge out (2).

3. Remove lower hinge (3).

Lower hinge is removed.

Repair

▶ Install in reverse order.

Repair

4.7 Replacing shelf

Prerequisite:

Door is open.

4.7.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.7.2 Installing shelf

▶ Install in reverse order.

Repair

4.8 Replacing frozen food container

Prerequisite:

√ Door is open.

4.8.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove frozen food container (2).

Frozen food container is removed.

4.8.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.9 Replacing ice maker

Prerequisite:

√ Door is open.

4.9.1 Removing ice maker

▶ 1. Pull out shelf frozen food container with ice maker (1).
2. Release hooks (2).
3. Remove ice maker (3).

Ice maker is removed.

4.9.2 Installing ice maker

▶ Install in reverse order.

Repair

4.10 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.
√ Upper interior fittings are removed.

4.10.1 Removing LED light

1. Move the LED light to the left side.

Diagram of a mechanical or electrical component with a red rectangular block and arrow indicating direction (no text or symbols)

LED light electrical connection is disconnected.

1. Release LED light hooks.

Diagram of a mechanical or electrical component with a tool inserted, showing a red block and vertical supports (no text or symbols present)

Repair

1. Remove LED light moving it forward.

LED light is removed.

4.10.2 Installing top LED light

▶ Install in reverse order.

Remonditeave - Sügavkülmik

i Selle dokumendiga seoses 139

1.1 Tähtis teave 139

1.1.1 Eesmärk 139

1.2 Sümbolite selgitus 139

1.2.1 Ohutasemed.... 139

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a refrigerator with an eye icon above, showing shelves and doors (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Remont

Remont

Illustration of a white rectangular device with a black arrow pointing upward, no text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a vertical structure with a red rectangular component and an arrow pointing to it, no visible text or symbols.

Diagram of a screwdriver inserted into a mechanical component with a red block and vertical supports (no text or symbols)

Remont

1. Eemaldage LED-tuli, liigutades seda ettepoole.

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Easy opening handle -kahva on poistettu.

Korjaus

Korjaus

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

1. 1. Kierrä ruuvi auki (1).

2. Kierrä alasarana ulos (2).

3. Poista alasarana (3).

Alasarana on poistettu.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram of a mechanical or electrical component with a red arrow pointing to a component, no visible text or symbols.

Diagram of a screwdriver inserted into a component with a red block, showing mechanical assembly (no text or symbols)

Korjaus

Illustration of hands connecting a cable to a door frame with shelves (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Réparation

Réparation

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical component with a red arrow pointing to a component, no visible text or symbols.

Diagram of a screwdriver interacting with a red component, showing mechanical setup without any text or symbols

Réparation

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Instandsetzen

Instandsetzen

Simple line drawing of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a tool interacting with a red rectangular object, possibly a device or component (no text or symbols visible)

Instandsetzen

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Επισκευή

Επισκευή

Illustration of a white rectangular device with a black arrow pointing upward, placed on a base (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

To páfi aφαιρέθηκε.

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a mechanical component, showing no text or symbols

Επισκευή

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Javítás

Javítás

Simple line drawing of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a component with a red block, showing mechanical assembly (no text or symbols)

Javítás

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Riparazione

Riparazione

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

1. 1. Svitare la vite (1).
2. Ruotare la cerniera inferiore verso l'esterno (2).
3. Togliere la cerniera inferiore (3).

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical component with a red arrow pointing to a component, no visible text or symbols.

Diagram of a screwdriver inserted into a component, showing a red component and surrounding vertical lines (no text or symbols)

Riparazione

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Durvju rokturis ir nonemts.

3D mechanical assembly diagram showing internal components and a cylindrical shaft (no text or symbols)

i

Remonts

Remonts

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Ledus tvertne ir iznemta.

Diagram of a mechanical or electrical component with a red rectangular block and an arrow pointing to it, no visible text or symbols.

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Remonts

1. Lai nonemtu LED gaismekli, virziet to uz priekšu.

LED gaismeklis ir nonemts.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

„Easy open handle" nuimta.

Remontas

Remontas

1. 1. Spustelékite viršutinio vyrio dangtelj abiejose pusése (1).

2. Atkelkite viršutinio vyrio dangtelj (2).

3. Nuimkite viršutinio vyrio dangtelj (3).

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram of a mechanical or electrical component with a red rectangular block and black arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component, showing no text or symbols

Remontas

LED lemputė išimta.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

easy opening handle er demontert.

Reparasjon

1. 1. Skru ut to skruer (1).

2. Demonter øvre hengsel (2).

Reparasjon

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

1. 1. Skru ut skruen (1).

2. Drei den nedre hengselen ut (2).

3. Demonter nedre hengsel (3).

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

→ Beholderen for frysevarer er demontert.

← Ismaskinen er demontert.

4.9.2 Montering av ismaskin

Diagram of a mechanical or electrical component with a red rectangular block and black arrow indicating direction (no text or symbols)

LED-lampens elektriske tilkobling kobles fra.

1. Løsne LED-lampens kroker.

Diagram of a screwdriver inserted into a red component, with no visible text or symbols

Reparasjon

LED-lampen er demontert.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Naprawy

Naprawy

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.7.2 Montaż półki

Diagram of a mechanical or electrical component with a red rectangular block and arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component with a red block and vertical supports (no text or symbols visible)

Naprawy

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparação

1. 1. Desaperte dois parafusos (1).

2. Remova a dobradiça superior (2).

Reparação

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

1. 1. Desaperte o parafuso (1).

2. Vire a dobradiça inferior para fora (2).

3. Remova a dobradiça inferior (3).

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical component with a red arrow pointing to a central component, no visible text or symbols.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Reparação

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Cap torx TX20 6.3 mm (1/4") [00340865]

Illustration of a white rectangular box with a black arrow pointing upward on top, placed on a base (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red rectangular block and mechanical assembly (no text or symbols)

Repararea

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon pointing to the top panel (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

- Úchytka easy opening handle je odobratá.

4.3.2 Montáž úchytky easy opening handle

Oprava

Oprava

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a mechanical component with a red block and vertical supports (no text or symbols)

Oprava

Diagram of a mechanical assembly with a red component and a black arrow indicating direction (no text or symbols)

LED svetlo je odobraté.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon, showing internal compartments and directional arrows (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Ročaj easy opening handle je odstranjen.

Popravilo

1. 1. Odvijte vijaka (1).

2. Odstranite zgornji tečaj (2).

Poškodbe hrbta in mišic

Popravilo

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.7.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Ledomat je odstranjen.

4.9.2 Namestitev ledomata

▶ Namestite v obratnem vrstnem redu.

Popravilo

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Električni priključek lučke LED je odklopljen.

1. Sprostite zatiče lučke LED.

Diagram of a screwdriver interacting with a red rectangular object, no text or symbols present

Popravilo

1. Lučko LED premaknite naprej in jo odstranite.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparación

Reparación

Simple line drawing of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red block and vertical supports (no text or symbols)

Reparación

4.3 Byta Easy opening handle....509

4.3.1 Ta bort Easy opening handle 509

4.3.2 Montera Easy opening handle....509

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

4.3 Byta Easy opening handle

Nödvändiga verktyg:

Easy opening handle har tagits bort.

4.3.2 Montera Easy opening handle

Reparation

Reparation

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a tool interacting with a red rectangular object, possibly a device or component (no text or symbols visible)

Reparation

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Onarim

Onarim

Illustration of a mechanical device with an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a tool interacting with a red rectangular object, possibly a component or device (no text or symbols visible)

Onarim

Diagram of a mechanical assembly with a red component and a black arrow indicating direction (no text or symbols)

LED ışığı söküldü.
