Product type	Network switch
Brand	TP-Link
Model	JetStream TL-SL2218
Number of Ethernet ports	16 10/100 Mbps ports + 2 combo SFP ports
Power supply	Mains via adapter or power cord included
Main functions	Administration via Web interface (HTTP) and command line (CLI); Smart management
Mounting	Desktop (with rubber feet) or rack (with brackets)
Dimensions (W x D x H)	440 x 180 x 44 mm (19-inch standard)
Weight	Approximately 1.5 kg
Operating temperature	0°C to 40°C
Operating humidity	10% to 90% non-condensing
Default IP address	192.168.0.1
Default username	admin (lowercase)
Console port	Yes, for CLI administration
Included accessories	Power cord, mounting brackets, rubber feet, console cable
Maintenance and cleaning	Clean with a dry cloth; do not use liquid products
Safety	Do not disassemble; unplug for power off; avoid water and humidity
Warranty	TP-Link limited warranty (duration indicated on packaging)
Repairability	Sealed device: any opening voids warranty; contact TP-Link support

Frequently Asked Questions - JetStream TL-SL2218 TP-LINK

How to install the switch on a desktop?

Place the switch on a flat and sturdy surface. Remove the protections from the included rubber feet and attach them to the four corners under the device.

How to install the switch in a rack?

Attach the included mounting brackets on each side of the switch using the screws. Then use suitable bolts (not included) to secure the switch to the rack.

How to connect an Ethernet cable to the switch?

Connect an RJ45 cable to one of the Ethernet ports on the switch. You will hear a click when the connector is fully inserted.

How to connect an SFP module?

Insert a compatible SFP module into the designated SFP slot. Ensure correct orientation.

How to configure the IP address to access the switch?

Set your computer's IP address in the same subnet as the switch, for example 192.168.0.x (x from 2 to 254) with subnet mask 255.255.255.0.

How to access the switch management interface?

Open a browser and enter http://192.168.0.1. Enter 'admin' in the username and password fields, then click 'Login'.

What if I forgot the administrator password?

The default password is 'admin'. If changed and forgotten, perform a hardware reset by holding the reset button (if available). See the manual for details.

How to use the console port?

For equipped models, connect the included console cable between the switch and a computer. Use terminal software (e.g., PuTTY) to access the CLI interface.

What do the lights on the switch mean?

The LED indicators show connection status: solid green = link active, flashing = activity, off = no connection. See the manual for details.

Where to download the full manual for the TL-SL2218?

You can download the PDF manual for free from sites like notice-facile.com or directly from the TP-Link support website.

USER MANUAL JetStream TL-SL2218 TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch....01

English....06

Español....11

Ελληνικά....16

Français....21

Italiano....26

Português....31

Suomi....36

Nederlands....41

Svenska....46

Norsk....51

Dansk....56

Türkçe....61

Installation

- Tischmontage

- SFP-Port

- Einschalten

Konfiguration

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

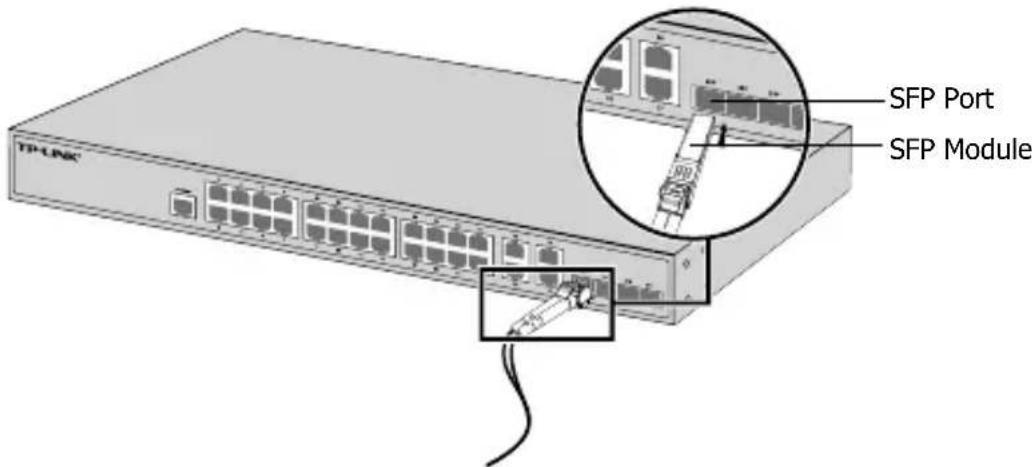

- SFP Port

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

- Console Port

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Puerto SFP

- Encender

Configuración

- Θúpa Console

- Ενεργοποιήστε

Ρύθμιση

Configuration

- Configurer le switch via son interface graphique

- Accensione

Configurazione

- Configure lo Switch usando la GUI

- Ligar

Configuração

- Configurar o Switch via Interface gráfica

- Virta päällä

Konfigurointi

- Konfiguroi kytkin GUI:lla

- Inschakelen

Configuratie

- Desktop-installation

- Ström på

Konfiguration

- For å slå på

Konfigurasjon

- Tændt

Konfiguration

- Cihazı Çalıştırma

Yapılandırma

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
