TL-PA4020P KIT - Powerline adapter TP-LINK - Free user manual and instructions

Product Type	Powerline Network Adapter
Brand	TP-Link
Model	TL-PA4020P KIT
Kit Contents	2 Powerline adapters, 2 RJ45 Ethernet cables, installation guide
Max Speed	600 Mbit/s (HomePlug AV2)
Ethernet Ports	1 Gigabit Ethernet port per adapter
Pass-through Outlet	Yes, allows plugging in other devices
Pair Button	To secure and pair the adapters
Power Supply	Mains, 100-240 V AC, 50/60 Hz
Power Consumption	Approx. 3.5 W (standby), 5.5 W (active)
Dimensions (per adapter)	94 x 54 x 40 mm
Weight (per adapter)	Approx. 200 g
Operating Temperature	0 °C to 40 °C
Operating Humidity	10 % to 90 % RH, non-condensing
Certifications	CE, RoHS
Warranty	3 years limited
Maintenance	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to water, fire, or excessive heat. Do not disassemble or modify.
General Information	Plug and Play, compatible with all TP-Link HomePlug AV2 Powerline adapters

Frequently Asked Questions - TL-PA4020P KIT TP-LINK

How to pair two TP-Link TL-PA4020P Powerline adapters?

Plug both adapters into wall outlets on the same electrical circuit. Press the Pair button on one for 1 second, then within 2 minutes, press the Pair button on the second for 1 second. The Powerline LED should light up to confirm pairing.

What to do if the Powerline LED does not light up?

Check that both adapters are plugged into the same electrical circuit (same meter). Re-pair them using the Pair button. If the problem persists, try other outlets or reduce the distance between adapters.

How to reset a TP-Link Powerline adapter?

Press and hold the Pair button for about 10 seconds until the power LED turns off then on again. You can also use the tpPLC utility to perform a software reset.

Why do I have no internet access via my Powerline network?

Ensure all adapters are on the same electrical circuit and the Powerline LEDs are lit. Check Ethernet connections and that the router is distributing IP addresses. Restart the modem/router if necessary.

Can I plug a Powerline adapter into a power strip?

It is not recommended to plug a Powerline adapter into a power strip, as this can reduce performance. Plug it directly into a wall outlet. If the adapter has a pass-through outlet, you can plug the power strip into that.

How to secure my Powerline network?

Use the Pair button to create a secure network. Press Pair on an already configured adapter, then within 2 minutes, press Pair on the new adapter. This automatically generates an AES-128 encryption key.

What to do if the speed is slow?

Move the adapters away from electrical appliances that generate interference (clothes dryer, air conditioner, etc.). Plug those appliances into the pass-through outlet of the Powerline adapter to filter noise. Also check that the electrical network is in good condition.

Can I add more than two adapters to the network?

Yes, you can add up to 16 compatible Powerline adapters or extenders. Use the Pair button on an adapter already connected to the network, then on the new one to integrate it.

How to update the firmware of my Powerline adapter?

Download the tpPLC utility from the TP-Link website. Connect the adapter to your computer, launch the utility, and use the firmware update function. Ensure the adapter remains plugged in during the update.

Do Powerline adapters work between different electrical phases?

Usually, Powerline adapters work on the same electrical circuit (same phase). If they are on different phases, the signal may not pass. In this case, use a phase coupler or install the adapters on the same circuit.

USER MANUAL TL-PA4020P KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904 REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

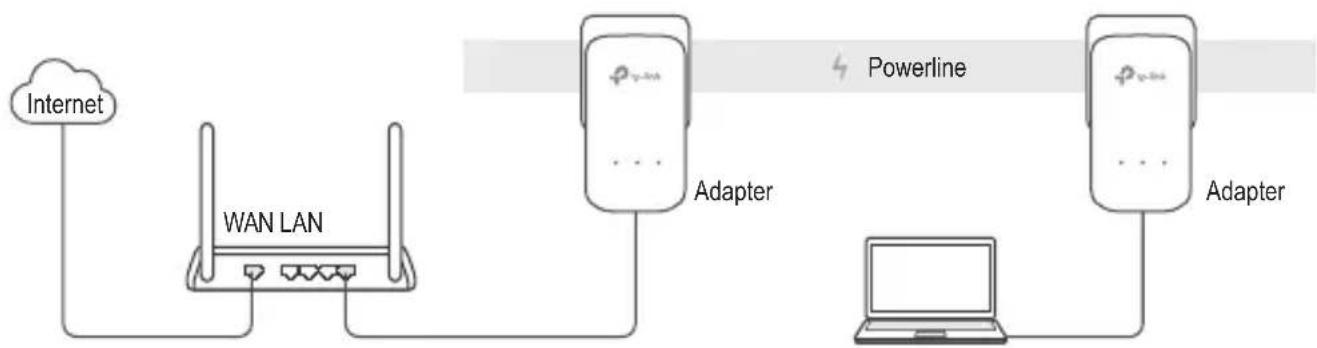

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED 📁 on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

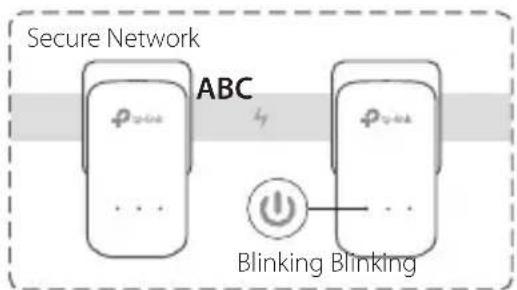

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

3 Done.

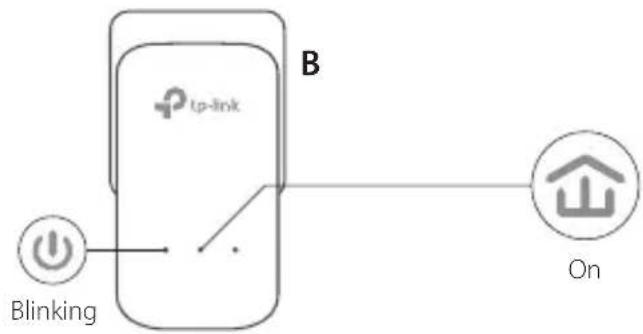


If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED ⏻ goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.

A2. Try to pair it again, and make sure the Powerline LED is on.

A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

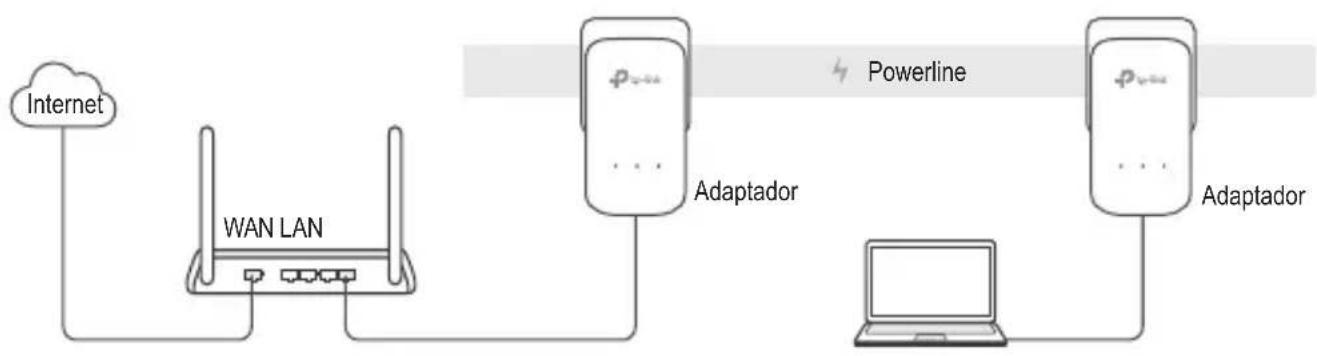

Plug and Play

FAQ (Perguntas Frequentes)

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
