Product Type	CPL (Powerline) Adapter Kit with Wi-Fi
Model	TL-WPA4226T KIT (two adapters)
Dimensions (per adapter)	95 x 56 x 33 mm
Weight (per adapter)	Approximately 200 g
Power Supply	100-240 V AC, 50/60 Hz
CPL Standard	HomePlug AV2, up to 600 Mbps
Wi-Fi	802.11 b/g/n (2.4 GHz), up to 300 Mbps
Ethernet Ports	1 Gigabit port per adapter
Integrated Power Socket	Yes (pass-through) on the main adapter
Pair Button	Yes, for secure pairing
LED Indicators	Power, CPL, Ethernet, Wi-Fi
Security	AES 128-bit encryption
CPL Range	Up to 300 meters on the electrical network
Number of Network Ports	2 ports total (one per adapter)
Operating Temperature	0 to 40 °C
Operating Humidity	10% to 90% non-condensing
Care and Cleaning	Clean with a soft dry cloth. Do not use liquids.
Spare Parts and Repairability	No spare parts available. Device not user-serviceable.
General Information	Kit compatible with any HomePlug AV/AV2 CPL adapter. Plug-and-play installation.

Frequently Asked Questions - TL-WPA4226T KIT TP-LINK

How to install the TL-WPA4226T CPL kit?

Plug one adapter near your router and connect it via an Ethernet cable. Plug the second adapter in the desired room. Press the Pair button on each adapter to synchronize them. The CPL LED should turn green.

What is the maximum CPL range?

The theoretical range is 300 meters on the electrical network, but it depends on wiring quality and actual distance. In practice, expect 100 to 200 meters for optimal speed.

Can I use the kit with other CPL adapters?

Yes, the kit is compatible with all CPL adapters conforming to HomePlug AV or AV2 standard. For optimal performance, use adapters from the same brand.

How to configure the Wi-Fi on the main adapter?

Log into the web interface via the adapter's IP address (default 192.168.1.1). Log in with 'admin' (default password 'admin'). In the 'Wireless' tab, set the SSID and password. Restart the adapter.

What to do if the CPL LED blinks or is off?

Check that both adapters are plugged into wall outlets (not power strips). Press the Pair button on each adapter again. If the problem persists, reset the adapters by holding the Reset button for 10 seconds.

The speed is lower than expected, what to do?

Avoid plugging adapters into power strips or surge protectors. Use direct wall outlets. Keep adapters away from electrical devices causing interference (chargers, motors). Check that the Ethernet cable is in good condition.

Can I plug the adapter into a switched outlet?

No, it is not recommended as the switch may cut power and interrupt the connection. Always plug into a permanent outlet.

How to reset the adapter to factory settings?

Hold the Reset button for about 10 seconds until the LEDs flash. Release, the adapter will restart with default settings.

The Wi-Fi LED does not turn on, why?

Check that Wi-Fi is enabled in the configuration interface. Briefly press the Wi-Fi button on the adapter to enable/disable it. If the LED remains off, reset the adapter.

Can I connect a USB device to the adapter?

No, this model does not have a USB port. Only Ethernet ports are available.

USER MANUAL TL-WPA4226T KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as transition, transformation, or adaptation without permission from IP-Link Technologies Co. Ltd. Copyright © 2018 IP-Link Technologies Co. Ltd. All rights reserved.

MADE IN CHINA

7106507825 REV2.1.1

tp-link

Quick Installation Guide

Powerline Extender

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Deutsch

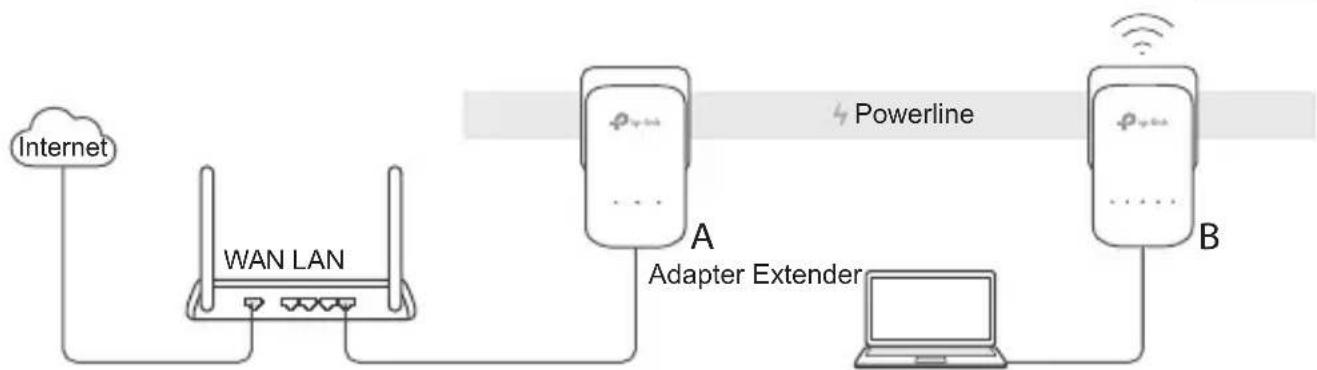


1. Connect the adapter to a LAN port of your router using an Ethernet cable.
2. Plug the powerline devices into the wall outlets near each other and on the same electrical circuit.
3. Pair the powerline devices.

A. Press the Pair button on the powerline adapter for 1 second. The Power LED starts blinking.

* If the Power LED does not blink, press the Pair button again.

B. Within 2 minutes, press the Pair button on the powerline extender for 1 second. The Power LED ⏻ starts blinking. When the Powerline LED turns on, it's done.

English

1. Relocate the powerline extender to a new location. Connect to the Wi-Fi using the SSID and password on the product label.

* A blinking or red Powerline LED 🔒 indicates poor signal strength. Move the extender to another location.

1. Enjoy!

Tips: You can add more powerline devices to the existing powerline network by pairing these devices.

Attention

- Plug the powerline devices directly into the wall outlets but not the power strips.

- For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

1. Plug in the powerline extender near your router. Press the WPS button on your router.
2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.
3. When the 2.4GHz Wi-Fi LED and 5GHz Wi-Fi LED on the extender blink quickly for 3 seconds, and then stay on, it's done!

* 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all adapters and extenders are on the same electrical circuit.

A2. Make sure all Powerline LEDs 📋 are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Pair it again with another adapter or extender, and make sure the Powerline LED is on before relocating it.

A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

Español

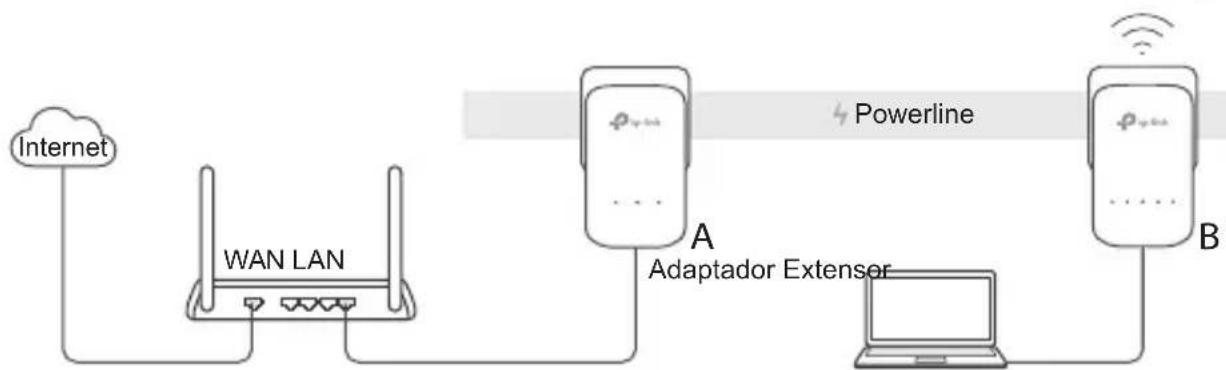


Français

Italiano

Domande Frequenti

Português

FAQ (Perguntas Frequentes)

Suomi

Svenska

Norsk

Dansk

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español
