TL-PA4030T - Powerline adapter TP-LINK - Free user manual and instructions

Product type	CPL network adapter
Brand	TP-Link
Model	TL-PA4030T
Rated speed	Up to 500 Mbps
CPL standard	HomePlug AV
Network interface	1 Ethernet RJ-45 port 10/100/1000 Mbps
Power supply	100-240 V AC, 50/60 Hz
Power consumption	Less than 5 W
Dimensions	Approximately 95 x 60 x 30 mm
Weight	Approximately 150 g
LED indicators	Power, CPL, Ethernet
Configuration button	Pair
Security	AES 128-bit encryption via Pair button
Plug and Play	Yes
Compatibility	All HomePlug AV CPL adapters
Operating system	Windows, Mac, Linux
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90%
Certifications	CE, RoHS
Warranty	3 years
Maintenance	Clean with a dry soft cloth
Repairability	Not user repairable; firmware update via tpPLC utility

Frequently Asked Questions - TL-PA4030T TP-LINK

How to reset my TP-Link TL-PA4030T CPL adapter?

Press and hold the Pair button until the Power LED briefly turns off. You can also use the tpPLC utility to reset the adapter.

What to do if I don't have Internet access through my CPL network?

Check that all adapters are on the same electrical circuit. Make sure the CPL LEDs are on; otherwise, re-pair them. Check all physical connections and verify that your computer is on the same subnet as your router.

Why don't my CPL adapters reconnect after moving them?

Try plugging them into other outlets on the same circuit. Re-pair them and ensure the CPL LED is on. Keep them away from powerful household appliances (dryer, air conditioner) or plug these appliances into the adapter's pass-through socket if available.

How to secure my CPL network?

Use the Pair button: press for 1 second on one adapter, then within 2 minutes on the other. The adapters will form a secure network with AES 128-bit encryption.

Can I plug the adapter into a power strip?

No, always plug the adapter directly into a wall outlet. If the adapter has a pass-through socket, plug the power strip into this female socket.

How to add a new CPL adapter to my existing network?

Press for 1 second the Pair button on an already configured adapter, then within 2 minutes press the Pair button on the new adapter. The CPL LED will light up to confirm the pairing.

What to do if the CPL LED does not light up?

Check that the adapters are on the same electrical circuit. Re-pair them following the procedure with the Pair button. If the problem persists, try another outlet.

How to update the adapter firmware?

Download the tpPLC utility from the TP-Link website, install it, and use the firmware update option. Ensure the adapter is properly connected.

Is the CPL adapter compatible with my router?

Yes, the adapter is compatible with any router that has an Ethernet port. Simply connect it to the router via an RJ-45 cable.

What is the maximum range of the CPL network?

The range can reach 300 meters on the same electrical circuit, but it may vary depending on wiring quality and interference.

USER MANUAL TL-PA4030T TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904 REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

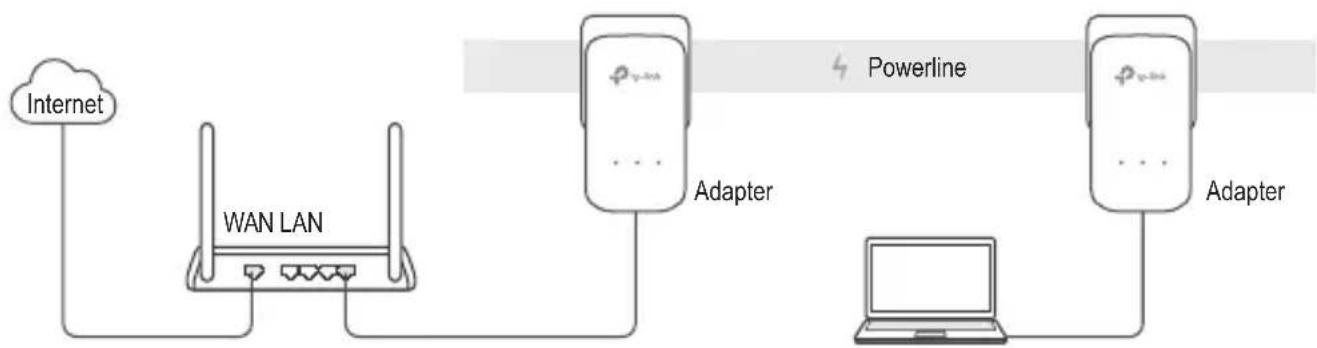

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED 📊 on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

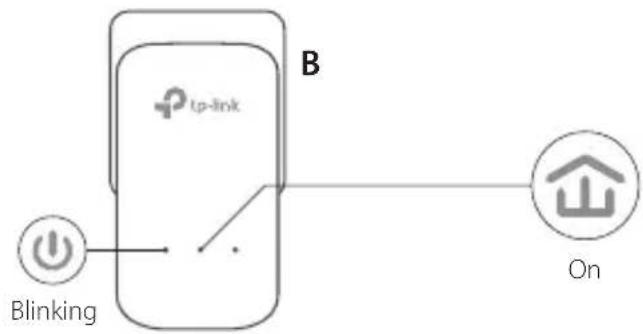

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

3 Done.

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED ⏻ goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.

A2. Try to pair it again, and make sure the Powerline LED is on.

A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

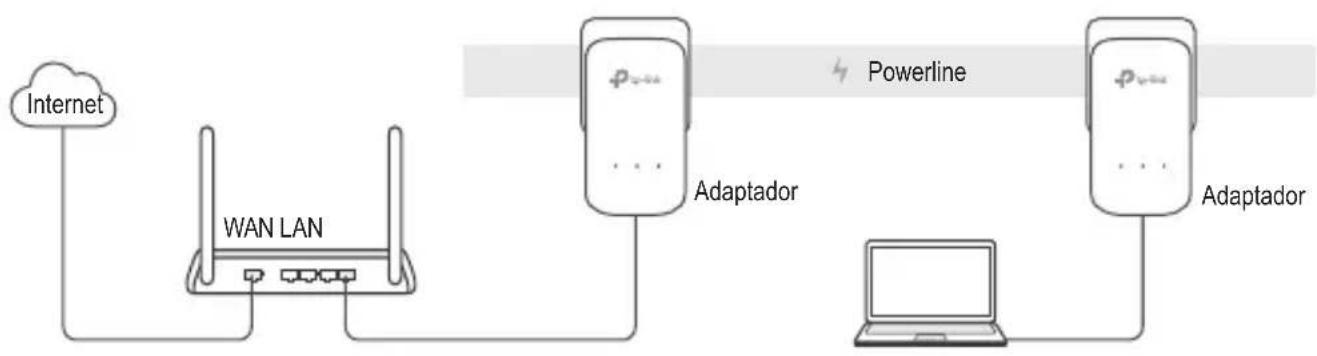

Plug and Play

FAQ (Perguntas Frequentes)

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español
