TL-PA4030KIT - Powerline adapter TP-LINK - Free user manual and instructions

Product Type	Powerline Network Adapter
Brand	TP-Link
Model	TL-PA4030KIT
Dimensions (approx.)	10 x 6 x 4 cm
Weight (approx.)	200 g per adapter
Power Supply	Mains socket 230 V, 50 Hz
Power Consumption	~5 W (standby) / ~10 W (active)
Maximum Speed	500 Mbps
Powerline Standard	HomePlug AV
Network Security	128-bit AES encryption via Pair button
Interface(s)	1 Ethernet port 10/100/1000 Mbps
Pass-through Socket	Yes (integrated female socket)
Main Features	Plug and Play, secure pairing, network extension via electrical wiring
Care and Cleaning	Clean with a soft dry cloth. Do not use chemicals.
Safety	Do not plug into a power strip, use a wall outlet directly. Keep away from water and heat.
Spare Parts and Repairability	Non-disassemblable. No spare parts available. Contact customer service in case of failure.
Warranty	3 years (limited, manufacturer)
Kit Contents	2 Powerline adapters, 2 RJ45 Ethernet cables, quick installation guide
Recommended Number of Sockets	Up to 16 adapters on the same network
Management Software	tpPLC utility (free download from TP-Link website)
Operating Temperature	0 °C to 40 °C

Frequently Asked Questions - TL-PA4030KIT TP-LINK

How do I install my TP-Link TL-PA4030KIT Powerline adapter?

Connect one adapter to your router via an Ethernet cable, then plug the second adapter into a wall outlet on the same electrical circuit. Wait for the Powerline LEDs to light up, then connect your device to the adapter with an Ethernet cable.

Why is my Powerline LED not lighting up?

Check that both adapters are plugged into outlets on the same electrical circuit. Avoid power strips and surge protectors. If the problem persists, try re-pairing the adapters by pressing the Pair button.

How do I secure my Powerline network?

Use the Pair button: press for 1 second on one adapter, then within 2 minutes on the other adapter. The network will be encrypted with 128-bit AES.

Can I add a third Powerline adapter to my existing network?

Yes. Press the Pair button of an already paired adapter for 1 second, then within 2 minutes press the Pair button on the new adapter. It will automatically join the secured network.

How do I reset my Powerline adapter to factory defaults?

Press and hold the Pair button for about 10 seconds until the power LED briefly turns off. Release the button; the adapter will restart.

What to do if I have no Internet access via Powerline?

Check that the Powerline LEDs are lit, Ethernet cables are well connected, and your computer is receiving an IP address from the router. Also test a direct connection to the router to confirm Internet access works.

Do Powerline adapters work throughout the house?

They work on the same electrical circuit. Performance may decrease over long distances or with interference from household appliances. Prefer direct wall outlets.

How to reduce electrical interference?

Plug the interfering device (dryer, air conditioner) into the pass-through socket of the Powerline adapter. This filters out noise and improves signal quality.

Can I use a power strip with the Powerline adapter?

It is not recommended to plug the adapter into a power strip. Instead, use the pass-through socket of the adapter to connect a power strip if needed, but plug the adapter directly into a wall outlet.

Where to download the tpPLC software?

You can download the tpPLC utility free of charge from the official TP-Link website (www.tp-link.com). It allows advanced settings such as QoS and firmware updates.

USER MANUAL TL-PA4030KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904 REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

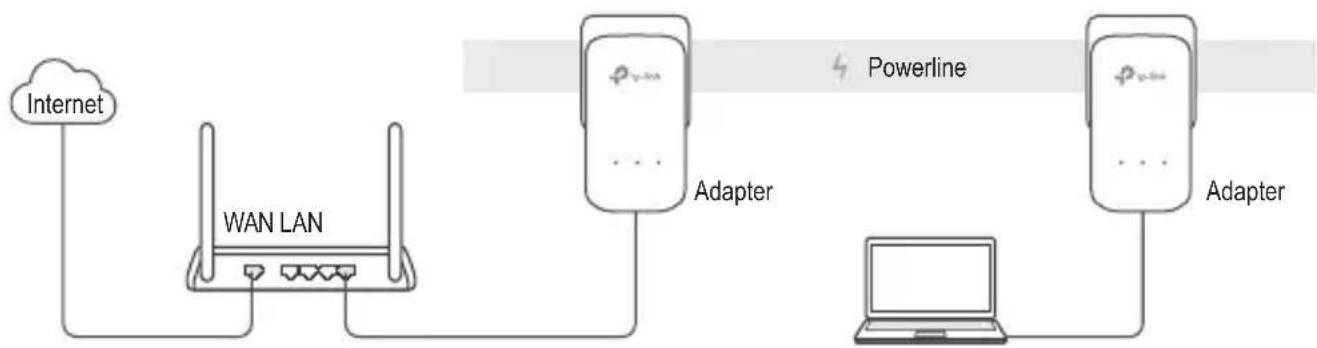

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED 📊 on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

3 Done.

English

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED ⏻ goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.

A2. Try to pair it again, and make sure the Powerline LED is on.

A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

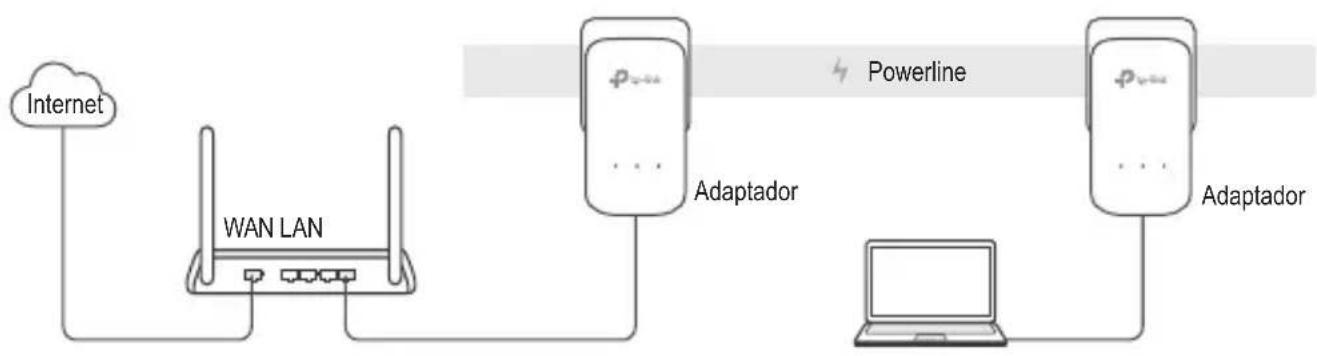

Plug and Play

FAQ (Perguntas Frequentes)

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español
