GI31NACE0 - Freezer SIEMENS - Free user manual and instructions

Product Type	Freezer
Brand	Siemens
Model	GI31NACE0
Dimensions (approx.)	1860 x 600 x 650 mm (H x W x D)
Weight (approx.)	70 kg
Power Supply	220-240 V, 50 Hz
Lighting	Maintenance-free LED spot light
Hinge Types	Flat hinge and sliding hinge (replaceable)
Door Gasket	Replaceable, with ventilation holes
Shelves	Freezer compartment shelf and main shelf (removable)
Frozen Food Container	Replaceable
Spare Parts Availability	Door gasket, hinges, shelves, frozen food container, LED spot light
Repairability	Consumer-repairable with original spare parts; safety instructions provided
Required Tools for Repair	Torx Bit TX20, slotted screwdriver (2.4 mm x 0.4 mm), special tool [00342180]
Safety Precautions	Disconnect power 60 seconds before repair; wear protective gloves; use original parts
Energy Efficiency Class	Not specified in manual

Frequently Asked Questions - GI31NACE0 SIEMENS

How do I replace the door gasket on my Siemens GI31NACE0 freezer?

To replace the door gasket, first release it from the groove at the right and left corners. Pull the gasket out completely. Check the groove for damage. If damaged, contact customer service. To install, heat the new gasket with a hairdryer or hot water, then push the corners into the groove and press the entire gasket step by step into the groove. Ensure small side holes (ventilation) are present.

What tools are needed for repairing the GI31NACE0 freezer?

The main tools required are a Torx Bit TX20 (6.3 mm / 1/4 inch) for hinges, and a slotted screwdriver (blade 2.4 mm x 0.4 mm) along with a special tool [00342180] for the LED spot light. A protection cloth may also be used.

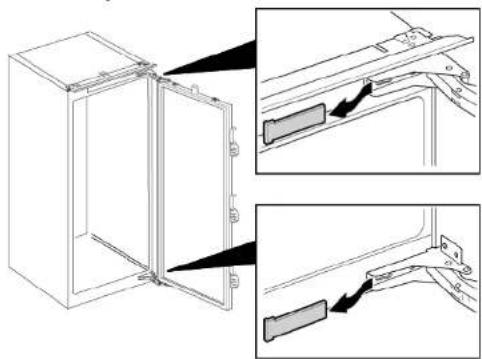

How do I replace a flat hinge on my Siemens freezer?

First, disconnect the appliance from power and remove the furniture door if applicable. Ensure the door is open. Remove hinge covers, loosen four screws, slide out the door, then remove the four screws holding the hinges. Remove the hinges. Install in reverse order.

Can I replace the LED light in the freezer myself?

Yes, but with caution. The LED spot light is maintenance-free but replaceable. Disconnect power for 60 seconds. Remove the cover by releasing and pulling it inward/forward. Detach the module and disconnect the electrical connection. Install in reverse order. If unsure, contact qualified electrician.

How do I remove the freezer compartment shelf?

Open the door and pull out the freezer compartment shelf fully. It can then be removed. To install, push it back in.

What safety precautions should I follow before repairing the freezer?

Always disconnect the appliance from the mains for at least 60 seconds before starting any repair. Wear protective gloves to avoid cuts from sharp edges. Use only original spare parts to maintain safety and function. For electrical components, have a safety test performed after repair.

How do I replace the frozen food container?

Open the door, pull the frozen food container all the way out, then lift it to remove. To install, slide it back in until it clicks.

The door gasket has small holes – is this a defect?

No, small side holes in the door gasket are functional and required for ventilation. They are not production faults.

Can I adjust the hinge after replacing the door gasket?

Yes, if your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior after gasket replacement. Refer to the installation instructions for hinge adjustment.

Where can I find original spare parts for the GI31NACE0?

Original spare parts are available through Siemens customer service or authorized dealers. Use only original parts to ensure safety and proper function.

USER MANUAL GI31NACE0 SIEMENS

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Ремонт

Пантите са свалени.

Пантите са свалени.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a rectangular panel and two arrows pointing inward, no text or symbols present.

Ремонт

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted device with multiple shelves and an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Brtva vrata je postavljena.

Popravak

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Popravak

1. 1. Otpustite četiri vijka (1).

2. Gurnite vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi su uklonjeni.

4.2.2 Postavljanje ravnog zgloba

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Teški, veliki uređaji!

Zglobovi su uklonjeni.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Polica odjeljka zamrzivača je uklonjena.

4.5.2 Postavljanje police odjeljka zamrzivača

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena spremnika za zamrznute namirnice

Zahtjev:

Vrata su otvorena.

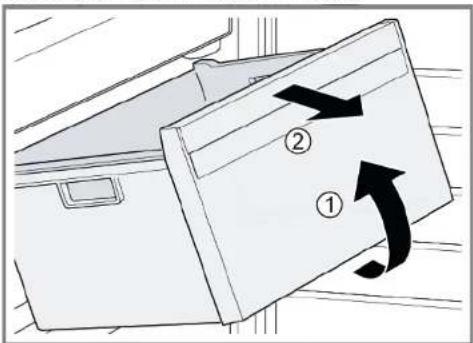

4.6.1 Uklanjanje spremnika za zamrznute namirnice

1. Potpuno izvucite spremnik za zamrznute namimice (1).
2. Uklonite spremnik za zamrznute namimice (2).

Spremnik za zamrznute namirnice je uklonjen.

4.6.2 Postavljanje spremnika za zamrznute namirnice

Abstract graphic with a rectangular panel and arrows pointing to it, set against a dark background with abstract wave-like patterns (no text or symbols)

Popravak

Diagram of a screwdriver interacting with a rectangular device, no text or symbols present

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon, showing internal compartments and directional arrows (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Oprava

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Oprava

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Reparation

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a document icon and two arrows pointing right, set against a dark background (no text or symbols)

Reparation

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

1. Afbryd LED-spotlampens elektriske tilslutning.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a door opening with two inset views showing internal components (no text or symbols)

Reparatie

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a document icon and two arrows pointing to it, set against a dark background (no text or symbols)

Reparatie

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Repair hints - Freezer

i Concerning this document.... 83

1.1 Important information....83 1.1.1 Purpose....83

1.2 Explanation of symbols 83
1.2.1 Danger levels....83
1.2.2 Hazard symbols 83
1.2.3 Structure of the warnings....84
1.2.4 General symbols....84

Safety 85

2.1 General Safety instructions 85
2.1.1 All domestic appliances 85

Tools and aids....86

Repair 87

4.5 Replacing freezer compartment shelf....94
4.5.1 Removing freezer compartment shelf 94
4.5.2 Installing freezer compartment shelf....94

4.6 Replacing frozen food container 95
4.6.1 Removing frozen food container....95
4.6.2 Installing frozen food container 95

4.7 Replacing LED spot light....96
4.7.1 Removing LED spot light 96
4.7.2 Installing LED spot light 97

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Special tool[00342180]

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

1. (if) If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Door gasket is installed.

Repair

4.2 Replacing flat hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door is removed. See Installation Instruction.
√ Door is open.

4.2.1 Removing flat hinge

1. Remove two hinge covers.


Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Repair

1. 1. Loosen four screws (1).

2. Slide out and remove door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

Hinges are removed.

4.2.2 Installing flat hinge

▶ Install in reverse order.

Repair

4.3 Replacing sliding hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by trained specialists.
To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

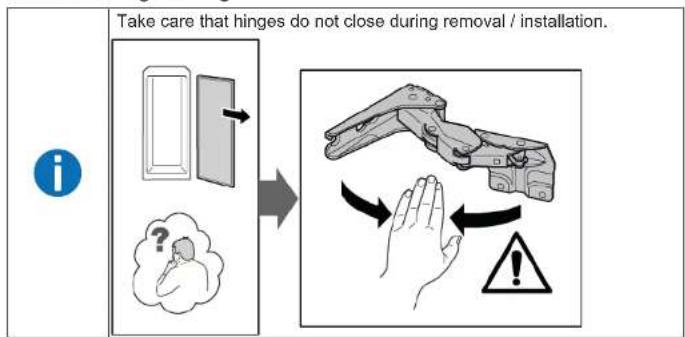

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door and appliance door are separated. See Installation Instruction.

4.3.1 Removing sliding hinge

1. Unscrew two screws (1).
2. Remove upper hinge (2).
3. Remove door (3).
4. Unscrew two screws (4).
5. Remove lower hinge (5).

Hinges are removed.

4.3.2 Installing sliding hinge

▶ Install in reverse order.

Repair

4.4 Replacing shelf

Prerequisite:

Door is open.

4.4.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.4.2 Installing shelf

▶ Install in reverse order.

Repair

4.5 Replacing freezer compartment shelf

Prerequisite:

Door is open.

4.5.1 Removing freezer compartment shelf

▶ Pull out freezer compartment shelf.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Freezer compartment shelf is removed.

4.5.2 Installing freezer compartment shelf

▶ Install in reverse order.

Repair

4.6 Replacing frozen food container

Prerequisite:

Door is open.

4.6.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove frozen food container (2).

Frozen food container is removed.

4.6.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.7 Replacing LED spot light

Required tools:

Special tool [00342180]

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair - Electric parts should be repaired by a qualified electricians. - After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution - Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.7.1 Removing LED spot light

1. Release LED spot light cover.

1. Pull LED spot light cover inwards and simultaneously push forwards.

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Repair

1. Detach LED spot light module.

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

1. Disconnect LED spot light electrical connection.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED spot light is removed.

4.7.2 Installing LED spot light

▶ Install in reverse order.

Remonditeave - Sügavkülmik

i Selle dokumendiga seoses 99

1.1 Tähtis teave 99

1.1.1 Eesmärk 99

1.2 Sümbolite selgitus 99

1.2.1 Ohutasemed....99

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a door frame with shelves and an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Remont

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Remont

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon pointing to the top panel (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a door opening with two inset views showing internal components (no text or symbols)

Korjaus

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Korjaus

1. Irrota LED-kohdevalomoduuli.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Réparation

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a document icon and arrows, no readable text or symbols

Réparation

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Instandsetzen

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a document icon and arrows, no readable text or symbols

Instandsetzen

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Επισκευή

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

To páπ αφαρέθηκε.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a document icon and two arrows pointing right, set against a dark gray background (no text or symbols)

Επισκευή

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Javítás

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a document icon and arrows, no readable text or symbols

Javítás

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Riparazione

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Riparazione

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Remonts

Viras ir nonemtas.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Plaukts ir izņemts.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Remonts

1. Atvienojiet LED starmeša moduli.

Diagram showing a tool interacting with a rectangular device, no text or symbols present

1. Atvienojiet LED starmeša elektrisko savienojumu.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED starmetis ir nonemts.

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door opening with two inset views showing internal components (no text or symbols)

Remontas

Vyriai nuimti.

Vyriai nuimti.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a document icon and arrows, no readable text or symbols

Remontas

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Reparasjon

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Hyllen i fryseren er demontert.

4.5.2 Montering av hylle i fryser

→ Beholderen for frysevarer er demontert.

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Reparasjon

1. Løsne LED -spotlightmodulen.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

LED-spotlight er demontert.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Naprawy

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.4.2 Montaż półki

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Naprawy

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door opening with two inset views showing internal components (no text or symbols)

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparação

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Cap torx TX20 6.3 mm (1/4") [00340865]

Technical line drawing of a door opening with inset close-ups showing internal components (no text or symbols)

Repararea

Balamalele sunt demontate.

4.2.2 Montarea balamalei plate

Cap torx TX20 6.3 mm (1/4") [00340865]

Balamalele sunt demontate.

4.3.2 Montarea balamalei glisante

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Repararea

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Oprava

Závesy sú odobraté.

Závesy sú odobraté.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Polica mraziaceho priestoru je odobratá.

4.5.2 Montáž police mraziaceho priestoru

Abstract graphic with a document icon and arrows, no readable text or symbols

Oprava

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

1. Odstranite pokrovčka tečaja.


Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Popravilo

Poškodbe hrbta in mišic

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with a document icon and arrows, no readable text or symbols

Popravilo

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device mounted on a wall with a red panel and cable, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparación

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Reparación

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Reparation

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Frysdelens hylla har tagits bort.

4.5.2 Montera frysdelens hylla

Abstract graphic with a document icon and two arrows pointing right, set against a dark background (no text or symbols)

Reparation

1. Ta loss LED-spotlightmodulen.

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

1. Lossa LED-spotlightens elanslutning.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED-spotlighten har tagits bort.

4.7.2 Montera LED-spotlight

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical line drawing of a door opening with inset close-ups showing internal components (no text or symbols)

Onarim

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Special tool [00342180]

Düz tornavida Biçak 2,4 mm x 0,4 mm x 60 mm,

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Onarim

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device mounted on a wall with a red panel and cable, against a gray background (no text or symbols visible)
