USER MANUAL PHKSA 18-Li A1 PARKSIDE

CORDLESS CIRCULAR SAW PHKSA 18-LI A1

GB IE

CORDLESS CIRCULAR SAW

Translation of original operation manual

SE

HANDCIRKELSÅG BATTERI

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FI

GB / IE Translation of original operation manual Page 1

General Power Tool Safety Warnings 3

1. Work area safety.... 3

2. Electrical safety 3

3. Personal safety....4

4. Power tool use and care 4

5. Use and handling of the cordless power tool 4

6. Service 5

Appliance-specific safety instructions for circular saws 5

Safety guidelines for battery chargers 6

Safety information for circular saw blades....7

Genuine accessories/auxiliary equipment. 7

Before initial use 7

Charging the battery (see Fig. C)....7

Attaching/disconnecting the battery pack to/from the appliance 7

Checking the battery charge level 8

Checking the blade guard 8

Initial use....8

Fitting/changing the saw blade 8

Rip fence 8

Connecting the sawdust extraction device....8

Operation 9

Switching on and off 9

Setting the cutting angle....9

Setting the cutting depth....9

Working with the circular saw 9

Switching the laser on and off 9

Tips and tricks....9

Maintenance and cleaning 9

Disposal....10

Warranty....10

Service....11

Importer 11

Translation of the original Conformity Declaration ..... 11

Ordering a replacement battery 12

Online ordering 12

Telephone ordering 12

Introduction

tulations on the purchase of your new appliance. You have selected a high quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety instructions. Use the product only as described and for the range of applications specified. Hand over all documents when the product is passed on to a third party.

Intended use

This hand-held circular saw (hereinafter "appliance") is designed for longitudinal, cross and mitre cuts in firmly supported solid wood, chip board, plastics and lightweight construction materials. Any other usage of or modification to the appliance is deemed to be improper and carries the risk of serious personal injury. Not for commercial use.

Features

Figure A:

① Safety lock-out
② ON/OFF switch
3 Cutting depth scale
4 Release button for battery pack
5 Battery charge level button/battery display LED
6 Battery pack
⑦ Locking screw
8 Spindle lock
9 Base plate
10 Rip fence slot

Figure B:

⑪ ON/OFF/RESET switch laser
12 Auxiliary handle
13 Laser warning label
14 Laser exit opening

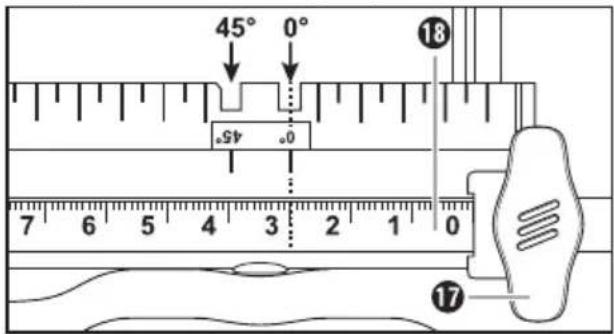

15 Cutting angle scale
16 Wing screw for cutting angle preselector
⑰ Wing screw for rip fence slot
18 Rip fence

19 Blade guard

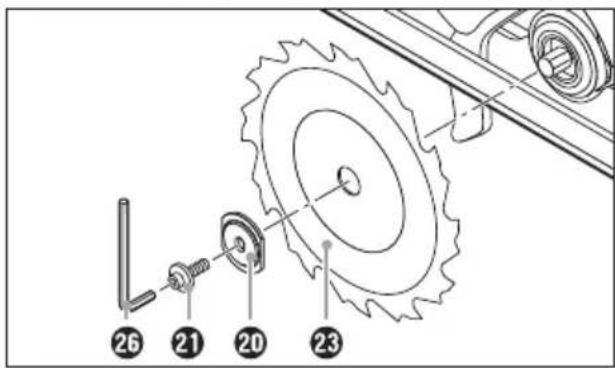

20 Clamping fl ange
21 Clamping screw
22 Release lever for the blade guard
23 Saw blade
24 Chip ejector
25 Vacuum adapter for dust extraction
26 Allen key

Figure C:

27 Charger

28 Red control LED

29 Green control LED

Package contents

1 cordless circular saw
1 rapid battery charger
1 rip fence
1 vacuum adapter for dust extraction
1 SW 6 Allen key
1 saw blade (pre-assembled)
Operating instructions

Technical data

Cordless circular saw: PHKSA 18-Li A1

Rated voltage: 18 V

Idle speed: n _0=3800 min^-1

Saw blade: 1x ∅ 150 mm x ∅ 16 mm, 18 teeth

Max. cutting depth: 90°: 48 mm

45^ : 36 mm

Battery: PAP 18 A1

Type: LITHIUM ION

Rated voltage: 18 V

Capacity: 1.5 Ah

Rapid battery charger: PLG 18 A1

INPUT:

Rated voltage: 230 - 240 V \~, 50 Hz

Power consumption: 40 W

OUTPUT:

Rated voltage: 18 V ---

Charging current: 1.8 A

Charging time: approx. 60 min

Fuse (internal): 2 A

Protection class:

Noise and vibration data:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: 77 dB(A)

Sound power level: 88 dB(A)

Uncertainty K: 3 dB

ear protection!

Weighted acceleration, typically:

Hand/arm vibration a_h,W = 2.5 m/s^2

Uncertainty K = 1.5 m/s ^2

NOTE

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. There is a risk of underestimation of the vibration load if the power tool is used regularly in this manner. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Power Tool Safety Warnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl am- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

GB IE

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Use and handling of the cordless power tool

a) Charge the rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.

b) Only the rechargeable battery units supplied are to be used with the power tools. The use of other rechargeable battery units may result in injury or a fire hazard.

c) When they are not being used, store rechargeable battery units away from paper clips, coins, keys. nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in burns or fire.

d) Fluid may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If accidental contact occurs, rinse the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

ION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!

ct the battery against heat, e. g., against continuous intense sunlight, fi re, water and moisture. Danger of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for circular saws

Safety instructions for all saws

Cutting procedures

a)

IGER! Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.

b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.

c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control.

e) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock.

f) When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.

g) Always use saw blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.

h) Never use damaged or incorrect blade washers or bolts. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

Further safety instructions for all saws

Kickback causes and related warnings

- A kickback is a sudden reaction to a pinched bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;

- when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;

- if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

GB IE

a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backwards while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

Lower guard function

a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.

b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

c) Lower guard may be retracted manually only for special cuts such as "plunge cuts" and "compound cuts". Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.

d) Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

Safety guidelines for battery chargers

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

This charger is suitable for indoor use only.

WARNING!

Do not operate the appliance with a damaged cable, supply cord or mains plug. A damaged power cord causes danger to life by electric shock.

Supplementary notes

■ Do not use any grinding discs.
■ Use only saw blades with diameters corresponding to the label on the saw.
When sawing wood or other materials which may create dusts that are hazardous to health, always connect a suitable, certified vacuum extractor device.
■ Wear a dust mask when sawing wood.
■ Use only the recommended saw blades.
■ Always wear ear protectors.

• Do not allow the teeth of the saw blade to overheat.
  ■ When sawing plastic, avoid melting the plastic.

Safety information for circular saw blades

protective gloves!

respiratory protection!

protective glasses!

Wear hearing protection!

ION! RISK OF EXPLOSION!

Never charge non-rechargeable batteries!

Genuine accessories/auxiliary equipment

■ Only use the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.

WARNING!

Protect yourself from laser radiation!

This appliance contains a Class 2 laser and will be delivered with a laser warning label ⑬

▶ NEVER direct the laser beam at people or animals.
▶ NEVER look directly into the laser beam. The laser beam can cause serious eye damage.
▶ Do NOT direct the laser beam at strongly reflective material. Reflected laser beams are also dangerous.
▶ Any adjustment intended to increase the intensity of the laser beam is forbidden. There is a risk of personal injury!
▶ No liability will be accepted for damage resulting from manipulation of the laser equipment or from disregarding these safety instructions.

CAUTION!

If operating and adjustment equipment is used or procedures other than those specified here are carried out, this may result in hazardous radiation exposure.

Before initial use

Charging the battery (see Fig. C)

CAUTION!

▶ Always unplug the appliance before you remove the battery pack 6 from or connect the battery pack to the charger 27

NOTE

Three appliances - three compatible batteries. Interchangeable! (see chapter ordering a replacement battery)

■ Never charge the battery pack when the ambient temperature is below 10^ C or above 40^ C.

Connect the battery pack 6 to the battery charger 27 see Fig. C).

- Insert the mains plug into the mains power socket. The red control LED lights up.

The green control LED indicates that the charging process is complete and the battery pack is ready.

◆ Insert the battery pack⑥ back into the appliance.

■ Never recharge a battery pack ^6 again immediately after rapid charging. This could overcharge the battery pack ^6 thus reducing the lifespan of the battery and charger ^27

Switch off the charge for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.

Attaching/disconnecting the battery back to/from the appliance

Inserting the battery pack:

Allow the battery pack to click into the handle.

GB IE

Removing the battery pack:

◆ Press the release button 4 and remove the battery pack 6

Checking the battery charge level

- Press the battery charge level button 5 to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED 5 is follows:

- RED/ORANGE/GREEN = maximum charge/power RED/ORANGE = medium charge/power RED = low charge - charge the battery

Checking the blade guard

◆ Pull back on the release lever for the blade guard 2 as far as the stop.

The blade guard 19 must move freely without jamming and must spring back into its starting position automatically when you let go of the release lever for the blade guard 22

Initial use

Fitting/changing the saw blade

Always remove the battery pack before changing the saw blade 23

1. Set the cutting depth (using the locking screw⑦) to the minimum position, 0 mm.
2. Swing the blade guard ^19 back using the release lever ^20 and put the appliance down.
3. Press the spindle lock button 8 (until it engages) and use the Allen key 2 to release the clamping screw 21 Now remove the clamping screw 21 and the clamping fl ange 20 (see also Fig. A).

Fig. A Changing the saw blade

1. Remove 23 saw blade.

2. Fitting a saw blade ^23 is carried out in the reverse order.

3. Press the spindle lock button ⑧ (until it engages) and use the Allen key ⑳ to tighten the clamping screw ㉑.

WARNING!

The arrow on the saw blade must correspond to the arrow showing the direction of rotation (running direction shown on the appliance).

■ Ensure that the saw blade is suitable for the rotational speed of the tool.

Rip fence

♦ Loose the wing screw 17 and insert the rip fence 18 into the rip fence slot . 10
Set the desired cut width with the help of the scale on the rip fence 18 and the cut out in the base plate 9 see also Fig. B).
The right-hand recess in the base plate is for a cutting angle of 0^ . The left-hand recess in the base plate is for a cutting angle of 45^ .

Fig. B: Cutting width 3 cm ♦ Retighten the wing screw ^17 .

Connecting the sawdust extraction device

◆ Attach the dust extraction adapter to the chip ejector 24
Optional depending on the diameter of the dust and sawdust extractor.
Connect an approved dust and chip extraction device.

Operation

Switching on and off

Switching on:

◆ Push the safety lock-out to the left or right and keep it pressed.
◆ Press the ON/OFF switch 2. Once the saw is running, you can release the safety lock-out 1

Switching off :

◆ Release the ON/OFF switch②.

Setting the cutting angle

You can select the cutting angle using the cutting angle scale 15

■ Release the wing screw ^16 on the cutting angle preselector, set the desired cutting angle on the cutting angle scale ^15 and then retighten the wing screw ^16 .

Setting the cutting depth

NOTE

▶ Select a cutting depth of approx. 3 mm more than the thickness of the material. This ensures that you achieve a clean cut.

Release the locking screw ^7 , set the desired cutting depth on the cutting depth scale ^3 and then retighten the locking screw ^7

Working with the circular saw

1. Switch on the appliance – as described in "Switching on and off" – and then place it with the front edge of the base plate ⑨ on the material.
2. Align the machine using the guide fence ^18 or by using a marked line.
3. Hold the machine in both hands using the handles and saw by exerting an even pressure.

Switching the laser on and off

Switching on:

◆ Press the laser ON/OFF/RESET switch ^11

Switching off :

◆ Press the laser ON/OFF/RESET switch⑪.

NOTE

▶OVERLOAD AND RESET! The appliance switches off in case of overload operation.
Switch OFF the laser. Press the laser ON/OFF/RESET switch 📋.
▶ An automatic reset is only possible once the laser is turned off.

Tips and tricks

■ Avoid damaging the cutting edge of sensitive materials, e.g. coated chip boards or doors, by sticking masking tape along the cutting line. Another benefit of this is that it is easier to mark a line on the tape than on a shiny surface. An even more effective method of protecting the cutting edges is to clamp a thin piece of wood along the cutting line (this wood is also sawn).

Maintenance and cleaning

NING! RISK OF INJURY!

Switch the power tool off and remove the battery before starting any work on the power tool.

The cordless hand-held circular saw is maintenance-free.

■ The appliance must always be kept clean, dry and free from oil or grease.
■ Never allow fluids to get into the appliance.
■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. Optimum storage conditions are cool and dry.

NOTE

▶ Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline.

Disposal

packaging is made from environmen- tally friendly material and can be disposed of at your local recycling plant.

not dispose of power tools in normal domestic waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.

t dispose of batteries in your normal domestic waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC.

Take the battery pack and/or appliance to available collection facilities.

Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs.

Warranty

You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your merchandise.

The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial deployment. The warranty shall be deemed void in the case of misuse or improper handling, use of force or interventions which were not carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty. The warranty period is not extended in consequence of repairs carried out under the warranty. This also applies to replaced and repaired components. Any damage or defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge.

Service

WARNING!

▶ Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure the ongoing safety of the appliance.

▶ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by that party's approved Customer Service unit. This will ensure the ongoing safety of the appliance.

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 102867

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 102867

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, Custodian of Documents: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EC Low Voltage Regulations

(2006/95/EC)

EMC (Electromagnetic Compatibility) (2004/108/EC)

RoHS Directive

(2011/65/EU)

Applied harmonised standards:

EN 60745-1: 2009 + A11: 2010

EN 60745-2-5: 2010

EN 62233: 2008

EN 55014-1/A2:2011

EN 55014-2/ A2: 2008

EN 60335-1: 2010

EN 60335-2-29/ A2: 2010

EN 62233: 2008

EN 61000-3-2/ A2: 2009

EN 61000-3-3: 2013

EN 60825-1: 2007

Type designation of machine:

Cordless circular saw PHKSA 18-Li A1

Year of manufacture: 07 - 2014

Serial number: IAN 102867

Bochum, 20/06/2014

Semi Uguzlu

- Quality Manager -

The right to effect technical changes in the context of further development is reserved.

GB IE

Ordering a replacement battery

If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.

The price of the replacement battery is €20, including VAT and shipping. Due to limited stocks, this item may sell out quickly.

Black plastic electronic device with visible ports and casing (no text or symbols)

Monochrome illustration of a globe with internal objects and a briefcase, no text or symbols present.

Three appliances - three compatible batteries. Interchangeable!

Online ordering

To order a replacement battery from the Accessories Shop:

■ Use your Internet browser to visit www.kompernass.com.

- Click on the corresponding flag on the right hand side at the bottom of the page to select the desired country and language.

- Click on the tab "Accessory Shop" and then select the appropriate replacement battery under the heading "Topseller".

■ After you have placed the rechargeable battery in the shopping basket, click the "Checkout" button and follow the on-screen instructions to complete the ordering process.

NOTE

▶ Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline.

The promotion is limited to one battery per customer/appliance and also to a timeline of one month after the promotion period. Thereafter the replacement battery can be ordered as a replacement part under other conditions.

Telephone ordering

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

To ensure that your order is processed swiftly, have the article number of your appliance to hand (e.g. IAN 102867) in case of questions. The article number can be found on the label or the title page of these instructions.

Sisällysluettelo

Johdanto....14

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Semi Uguzlu

- Laatujohtaja -

Black plastic electronic device casing with visible internal components (no text or symbols)

Abstract illustration of a globe with floating objects and mechanical components, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Black plastic electronic device casing with visible internal components (no text or symbols)

Monochrome illustration of a globe with a central device and surrounding icons, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Black plastic electronic device with visible ports and casing (no text or symbols)

Abstract illustration of a globe with embedded devices and figures (no text or symbols)

Tre apparater - tre kompatible batterier. Kan skiftes mellem de forskellige apparater!

Online bestilling

Sådan bestiller du et reservebatteri via vores tilbehørssshop:

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Black plastic electronic device casing with visible internal components (no text or symbols)

Monochrome illustration of a globe with internal mechanical components and a small human figure on top (no text or symbols)

Nominale spanning: 18 V ---

Onbelast toerental: n _0 3800 min ^-1

Zaagblad: 1 x ∅ 150 mm x ∅ 16 mm, 18 tanden

Max. zaagdiepte: 90°: 48 mm 45°: 36 mm

Accu: PAP 18 A1

Type: LITHIUM-ION

Nominale spanning: 18 V ---

Capaciteit: 1,5 Ah

Accu-snellader: PLG 18 A1

INGANG / Input:

Nominale spanning: 230 - 240 V \~, 50 Hz

Nominale spanning: 18 V ---

Oplaadstroom: 1,8 A

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Semi Uguzlu

Black plastic electronic device casing with visible internal components (no text or symbols)

Illustration of a globe with internal mechanical components and human figures (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Original-

Semi Uguzlu

Black plastic electronic device casing with visible internal components (no text or symbols)

Illustration of a globe with internal mechanical components and human figures (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

10 / 2014 · Ident.-No.: PHKSA18-LiA1-072014-3
