Product Type	Manicure/Pedicure Set
Brand	SilverCrest
Model	SMPS 7 D2
Power Supply	Power adaptor (included)
Input Voltage	100-240 V~, 50/60 Hz
Output Voltage	30 V DC
Power Consumption	7.5 W
Protection Class	II (double insulation)
Ingress Protection	IP20
Sound Level	68 dB(A)
Speed Control	Variable speed with 2 buttons (increase/decrease)
Rotation Direction	Clockwise and counter-clockwise (switchable)
Intended Use	Private household care for fingernails, toenails and feet
Attachments Included	Sapphire cone, felt cone, coarse/fine sapphire discs, flame file, cylindrical file, sapphire callus remover
Storage Bag	Yes
Cleaning	Wipe main unit with damp cloth; clean attachments with alcohol
Safety Features	Not for use in water; automatic adaptation to 50/60 Hz; overheat protection via free rotation
Warranty	3 years from purchase date
Spare Parts Ordering	Available at www.optimex-shop.com

Frequently Asked Questions - SMPS 7 D2 SILVERCREST

How do I change the attachment on the SilverCrest SMPS 7 D2?

Unplug the main unit before changing attachments. Pull off the current attachment and push the new one firmly into the fitting until it clicks. Ensure it is secure before use.

Can I use this manicure/pedicure set on wet skin or in the shower?

No. The device is not waterproof and must only be used on dry skin in dry indoor areas. Using it in water or with wet hands poses a risk of electric shock.

What is the purpose of each attachment?

The sapphire callus remover removes thick hardened skin. The cylindrical file grinds thick nails. The flame file frees ingrown nails. The fine and coarse sapphire discs file and shape nails. The felt cone polishes edges. The sapphire cone removes dry skin on soles and heels.

How do I adjust the speed?

Press the 2 button to increase speed and the 3 button to decrease speed. The indicator light flashes when the maximum or minimum setting is reached. Always start at a low speed.

How should I clean the device?

Before cleaning, disconnect the power adaptor. Wipe the main unit and adaptor with a damp cloth. For attachments, use a cloth or brush moistened with alcohol for hygiene. Dry all parts thoroughly.

Is the SilverCrest SMPS 7 D2 safe for diabetics?

The manual advises that diabetics often have reduced sensitivity in hands and feet, so they should check progress regularly and avoid excessive treatment to prevent injury.

What is the warranty period and how do I claim?

The warranty is 3 years from purchase. To claim, contact the service department (tel: [phone] or email: [e-mail]) with the till receipt and item number (IAN 375863_2107). You may return the product free of charge.

Can I order replacement attachments?

Yes. Replacement parts such as the sapphire callus remover, files, discs, and cones can be ordered at www.optimex-shop.com.

How do I store the device?

After cleaning, place the device and attachments in the included storage bag. Store in a dry, clean location away from heat and moisture.

Why does the device get hot during use?

Friction can cause heat. Do not hold the attachment in one spot; use circular motions and take frequent breaks to avoid burns. If overheating occurs, reduce speed or switch off.

USER MANUAL SMPS 7 D2 SILVERCREST

Product photo of a medical or dental tool with attached tubing and multiple small accessories (no visible text or symbols)

MANICURE & PEDICURE SET SMPS 7 E1

GB

MANICURE & PEDICURE SET

Operation and safety notes

FI

MANIKYYRI-/ PEDIKYYRISETTI

SET FÖR MANIKYR OCH PEDIKYR

GB Operation and safety notes Page 5

FI Käyttö- ja turvaohjeet Sivu 28
SE Bruksanvisning och säkerhetsanvisningar	Sidan 51
PL Wskazówki dotyczące obsługi i bezpieczeństwa	Strona 74
LT Naudojimo ir saugos pastabos Psl 97
EE Kasutamis- ja ohutusjuhised Lehekülg		120
LV Ekspluatācijas un drošības norādījumi	Lpp.	143
DE/AT/CH Bedienungs- und Sicherheitshinweise	Seite	166

A

Warnings and symbols used .... Page 6

Introduction Page 8

Intended use.... Page 8

Scope of delivery.... Page 9

Description of parts ...... Page 9

Technical data Page 10

Safety instructions.... Page 11

Attachments Page 19

Before use Page 20

Changing the attachment. Page 21

Operation...... Page 21

Cleaning and care ...... Page 23

Storage Page 24

Disposal Page 24

Ordering accessories...... Page 25

Warranty Page 26

Warranty claim procedure. Page 27

Service Page 27

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	WARNING! This symbol in combination with the signal word "Warning" marks a medium-risk hazard that if not prevented could result in death or serious injury.		CAUTION! This symbol in combination with the signal word "Caution" marks a low-risk hazard that if not prevented could result in minor or moderate injury.
	NOTE: This symbol in combination with "Note" provides additional useful information.		Alternating current/voltage
			Direct current/voltage
	Hertz (supply frequency) Wc
	(SMPS) Switched-mode power supply		Efficiency class 6
	Enclosed safety transformer		Do not use the power adaptor if the pins of the plug are damaged.
	Polarity of d.c. power connector		Symbol for a Protection Class II product
	CE mark indicates conformity with relevant EU directives applicable for this product.		Use the product in dry indoor spaces only.
[T247]	Protection against solid objects with a diameter of more than 12.5 mm		Nominal ambient temperature
			Clockwise / Off / Counter-clockwise

MANICURE & PEDICURE

SET

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended solely for the care and maintenance of fingernails, toenails and feet.

This product is only intended for private household use, not for commercial purposes.

The power adaptor is intended for indoor use only.

The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1 Main unit
1 Power adaptor
1 Sapphire cone
1 Felt cone
1 Coarse sapphire disc
1 Fine sapphire disc
1 Flame file
1 Cylindrical file
1 Sapphire callus remover
1 Storage bag
1 Operating instructions

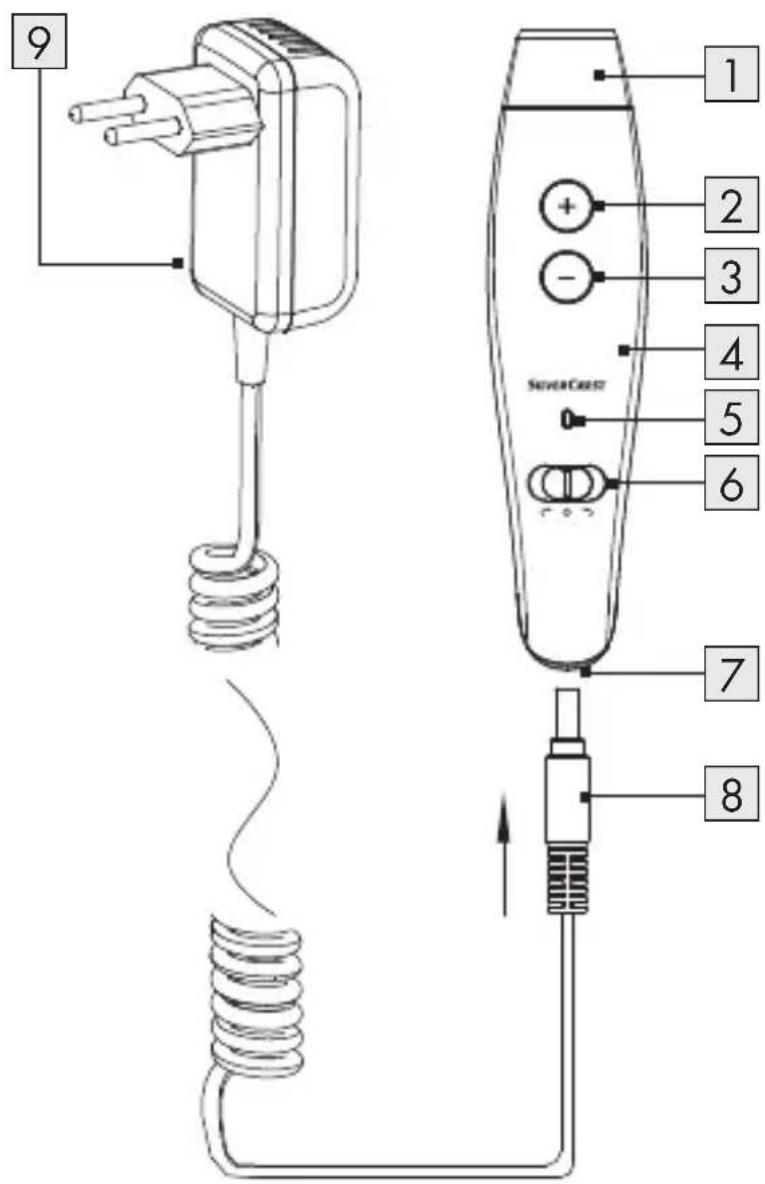

• Description of parts

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

(Fig. A)

1 Attachment fitting
2 button (increase speed)
3 button (reduce speed)
4 Main unit

5 Rotating direction indicator light

$$ \begin{array}{l} \text {(red = clockwise,} \ \text {green = counter - clockwise)} \end{array} $$

6 On/off/direction switch

7 DC socket

8 DC plug

9 Power adaptor

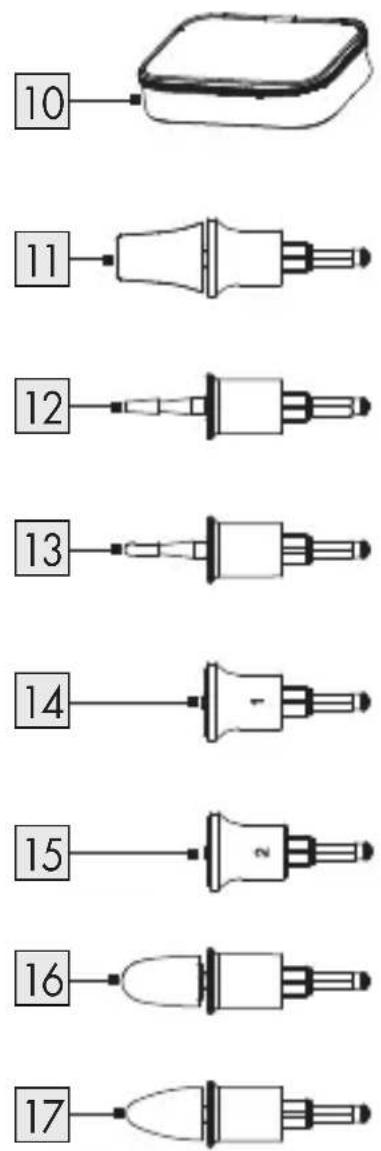

10 Storage bag

11 Sapphire callus remover

12 Cylindrical file

13 Flame file

14 Fine sapphire disc

15 Coarse sapphire disc

16 Felt cone

17 Sapphire cone

Technical data

Main unit

Rated voltage: 30 V

Rated current: 0.25 A

Ingress protection: IP20

Sound pressure level: 68 dB(A)

Power adaptor

Manufacturer's name or trade mark, commercial registration number and address:

E-TEK Electronics Manufactory Co., LTD 91440300755667743W

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105 Shenzhen, Guangdong, PEOPLE'S REPUBLIC OF CHINA

Model identifier: ZD12D300025EU

Input voltage: 100-240 V\~

Input AC frequency: 50/60 Hz

Input current: 0.5 A

Output voltage: 30 V

Output current: 0.25 A

Output power: 7.5 W

Average active efficiency: 82 %

No-load power

consumption: 0.10 W

Protection class:

Ingress protection: IP20

Nominal ambient

temperature ( t_a ): 40 °C

Safety instructions

BEFORE USING

THE PRODUCT,

PLEASE FAMILIARISE

YOURSELF WITH

ALL OF THE SAFETY

INFORMATION AND

INSTRUCTIONS FOR

USE! WHEN PASSING

THIS PRODUCT ON

TO OTHERS, PLEASE

ALSO INCLUDE ALL

THE DOCUMENTS!

In the case of damage resulting from noncompliance with these operating instructions the warranty claim becomes invalid!

No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be This product can be
used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
used by children aged from 3 years and above if they are continuously supervised.
Children shall not play with the product.
Cleaning and user maintenance shall not be made by children without supervision.

WARNING! RISK OF INJURY!

■ Prior to use, check the product for visible external damage. Do not operate the product, if it has been damaged or dropped.

All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs can pose significant risks to the user. The warranty claim will also be invalidated.

■ Extended use may cause extreme warming of the skin. Therefore, take frequent breaks. Otherwise, there is a risk of burns!

WARNING! Keep

the product dry.

■ Do not use the product while bathing or showering.
■ Never touch the product with wet or moist hands.
■ Always operate the product with the supplied power adaptor.

- Do not use the power are used.

adaptor to charge any other device.

CAUTION! RISK OF PROPERTY DAMAGE!

Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts

■ Protect the product from penetration by moisture and liquids.

■ Protect the product against knocks, dampness, dust, chemicals, and extreme temperatures.

- Keep the product away from sources of heat (e.g. ovens, radiators).

■ Never use the product under blankets, pillows, etc.

■ Do not store the product where it could fall into a bath tub or wash basin.

■ Never submerse the product in water or other liquids.

No action is needed from users to shift the product between 50 and 60 Hz. The product adapts itself for both 50 and 60 Hz.

■ After use: Always remove the power adaptor from the socket-outlet. Never pull on the connection cord.

The connection cord of the power adaptor cannot be replaced. If the connection cord is damaged, the power adaptor must be disposed of.

■ Ensure that the drive can always rotate freely. Otherwise, the product may overheat and be damaged beyond repair.

The power adaptor is intended for indoor use only.

■ To disconnect the power supply to the product, pull the power adaptor from the socket-outlet.

The socket-outlet that is used must be easily accessible so that the power adaptor can be quickly removed from the socket-outlet in the event of an emergency.

In the event of a malfunction (unusual noises or smoke) or during thunderstorms, disconnect the power adaptor from the socket-outlet.

■ Repairs to the product during the warranty period may only be carried out by a customer service department authorised by

■ Never try to open the the manufacturer.

housing of the power adaptor – there is a risk of electrocution.

Otherwise no additional warranty claims can be considered for subsequent damage.

■ To avoid damage caused by unwanted warming, do not cover the power adaptor.

- Attachments

■ Sapphire callus remover 11:

For large-scale and rapid removal of thick hardened skin or calluses on the sole or heel of your foot

- Guide the sapphire callus remover 11 over the parts of the sole and heel to be treated while exerting gentle pressure.

Cylindrical file 12:

For grinding off thick toenail surfaces and rough smoothing of the surfaces

- Always hold the cylinder file 12 parallel to the nail surface and apply light pressure and circular movements to remove the excess growth.

Flame file 13:

For freeing ingrown nails

- Guide the flame file 13 carefully onto the treatment area and cut away the affected nail part.

■ Fine and coarse sapphire disc 14 15:

For filing and working the nails - Work the edge of the nail using the fine and coarse sapphire disc 14 15. Since only the inner disc rotates and the outer edge does not move, you can file your nails accurately without damaging your skin with the rapidly rotating disc.

- Always work from the outside of the nail to the tip.

Felt cone 16:

For smoothing and polishing nail edges after filing, and for cleaning the nail surface

- Use the felt cone 16 to polish and smooth the edge of the nail and to clean the nail surface after grinding. Always polish in a circular motion and never let the felt cone stay in one place.

■ Sapphire cone 17:

For removing dry skin, hardened skin or calluses on the soles and heels

- Guide the sapphire cone 17 over the parts of the sole and heel to be treated using a circular motion while exerting gentle pressure. Do not press too firmly, and always guide the sapphire cone carefully to the surface to be treated. Apply a moisturising cream after every treatment.

Before use

■ Only use the product with dry hands.

■ Remove all parts from the packaging.

● Changing the attachment

■ Unplug the main unit 4 each time before you change the attachment.

Pull the attachment out of the main unit 4, if any.
Select an attachment (see fig. A and the "Attachments" chapter).
■ Push the attachment into the main unit 4. Make sure the attachment is installed firmly.

NOTE: Change the attachment when it looks or feels worn.

Operation

⚠ WARNING! RISK OF INJURY!

Excessively long or intensive treatment can also injure deeper layers of skin.

Therefore, check the treatment progress and results regularly. Diabetics in particular are less sensitive on their hands and feet.

WARNING! RISK OF BURNS DUE TO SEVERE HEAT DEVELOPMENT!

While you are working, never let the attachments remain in one location. Friction leads to increased heat generation and may cause injuries.

Always work with a circular motion.

■ Find a well-lit place to work. There must be a socket-outlet in close proximity.
Insert the appropriate attachment for your purpose in the attachment fitting 1. The attachment must sit securely.

■ Connect the DC plug 8 to the DC socket 7.
Plug the power adaptor 9 into a socket-outlet.

■ Switch on the product.
■ Select the rotating direction:

Switch 6

Indicator light 5

Rotating direction

Slide the switch to the left. red clockwise

Slide the switch to the right. green counter-clockwise

Slide the switch to the middle.

off off

NOTE: The indicator light 5 flashes when the highest or lowest setting has been reached.

■ Always start the treatment at slow speed and only increase it when necessary.

Speed Press button

Increase speed	Press 2 button.
Reduce speed	Press 3 button.

■ Switch off the product: Slide the switch 6 to 0 position.

■ Disconnect the power adaptor 9 from the socket-outlet when you have finished the treatment.

NOTE: Set the speed to the lowest setting after you changed the rotating direction or an attachment.

i NOTES:

If you have treated hardened skin, apply a moisturising cream to the treated areas after completing the procedure.

The attachments do not have as much effect on softened skin. Therefore, do not carry out any pretreatment in a water bath before using the product.

Always select the rotating direction for treating the nails in their direction of growth. If possible, treat the nails from the outside towards the inside (to the nail tip). Otherwise, the nails will split more easily.

If you feel that the nails could crack during treatment, select the other direction.

● Cleaning and care

WARNING! Risk of electrical shock! Before cleaning: Always disconnect the power adaptor 9 from the socket-outlet.

Do not use chemical, aggressive or abrasive cleaning agents. These can damage the surface of the product.

- Clean the main unit 4 and the power adaptor 9 with a damp cloth. For stubborn soiling use a mild detergent on the cloth. Ensure that no water or moisture can penetrate the product. Dry all parts thoroughly.

For hygienic reasons, we recommend cleaning the attachments with a clean cloth or brush moistened with alcohol after every use. Dry all parts thoroughly.

Storage

■ After you have cleaned the product, put it back in the storage bag 10.
■ Store the product in a dry and clean location.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Ordering accessories

You can order the following replacement parts for this product:

11 Sapphire callus remover
12 Cylindrical file
13 Flame file
14 Fine sapphire disc
15 Coarse sapphire disc
16 Felt cone
17 Sapphire cone

Order the replacement part via our website:

www.optimex-shop.com

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 375863_2107) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

E-TEK Electronics Manufactory Co., LTD

91440300755667743W

B, 3 Bldg, Tangwupu Industrial Park,

Yanchuan, Songgang Subdistrict, Bao'an

District, 518105 Shenzhen, Guangdong,

KIINAN KANSANTASAVALTA

Mallitunniste: ZD12D300025EU

Ottojännite: 100-240 V\~

SET FÖR MANIKYR OCH PEDIKYR

Inledning

E-TEK Electronics Manufactory Co., LTD

91440300755667743W

B, 3 Bldg, Tangwupu Industrial Park,

Yanchuan, Songgang Subdistrict, Bao'an

District, 518105 Shenzhen, Guangdong,

FOLKREPUBLIKEN KINA

Modellbeteckning: ZD12D300025EU

www.optimex-shop.com

Garanti

E-TEK Electronics Manufactory Co., LTD

producenta, numer rejestru

91440300755667743W

handlowego i adres:

B, 3 Bldg, Tangwupu Industrial Park,

Yanchuan, Songgang Subdistrict, Bao'an

District, 518105 Shenzhen, Guangdong,

CHINY

Identyfikator modelu: ZD12D300025EU

E-TEK Electronics Manufactory Co., LTD 91440300755667743W

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105 Shenzhen, Guangdong, KINIJA

Modelio žymuo: ZD12D300025EU

E-TEK Electronics Manufactory Co., LTD 91440300755667743W

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105 Shenzhen, Guangdong, HIINA RAHVAVABARIK

Mudelitähis: ZD12D300025EU

Sisendpinge: 100–240 V\~

Sisendvahelduvvoolu

sagedus: 50/60 Hz

Sisendvool: 0,5 A

Väljundpinge: 30 V

Väljundvool: 0,25 A

www.optimex-shop.com

Garantii

E-TEK Electronics Manufactory Co., LTD 91440300755667743W

B, 3 Bldg, Tangwupu Industrial Park, Yanchuan, Songgang Subdistrict, Bao'an District, 518105 Shenzhen, Guangdong, KINAS TAUTAS REPUBLIKA

Modela identifikators: ZD12D300025EU

leejas spriegums: 100–240 V\~

leejas mainstrāvas frekven- ce: 50/60 Hz

leejas strāva: 0,5 A

Izejas spriegums: 30 V

E-TEK Electronics Manufactory Co., LTD

91440300755667743W

B, 3 Bldg, Tangwupu Industrial Park,

Yanchuan, Songgang Subdistrict, Bao'an

District, 518105 Shenzhen, Guangdong,

PEOPLE'S REPUBLIC OF CHINA
