Product Type	Manicure/Pedicure Set
Brand	SilverCrest
Model	SMPS 7 A1
Power Supply	Mains adapter, input 100-240 V ~ 50/60 Hz, output 30 V / 250 mA
Speed Levels	2 levels: Level 1 (3600 rpm), Level 2 (4600 rpm)
Number of Attachments	7
Attachments Included	Sapphire cone, felt cone, 2 sapphire discs (rough/fine), hardened skin remover, cylindrical miller, flame miller
Rotation Direction	Clockwise (green LED) and anti-clockwise (red LED)
Protection Class (Mains Adapter)	II
Protection Class (Appliance)	III
Intended Use	Care and maintenance of fingernails, toenails and feet; domestic use only
Cleaning	Hand element and adapter with damp cloth; attachments with alcohol
Storage	Included storage bag; dry and clean location
Warranty	3 years
Included Accessories	Hand element, mains adapter, 7 attachments, storage bag, operating instructions
Safety Features	No automatic shut-off; warnings against overheating and use on wet skin

Frequently Asked Questions - SMPS 7 A1 SILVERCREST

How do I change the speed on the SilverCrest SMPS 7 A1?

Press the Hi button to increase speed and the Lo button to decrease. There are two speed levels: Level 1 at 3600 rpm and Level 2 at 4600 rpm.

What attachments are included with the SMPS 7 A1?

The set includes 7 attachments: a sapphire cone, felt cone, two sapphire discs (rough and fine), hardened skin remover, cylindrical miller, and flame miller.

Can I use this device on wet skin?

No, the attachments are less effective on softened skin. Do not pre-soak your feet in water before using the device. Always use on dry skin.

How do I clean the SMPS 7 A1?

Unplug the device. Clean the hand element and adapter with a damp cloth; for stubborn dirt, use mild detergent. Clean attachments with a cloth or brush moistened with alcohol after each use. Ensure no moisture enters the device.

What should I do if the device gets hot during use?

Extended use can cause overheating. Take frequent breaks and never leave an attachment in one spot. If the device becomes extremely hot, stop using and allow it to cool down.

How do I choose the rotation direction?

Slide the on/off/direction switch. Green LED indicates clockwise rotation, red LED anti-clockwise. Always treat nails in their direction of growth to avoid splitting.

Is the SilverCrest SMPS 7 A1 suitable for diabetics?

Diabetics often have reduced sensitivity. Use with extreme caution and check treatment progress regularly. Consult a doctor if unsure.

What is the warranty period for this device?

The device comes with a 3-year warranty from the date of purchase. Keep your receipt as proof. The warranty covers material and manufacturing defects, not wear or misuse.

Can I use this device on ingrown toenails?

Yes, use the flame miller attachment. Carefully guide it to the affected area and remove the problematic parts. Proceed slowly to avoid injury.

How should I store the SMPS 7 A1 after use?

Clean the device and attachments, allow them to dry, then place everything in the storage bag included. Store in a dry, clean location.

USER MANUAL SMPS 7 A1 SILVERCREST

Operating instructions

HU

MANIKÜR-PEDIKÜR KÉSZLET

Használati utasítás

SK

SUPRAVA NA MANIKURU A PEDIKURU

Návod na obsluhu

PL

ZESTAW DO MANICURE I PEDICURE

Instrukcja obstugi

CZ

MANIKÚRA A PEDIKÚRA

Návod k obsluze

DE

MANIKÜRE-PEDIKÜRE-SET

Bedienungsanleitung

IAN 102612

PL HU

CZ SK

GB

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

PL

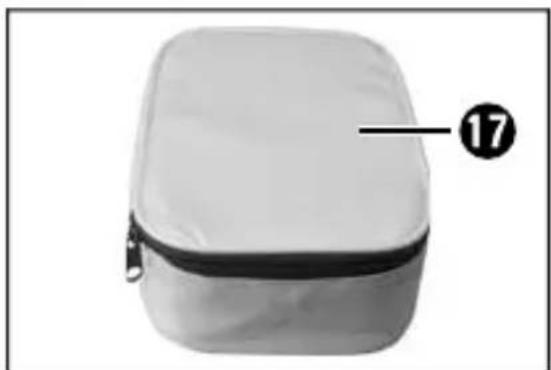

White rectangular box with a black zipper and label marked '17' (no other text or symbols)

Contents

Introduction 2

Information concerning these operating instructions .....2

Copyright 2

Limitation of liability 2

Warning notes....3

Intended use 3

Safety 4

Basic safety guidelines ....4

Package contents 8

Controls 9

Technical data....10

Use of the appliance ....10

Attachments....10

Working with the appliance 12

Cleaning 15

Storage 15

Disposal....16

Disposal of the appliance 16

Disposal of packaging 16

Notes on the Declaration of Conformity ..... 17

Warranty 17

Service....18

Importer....18

GB

Introduction

Information concerning these operating instructions

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Keep these operating instructions in a safe place. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is protected by copyright.

All rights reserved, including those of photographic reproduction, duplication and distribution by means of particular methods (such as data processing, data media and data networks), in whole or in part, as well as substantive and technical changes.

Limitation of liability

All technical information, data and information for installation and operation contained in these operating instructions corresponds to the latest version(s) at the time of printing and, to the best of our knowledge, takes into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifications or for the use of non-approved replacement parts.

Warning notes

The following warnings are used in these operating instructions:

WARNING

A warning at this hazard level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in physical injury.

▶ Follow the instructions in this warning to prevent physical injury.

CAUTION

A warning at this hazard level indicates potential material damage.

Failure to avoid this situation could result in material damage.

▶ Follow the instructions in this warning to prevent material damage.

NOTE

▶ A note provides additional information that will assist you in using the appliance.

Intended use

This appliance is intended solely for the care and maintenance of fingernails, toenails and feet. It is intended for domestic use only. The mains adapter is intended for indoor use only.

It is not intended for any other use or use beyond that specified.

GB

WARNING

Danger if not used for intended purpose!

Failure to use the appliance for its intended purpose and/or any other type of use can be hazardous.

▶ Use the appliance only for its intended purpose.
▶ Observe the procedures described in these operating instructions.

Claims of any kind for damage arising as a result of incorrect use will not be accepted.

The risk shall be borne solely by the user.

Safety

In this section, you will find important safety instructions for using the appliance. Improper use may result in personal injury and material damage.

Basic safety guidelines

To ensure safe operation of the appliance, follow the safety guidelines set out below

WARNING - RISK OF INJURY!

■ Prior to use, check the appliance for visible external damage. Do not operate a appliance that has been damaged or dropped.
■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they

are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs can pose significant risks to the user. The warranty claim will also be invalidated.

■ Extended use may cause extreme warming of the skin. Therefore, take frequent breaks. Otherwise, there is a risk of burns!

■ Do not use the appliance while bathing or showering.

■ Never touch the appliance with wet or moist hands.

■ Always operate the appliance with the supplied power adapter.

■ To prevent accidents, have defective plugs and/or power cables replaced immediately by a qualified specialist technician or our Customer Service department.

GB

CAUTION - PROPERTY DAMAGE

■ Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used.

■ Protect the appliance from penetration by moisture and liquids.

■ Protect the appliance against knocks, dampness, dust, chemicals, extremes of temperature, etc. and keep it away from sources of heat (ovens, radiators).

■ Never use the appliance under blankets, pillows, etc.

■ Do not store the appliance where it could fall into a bath tub or wash basin.

■ NEVER submerse the appliance in water or other liquids!

■ Always remove the mains adapter from the mains outlet; never pull on the power cable.

■ Ensure that the drive can always rotate freely. Otherwise, the appliance may overheat and be damaged beyond repair.

■ The mains adapter is intended for indoor use only.

■ To disconnect the power supply to the appliance, pull the mains adapter from the socket outlet.

■ The mains power socket that is used must be easily accessible so that the mains adapter can be quickly removed from the mains power socket in the event of an emergency.
■ In the event of a malfunction (unusual noises or smoke) or during thunderstorms, disconnect the mains adapter from the power socket.
■ Never try to open the housing of the mains adapter – there is a risk of electrocution.
■ To avoid damage caused by unwanted warming, do not cover the mains power adapter.
■ Repairs to the appliance during the warranty period may only be carried out by a customer service department authorised by the manufacturer. Otherwise no additional warranty claims can be considered for subsequent damage.

GB

GB

Package contents

The appliance is supplied with the following components as standard:

• Hand element
• Power adapter
• 7attachments:
• Sapphire cone
• Felt cone
• 2 sapphire discs (rough/fi ne)
• Hardened skin remover
• Cylindrical miller
• Flame miller
• Storage bag
• Operating instructions

◆ Remove all parts of the appliance from the packaging and remove all packaging materials.

WARNING

Risk of suff ocation!

▶ Packaging material must not be used as a plaything. Risk of suffocation.

NOTE

▶ Check the package for completeness and for visible signs of damage.
▶ If the consignment is incomplete or damaged due to defective packaging or carriage, contact the Service hotline (see the chapter Service).

Controls

1 Attachment fi tting
2 Hi button (increase speed)
3 Lo button (reduce speed)
4 LED rotation direction indicator
5 On/off /direction switch
6 Connector socket
7 Hand element
8 Mains adapter
9 Connector plug

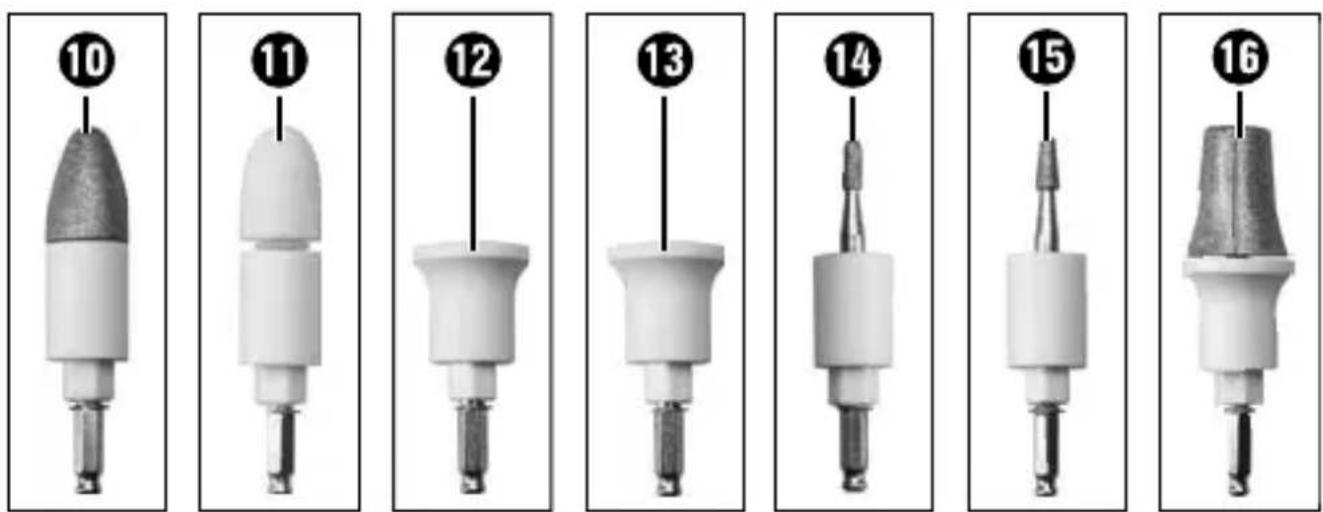

10 Sapphire cone
11 Felt cone
12 Sapphire disc (rough)
13 Sapphire disc (fi ne)
14 Cylindrical miller
15 Flame miller
16 Hardened skin remover
17 Storage bag

Technical data

Mains adapter: ZD8H300025EU

Input voltage 100-240 V \~ 50/60 Hz

Current consumption 0.3 A

Output voltage/output current 30 V / 250 mA

Protection class II /

Appliance

Input voltage 30 V

Current consumption 250 mA

Protection class III /

Operating speeds Level 1: 3600 rpm Level 2: 4600 rpm

Use of the appliance

Attachments

■ Sapphire cone :

For removing dry skin, hardened skin or calluses on the soles and heels.

◆ Guide the sapphire cone over the parts of the sole and heel to be treated using a circular motion while exerting gentle pressure. Do not press too firmly, and always guide the appliance carefully to the surface to be treated. Apply a moisturising cream after every treatment.

Felt cone11:

For smoothing and polishing nail edges after fi ling, and for cleaning the nail surface.

Use the felt cone 11 to polish and smooth the edge of the nail and to clean the nail surface after grinding. Always polish in a circular motion and never let the felt cone 11 stay in one place.

■ Sapphire disc12/13:

For fi ling and working the nails.

WARNING - RISK OF INJURY!

Excessive speeds and applying too much pressure, can cause the sapphire disc to rapidly penetrate into deeper, healthy skin layers.

This can cause injuries and damage to the periosteum!

▶ Always take care when removing corns. If in doubt, consult a pedicurist, podologist or dermatologist.

Work the edge of the nail using the sapphire disc 12/13. Since only the inner disc rotates and the outer edge does not move, you can file your nails accurately without damaging your skin with the rapidly rotating disc.

◆ Always work from the outside of the nail to the tip.

Cylindrical mille14:

For grinding off thick toenail surfaces and rough smoothing of the surfaces.

You can use the cylinder miller 14 to grind off thick nail surfaces.

◆ Always hold the cylinder miller14 parallel to the nail surface and use light pressure and circular movements to grind off the surface.

GB

Flame mille15:

You can use the flame miller ^15 to free ingrowing toenails.

◆ Carefully guide the flame miller15 to the treatment area and remove the affected parts of the nail.

■ Hardened skin remove16:

For large-scale and rapid removal of thick hardened skin or calluses on the sole or heel of your foot.

◆ Guide the hardened skin remover 16 over the parts of the sole and heel to be treated while exerting gentle pressure.

Working with the appliance

WARNING - RISK OF INJURY!

Excessively long or intensive treatment can also injure deeper layers of skin.

Therefore, check the treatment progress and results regularly. Diabetics in particular are less sensitive on their hands and feet.

NOTE

The attachments do not have as much effect on softened skin. Therefore, do not carry out any pretreatment in a water bath before using the appliance.

1) Find a well-lit place to work. There must be a mains power outlet in close proximity.

2) Insert the appropriate attachment for your purpose in the attachment fi tting 1 The attachment must sit securely.

3) Attach the connector plug ⑨ of the mains adapter ⑧ to the connector socket ⑥ of the hand element ⑦.

4) Plug the mains adapter ⑧ into a mains power outlet.

5) Always start the treatment at slow speed and only increase it when necessary. Press the Hi button ② to increase the speed. If you want to reduce the speed, press the Lo button ③.

6) Slide the on/off /direction switch 5 in the desired direction. The selected direction of rotation is shown by the coloured LED direction indicator 4 as follows:

- Green LED = clockwise

- Red LED = anti-clockwise

7) The appliance operates at the slowest speed.

NOTE

▶ Always select the direction of rotation for treating the nails in their direction of growth. If possible, treat the nails from the outside towards the inside (to the nail tip). Otherwise, the nails will split more easily.

▶ If you feel that the nails could crack during treatment, select the other direction.

8) You can now start working.

GB

WARNING - RISK OF BURNS!

Risk due to severe heat development!

▶ While you are working, never let the attachments remain in one location. Friction leads to increased heat generation and may cause injuries.
▶ Always work with a circular motion.

9) Move the on/off /direction switch 5 to "0" and disconnect the power adapter 8 from the mains power socket when you have fi nished the treatment.

NOTE

If you have treated hardened skin, apply a moisturising cream to the treated areas after completing the procedure.

Cleaning

WARNING

Risk of electrical shocks!

▶ Always disconnect the mains adapte 8 from the mains power socket before cleaning the appliance!

CAUTION - PROPERTY DAMAGE!

Do not use chemical, aggressive or abrasive cleaning agents. These can damage the surface of the appliance.

- Clean the hand element ^7 and the mains adapter ^8 with a damp cloth. For stubborn soiling use a mild detergent on the cloth. Ensure that no water or moisture can penetrate the appliance. Dry everything thoroughly.

- For hygienic reasons, we recommend cleaning the attachments with a clean cloth or brush moistened with alcohol after every use. Dry everything thoroughly.

Storage

◆ After you have cleaned the appliance, put it back in the storage bag 17.

◆ Store the appliance in a dry and clean location.

GB

Disposal

Disposal of the appliance

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Under no circumstances should you dispose of the appliance in normal household waste. This product is subject to the provisions of the European WEEE (Waste Electrical and Electronic Equipment) Directive 2012/19/EU.

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Disposal of packaging

The packaging protects the appliance from damage during shipment. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the materials cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials which are no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the original packaging of the appliance during the warranty period so that the appliance can be packed properly for returning in the event of a warranty claim.

Notes on the Declaration of Conformity

This appliance complies with the essential requirements and other relevant provisions of the European Electromagnetic Compatibility Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC and the RoHS Directive 2011/65/EU.

The entire Declaration of Conformity, in its original form, is available from the importer.

GB

Warranty

You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for transport damage, worn parts or damage to fragile components such as buttons or batteries.

This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in the case of misuse or improper handling, use of force and interventions which have not been carried out by one of our authorised Service centres.

Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components.

GB

Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase.

Repairs effected after expiry of the warranty period shall be subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 102612

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Spis treści

Wstep 20

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Tartalomjegyzék

Bevezető 38

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Obsah

Úvod 56

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Obsah

Úvod....74

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 92

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com
