SOR 2600 B1 - Cooker SILVERCREST - Free user manual and instructions

Product type	Cooker
Brand	SilverCrest
Model	SOR 2600 B1
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	50 kg
Power supply	230 V ~ 50 Hz
Total power	11 kW
Number of burners	4
Burner type	Ceramic glass hob
Oven capacity	60 L
Oven functions	Natural convection, Grill, Interior light, Timer
Hob cooking	Residual heat indicator, Extendable cooking zone
Care and cleaning	Manual cleaning of hob, Removable oven door
Safety	Child safety, Automatic shut-off
Spare parts	Available from after-sales service
Energy class (oven)	A
Colour	White / Stainless steel (depending on version)
Timer	Integrated with automatic shut-off
Oven lighting	Yes
Control lock	Yes

Frequently Asked Questions - SOR 2600 B1 SILVERCREST

How to clean the ceramic glass hob?

Use a special ceramic glass cleaner and a suitable scraper. Avoid abrasive sponges.

How to set the timer?

Turn the timer knob to the desired duration. A beep sounds at the end of cooking.

What to do if the oven does not heat up?

First check the power supply and the fuse. If the problem persists, contact after-sales service.

How to activate the child safety lock?

Press and hold the lock button for 3 seconds until a lock symbol is displayed.

What is the oven capacity?

The oven has a capacity of 60 litres, suitable for family dishes.

How to turn on the oven light?

The light turns on automatically when the door is opened or via the dedicated button on the control panel.

Can I use silicone moulds in the oven?

Yes, silicone moulds withstand oven temperature, but observe a maximum temperature of 230 °C.

How to remove the oven door for cleaning?

Open the door fully, lift the locking latches and remove the door upwards. Consult the manual for precise steps.

What does the residual heat indicator mean?

It indicates that the cooking zone is still hot after use. Do not touch it while the indicator is on.

Where to find spare parts?

Spare parts are available from the SilverCrest after-sales service or online on the manufacturer's website.

USER MANUAL SOR 2600 B1 SILVERCREST

ÖLRADIATOR / OIL-FILLED RADIATOR / RADIATEUR À BAIN D'HUILE SOR 2400 D2

DE AT CH

ÖLRADIATOR

Operation and safety notes This product is only suitable for well insulated spaces or occasional use.

FR BE

RADIATEUR À BAIN D'HUILE

Warnings and symbols used....Page 18

Introduction Page 19

Intended use.... Page 19

Scope of delivery.... Page 19

Part description ...... Page 19

Technical data Page 19

Safety notices Page 19

Installation (fig. A–C) Page 24

Operation.... Page 24

Reaching the decided room temperature.... Page 24

Turbo heating.... Page 25

Switch off the product Page 25

Frost protection function.... Page 25

Use the heating fan only ...... Page 25

Care and cleaning Page 26

Storage Page 26

Disposal Page 26

Warranty Page 27

Warranty claim procedure.... Page 27

Service Page 27

Information requirements for electric local space heaters... Page 28

Warnings and symbols usedThe following warnings are used in the instruction manual, short manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Risk of fire!
			WARNING! Do not cover the product to prevent it from overheating.
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		Use the product in dry indoor spaces only.
			Danger - risk of electric shock!
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Alternating current/voltage
			Watt
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.		Hertz (supply frequency)
			Maximum position of the temperature control
[4BYH]	NOTE: This symbol in combination with “Note” provides additional useful information.		Minimum position of the temperature control
	Do not touch. Symbol for protective earth
	CE mark indicates conformity with relevant EU directives applicable for this product.

OIL-FILLED RADIATOR

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is only designed for heating rooms in private households. It is only intended for indoor use in dry locations. The manufacturer is not liable for damage caused by improper use. This product is only suitable for well insulated spaces or occasional use.

- Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition. Remove all packaging materials from the product.

1 Oil-filled radiator
2 Castor assemblies
2 U shape bolts
4 Wing nuts
1 Short manual

Part description

Before reading, unfold the page containing the illustrations and familiar yourself with all functions of the product.

1 Power indicator
2 Heat level switch
3 Temperature control
4 Heating fan switch (with light indicator)
5 Heating fan
6 Ventilation slots
7 Power cord retainer
8 Wing nut
9 I shape castor assembly
10 U shape bolt
11 U shape castor assembly

- Technical data

Rated voltage: 220–240 V\~, 50 Hz Rated power: 2400 W

Heat level: 1 - 800 W

$$ \mathbf {2} - 1 2 0 0 \mathrm{W} $$

$$ \mathbf {3} - 2 0 0 0 \mathrm{W} $$

Temperature control: Continuously variable

Number of heating

fins: 9

Suitable for rooms: Up to approx.

$$ 5 0 - 6 0 \mathrm{m} ^ {3} $$

Safety notices

READ ALL SAFETY ADVICES AND INSTRUCTIONS. NON-OBSERVANCE OF THE SAFETY ADVICES AND INSTRUCTIONS MAY CAUSE ELECTRIC SHOCK, FIRE AND/OR BAD INJURIES.

KEEP ALL SAFETY NOTICES AND INSTRUCTIONS FOR FUTURE REFERENCE!

WARNING!

DANGER TO LIFE

AND RISK OF

ACCIDENTS FOR INFANTS

AND CHILDREN! Never

leave children unsupervised with the packaging materials.

The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Always keep children away from the packaging material.

CAUTION! This product is not a toy for children! Children are not aware of the dangers associated with handling electrical products.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ Children shall not play with the product.

■ Cleaning and user maintenance shall not be made by children without supervision.

■ Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the product provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the product in a safe way and understanding the hazards involved.

■ Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the product or perform user maintenance.

⚠️ CAUTION! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

WARNING! In order to avoid overheating, do not cover the product.

■ The product must not be located immediately below a socket-outlet.
- Do not use the product without feet properly installed; follow the assembly instructions within this instruction manual.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This product is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent. Contact them, if there is an oil leak.
■ When scrapping the product, follow the regulations concerning the disposal of oil.

⚠ WARNING! Avoid the hazard of life by electric shock:

■ Never use a damaged or oil leaking product.
■ Never immerse the product into water or any liquid.
■ Never touch the product, the power cord or the mains plug with wet hand or use it in very humid environments.

■ Never place containers filled with liquid, such as drinking glasses, vases etc. on the product. If liquid should enter the product, unplug the mains plug immediately and have the product repaired by a qualified technician.
■ Make sure that the details on the rating label are in conformity with your mains voltage. Only connect the product to alternating current with an earthing contact as otherwise a protection against electric shock is not provided.
In the event of malfunctions, remove the mains plug from the mains socket.
- Do not open the product or attempt to repair it yourself. Defective products should only be repaired by qualified personal.

• Check the power cord regularly for damage or deterioration.
  ■ Always remove the mains plug from the mains socket after each use and before clean the product.
• Do not pull the power cord to unplug the product. Unplug the product by pulling out the mains plug.
• Keep the power cord away from hot surfaces, sharp edges and mechanical forces.
  ■ Never let the power cord becomes a trip hazard, that no-one can get tangled in it or tread on it.
• Allow the product to cool down before moving it to a different location.

WARNING! HAZARD OF FIRE!

Do not operate the product close to or below curtains, wall cupboards or other inflammable materials.

■ Always operate the product in an upright position (controls on top, both castor assemblies 9 and 11 on the bottom). Any other position could cause a hazardous situation.

• Do not place any open fire sources, such as candles, on the product.
  ■ Never block the heating fan 5 or the ventilation slots 6.

WARNING! Do not use the product in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the ventilation slots.

- Do not use this product with a programmer, timer, separate remote-control system or any other device that switches the product on automatically, since a fire risk exists if the product is covered or positioned incorrectly.

• Do not use an extension cord.

• Do not use this product in rooms with a room volume of less than 4m^3 .
  ■ Only use accessories and additional equipment stated in the instruction manual. The use of other products or accessories than recommended in the instruction manual may present a risk of injuries for you.

• Do not use the product in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use the product if it has been dropped.
• Do not use the product if there are visible signs of damage.
  ■ Use the product on a horizontal and stable surface.

● Installation (fig. A–C)

Place the product upside down on a soft underlay to avoid scratch on the surface, power cord retainer 7 upper than temperature control 3 (fig. A).

• Attach the U shape bolt 10 to the product between first two fins with the threaded ends pointing upward (fig. A).
  Place the U shape castor assembly 11 over the U shape bolt 10 with both wheels pointing upward (fig. B). Ensure both threaded ends of U shape bolt 10 passing through both holes on the U shape castor assembly 11.
  ■ Fasten wing nut 8 securely onto each threaded end of U shape bolt 10.

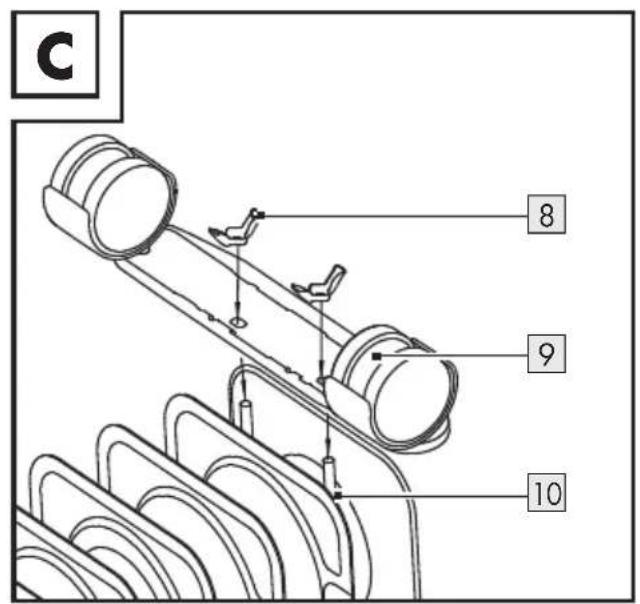

  Repeat above steps on the rear side of the product with the I shape castor assembly 9 and the U shape bolt 10 attached between last two fins (fig. C).

- Set the product back to upright position, wheels on the floor. The product is now ready to use.

NOTE: The product is equipped with a tilt protection switch. It will shut down the product automatically if it falls over or is lying on its side.

Operation

■ Unwind the power cord completely from the power cord retainer 7.

■ Make sure that both, temperature control 3 and heat level switch 2 are set to 🔍 and 0 respectively.

Connect the product to a grounded mains socket protected by a residual current circuit breaker. Ensure that the mains voltage of the electrical outlet meets the requirements described in the "Technical data" chapter.

NOTE: Ensure the mains plug is fully inserted to the mains socket.

● Reaching the decided room temperature

• Set the temperature control 3 to 1 and the heat level switch 2 to 3.
  When the desired room temperature is reached, turn the temperature control 3 gently counter-clockwise until the product shuts off. A "click" sound is emitted. Leave the temperature control 3 at the position and the room temperature is now retained. The product automatically cycles on and off to keep the desired room temperature.
  Use the heat level switch 2 to select how quickly the product shall warm up. To warm up quickly, set the heat level switch 2 to 3.

i NOTES:

The power indicator 1 lights up when the heat level switch 2 is turned to 1, 2 or 3.
The power indicator 1 goes off when the heat level switch 2 is turned to 0.

- Turbo heating

To heat the room more quickly, set the temperature control 3 to 5. and the heat level switch 2 to 3.
Press the heating fan switch 4 to position "I" to switch on the heating fan. An indicator in the heating fan switch 4 will light up. Hot air will be blown through the heating fan 5.
■ To switch off the heating fan 5, press the heating fan switch 4 to 0 position.
■ Using the temperature control 3 to set the product to the desired temperature.

- Switch off the product

Press the heating fan switch 4 to position 0 to switch off the heating fan 5.
■ Turn the temperature control 3 to ⚙ and the heat level switch 2 to 0.
■ Remove the mains plug from the mains socket.

- Frost protection function

The frost protection function automatically controls the product to keep the room temperature above 7 °C, steps are as follows:

■ Connect the product to an earthed mains socket protected by a residual current circuit breaker.
Switch on the product by setting the heat level switch 2 to either 1, 2 or 3 and by setting the temperature control 3 to 4. The product switches on when the room temperature is approx. 7 °C. As soon as the room temperature is above 7 °C, the product automatically switches off again.

① NOTE: The product will switch itself on and off automatically to maintain a temperature higher than 7 °C.

Use the heating fan only

To use the heating fan 5 only on the product, steps are as follows.

■ Connect the product to an earthed mains socket protected by a residual current circuit breaker.
Press the heating fan switch 4 to position 1 to switch on the heating fan 5. An indicator in the heating fan switch 4 will light up. Hot air will be blown through the heating fan 5.
To switch off the heating fan 5, press the heating fan switch 4 to 0 position.

NOTE: The heating fan works independently from the power indicator 1, heat level switch 2 and temperature control 3.

● Care and cleaning

⚠ WARNING! Let the product to cool down before cleaning.
⚠ WARNING! Never immerse the product, power cord or mains plug into water.

■ Remove the mains plug from the mains socket and leave the product to cool completely before cleaning.
Use a damp lint-free cloth to clean the product. Use a mild detergent on the cloth for stubborn dirt.
- Do not use abrasive, aggressive or chemical cleaning agents. It could damage the surfaces of the product.

Storage

If the product not to be use for a long period of time, clean it as described in the section "Care and cleaning".
Wind the power cord around the power cord retainer 7 clockwise tightly and let the mains plug being held at the upper part of power cord retainer 7 (fig. D).
■ Store the product at a clean and dry location.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispose it separately, following the illustrated packaging symbols, for better waste treatment.

The Triman logo is valid in France only.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Observe the current regulations for waste oil disposal.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 392295_2201) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

CE

Information requirements for electric local space heaters

Model identifier(s): HG02913, 392295_2201

Item Symbol Value	Unit Item Unit
Heat output Type of heat input, for electric storage local					space heaters only
Nominal heat output	P_nom	2.4 kW	manual heat charge		control, with integrated thermostat	[yes/no]
Minimum heat output (indicative)	P_min	0.4 kW	manual heat charge		control with room and / or outdoor temperature feedback	[yes/no]
Maximum continuous heat output	P_max,c 2.4 kW electronic heat charge control with room and / or outdoor temperature feedback				room and / or outdoor temperature feedback	[yes/no]
Auxiliary electricity consumption					fan assisted heat output [yes/no]	—
At nominal heat output	e|_max	2.4 kW			Type of heat output /room temperature control
At minimum heat output	e|_min	0.4 kW	single stage heat output and no room temperature control			[yes/no]
In standby mode el	SB	N/A kW	Two or more manual stages, no room temperature control			[yes/no]
					with mechanic thermostat room temperature control	[yes/no]
					with electronic room temperature control	[yes/no]
					electronic room temperature control plus day timer	[yes/no]
					electronic room temperature control plus week timer	[yes/no]
					Other control options
					room temperature control, with presence detection	[yes/no]
					room temperature control, with open window detection	[yes/no]
					with distance control option	[yes/no]
					with adaptive start control	[yes/no]
					with working time limitation	[yes/no]
					with black bulb sensor	[yes/no]

Contact details

see back side of instruction manual

WAARSCHUWING! LEVENSGEVAAR EN GEVAAR VOOR

ONGEVALLEN VOOR

WAARSCHUWING! BRANDGEVAAR!

● Montage (afb. A–C)

● Montering (fig. A–C)

Anbring produktet med undersiden opad på en ren, ridsefast overflade, således at holderen til netkablet 7 er over temperaturregulatoren 3 (se fig. A).

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA
