Product Type	Cordless Electric Kettle
Brand	SilverCrest
Model	SWKC 2400 B2
Capacity	1.7 liters
Power	2400 W
Supply Voltage	220-240 V ~ 50/60 Hz
Dimensions (H x W x D)	24.5 x 22.0 x 15.5 cm
Weight	0.85 kg
Material	Stainless steel and BPA-free plastic
Color	Silver / Black
Swivel Base	Yes, 360° rotation
Auto Shut-off	Yes, after boiling
Overheat Protection	Yes
Dry Boil Protection	Yes
Water Level Indicator	Yes, graduated on both sides
Descaling Filter	Yes, removable nylon filter
Lid Opening	Wide opening with push button
Handle	Ergonomic, non-slip
Cord Length	Approx. 70 cm
Care and Cleaning	Descale regularly with vinegar or citric acid
Spare Parts and Repairability	Parts available via SilverCrest after-sales service
Safety	Double safety: auto shut-off and overheat protection

Frequently Asked Questions - SWKC 2400 B2 SILVERCREST

How to descale the SilverCrest SWKC 2400 B2 kettle?

Use a mixture of white vinegar and water (1:2) or citric acid. Boil, let sit for 15 minutes, then rinse thoroughly.

What is the capacity of the kettle?

The kettle has a capacity of 1.7 liters, ideal for 6 to 7 cups.

What is the power of the kettle?

The power is 2400 watts, allowing rapid boiling.

Does the kettle shut off automatically?

Yes, it shuts off automatically as soon as the water boils. It also has dry boil protection.

Can I boil other liquids besides water?

It is not recommended to boil milk or sugary drinks as this may damage the appliance and void the warranty.

What is the warranty on the SilverCrest kettle?

The warranty is generally 3 years. Keep the receipt and manual for any claims.

How to clean the descaling filter?

Remove the filter and wash it in warm water with a soft brush. You can also soak it in vinegar to dissolve limescale.

The kettle makes noise when heating, is this normal?

Yes, a slight noise is normal due to boiling. If the noise is loud or unusual, check for limescale.

How long does it take to boil one liter of water?

About 3 minutes for one liter, thanks to the 2400 W power.

Can I use the kettle without its base?

No, the kettle must be placed on its base to operate. The 360° swivel base allows you to place it in any direction.

USER MANUAL SWKC 2400 B2 SILVERCREST

Black and silver digital water heater with handle and spout (no visible text or symbols)

WASSERKOCHER SWKH 3100 A1 KETTLE SWKH 3100 A1 BOUILLOIRE SWKH 3100 A1

DE AT

WASSERKOCHER

Operating instructions and safety instructions

NL BE

WATERKOKER

Hondleiding en verzigheidlaanwizingen

(2)

RYCHLOVARNÁ KONVICE

3.2.2017, 12:45, 12:46, 12:47, 12:48, 12:49, 12:50, 12:51, 12:52, 12:53, 12:54, 12:55, 12:56, 12:57, 12:58, 12:59, 12:60, 12:61, 12:62, 12:63, 12:64, 12:65, 12:66, 12:67, 12:68, 12:69, 12:70, 12:71, 12:72, 12:73, 12:74, 12:75, 12:76, 12:77, 12:78, 12:79, 12:80, 12:81, 12:82, 12:83, 12:84, 12:85, 12:86, 12:87, 12:88, 12:89, 12:90, 12:91, 12:92, 12:93, 12:94, 12:95, 12:96, 12:97, 12:98, 12:99, 13.00

IAN 385529_2107

IAN 385529_2107

DE BL NL

R0 02 3K

Deutsch 2

English....21

Français....39

Nederlands....61

Polski 80

Česky....100

Slovenčina 118

Español 136

Dansk....155

Italiano 172

Magyar....191

Slovenščina....210

Inhaltsverzeichnis

Close-up of a mechanical component with a lid and internal structure, labeled with number 9 (no text or symbols on the object itself)

https://www.targa.gmbh/downloads/conformity/385529_2107.pdf

1. Intended use ......22
2. Package contents ......23
3. Technical data ....24
4. Safety instructions....24
5. Copyright ....30
6. Before initial use ....30
7. Initial use....30
   7.1 Boiling the water....30
8. Maintenance/cleaning....32
   8.1 Descaling the kettle (8)....33
   8.2 Cleaning the limescale filter (9)....33
   8.3 Storing the device when not in use 34
9. Troubleshooting ....34
10. Environmental and waste disposal information....34
11. Marks of conformity....36
12. Warranty information ....37

Congratulations!

By purchasing the SilverCrest SWKH 3100 A1 kettle, hereinafter referred to as kettle, you have opted for a high-quality product.

Familiarise yourself with the kettle before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the kettle in the manner described in this operating manual and for the indicated fields of application.

Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the kettle to a third party.

1. Intended use

This kettle is a household device and is only intended for heating water. It must not be used outside of closed rooms or in regions with a tropical climate. The kettle is not intended for business or commercial use. Use the kettle solely for private purposes in living areas; any other use is deemed improper. The kettle meets the requirements of all relevant standards related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the kettle without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result. Only use the accessories provided by the manufacturer.

Please observe the national regulations and/or laws in the respective country of use.

2. Package contents

Unpack the kettle (8) and all accessories. Remove all packaging materials and check all of the components for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.

• SilverCrest SWKH 3100 A1 kettle
- Base
• These operating instructions

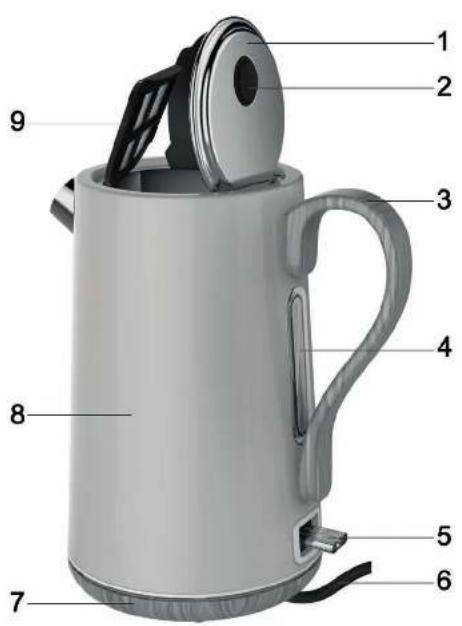

This operating manual also has a cover that can be unfolded. The inside of the cover provides a numbered schematic of the SilverCrest SWKH 3100 A1 kettle and all controls. This cover page can remain unfolded while you read other sections of the operating instructions. This provides you with a reference to the controls at all times. The numbers identify the following parts/functions:

1	Lid
2	Lid release button
3	Handle
4	Water level gauge
5	ON/OFF switch
6	Power cable
7	Base (with integrated cable rewind)
8	Kettle
9	Limescale filter

3. Technical data

Manufacturer TARGA GmbH
Designation SilverCrest SWKH 3100 A1
Power supply	220-240 V~, 50/60 Hz
Power consumption 2600 - 3100 W
Length of power cable (6) 75 cm
Capacity 0.5 (minimum) to 1.7 (maximum) litres
Display indicators	Status display in ON/OFF switch (5) when the kettle (8) is switched on
Protection class	I
Dimensions (H x W x D) approx. 225 x 153 x 255 mm (overall)
Weight approx. 1,050 g (overall)

The specifications and design are subject to change without notice.

4. Safety instructions

Before using the device for the first time, please read the following instructions carefully and observe all warnings, even if you are familiar with using electronic and household devices. Keep this operating manual in a safe place for future reference. If you give the device away or sell it, please ensure that you also pass on this operating manual. It is part of the device.

Key to symbols

DANGER! This symbol, together with the word 'Danger', indicates an impending dangerous situation which, if not prevented, can lead to serious injuries or even death.

WARNING! This symbol indicates important information for the safe operation of the kettle and user safety.

DANGER! This symbol indicates risks to health and/or property posed by an electric shock, potentially including a risk of death.

DANGER! This symbol indicates health hazards due to burns.

This symbol indicates that under no circumstances may the kettle (8) and the base (7) be immersed in water.

A high-quality controller from the company OTTER is installed in this kettle.

This symbol indicates products whose physical and chemical composition have been tested and found to be safe for use in contact with foodstuffs in accordance with Regulation EC 1935/2004.

This symbol indicates further useful information on the topic concerned.

ON/OFF

Foreseeable misuse

• Only use the kettle as intended. Misuse of the device may result in injury.
• Only heat the kettle (8) with the base (7) developed for this purpose. Do not under any circumstances place it on a hob to heat it and do not use the base of any other kettle.
• Do not use the kettle (8) for other liquids; only use it for drinking water.

- Always use fresh drinking water. Do not drink water that has been in the kettle (8) for longer than an hour. Do not reheat water that has cooled down. Always pour away old water. Otherwise germs may form.

The kettle should not be operated with an external timer or a separate remote control system.

Personal safety

• This device may be used by children aged eight and over and by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, provided that they are supervised or have been instructed in the safe use of the device and understand the resulting dangers.
  • Children must not play with the device.
• Children must not clean or carry out maintenance on the kettle unless they are over eight years of age and supervised by an adult.
• Children under eight years of age are to be kept away from the device and the power cord (6).

DANGER! The packaging material is not a toy. Children must not play with the plastic bags. There is a risk of suffocation.

Store the device out of reach of children.

General safety instructions

Risk of injury

- Only use the kettle as intended. Misuse of the device may result in injury.

DANGER of burns

- Never touch the housing of the kettle (8) during and immediately after operation. Only use the handle (3) to hold or carry the kettle (8). - Hot steam is released when the water boils. Be careful not to burn yourself. Wear an oven glove, if necessary. Turn kettle (8) so that the steam is directed away from you.

- Only clean the kettle (8) once it has cooled down completely.

- Fill the kettle (8) with a maximum of 1.7 litres of water. Refer to the water level gauge (4). If you pour in too much water, it can boil over and cause burn injuries and damage to property.

- Only boil the water with the lid (1) closed. Otherwise water can escape and cause burn injuries and damage to property.

- Do not open the lid (1) while the water is being heated.

- The surface of the heating element will still be hot after use.

WARNING - potential damage to property

- Only use the kettle (8) with the corresponding base (7).

- Do not put any objects on the base (7).

- Only operate the kettle on a flat, stable and fire-proof surface. If the kettle is not placed on a level surface, it can tip over due to the movement of the boiling water and cause damage to property and under certain circumstances may also cause burn injuries.

- Never leave the kettle unattended when in use.

- Unplug the plug from the socket when the kettle is unattended.

DANGER of electric shock

• If the device's power cable is damaged, it must be replaced by the manufacturer, their service department or by a similarly qualified person in order to prevent any hazards.
• Never open the housing of the base (7), as this does not contain any parts to be maintained. If the housing is open, there is a risk of electric shock.
• If you notice any smoke, unusual noises or smells, switch off the kettle immediately and remove the plug from the socket. If this happens, you must stop using the kettle until it has been checked by a specialist. If the device catches fire, do not inhale any resulting smoke. If you do inhale any smoke, seek medical attention. Smoke inhalation can be harmful to your health.
• Ensure that the power cord (6) cannot be damaged by sharp edges or hot surfaces. Always wrap the power cord (6) around the cable rewind under the base (7) after use.
• Ensure that the power cord (6) is not jammed or squashed.
• The device must always be disconnected from the mains network if left unattended, prior to assembly and disassembly or cleaning.
• Never remove the plug from the power socket by pulling the power cord (6); only ever pull the plug.

- If you find visible damage on the kettle or the power cord (6), switch off the device immediately, remove the plug from the power socket and contact the service department (see 'Warranty information' section).

- Only plug the base (7) into a power socket that is properly installed and easily accessible and whose mains voltage corresponds with the rating plate specifications. The user does not have to do anything to switch the product between 50 and 60 Hz. The product is suitable for both 50 and 60 Hz supplies. Once the device is plugged in, the power socket must be kept easily accessible so that the plug can be pulled out quickly in an emergency.

- Do not spill liquid on the plug for the device.

- Never immerse the base (7) in water or any other liquid. If liquid enters into the base (7), immediately remove the plug from the power socket and contact the service department (see 'Warranty information' section).

DANGER of fire

- Fill the kettle (8) with a minimum of 0.5 litres of water. If you do not pour in enough water, there is a risk of fire overheating.

- Keep the kettle at least 50 cm away from flammable and combustible materials. There is a risk of fire.

5. Copyright

All contents of this operating manual are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.

6. Before initial use

Remove the SWKH 3100 A1 kettle and all accessories from the packaging and check the completeness of the delivery. Remove the protective film. Keep the packaging material away from children and dispose of it in an environmentally-friendly manner.

7. Initial use

Before you prepare water for consumption for the first time, you must first clean the kettle (8) and the limescale filter (9) in order to remove dust and any remnants of the packaging material.

Proceed as follows to clean the kettle:

1. Open the lid (1) by pressing the lid release button (2) and remove the limescale filter (9). Rinse the inside of the kettle (8) with clear water and clean the limescale filter (9) under running water.
2. Fill the kettle (8) with drinking water up to the '1.7 | MAX' mark.
3. Close the lid (1) by pressing it down until it snaps into place. Boil the water once (see 'Boiling the water' section below) and pour it out.

Repeat steps 1–3. Reinstall the limescale filter (9). The kettle (8) is now clean. You can now use the kettle.

7.1 Boiling the water

DANGER of electric shock

Keep the base (7) away from water. There is danger of electric shock.

WARNING

Boil the water and pour it away twice before you use the kettle for the first time (see the previous section on 'Initial use').

WARNING

Always use fresh drinking water. Do not drink water that has been in the kettle (8) for longer than an hour. Do not reheat water that has cooled down. Always pour away old water. Otherwise germs may form.

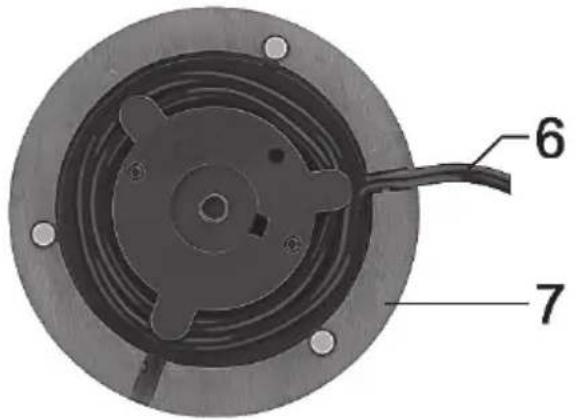

Cable rewind

An integrated cable rewind is located on the underside of the base (7). You can adapt the length of the power cable (6) to the conditions at the location in which you are using the kettle.

You can minimise the length of the cable when you are not using the kettle.

• Unwind the power cable (6) on the underside of the base (7).
- Place the base (7) on a flat, non-slip and dry surface. Make sure that the power cable (6) passes through one of the openings on the underside of the base (7). This is to ensure that the kettle is positioned securely.

WARNING

If the power cable (6) does not pass through one of the openings on the underside of the base (7), the base (7) and kettle (8) are not positioned securely. The movement of the boiling water can make the kettle tip over and cause serious damage to property and cause injuries!

- Open the lid (1) by pressing the lid release button (2).

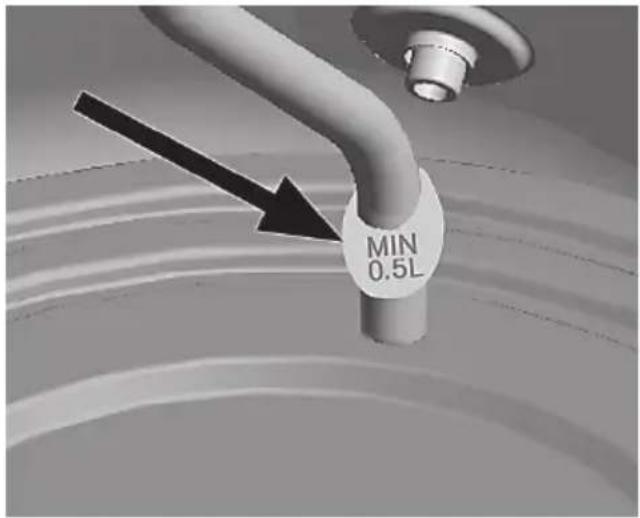

'Minimum filling' display

The minimum amount of water to be filled is 0.5 l. This small amount can not be displayed on the external water level gauge (4).

For this reason, there is a special mark inside the kettle (8) that precisely displays the minimum filling amount when you are filling in water. This mark can be seen inside the kettle (8) when the lid (1) is open.

- Fill the kettle (8) with drinking water up to a minimum of the interior '0.5 | MIN' mark and a maximum of the '1.7 | MAX' mark on the inside of the water level gauge (4) and shut the lid (1).

You can freely rotate the kettle (8) by 360^ around its vertical axis when you place it on the base (7). The kettle does not need to be locked into a particular position. This way, you can turn the kettle (8) so that the water level gauge (4) is easy to see or to direct the steam from the kettle (8) away from you.

- Plug the connector into a power socket, which is always easily accessible.

- Place the kettle (8) on the base (7) and press the ON/OFF switch (5) down in order to switch on the kettle (8). The status display in the ON/OFF switch (5) lights up. The kettle (8) makes noise during the heating process. This is not due to a malfunction.

DANGER of burns

Turn the kettle (8) so that the steam is directed away from you. Otherwise you could burn yourself.

Only boil water with the closed lid (1) on. Otherwise the kettle (8) can tip over and cause burn injuries and damage to property.

- As soon as the water boils, the kettle (8) switches off. The ON/OFF switch (5) automatically returns to the upper position and the status display in the ON/OFF switch (5) goes out.

- Pull out the power cable (6) plug from the socket, remove the kettle (8) from the base (7) and pour out the water.

DANGER of burns

Never touch the housing of the kettle (8) during and immediately after operation. Only use the handle (3) to hold or carry the kettle (8).

Hot steam is released when the water boils. Be careful not to burn yourself. Wear an oven glove, if necessary. Turn the kettle (8) so that the steam is directed away from you.

DANGER of burns

Always make sure that the lid (1) is shut when pouring out the water. Hot water could otherwise flow out of the opening at the top used to fill the kettle.

8. Maintenance/cleaning

DANGER of burns

Wait until the kettle (8) has cooled down completely before cleaning it. Otherwise you could burn yourself.

DANGER of electric shock

Always remove the plug from the power socket before cleaning commences. Otherwise, there is a risk of electric shock.

Do not pour or spray any liquids onto the base (7) or immerse it into water or any other liquids. Otherwise, there is a risk of electric shock and a fire hazard due to short circuits.

WARNING - potential damage to property

Do not use any scratching or abrasive cleaning agents or abrasive objects (such as a metal scourer) for cleaning purposes. Otherwise the kettle (8) may be damaged.

- Rinse the inside of the kettle (8) with clear water.

- Clean the outer surfaces of the kettle (8) or base (7) with a slightly damp cloth. Use some washing up-liquid on the damp cloth for stubborn stains. Make sure to remove any detergent residue from the kettle (8) and base (7) before using the kettle (8) again. Dry the kettle (8) and base (7) thoroughly before the next use.

You can use a cleaning or bottle brush with a long handle to remove stubborn stains from inside the kettle (8).

8.1 Descaling the kettle (8)

Limescale may build up in the kettle (8) over time. This can lead to loss of energy and shorten the kettles's (8) service life. You should therefore remove the limescale as soon as it becomes visible.

• Use a descaling agent that is used for coffee machines and other household devices. Proceed as described in the instructions for the descaling agent.
• Rinse the kettle (8) with plenty of clear water several times after descaling it.

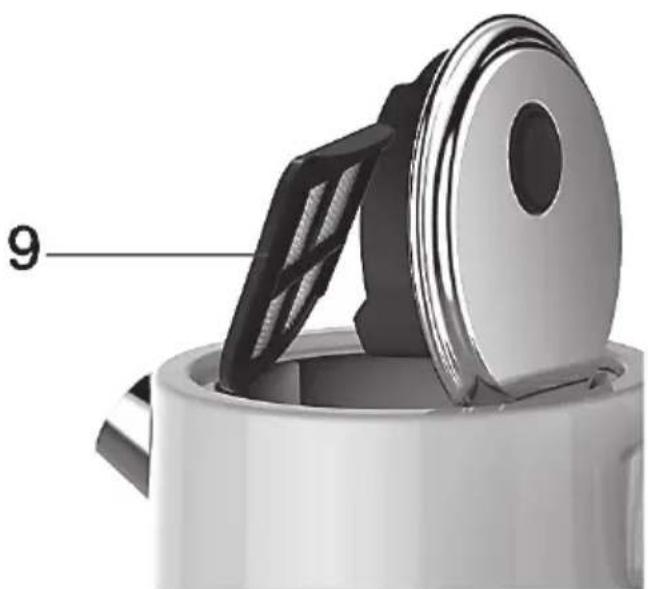

8.2 Cleaning the limescale filter (9)

A limescale filter (9) is installed in the kettle (8). You should clean the limescale filter from time to time. Proceed as follows to clean the limescale filter (9):

• Remove the cooled down kettle (8) from the base (7).

• Open the lid (1) by pressing the lid release button (2).

• Reach carefully into the kettle (8) with your hand, grasp the upper end of the limescale filter (9), and pull it up and out of the holder. Please note that the holder can not be removed.

• Place the limescale filter (9) in a warm descaling solution for household appliances (such as for coffee machines) for several hours and then rinse it thoroughly with clear water.
• Replace the limescale filter (9) by sliding it from above into the side guides of the holder.

- Close the lid (1) by pressing it down until it snaps into place.

Close-up of a mechanical component with a circular lid and internal structure, labeled with number 9 (no text or symbols on the object itself)

8.3 Storing the device when not in use

If the kettle will not be used for a longer period of time, store it in a clean and dry place.

• Let the kettle (8) cool down fully before you store it.
• Wrap the power cable (6) around the cable rewind under the base (7) and store the kettle in a safe, dust-free place.

9. Troubleshooting

If your kettle does not work as usual, use the following instructions to try and solve the problem. If working through the following tips does not eliminate the fault, please contact our hotline (see the 'Warranty information' section).

The kettle is not working

• The plug is not inserted. Insert the plug into the power socket.
• The power socket is faulty. Try the device in another power socket that definitely works.
• The kettle (8) is not switched on. Press the ON/OFF switch (5) down in order to switch on the kettle (8).
• The kettle (8) has overheated and the overheating protection is preventing the device from switching on. Wait until the kettle (8) has cooled down completely. Fill the kettle (8) with at least 0.5 litres of drinking water up to '0.5 | MIN' mark.

The ON/OFF switch (5) does not engage when switched on

- The kettle (8) is not properly placed on the base (7). Place the kettle (8) properly onto the base (7).

10. Environmental and waste disposal information

	Devices marked with this symbol are subject to the European Union Directive 2012/19/EU. Electrical and electronic devices may not be put in the household waste, but must be disposed of via designated public disposal centres. By properly disposing of the old device, you can avoid environmental damage and hazards to health. Further information regarding proper disposal of the old device can be obtained from your local authority or the shop where you purchased the device.
	Think about environmental protection. Used batteries do not belong in normal domestic waste. You must dispose of them at a collection point for old batteries. Please note that you should only dispose of batteries in collection containers for old batteries when they are fully discharged. If the batteries are not completely dead, you need to take precautionary measures before disposal to prevent short circuits.
	Make sure that the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device will be collected by your local waste management company and disposed of in an environmentally friendly manner.
ES/PT
	Relevant for France only:The product can be recycled, is subject to an extended producer responsibility and is collected separately.
	Please pay attention to the labels on packaging materials when you separate waste; these are marked with abbreviations (a) and numbers (b) that mean the following:1-7: Plastics/20-22: Paper and cardboard/80-98: Composite materials.
Symbol Material This product contains the followingpackaging components
	Polyethyleneterephthalate	-
	High-densitypolyethylene	-
	Polyvinyl chloride -
	Low-densitypolyethylene	Plastic bag within sales packaging
	Polypropylene	-
	Polystyrene	-
	Other plastics -
	Corrugated cardboard	Sales packaging and transport protection between base and kettle
	Other cardboard -
	Paper	-
	Paper/Cardboard/Plastics	-
	Paper/Cardboard/Plastics/Aluminium	-

11. Marks of conformity

CE

This product fulfils the requirements specified in the applicable European and national policies. This product's conformity has been verified. The declarations and documents are stored with the manufacturer.

A

This product fulfils the requirements specified in the applicable national policies for the Republic of Serbia.

UK CA

This product fulfils the requirements specified in the applicable national policies for the United Kingdom.

You can download the full EU declaration of conformity at the following link:

https://www.targa.gmbh/downloads/conformity/385529_2107.pdf

12. Warranty information

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

- Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.

- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.

- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 385529_2107

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

59494 Soest

GERMANY

Table des matières

3D rendering of a mechanical component with a lid and internal structure, labeled with number 9 (no text or symbols on the object itself)

Cher client, chère cliente,

Cher client, chère cliente,

3D rendering of a mechanical component with a labeled part '9' (no text or symbols on the object itself)

Two circular icons: a lightbulb with rays above and a circled I (no text or symbols)

NIEBEZPIECZEŃSTWO poparzenia

Close-up of a kitchen pot with a lid and lid removed, showing internal structure (no text or symbols)

https://www.targa.gmbh/downloads/conformity/385529_2107.pdf

12. Gwarancja

Close-up of a mechanical component with a lid and internal structure, labeled with number 9 (no text or symbols on the object itself)

https://www.targa.gmbh/downloads/conformity/385529_2107.pdf

https://www.targa.gmbh/downloads/conformity/385529_2107.pdf

12. Záručné pokyny

Záruka spoločnosti TARGA GmbH

https://www.targa.gmbh/downloads/conformity/385529_2107.pdf

Close-up of a mechanical component with a lid and internal structure, labeled with number 9 (no text or symbols on the object itself)

Close-up of a mechanical component with a lid and internal structure, labeled with number 9 (no text or symbols on the object itself)

Áramütés VESZÉLYE

Close-up of a kitchen pot with a lid and lid removed, showing internal structure (no text or symbols)

https://www.targa.gmbh/downloads/conformity/385529_2107.pdf

3D rendering of a mechanical component with a labeled part '9' (no text or symbols on the object itself)

https://www.targa.gmbh/downloads/conformity/385529_2107.pdf
