Type	Wi-Fi outdoor day & night IP camera
Model	TVAC19100B
Brand	ABUS
Dimensions (H x W x L)	134 mm x 67 mm x 48 mm (without mount)
Weight	300 g
Power supply	5 V DC / 1.5 A (via included power supply unit with EU, AU, UK adapters)
Resolution	HD 720p (1280 x 720)
Image sensor	1 MP CMOS
Night vision	6 IR LEDs, range approx. 5 m
Protection class	IP66
Wireless standard	IEEE 802.11 b/g/n (2.4 GHz)
Wired network	Ethernet 10/100 Base-T via LAN adapter cable
Angle of view	Horizontal 50° ±3°, Vertical 30° ±3°
Minimum illumination	1 - 8 Lux
Video compression	H.264
Frame rate	Up to 20 fps (VGA) / 10 fps (720p)
Storage	microSD card (Class 10 recommended), ring storage
Operating temperature	-10 °C to 50 °C
App compatibility	iOS and Android (App2Cam)
Security	WPA/WPA2/WPA2-PSK, admin password (default: 123456), security code (default: 123456)
Mounting	Wall or ceiling mount, adjustable 90° swivel
Maintenance	Clean with damp cloth; no user-serviceable parts inside

Frequently Asked Questions - TVAC19100B ABUS

How do I reset the camera to factory settings?

Press and hold the Reset button for 5 seconds until the red LED starts flashing. This restores the default admin password (123456) and security code (123456).

Why is my camera not found during setup?

Check that: 1) Your network supports DHCP. 2) Your mobile device and camera are on the same network. 3) The router and camera have power. 4) Try adding the camera manually by entering the DID and security code.

What should I do if my Wi-Fi network is not listed in the app?

Ensure the router's SSID is visible. Change the encryption type to WPA/WPA2/WPA2-PSK.

Why is no picture displayed?

Verify the camera is powered on, connected to the network, and correctly configured. Also ensure your mobile device is on the same network or using 3G/4G.

How can I improve poor picture quality or low signal?

Increase distance from other Wi-Fi devices to reduce interference. Clean the camera lens if dirty.

Why does the camera not record when motion is detected?

Check that: 1) A microSD card (Class 10) is inserted and formatted. 2) Motion detection is enabled in the app. 3) The SD card is properly formatted before first use.

What causes white patches on the image at night?

The IR LEDs reflect off glass surfaces. Avoid positioning the camera in front of windows or glass doors.

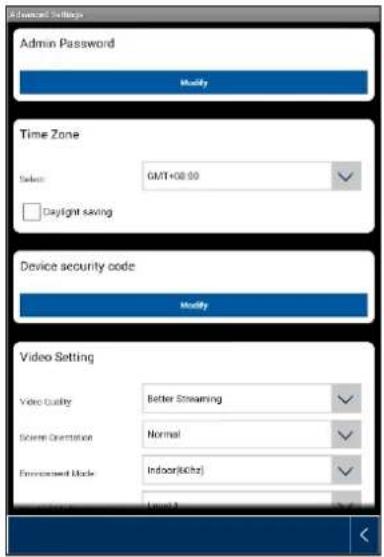

How do I change the admin password?

Go to Settings > General settings > Admin password in the app. Enter the current password (default: 123456) and set a new one. It is recommended to change it during initial installation.

Can I use the camera without a Wi-Fi connection?

Yes, you can connect via Ethernet using the included LAN adapter cable. The camera will work as a wired IP camera.

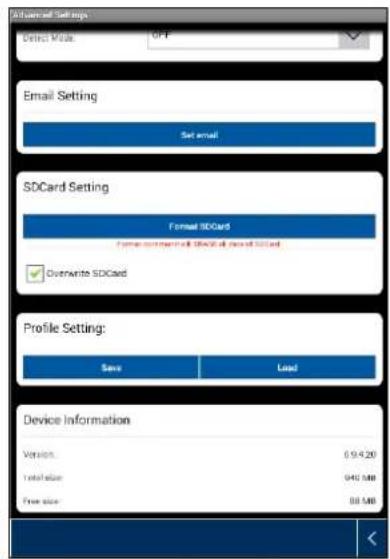

How do I format the SD card in the camera?

In the app, go to Settings > Other settings > SD card settings > Format SD card. Note that formatting deletes all data, so back up important files first.

USER MANUAL TVAC19100B ABUS

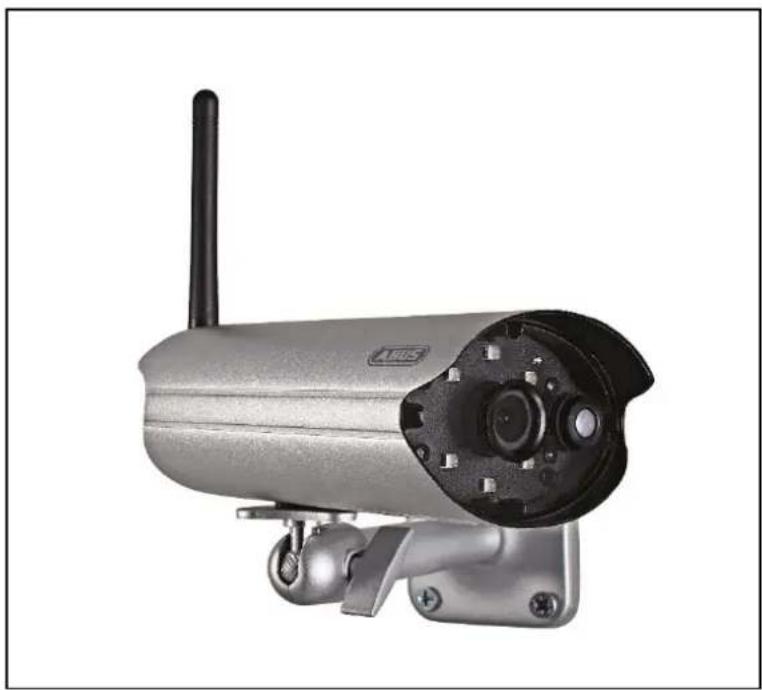

Exterior view of a silver security camera with visible lens and antenna (no text or symbols)

GB User guide
DK Betjeningsvejledning
PL Instrukcja obsługi
E Manual de instrucciones
s Bruksanvisning
Инструкция по эксплуатации

This user guide contains important information on starting operation and using the device. Make sure that this user guide is handed over when the product is given to other persons. Keep this user guide to consult later.

For a list of contents with the corresponding page numbers, see page 7.

Dansk

Exterior view of a silver security camera with antenna and control panel (no visible text or symbols)

User manual

Important information and FAQs about this product and other products can be found on the website

www.abus.com/eng/Self-installed-security

Introduction

Dear Customer,

Thank you for purchasing this product.

ABUS Security-Center hereby declares that this type of wireless system TVAC19100B, complies with RED Directive 2014/53/EU. Additionally, this device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/TVAC19100B

To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe this user manual.

Read the entire user manual carefully before putting the product into operation, and pay attention to all operating instructions and safety information.

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

If you have any questions, please contact your specialist installation contractor or specialist dealer.

Data storage is subject to national data privacy guidelines.

Warning as required by §201 StGB (German Criminal Code):

Whosoever unlawfully makes an audio recording of the privately spoken words of another; or uses, or makes a recording thus produced accessible to a third party, shall be liable to imprisonment or a fine.

Whosoever unlawfully overhears with an eavesdropping device the privately spoken words of another not intended for his attention; or publicly communicates, verbatim or the essential content of, the privately spoken words of another, recorded or overheard, shall incur the same penalty.

Disclaimer

This user guide has been produced with the greatest of care. Should you discover any missing information or inaccuracies, please contact us under the address shown on the back of the manual. ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user guide at any time and without prior warning.

ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No forms of guarantee are accepted for the contents of this document.

Explanation of symbols

	The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock).
	The triangular warning symbol indicates important notes in this user manual which must be observed.
	This symbol indicates special tips and notes on the operation of the unit.

Important safety information

	All guarantee claims are invalid in the event of damage caused by non-compliance with this user manual. We cannot be held liable for resulting damage.
	In the event of material or personal damage caused by improper operation or non-compliance with the safety information, we cannot be held liable. All guarantee claims are void in such cases.

This device has been manufactured in accordance with international safety standards.

Please read the following safety information carefully.

Safety information

1. Power supply

Only operate this camera through a power source which supplies the mains voltage specified on the type plate. If you are unsure of the installation location's power supply, contact your power supply company. Disconnect the device from the mains power supply before carrying out maintenance or installation work.

2. Overloading

Avoid overloading electrical sockets, extension cables, and adapters, as this can result in fires or electric shocks.

3. Cleaning

Only use a damp cloth to clean the camera. Do not use corrosive cleaning materials. Disconnect the device from the power supply before cleaning.

4. Ventilation

The camera's ventilation openings must not be covered or obstructed. Ensure that no objects penetrate the device, e.g. through the ventilation openings.

5. Accessories

Only connect devices expressly designed for use with the camera. Otherwise hazardous situations or damage to the device may result.

6. Installation location

This device can be used in inside as well as outside. Do not place the camera in close proximity to heaters, ovens or other heat sources, or in direct sunlight. Only operate the device in locations with temperatures within a permissible ambient temperature range of -10^ to 50^ .

Warnings

Observe all safety and operating instructions before putting the device into operation for the first time.

1. Observe the following information to avoid damage to the power cable and plug:

2. Do not modify or manipulate the power cable or plug.

3. Do not pull the cable when disconnecting the device from the power – always take hold of the plug.

4. Ensure that the power cable is positioned as far away as possible from any heating equipment, to avoid melting the plastic coating.

5. Follow these instructions. Non-compliance with these instructions could lead to an electric shock:

6. Never open the housing or power supply unit.

7. Do not insert any metallic or flammable objects into the device.

8. Use surge protection to prevent damage caused by overvoltage (e.g. in electrical storms).

9. Disconnect defective devices from the power supply immediately and contact your specialist dealer.

If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the power supply system or domestic installation puts both you and other persons at risk.

Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as the result of a malfunction.

Avoid the following adverse conditions during operation:

• moisture or excess humidity
  • temperatures outside of the permissible range
• direct sunlight
• dust or flammable gases, vapors or solvents
  • strong vibrations
  • strong magnetic fields (e.g. next to machines or loudspeakers)

Unpacking the device

Handle the device with extreme care when unpacking it.

If the original packaging has been damaged, you must start by inspecting the device. If the device shows signs of damage, return it in the original packaging and inform the delivery service.

Contents

1. Intended use 8
2. Scope of delivery 8
3. Features and functions 8
4. Device description....9

4.1. Overview....9
4.2. Camera description 9

1. Installation....10
2. Operation and configuration via app....12
3. Maintenance and cleaning....23

7.1. Maintenance 23
7.2. Cleaning.... 23

1. Disposal 23
2. Tips for troubleshooting 24
3. Technical data....25

1. Intended use

The day & night PnP IP camera enables high-quality monitoring. This camera is designed for indoor or outdoor installation. The built-in infrared LEDs enable day and night monitoring of object distances up to a maximum of ten meters away.

Since the camera features protection class IP66, it can be used both indoors and outdoors.

The camera is easy to configure and operate using the app, meaning that it can be accessed anywhere in the world.

For a detailed functional description, see Chapter "3. Features and functions".

2. Scope of delivery

Technical line drawing of a mechanical component with no visible text or symbols

Wi-Fi outdoor camera & app

Technical line drawings of electrical connectors and terminal blocks (no text or symbols)

Power supply unit including EU, Australian and
UK adapters
5 V DC/1.5 A

Pure electrical circuit lines without any symbols

LAN adapter cable Camera mount including mounting material

Antenna

3. Features and functions

• for effective all-round monitoring of interior spaces
- compact IP66 outdoor camera with infrared night vision function
• guided step-by-step installation via app (iOS, Android)
• HD 720p resolution and infrared night vision function for brilliant image quality
• recording on microSD card

4. Device description

4.1. Overview

Item number TVAC19100B
Resolution 720p
IR LEDs	√
IR swivel filter (ICR)	√
Operational voltage 5 V DC

4.2. Camera description

Front:

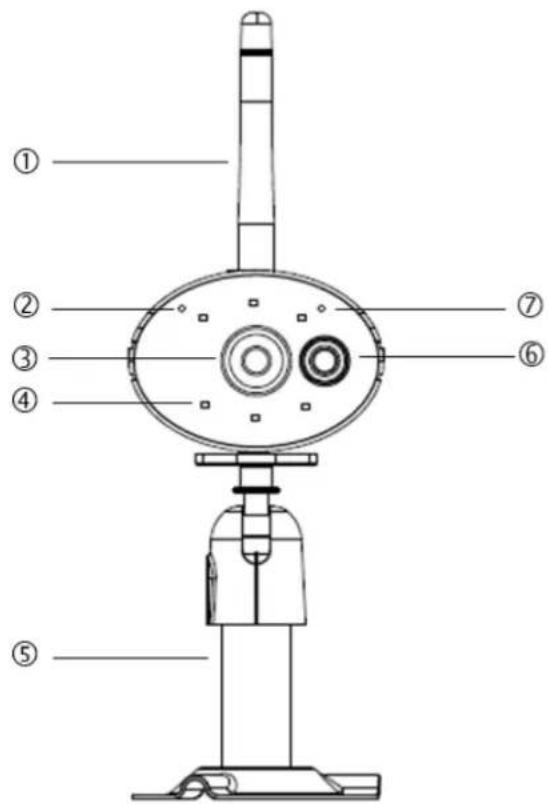

1	Antenna
2	Power LED
3	Fixed lens
4	IR LED
5	Camera mount
6	PIR sensor
7	Status LED

Description of the LED(s)

LED Status Meaning
Status LED	Flashing	Camera in AP mode, camera connected to WLAN
	Rapid flashing 4x/s (green)	Reset
	Off Camera is not connected to WLAN
Power LED	On	Camera on
	Flashing (red) Reset
	Off Camera off

Rear:

5. Installation

Using the camera mount, select a suitable installation site. Mark the drilling holes on the surface and drill the holes. First, insert the supplied screw anchors and attach the mount using the screws.

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

You can swivel the mount by up to 90° to select the desired position. First, loosen the screw at the side and adjust the camera to the desired angle of view. Next, tighten the screw to fix the camera in the desired position.

Then screw the camera onto the mount and connect the power supply unit to the camera.

Technical line drawing of a mechanical device with labeled parts (b and c), no readable text or symbols present.

Installation options:

Ceiling installation Wall installation

Technical line drawing of two mechanical assembly configurations with no visible text or symbols

6. Operation and configuration via app

The TVAC19100 Wi-Fi outdoor camera & app gives you the option of switching to live on the cameras and to configure the recorder. The app for this device can be found in the App Store under the name of "App2Cam".

To configure access to the camera, proceed as follows:

1	Set-up – preparation
		Download the "App2Cam" app and install it on your smartphone.Check that your smartphone or tablet is connected to the Internet.
		There are two ways to connect the camera to the network:Option 1:(Wireless set-up)Connect the enclosed power supply unit to the camera.⚠!Do not start to set up the camera until both LEDs light up. This may take around 60 seconds.Option 2:(Wired set-up)Connect the LAN adapter cable provided to the camera. Connect the cable to your router in the next step.Then connect the enclosed power supply unit.⚠!Do not start to set up the camera until both LEDs light up. This may take around 60 seconds.

② Set-up – iOS app

Please note that the iOS app and the Android app require different setup processes. If you have an Android device, please refer to the set-up process described in ③.

Open the WLAN settings in your iOS device and connect to the camera's HD-XXXXXX network.

The camera's WLAN password is "12345678".

Launch the app and select the desired type of set-up.

Option 1: (Wireless set-up)

The camera is added automatically. Click on "Live view".

The app will now ask you to select the connection type for the camera.

WLAN

Select your WLAN network in the drop-down list, enter your WLAN key and click "OK".

Please wait 90 seconds for the camera to restart and connect to your WLAN network. Make sure your mobile device reconnects to your WLAN network.

AP mode

The camera remains in access point mode and can still be reached via this mode. To do this, connect to the camera's access point. The WLAN password for the camera is "12345678" and cannot be changed.

Installing several cameras using "wireless set-up" can lead to faults. Please install only one device at a time.

Option 2: (Wired set-up)

Give the camera an appropriate name.

For automatic registration of the DID, click "Search".

The DID of the camera which is currently connected to the router via a network cable is now displayed. Select to accept this DID. Alternatively, you can enter the DID manually.

Then enter the security code (standard: "123456") and add the camera by clicking "Save".

This camera is now locally accessible on your network. To connect the camera to a WLAN network, please go to menu option ⑫.

③ Set-up – Android app

Two white circular icons on a dark blue background: one with a sensor and signal waves, the other with a magnifying glass (no text or symbols)

Please note that the Android app and the iOS app require different setup processes. If you have an iOS device, please refer to the set-up process described in ②.

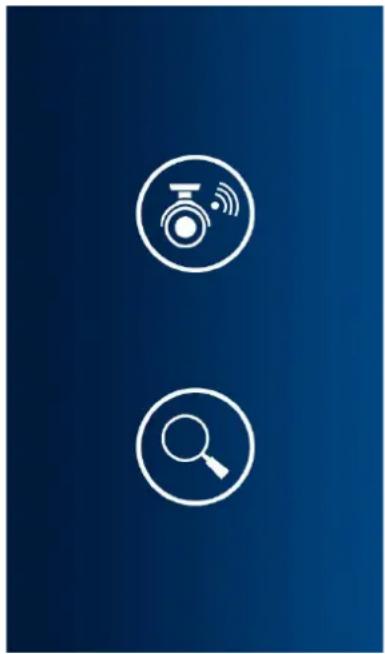

Launch the app on your smartphone or tablet and click "Add new camera".

Then select the desired type of set-up.

Option 1: (Wireless set-up)

The app will search for an available HD-XXXXXX network, transmitted by the camera, and will automatically connect your smartphone to it.

If connecting manually to the HD-XXXXXX network, use the WLAN password "12345678".

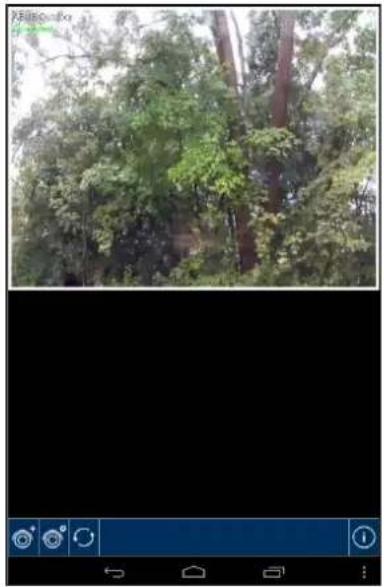

Once the search has been successfully completed, click on "Live view".

The app will now ask you to select the connection type for the camera.

WLAN

Select your WLAN network in the drop-down list, enter your WLAN key and click "OK".

Please wait 90 seconds for the camera to restart and connect to your WLAN network. Make sure your mobile device reconnects to your WLAN network.

		AP modeThe camera remains in access point mode and can still be reached via this mode. To do this, connect to the camera's access point. The WLAN password for the camera is "12345678" and cannot be changed.Installing several cameras using "wireless set-up" can lead to faults. Please install only one device at a time.Option 2: (Wired set-up) Give the camera an appropriate name.For automatic registration of the DID, click "Search".The DID of the camera which is currently connected to the router via a network cable is now displayed. Select to accept this DID. Alternatively, you can enter the DID manually.Then enter the security code (standard: "123456") and add the camera by clicking "Save".This camera is now locally accessible on your network. To connect the camera to a WLAN network, please go to menu option 12.
4	Connection status
		Once you have successfully added your camera, the name of your camera and the current connection status will appear in the overview. The image displayed is the last video image displayed during the previous session. You can add to up to eight cameras in the app.Tap your chosen camera and you will be taken to the live view.The first time you access the live view, the app will prompt you to change the security code. This is automatically applied to the camera's settings.System namee.g. TestConnection statusConnected = you are connected to your systemDisconnected = there is no connection to the system

Adding a camera

This lets you add another system.

Camera configuration

This will display the camera configurations.

Camera settings

Remove a camera

Access recordings on the SD card

Press

return to connection status.

Updating connection

The connection is being updated.

PIN code/Push settings/

Instructions/Firmware information

Here you can store a PIN code, activate or deactivate push notifications, view the instructions for your camera as a PDF or view the firmware version of the app.

⑤ Store PIN code

To store a PIN code for this app, proceed as follows:

Open "Set PIN lock" in

Enter a four-digit PIN code and then confirm it.

Tick "Activate lock on startup".

If you have stored a PIN code, you will be asked to enter it as soon as you open the app.

⑥

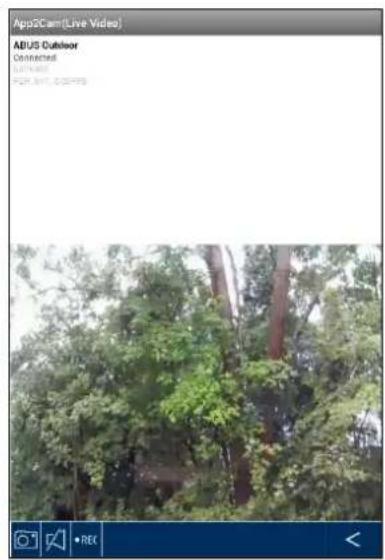

Live view

Select the desired camera from the drop-down menu. You will now see the live image from the camera. The image is displayed in 4:3 mode; to display a 16:9 format, rotate your mobile device by 90°.

Snapshot

This lets you take a screenshot of your live image. The image is then saved in your photo gallery on your mobile device.

The saved images are time-stamped and saved in the photo gallery.

Audio

This lets you activate or deactivate audio.

Start recording

This lets you start recording manually on the SD card. The recording time is one minute and cannot be cut short. The ● icon appears during recording.

Back

This takes you back to the camera overview. You are always shown the last screenshot.

⑦
Settings

Here you can change the camera settings. Email notifications can also be activated or deactivated.

Email notification

Activating email notification in the event that motion is detected.

Please note that outdoor video surveillance can give rise to false alarms.

Click "Advanced settings" to start the configuration.

To access the settings you will need to enter the admin password (standard: "123456").

General settings

Once you have accessed the settings you will be able to configure the camera.

Admin password

The admin password gives access to the camera settings. The standard admin password is "123456".

To protect your camera from unauthorized access, change this password during initial installation.

If you have forgotten your password, you can restore factory settings on the camera by pressing the Reset button for five seconds. The red LED will start to flash.

Time zone

Global time zones are listed in the drop-down menu. Select the time zone in which the camera is being installed. If the time zone in question uses daylight saving time, activate daylight saving time.

Daylight saving time

Activate/deactivate daylight saving time.

Device security code

The security code enables the camera to be set up in the app. The standard security code is "123456".

During initial installation you will always be prompted to change this security code.

If you have forgotten your security code, you can restore factory settings on the camera by pressing the Reset button for five seconds.

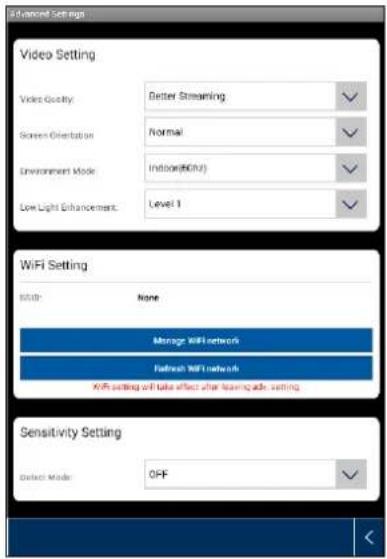

Video settings

The video settings allow you to change the video quality and ambient conditions for the camera.

Video quality:

The video quality setting allows you to select the quality of video streaming.

Better streaming:

The video is displayed more smoothly.

Better image:

The video image is displayed in higher resolution.

HD video:

The video image is transmitted in HD resolution. However, there may be delays in the image display as a result of the large volume of data.

Only use the "Better image/HD video" setting if you have sufficient bandwidth (1 Mbps) and adequate system requirements, and please be aware that the different transmission technologies used for audio and video may result in asynchronous transmission due to varying network usage.

Image orientation

Here you can rotate or flip the image.

Tilt:

The image is rotated by 180 degrees.

Flip:

The image is flipped.

Tilt & flip:

The image is rotated by 180 degrees and flipped.

Ambient conditions

Here you can select the power frequency inside (50 Hz), inside (60 Hz) and outside.

Standard value for Germany: 50 Hz

Adjustment to poor light conditions

Adjusting the video image for poor light conditions in night mode. There are five levels to choose from, with Level 5 being the brightest.

⑩

WiFi settings

WiFi settings

In the WiFi settings you can select the desired network with which the camera should be used for Internet access.

When the menu item is selected, all the networks within range will be displayed. Choose your network and enter your own WiFi password.

To prevent access by unauthorized persons, protect your network using encryption with WPA/ WPA2/ WPA2-PSK.

After the settings have been saved, restart the camera. Please do not forget to remove the Ethernet adapter cable (if it is used during initial installation).

If no connection has been established or if you have entered the WiFi details incorrectly, press the Reset button for five seconds to restore factory settings to the camera.

⑪

Motion detection

The settings for motion detection are necessary for notification via email or push notification and for motion-controlled recording.

Detection mode

Here you can select which mode should be used for notifications.

You have a choice between "Off", "PIR" and "Software".

Off:

No notification/recording if motion is detected.

PIR:

Motion detection is performed by the camera's PIR sensor

Software:

Motion detection is performed by the camera software.

Here you can define different motion detection sensitivities for day and night-time. The higher the sensitivity, the less motion is needed in the image to trigger motion detection.

⑫
Email settings

Email settings

The email settings are required for the sending of notifications.

Using SSL:

Activate the checkbox to send the email with encryption. Your email provider can provide you with the necessary settings.

SMTP server:

Enter the SMTP server address here.

E.g. smtp.test.com

SMTP port:

Enter the SMTP port here.

E.g. 465

User name:

Enter the sender's email address here.

E.g. [e-mail]

Password:

Enter the password for the sender's email address here.

Recipient:

Enter the recipient's email address here.

E.g. [e-mail]

We recommend that you use Googlemail for sending emails.

⑬
Other settings

SD card settings

Format SD card

For formatting your SD card. If you plan to use the SD card long-term, please use a Class 10 SD card.

When the SD card is formatted, all data will be deleted. Please back up your data before formatting.

Activate ring storage

When this function is activated, the oldest recordings are overwritten by newer ones as soon as the SD card is full.

Profile settings

This function allows you to save the settings for one camera and copy them to the next camera by loading the profile.

14
Playback

Access to recordings

Here you can view recordings for the chosen camera on your smartphone. Select the desired recording and playback will begin straight away.

Press pause the recording. To return to the event list, press the button.

Using 📁 you can activate or deactivate audio.

To save a file on your smartphone, press and hold the recording and a confirmation window will appear.

The live view and the recording function will be unavailable during the download. If other users attempt to access the camera, the session will be rejected.

Deleting recordings

Select "Delete all" to delete the entire event list. A new window will appear. You will be asked whether you are sure you want to delete all events. If you do want to delete the event list, confirm this by pressing "Yes" or cancel by pressing "No".

To delete an individual file, select "Delete", then click on the desired file and confirm the process.

Filtering the event list

It is possible to filter recordings according to specific criteria. To do this, press "Search" or the 🔒 symbol.

A window will appear with various search options. You can search by start and end date and by start and end time.

Click "Search" to display the desired events.

7. Maintenance and cleaning

7.1. Maintenance

Regularly check the technical safety of the product, e.g. check the housing for damage.

If it seems that it may no longer be possible to operate the product safely, stop using it and secure it to prevent unintentional use.

It is likely that safe operation is no longer possible in the event that:

• the device shows signs of visible damage
• the device no longer works correctly.

Please note:

You do not need to perform any maintenance on the product. You do not need to check or service any of the components inside the product. Never open it.

7.2. Cleaning

Clean the product with a clean, dry cloth. The cloth can be dampened with lukewarm water if there is dirt that is hard to remove.

Do not allow any liquids to enter the device.

Do not use any chemical cleaning products as they could damage the surface of the housing and screen (discoloration).

8. Disposal

Please note: EU Directive 2011/65/EU regulates the proper return, treatment and recycling of used electronic devices. This symbol means that, in the interest of environmental protection, the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable legal guidelines. Used devices can be disposed of at the appropriate official recycling centers in your country. Obey local regulations when disposing of material. Further details on returns (including for non-European countries) can be obtained from your local authority. Separate collection and recycling conserves natural resources and ensures that all the provisions for protecting health and the environment are observed when recycling the product.

9. Tips for troubleshooting

No.	Questions	Answers
1	The camera has not been found.	Check the following points:1. Make sure that your network supports DHCP.2. Are the mobile device and the camera in the same network?Make sure that both devices are in the same network at the initial configuration.3. The router has no power supply.4. The camera has no power supply.5. Try to add the camera by entering the data manually.
2	Your Wi-Fi is not shown in the selection list in the camera app.	If your personal Wi-Fi is not shown in the selection list, check the following:1. Make sure that the SSID of your router is visible.2. Change the encryption type of your router to WPA/WPA2/WPA2-PSK.
3	No picture is displayed.	Check the following points:1. Is the camera plugged in and switched on? Make sure that the power supply unit is not defective and that the power supply is connected.2. Is the camera installed in the surrounding area of the the network?3. Make sure that the camera is correctly configured.4. Make sure that your mobile end device is in the network or in the 3G network.
4	Low network signal or poor picture quality	Possible reasons are:1. Wi-Fi network devices can impair the signal transmission.Make sure there is enough distance between the camera and other Wi-Fi devices.2. Remove any dirt from the camera. This can badly affect the picture quality.
5	What could be the reasons why the device does not record when there is movement?	Possible reasons are:1. Is the SD card inserted properly?2. Is the motion detection activated?3. Format the SD card before using for the first time.4. Make sure that you use a Class 10 SD card.
6	The camera picture is obscured (white patches on the image).	The camera is equipped with IR LEDs for the night mode. The IR light is reflected on surfaces, such as glass. Do not position the camera in front of glass surfaces and ensure that it is installed in protected outdoor areas.
7	What could be the reasons for an SD card fault?	Please check the following:1. Make sure that the SD card was inserted and formatted correctly. Save important data before the formatting, as afterwards it will be no longer available.2. Make sure that you only use one Class 10 SD card.
8	The display for the time and date is not correct.	Possible reasons are:1. Are the date and time settings on your mobile end device correct?2. Is the correct time zone selected?3. The system takes the time from the internet as soon as it is connected. Make sure that the camera is connected to the internet.

10. Technical data

Model number TVAC19100B
Wireless standard	IEEE 802.11 b/g/n (2,4 Ghz)
RF power level	IEEE 802.11b: 17-18dBm; IEEE 802.11g: 14-15dBm; IEEE 802.11n: 14-15dBm
Network connection	Ethernet (10/100 Base-T/Base-TX); Wi-Fi
Network protocols	TCP/IP, UDP, SMTP, NTP, DHCP, ARP
Simultaneous users	3 simultaneous accesses
Security	WPA/WPA2/WPA2-PSK (TKIP, 128 bit AES)
Image sensor	MP CMOS
Focal length	2,8 mm
Angle of view	H: 50°±3° / V: 30°±3°
Antenna 3 dBi Dipol
Housing material Waterproof metal
Protection class	IP66
Lighting conditions adjustment	Indoor (50 Hz), indoor (60 Hz), outdoor
Minimum Illumination	1-8 Lux
Number of IR LEDs	6 IR Power LEDs
Range of night vision function	approx. 5 m
Image compression	H.264
Resolution	HD 1280 x 720 incl. audio
Frame rate	VGA @ 20 fps / VGA @ 25 fps / 720p @ 5 fps / 720p @ 10 fps
Recording	720p @ 5/ 10/ 20 fps (max.) incl. audio
Power supply	5 V DC/1.5 A
Operating temperature	-10 °C - 50 °C
Dimensions (H x W x L)	134 mm x 67 mm x 48 mm (without mount)
Weight	300 g

Storage capacity

Storage capacity	HD/Better image	Better streaming
4 GB	150 events/minutes	180 events/minutes
8 GB	300 events/minutes	360 events/minutes
16 GB	600 events/minutes	720 events/minutes
32 GB	1200 events/minutes	1440 events/minutes

TVAC19100B

Exterior view of a silver security camera with antenna and control panel (no visible text or symbols)

www.abus.com/eng/Self-installed-security

Indledning

Kære kunde

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

LAN-adapterkabel

Antenne

Technical line drawings of electronic components including a battery pack, two terminal blocks, and three terminal blocks (no text or symbols)

Strømforsyning inkl. EU-, AU- og UK-adapter 5 V DC/1,5 A

Kameraholder inkl. monteringsmateriale

1	Antenne
2	Power-LED
3	Fast objektiv
4	IR LED
5	Kameraholder
6	PIR-sensor
7	Status LED

Beskrivelse af LED/LED'er

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Technical line drawing of a mechanical device with labeled parts (b and c), no readable text or symbols present.

Monteringsmuligheder:

Loftmontering

Pure mechanical assembly diagram without any text, numbers, or symbols

Vægmontering

Simple line drawing of a mechanical linkage or support system (no text or symbols)

6. Betjening og konfiguration via app

Two white circular icons on a dark blue gradient background: one with a speaker symbol and signal waves, the other with a magnifying glass (no text or symbols)

Mulighed 2: (Kabelforbundet indstilling)

Two white circular icons on a dark blue gradient background: one with a sensor and signal waves, the other with a magnifying glass (no text or symbols)

Tilføj kamera

Exterior view of a silver security camera with antenna and mounting base (no visible text or symbols)

Instrukcja obsługi

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

Pure electrical circuit lines without any symbols

LAN-adapterkabel

Antenne

Technical line drawings of electronic components including a battery pack, two terminal blocks, and three batteries (no text or symbols)

Strømforsyning inkl. EU-, AU- og UK-adapter 5 V DC/1,5 A

Kameraholder inkl. monteringsmateriale

3. Cechy i funkcje

Technical line drawing of a screwdriver and tool assembly (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (b and c), no readable text or symbols present.

Możliwości montażu:

montaż sufitowy

Pure mechanical assembly diagram without any text, numbers, or symbols

montaż ścienny

Simple line drawing of a mechanical linkage or support structure (no text or symbols)

Two white circular icons with wireless signals and a magnifying glass symbol, set against a solid blue background (no text or labels)

Forest scene with tall trees and dense green foliage, no visible text or symbols

Dodaj kamerę

Forest scene with dense green trees and a person in the background (no visible text or symbols)

Exterior view of a silver ASIS security camera with visible sensor and antenna (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

Cable adaptador de LAN

Antena

Technical line drawings of electronic components including a battery pack and three terminal blocks (no text or symbols)

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Technical line drawing of a mechanical device with labeled parts (b and c), no readable text or symbols present.

Technical line drawing of two mechanical assembly configurations (no text or symbols)

Two white circular icons on a dark blue background: one with a sensor and signal waves, the other with a magnifying glass (no text or symbols)

Forest scene with tall trees and dense green foliage, no visible text or symbols

Añadir cámara

Exterior view of a silver ANSYS security camera with antenna and mounting base (no text or symbols visible)

Bruksanvisning

www.abus.com/eng/Self-installed-security

Inledning

Bästa kund!

Technical line drawing of a mechanical component with no visible text or symbols

WLAN-utomhuskamera & app

Pure electrical circuit lines without any symbols

LAN-adapterkabel

Antenn

Technical line drawings of electrical components including a battery, two terminal blocks, and three terminal blocks (no text or symbols)

1	Antenn
2	Power-lysdiod
3	Fast objektiv
4	IR-lysdiod
5	Kamerahållare
6	PIR-sensor
7	Statuslysdiod

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Technical line drawing of a mechanical device with labeled parts (b and c), no readable text or symbols present.

Technical line drawing of two mechanical assembly configurations with no visible text or symbols

Two white circular icons on a dark blue background: a sensor with signal waves and a magnifying glass (no text or symbols)

AP-läge

Forest scene with tall trees and a person standing in the background (no visible text or symbols)

Lägga till kamera

Exterior view of a silver security camera with visible lens and antenna (no text or symbols)

ABUS Security-Center hereby declares that this type of wireless system TVAC19100B, complies with RED Directive 2014/53/EU. Additionally, this device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/TVAC19100B

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawings of electrical components including a fuse, three terminal blocks, and a battery pack (no text or symbols)

Technical line drawing of a mechanical assembly with screwdriver and clamped components (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (b and c), no readable text or symbols present.

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a mechanical linkage or support structure (no text or symbols)

Добавить камеру

Доступ к записям

These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher.

The operating instructions reflect the current technical specifications at the time of print.

We reserve the right to change the technical or physical specifications.

DK Redaktionel note

© Copyright 04/2016 by ABUS Security-Center
