Type of product	Security Camera (Bullet)
Brand	ABUS
Model	TVAC18000B
Dimensions (W x H x D)	70 x 200 x 70 mm
Weight	500 g
Power supply	12V DC / PoE (Power over Ethernet)
Resolution	4K (3840 x 2160) at 30 fps
Night vision	IR LEDs up to 30 m range
Field of view	90° horizontal
Weatherproof rating	IP67
Connectivity	Ethernet (RJ45), Wi-Fi (optional)
Storage	microSD up to 128 GB, NVR compatible
Main functions	Motion detection, two-way audio, remote access via app
Maintenance and cleaning	Clean lens with soft dry cloth; do not use harsh chemicals
Security	Password protection, encrypted video stream
Spare parts and repairability	Not user-serviceable; contact ABUS support for repairs
General information	Indoor/outdoor use, compatible with ABUS apps (e.g., ABUS Security Center)

Frequently Asked Questions - TVAC18000B ABUS

How do I connect the TVAC18000B to my network?

Connect via Ethernet cable to your router, or configure Wi-Fi using the ABUS Security Center app. Ensure PoE or 12V DC power is supplied.

Can I use this camera without a subscription?

Yes, the camera supports local recording to a microSD card or NVR. No subscription is required for basic functions.

What is the maximum storage capacity?

The microSD slot supports up to 128 GB. For larger storage, connect to a network video recorder (NVR).

How do I reset the camera to factory settings?

Press and hold the reset button (located on the cable or device) for 10 seconds. The camera will reboot and restore defaults.

Is the camera weatherproof for outdoor use?

Yes, it has an IP67 rating, meaning it is dust-tight and protected against temporary submersion in water.

Can I view the camera remotely?

Yes, use the ABUS Security Center app or compatible software. Ensure the camera is connected to the internet and you have an account.

What is the night vision range?

The infrared LEDs provide visibility up to 30 meters in complete darkness.

Does the camera support audio?

Yes, it has a built-in microphone and speaker for two-way audio communication.

How do I clean the camera lens?

Use a soft, dry microfiber cloth to gently wipe the lens. Avoid using liquids or abrasive materials.

What should I do if the camera is not powering on?

Check the power source: verify the 12V DC adapter or PoE injector is working. Ensure Ethernet cable is properly connected and not damaged.

USER MANUAL TVAC18000B ABUS

White wireless router with two security cameras shown in side view (no text or symbols visible)

GB User guide
DK Betjeningsvejledning
PL Instrukcja obsługi
E Manual de instrucciones
s Bruksanvisning
RUS Инструкция по эксплуатации

English

This user guide contains important information on starting operation and using the device. Make sure that this user guide is handed over when the product is given to other persons.

Keep this user guide to consult later.

For a list of contents with the corresponding page numbers, see page 5.

White wireless router with two security cameras shown from side (no text or symbols visible)

User guide

Important information and FAQs about this product and other products can be found on the website

www.abus.com/eng/Self-installed-security

Version 1.2

CE

Introduction

Dear customer,

Thank you for purchasing this product.

ABUS Security-Center hereby declares that this type of wireless system TVAC18000B, complies with RED Directive 2014/53/EU. Additionally, this device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/TVAC18000B

To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe these operating instructions!

Read the entire user guide carefully before starting operation of the product, and pay attention to all operating instructions and safety information!

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

In the event of questions, please contact your local maintenance specialist or dealer.

Data storage is subject to national data privacy guidelines.

Warning as required by §201 StGB (German Criminal Code):

Whosoever unlawfully makes an audio recording of the privately spoken words of another; or uses, or makes a recording thus produced accessible to a third party, shall be liable to imprisonment or a fine.

Whosoever unlawfully overhears with an eavesdropping device the privately spoken words of another not intended for his attention; or publicly communicates, verbatim or the essential content of, the privately spoken words of another, recorded or overheard, shall incur the same penalty.

Disclaimer

This user guide has been produced with the greatest of care. Should you discover any missing information or inaccuracies, please contact us under the address shown on the back of the manual.

ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user guide at any time and without prior warning. ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No forms of guarantee are accepted for the contents of this document.

Explanation of symbols

	The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock).
	The triangular warning symbol indicates important notes in these operating instructions which must be observed.
	This symbol indicates special tips and notes on the operation of the unit.

Important safety information

	All guarantee claims are invalid in the event of damage caused by non-compliance with this user guide. We cannot be held liable for resulting damages.
	In the event of material or personal damage caused by improper operation or non-compliance with the safety information, we cannot be held liable. All guarantee claims are voided in such cases.

This device has been manufactured in accordance with international safety standards. Please read the following safety instructions carefully.

Safety information

1. Power supply

100–240 V AC voltage, 50–60 Hz (using a power supply unit for 5 V DC/12 V DC)

Only operate this device using a power source which supplies the grid voltage specified on the type plate. If you are unsure which voltage is supplied at the installation location, contact your power supply company. Disconnect the device from the power supply before carrying out maintenance or installation work.

2. Overloading

Avoid overloading electrical sockets, extension cables and adapters, as this can result in fires or electric shocks.

3. Liquids

Make sure that no liquids of any type are able to enter the device.

4. Cleaning

Only use a damp cloth to clean the device. Do not use corrosive cleaning materials.

Disconnect the device from the power supply while doing so.

5. Accessories

Only connect devices that are suitable for the intended purpose. Otherwise, hazardous situations or damage to the device can occur.

6. Installation position

This device is suitable both for operation in protected outdoor areas as well as indoors. The product may be damaged if it is dropped, even from a low height.

Install the device so that no direct sunlight can shine on the image sensor. Pay attention to the installation instructions in the corresponding section of this user guide.

Never place the device close to heaters, stoves, other sources of heat, or in direct sunlight.

Only operate the device at locations where temperatures within the permitted ambient temperature range of -20 ^ to 50 ^ prevail.

7. Wireless transmission

The wireless range depends on a variety of environmental factors. The local conditions at the installation site may have a negative impact on the range. When there are no obstructions between the receiver and transmitter, a range of up to 150 m is possible, but this range will be considerably less within buildings.

The following environmental conditions compromise both the range as well as the frame rate:

Mobile communication masts, high-tension pylons, electrical wires, ceilings and walls, devices with the same or an adjacent wireless frequency.

Warnings

Observe all safety and operating instructions before putting the device into operation for the first time.

1. Observe the following information to avoid damage to the mains cable and plug:

2. Do not modify or manipulate the power cable or plug.

3. Do not pull the cable when disconnecting the device from the mains power – always hold of the plug.
4. Ensure that the mains cable is positioned as far away as possible from any heating equipment, as this could otherwise melt the plastic coating.

5. The power supply unit for the door station must be protected from damp and moisture.

6. Follow these instructions. Non-compliance with these instructions could lead to an electric shock.

7. Never open the housing or power supply unit.

8. Do not insert any metallic or flammable objects into the device.

9. Use overvoltage protection to prevent damage caused by overvoltage (e.g. electrical storms).

10. Disconnect defective devices from the power immediately and contact your specialist dealer.

When installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the power supply and low-voltage circuit.

If in doubt, have a specialist technician carry out assembly, installation, and connection of the device. Improper or unprofessional work on the power supply or domestic installation puts both you and other persons at risk.

Connect the installations so that the power supply circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or be able to become connected as a result of a malfunction.

Avoid the following adverse conditions during operation:

• Moisture or excess humidity
  • Extreme heat or cold
• Direct sunlight
• Dust or flammable gases, vapors, or solvents
• Strong vibrations
  • Strong magnetic fields (e.g. next to machines or loudspeakers)
• The camera for the door station must not be directed toward the sun, as otherwise the sensor may be destroyed.
• The camera must not be installed on unstable surfaces

Unpacking the device

Handle the device with extreme care when unpacking it.

If the original packaging has been damaged, inspect the device. If the device shows signs of damage, return it in the original packaging and inform the delivery service.

Contents

1. Intended use ....6
2. Scope of delivery....6
3. Features and functions....7
4. Information and FAQs....7
5. Device description ....7

5.1 Recorder description....7
5.2 Camera description ....8

1. Installation....9

6.1 Recorder installation....9
6.2 Connecting an external hard disk drive ....10
6.3 Connecting the recorder to the mains....10
6.4 Mounting the camera....11
6.5 Pairing the camera to the recorder 12

1. Operating and configuring via app....12
2. Operating the recorder ....16

8.1 Live view 16
8.2 Main menu ....18

8.2.1 Camera settings....19
8.2.2 Recording ....20
8.2.3 Event list 22
8.2.4 System settings ......23
8.2.5 Storage management 24

1. Maintenance and cleaning....26

9.1 Maintenance ....26
9.2 Cleaning 26

1. Disposal....26
2. Tips for troubleshooting....27
3. Technical data ....28

1. Intended use

This wireless recorder and the IR wireless outdoor camera enable you to easily transmit and display video signals wirelessly across moderate and large distances.

Wireless signal transmission is an advantage everywhere cables are not able to be laid: the camera transmits the video signal wirelessly to the recorder. The conversion to digital signals means that malfunctions and interference can be reduced.

As soon as the camera's sensor detects motion, the recording starts on the SD card or on the hard disk drive.

You have the option of connecting up to four cameras (TVAC18010) to the recorder and displaying them in the 4x view on the monitor / TV, as well as recording with QVGA resolution at the same time.

You can also view the live view from the camera via smartphone using the "TVAC18000" ABUS app and play recorded data as well as configure the recorder.

For a detailed description of functions, refer to Section 3, "Features and functions".

2. Scope of delivery

Line drawing of a wireless router with a single antenna and ventilation slots (no text or symbols)

Wireless recorder

2x IR wireless outdoor camera 2.4 GHz

2x camera mount including mounting material

3x antenna

Line drawing of a broadband cable with two connectors (no text or symbols)

Network cable

Line drawing of a coiled cable with two connectors (no text or symbols)

HDMI cable

Line drawing of a computer mouse with a circular head and scroll wheel (no text or symbols)

Mouse

Line drawings of electronic components including a battery, three batteries, and a terminal block (no text or symbols)

2 x power supply units incl. EU, AU and UK 5 V DC/1 A adapter

Line drawings of three electronic components: a cylindrical device, two small potentiometers, and a multi-pin terminal (no text or symbols)

1 x power supply units incl. EU, AU and UK 12 V DC/1 A adapter

8 GB micro SD card

3. Features and functions

• Easy operating and configuring via app.
  • Complete set with recorder and 2x IR wireless outdoor cameras
• Compact IP66 outdoor camera with infrared night vision function and 640 x 480 pixel resolution
  • Video and audio transmitted using encrypted digital radio
• Can be extended to include up to four wireless cameras

4. Information and FAQs

You can find important information and FAQs about this and other products on the website /www.abus.com/eng/Self-installed-security. You will find information for troubleshooting under item 11 of these instructions.

5. Device description

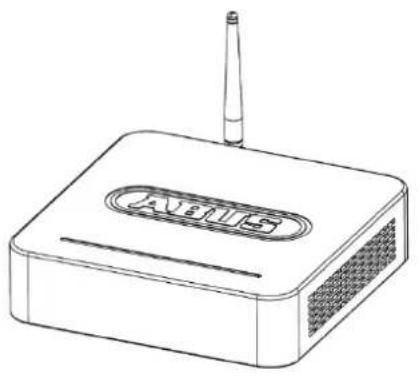

5.1 Recorder description

Front view

1	Antenna
2	LED status bar

Rear view

1	HDMI port Video & audio output on monitor/TV
2	2 x USB Connections for mouse and external hard disk drive
3	RJ45 connection LAN interface for internet connection
4	DC 12V Power supply connection
5	Reboot button System restart
6	SMA connector Connection available for the external antenna
7	Power button On and off switch of the recorder
8	Micro SD card slot Micro SD card slot for recordings of up to 32 GB

5.2 Camera description

Front view

1	Antenna
2	IR LEDs
3	Power LED
4	PIR sensor
5	Camera mount
6	Fixed lens
7	Link LED

LED	Status	Meaning
Power LED 3	On (red)	Camera on
	Off	Camera off
Link LED 7	Flashing	The camera is in the “Pairing Mode”
	On (green)	Camera is connected to the recorder
	Off	Camera is in standby

Rear view

1	SMA connector
2	Microphone
3	Pairing button
4	Power supply connection

6. Installation

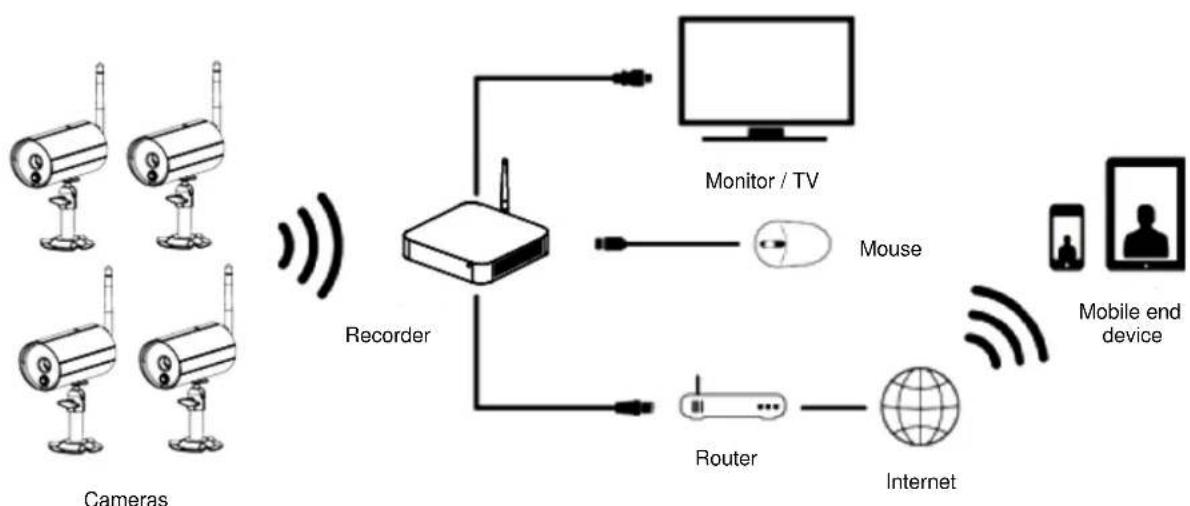

6.1 Recorder installation

1. Screw the antenna on to the recorder and plug in the mouse to a USB port.
2. Next, plug in the LAN cable to the recorder and connect it to the router.
3. Then, plug in the HDMI cable to the recorder and a screen.
4. Insert the micro SD card supplied into the card slot on the back.
5. Plug in the 12 V power supply unit supplied into the recorder.
6. Switch on the recorder by pressing the power switch on the back.
7. Switch on the monitor/TV and change to the HDMI input.

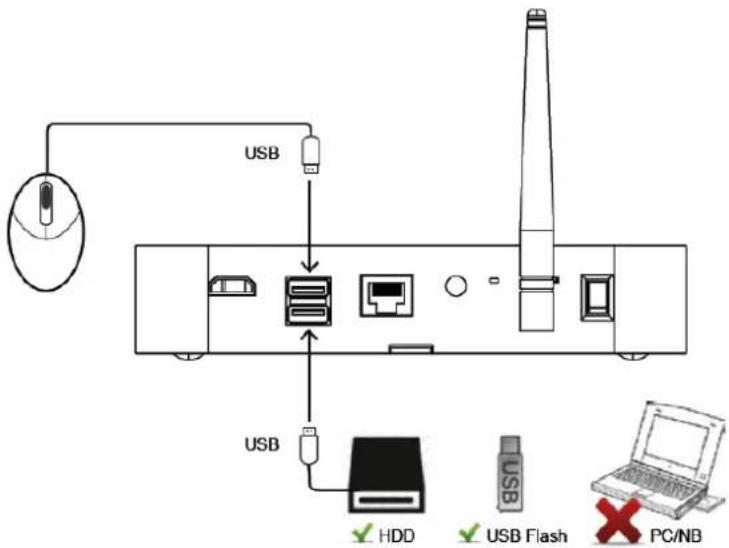

6.2 Connecting an external hard disk drive

1. First, connect a mouse (not included) to one of the USB ports.

2. Then connect an external hard disk drive to the second USB port. Please format this before initial installation. Recommended format: FAT32

	Connect the power supply only after you have connected all the USB devices.
	The USB connections supply 5 V/1000 mA. If the external hard disk drive requires a higher output, use an additional power supply.

6.3 Connecting the recorder to the mains

Connect the recorder to the router using the LAN cable supplied to access your device with the app. To gain access with the app, refer to point 7.1. Access via app.

6.4 Mounting the camera

Use the camera mount to help you find a suitable place for installation. Use the drill holes to mark the surface then drill the holes. Insert the wall plugs supplied before you attach the bracket with the screws.

Note:

Before you begin installing, make sure that the wireless transmission range is adequate at the site of the required installation.

To do this, first screw in the antenna supplied.

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

You can also swivel the mount by 90^ into a particular position. First loosen the screw on the side and set the required angle. Then tighten the screw to secure the required position.

Finally, screw the camera onto the mount and connect the power supply unit with the camera.

Mounting options

Ceiling mounting

Pure mechanical assembly diagram without any text, numbers, or symbols

Wall mounting

Simple line drawing of a mechanical linkage or support structure (no text or symbols)

6.5 Pairing the camera to the recorder

Line drawing of a wireless router with ventilation slots and a single antenna (no text or symbols)

Line drawing of a mechanical device with a hand pointing at it, showing no text or symbols.

To connect a camera with the recorder, proceed as follows:

1. Connect the camera and the recorder to the power supply.
2. In the recorder menu, select "Camera", then "Pairing" and the required camera (1–4). The system counts down from 60 seconds.
3. Press the PAIRING button briefly (approx. 2–3 seconds) on the camera cable during these 60 seconds.
4. The LINK LED is lit up continuously once the connection is established.

Note:

Please note that the connection can take up to 60 seconds.

7. Operating and configuring via app

The wireless recorder gives you the option of switching to Live on the cameras and to configure the recorder. The app for this device can be found in the App Store under the name of "TVAC18000".

If you want to access the live picture when you are out and about, proceed as follows:

①

Network connection

Make sure that the recorder is connected to the internet and that an internet connection is available.

The recorder is already configured on DHCP as standard. If your router is also configured with DHCP you will receive a network address automatically. You can now start accessing the app without any additional configuration.

②

"TVAC18000" app

Download the "TVAC18000" app and install it on your smartphone.

③

Adding the system

Open the app on your mobile phone and select the device in the list. Click on "new" or "+" to add a new system.

④

Entering system information

1. Enter a name for your system at "Name" which should then be displayed on your mobile phone.
2. To enter the DID automatically, click on Scan QR and scan the QR Code on the bottom of the recorder. You can also enter the 20-digit DID number manually. You can find this in the network information of your recorder or on the product label.
3. Then enter your password. The password is the security code which you can also find in your recorder's network information. If you have not changed your password on the recorder, this will be the default password: 123456.
4. Then save the settings with "Add new" and "Complete".
5. To change the system information, select the system and click on "Edit".
6. To obtain the Live view, click on the Play button.

Once you have changed your password in the recorder, it must also be changed in the app. Click on "Edit" to do this.

⑤
Connection status

If you have added your system successfully, the name of your system and the name of your system and the corresponding DID appear in the selection list.

Click on the name to go to the live view.

Press the Play button to start the live view.

Note that a maximum of 3 users only are able to access the device at the same time.

⑥
Menu

Click on "System" or the menu item to open the recorder menu.

Note that live view via HDMI and recording are not possible while configuring via app.

Camera settings

• Pairing
• Activation
• Resolution
  • Quality

Recording

• Schedule
• Motion sensitivity
• Motion area
• Detection

SYSTEM SETUP

Date and Time

Language

Display Setup

Idle Display

Power Saving

Push Setting

System settings:

• Date & time
• Language
• Display
• Idle display
• Power saving

STORAGE SETUP

Storage Status

Storage Format

Network Status

System Information

Storage management:

• Storage status
• Storage format
• Network settings
  • Network information

You can find a description of each menu item in "8. Operating the recorder".

8. Operating the recorder

To switch the recorder ON or OFF, press the power button on the back of the recorder.

8.1 Live view

The live view starts automatically after the device is switched on in the quad view. To show a camera as full-screen, left-click with the mouse on the required channel.

Click on the picture once again to change to the original view.

Right-click with the mouse to open the pop-up menu.

To exit the menu, right-click with the mouse once again.

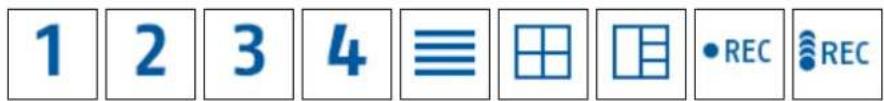

1 23 4	Full-screen view for required camera
	Opens the main menu
	Quad view
	Smart-Quad view
	Activates manual recording of a channel.Deactivates manual recording of a channel.
	Starts manual recording for all four channels.Stops manual recording for all four channels.

Live display

Quad view:

In the quad view, click on a channel using the left mouse button to display this as full-screen.

Click on the full-screen again to change back to the quad view.

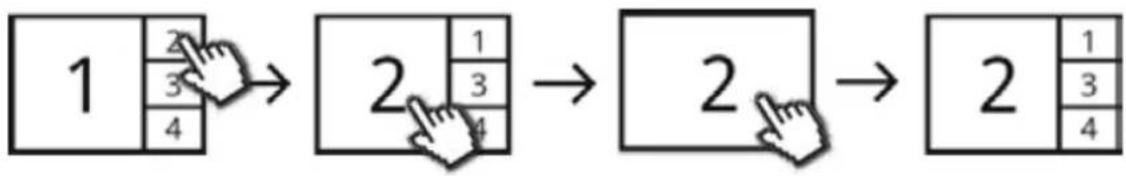

Smart-Quad view:

In the smart-quad view, click on the required channel to display this on the left in large view. To display a channel in full screen it must be shown in large view.

To do this, click on the picture in large view and click again to return to the smart-quad view.

Dynamic view:

You can configure the view dynamically here. Deactivate the cameras you do not want to view under camera settings. (Note: the deactivated cameras do not make recordings!)

Examples:

Channel 2 deactivated

1

4

Channel 2 & 3 deactivated

8.2 Main menu

Blue navigation bar with icons for play, calendar, gear, and floppy disk (no text or symbols)

	Description Sub menu items
	Camera settings	· Pairing· Activation· Resolution· Quality
	Recording	· Schedule· Motion sensitivity· Motion area· Detection
	Playback/event list	· Display of event list in calendar format
	System settings	· Date & time· Language· Display· Idle display· Power saving mode
	Storage management	· Storage status/cyclical storage function· Formatting· Network settings· Network information/general information

8.2.1 Camera settings

	Menu item Description
	Pairing	Pairing the camera is necessary to establish a connection. The connection stays once it has been set up. If you want to change the camera to another channel, you need to pair it again.In the recorder menu, select "Camera", then "Pairing a new camera" and the required camera (1-4). The system counts down from 60 seconds.Press the PAIRING button briefly on the camera cable during these 60 seconds.The LINK LED is lit up continuously once the connection is established.
	Activation	Use the on/off switch to display or deactivate the camera.Note that deactivated cameras are not displayed in the SMART-QUAD view.If you deactivate the camera, it will not make any more recordings.Camera on Camera off
	Resolution	You can choose between "Normal" and "High".Low:Optimised setting for mobile access, higher frame rateHigh:High resolution, lower frame rate
	Quality	Select the quality of the video image.High quality:High quality for the view display, lower frame rateLow quality:Low quality for the view display, higher frame rate

8.2.2 Recording

	Menu item Description
	Camera selection	Select a camera or all the cameras for the schedule.1. Select one of the cameras 1-4. You can now select the recording type, the day of the week and the time period.2. Select all the cameras to activate the schedule for all cameras.Motion detection:Recording starts if motion is detected.Continuous recording:Recording starts or ends at the defined times.No selection is made.Select the day of the week for the continuous recording here.You can select individual week days or choose between:Every day, Monday – Friday, Monday – Saturday or Saturday – SundayTHUFRI-SUNTUE AM11 : 00 - PM11 : 30Define the times for starting and finishing the recording here.No recordings will be made if the schedule is not defined!
	Motion sensitivity	You can make the settings for the motion sensitivity here. The motion sensitivity can be controlled via the PIR sensor as well as the PIR sensor and the software motion detection at the same time.[GBW2]PIR motion detection:Motion is detected only by the camera's PIR sensor.PIR detection range: up to 5 mPIR and “Low” motion detection:Motion is detected using the PIR and the motion detection software.PIR detection range: up to 5 mSoftware detection range: up to 4 mPIR and “Medium” motion detection:Motion is detected using the PIR and the motion detection software.PIR detection range: up to 5 mSoftware detection range: up to 5 mPIR and “High” motion detection:Motion is detected using the PIR and the motion detection software.PIR detection range: up to 5 mSoftware detection range: up to 6 m
	Motion area	Select a camera (1-4), now change to the live view with the grid for the motion mask.Double-click on it to deactivate a partition.Just click on a partition to activate it.Right-click the mouse to exit the live view and the settings are saved.
	Response for recording	You can make settings for the alarm here:Motion detection recording duration:Configure the recording duration for the motion detection.Selection: 30 / 60 / 120 secondsFor repeated motion, the recorded duration can be increased.Alarm sounds for motion:Configure the duration of the alarm for motionSelection: Off / 5 / 10 secondsAlarm sounds for loss of video:Configure the duration of the alarm for loss of videoSelection: Off / 5 / 10 secondsThe alarm sounds through the loudspeaker of the monitor/ TV via HDMI.

Motion detection recording duration:

Alarm sounds for motion:

Alarm sounds for loss of video:

8.2.3 Event list

2012 SEP
Sun	Mon	Tue	Wed	Thu	Fri	Sat
26	27	28	29	30	31	1
2	3	4	5	6	7	8
9	10	11	12	13	14	15
16	17	19	19	20	21	22
23	24	25	26	27	28	29
30	1	2	3	4	5	6

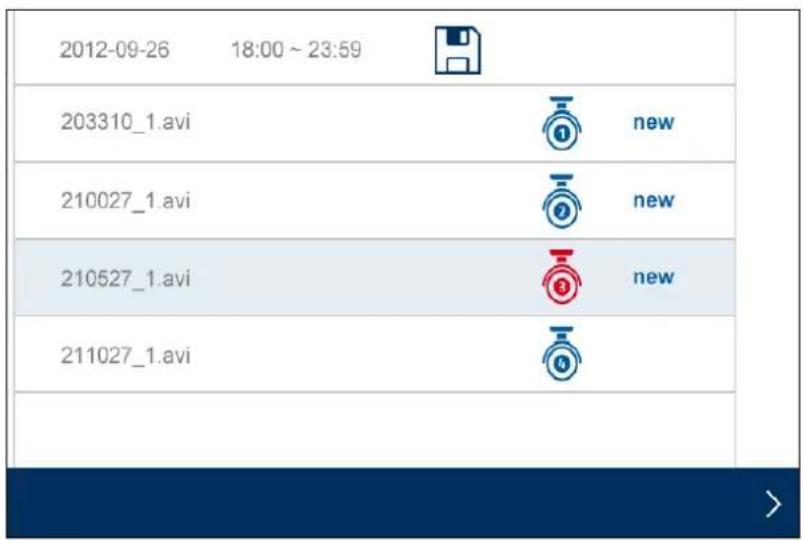

All the recordings are displayed in the event list and are sorted according to the date.

You can navigate to the required schedule using the arrow buttons. Select the required camera. You can also display the events of all the cameras.

A field with a coloured background means that a recording is available on this day. Click it to go to the "List of recordings".

Double-click on the required file to play the recording. To delete a recording or save it on a memory card, click the box and select the option you want.

8.2.4 System settings

	Menu item	Description
	Date & time	Use the arrow keys to set the date and time.Right-click on the mouse to save the settings and exit the menu.
	Language	Select the language for your system.The system is then reset to the factory settings.
	Setting display	Select the settings display for the live view here.You can activate and deactivate the icon for the signal strength and the time stamp.
	Idle display	Select the settings display here during the idle mode.You have the following options for selection:Quad / Smart-Quad / 10 second sequence / 5 second sequence.
	Power saving mode	Settings for the power saving mode:Set the power saving mode here for the output of the video signal on a monitor or TV.You have the following options for selection:Power saving mode off / power saving mode after 5 minutes / power saving mode after 10 minutes.

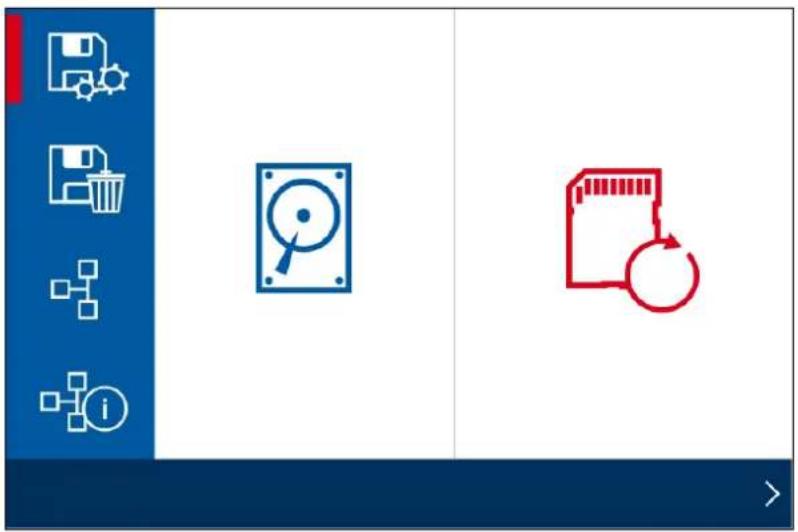

8.2.5 Storage management

	Menu item	Description
	Storage management	Activate/deactivate the cyclical storage function for the hard disk drive or SD card.
	Format	Formatting the hard disk drive or SD card.When formatting, all the recorded data is deleted.
	Network settings	To establish a connection with the internet and so that you can access the recorder with the app, connect it to your router using the network cable.Choose between static IP and DHCP.Information:An IP address is an address in the computer network. It is assigned to devices which are linked in a network and makes the device identifiable, allowing it to be reached.DHCP:This setting enables the DVR to take an IP address automatically from the router, provided DHCP is activated on the router.Static IP:You can assign a fixed IP address here. This address must match your existing network environment to enable remote access to work.Security code:The standard security code is: 123456For reasons of security, change this code and enter a new password (max. 12 digits).Click the field with the white background and a keyboard appears.You will need the security code later if you want to access the recorder via the app.Network connectivity is shown with the following icons. Network connection available No network connection exists. Check whether the recorder is connected with the router.
	Network information	System information display:Recorder firmware versionCamera firmware versionsDIDSecurity codeNetwork informationSystem upgrade:Click anywhere in the menu to update the system.

9. Maintenance and cleaning

9.1 Maintenance

Regularly check the technical safety of the product, e.g. check the housing for damage.

If it seems that it may no longer be possible to operate the device safely, stop using the product and protect it from unintentional use.

It is likely that safe operation is no longer possible in the event that:

• The device shows signs of visible damage.
• The device no longer works correctly.

Please note:

You do not need to perform any maintenance on the product. There are no components to service and nothing inside the product to check. Never open it.

9.2 Cleaning

Clean the device with a clean, dry cloth. The cloth can be dampened with lukewarm water if the dirt on the monitor is hard to remove.

Do not allow any liquids to enter the device.

Do not use any chemical cleaning products, as they could damage the surface of the housing (discoloration).

10. Disposal

Note: EU Directive 2011/65/EU regulates the proper return, treatment and recycling of used electronic devices. This symbol means that in the interest of environmental protection the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable local legal guidelines. Used devices can be disposed of at official recycling centres in your country. Obey local regulations when disposing of material. Further details on returns (also for non-European countries) can be obtained from your local authority. Separate collection and recycling conserves natural resources and ensures that all the provisions for protecting health and the environment are observed when recycling the product.

11. Tips for troubleshooting

No.	Questions	Answers
1	What does pairing the recorder and camera mean and how does this work?	Pairing creates the exclusive, encrypted wireless connection between the recorder and camera.To connect a camera with the recorder, proceed as follows:1. Connect the camera and the recorder to the power supply.2. In the recorder menu, select “Camera”, then “Pairing” and the required camera (1-4). The system counts down from 60 seconds.3. During the 60 seconds, press the PAIRING button on the camera cable until the green LINK LED on the front of the camera starts flashing.4. The LINK LED is lit up continuously once the connection is established.
2	What could be the reasons why no image is shown on the monitor?	If you do not have a signal, please check the following:1. Is the camera connected to the power supply (does the LED light up red)?2. Is the HDMI cable connected properly?3. Are the camera and the recorder paired with each other (see question 1)?4. Is the camera within range of the recorder?5. Is the signal between the camera and recorder disrupted?
3	What could be the reasons why the device does not record when there is movement?	1. Please check that the sensitivity function of the motion detection is switched on.2. Is the schedule configured correctly?
4	What could be the reasons why the device does not record although a schedule has been created?	Possible reasons are:1. Are the date and time set correctly?2. Is the SD card locked (Lock/Unlock?), not inserted or empty?3. Have you formatted the SD card or the external hard disk drive? It must be formatted before it is first used.4. No movement was detected.
5	What could be the reasons why the camera cannot be paired with the recorder?	Please check the following:1. The camera has no power supply.2. Briefly press the pairing button on the camera while the monitor counts down from 60.3. Please press the pairing button for a short time only, not continuously.4. Restart the recorder.
7	What could be the reasons why the live view can be accessed via app in the local network but not externally?	Please check the following:1. Is the recorder connected to the network?2. Do you have an internet connection?3. Have you connected the recorder to the internet? Please note the following icon at the top edge of the monitor.4. Does your password for the recorder match the password for the app?5. Do you have a fast enough internet connection to your mobile phone?

12. Technical data

	Camera	Recorder
Number of IR LEDs	6	-
Display option		Full-screen, Quad, Smart Quad
Resolution	640 x 480 pixels	720p (HD)
Recording options		Schedule, motion detection, manual
Image sensor	1/4" CMOS	-
Angle of view	55° (horizontal) / 44° (vertical)	-
Frequency	2.4 GHz
Wireless range	Inside max. 20–30 mOutdoors: 150 meters*
IR swivel filter	Yes	-
Camera inputs	-	4
Compression		H.264
Max. operating temperature	-20 °C to +40 °C
Modulation	FHSS
Monitor connection	-	HDMI output
Network access	-	RJ45
Network speed		10/100 Mbps
Lens	3.6 cm fixed lens	-
Range of night vision function	Max. 8 m	-
IP protection class	66	-
Transmission power	32 mW
Sensitivity	-80 dBm
DC power supply	5 V DC	12 V DC
Storage medium	-	SD card, max. 32 GBExternal hard disk, max. 2 TB
OSD language		German, English, Spanish, Dutch,French, Portuguese, Italian, Polish,Swedish, Danish
Power consumption	Max. 1 A	Max. 2 A
Certifications	CE

*The wireless transmission range depends on environmental factors (e.g. mobile communication masts, high-tension pylons, electrical wires, ceilings and walls, etc.). If conditions are not favourable, the range will be limited.

Storage capacity

Storage capacity	One camera(640 x 480)	Several cameras(320 x 240 QVGA)
1 GB	200 minutes	130 minutes
2 GB	400 minutes	260 minutes
8 GB	1,600 minutes	1,060 minutes
16 GB	3,200 minutes	2,080 minutes
32 GB	6,400 minutes	4,160 minutes

TVAC18000B

White wireless router with two security camera modules shown in side view (no text or symbols visible)

Instrukcja obsługi

Line drawing of a wireless router with a single antenna and ventilation grille (no text or symbols)

Nagrywarka radiowa

Line drawing of a broadband cable with two connectors (no text or symbols)

Kabel sieciowy

Line drawing of a coiled cable with two connectors (no text or symbols)

Kabel HDMI

Line drawing of a computer mouse with a circular head and screwdriver (no text or symbols)

Mysz

Technical line drawings of mechanical components and base assemblies (no text or symbols)

Technical line drawings of mechanical components and base devices (no text or symbols)

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Line drawing of a wireless router with a single antenna and ventilation grille (no text or symbols)

Line drawing of a mechanical device with a hand pointing to a labeled component (no text or symbols present)

Blue navigation bar with icons for play, calendar, gear, and floppy disk (no text or symbols)

White wireless router with two security camera modules shown side by side (no text or symbols visible)

www.abus.com/eng/Self-installed-security

Version 1.2

Line drawing of a beige wireless router with a single antenna and ventilation grille (no text or symbols)

Trådløs optager

Line drawing of a broadband cable with two connectors (no text or symbols)

Netværkskabel

Line drawing of a coiled cable with two connectors (no text or symbols)

HDMI kabel

Mus

Technical line drawing of three electronic components with no visible text or symbols

Technical line drawings of mechanical components and base assemblies (no text or symbols)

1	Antenne
2	IR-LED'er
3	Power LED
4	PIR-sensor
5	Kameraholder
6	Fast objektiv
7	Link LED

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Pure mechanical assembly diagram without any text, numbers, or symbols

Vægmontering

Simple line drawing of a mechanical linkage or support structure (no text or symbols)

Line drawing of a wireless router device with a single antenna and ventilation grille (no text or symbols)

Line drawing of a mechanical device with a hand pointing to a labeled component (no text or symbols present)

Blue navigation bar with icons for camera, play button, calendar, gear, and floppy disk (no text or symbols)

White wireless router with two security cameras shown from side (no visible text or symbols)

Line drawing of a wireless router with a single antenna and ventilation slots (no text or symbols)

Line drawing of a broadband cable with two connectors (no text or symbols)

Cable de red

Line drawing of a coiled cable with two connectors (no text or symbols)

Cable HDMI

Line drawing of a computer mouse with a circular head and scroll wheel (no text or symbols)

Ratón

Technical line drawing of a mechanical component with three separate views (no text or symbols)

Technical line drawings of electrical components including a motor and three base devices (no text or symbols)

Technical line drawing of a mechanical assembly with screwdriver and tool (no text or symbols)

Line drawing of a wireless router with ventilation slots and a single antenna (no text or symbols)

Line drawing of a mechanical device with a hand pointing to a passing cable (no text or symbols present)

Blue toolbar with icons for video player, play button, calendar, gear, and floppy disk (no text or symbols)

White wireless router with two security camera modules shown in side-by-side (no text or symbols visible)

Bruksanvisning

Line drawing of a wireless router with a single antenna and ventilation slots (no text or symbols)

Trådlös inspelare

Line drawing of a broadband cable with two connectors (no text or symbols)

Nätverkskabel

Line drawing of a coiled cable with two connectors (no text or symbols)

HDMI-kabel

Line drawing of a computer mouse with a circular head and scroll wheel (no text or symbols)

Mus

Technical line drawings of electronic components including a battery, two cylindrical devices, and a base with three cylindrical stands (no text or symbols)

Technical line drawing of a mechanical device with three separate views (top, front, side), no text or symbols present.

1	Antenn
2	IR-lysdioder
3	Power-LED
4	PIR-Sensor
5	Kamerahållare
6	Fast objektiv
7	Länk-LED

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Pure mechanical assembly diagram without any text, numbers, or symbols

Väggmontering

Simple line drawing of a mechanical linkage or support structure (no text or symbols)

Line drawing of a wireless router device with a single antenna and ventilation grille (no text or symbols)

Line drawing of a mechanical device with a hand pointing to a hanging component labeled 'Fasting' (no text or symbols on the device itself)

Ange systeminformation

Blue toolbar with icons for video playback, calendar, gear, and floppy disk (no text or symbols)

White wireless router with two security camera modules shown side by side (no text or symbols visible)

ABUS Security-Center hereby declares that this type of wireless system TVAC18000B, complies with RED Directive 2014/53/EU. Additionally, this device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/TVAC18000B

Line drawing of a beige wireless router with ventilation slots and a single antenna (no text or symbols)

Радиорекордер

Line drawing of a broadband cable with two connectors (no text or symbols)

Сетевой кабель

Line drawing of a coiled cable with two connectors (no text or symbols)

Кабель HDMI

Мышь

Technical line drawing of a mechanical device with three separate views (top, front, side), no text or symbols present.

Line drawings of electrical components including a motor, three labeled test tubes, and a base (no text or symbols)

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Pure mechanical diagram showing a lever and shaft assembly without any text, numbers, or symbols

Настенный

Simple line drawing of a mechanical linkage or support system (no text or symbols)

Line drawing of a wireless router with ventilation slots and a single antenna (no text or symbols)

Line drawing of a mechanical device with a hand pointing to a labeled component (no text or symbols present)

Blue navigation bar with icons for play, calendar, gear, and floppy disk (no text or symbols)
