Product Type	Jigsaw
Model	65303
Brand	Power Craft
Power Supply	Corded electric, 120V / 230V, 50/60 Hz
Power Consumption	650 W
No-Load Stroke Rate	500 - 3000 strokes/min
Stroke Length	20 mm
Cutting Capacity (Wood)	Up to 80 mm
Cutting Capacity (Steel)	Up to 6 mm
Cutting Capacity (Aluminum)	Up to 20 mm
Bevel Cutting	0° - 45° left and right
Orbital Action	4 settings (0-3)
LED Work Light	Yes
Dust Blower	Yes
Dust Extraction Port	Yes, 35 mm diameter
Blade Change System	Tool-free, quick release
Dimensions (L x W x H)	Approx. 250 x 80 x 200 mm
Weight	1.8 kg
Safety Features	Lock-off switch, protective guard, anti-slip grip
Maintenance	Clean after use; check carbon brushes every 50 hours
Spare Parts Availability	Blades, brushes, sole plate (contact Power Craft support)
Warranty	2 years

Frequently Asked Questions - 65303 Power Craft

How do I change the blade on the Power Craft 65303 jigsaw?

The tool features a tool-free blade change system. Simply rotate the lever to release the old blade, insert a new T-shank blade, and release the lever to lock it in place.

What is the maximum cutting depth in wood?

The jigsaw can cut wood up to 80 mm thick, depending on the blade type and cutting speed.

Can I use this jigsaw for metal cutting?

Yes, with appropriate metal-cutting blades, it can cut steel up to 6 mm and aluminum up to 20 mm.

How do I adjust the orbital action?

The orbital action has 4 settings (0-3). Turn the adjustment dial on the side of the tool to set the desired orbit for different materials and cut types.

Is there a dust extraction port?

Yes, the 65303 has a 35 mm dust extraction port that can be connected to a vacuum cleaner for cleaner work.

How do I make bevel cuts?

Loosen the sole plate locking lever, tilt the sole plate to the desired angle (0° to 45° left or right), and retighten the lever.

What type of blades does this jigsaw use?

It uses T-shank blades, which are commonly available and interchangeable with most jigsaw brands.

How do I clean and maintain the jigsaw?

After use, wipe the tool clean with a dry cloth. Regularly check and replace carbon brushes when worn. Lubricate moving parts periodically.

What does the LED light indicate?

The LED light illuminates the cutting line for improved visibility. It turns on automatically when the tool is switched on.

Where can I find spare parts for the 65303?

Spare parts such as blades, carbon brushes, and sole plates can be ordered through Power Craft authorized service centers or online. Refer to the manual for part numbers.

USER MANUAL 65303 Power Craft

Black power saw with blue blade and green handle, no visible text or symbols on the device itself

BAJONETSAV

Brugsanvisning

Close-up of a hand adjusting a black plastic brake lever (no text or symbols visible)

Line drawing of a hand using a tool to cut or mark a piece of material on a flat surface (no text or symbols)

Business Unit Manager

30.11.2012 - HP Schou A/S, DK-6000 Kolding

Miljøoplysninger

Fremstillet i P.R.C

6001

EU-Importør:

HP Schou A/S

6000 Kolding

Danmark

© 2012 HP Schou A/S

Close-up of a hand adjusting a black plastic clip with a handle (no text or symbols visible)

Line drawing of a hand using a tool to cut or install a sheet of paper (no text or symbols)

Business Unit Manager

30.11.2012 - HP Schou A/S, DK-6000 Kolding

Miljøopplysninger

Produsert i P.R.C.

5001

EU-importør

-IP Schou A/S

5000 Kolding

Danmark

© 2012 HP Schou A/S

Close-up of a hand adjusting a black mechanical component with a handle (no visible text or symbols)

Line drawing of a hand using a tool to lift or stand (no text or symbols)

Business Unit Manager

30.11.2012 - HP Schou A/S, DK-6000 Kolding

Miljöupplysningar

Tillverkad i P.R.C

5001

EU-importör:

HP Schou A/S

5000 Kolding

Danmark

© 2012 HP Schou A/S

Close-up of a hand adjusting a black mechanical component (no visible text or symbols)

Irrota saha sähköverkosta.

Line drawing of a hand using a tool to lift a flat surface (no text or symbols)

Business Unit Manager

1. '1.2012 - HP Schou A/S, DK-6000 Kolding

Read the instruction manual carefully before use, and keep it for future reference

Voltage/frequency

Indicates the required voltage and frequency of the power supply to which the machine is connected.

Power rating

Indicates the machine's maximum power.

Speed

Indicates the machine's speed(s) or speed range in revolutions per minute.

SDS

Indicates that the machine uses SDS bits, which can be replaced quickly and easily.

Introduction

To get the most out of your new reciprocating saw, please read this manual and safety instructions before use. Please also keep the manual in a safe place in case you need to refer to it at a later date.

Technical data

Voltage: 230 V \~ 50 Hz

Power rating: 710 W

Motor speed (free-running): 0-2,500 RPM

stroke length: 30 mm

Softgrip handle

Special safety precautions

The saw's metal parts may become conductive if the saw comes into contact with a wire. Therefore only hold the saw by the insulated handle.

Never place the saw on a table or workbench if it has not stopped completely. The saw blade will continue to run a short time after the machine has been switched off.

The saw blade must not be touching anything before you start the saw.

Never stop the saw blade by applying pressure to the saw or to the side of the blade.

Do not use cracked, blunt or damaged blades.

Do not attempt to cut items thicker than the maximum cutting depth of the blade, or where there is insufficient space for the blade under the item.

Check that the ventilation slots are not blocked.

Always use a face mask if excessive amounts of dust are generated or cutting harmful materials. Always read safety instructions from the material manufacturer if supplied.

Do not touch the blade or metal fi lings until they have cooled.

NEVER fasten the saw with blade pointing upwards in a vice or clamp to use as a bench saw. Serious accidents can occur

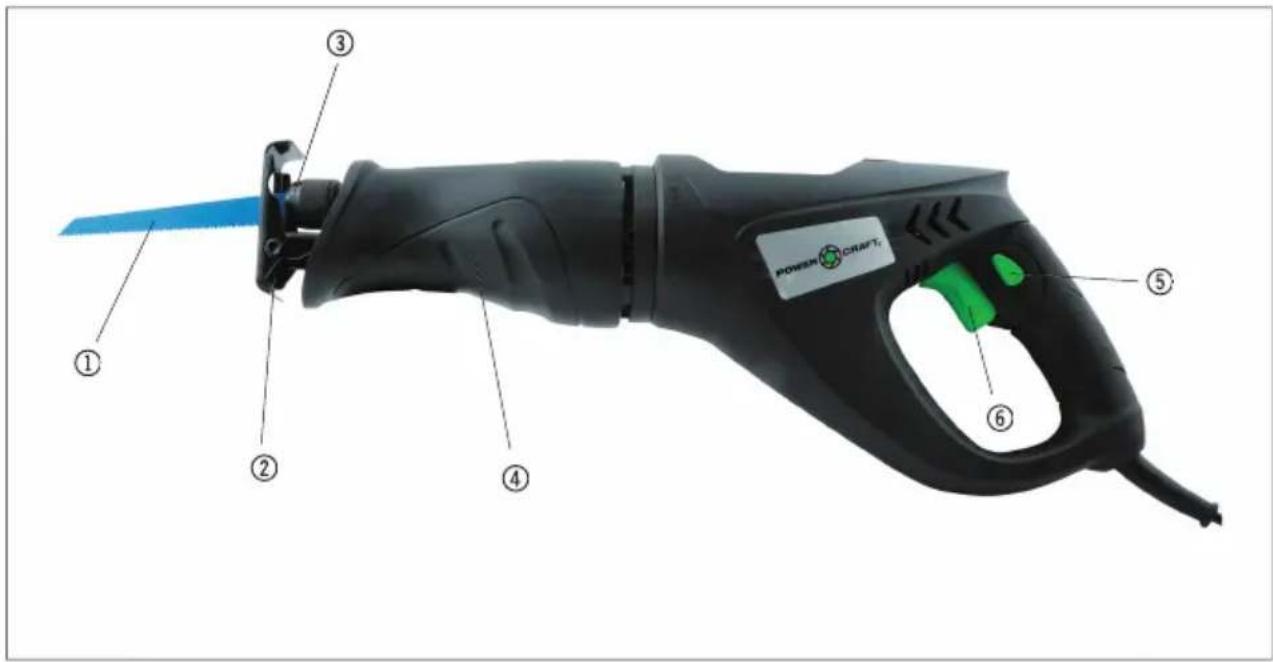

Main components

1. Blade
2. Soleplate
3. Blade holder
4. Support grip
5. Safety button
6. On/off button

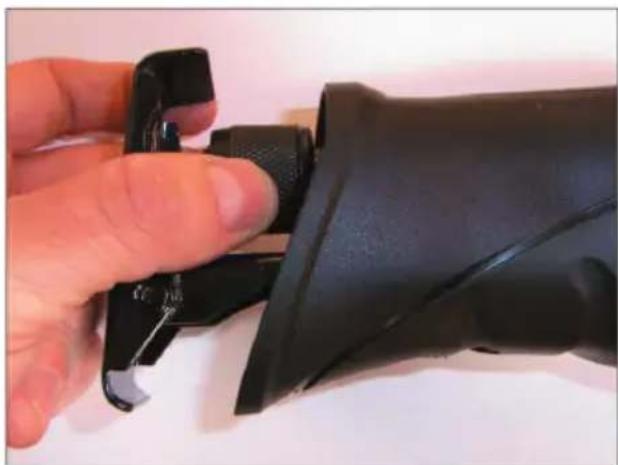

Replacing saw blades

Close-up of a hand adjusting a black mechanical component with a handle (no visible text or symbols)

Disconnect the saw from the mains

Slacken blade holder (3) by turning it.

Remove blade (1) from the holder, insert a new one with the teeth pointing downwards. Tighten the blade holder

Pull the saw blade to check that it is correctly positioned and locked in place.

Connect the saw to the mains.

Use

Start, stop and speed control

Start saw by depressing lock button (5) and on/off button (6) simultaneously

The saw blade moves backwards and forwards.

Speed can be set on the speed indicator (5).

The longer the on/off button is pressed in the quicker the saw blade moves.

General

Never use a blade unsuitable for the task and item to be cut

Hold the saw in front of you with a firm grip. Hold the support grip (4) to stabilise the saw.

Ensure that the saw blade is not touching anything and that the lead is not in the way

Make sure that the material is clamped tight, and that the saw line is clearly marked

Start the saw. Place the soleplate (2) on the item, and let the saw blade touch the saw line

Saw, but do not place more pressure or the blade than is necessary. Avoid lateral pressure on the blade.

Line drawing of a hand using a tool to lift or stand (no text or symbols)

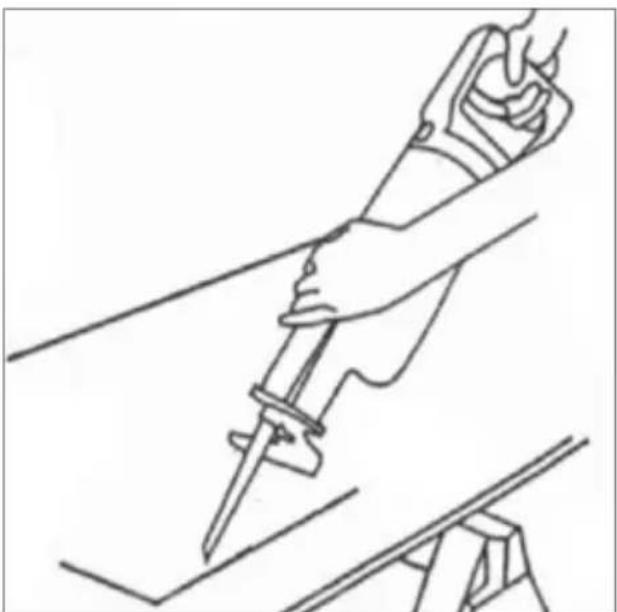

Special notes on jig sawing

Place the soleplate over the item so that the blade is horizontal above the saw line but not in contact.

Start the saw and tilt it carefully while supporting it using the soleplate until the blade touches the material at the saw line.

Allow the saw blade to work through the material and continue to tilt the saw until it is perpendicular to the material.

Sawing wood

Check that the item does not contain nails or other metal objects.

Sawing metal

We recommend lubricating the material and saw blade with cutting oil to protect the tool and avoid overheating. Support the item with wooden blocks on either side

Sawing plastic

Never cut using maximum speed

Make a test cut fi rst to check if the materia can tolerate the heat generated by sawing

Maintenance

Check all the screws on the saw regularly, and tighten if necessary.

Check regularly that the carbon brushes are in a good condition. If the carbon brushes are worn down, they should be replaced.

Cleaning

Wipe the saw using a well-wrung cloth as required, and always keep the surface and ventilation holes free of dirt.

Never use corrosive or abrasive cleaning agents, as they may attack the plastic parts of the saw.

Service centre

Note: Please quote the product model number in connection with all inquiries.

The model number is shown on the front of this manual and on the product rating plate.

For:

• Complaints
• Replacements parts
• Returns
• Guarantee issues
• Open weekdays from 07.00 to 17.00 (Fridays until 15.30)
  • E-mail: [e-mail]

Declaration of compliance

We hereby declare, that

RECIPROCATING SAW

65303 (J1F-115X)

230 V / 710 W

has been manufactured in accordance

with the following standards or normative documents:

EN 55014-1:2006

EN 55014-2/A1:2001

EN 60745-2-11/A12:2009

EN 60745-1:2009

EN 61000-3-2:2006

EN 61000-3-3/A2:2005

in accordance with the provisions of the following directives

2006/42/EF The Machinery Directive

2004/108/EEC The EMC Directive

2012

Stefan Schou

Business Unit Manager

30.11.2012 - HP Schou A/S, DK-6000 Kolding, Denmark

Environmental information

HP Schou A/S endeavours to manufacture environmentally friendly electrical and electronic products; we also wish to contribute to the safe disposal of waste substances which may be environmentally hazardous.

A healthy environment is important for everyone, and we have therefore set ourselves the target of complying with the requirements in the EU's initiatives in this area, which means we guaranteed the environmentally sound collection, treatment, recovery and disposal of electronic equipment which might otherwise harm the environment. This also means that our products do not contain any of the following chemicals and substances:

• Lead
• Mercury
• Cadmium
• Hexavalent chrome
• PBB (polybrominated biphenyls) (fl ame retardants)
• PBDE (polybrominated diphenyl ethers) (fl ame retardants

HP Schou A/S is proud to support the EU's environmental initiatives in order to play a part in a cleaner environment and hereby declares that our products comply with both the WEEE Directive (2002/96/EC) and the RoHS Directive (2002/95/EC).

As a consumer, you can also play a part in protecting the environment by following the applicable environmental regulations and taking old electrical and electronic equipment to your local recycling center. If the equipment contains batteries, you must remember to remove these before you dispose of the equipment.

Manufactured in P.R.C

6001

EU importer:

HP Schou A/S

6000 Kolding

Denmark

© 2012 HP Schou A/S

All rights reserved. The content of this user guide may not be reproduced in part or whole in any way, electronically or mechanically (e.g. photocopying or scanning), translated or stored in a database and retrieval system without the prior written consent of HP Schou A/S.

SÄBELSÄGE

Gebrauchsanweisung

Close-up of a hand adjusting a black plastic brake lever (no text or symbols visible)

Line drawing of a hand using a tool to cut or mark a piece of material, with no visible text or symbols.

Business Unit Manager

30.1.2012 - HP Schou A/S, DK-6000 Kolding

Umwelthinweise

Hergestellt in P.R.C

6001

EU-Importeur:

HP Schou A/S

6000 Kolding

Dänemark

© 2012 HP Schou A/S

Close-up of a hand adjusting a black mechanical component with a handle (no visible text or symbols)

Line drawing of a hand using a tool to cut or mark a surface, with no text or symbols present.

Ciecie drewna

Business Unit Manager

1. 1. 2012 - HP Schou A/S, DK-6000 Kolding, Denmark

Close-up of a hand adjusting a black plastic buckle (no text or symbols visible)

Line drawing of a hand using a tool to cut or install a sheet metal (no text or symbols)

Business Unit Manager

1. 1. 2012 - HP Schou A/S, DK-6000 Kolding, Taan

PARTS LIST

No	name	No	name
1	screw	29	tapping screw st4x25
2	chuck	30	mat 5x16x1.5
3	flat washer	31	screw M5x14
4	spring washer	32	right handle
5	screw	33	carbon brush holder
6	airproof ring of oil	34	carbon brush
7	O-ring	35	carbon brush cap
8	fell ring	36	hexangular screw
9	sliding bearing	37	plastic mat
10	fell block	38	leathern sheath
11	cover	39	blade
12	screw M5X25	40	blade bracket
13	reciprocating bar	41	clip spring
14	Press board of bearing	42	Rotor
15	Screw M5x12	43	bearing
16	output shaft	44	block off ring for wind
17	needle bearing	45	tapping screw
18	mat 7x16x2	46	stator
19	pin	47	enclosure
20	gear	48	tapping screw
21	mat	49	anchorage
22	bearing	50	grommet
23	clip spring	51	Cord & plug
24	bearing	52	adjust speed set
25	trunk body	53	switch
26	bearing	54	inductance
27	Press board of bearing	55	left handle
28	screw	56	tapping screw
