PIM 604 IX - Hob INDESIT - Free user manual and instructions

Product type	Built-in electric hob
Brand	INDESIT
Model	PIM 604 IX
Cutout dimensions (W x D)	555 x 475 mm
Overall dimensions (W x D x H)	580 x 510 x 50 mm (estimated)
Net weight	8 kg (estimated)
Power supply	220-230 V / 380-400 V 3N~ 50/60 Hz
Maximum power consumption	7000 W
Number of cooking zones	4 electric plates
Type of cooking zones	Normal and rapid (identified by a red dot)
Power adjustment	6 positions (0 to 6) by knob
Surface material	Stainless steel
Operating indicator	Yes, for each plate
Safety	Do not use with an external timer or remote control; hot surfaces
Cleaning and maintenance	Damp sponge, no steam cleaner or abrasive products; oil the warm plates
Installation	Built-in, requires ventilation; electrical connection via terminal block
Spare parts	Available via INDESIT after-sales service
Repairability	Repair by an authorized technician only
Appliance class	Class 3 (built-in)
Usage	Domestic, non-professional

Frequently Asked Questions - PIM 604 IX INDESIT

How to install the INDESIT PIM 604 IX hob?

Installation must be carried out by a professional. The worktop cutout must be 555 x 475 mm. The hob requires ventilation: the cavity must have no back wall or have air openings. The electrical connection is made via a terminal block (cable not supplied). Observe the minimum distances from furniture (600 mm) and from the hood (650 mm).

What type of power cable is needed?

The cable is not supplied. Depending on your network, use: H05RR-F 5x1.5 mm² for 380-400 V 3N~, H05RR-F 4x1.5 mm² for 380-400 V 2N~, or H05RR-F 3x2.5 mm² for 220-230 V 1N~. The section must be suitable for 7000 W power.

How to use the electric plates?

Turn the corresponding knob to the desired position (0 to 6). Position 1 is minimum power, 6 is maximum. The indicator lights up when the plate is operating. Use flat-bottomed pans with a diameter suitable for the plate.

What to do in case of burns or fire on the hob?

Never use water to extinguish a grease fire. Turn off the appliance and cover the flame with a lid or fire blanket. In case of burns, cool immediately under cold water and consult a doctor.

How to clean the stainless steel hob?

Disconnect the appliance. Use a damp sponge with a mild detergent, then dry with a soft cloth. Never use a steam cleaner, abrasives or metal sponges. For electric plates, clean with a damp sponge and lightly oil when warm.

Can I use an external timer to turn on the hob?

No, using an external timer or remote control system is prohibited. The appliance must only be switched on manually via the knobs.

What does the red dot on a plate mean?

The red dot indicates a rapid plate, which heats faster than a normal plate. Its maximum power is higher.

How to know which knob corresponds to which plate?

Each knob is identified by a symbol or number corresponding to the plate's position on the hob. Refer to the diagram in the manual.

Does the plate heat even in position 0?

No, in position 0 (off) the plate does not heat. The indicator is off. Make sure the knob is set to 0 after use.

Where to find spare parts for this model?

Contact INDESIT after-sales service. Have the model (PIM 604 IX) and serial number (S/N) on the rating plate ready. Parts are available through authorized centers.

USER MANUAL PIM 604 IX INDESIT

Operating Instructions

HOB

Contents

Operating Instructions,1

Warnings,3

Assistance,9

Description of the appliance, 11

Installation, 17

Start-up and use,18

Precautions and tips,19

Maintenance and care,19

PT

Portuges

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

Never use steam cleaners or pressure cleaners on the appliance.

The appliance is not intended to be operated by means of an external timer or separate remote control system.

CAUTION: the use of inappropriate hob guards can cause accidents.

FR

Avertissements

• appliance model (Mod.)
- serial number (S/N)

This information is found on the data plate located on the appliance and/or on the packaging.

FR

Assistance

Indiquez-lui :

Description of the appliance

Overall view

1 ELECTRIC HOTPLATE
2 Electric HOTPLATE INDICATOR LIGHT
3 Control Knobs for ELECTRIC HOTPLATES

• ELECTRIC HOTPLATES may have different diameters and operate at different power levels. These power levels may be “normal” or “rapid” (the latter may be distinguished from the others by a red spot in the middle of the hotplate).
• The ELECTRIC HOTPLATE INDICATOR LIGHT switches on whenever the selector knob is moved from the 'off' position.
  • Control Knobs for ELECTRIC PLATES

FR

ES

NL

Installazione

Technical drawing of a mechanical assembly with dimension line (20), no visible text or symbols

Technical drawing of a mechanical assembly with dimension标注 (no text or symbols present)

Architectural line drawing of a cabinet or enclosure with two horizontal bars and a floor, no text or symbols present.

Pure electrical circuit lines without any symbols

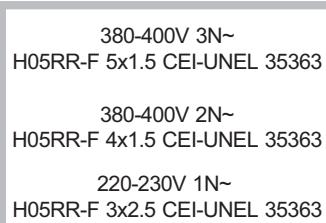

380-400V 3N\~ H05RR-F 5x1.5 CEI-UNEL 35363

380-400V 2N\~ H05RR-F 4x1.5 CEI-UNEL 35363

220-230V 1N\~ H05RR-F 3x2.5 CEI-UNEL 35363

! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

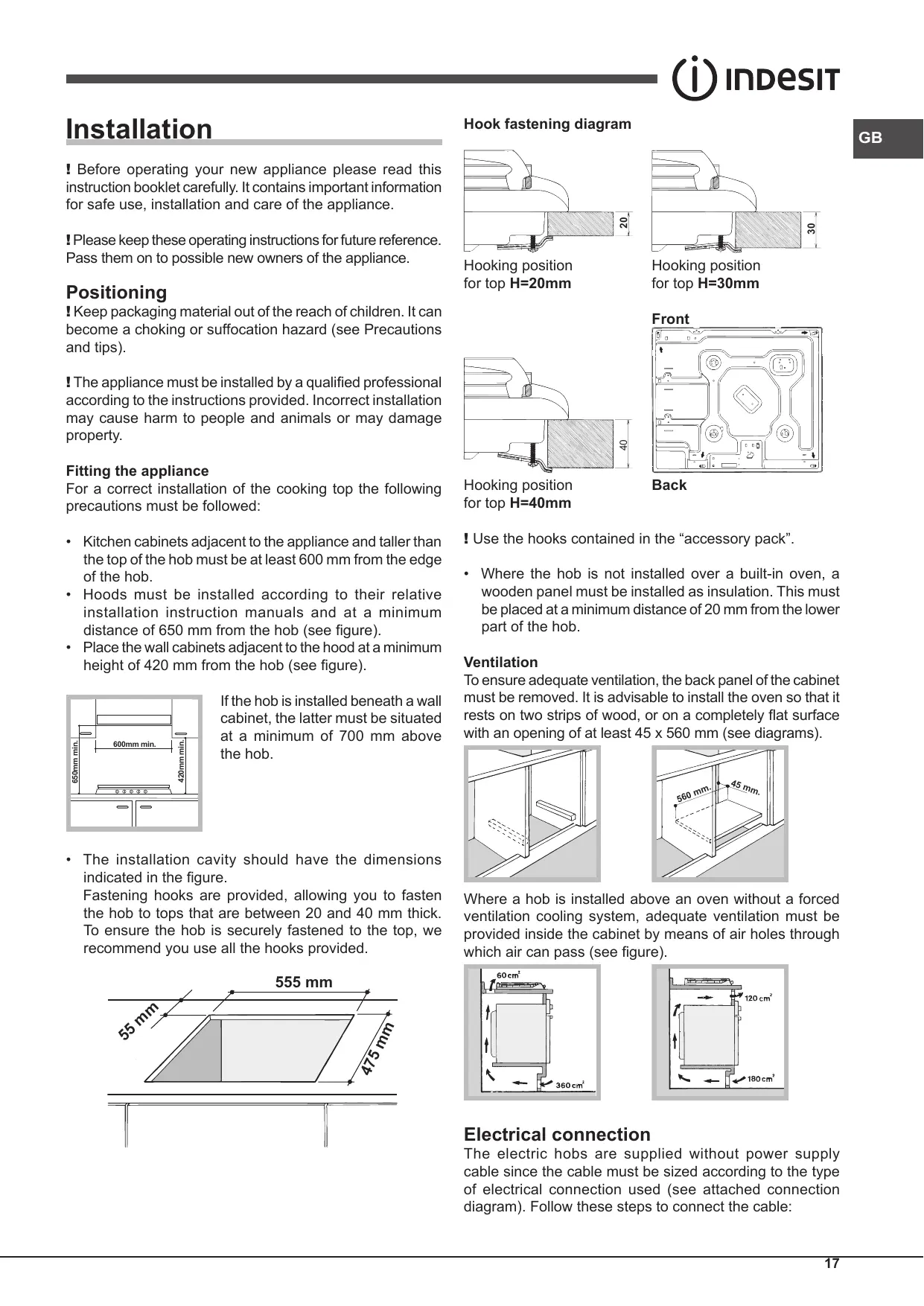

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).

! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

Fitting the appliance

For a correct installation of the cooking top the following precautions must be followed:

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob.
• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob (see figure).
• Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure).

If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the hob.

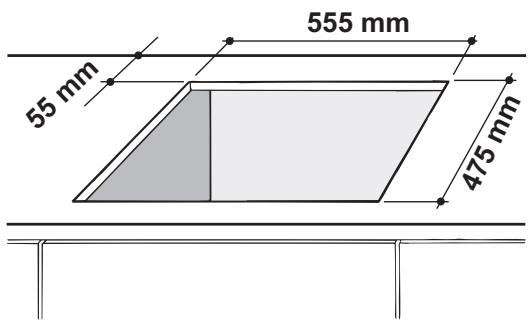

• The installation cavity should have the dimensions indicated in the figure.
  Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided.

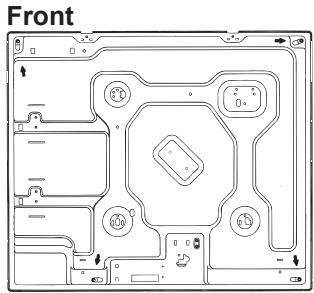

Hook fastening diagram

Technical drawing of a mechanical assembly with dimension line (20), no visible text or symbols

Hooking position for top H=20mm

Technical drawing of a mechanical assembly with dimension标注 (no text or symbols present)

Hooking position for top H=30mm

Hooking position for top H=40mm

Back

! Use the hooks contained in the “accessory pack”.
- Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Technical line drawing of a cabinet or enclosure with two horizontal supports and a dashed-line interior (no text or symbols)

Where a hob is installed above an oven without a forced ventilation cooling system, adequate ventilation must be provided inside the cabinet by means of air holes through which air can pass (see figure).

Electrical connection

The electric hobs are supplied without power supply cable since the cable must be sized according to the type of electrical connection used (see attached connection diagram). Follow these steps to connect the cable:

• Open the terminal box by removing the screws "V" and opening the cover (see figure).

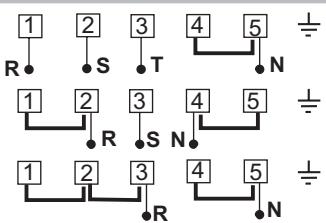

• Connect the wires as shown in the diagram.
• Fix the cable using the cable clamp "F", replace the cover and fasten it using the screws "V" (see figure).

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C.

! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate.
• The voltage is in the range between the values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

! If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

DATA PLATE
Electrical connections	Voltage 220-230V/380-400V 3N ~ 50/60 HzMax power 7000 W
	This appliance conforms to the following European Economic Community directives:- 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments- 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments- 93/68/EEC dated 22/07/93 and subsequent amendments.- 2012/19/EC and subsequent amendments.

Start-up and use

! The position of the corresponding electric hotplate is shown on every knob.

Electric hotplates

The corresponding knob may be turned clockwise or anticlockwise and set to six different positions:

Setting	Normal o Fast Plate
0	Off
1	Low
2-5	Medium
6	High

! Please refer to the “Practical advice on using the appliance” section for a list of the relative positions and their recommended uses.

Practical advice on using the electric hotplates

To avoid heat loss and damage to the hotplates, use pans with a flat base, whose diameter is no less than that of the hotplate itself.

Setting	Setting
0	Off
1	Cooking vegetables, fish
2	Cooking potatoes (using steam) soups, chickpeas, beans.
3	Continuing the cooking of large quantities of food, minestrone.
4	For roasting (average)
5	For roasting (above average)
6	For browning and reaching a boil in a short time

! Before using the hotplates for the first time, you should heat them at maximum temperature for approximately 4 minutes, without placing any pans on them. During this initial stage, their protective coating hardens and reaches its maximum resistance.

Precautions and tips

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• This is a class 3 built-in appliance.
- These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.
- The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
- Do not touch the appliance with bare feet or with wet or damp hands and feet.
- The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
- Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
- The openings used for ventilation and dispersion of heat must never be covered.
- Always make sure the knobs are in the “●”/“○” position when the appliance is not in use.
- When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
- Never carry out any cleaning or maintenance work without having detached the plug from the mains.
- In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).
• Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.
- Do not leave the electric hotplate switched on without a pan placed on it.
- Do not use unstable or deformed pans.
- The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
- Do not let children play with the appliance.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.
  Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Maintenance and care

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Never use steam cleaners or pressure cleaners on the appliance.

• It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.
• The electric hotplates should be cleaned with a damp cloth and lubricated with a little oil while still warm.
• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse and dry any remaining drops of water.

Installation

Technical drawing of a mechanical assembly with dimension line (20), no visible text or symbols

Technical drawing of a mechanical assembly with cross-sectional view and dimension label (30), no readable text or symbols present.

Technical drawing of a mechanical assembly with dimension line (40), no visible text or symbols

Isometric line drawing of a cabinet or enclosure with two horizontal bars and a dashed floor, no text or symbols present.

Technical drawing of a mechanical assembly with dimension line (20), no visible text or symbols

Technical drawing of a mechanical assembly with dimension标注 (no text or symbols present)

Technical line drawing of a cabinet or enclosure with structural beams and a door (no text or symbols)

Technical drawing of a mechanical assembly with dimension line (20), no visible text or symbols

Technical drawing of a mechanical assembly with dimension标注 (no text or symbols present)

Architectural line drawing of a cabinet or enclosure with two horizontal bars and a floor, no text or symbols present.

Technical drawing of a mechanical assembly with dimension line (20), no visible text or symbols

Technical drawing of a mechanical assembly with dimension标注 (no text or symbols present)

Architectural line drawing of a cabinet or enclosure with two horizontal supports and a floor plan (no text or symbols)

Technical drawing of a mechanical assembly with dimension line (20), no visible text or symbols

Technical drawing of a mechanical assembly with cross-sectional view and dimension label (30), no readable text or symbols present.

Technical drawing of a mechanical assembly with dimension line (40), no visible text or symbols

Isometric line drawing of a cabinet or enclosure with two horizontal bars and a floor, no text or symbols present.

Technical drawing of a mechanical assembly with dimension标注 (no text or symbols present)

Technical drawing of a mechanical assembly with dimension标注 (no text or symbols present)

Line drawing of a cabinet or enclosure structure with two horizontal bars and a dashed-line opening (no text or symbols)

Technical drawing of a mechanical assembly with dimension line (20), no visible text or symbols

Technical drawing of a mechanical assembly with dimension标注 (no text or symbols present)

Technical drawing of a mechanical assembly with dimension line (40), no visible text or symbols

Line drawing of a cabinet or enclosure structure with no visible text, numbers, or symbols

Pure technical diagram of a 3D mechanical component with no text, numbers, or symbols

380-400V 3N\~ H05RR-F 5x1.5 CEI-UNEL 35363

380-400V 2N\~ H05RR-F 4x1.5 CEI-UNEL 35363

220-230V 1N\~ H05RR-F 3x2.5 CEI-UNEL 35363
