Product Type	MP3 Player with FM Radio
Display	1.8-inch True Color Screen
Internal Memory	1 GB / 2 GB / 4 GB / 8 GB (optional)
Expandable Memory	Micro-SD card slot, supports up to 8 GB
Video Playback	AMV / AVI formats (convertible from RM, MOV, VOB, WMV, ASF, MPEG, DAT, etc.)
Audio Playback	MP1, MP2, MP3, WMA, WAV
Recording	SP/LP digital recording (WAV format), max 99 files per directory
FM Radio	87.5 – 108 MHz (Normal Band) / 76.5 – 90 MHz (Japan Band), 20 presets
Equalizer Modes	NATURAL, ROCK, POP, CLASSIC, SOFT, JAZZ, DBB
Battery	Built-in Li-polymer rechargeable, charged via USB or charger
Interface	USB 2.0, plug & play (Windows 98+ requires driver)
Lyrics Display	Supports LRC files (same name as MP3)
Encrypted Disk	Create a password-protected partition for private files
Power Off Timer	Adjustable: off time (seconds) and sleep time (minutes)
Operating Temperature	-5 °C to 40 °C
Accessories Included	User Manual, Earphone, USB Cable
Care & Safety	Avoid extreme temperatures, moisture, drops; do not disassemble; use moderate volume

Frequently Asked Questions - MPC 883 FM HYUNDAI

How do I charge the MPC 883 FM?

Connect the player to a computer via USB cable or use a compatible charger. The battery icon shows an impulse while charging and becomes full when complete.

What video formats does the player support?

It directly plays AMV and AVI formats. Use the included software to convert other formats (RM, MOV, VOB, WMV, ASF, MPEG, DAT) to AMV/AVI.

How do I transfer files to the player?

Connect via USB cable. On Windows 98, install the driver; on later systems, no driver needed. The player appears as a removable disk. Drag and drop files.

How do I save radio stations?

In FM mode, press [MENU], select 'Save' to store the current frequency. Use 'Auto Search' to find stations automatically; up to 20 channels can be saved.

Can I record from the radio?

Yes. In FM mode, select 'Record' from the sub-menu to save the current preset channel as a recording file.

How do I use the encrypted disk feature?

Set 'Multi Drive' in system settings. The player appears as two drives: normal and encrypted. Use the provided tool to create a password-protected partition. Data in encrypted disk is hidden in the player and requires a password on PC.

Why is my player not turning on?

Check battery charge. Ensure the power switch is set to ON. Hold [▶II] for 3 seconds. If still off, connect to USB to charge and try again.

How do I set A-B repeat?

During music playback, press [MENU] and go to 'Replay mode'. Select 'A-B repeat', press [NEXT] at point A and again at point B. The player repeats the segment.

What should I do if the screen displays strange characters?

Go to Settings > Language and select the correct language. The player supports multiple languages including English, Chinese, French, German, etc.

How do I upgrade the firmware?

Download the latest firmware from the supplier. Connect player to PC, run the MP3 Player Upgrade Tool, select the new firmware file, and click 'Start'. After upgrade, format the disk as FAT file system.

USER MANUAL MPC 883 FM HYUNDAI

Illustration of a computer monitor connected to a USB drive (no text or symbols visible)

17. FUNKCE KÓDOVANÉHO DISKU

Poznámka:

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Illustration of a computer monitor connected to a USB drive (no text or symbols visible)

17. FUNKCIE KÓDOVANÉHO DISKU

Poznámka:

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

9. INSTALACJA NARZĘDZIA DO KONWERSJI (AMV/AVI)

Illustration of a computer monitor connected to a USB drive (no text or symbols visible)

17. FUNKCJA KODOWANIA DYSKU

Uwaga:

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

1. The Safety Instructions....43
2. Function Overview....43
3. About Battery....43
4. Expansion Card....43
5. Button function....44
6. Basic operation ....44
7. Main menu....44
8. Music mode ....45
9. Install (AMV/AVI) convert tool....46
10. Record mode....47
11. Voice mode....47
12. FM mode ....48
13. Picture ....49
14. SYS Setup....50
15. TEXT ....50
16. USB disk function ....51
17. Encrypt disk function ....51
18. Upgrading....52
19. Troubleshooting....53
20. Specification 53

1. THE SAFETY INSTRUCTIONS

The manual contains important safety instructions and information of the device's proper usage. Make sure to read carefully and understand all the instructions to avoid accident.

Do not expose the device to extreme temperature (above 40 °C ), especially in cars with shutting windows in summer.

Do not store in humid or dirty areas.

Avoid the device falling and bumping strongly. Do not make TFT screen suffer from violent shake; otherwise, TFT screen could be damaged or displayed abnormally.

Choose the suitable volume. Do not turn up the volume of the earphones too high while using it. If you feel ringing in your ears, stop using the device or turn the volume down.

Do not disassemble the device by yourself and do not wipe the surface of device with alcohol and benzene and thinners.

Do not use the device in areas where electronic devices is prohibited, such as in plane.

Do not use the device while driving an automobile or walking in the street, otherwise an accident may happen.

Our company reserves the right to improve the product so product's specification and design are subject to change without further notice.

2. FUNCTION OVERVIEW

• 1.8 inch true color screen
• Mass memory: 1 GB / 2 GB /4 GB /8 GB optional
• Movie player, support AMV/AVI format
- Support various video formats convert to AMV/AVI format: RM / MOV / VOB / WMV / ASF / MPEG / DAT etc
• USB 2.0, fast download speed
• Built in Micro-SD card slot, supports up to 8GB
• ID3 support, Lyrics display
• SP/LP digital recording function
• Electronic photo album
- Play mode: Repeat A-B, repeat one, repeat all, repeat catalog, follow read etc
• EQ modes: JAZZ, CLASSIC, ROCK, POP, NORMAL, SOFT, DBB
- No driver is needed above Win98, plug & play to the computer
• Built-in hi-capacity rechargeable Li-polymer battery
- Managing disk function: set two partitions by accessorial tool. One is normal disk, the other is security disk in which files could not be accessed freely.
- Save 20 radio channels and record them to recording file

3. ABOUT BATTERY

The player adopts a built-in Li-polymer battery with large capacity which is very safe in usage. If battery power is low, the screen will display “low power” then will automatically power off.

Recharge your battery by connection to PC via USB cable or by charger.

The screen displays battery icon and impulse when recharging battery. The icon will indicate full when completing recharging.

The running time of battery depends on volume setting, playing files format, button operation, etc.

The user can set time of [power off] in Setting to save power.

When you don't use the device for a period of time, please push [ON] to [OFF] side.

4. EXPANSION CARD

Insert the TF card to the Micro SD card slot. You could see the Card folder in the menu. If not with the TF card, There is no card folder in the menu.

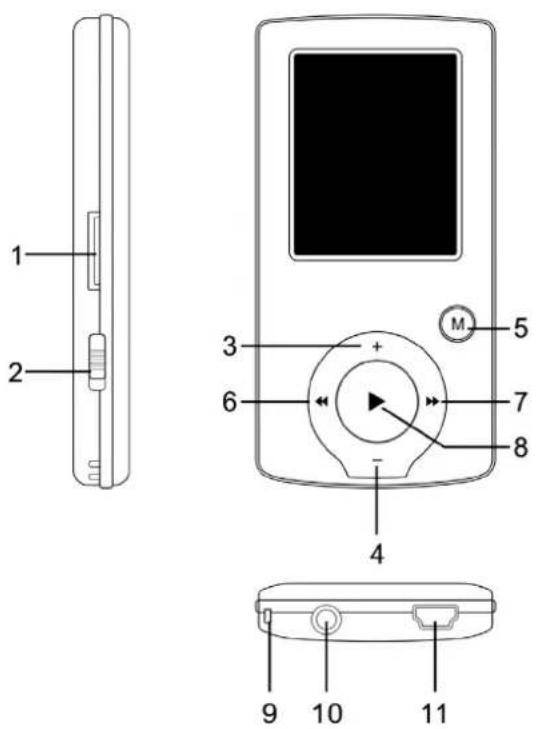

5. BUTTON FUNCTION

1) Micro SD slot
2) ON/OFF power switch
3) VOL+
4) VOL-
5) Enter menu and exit from sub-menu, confirm selection (under any status, hold [MENU] will enter main menu)
6) Last/Backward
7) Next/Forward
8) Play/Pause, Power ON/OFF the player
9) Hand strap Hole
10) Earphone socket
11) USB socket

6. BASIC OPERATION

1) Power on: hold [▶II] (play/stop) button for 3 seconds, the player will go to working condition.
2) Power off: hold [▶II] (play/stop) button for three seconds, the player will be turned off. Note: When battery power is low, it will automatically power off.
3) Adjusting volume: With MP3 mode, AMV/AVI mode, Voice mode, press [VOL-] or [VOL+] to decrease / increase the volume one step, while hold [VOL-] or [VOL+] button will decrease / increase continuously.

7. MAIN MENU

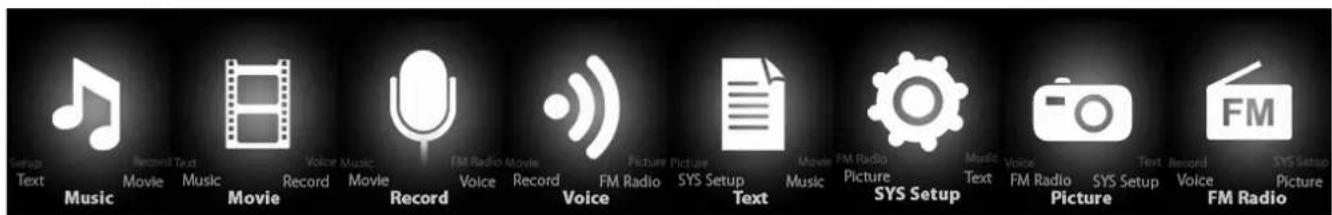

Hold [MENU] to enter main menu, there are seven modes which can switch into each other by pressing [PRE] or [NEXT].

8. MUSIC MODE

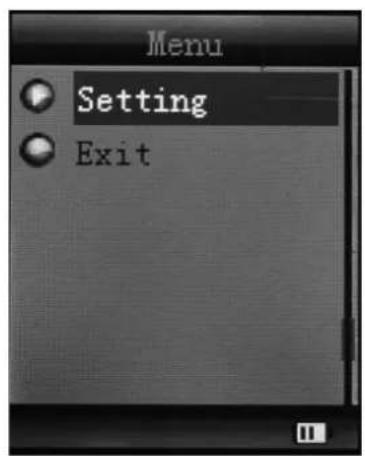

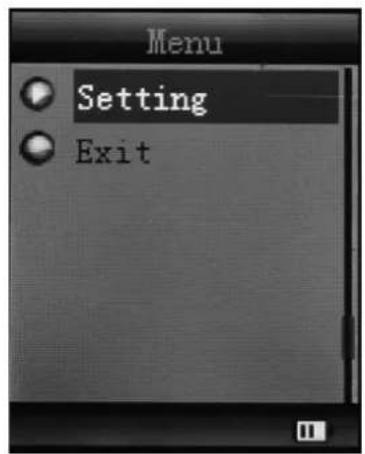

Sub-menu description:

A. sub-menu under playing status (there's no sub-menu while playing AMV/AVI file).

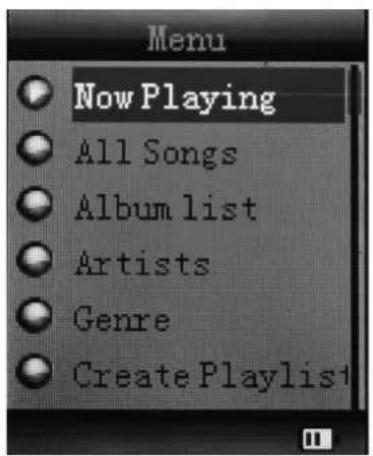

Select MUSIC mode in main menu, press [MENU] to confirm selection and then press PLAY / STOP [▶II] button to play the song. While music playing, press [MENU] button to enter sub-menu:

All Songs Display all the songs
Album list Display the album
Artists Display the singer of the song
Genre Display the genre of the song
Create Playlist Create the playlist

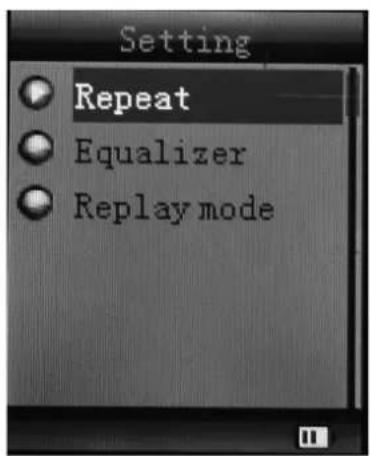

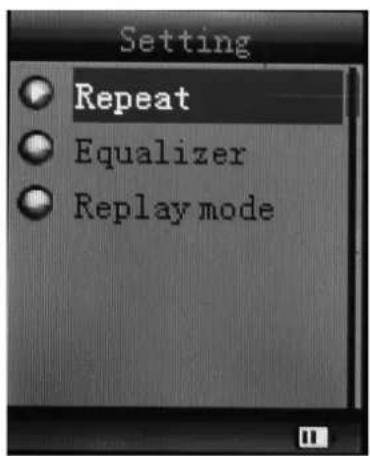

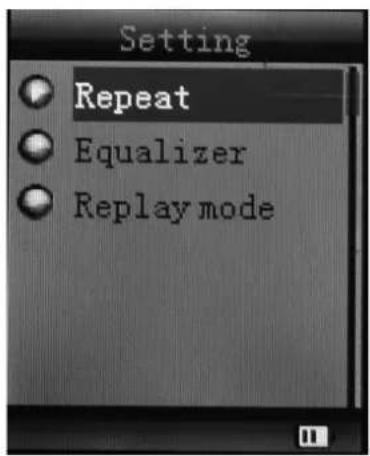

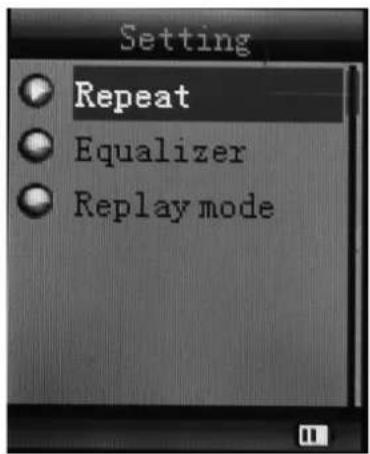

Setting	Repeat		Normal, Repeat one; Folder; Repeat Folder; Repeat All; Random; Intro.
	Equalizer		NATURAL, ROCK, POP, CLASSIC, SOFT, JAZZ, DBB
	Replay mode	Replay	A-B repeat, when “A” in the icon [NEXT] to confirm start point, swing [NEXT] as “B” point. The player will replay from A to B according to the setting in the replay times. (Return to A-B replay mode by swing [PRE] button in such status).
		Replay times	Set how many times the A-B point replay Maximum is 10 times (1 – 10)
		Replay gap set	replay time gap between every replay
Exit Exit from sub-menu

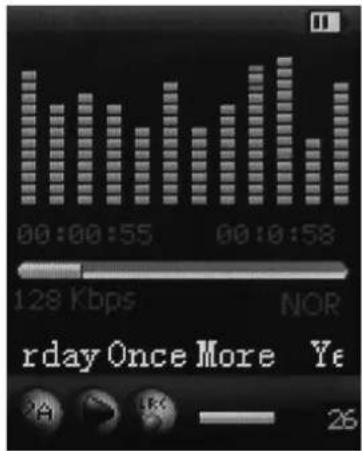

The device displays lyrics whose name is the same as MP3 file. For example, music format's name is "song.mp3" and LRC file's name must be "song.lrc", and they should be also in the same folder.

If there is lyrics file along together with playing song, the round ball beside the "lyric" icon is green. Otherwise it is red.

B. sub-menu under stop status: (Under playing status with MP3 mode, AMV/AVI mode, press [▶II] to stop playing, then press Mode button).

Local folder Indicate the folder of present playing file

Delete file Delete the present playing song

Delete All Delete All songs

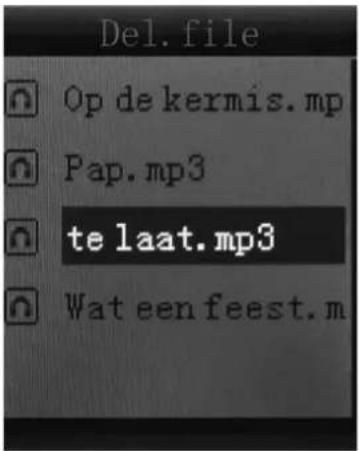

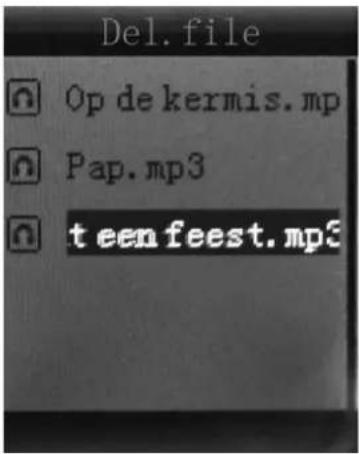

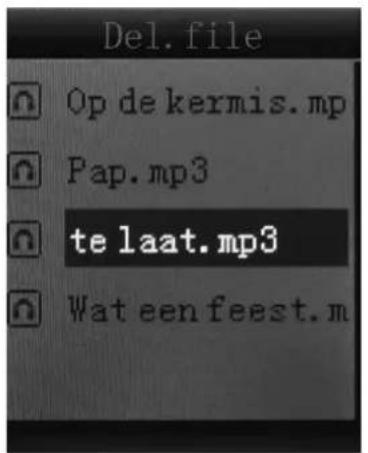

Delete file:

Sub-menu interface, select "Delete file", choose the file you want to delete, confirm "Delete", then the screen shows below:

9. INSTALL (AMV/AVI) CONVERT TOOL

Make sure you have installed Windows media player 9.exe and DirectX 9.0 before you install the software.

1) Put CD drive into computer and open the driver.
2) Run Setup.exe to install the software, then restart the computer.
3) Choose menu: start ---- program ---- mp3 player utilities ---- AMV/AVI convert tool.
4) There's a window appears, choose the file you want to convert, then choose the folder you want to put the new converted file, click "start converting".

10. RECORD MODE

Press [MENU] button to select Record mode in main menu, then press [MENU] again enter into recording sub-menu.

Local folder Indicate the	folder of present recording file
REC type: 32 kpbs, 64 k	pbs, 128 kpbs, 256 kpbs
Exit Exit form sub-menu

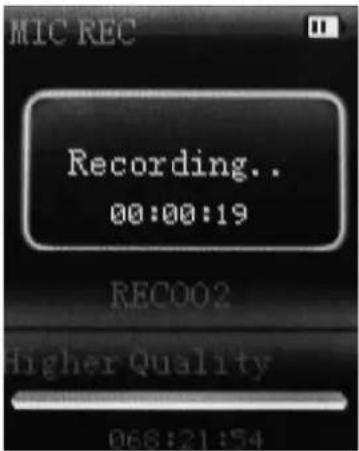

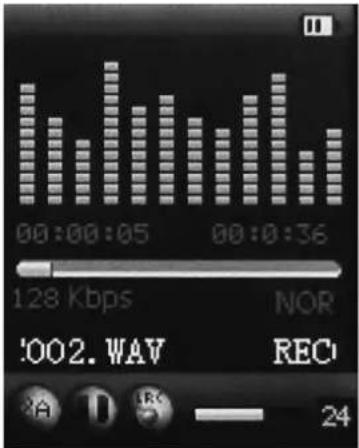

After setting, press [▶II] to start recording. In the meantime please note:

1) During recording, only [▶II] (play/stop) and [MENU] can be effective. 2) Press [▶II] (play/stop) button shortly will save present recording file and start a new recording file.
3) Ensure sufficient battery capacity during recording.
4) he player support 99 voice recording files storage in each directory. If the screen displays "out of space", which indicates the current directory has already saved 99 voice recording files, the user need to change to a new directory.

11. VOICE MODE

Main menu status, swing [PRE] or [NEXT] to select the Voice mode, then press [MENU] to confirm the selection, press [▶II] to play the recording file. Press [▶II] button to pause playback, swing [PRE] or [NEXT] button to select recording files.

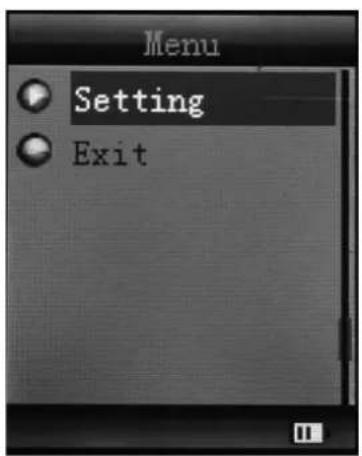

Sub-menu while playing status:

Repeat Refers to “repeat” in music mode
Replay mode Refers to “replay” in music mode
Exit Exit from sub-menu

Sub-menu while stop status:

Local folder Indicate the	folder of present recording file
Delete Delete recording	song
Delete All Delete all recording files
Exit Exit from the sub-menu

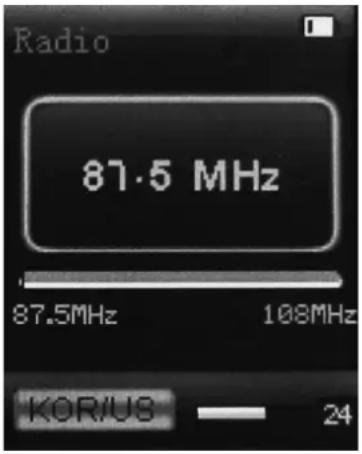

12. FM MODE

Under main menu, swing [PRE] or [NEXT] button to choose FM mode and press [MENU] to confirm. Press [▶II] (play/stop) to save channel. If no channel is saved, you can look for channels by auto or manual searching. Press [MENU] again to get sub-menu as below:

Save Save currently tuned frequency;
Record Record current preset channel;
Delete delete current preset channel;
Delete All delete all saved channels;
Auto Search Auto search FM channel
Normal Band Frequencies from 87.5 MHz – 108 MHz;
Japan Band	Frequencies from 76.5 MHz – 90 MHz;
Exit Exit from FM sub-menu

Auto search: Holding [PRE] button or [NEXT] button for two seconds will tune frequency upward or downward until a radio station is located then it stop automatically.

Manual search: swing [PRE] or [NEXT] button to search channel upward or downward one-step.

Notice: Normal band and Japan band can store 20 preset channels respectively.

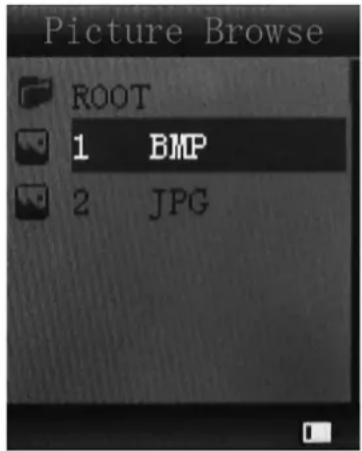

13. PICTURE

Under main menu, swing [PRE] or [NEXT] button to select Photo mode, then press [MENU] to confirm, screen shows as below:

Press [MENU] button again to enter sub-menu:

Local folder Choose the	folder where picture is saved;
Playback set	Manual play or auto play (there is a time gap for auto play from 1 – 10 seconds)
Delete file Delete picture;
Delete All Delete all pictures
Exit Exit from sub-menu

Press [▶II] (play/stop) button to display the picture automatically or manually according to previous playing setting.

14. SYS SETUP

Record time	Press [MENU] to edit recording time. Swing [NEXT] button and the digit of year will increase; swing [VOL+] button to edit next digit, push [PRE] or [NEXT] button to adjust the digit. Press [MENU] to confirm the setting.
LCD set	Always light10 Sec20 Sec30 Sec
Language	Simple Chinese, English, Trad Chinese, Japanese, French, German, Italian, Dutch, Portuguese, Spanish, Swedish, Czech, Denmark, Polish etc.
Power off	Off time: set self-power off time when the player is stopped and no button is pressed. The time unit is seconds. 0 means set off the function.Sleep time: set self-power off time after last key pressed, regardless of whether the player is active or stopped. The time unit is minutes.
Online mode Multi Drive;	Normal only; Encrypted only
Memory info. Check the	memory size and the remaining memory
Firmware version Display	the player's firmware version
Firmware upgrade Firmware	are can be upgraded via connection to PC
Exit Exit from the sub-menu

15. TEXT

Enter TEXT mode by pressing Mode button, then you can read and edit the article in the device. The device only can recognize the article in ".txt" Format.

Press [MENU] button again to enter sub-menu:

Local folder Choose the	folder where picture is saved;
Playback set	Manual play or auto play (there is a time gap for auto play from 1 – 10 seconds)
Delete file Delete picture;
Delete all Delete all pictures
Exit Exit from sub-menu

16. USB DISK FUNCTION

1) The player can be a large mobile storage device, supports 1 GB / 2 GB / 4 GB memory
2) Above windows 98 no driver is required, plug and play to the computer
3) The player supports USB bus-powered and begins to charge when connecting to PC.

When connected to a computer, the screen will indicate three different modes while operating: Suspending& download &upload

Illustration of a computer monitor connected to a USB drive (no text or symbols visible)

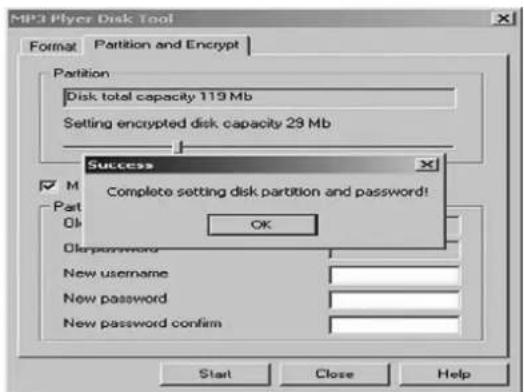

17. ENCRYPT DISK FUNCTION

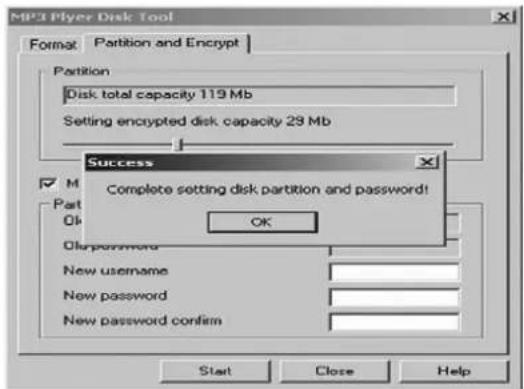

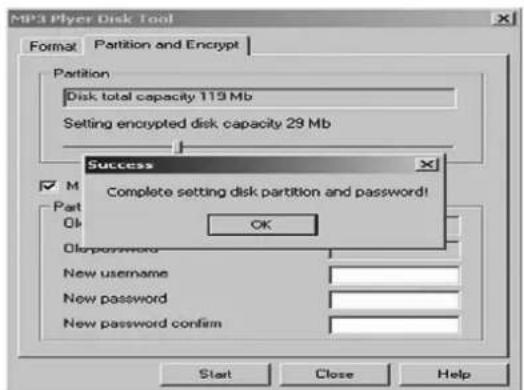

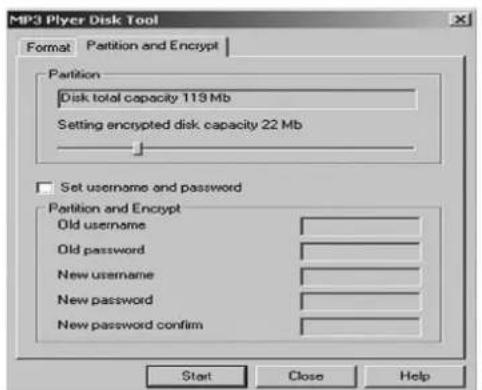

User can use the software to set partitions for USB disk. One is normal disk, the other is encrypted disk. (User can see two disk icons in computer. WINDOWS 2K need install SP4, otherwise, user only see one disk icon and selecting [normal only] or [encrypt only] from [online mode] of [system setting]. Encrypted disk would hide all private data, others cannot access data without password.

Notice:

* Data in encrypted disk cannot be readable in the player.
* It is necessary for encrypted disk to input user name and password when connecting to computer.
* Setting partitions will erase data, please backup data in advance. Combining disks would also erase data.
* Please do not lose username and password. Otherwise, you cannot access encrypted disk. You can combine disks to cancel encrypted disk at risk of damaging data in encrypted one.

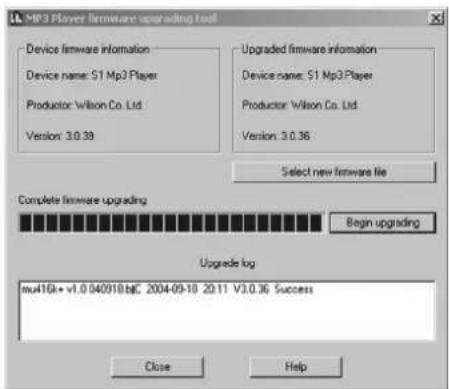

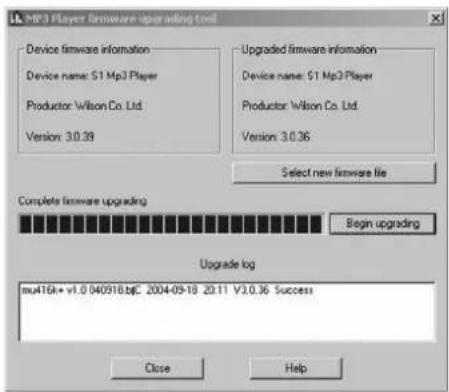

18. UPGRADING

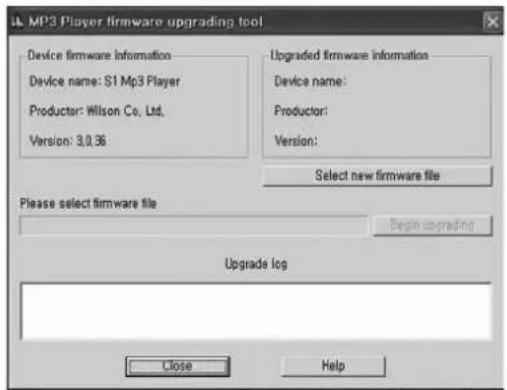

Use update tool installed in your computer to update and repair the damaged driver.

1) Connect player to the computer
2) Run the software: Start ---- program ---- MP3 Player Utilities ---- MP3 Player Upgrade Tool, click [choose new version firmware] button.

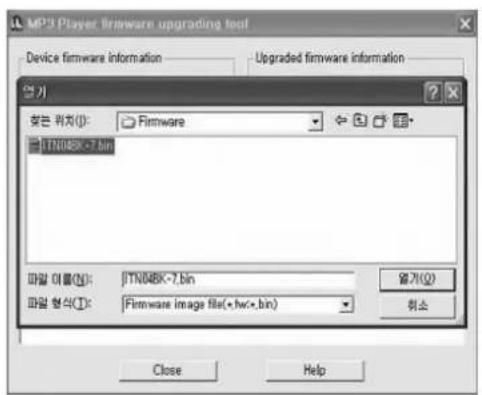

3) Select the new firmware driver (from the drive CD or from the website of the supplier). Click [start] button to begin upgrading.

4) When upgrading is successful, the display will indicate successfully upgraded.

5) Find the icon of removable disk in [my computer]. Click the right button of mouse to select [format]. In formatting interface, select FAT system in [file system], then click [start] button to format disk.

Notice: formatting disk would erase all the data and please backup data before formatting.

19. TROUBLESHOOTING

If the player couldn't play properly, please use trouble-shooting guide to help you.

Symptom Solution
The player cannot work	1) Please check the voltage of battery2) Make sure the power button is on3) Please check if volume is set to “0” or not and make sure that earphones are connected properly.4) Damaged music data will make noise in some extent; make sure there are files in the player.5) Choose right FAT file system in dialogue when formatting disk.
The player cannot upload/ download files; no disk icon in computer	Please check USB cable is correctly connected.Please properly re-install CD driver if under Win 98.
The player cannot record	Please check if memory is sufficient.Please check the battery voltage.
Strange characters are displayed	Please check if the correct language is selected.

If you had other difficulties in warranty period, please feel free contact our company to help you solve the problem.

20. SPECIFICATION

Item Specification
Transferring data rate USB 2.0
File formats supported	Music: MP1, MP2, MP3, WMA, WAVRecord: WAVVideo support: AMV, AVI
S/N rate 85 dB
The max output power (L)	10 mW+(R) 10 mW (32 ohm)
Built-in memory 4 GB, 8	GB
Operating temperature -5 °C ~ 40 °C
Operating System	WINSE/ME/2K/XP, MacOS10, Linux 2.4.2(Only WIN98 needs the CD driver)
Accessories User Manual, Earphone, USB cable

Specification and appearance are subject to change without further notice.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Old electrical appliances, used batteries and accumulators disposal

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product / battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery / accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries / accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

TARTALOM

Illustration of a computer monitor connected to a USB drive (no text or symbols visible)

17. LEMEZ KÓDOLÁSA

Megjegyzés:

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

Licensed by Hyundai Corporation, Korea
