Product Type	MP3 Player
Brand	Hyundai
Model	MPC 501 GB4
Dimensions	90 x 42 x 9.4 mm
Weight	30 g
Display	1.8 inch 65K color TFT, 160x128 pixels
Audio Formats	MP3, WMA, WAV, APE, FLAC
Video Formats	AMV, AVI (requires conversion)
FM Radio	87.5 - 108 MHz
Voice Recording	WAV, MP3
Picture Formats	JPEG, BMP, GIF
E-book Format	TXT
Memory Expansion	MicroSD up to 128 GB
USB Interface	USB 2.0 High-speed
Battery Type	3.7 V Li-ion
Charging Time	Approx. 2 hours
Music Playback Time	About 15 hours
Output Power (Earphone)	10 mW + 10 mW
Signal-to-Noise Ratio	85 dB
Operating System Support	Windows SE/ME/2K/XP/VISTA
Working Temperature	5°C to 40°C
Cleaning Instructions	Use a soft dry cloth; avoid alcohol, thinner, benzene
Safety Warnings	Keep plastic bag away from children; do not use while driving or walking

Frequently Asked Questions - MPC 501 GB4 HYUNDAI

How do I turn on/off the Hyundai MPC 501 GB4?

Long press the power button to turn it on or off. The power button is indicated by the symbol in the manual.

What audio formats are supported?

The player supports MP3, WMA, WAV, APE, FLAC for music playback.

How do I charge the device?

Connect the USB cable to a computer's USB port. Charging takes about 2 hours. The player can be charged while on or off.

Can I expand the storage memory?

Yes, via the MicroSD card slot supporting cards up to 128 GB.

How do I listen to FM radio?

Select FM from the main menu, then choose 'Auto tune' to search for stations. The earphone cord acts as an antenna, so keep it connected.

How do I record voice?

Go to 'Record' in the main menu, set parameters (storage, format, bitrate), then press play to start. Press M to save.

What video formats can I play?

Only AMV and AVI formats are supported. All video files must be converted using the AMV Converter Tool first.

How do I read e-books?

Select 'Text' from the main menu, choose a storage folder, then select a TXT file. Use buttons to navigate pages.

What should I do if the player freezes?

Try resetting by turning it off and on. If that fails, connect to a computer and check for file system errors. Avoid disconnecting during formatting or file transfer.

Is it safe to use while driving?

No, do not use the player when driving or walking to avoid accidents. Also, avoid using in electronics-prohibited areas like airplanes.

USER MANUAL MPC 501 GB4 HYUNDAI

Desktop interface with musical note icon and icons (no text or symbols)

Desktop interface with a clapperboard icon and playback controls (no text or symbols)

Desktop interface with microphone icon and icons for music, radio, email, and video (no text or symbols on icons)

Icon set with a radio and document icon, no text or symbols present

Desktop interface with icon set, no visible text or symbols

TEXT (ELEKTRONICKÁ KNIHA)

Desktop icon with open book symbol and icons for books, gear, and cloud (no text or symbols)

Icon set with a padlock and gear symbol, displayed on a dark background with icons below (no text or symbols)

Desktop interface with gear icons and icons (no readable text or symbols)

Desktop interface with musical note icon and icons (no text or symbols)

Desktop interface with a clapperboard icon and icons for music, audio, and documents (no text or symbols)

Desktop interface with microphone icon and icons for music, radio, and video (no text or symbols)

Desktop interface with icon set to radio, microphone, and book (no text or symbols)

Desktop interface with icon set, no visible text or symbols

TEXT (ELEKTRONICKÁ KNIHA)

Desktop icon with open book symbol and icons for documents, books, gear, and cloud (no text or symbols)

Desktop interface with icons for music, gear, lock, and music note (no text or symbols)

Desktop interface with gear icons and icons (no readable text or symbols)

Desktop interface with musical note icon and icons (no text or symbols)

Desktop interface with a clapperboard icon and icons for music, video, and audio (no text or symbols)

Desktop interface with microphone icon and icons for music, documents, and video (no text or symbols on icons)

Icon set with a radio, document, and book icons on a dark background (no text or symbols)

Desktop interface with icon set, no visible text or symbols

Desktop icon with open book symbol and icons for devices, books, gear, and cloud (no text or symbols)

Desktop interface with icons for books, gear, music, and documents (no readable text or symbols)

Desktop interface with gear icons and icons (no readable text or symbols)

IMPORTANT: Please read before using and retain for future reference.

IMPORTANT NOTES

INTRODUCTION

- Thank you for buying our product.

- Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

PRECAUTIONS

• Do not put the player in areas with high temperature, humidity or dust, especially not in the car with the windows closed in summer.
• Do not knock or hit the player, especially the screen in order to avoid TFT being damaged or displaying content abnormally.
• Select suitable volume, turn down or stop using when you feel a tingle in ears.
• Battery service lift may vary from different usage conditions, manufacturer and manufacturing time.
• Do not disconnect the player abruptly during the formatting or uploading and downloading, otherwise, it will cause a program error.
• We will not be held responsible for any obligation for any memory loss caused by product damage, repair or other reasons. Please operate correctly as per the manual.
• The player can be charged whether the device is on or off by connecting it to a running PC's USB port.
• Do not dismantle the player personally or use alcohol, thinner or benzene to clean the surface of the player.
• Do not use the player in the electronics-prohibited area, such as in the plane.
• Do not use the player when driving or walking in order to avoid traffic accidents.

FEATURES

1.8 inch 65K full-color TFT display (160X128 pixel)

Music function: MP3, WMA, WAV, APE, FLAC

Video function: AMV, AVI (All video needs to be converted)

FM Radio support

Picture function: JPEG, BMP, GIF

Voice recorder support: WAV, MP3

TXT-book format E-book function

Micro- SD Support

USB2.0 High-speed

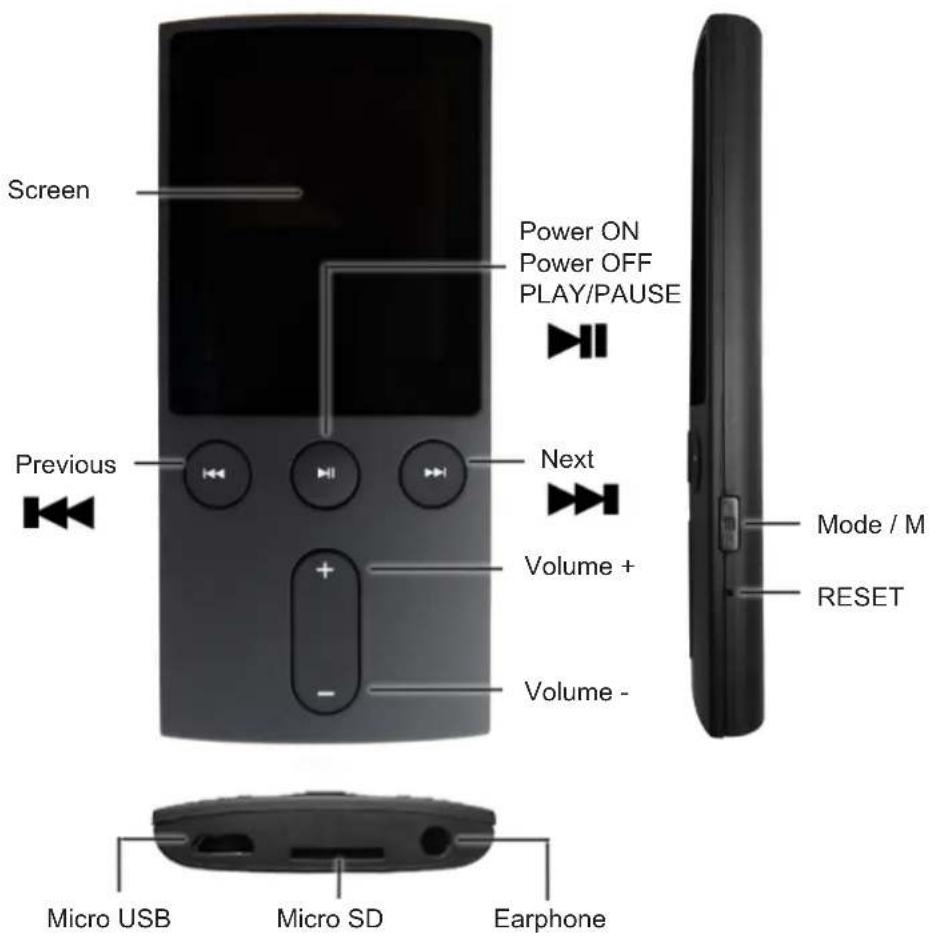

PLAYER DESCRIPTION

Player ON/OFF

• Long press " " key to power ON the player
• Long press " " key to power OFF the player

MUSIC

Desktop interface with musical note icon and icons (no text or symbols)

1) Choose "Music" option on the main menu. Press "→" enter into Playing Music Mode.
2) Select the desired file.

- Press “” to play/pause the file.

• Press "◀◀/▶◀" to skip to the previous or next file. If press and hold these buttons, the function will be fast forward or fast backward.
• Press "Volume +" or "Volume -" to increase or decrease volume.

3) Press "M" to enter into sub-settings menu.

- Press "▶" to move through the menus.

- Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

MOVIE

Desktop interface with a clapperboard icon and icons for music, audio, and video (no text or symbols on the main elements)

1) Choose "Video" option on the main menu. Press "▶" to enter into Playing Video Mode.
2) Choose the storage: "Local folder" or "Card folder", then select the desired file.

- Pr▶ is “ ” to play/pause the file.

• Press “◀◀/▶◀” to skip to the previous or next file. If press and hold these buttons, the function will be fast forward or fast backward;
• Press "Volume +" or "Volume -" to increase or decrease volume.

3) Press "M" to enter into sub-settings menu.

• Pr ≈ "▶" to move through the menus.
• Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

!!! Video format :AMV(PIX 160*120)

(All of video files should be converted by AMV Converter Tool firstly.)

RECORD

Desktop interface with microphone icon and icons for music, radio, email, and video (no text or symbols on icons)

1) Choose "Record" option on the main menu. Press "▶" enter recording mode.
2) Set the parameters of the recording: "Storage", "Record format" and "Set rec bitrate".
3) Choose "Recording" and press "▶" start the recording or pause the recording.
4) Press "M" to save the recording file.
5) Choose "Recording library" to select recordings.

RADIO

Desktop interface with icon set to a radio and megaphone, no text or symbols visible

1) Choose "FM" option on the main menu. Press "Enter into FM Radio Mode."

2) Choose "Auto tune" to start automatic tuning.

- Pr▶ is “ ” to skip to the next preset station.

- Press "Volume +" or "Volume -" to increase or decrease volume.

3) Press or press and hold "i" to arch for the desired station manually.

4) Press "M" to enter into sub-settings menu.

- Press "√" to move through the menus.

- Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

!!! In Radio mode, the earphone is used as antenna, so please keeping the earphone is connected well.

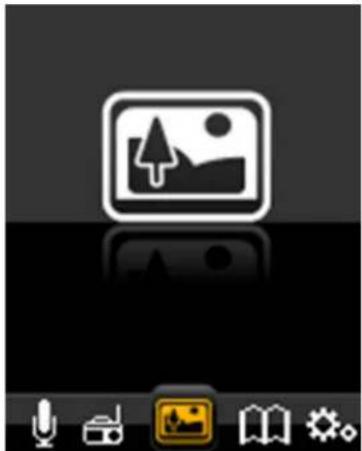

Desktop interface with icon set, battery, and application icons (no readable text or symbols)

1) Choose "Picture" option on the main menu. Press "Enter Playing Picture Mode."

2) Choose the storage: "Local folder" or "Card folder", then select the desired file.

- Pr▶ is “ ” to play the file.

- Press "▶" to skip to the previous or next file.

3) Press "M" to enter into sub-settings menu.

- Press "▶" to move through the menus.

- Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

TEXT (E-BOOK)

Icon set with a stylized open book and document icon, no text or symbols present

1) Choose "Text" option on the main menu. Press "▶II" to enter Text Mode.
2) Choose the storage: "Local folder" or "Card folder", then select the desired file.

• Pr▶ is “ ” to play the file.
• Press "A" to skip to the previous or next file.

3) Press "M" to enter into sub-settings menu.

- Print "▶" to move through the menus.

- Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

BROWSER

Icon set with a padlock and gear symbol, displayed on a dark background with icons below (no text or symbols)

1) Choose "Browser" option on the main menu. Press "Enter into Browser Mode."
2) Choose the storage: "Local folder" or "Card folder", then select the desired file.

!!! Browser is a resources manager that can help you to know all files in MP3 player for convenient management. You can select the music, movie file to enjoy it directly.

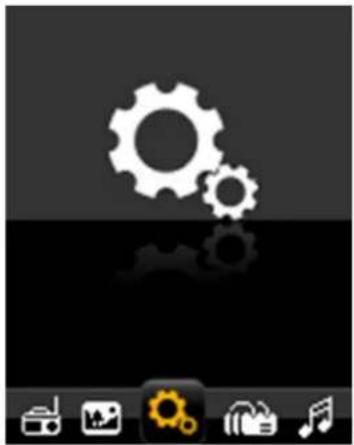

SETTING

Desktop interface with gear icons and icons (no readable text or symbols)

1) Choose "Settings" option on the main menu. Press "Enter into Setting mode. Mode.

- Pr ≈ "▶" to move through the menus.

- Pr#s " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

Charging the Battery

Battery is full on 3,7 V. As time goes on, capacity indication will monish. Indicator shows blank when battery almost ran out. You should charge your battery at that time. Connect the USB cable to the USB slot on your PC; It takes about 2 hours for the player with fully charge.

SPECIFICATIONS

Dimensions 90 x 42 x 9,4 mm
TFT colored display	1.8 inch TFT; 65 K real color display, Resolution: 160 x 128 pixel
TF card reader Support up to 128 GB
Data speed High-speed USB2.0
Audio format	MP3 ,WMA, WAV, APE, FLAC Voice recorded format: WAV, MP3
Video format The video file should be converted to AMV, AVI format
FM Radio 87,5 - 108 MHz
S/N 85 dB
Max. output power of earphone 10 mW +	10 mW
Flash memory 4 GB / 8 GB
Power supply 3,7 V Li-ion battery
Playback time of battery Music: about 15 hours
Working temperature 5 °C to 40 °C
Operating system WINSE/ME/2K/XP/VISTA
Weight	30 g

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

The capacity of the product battery decreases over time. Decreasing of battery capacity occurs during normal use of the appliance and is considered usual wear and tear of the appliance. Decreasing battery capacity is not a defect of the appliance.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

ETA Inc. hereby declares that the product MPC501FM is in compliance with requirements and other relevant provisions of the directive 2014/53/EU. The complete EU Declaration of Conformity can be found at www.hyundai-electronics.cz/declaration_of_conformity
