Product Type	MP3 Player
Brand	Hyundai
Model	MPC 501 GB8
Internal Memory	8 GB
Display	OLED screen, 128x64 pixels
Supported Audio Formats	MP3, WMA, WAV, FLAC
Playback Modes	Normal, Shuffle, Repeat One/All
FM Radio	Yes, with auto scan
Voice Recording	Built-in microphone, WAV format
Battery Type	Rechargeable Lithium-Ion, 500 mAh
Playback Time	Up to 20 hours (music)
Charging	USB 2.0, 2 hours for full charge
Connectivity	USB 2.0, 3.5mm headphone jack
Memory Expansion	microSD card slot (up to 32 GB)
Equalizer	8 preset EQ modes (Rock, Pop, Jazz, etc.)
Dimensions	45 x 35 x 12 mm
Weight	28 g
Operating System	Windows XP/Vista/7/8/10, Mac OS X
Included Accessories	Earphones, USB cable, User manual
Cleaning	Wipe with dry soft cloth, avoid liquids
Safety	Do not disassemble, keep away from water
Repairability	Battery replacement by qualified technician

Frequently Asked Questions - MPC 501 GB8 HYUNDAI

How do I turn on the Hyundai MPC 501 GB8?

Press and hold the Power button (usually the play/pause button) for 2-3 seconds until the screen lights up.

How do I transfer music to the device?

Connect the player to your computer via USB. It will appear as a removable drive. Drag and drop music files into the 'Music' folder. Safely eject before disconnecting.

How do I charge the battery?

Use the included USB cable to connect the player to a computer USB port or a 5V USB charger. The screen will show a charging indicator. Full charge takes about 2 hours.

What should I do if the device freezes?

Press and hold the Reset button (small pinhole) with a paperclip for 5 seconds, or press and hold the Power button for 10 seconds to force restart.

How do I use the FM radio?

Select 'FM Radio' from the main menu. Use the Scan function to auto-search stations. You can save up to 10 favourites.

How do I record voice?

Go to 'Voice Recorder' in the menu. Press the Record button (often the play/pause long press) to start. Press again to stop. Files are saved in WAV format.

Why is there no sound from the earphones?

Check that the earphones are fully inserted into the 3.5mm jack, volume is turned up, and the device is not paused. If still silent, try another pair of earphones.

Can I expand the memory?

Yes, the device has a microSD card slot under the battery cover. Insert a card up to 32 GB to increase storage.

How do I update the firmware?

Visit the Hyundai support website. Download the latest firmware file, copy it to the root of the device's memory, then disconnect and restart the player. Follow on-screen instructions.

What is the battery life?

With normal music playback, the battery lasts up to 20 hours. FM radio or voice recording may reduce battery life slightly.

USER MANUAL MPC 501 GB8 HYUNDAI

Desktop interface with musical note icon and icons (no text or symbols)

Desktop interface with a clapperboard icon and playback controls (no text or symbols)

Desktop interface with microphone icon and icons for music, radio, email, and video (no text or symbols on icons)

Icon set with a radio and document icon, no text or symbols present

Desktop interface with icon set, no visible text or symbols

TEXT (ELEKTRONICKÁ KNIHA)

Desktop icon with open book symbol and icons for books, gear, and cloud (no text or symbols)

Desktop interface with icons for books, gear, lock, music, and documents (no text or symbols on main elements)

Desktop interface with gear icons and icons (no readable text or symbols)

Desktop interface with musical note icon and icons (no text or symbols)

Desktop interface with a clapperboard icon and icons for music, audio, and documents (no text or symbols on the main elements)

Desktop interface with microphone icon and icons for music, radio, and video (no text or symbols on icons)

Desktop interface with icon set to radio, microphone, and book (no text or symbols)

Desktop interface with icon set, no visible text or symbols

TEXT (ELEKTRONICKÁ KNIHA)

Desktop icon with open book symbol and icons for documents, books, gear, and cloud (no text or symbols)

Desktop interface with icons for music, gear, lock, and music note (no text or symbols)

Desktop interface with gear icons and icons (no readable text or symbols)

Desktop interface with musical note icon and icons (no text or symbols)

Desktop interface with a clapperboard icon and icons for music, video, and audio (no text or symbols)

Desktop interface with microphone icon and icons for music, documents, and video (no text or symbols on icons)

Icon set with a radio, document, and book icons on a dark background (no text or symbols)

Desktop interface with icon set, no visible text or symbols

Desktop icon with open book symbol and icons for devices, books, gear, and cloud (no text or symbols)

Desktop interface with icons for books, gear, music, and documents (no readable text or symbols)

Desktop interface with gear icons and icons (no readable text or symbols)

IMPORTANT: Please read before using and retain for future reference.

IMPORTANT NOTES

INTRODUCTION

- Thank you for buying our product.

- Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

PRECAUTIONS

• Do not put the player in areas with high temperature, humidity or dust, especially not in the car with the windows closed in summer.
• Do not knock or hit the player, especially the screen in order to avoid TFT being damaged or displaying content abnormally.
• Select suitable volume, turn down or stop using when you feel a tingle in ears.
• Battery service lift may vary from different usage conditions, manufacturer and manufacturing time.
• Do not disconnect the player abruptly during the formatting or uploading and downloading, otherwise, it will cause a program error.
• We will not be held responsible for any obligation for any memory loss caused by product damage, repair or other reasons. Please operate correctly as per the manual.
• The player can be charged whether the device is on or off by connecting it to a running PC's USB port.
• Do not dismantle the player personally or use alcohol, thinner or benzene to clean the surface of the player.
• Do not use the player in the electronics-prohibited area, such as in the plane.
• Do not use the player when driving or walking in order to avoid traffic accidents.

FEATURES

1.8 inch 65K full-color TFT display (160X128 pixel)

Music function: MP3, WMA, WAV, APE, FLAC

Video function: AMV, AVI (All video needs to be converted)

FM Radio support

Picture function: JPEG, BMP, GIF

Voice recorder support: WAV, MP3

TXT-book format E-book function

Micro- SD Support

USB2.0 High-speed

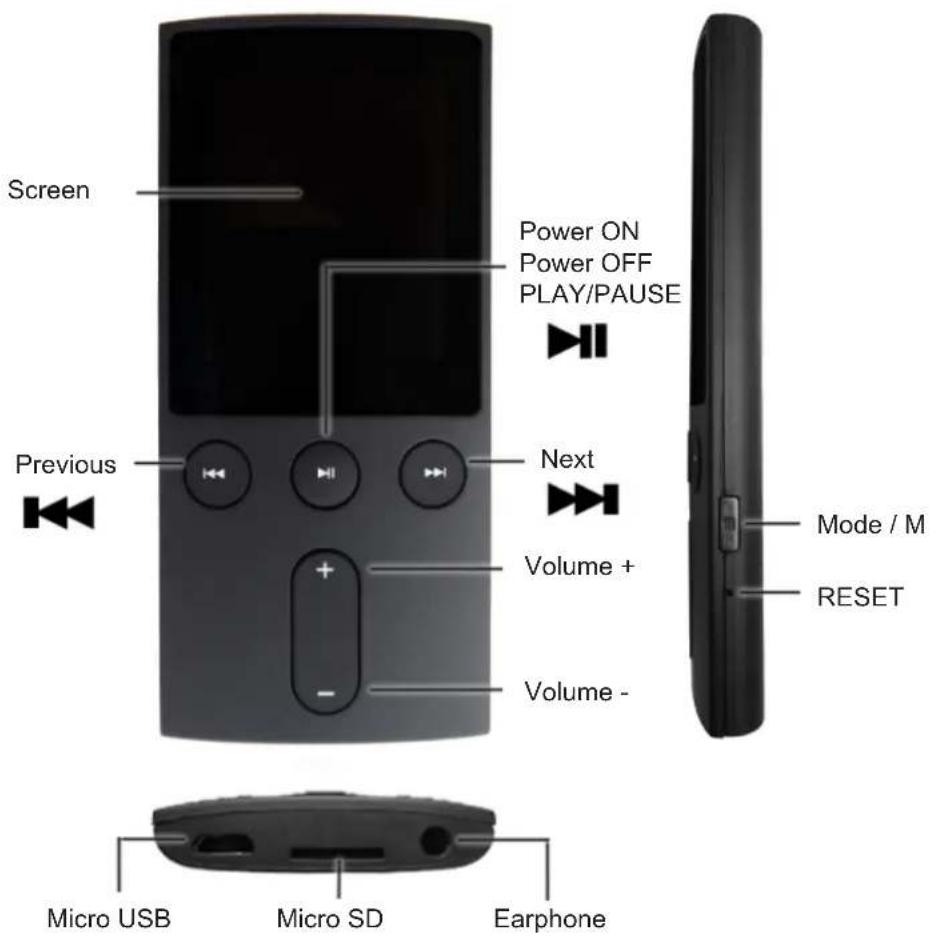

PLAYER DESCRIPTION

Player ON/OFF

• Long press " " key to power ON the player
• Long press " " key to power OFF the player

MUSIC

Game interface icons including musical notes, headphones, and audio recording on a dark background (no text or symbols)

1) Choose "Music" option on the main menu. Press "→" enter into Playing Music Mode.
2) Select the desired file.

- Press “” to play/pause the file.

• Press "◀◀/▶◀" to skip to the previous or next file. If press and hold these buttons, the function will be fast forward or fast backward.
• Press "Volume +" or "Volume -" to increase or decrease volume.

3) Press "M" to enter into sub-settings menu.

- Press "▶" to move through the menus.

- Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

MOVIE

Desktop interface with a clapperboard icon and icons for music, audio, and video (no text or symbols on the main elements)

1) Choose "Video" option on the main menu. Press "▶" to enter into Playing Video Mode.
2) Choose the storage: "Local folder" or "Card folder", then select the desired file.

- Pr▶ is “ ” to play/pause the file.

• Press “◀◀/▶◀” to skip to the previous or next file. If press and hold these buttons, the function will be fast forward or fast backward;
• Press "Volume +" or "Volume -" to increase or decrease volume.

3) Press "M" to enter into sub-settings menu.

• Pr ≈ "▶" to move through the menus.
• Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

!!! Video format :AMV(PIX 160*120)

(All of video files should be converted by AMV Converter Tool firstly.)

RECORD

Desktop interface with microphone icon and icons for music, radio, and video (no text or symbols on icons)

1) Choose "Record" option on the main menu. Press "▶" enter recording mode.
2) Set the parameters of the recording: "Storage", "Record format" and "Set rec bitrate".
3) Choose "Recording" and press "▶" start the recording or pause the recording.
4) Press "M" to save the recording file.
5) Choose "Recording library" to select recordings.

RADIO

Desktop interface with icon set to a radio, battery, and media icons (no text or symbols)

1) Choose "FM" option on the main menu. Press "Enter into FM Radio Mode."

2) Choose "Auto tune" to start automatic tuning.

- Pr▶ is “ ” to skip to the next preset station.

- Press "Volume +" or "Volume -" to increase or decrease volume.

3) Press or press and hold "i" to arch for the desired station manually.

4) Press "M" to enter into sub-settings menu.

- Press "√" to move through the menus.

- Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

!!! In Radio mode, the earphone is used as antenna, so please keeping the earphone is connected well.


Desktop interface with icon set, battery, and application icons (no readable text or symbols)

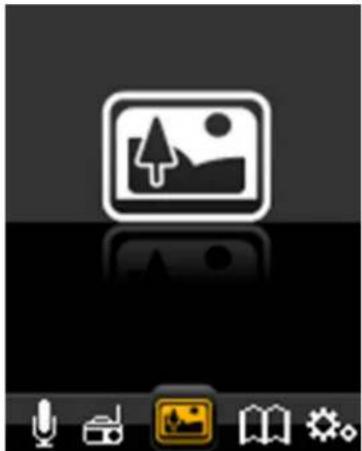

1) Choose "Picture" option on the main menu. Press "Enter Playing Picture Mode."

2) Choose the storage: "Local folder" or "Card folder", then select the desired file.

- Pr▶ is “ ” to play the file.

- Press "▶" to skip to the previous or next file.

3) Press "M" to enter into sub-settings menu.

- Press "√" to move through the menus.

- Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

TEXT (E-BOOK)

Icon set with a stylized open book and document icon, no text or symbols present

1) Choose "Text" option on the main menu. Press "▶II" to enter Text Mode.
2) Choose the storage: "Local folder" or "Card folder", then select the desired file.

• Pr▶ is “ ” to play the file.
• Press "A" to skip to the previous or next file.

3) Press "M" to enter into sub-settings menu.

• Print "▶" to move through the menus.
• Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

BROWSER

Icon set with a padlock and gear symbol, displayed in a desktop application (no text or symbols)

1) Choose "Browser" option on the main menu. Press "Enter into Browser Mode."
2) Choose the storage: "Local folder" or "Card folder", then select the desired file.

!!! Browser is a resources manager that can help you to know all files in MP3 player for convenient management. You can select the music, movie file to enjoy it directly.

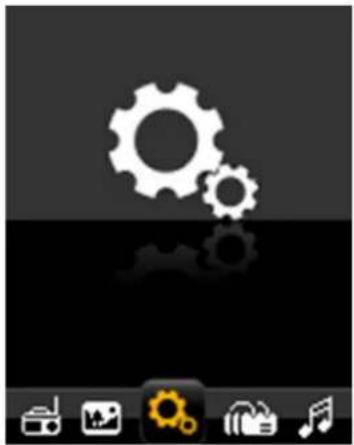

SETTING

Desktop interface with gear icons and icons (no readable text or symbols)

1) Choose "Settings" option on the main menu. Press "Enter into Setting mode. Mode.

- Pr ≈ "▶" to move through the menus.

- Press " " to confirm the setting.

- Press "M" to back on one level or sub menu, Press and hold to return the main menu.

Charging the Battery

Battery is full on 3,7 V. As time goes on, capacity indication will monish. Indicator shows blank when battery almost ran out. You should charge your battery at that time. Connect the USB cable to the USB slot on your PC; It takes about 2 hours for the player with fully charge.

SPECIFICATIONS

Dimensions 90 x 42 x 9,4 mm
TFT colored display	1.8 inch TFT; 65 K real color display, Resolution: 160 x 128 pixel
TF card reader Support up to 128 GB
Data speed High-speed USB2.0
Audio format	MP3 ,WMA, WAV, APE, FLAC Voice recorded format: WAV, MP3
Video format The video file should be converted to AMV, AVI format
FM Radio 87,5 - 108 MHz
S/N 85 dB
Max. output power of earphone 10 mW +	10 mW
Flash memory 4 GB / 8 GB
Power supply 3,7 V Li-ion battery
Playback time of battery Music: about 15 hours
Working temperature 5 °C to 40 °C
Operating system WINSE/ME/2K/XP/VISTA
Weight	30 g

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

The capacity of the product battery decreases over time. Decreasing of battery capacity occurs during normal use of the appliance and is considered usual wear and tear of the appliance. Decreasing battery capacity is not a defect of the appliance.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

ETA Inc. hereby declares that the product MPC501FM is in compliance with requirements and other relevant provisions of the directive 2014/53/EU. The complete EU Declaration of Conformity can be found at www.hyundai-electronics.cz/declaration_of_conformity
