MPE700B - Hand blender GORENJE - Free user manual and instructions

Product Type	Hand Blender
Brand	Gorenje
Model	MPE700B
Power Consumption	700 W
Voltage / Frequency	220-240 V ~ 50-60 Hz
Speed Settings	2 speeds + Turbo boost
Blade Material	Stainless steel
Shaft Material	Stainless steel
Housing Material	Plastic
Dimensions (L x W x H)	Approx. 6.5 x 6.5 x 40 cm
Weight	0.8 kg
Cord Length	1.2 m
Functions	Blending, pureeing, whisking (with included whisk attachment)
Included Attachments	Blending shaft, whisk, measuring beaker (0.8 L)
Safety Features	Non-slip grip, auto shut-off when overheat, release button for attachments
Cleaning	Shaft and whisk are dishwasher safe; wipe handle with damp cloth
Warranty	2 years (manufacturer warranty)
Dishwasher Safe Parts	Blending shaft, whisk, measuring beaker
Spare Parts Availability	Replacement shaft, whisk, and beaker available via Gorenje service
Repairability Index	High – detachable parts and accessible motor unit

Frequently Asked Questions - MPE700B GORENJE

How do I assemble the hand blender?

Insert the blending shaft into the motor unit until it clicks. For whisking, attach the whisk to the shaft connector. Always ensure the appliance is unplugged before assembling.

What is the maximum operating time?

Do not operate continuously for more than 1 minute. Allow the motor to cool for at least 2 minutes before next use to prevent overheating.

Can I blend hot liquids?

Yes, but let liquids cool to below 80°C to avoid splashing and damaging the shaft. Start at low speed and gradually increase.

How do I clean the hand blender?

Detach the shaft and whisk. Wash them in warm soapy water or the dishwasher (top rack). Wipe the motor unit with a damp cloth – never immerse it in water.

What should I do if the blender stops working?

Check if the safety lock is engaged (buttons must be pressed correctly). If it overheated, unplug and let it cool for 15 minutes. If the problem persists, contact Gorenje support.

Is the blender suitable for crushing ice?

No, this hand blender is not designed for crushing ice. Use only for soft foods and liquids.

Can I use the blender without the beaker?

Yes, you can blend directly in pots or bowls, but ensure the shaft is fully submerged to avoid splashing.

How do I replace the whisk or shaft?

Press the release button on the motor unit to detach the current attachment. Then click the new one into place until it locks.

What is the voltage requirement?

The blender operates on 220-240 V, 50-60 Hz. Check your local supply before use.

Where can I get spare parts?

Official Gorenje spare parts are available through authorized service centers or online at the Gorenje spare parts website. Use model MPE700B for reference.

USER MANUAL MPE700B GORENJE

Product photo of a gorenje hairdryer with a whisk and cup, displayed against a black background (no text or symbols on the main subject)

MPE 700 B

SL Navodila za uporabo ....3

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Univerzalni sekljalnik

Illustration of a hand mixer with an arrow indicating the process (no text or symbols present)

ČIŠČENJE IN NEGA

Opozorilo! Aparata ne potapljajte v vodo in ne čistite v pomivalnem stroju.

Line drawing of a handheld device with a curved arrow indicating motion or change (no text or symbols)

Univerzalna sjeckalica

Upotrebljavamo je za rezanje začinskih biljaka, luka, voća i povrća, leda, tvrdih sireva i mesa.

Upozorenje! Mesu prije rezanja odstranite žile, kosti i hrskavicu. Univerzalna sjeckalica nije prikladna za usitnjavanje zrnaca kave ili hrena.

• Sjeckalicu (6) postavite na glatku, čistu radnu površinu i pritisnite nadolje.
• Umetnite nož (7).
  • U posudu stavite hranu (8).
• Na univerzalnu sjeckalicu stavite nastavak i okrenite ga u smjeru kazaljki na satu do kraja.
• Priključite aparat na nastavak i tijekom rezanja ga čvrsto pritiskajte nadolje.
• Priključite utikač u utičnicu.
• Uhvatite aparat i sjeckalicu i pritisnite tipku za uključenje (2). Možete koristiti gumb za podešavanje brzine (4) ili gumb za brzo djelovanje.

Sastojci	Količina	Metoda za pripremu	Trajanje
Sušene marelice	200g	U komadima	10 sekundi
Maslac	300 g	Maslac pohranjen u zamrzivaču (min 4 sata) i narezan na komade.	5 sekundi
Sladila	400 g	Sladila pohranjena u hladnjaku (min 1 dan)
Bademi	150 g	Cijeli	10 sekundi
Tvrdo kuhana jaja	2 jaja	Olupljena	3-5 sekundi
Luk	100 g	Raščetvoren	3-6 sekundi
Peršin	Snopić	Bez stabiljike	3-5 sekundi
Mrkva	150 g	Sjeckana	5-10 sekundi
Suhi kruh	1 kos	Narezan na šnite	10 sekundi

Uporaba metlice

Illustration of a hand mixer with three different parts: one with a handle, one with a bowl, and one with a whisk (no text or symbols present)

Čišćenje

Upozorenje ! Aparat ne uranjajte u vodu, niti ga ne smijete prati u stroju za pranje suđa.

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

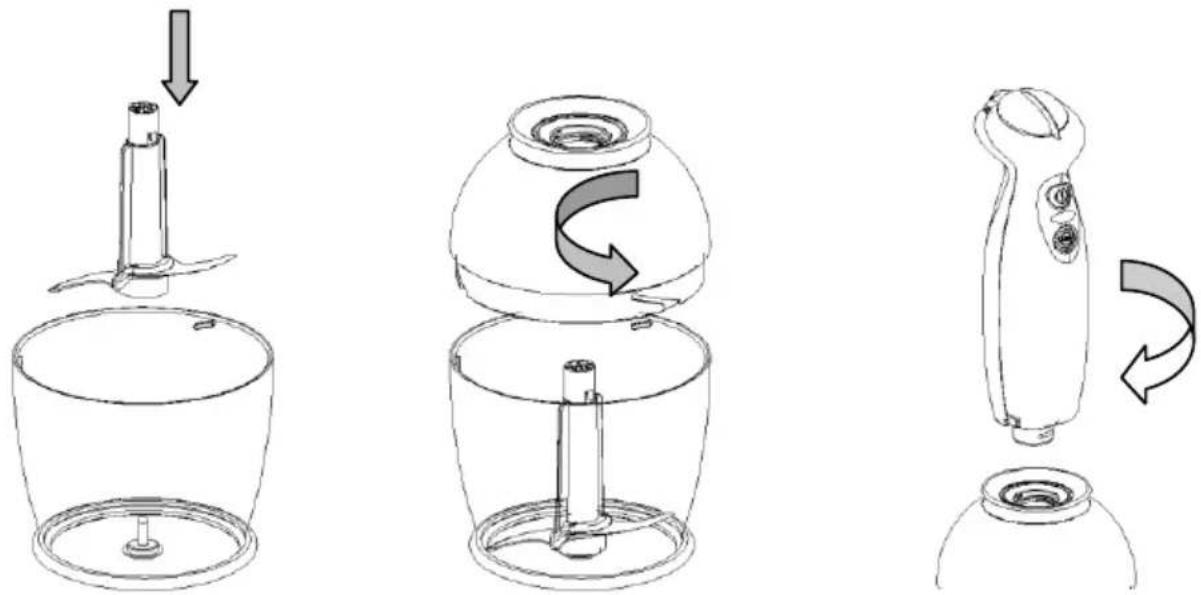

Univerzalna seckalica

Koristi se za rezanje začinskih biljaka, luka, voća i povrća, leda, tvrdih sireva i mesa.

Upozorenje! Mesu pre rezanja odstranite žile, kosti i hrskavicu. Univerzalna seckalica nije prikladna za usitnjavanje zrnaca kafe ili hrena.

• Seckalicu (6) postavite na glatku, čistu radnu površinu i pritisnite nadole.
• Umetnite nož (7).
  • U posudu stavite hranu (8).
• Na univerzalnu seckalicu stavite nastavak i okrenite ga u smeru kazaljki na časovniku do kraja.
• Priključite aparat na nastavak i tokom rezanja ga čvrsto pritiskajte nadole.
  • Uštekajte utikač u utičnicu.

Uhvatite aparat i seckalicu i pritisnite tipku za paljenje (2). Možete da koristite dugme za regulisanje brzine (4) ili dugme za brzo delovanje.

Sastojci	Količina	Metoda za pripremu	Trajanje
Sušene kajsije	200g	parčad	10 sekundi
Puter	300 g	Puter stavljen u zamrzivač(min 4 časa) i narezan na parčad.Sladila stavljena u hladnjak (min 1 dan)	5 sekundi
Sladila	400 g
Bademi	150 g	Celi	10 sekundi
Tvrdo kuvana jaja	2 jajci	Oljušteno	3-5 sekundi
Luk	100 g	Razrezan na četiri dela	3-6 sekundi
Peršun	Šop	Bez stabiljike	3-5 sekundi
Šargarepa	150 g	Seckana	5-10 sekundi
Suvi hleb	1 kos	Narezan na šnite	10 sekundi

Korišćenje metlice

Pre no što priključite metlicu na glavnu jedinicu proverite, dali je aparat priključen na električnu mrežu.

• Umetnite metlicu (11) u jedinicu za mešanje i okrenite je u smeru kazaljki na časovniku do kraja.
• Priključite utikač u dozu.
  • Stavite namirnice u posudu.
• Uvatite aparat i posudu, te pritisnite tipku za uključenje (2). Možete da koristite dugme za regulisanje brzine (4), ili dugme za brzo delovanje.
• Za mešanje koristite čašu ili neku drugu prikladnu posudu.

Illustration of a hand mixer with three different parts, showing the blade, handle, and whisk (no text or symbols present)

Čišćenje

Upozorenje ! Aparat ne uranjajte u vodu, niti ne smete da ga perete u mašini za pranje sudova.

• Izvucite utikač iz utičnice.
• Aparat obrišite vlažnom, a zatim i suvom krpom.
• Posudu za mešanje smete da perete u mašini za sudove.
• Nastavak za mešanje operite u mašini za sudove ili pomoću četke pod tekućom vodom.
• Nastavak ostavite u vertikalnom položaju (s nožem miksera okrenutim nagore), da iz njega iscuri sva voda i da se osuši.

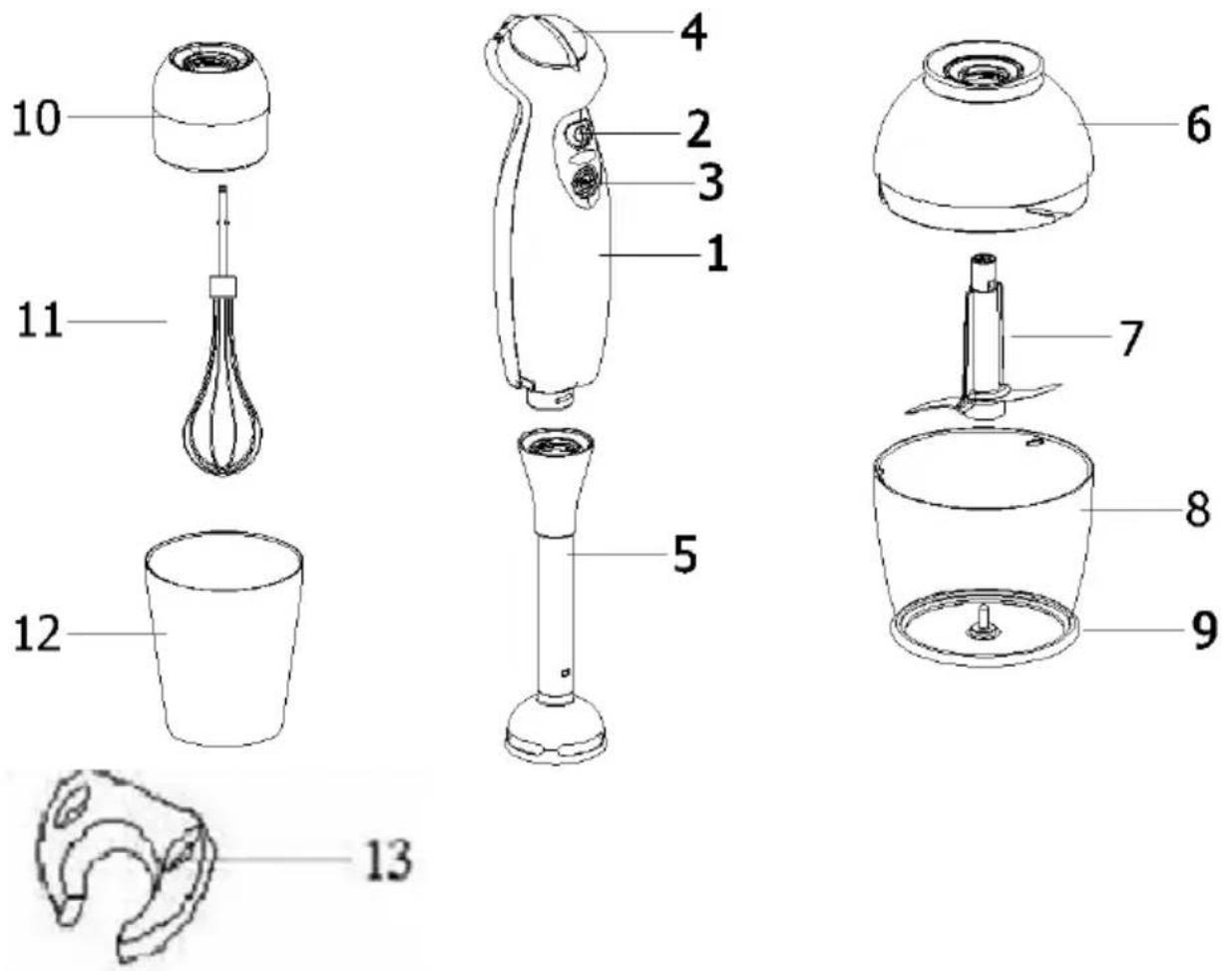

1 – Motor Body Unit
2 - Soft Touch On / Off Button
3 - Soft Touch Turbo button
4 - Speed Control Knob
5 – StainlessSteel Blending Attachment
6 – Chopping Body Unit
7 – Chopping Blade
8 – Chopping Bowl
9 – Bowl Rubber Ring
10 - Beater Body
11 - Whisk
12 - Beaker
13 – Wall Mounting

Power: 700 W max

Voltage: 230 V

Frequency: 50 Hz

How to use

This hand blender is a household appliance and is not intended for commercial use. Use it for processing of food in the usual quantities for domestic use.

Store these instructions in a safe place and pass them on in case the appliance changes hands.

Before first use, wipe of the handle of the blender with a damp cloth.

Important safeguards

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

• Read all instructions carefully, even if you are familiar with the appliance.
• To protect against the risk of electric shock DO NOT IMMERSE the appliance, Cordset or Plug in water or other liquid.
  • To clean, wipe exterior with a damp cloth.

• Never leave an appliance unattended when in use.

• Switch off and remove the plug from the power outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp plug and pull from power outlet. Never pull cord.

• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Return the complete appliance to your nearest authorised service facility for examination, electrical repair, mechanical repair or adjustment.
• The use of attachments or accessories not recommended or sold by this appliance manufacturer may result in fire, electric shock or personal injury.
• Do not overfull.
• Do not let cord hang over edge of a table, counter, or touch hot surface.
• Avoid touching hot surfaces, use handles and knobs.
• Do not operate or place any part of this appliance on or near any hot surface (such as a gas or electric burner, or in a heated oven).
• Do not abuse the cord. Never carry the appliance by the cord or yank it to disconnect it from the outlet; instead, grasp the plug and pull to disconnect.
• When using the extension cord with your appliance make sure the extension cord is correctly wired and rated for its use.
• This product is intended for household use only.
• Do not attempt to repair the appliance yourself; instead, take it your nearest Service Centre or Authorised Service Agent for repair.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Handle carefully the sharp blades especially during removing and emptying the container and during cleaning.
• Noise level: Lc < 72 dB(A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Handling the appliance

The appliance is used for mixing mayonnaise, gravy, shakes, baby food, and for chopping onions, ice, cooked fruit and vegetables.

Caution! Hand blender is not suitable for the preparation of mashed potatoes.

• Unwind the power lead to the end.
• Attach the blending device to the appliance (5).
• Plug the power lead to the mains socket.
• Insert food into the beaker or any other suitable bowl.
• Grip both the blender and the bowl. To prevent splashing first dip the blender blade into the food and then press the ON button (2 or 3).

Caution! When finished first switch the blender off and then lift it from the bowl.

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Universal chopper

It is used for chopping herbs, onions, fruit, vegetables, ice, hard cheese and meat.

Caution! Before chopping meat remove tendon, gristle and bone tissue. Universal chopper is not suitable for chopping coffee beans or horse radish.

• Place the appliance (6) on flat, solid worktop and press it downwards.
• Insert the blade (7).
• Put food in the beaker (8).

• Place the extension over the chopper and turn it in the clockwise direction till it engages.

• Connect the appliance to the extension and keep it firmly pressed down during operation.

• Plug the power lead into the mains socket.
• Hold the appliance and the chopper and push the start button (2). Use speed control knob to select a speed or press the turbo button.

FOOD	AMOUNT	PREPARATION METHOD	APPR.TIME
Dry Apricots	200 g	pieces	10 secs
Butter and honey	300g butter	butter taken from the freezer (should be kept in the freezer min.4 hrs.	5 secs
mixture	400g honey	and cut in pieces of size approx.10-15mm x 35-40mm honey taken from the refrigerator (should be kept min.1 day)	5 secs
Almonds	150 g	whole	10 secs
Hardboiled eggs	2 eggs	cut up	3-5 secs
Onion	100 g	quartered	3-6 secs
Parsley	bunch	stalk-free	3-5 secs
Carrots	150 g	chopped	5-10 secs
Dry bread	1 piece	chopped	10 secs

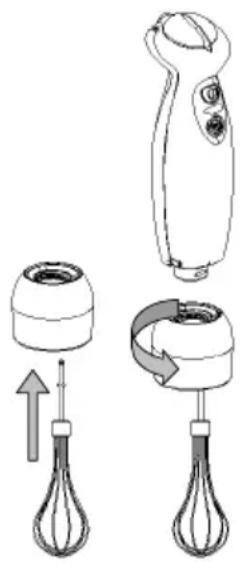

Using the beater

Before connecting the beater onto the motor unit make sure the blender is disconnected from the electrical outlet. Insert the whisk (11) by grasping into the beater body (10). Screw the beating attachment to the main unit by turning counter clockwise. Insert the plug into a standart electrical outlet. Place the ingredients to be mixed in the bowl. Press the on/off button. Use the speed control knob to select a speed or press the turbo button.

You cam use the beaker (12) or another container for beating.

Line drawing of a hand mixer with an upward arrow indicating motion (no text or symbols)

Cleaning and Maintenance

Caution! Do not immerse the appliance in water and do not wash it in the dishwasher.

• Unplug the power lead from the mains socket.
• Wipe the appliance first with damp and then with dry cloth.
• The beaker may be washed in the dishwasher.
• Wash the blending device in the dishwasher or manually with a brush under running water.
• After washing leave it standing upright (with the blade up) to drip and to dry.

Remark: During the processing of vegetables with aggressive coloring, e.g. red cabbage, plastic parts may be subject to discoloration. This may be removed by rubbing such surfaces with a few drops of cooking oil.

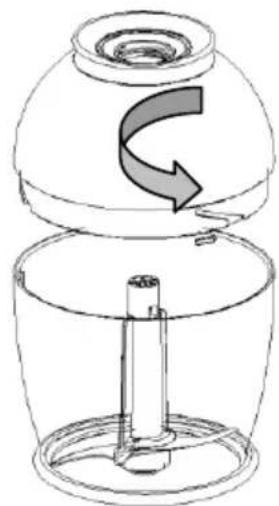

Cleaning of the universal chopper

Do not immerse the chopper accessory in water and do not wash it in the dishwasher.

• Unplug the power lead from the mains socket.
• Release the appliance from the accessory.
• Turn the cover in the anti-clockwise direction and remove it.
• Hold the blade by the plastic extension and remove it.

The chopper and the blade may be washed in the dishwasher, while the cover extension may only be wiped with damp cloth.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

We reserve the right to any modifications!

Line drawing of a handheld device with a curved arrow indicating motion or change (no text or symbols)

Tocător universal

Line drawing of a hand mixer with three different parts (top, middle, bottom) showing internal components and directional arrows indicating motion (no text or symbols)

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Univerzální kráječ

Diagram of a hand mixer with an arrow indicating rotation and sound wave (no text or symbols)

Čištění a údržba

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Univerzálny sekač

Illustration of a hand mixer with an arrow indicating the process (no text or symbols present)

Čistenie a údržba

Upozornenie! Spotrebič neponárajte do vody a neumývajte v umývačke riadu.

Line drawing of a handheld device with a curved arrow indicating motion or change (no text or symbols)

Univerzális aprító

Diagram showing a hand mixer with an arrow indicating the process (no text or symbols present)

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Diagram of a hand mixer with two parts: one showing the handle and one showing the lever shift (no text or labels)

Line drawing of a handheld device with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a hand mixer with an arrow indicating the process (no text or symbols present)

Tīrīšana un apkope

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Universaalne lõikur

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Universalhakker

Diagram showing a hand mixer with an electric shaver and a separate lever mechanism (no text or symbols)

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Universalhackare

Diagram of a hand mixer with an arrow indicating the process (no text or symbols present)

Line drawing of a handheld device with a curved arrow indicating motion or change (no text or symbols)

Universal hakker

Diagram of a hand mixer with an arrow indicating the process (no text or symbols present)

GORENJE ∅NSKER DEG LYKKE TIL MED DET NYE APPARATET

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Yleisleikkuri

Diagram showing a hand mixer with an arrow indicating the process (no text or symbols present)

Puhdistus ja huolto

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Diagram of a hand mixer with three different parts, showing the blade, handle, and lever mechanism (no text or labels)

Line drawing of a handheld device with a curved arrow indicating rotation or motion (no text or symbols)

Line drawing of a kitchen utensil with a downward arrow indicating compression or lifting (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or direction (no text or symbols)

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Diagram showing a hand mixer with three different parts: top, side, and bottom (no text or symbols present)

CZYSZCZENIE I KONSERWACJA

Line drawing of a handheld device with a curved arrow indicating motion or change (no text or symbols)

Line drawing of a kitchen utensil with a downward arrow indicating compression or lifting (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Diagram of a hand mixer with three different parts, showing the blade, handle, and lever mechanism (no text or labels)

Чищення та догляд

Line drawing of a handheld device with a curved arrow indicating rotation or change (no text or symbols)

Универсальная рубка

Diagram showing a hand tool interacting with a motor, with an arrow indicating rotation and a pencil inserted (no text or symbols present)
