Product Type	Graphics Tablet
Model	EVOLVEO Grafico T12
Product Number	TAB GFK T12
Dimensions	360 x 240 x 11 mm
Active Area	250 x 150 mm
Pressure Levels	8192
Report Rate	233 PPS
Resolution	5080 LPI
Active Height	15 mm
Power Supply	USB, 5V, 60mA
Connectivity	USB 2.0/3.0, OTG for Android
Pen Type	Wireless, battery-free
Pen Buttons	2 programmable keys ("+" and "-")
Tablet Keys	12 programmable multimedia keys
Operating Systems	Windows, macOS, Android (with OTG)
Package Contents	Tablet, wireless pen, 30 spare nibs, USB cable, OTG adapters (Micro-USB & USB-C), pen case, nib removal ring, work surface foil, gloves (size L)
Driver Software	Graphic Tablet 3.4.1.122 (Windows/macOS)
Spare Parts Available	Replacement nibs included, pen replaceable
Cleaning	Wipe with soft dry cloth; avoid liquids
Safety Notes	Do not drop pen; avoid USB hubs; turn off screen rotation on Android

Frequently Asked Questions - Grafico T12 Evolveo

How to connect the Evolveo Grafico T12 to an Android phone?

Use the included OTG adapter (Micro-USB or USB-C) and USB cable. Connect the OTG adapter to your phone, then connect the USB cable to the adapter and the tablet. Ensure your phone supports OTG and turn off screen rotation before connecting.

Does the wireless pen require a battery or charging?

No, the pen is battery-free and requires no charging. It uses electromagnetic resonance technology powered by the tablet.

How to replace the pen nib?

Grasp the old nib with the included ring and pull it out. Then insert a new nib and press it firmly into the pen. The package includes 30 spare nibs.

How to install drivers on Windows?

Connect the tablet to a USB port (not front panel). Open 'This computer' and find the CD drive (Pen Driver). Run 'Grafico Drivers.exe' and follow the setup wizard. You will be offered to download Paint Tool SAI. Complete installation and restart if prompted.

How to install drivers on macOS?

Connect the tablet, open the 'Pen Driver' folder, then open 'TabletDriver.dmg' and run 'MyTablet.pkg'. Follow the installer, enter your password, and restart. After restart, go to System Preferences > Security & Privacy > Privacy > Accessibility and enable MyTabletDaemon 3.

What is the pressure sensitivity of the Evolveo Grafico T12?

The tablet supports 8192 levels of pressure sensitivity, adjustable via the driver interface. You can fine-tune the pressure curve in the settings.

Can the tablet keys be customized?

Yes, the 12 multimedia keys and the pen buttons can be reconfigured in the driver settings (Windows/macOS). On Android, key customization is not supported.

What should I do if the cursor moves erratically?

Ensure you are not using a USB hub or extension cable. Disable Windows Flicks (in Windows 7). Avoid using multiple graphics tablets simultaneously. Restart the system and reconnect the tablet.

Is the Evolveo Grafico T12 compatible with macOS?

Yes, it works with macOS. Install the driver as described, and after installation, enable MyTabletDaemon in System Preferences > Security & Privacy > Privacy > Accessibility.

How to get technical support?

Visit www.evolveo.com/helpdesk/ for technical support. The warranty does not cover damage from misuse, unauthorized repair, or natural elements.

USER MANUAL Grafico T12 Evolveo

Digital tablet with control panel and stylus, no visible text or symbols on the device surface

CZ

SK

EN

HU

RO

SL

Obsah / Content / Tartalom / Cuprins / Vsebina

Česky 4

Slovensky 21

English 38

Magyar 55

Română 68

Slovenščina....89

CZ

SK

EN

HU

RO

SL

Obsah

1) klávesa pro –

2) klávasa pro +

5) Zadejte heslo a pokračujte v instalaci.

9) Zaškrtnutím povolte MyTabletDaemon.

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Dovozce

Abacus Electric, s.r.o.

No.5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong Kong

Vyrobeno v Číně

1) pro key -

2) kl'úč pre +

1) Uchopte hrot pomocou krúžku a vytiahnite ho z pera

2) Vložte a zatlačte nový hrot do pera

Pripojenie

Poznámka:

MyTablet.pkg

5) Zadajte heslo a pokračujte v inštalácii.

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Dovozca

Abacus Electric, s.r.o.

No.5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong Kong

Vyrobené v Číne

Contents of the package 38

Overview....39

Multimedia key function....40

Wireless pen 40

Replacing the spikes....41

Connecting 41

Connect to your Android phone ....42

Wireless pen settings....43

Specifications 44

Installing drivers....44

Technical support....51

Dear customer, thank you for choosing EVOLVEO Grafico T12. We trust that the product will serve you to your full satisfaction.

Important information

This manual contains the steps for daily operation, setup and installation of the EVOLVEO Grafico T12.

The drivers needed to install the device are stored inside the device.

Contents of the package

• EVOLVEO Grafico T12, graphic tablet
• Wireless pen
• Spare tips - 30pcs
• USB
• User manual
• Micro-USB OTG adapter
• USB C OTG adapter
• Wireless pen case
• Ring for removing spikes
• Work surface foil
• Gloves size L

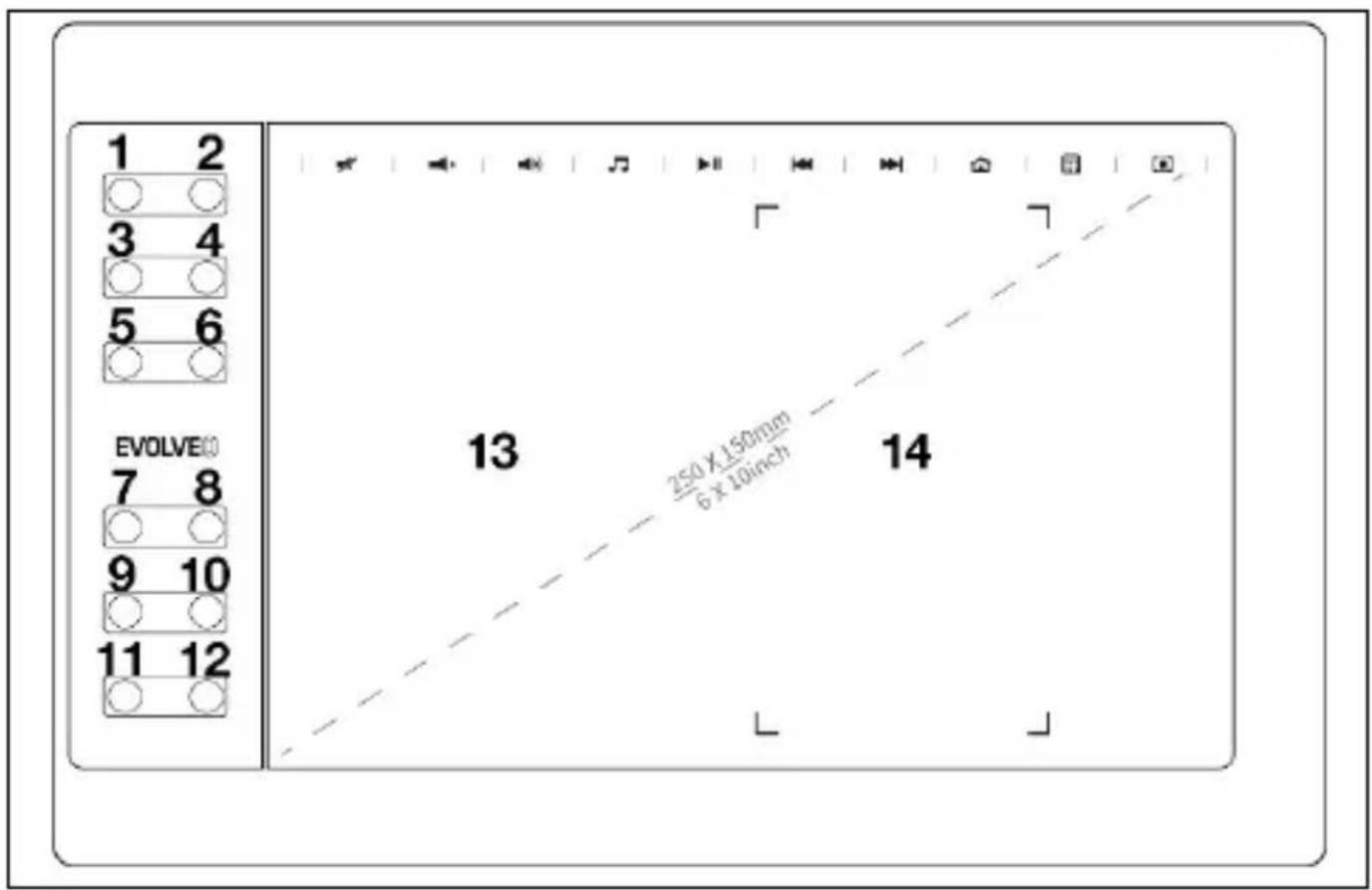

Overview

Multimedia key function (PC only)

Remark: When the wireless pen touches the graphics tablet's work area or the wireless pen button is pressed, the LED lights.

Remark: Keys 1-12 can be reconfigured to suit your use. Changing the function cannot be done on Android.

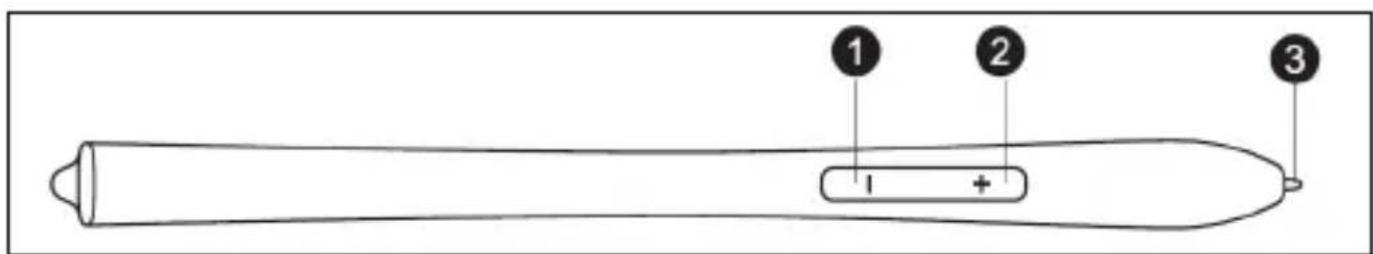

Wireless pen

1) pro key -2) key for +

3) wireless pen tip

Remark: The key for "-" can be adapted to your needs. See the driver interface for details.

Remark: No need to charge the wireless pen or use the battery.

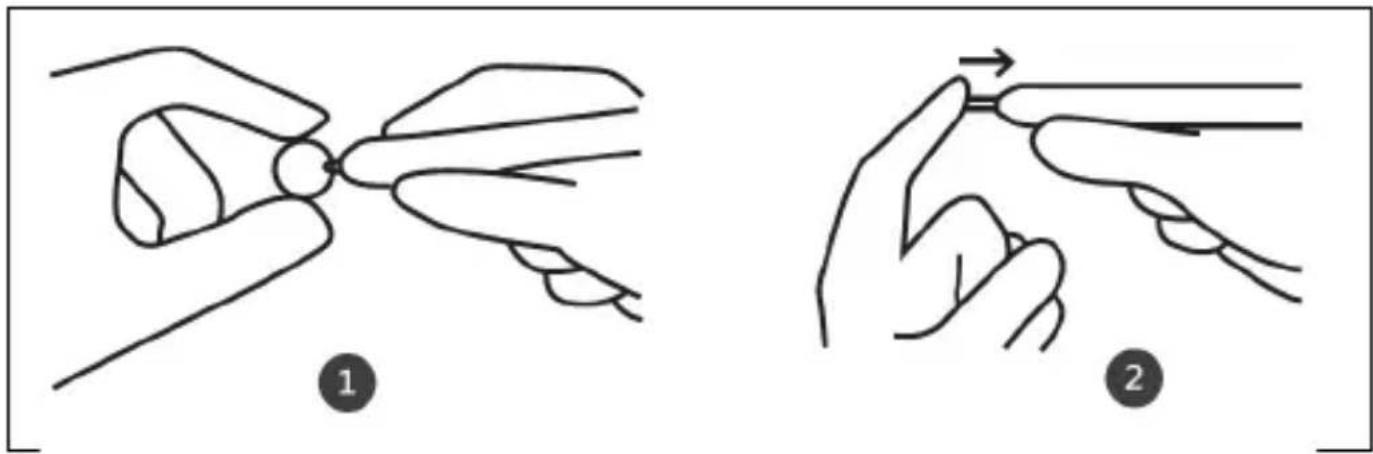

Replacing the spikes

1) Grasp the nib with the ring and pull it out of the pen

2) Insert and press the new nib into the pen

Connecting

Connect the graphics tablet to the PC USB 2.0/3.0 port. Do not use the front USB ports of your PC to connect.

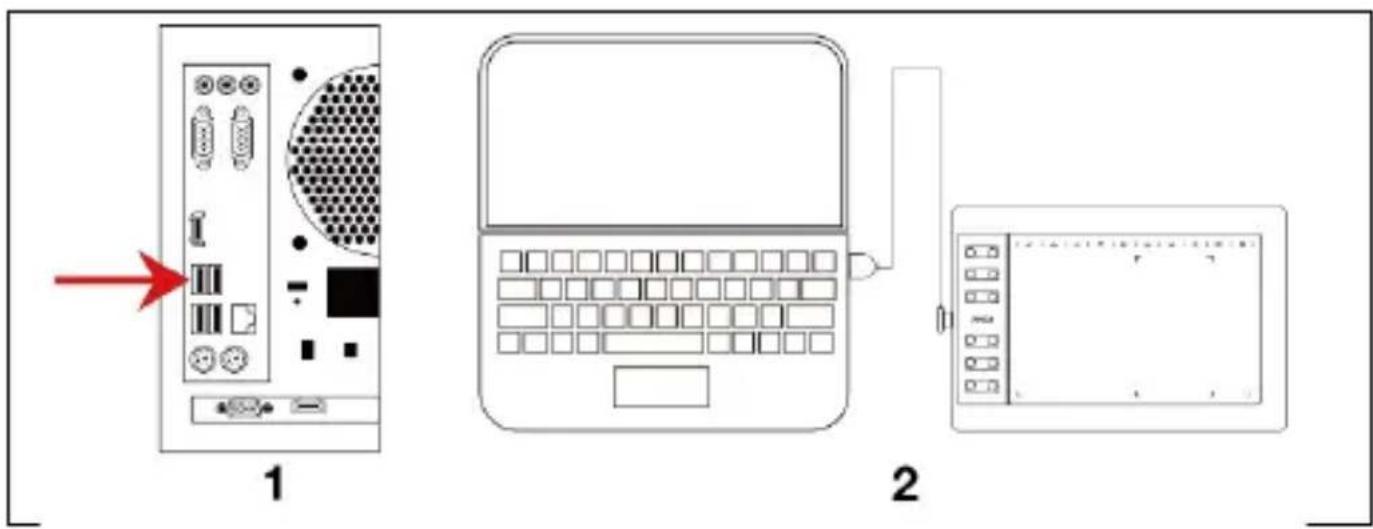

1) USB connection to PC

2) USB connection to laptop

Connect to your Android phone

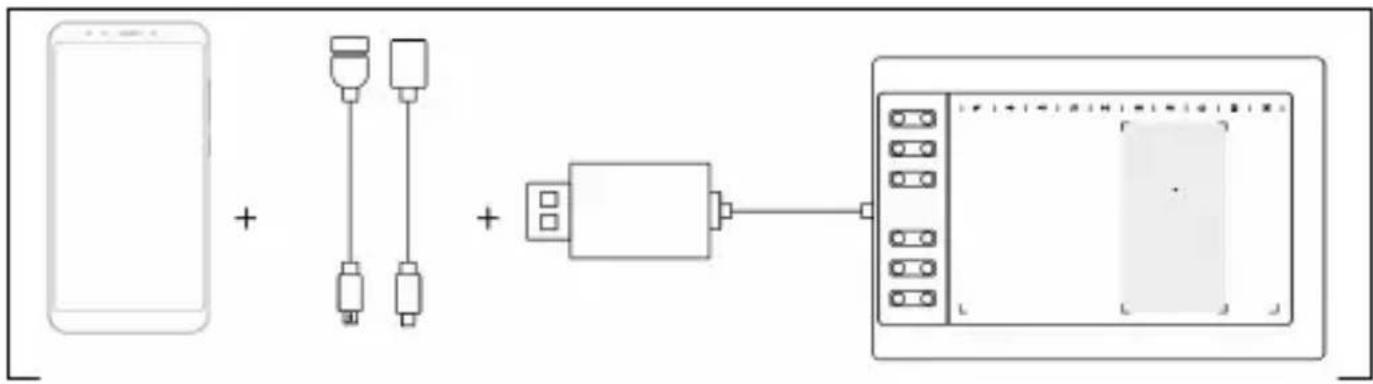

Android phone/OTG adapter/USB cable/graphic tablet

Important: Please turn off the screen rotation function on your phone before connecting.

Important: Please make sure that your phone supports OTG and this feature is enabled.

Procedure:

1) Connect the OTG adapter to your Android phone
2) Connect the USB cable to the OTG adapter
3) Connect the USB cable to the EVOLVEO Grafico graphics tablet

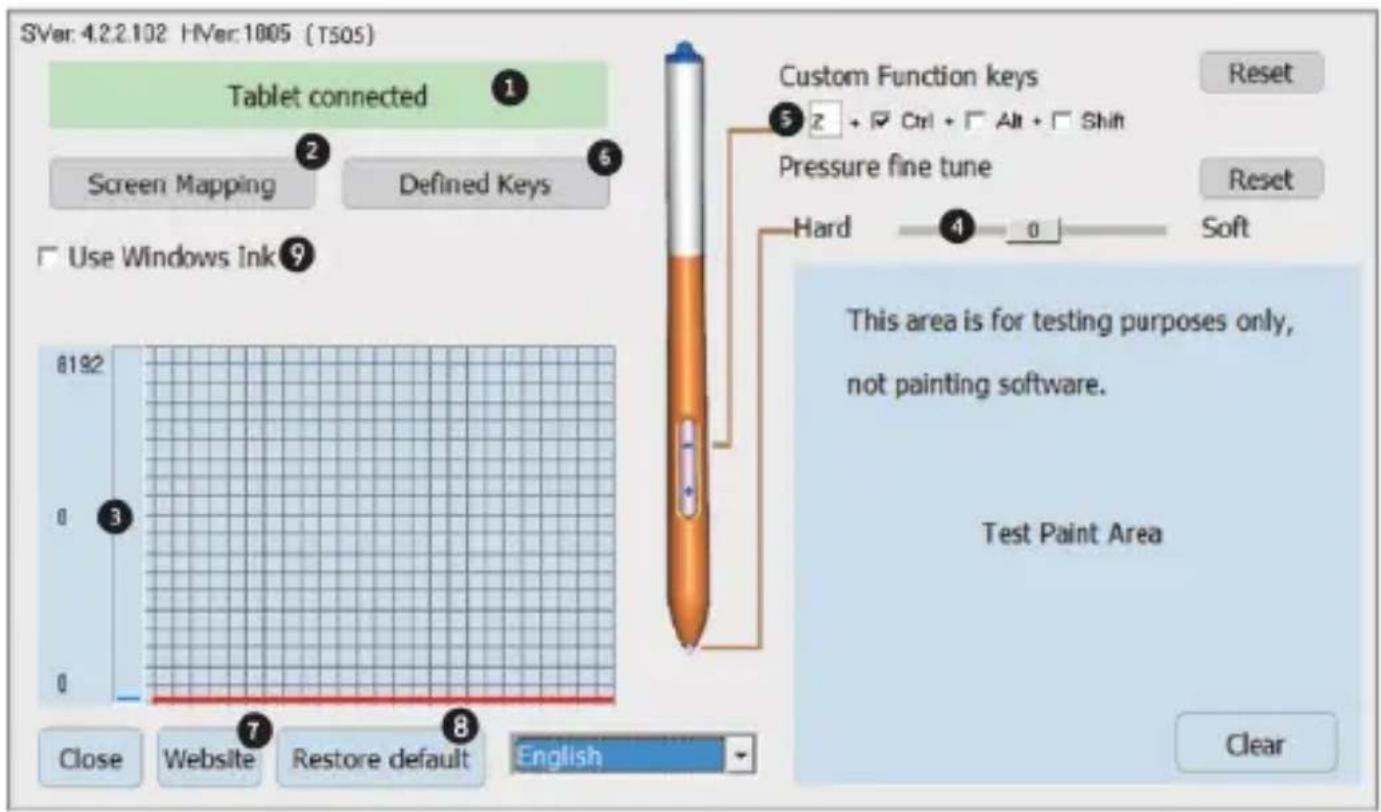

Wireless pen settings (Windows only)

1) PC and graphics tablet connection status
2) Screen mapping: The ability to set the screen and desktop mapping area of a graphics tablet.
3) Wireless pen pressure: Level from 0 to 8192. The curve shows the level of pressure exerted on the graphics tablet by the wireless pen.
4) Fine-tuning of pressure: It serves to slightly adjust the pressure. Default: 0. The change can be seen to the left of the pressure curve.
5) Wireless pen keys set: Adjustable function of the "-" key. Default: Ctrl+z. The function of the "+" key is set as the right mouse button.
6) Adjustable keys
7) In case of problems, contact technical support.
8) Restore drivers to factory settings
9) Default: not selected

Specifications

Product name	EVOLVEO Grafico T12
Product number	TAB GFK T12
Dimensions	360 x 240 x 11 mm
Working voltage	5V
Consumption max.	60mA
Pressure level	8192
Feedback	233 PPS
Screen resolution	5080 LPI
Active height	15 mm
Physical keys	Can be reconfigured in Windows and MAC OS interface. For Android, this feature is undefined.
Active workspace	250 x 150 mm

Installing drivers

Instalace pro Windows

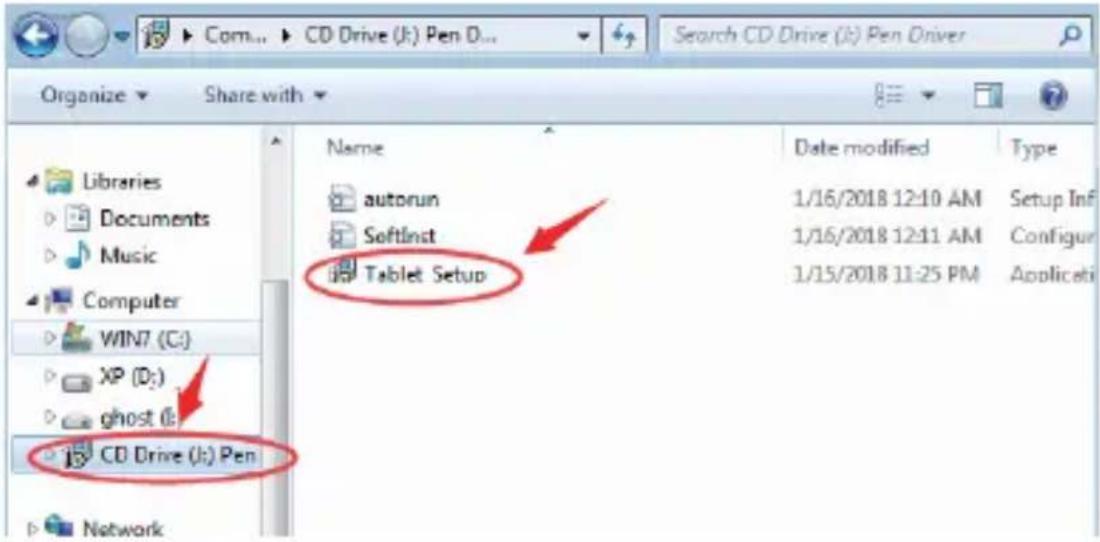

1) After connecting the graphics tablet to your PC, wait a few minutes. Then open "This computer" and then the CD-ROM (J). Run the " Grafico Drivers.exe" file to install the drivers

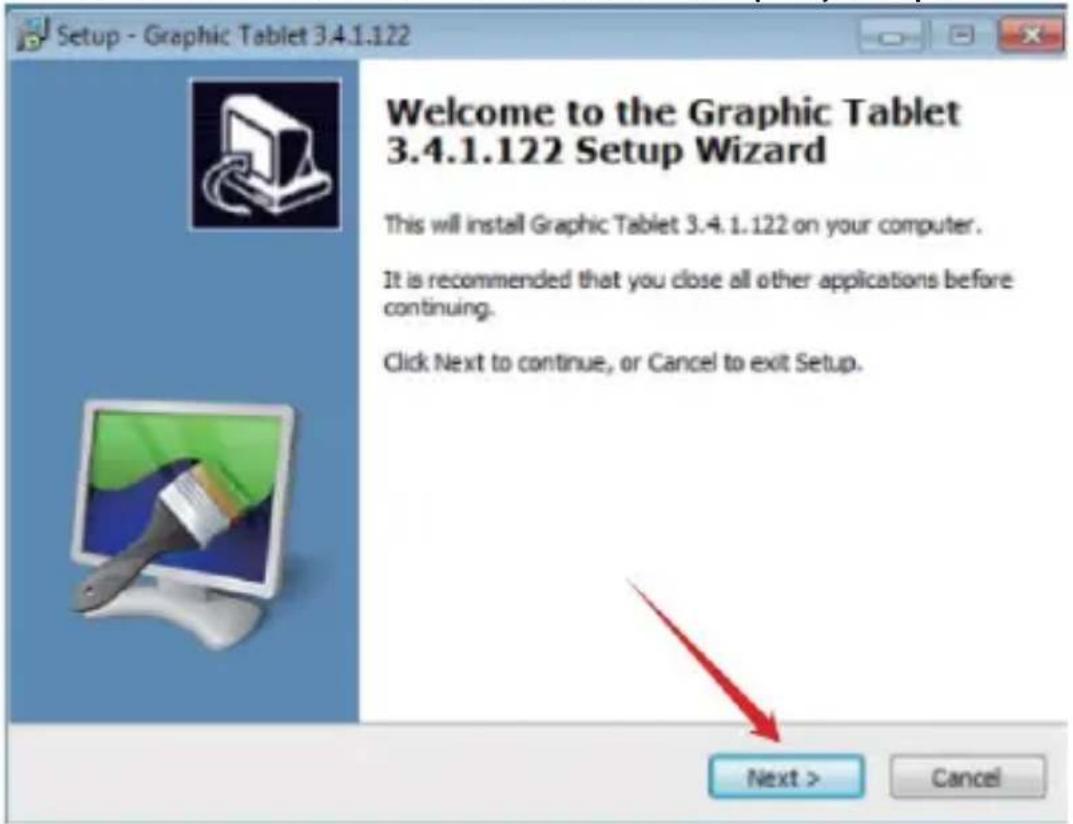

2) Follow the installation instructions step by step.

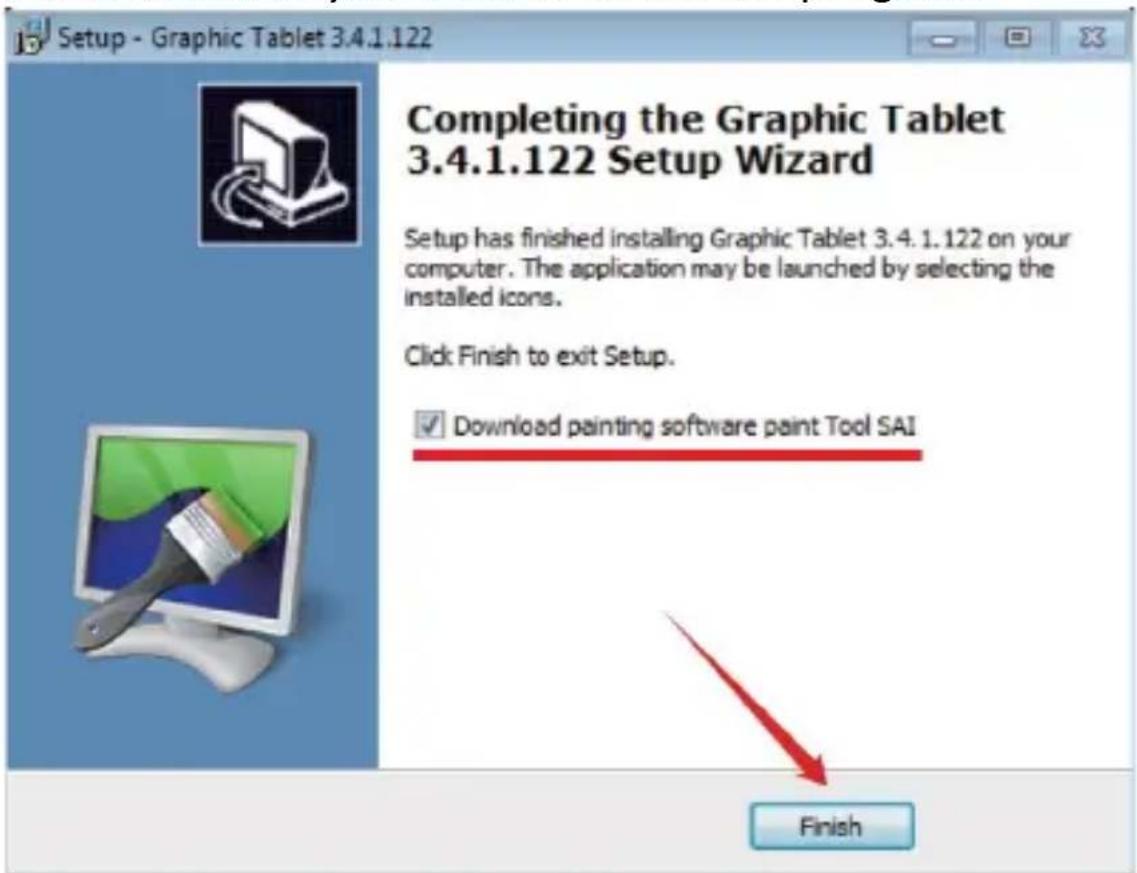

3) In the last driver installation window you will be asked if you want to download the "Paint Tool SAI" graphics program. Select whether you want to install the program.

4) Select a path to save the download.
5) Once the download is complete, run the "sai.exe" file and follow the steps to install the program.

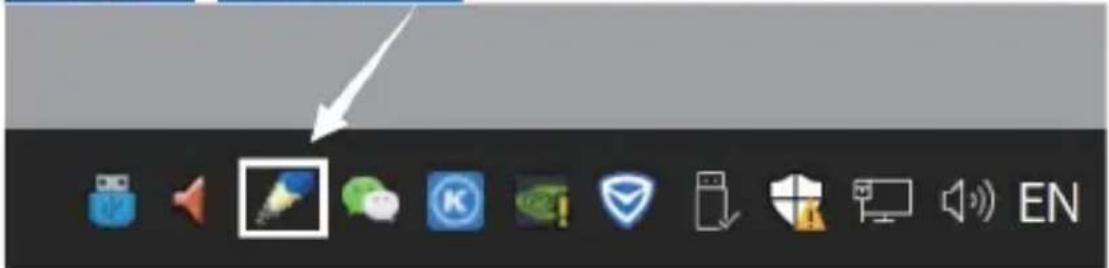

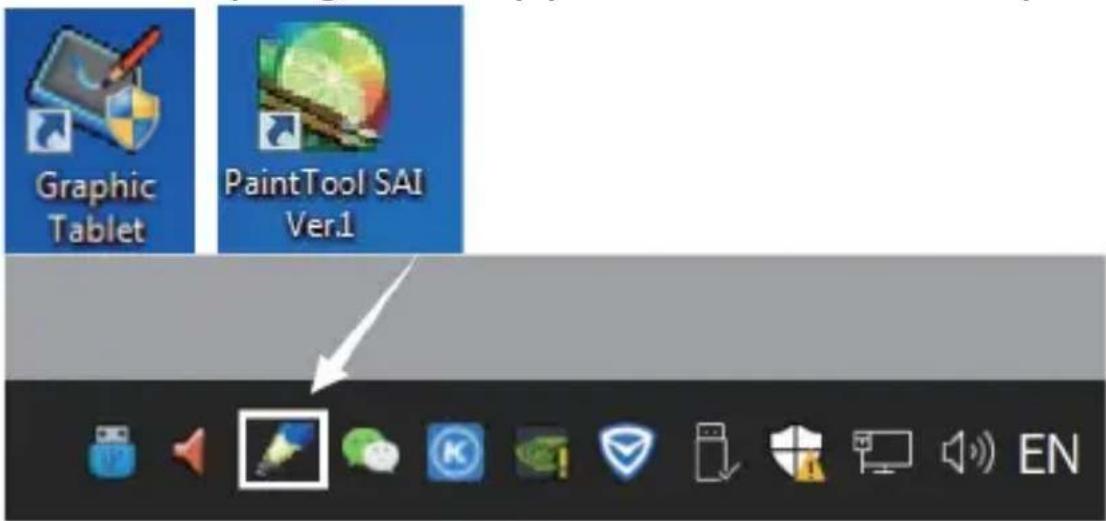

6) The installation is complete after the icons of the installed programs appear on the desktop.

Remark:

• Do not use a USB HUB or USB extension cable to connect to your PC.
• When not in use, do not allow the pen tip to touch anything and avoid dropping the pen from a height.
• Avoid disorderly mouse cursor movement, or movement without action. Do not use two or more graphics tablets at the same time.
• Please turn off the flicks function in Windows 7.

Installation for MAC OS

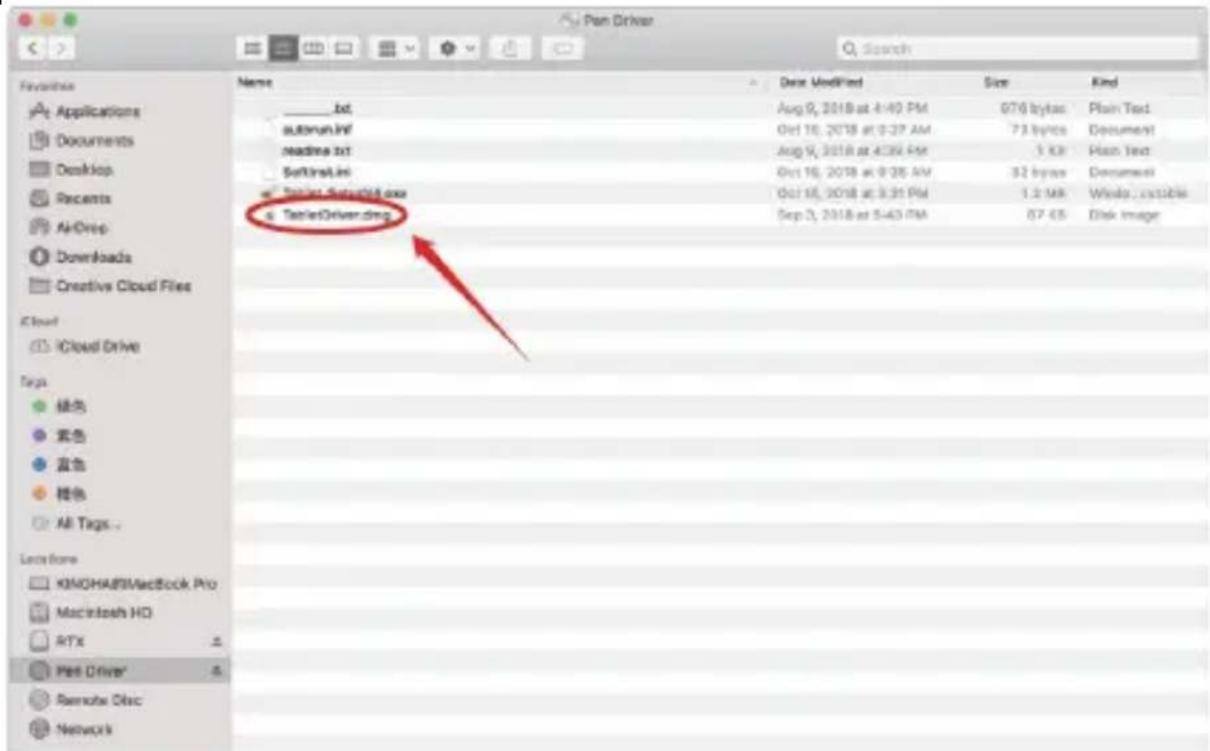

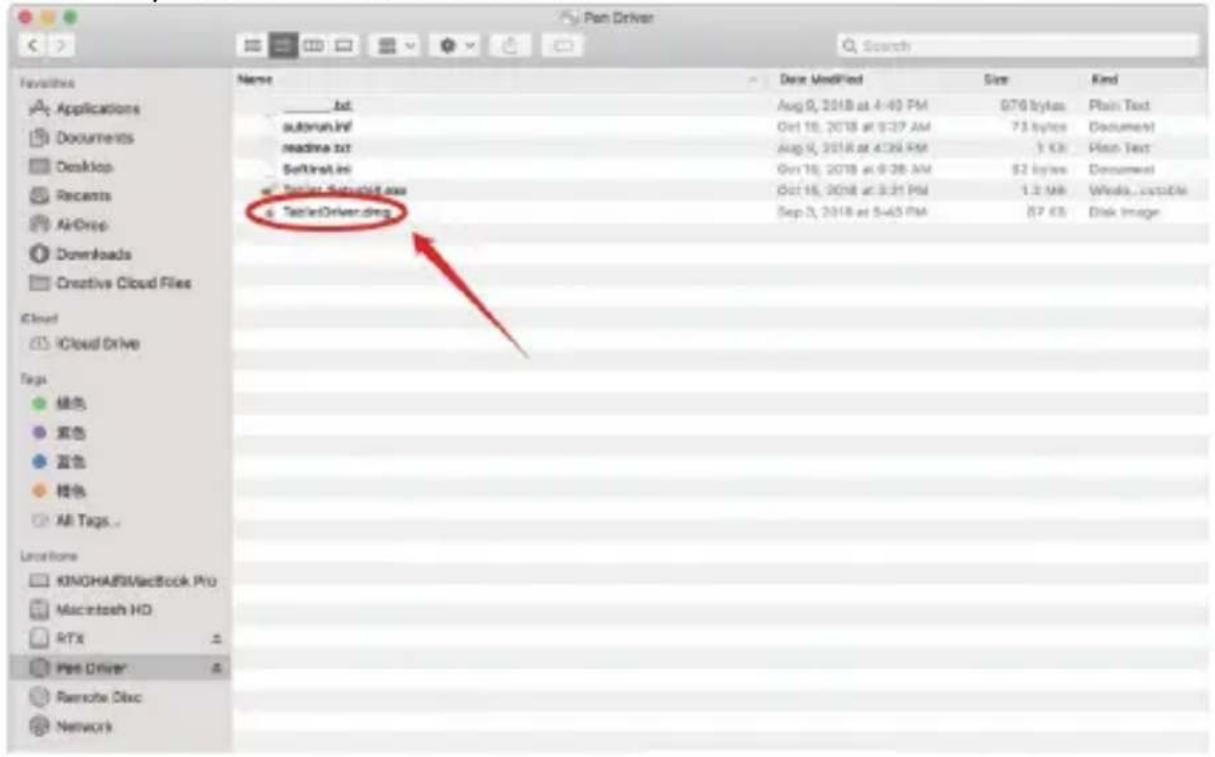

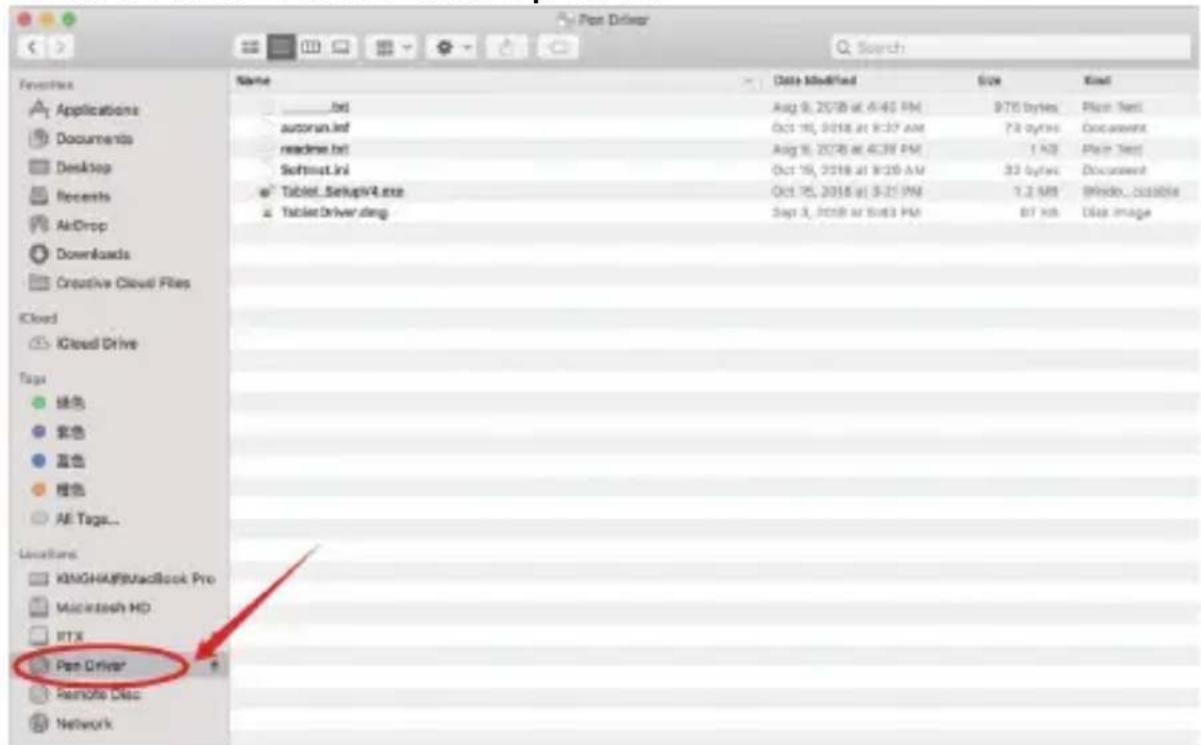

1) After connecting the tablet to your Mac device, locate the "Pen Driver" folder and open it.

2) Open TabletDriver.DMG

MyTablet.pkg
3) Open MyTablet.pkg

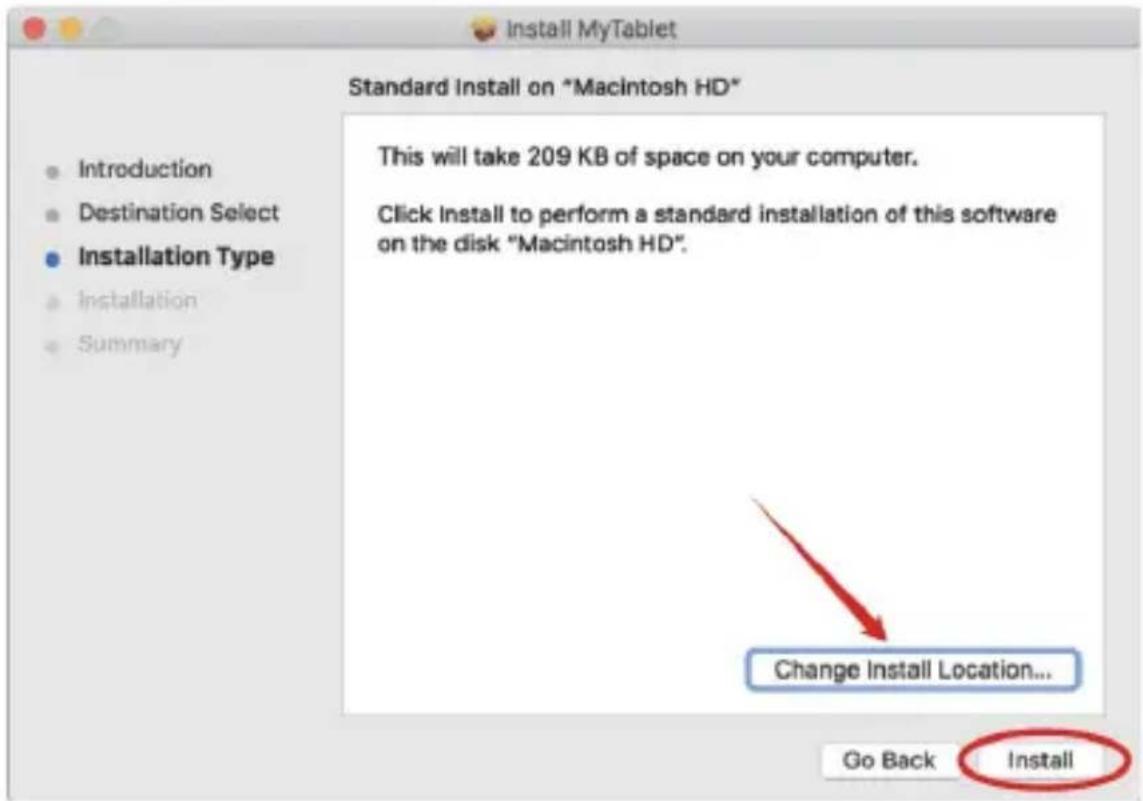

4) Select the installation path and then "Install" to start the installation.

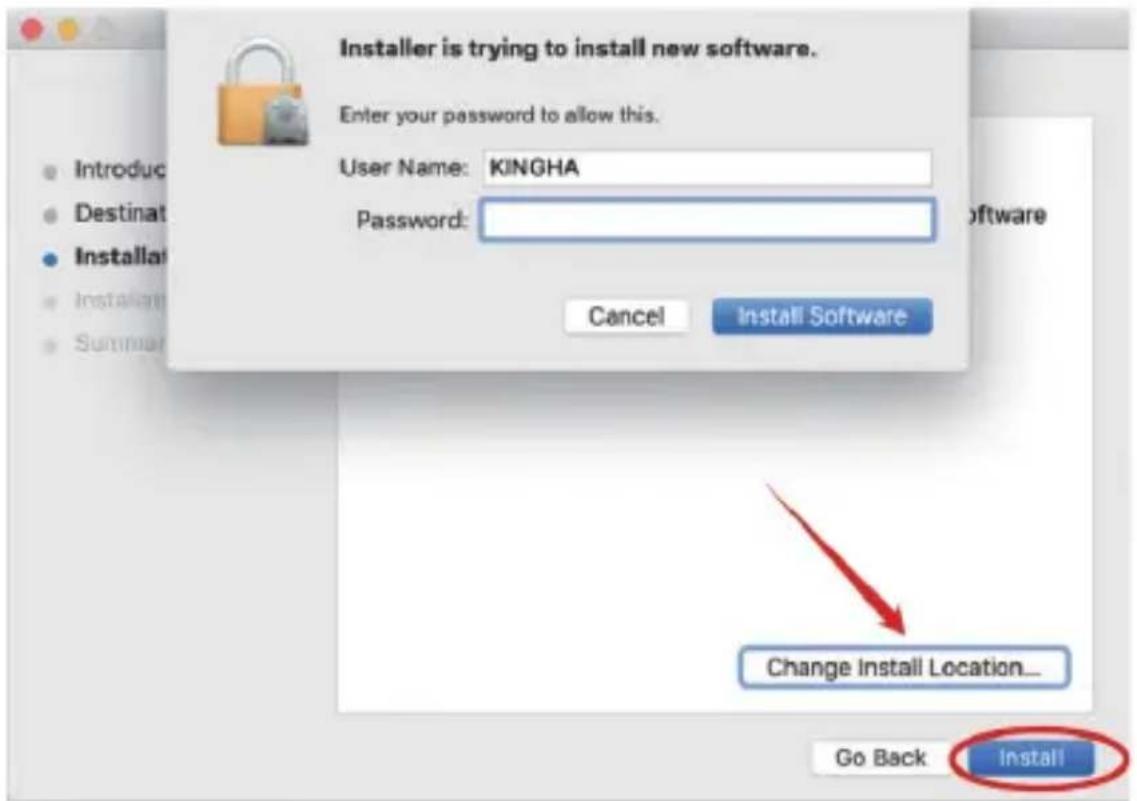

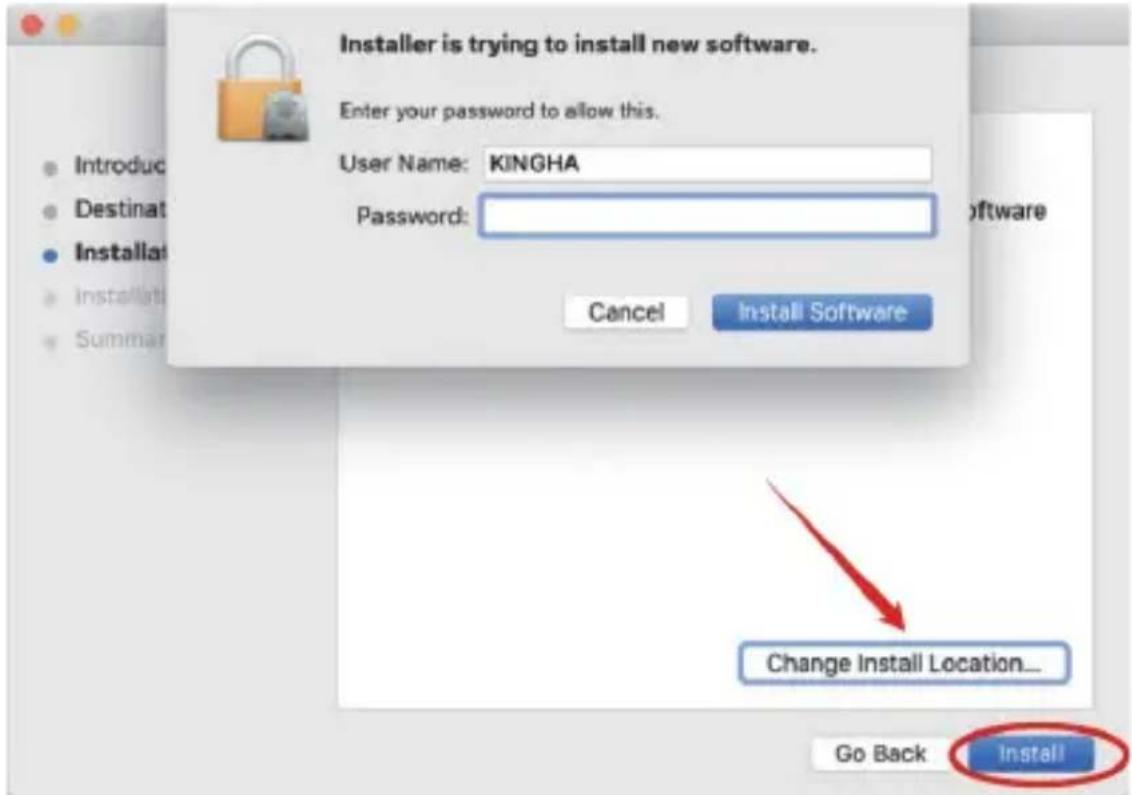

5) Enter your password and continue with the installation.

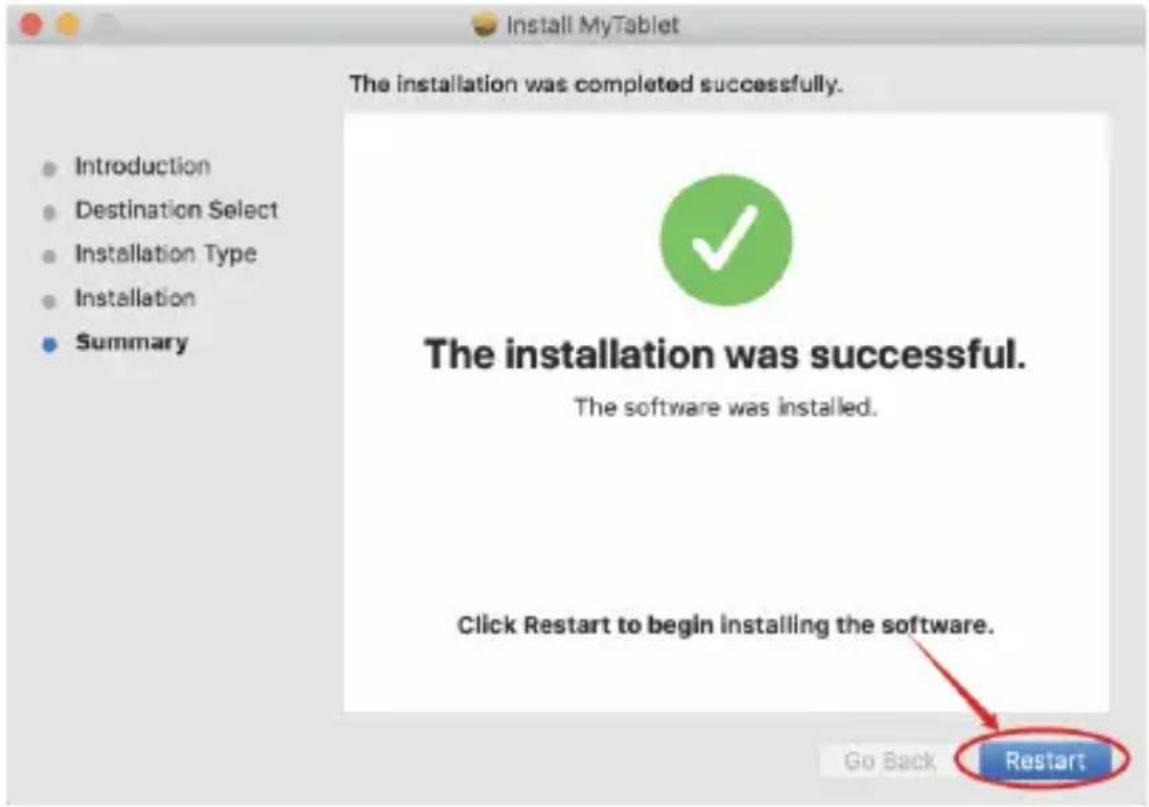

6) After successful installation, you will be prompted to restart your device.

Remark: After installing the driver, make the following settings

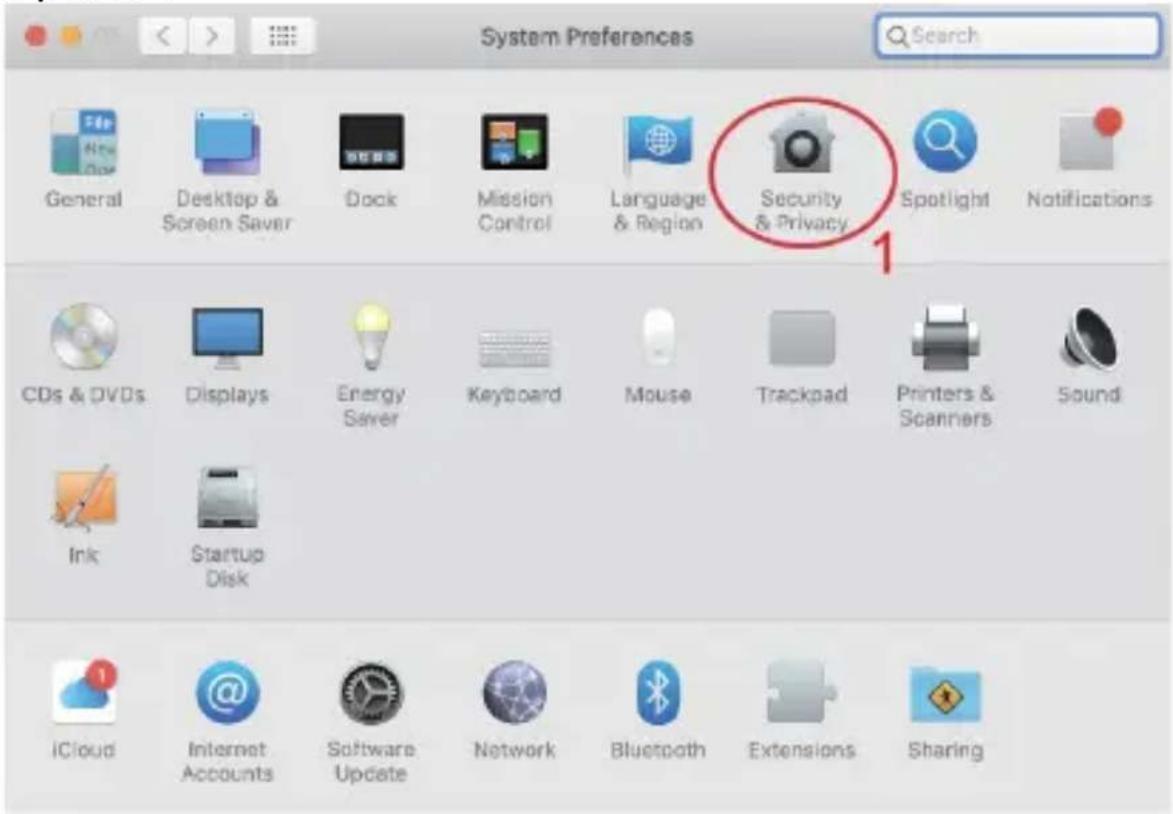

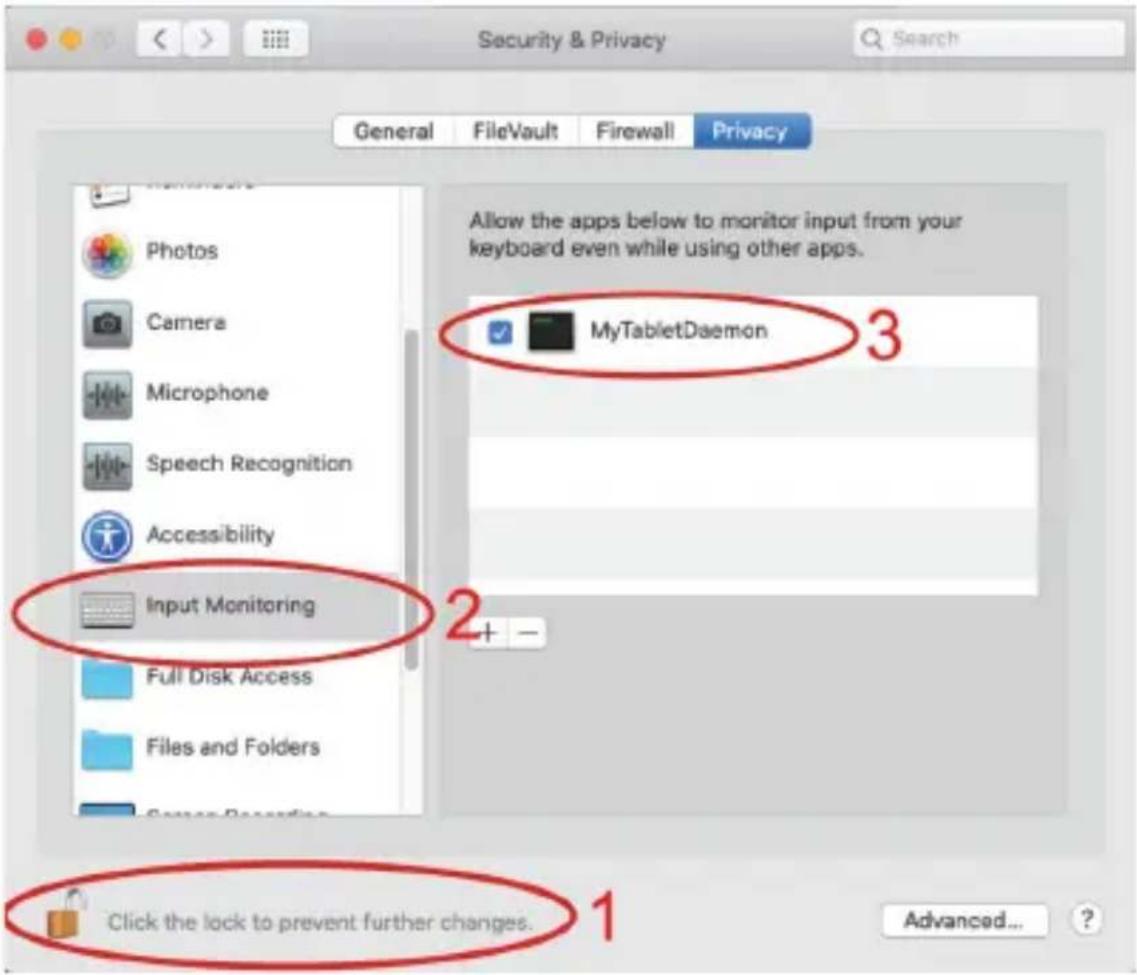

7) Open your MAC OS settings. Search for "Security & Privacy Option".

8) Select the unlock option.

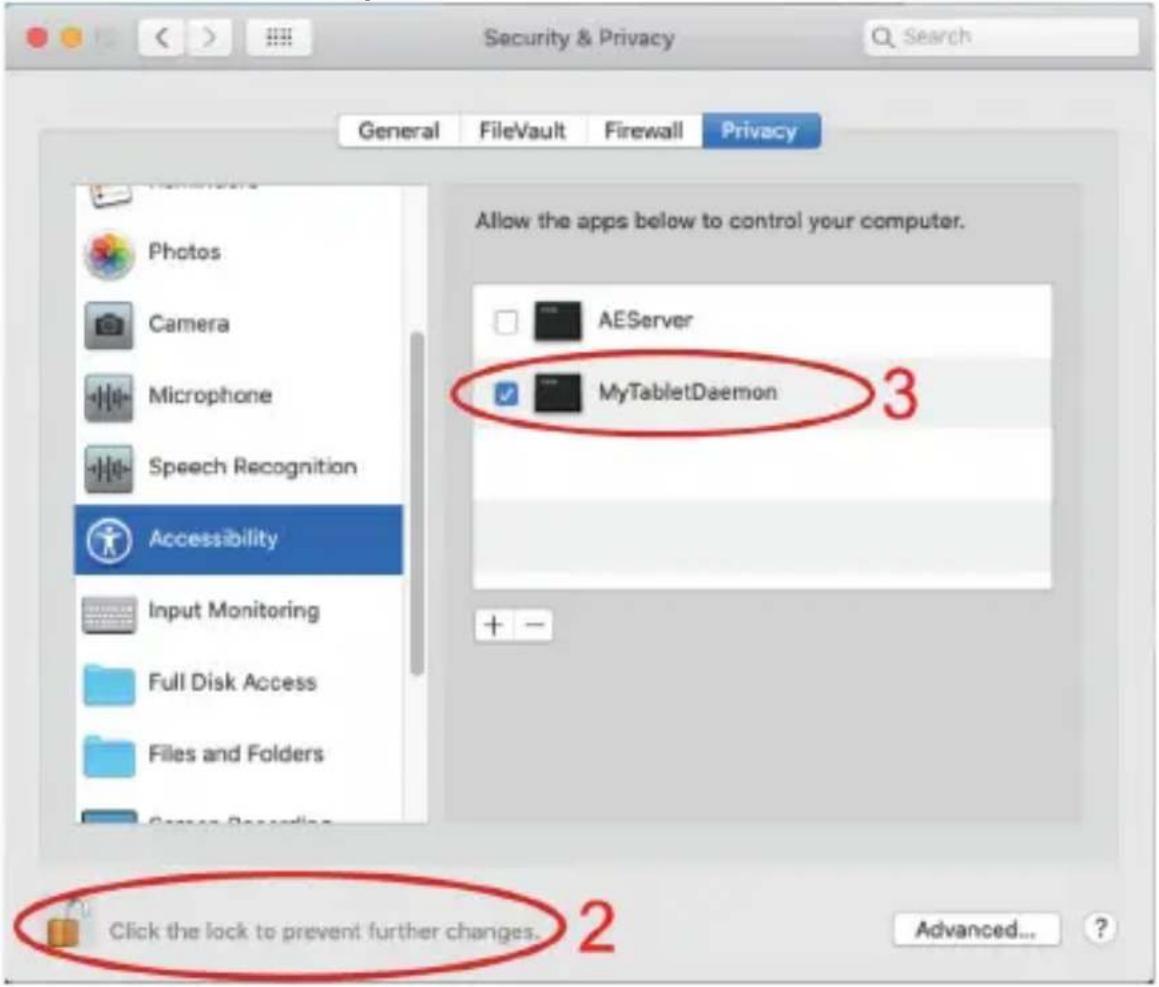

9) Check to enable MyTabletDaemon.

The MAC OS drivers have been successfully installed. Please restart the system.

Important: The app is constantly being updated and developed, individual steps may vary after updates. In case of any problems with the procedure, we recommend contacting the service centre.

Technical support

Contact EVOLVEO Technical Support

www.evolveo.com/helpdesk/

The warranty is NOT valid for:

• using the device for other purposes
• installing frimware other than that installed in EVOLVEO Grafico T12 or that can be downloaded manually or automatically from the application
• electromechanical or mechanical damage caused by improper use
• damage caused by natural elements such as fire, water, static electricity, surges, etc.
• damage caused by unauthorised repair

Disposal

The crossed-out container symbol on the product, in the literature or on the packaging means that in the EU all electrical and electronic equipment, batteries and accumulators must be placed in the separate waste stream at the end of their useful life. Do not dispose of these products in unsorted municipal waste.

DECLARATION OF CONFORMITY

Abacus Electric, s.r.o. hereby declares that the EVOLVEO Grafico T12 complies with the requirements of the notes and regulations applicable to this type of instrument.

The full text of the Declaration of Conformity can be found at http://ftp.evolveo.com/CE/

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Importer

Abacus Electric, s.r.o.

Planá 2, 370 01, Czech Republic

Producer

Naxya Limited

No.5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong

Kong

Made in China

All rights reserved.

Design and specifications are subject to change without notice.

Tartalomjegyzék

1) pro key -

2) a + billentyú

Megjegyzés:

MyTablet.pkg

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Importör

Abacus Electric, s.r.o.

No.5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong Kong

Made in China

Minden jog fenntartva.

1) cheie pro -

2) tasta pentru +

1) Conexiune USB la PC

2) Conexiune USB la laptop

2) Deschideti TabletDriver.DMG

MyTablet.pkg

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Importer

Abacus Electric, s.r.o.

No.5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong Kong

Fabricat în China

1) ključ pro -

2) tipka za +

3) brezžična konica pisala

1) Z obročem primite konico in jo izvlecite iz pisala

2) Vstavite in pritisnite novo konico v pisalo

Povezovanje

Grafično tablico priključite na vrata USB 2.0/3.0 računalnika. Za povezavo ne uporabljajte sprednjih vrat USB računalnika.

Opomba:

2) Odprite TabletDriver.DMG

MyTablet.pkg

5) Vnesite geslo in nadaljujte z namestitvijo.

6) Po uspešni namestitvi boste morali znova zagnati napravo.

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Uvoznik

Abacus Electric, s.r.o.

Planá 2, 370 01, Češka

Producent

Družba Naxya Limited

Št. 5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hongkong Izdelano na Kitajskem

Vse pravice pridržane.
