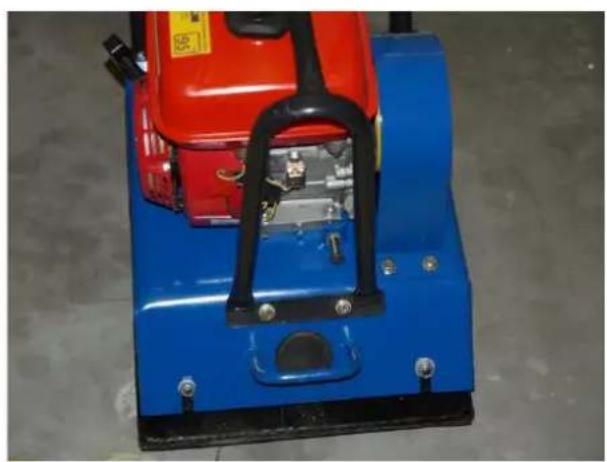

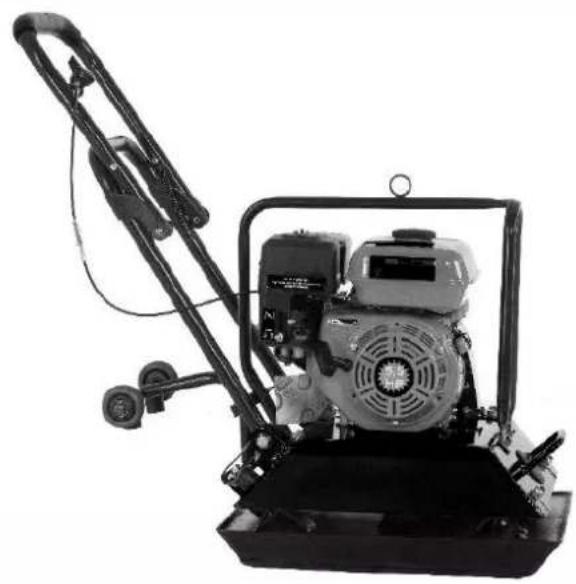

Product Type	Vibratory Plate Compactor
Brand	DEDRA
Model	DED8830
Dimensions (L x W x H)	800 x 450 x 900 mm (approx.)
Operating Weight	110 kg (approx.)
Engine Type	Four-stroke, single-cylinder, air-cooled
Engine Power	5.5 HP (4.1 kW)
Fuel Type	Unleaded gasoline
Starting Method	Recoil start
Plate Size (L x W)	560 x 400 mm (approx.)
Centrifugal Force	25 kN (approx.)
Vibration Frequency	6000 vpm (approx.)
Maximum Forward Speed	25 m/min
Compaction Depth	Up to 300 mm (soil dependent)
Noise Level (LWA)	106 dB(A) (approx.)
Vibration Level (hand-arm)	5.8 m/s² (approx.)
Safety Features	Emergency stop, anti-vibration handle, protective frame

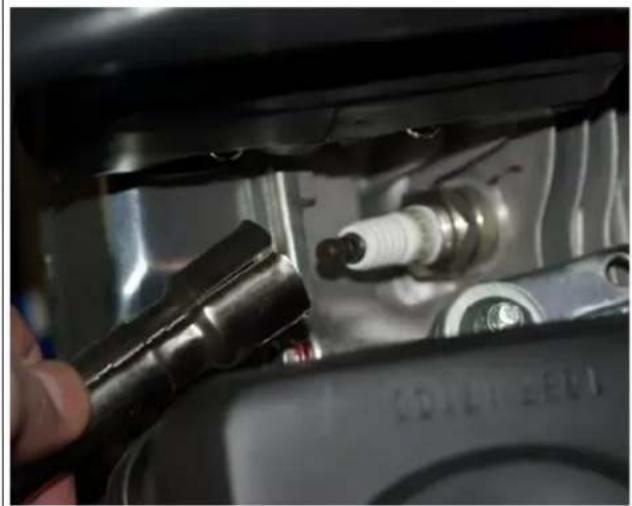

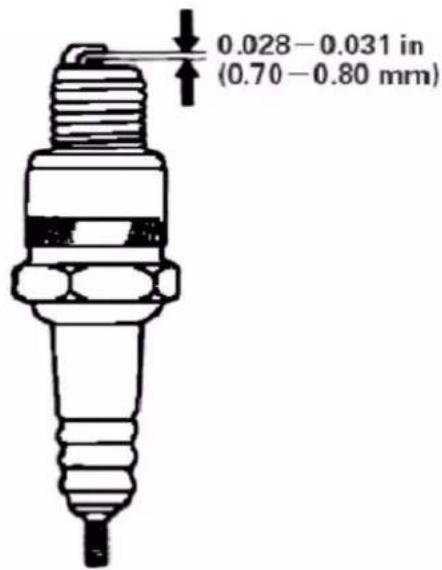

Maintenance Interval	Every 25 hours: check oil, air filter; every 100 hours: change oil, spark plug
Warranty	2 years (subject to terms)

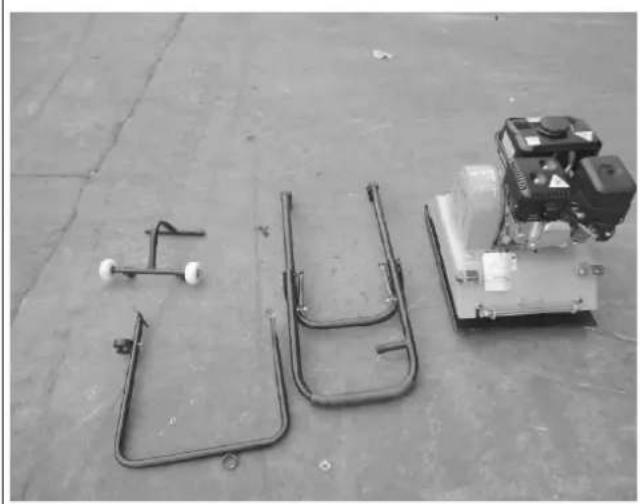

Included Accessories	Water tank, transportation wheels (optional)

Frequently Asked Questions - DED8830 DEDRA

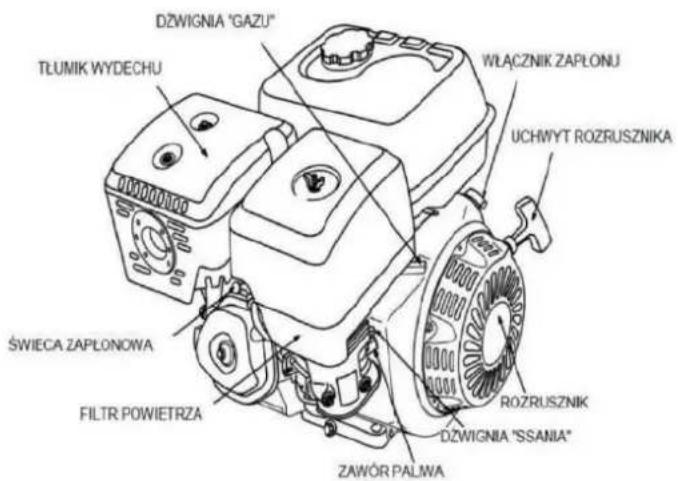

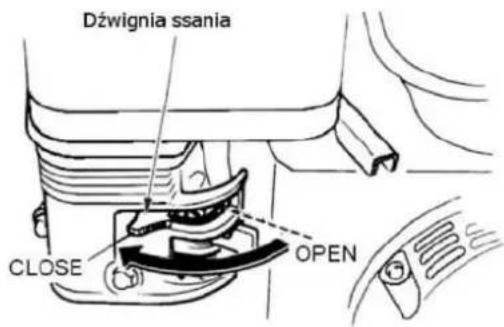

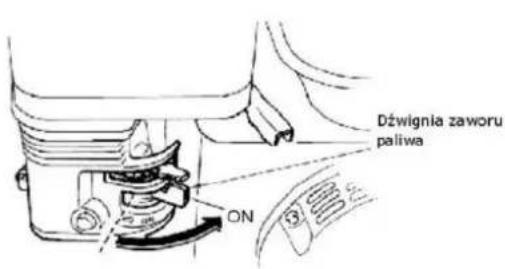

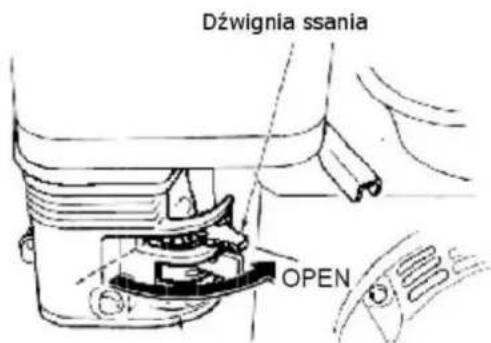

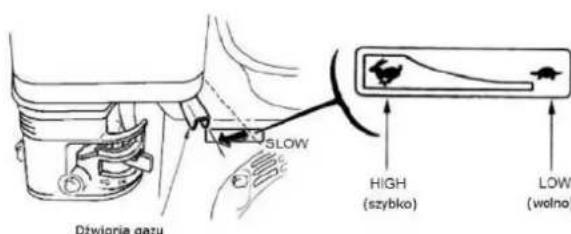

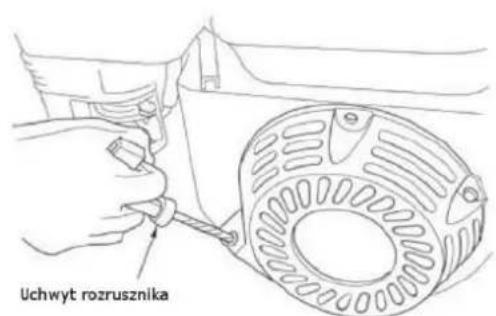

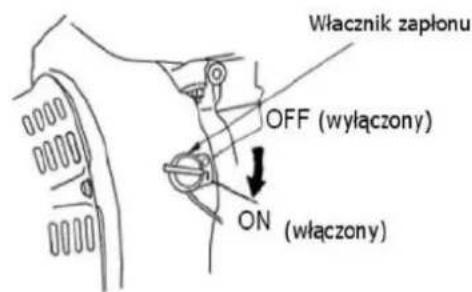

How do I start the DED8830 vibratory plate?

Ensure the fuel valve is open, choke if engine is cold, set throttle to start position, and pull the recoil starter firmly.

What type of fuel should I use?

Use clean, unleaded gasoline with an octane rating of at least 87. Do not use gasoline with more than 10% ethanol.

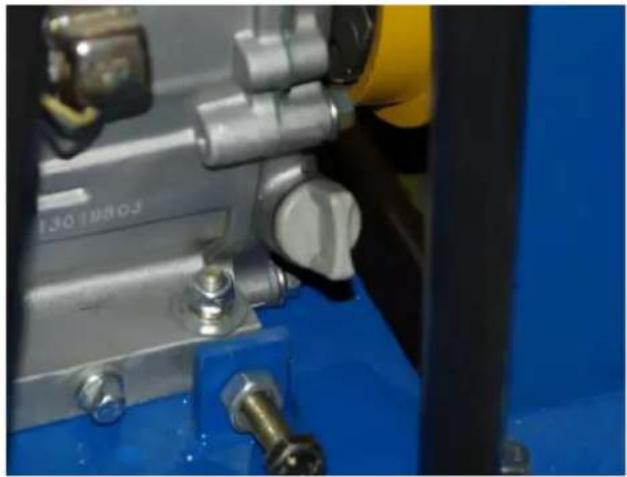

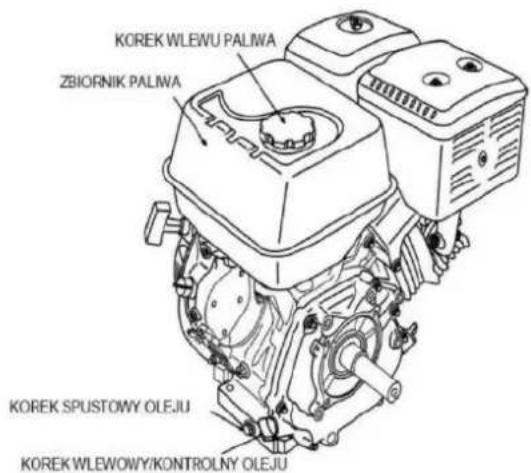

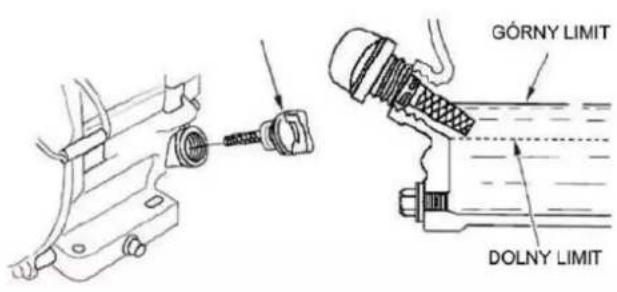

How often should I change the engine oil?

Change the engine oil every 100 hours of operation or annually. Use SAE 10W-30 oil (or as specified in the manual).

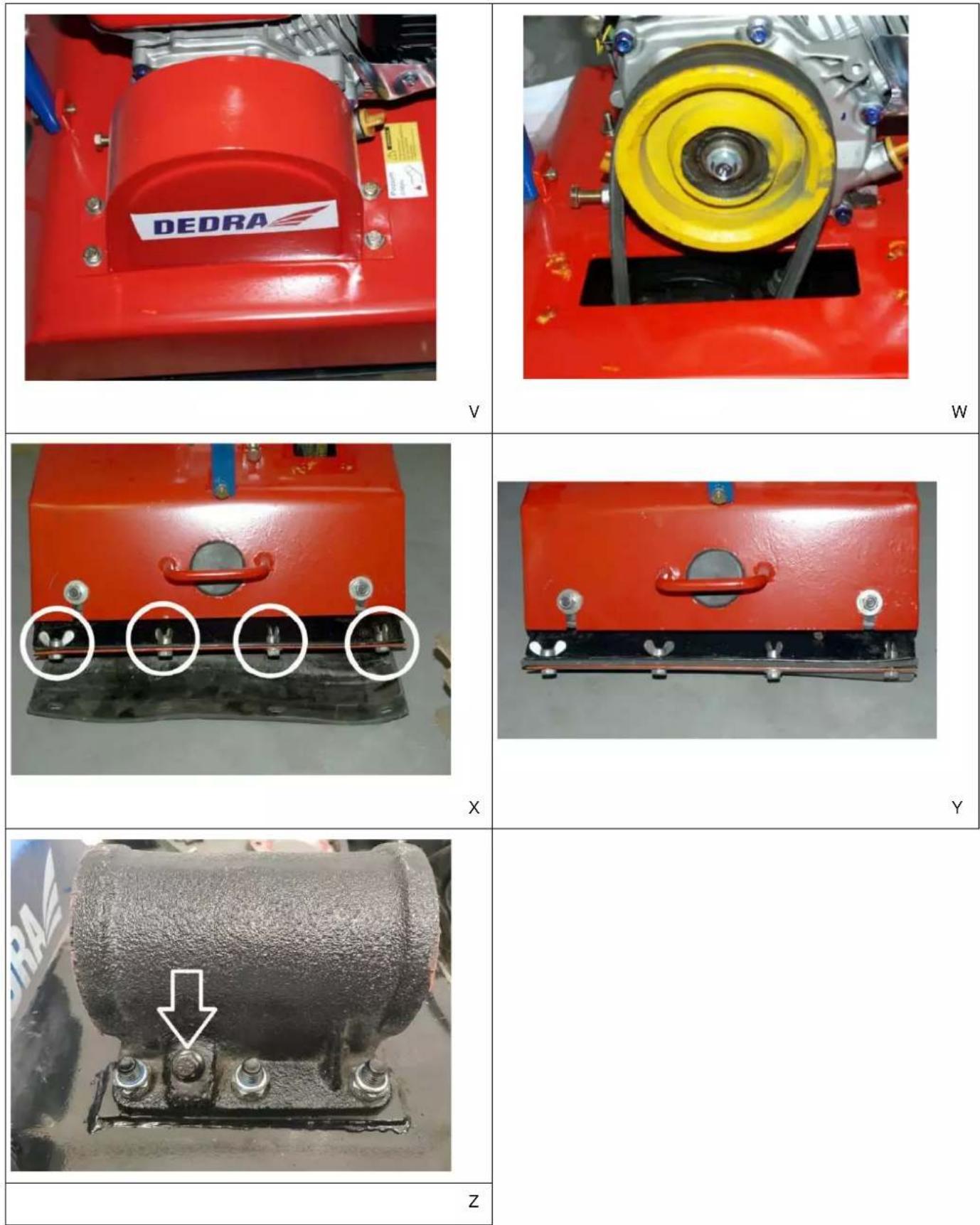

Why does the plate vibrate unevenly?

Uneven vibration may be due to uneven soil, low engine rpm, or a worn exciter. Check the drive belt and vibration mounts.

Can I use the plate on asphalt?

Yes, but only with a water tank to prevent sticking. Use low engine speed and avoid prolonged stationary operation.

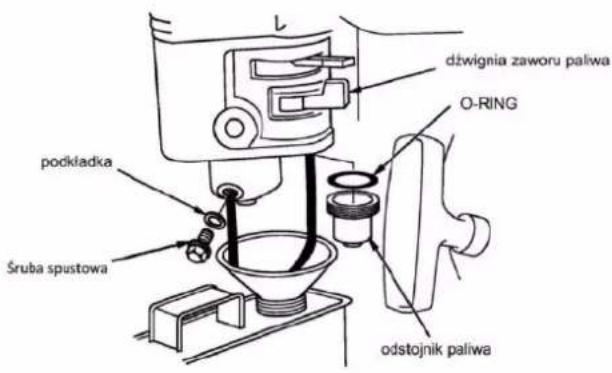

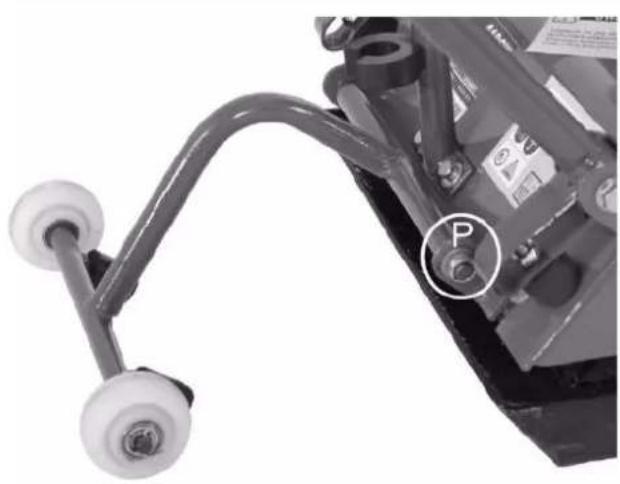

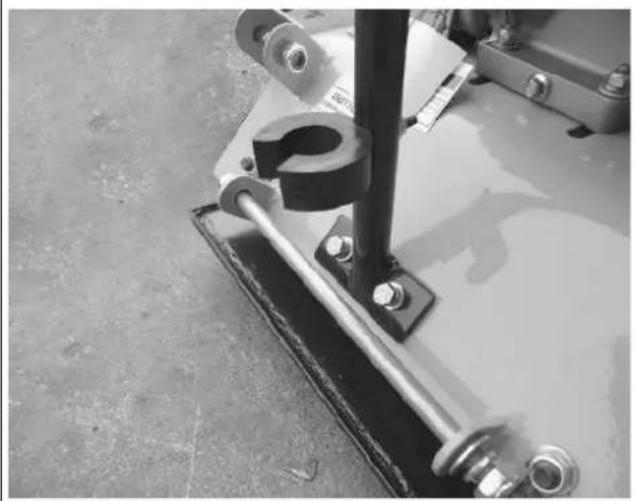

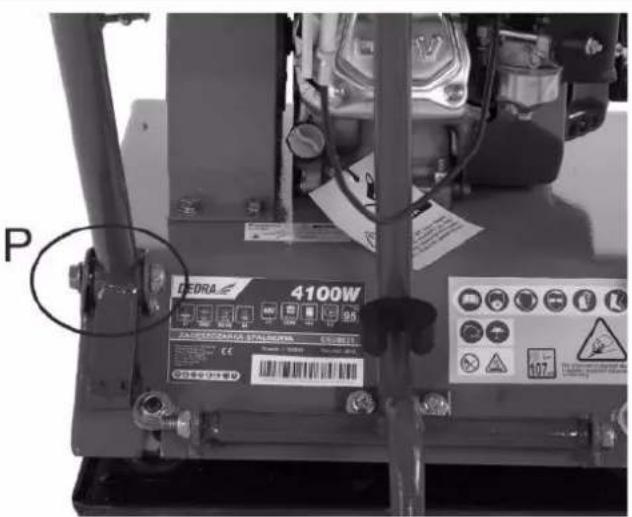

How do I transport the machine safely?

Drain fuel and oil, secure the plate using straps, and use a ramp for loading. Never lift the machine by the handle.

What safety gear is required?

Always wear hearing protection, safety glasses, steel-toed boots, and gloves. Use a dust mask in dusty conditions.

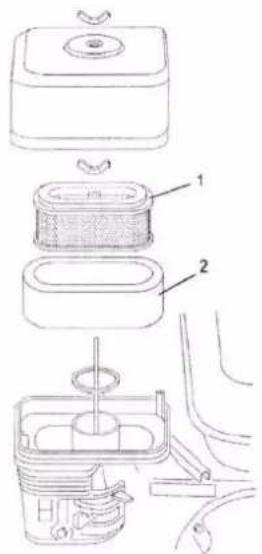

How do I clean the air filter?

Remove the air filter cover, take out the foam element, wash it in warm soapy water, dry it thoroughly, and re-oil it with engine oil before reinstallation.

What is the maximum slope the plate can operate on?

The DED8830 can operate on slopes up to 20% (11°) under normal conditions. For steeper slopes, use a winch.

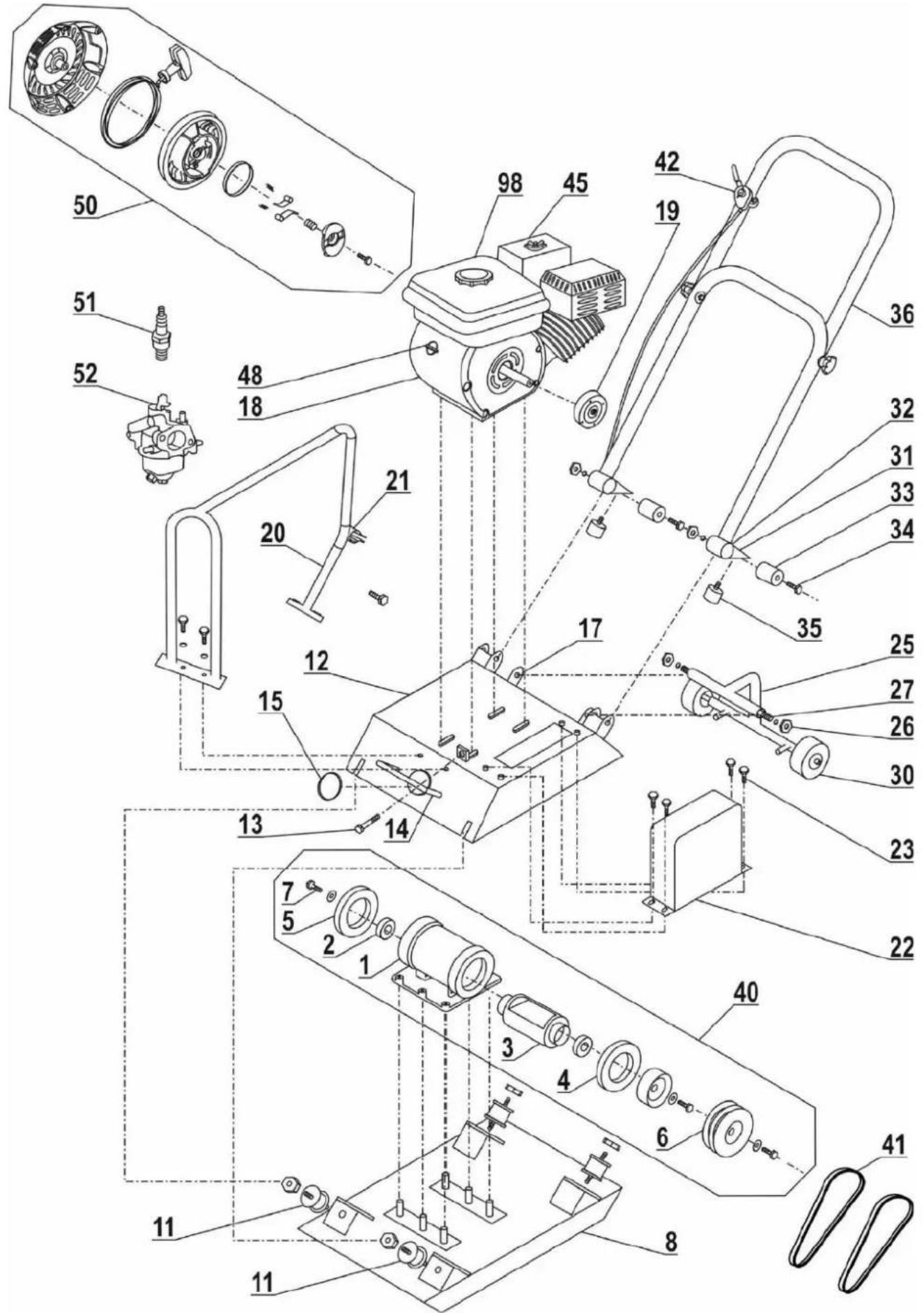

Where can I find replacement parts?

Contact DEDRA authorized service centers or visit www.dedra.com for genuine parts. Use only original parts for safety and performance.

USER MANUAL DED8830 DEDRA
