Sonica SD100 - Electric toothbrush Eldom - Free user manual and instructions

Product Type	Sonic Electric Toothbrush
Brand	Eldom
Model	Sonica SD100
Power Consumption	1.8W
Vibration Speed	31,000 – 40,000 beats per minute
Battery	Li-Ion, DC 3.7V, 700mAh
Charging Time	5 hours
Operating Time	Up to 20 days (2 minutes twice daily)
Waterproof Rating	IPX7
Housing Material	ABS/TPE
Bristle Material	Dupont Nylon
Charging Interface	USB cable (requires DC 5V, 0.6mA adapter, not included)
Number of Cleaning Modes	5
Operating Modes	Whitening (red), Cleaning (green), Gentle (blue), Gum care (green flashing), Polishing (blue flashing)
Timer	2 minutes with 30-second interval alerts
Automatic Shut-Off	Yes, after 2 minutes
Head Replacement Interval	Every 2 months
Compatible Brush Heads	SDK100 series
Intended Use	Cleaning teeth, gums, and tongue
Warranty Repair	Only in authorised service centre; modifications or non-original parts void warranty

Frequently Asked Questions - Sonica SD100 Eldom

How do I charge the Sonica SD100 toothbrush?

Switch off the toothbrush. Connect the USB cable to the socket (4) on the handle, and the other end to a DC 5V, 0.6mA power adapter (not included). Plug the adapter into a mains outlet. The indicator light (3) will stay on during charging and turn off when fully charged. The device cannot be used while charging.

How long does it take to fully charge the battery?

The battery takes approximately 5 hours to fully charge. A full charge provides up to 20 days of use (based on two 2-minute brushing sessions per day).

How often should I replace the brush head?

Replace the brush head every 2 months for hygienic reasons or sooner if bristles become frayed. Only use original SDK100 series brush heads to ensure proper fit and performance.

What should I do if the toothbrush vibrates weakly?

Weak vibrations often occur if you press the brush head too firmly against your teeth. Apply gentle pressure and let the toothbrush do the work. If the problem persists, ensure the toothbrush is sufficiently charged.

Can I use the toothbrush while it is charging?

No, the device cannot be used while charging. Always switch off and unplug before use.

Is the toothbrush waterproof?

Yes, the toothbrush has an IPX7 rating, meaning it can be immersed in water up to 1 meter for 30 minutes. However, the USB cable should never be immersed.

What do the different cleaning modes mean?

The toothbrush has 5 modes: Whitening (red) removes stains and whitens, Cleaning (green) for daily plaque removal, Gentle (blue) for sensitive teeth and gums, Gum care (green flashing) massages gums, and Polishing (blue flashing) for stubborn plaque.

How do I clean the toothbrush?

After each use, turn off the toothbrush, remove the brush head, rinse it thoroughly, and let it dry. Wipe the handle and cable with a damp cloth. Do not use harsh chemicals or immerse the handle in water.

What should I do if the toothbrush stops working?

First, check if the battery is charged. If not, charge it. If the toothbrush still does not work, it may be damaged. Contact an authorised service centre for repair; do not attempt to open or modify the device.

Can children use this toothbrush?

Yes, children aged 8 years and older can use it under supervision. Persons with limited physical, sensory, or mental capabilities should also be supervised or instructed on safe use. Children must not play with the appliance.

USER MANUAL Sonica SD100 Eldom

Two electric toothbrushes, one white and one black, displayed side by side (no text or symbols visible on the devices themselves)

SONICZNA SZCZOTECZKA /PL/

SONIC TOOTHBRUSH /EN/

SONICKÁ ZUBNÍ KARTÁČEK /CZ/

SONIC ZAHNBÜRSTE /DE/

/EN/ Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

Diagram showing a toothbrush with teeth and a mechanical component, labeled A (no text or symbols on the object itself)

B

WSKAZÓWKI BEZPIECZEŃSTWA

PROBLEMY I ROZWIĄZANIA

- Before using the appliance for the first time, please read carefully these Instructions for Use.

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision.

- Do not place the appliance in the vicinity of heat sources.

- The appliance is intended for domestic use only.

- Do not immerse the cord or the appliance in water.

- The appliance must always be cleaned after use. The appliance must always be turned off before cleaning and maintenance as well as in case of malfunction and after operation.

- Do not use with a broken or otherwise damaged hairdressing head as it may lead to injury.

- Do not use in the open air.

- Use only with the originally included accessories and feeder.

- Never use the appliance when it is wet, with wet hands or in acontainers.

- The appliance must not be immersed in or sprinkled with water.

- When in operation, do not leave the appliance unattended.

- The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.

- The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

NOTE:

• This device is designed exclusively for cleaning teeth, gums and tongue.

- When using this product for the first time, some people may experience discomfort. Use the toothbrush normally and any unpleasant sensations should gradually disappear within a week without hurting your teeth or gums.

- If you have received dental treatment in the last 2 months, consult your dentist before using the toothbrush.

- If you experience bleeding after using the toothbrush, consult your dentist.

EN

INSTRUCTION MANUAL

1. Spindle
2. Housing
3. Power switch/Operating mode indication/Empty battery indication
4. Socket
5. Replaceable head
6. USB cable

INTENDED USE

The SD100 toothbrush has been designed to use sonic technology. During operation, the toothbrush head vibrates at speeds ranging from 31,000 to as many as 40,000 beats per minute, dynamically cleaning teeth and inter-dental spaces. This makes it possible to remove impurities from hard-to-reach areas more accurately.

CHARGING THE DEVICE

The device may only be used after it has been charged.

Switch off the device before charging.

• Plug one end of the cable (6) into the socket (4) and the other end into the power supply unit (not included) with the parameters provided above, and then into the mains.
• When charging, the light (3) will be on and will go off when the device is charged.
  • The device cannot be used while charging.

TECHNICAL DATA

Power: 1,8W

Speed: 31,000 - 40,000 bpm

Battery: DC 3,7V, 700mAh, Li-ION

Charging time: 5 hours

Operating time: up to 20 days (2 minutes twice/day)

Toothbrush water-tightness: IPX7

Material

• housing: ABS/TPE
• head bristles: Dupont Nylon

Charging method: cable.

Connect the cable (6) to a power supply unit with the following parameters: DC 5V, 0.6mA (not included)

REPLACING THE HEAD (5)

The brush head (5) is a working part and should be replaced every 2 months for hygienic reasons and whenever its bristles are worn.

It is not subject to warranty repair. The brush head (5) can only be replaced by the original brush head type included in the SDK100 range.

• The head can only be replaced when the toothbrush is switched off.
• Replacing the head (5) while the toothbrush is running may cause damage to the spindle (1).
• Attach the head (5) as shown in Fig. A.
• Keep a small gap between the housing (2) and the head (5) to allow proper device operation. If there is no gap, the device will be damaged when turned on

• To select the operating mode, press the button (3) until the correct colour is lit.
- Press and hold the button (3) for more than 3 seconds to turn the device off.
- The toothbrush will always begin work in the last mode selected.

USE

• Place the head (5) on the spindle (1) – Fig. A
• Switch on the device, select the operating mode (see above) and switch it off.
• Wet the bristles of the head (5).
• Apply a small amount of toothpaste to the wet bristles.
• Place the toothbrush in your mouth, set it at the right angle (Fig.C) and turn it on.
• Brush your teeth in circular motions as described below without applying too much pressure to the teeth and gums.
• The brushing cycle takes 2 minutes. The toothbrush will generate an impulse every 30 seconds.
• The device will switch off automatically at the end of the set time period.
• The device operation can be stopped at any moment by pressing the switch (3).
• Rinse the mouth after brushing. Specialist rinses may be used.
• Remove the head (5), wash it thoroughly and set aside to dry.
• Wipe the device and set it down in a dry place.

TEETH CLEANING – RECOMMENDATIONS

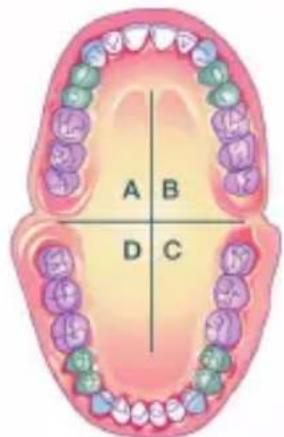

• Divide the teeth into 4 areas – Fig. B.
• Brush each part for approximately 30 seconds The toothbrush signals when the time is up.
• Apply the head bristles to the teeth correctly — Fig. C

CLEANING AND MAINTENANCE

Clean the appliance after each use.

• Before cleaning, make sure the device is turned off.
• Do not immerse the cable (6) in water.
• Do not use strong agents, cleaning agents or cleaning products which may damage the surface.
• Wipe the cable (6) and housing (2) with a damp cloth.
• Rinse the head (2) thoroughly. Do not compress or pull the bristles to avoid damage.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recovered or recycled
• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

Mode Method of operation Operating time
Whitening (red) Removes plaque, whitens front teeth and eliminates discolouration		Two minutes, impulse every 30 seconds
Cleaning (green) Daily plaque removal
Gentle (blue) Cleans sensitive teeth and gums
Gum care (green - flashing) Massages gums
Polishing (blue - flashing) Removing and statistically stubborn plaque and discolouration.

PROBLEMS & SOLUTIONS

Problem Possible cause Solution
The head vibrations are too weak The bristles are too tightly pressed against the teeth		Press the toothbrush gently against the teeth
Operating time is short The toothbrush is not sufficiently charged:1.it is incorrectly placed on the charging station or not in the proper spot, which causes the charging function to fail2.the charging station is not connected to the mains.		1. place the toothbrush on the charging station properly,2. check the connection of the charging station to the mains.
The toothbrush does not work 1.The toothbrush is not charged.2.The toothbrush has been damaged.		1.Charge the toothbrush.2.Contact the manufacturer's maintenance service.
