Sonic SD200 - Electric toothbrush Eldom - Free user manual and instructions

Brand	Eldom
Model	Sonic SD200
Product Type	Electric toothbrush with sonic technology
Power	3W
Speed	31,000 - 42,000 beats per minute
Battery	DC 3.7V, 700mAh, Li-Ion
Charging Time	16 hours
Operating Time	Up to 20 days (2 minutes twice/day)
Water Resistance	IPX7 (toothbrush only)
Housing Material	ABS/TPE
Bristle Material	Dupont Nylon
Charging Method	Induction (via charging station)
Operating Modes	Whitening, Cleaning, Gentle, Gum care, Deep cleaning
Brushing Timer	2 minutes (standard), 3 minutes (deep cleaning); 30s or 45s intervals
Head Replacement Interval	Every 3 months
Compatible Heads	Original SDK200 series
Included Accessories	Charging station (USB), 1 brush head
Power Supply Required	DC 5V, 0.6A (not included)
Safety Features	Automatic shut-off when placed on charger; overcharge protection
Intended Use	Domestic use only; for cleaning teeth, gums, and tongue
Dimensions	Approximately 25 cm height (estimated)
Weight	Approximately 100 g (estimated)

Frequently Asked Questions - Sonic SD200 Eldom

How long does it take to fully charge the Sonic SD200 toothbrush?

The toothbrush requires approximately 16 hours for a full charge. The indicator light will turn off when charging is complete.

How often should I replace the brush head?

It is recommended to replace the brush head every 3 months for hygienic reasons or sooner if the bristles are worn. Only use original SDK200 series heads.

What operating modes does the SD200 offer?

The toothbrush has five modes: Whitening, Cleaning, Gentle, Gum care, and Deep cleaning. Press the power button repeatedly to cycle through modes. The device remembers the last mode used.

Can I use the toothbrush while it is charging?

No, the toothbrush cannot be used while it is placed on the charging station. It will automatically switch off when placed on the charger.

Is the toothbrush waterproof?

The toothbrush itself has an IPX7 water-tightness rating, meaning it can be rinsed under running water. However, the charging station must not be immersed.

What should I do if the toothbrush stops working?

First, ensure it is charged. If it still does not work, check that it is properly placed on the charging station. If the issue persists, contact the manufacturer's service center.

How do I clean the toothbrush?

After each use, rinse the brush head thoroughly. Wipe the housing and charging station with a damp cloth. Do not use harsh chemicals or immerse the station.

Can children use the SD200 toothbrush?

Yes, children aged 8 and older can use it under supervision. Persons with limited capabilities should be instructed on safe use. Children shall not play with the device.

What power supply do I need for the charging station?

The charging station requires a DC 5V, 0.6A power supply unit (not included in the box). Use only a compatible adapter.

Why are the vibrations weak?

Weak vibrations may be caused by pressing the brush too hard against the teeth. Apply gentle pressure for optimal cleaning.

USER MANUAL Sonic SD200 Eldom

White electric toothbrush with green teeth and a circular button, no visible text or symbols on the device itself.

/EN/ Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

Diagram showing a toothbrush and its mechanical component with a downward arrow, labeled 'A' (no text or symbols on the diagram itself)

B

C

WSKAZÓWKI BEZPIECZEŃSTWA

PROBLEMY I ROZWIĄZANIA

- Before using the appliance for the first time, please read carefully these Instructions for Use.

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision.

- Do not place the appliance in the vicinity of heat sources.

- The appliance is intended for domestic use only.

- Do not immerse the cord or the appliance in water.

- The appliance must always be cleaned after use. The appliance must always be turned off before cleaning and maintenance as well as in case of malfunction and after operation.

- Do not use with a broken or otherwise damaged hairdressing head as it may lead to injury.

- Do not use in the open air.

- Use only with the originally included accessories and feeder.

- Never use the appliance when it is wet, with wet hands or in acontainers.

- The appliance must not be immersed in or sprinkled with water.

- When in operation, do not leave the appliance unattended.

- The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.

- The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

NOTE:

• This device is designed exclusively for cleaning teeth, gums and tongue.

- When using this product for the first time, some people may experience discomfort. Use the toothbrush normally and any unpleasant sensations should gradually disappear within a week without hurting your teeth or gums.

- If you have received dental treatment in the last 2 months, consult your dentist before using the toothbrush.

- If you experience bleeding after using the toothbrush, consult your dentist.

EN

INSTRUCTION MANUAL

1. Spindle
2. Housing
3. Power switch
4. Operating mode indication
5. Empty battery indication
6. Cover
7. Replaceable head
8. Charging station (USB)

INTENDED USE

The SD200 toothbrush has been designed to use sonic technology. During operation, the toothbrush head vibrates at speeds ranging from 31,000 to as many as 42,000 beats per minute, dynamically cleaning teeth and inter-dental spaces. This makes it possible to remove impurities from hard-to-reach areas more accurately.

CHARGING THE DEVICE

The device may only be used after it has been charged.

Switch off the device before placing it on the charging station (8).

• Connect the charging station (8) to the power supply unit (not included) with the parameters provided above, and then to the mains.
• Place the device on the charging station (8).
• When charging, the light (5) will be on and will go off when the device is charged.
• The device cannot be used while charging.
• The toothbrush will switch off automatically after placing it on the charging station.

TECHNICAL DATA

Power: 3W

Speed: 31,000 - 42,000 bpm

Battery: DC 3.7V, 700mAh, Li-Ion

Charging time: 16 hours

Operating time: up to 20 days (2 minutes twice/day)

Toothbrush water-tightness: IPX7

Material

- housing: ABS/TPE

- head bristles: Dupont Nylon

Charging method: induction

Connect the station (8) to a power supply unit with the following parameters: DC 5V, 0.6mA (not included)

REPLACING THE HEAD (7)

The brush head (7) is a working part and should be replaced every 3 months for hygienic reasons and whenever its bristles are worn.

It is not subject to warranty repair. The brush head (7) can only be replaced by the original brush head type included in the SDK200 range.

• The head can only be replaced when the toothbrush is switched off.
• Replacing the head (7) while the toothbrush is running may cause damage to the spindle (1).
• Attach the head (7) as shown in Fig. A.
• Keep a small gap between the housing (2) and the head (7) to allow proper device operation. If there is no gap, the device will be damaged when turned on

• To select the operating mode, press the button (3) until the correct light (4) comes on.
• Press and hold the button (3) for 3 seconds to change the mode while the device is running.
• Press and hold the button (3) for more than 3 seconds to turn the device off.

- The toothbrush will always begin working in the last mode selected.

USE

• Place the head (7) on the spindle (1) – Fig. A
• Switch on the device, select the operating mode (see above) and switch it off.
• Wet the bristles of the head (7).
• Apply a small amount of toothpaste to the wet bristles.
• Place the toothbrush in your mouth, set it at the right angle (Fig.C) and turn it on.
• Brush your teeth in circular motions as described below without applying too much pressure to the teeth and gums.
• The brushing cycle takes 2 minutes. The toothbrush will generate an impulse every 30 seconds.
• The device will switch off automatically at the end of the set time period.
• The device operation can be stopped at any moment by pressing the switch (3).
• Rinse the mouth after brushing. Specialist rinses may be used.
• Remove the head (7), wash it thoroughly and set aside to dry.
• Wipe the device and set it down in a dry place or on the charging station (8).

TEETH CLEANING – RECOMMENDATIONS

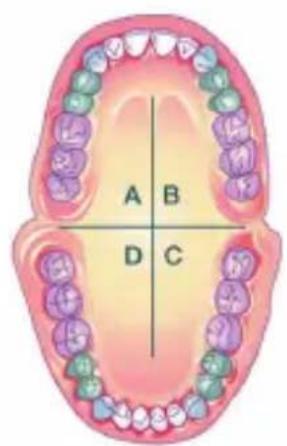

• Divide the teeth into 4 areas – Fig. B.
• Brush each part for approximately 30 seconds (approximately 45 seconds in deep cleaning mode). The toothbrush signals when the time is up.
• Apply the head bristles to the teeth correctly — Fig. C

CLEANING AND MAINTENANCE

Clean the appliance after each use.

• Before cleaning, make sure the device is turned off.
• Do not immerse the charging station (8) in water.
• Do not use strong agents, cleaning agents or cleaning products which may damage the surface.
• Wipe the charging station (8) and housing (2) with a damp cloth.
• Rinse the head (7) thoroughly. Do not compress or pull the bristles to avoid damage.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recovered or recycled
• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

Mode Method of operation Operating time
Whitening Removes plaque, whitens front teeth and eliminates discolouration	Two minutes, impulse every 30 seconds
Cleaning Daily plaque removal
Gentle Cleans sensitive teeth and gums
Gum care Massages gums
Deep cleaning Removing particularly stubborn plaque and discolouration.	Three minutes, impulse every 45 seconds

PROBLEMS & SOLUTIONS

Problem Possible cause Solution
The head vibrations are too weak The blistles are too tightly pressed against the teeth		Press the toothbrush gently against the teeth
Operating time is short The toothbrush is not sufficiently charged:1.it is incorrectly placed on the charging station or not in the proper spot, which causes the charging function to fail2.the charging station is not connected to the mains.		1. place the toothbrush on the charging station properly,2. check the connection of the charging station to the mains.
The toothbrush does not work 1.The toothbrush is not charged.2.The toothbrush has been damaged.		1.Charge the toothbrush.2.Contact the manufacturer's maintenance service.
