Product Type	Electric Kettle
Brand	Zelmer
Model	17Z016
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Cordless Operation	Yes, 360° swivel base
Automatic Shut-Off	Yes
Boil-Dry Protection	Yes
Water Level Indicator	Yes, transparent window with scale
Body Material	Stainless steel
Lid Type	Hinged, one-button opening
Filter	Removable limescale filter in spout
Base	With cord storage
Dimensions (approx.)	22 x 15 x 22 cm
Weight (approx.)	1.2 kg
Cord Length	70 cm
Color	Silver / Black
Maintenance	Descale regularly with vinegar or citric acid; clean exterior with damp cloth
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Spare Parts	Replaceable lid, filter, and base (if available)
Manual Languages	Multiple languages available online

Frequently Asked Questions - 17Z016 Zelmer

What is the capacity of the Zelmer 17Z016 kettle?

The kettle has a capacity of 1.7 liters, ideal for boiling water for multiple cups.

How do I descale the kettle?

Fill the kettle with a mixture of water and white vinegar (or citric acid) up to the max mark, bring to a boil, and let it sit for 15 minutes. Rinse thoroughly with fresh water.

Can the kettle be used without the lid closed?

No, the kettle must be operated with the lid firmly closed to ensure proper automatic shut-off and prevent hot water splashes.

What material is the kettle body made of?

The body is made of stainless steel, which is durable and resistant to rust.

Does the kettle have a filter?

Yes, it features a removable limescale filter in the spout to ensure clean water.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a 360° swivel base for easy handling.

What safety features does it have?

It includes automatic shut-off when water boils and boil-dry protection to prevent damage if operated without water.

How can I clean the exterior of the kettle?

Wipe the exterior with a soft damp cloth. Do not use abrasive cleaners or immerse the kettle in water.

What is the power consumption of the kettle?

The kettle has a power rating of 2200 W for fast boiling.

Where can I find the user manual?

The manual is available for free download in multiple languages from notice-facile.com or the official Zelmer website.

USER MANUAL 17Z016 Zelmer

Exterior view of a modern silver and black water heater with a clear glass lid (no text or symbols visible)

2-5

Virdulio parengimas darbui

We urge that you read this user's manual carefully. Special attention needs to be paid to the safety precautions. Please save this manual so it can be referred to in the future use of the product.

Characteristics of the electric kettle

An electric kettle is a device intended for boiling water. A "keep warm" function and an illuminating body are distinguishing features of the kettle. The power base is a separate element which serves the purpose of supplying power to the device, which ensures a comfort of use as filling the kettle with water or emptying it does not require removing the plug of the connecting cord from the mains socket.

Safety precautions and instructions on the proper use of the electric kettle

Always abide by the following basic safety measures during the operation of the electric appliance:

The kettle is intended for household use only. —

Plug the kettle into a 230 V alternating current socket equipped with – an earth pin only.

The kettle type covered be this user's manual brings water to boil very quickly and draws up to 10 A of current from the mains.

Check that the mains fuses used can cope with this level of power – consumption. While boiling water, unplug all other appliances from this circuit.

Place the kettle on a stable, even and flat surface; the connecting cord may not hang over the edge of the surface on which the kettle is placed.

This appliance is not intended for use by persons (including children) - with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Do not operate the appliance if the cord, the housing or the handle – is visibly damaged. In such a case, return the appliance to a service center.

If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

Repairs may only be undertaken by qualified staff. Repairs not properly carried out may result in serious injuries to the user. In case of malfunction, contact specialized service centre.

The kettle can only be operated with the original power base, each - base is type-specific.

Do not fill the kettle beyond the maximum fill indicator – water might – spatter out of the kettle.

Use the kettle for boiling water only. –

Special attention is necessary when the kettle is used in the presence — of children.

Do not remove the plug from the outlet by pulling by the cord. -

Do not open the lid immediately after water has boiled – steam might – condense and appear on the exterior of the kettle.

Do not place the kettle on or near hot objects. -

Do not immerse the kettle or the power base in water when filling or - washing the electric kettle.

Be careful not to wet the plug of the connecting cord. —

In the event that water gets into the inside electric elements of the - kettle, or onto the power base, carefully dry these elements before plugging the kettle into the mains.

Mind the steam coming out of the kettle while water is boiling. —

Do not operate the kettle when empty. -

Do not use the kettle without a filter. -

Do not use the kettle with the lid open – the automatic shut off will not – work then.

—Allow the kettle to cool completely before cleaning it.

Do not use any abrasive cleaning agents such as emulsions, creams, — pastes, etc for cleaning the kettle body. They might remove graphic information symbols such as: scales, marks, warning signs, etc.

Technical data

The technical parameters are given on the data plate of the product. The ZELMER kettle meets the requirements of the standards in force. The appliance is compliant with the requirements of the following directives:

The Low Voltage Directive (LVD) - 2006/95/EC.

Electromagnetic Compatibility (EMC) - 2004/108/EC.

The product is affixed with a CE Mark on the data plate.

Features:

1. Electronic control, boiling and "keep warm" features.
2. Rapid boiling 3 kW.
3. 1.5 liter capacity.
4. "Spectrum" lighting.

a) Boiling mode – change of colour from blue to red.
b) Keep warm mode - soft, changing illumination.
c) Keep warm function – the color of the lamp indicates the set temperature.

1. A wide choice of temperatures on the temperature control selector: temperature ideal for coffee, tea, etc.

2. A possibility of rapid water boiling with the keep warm mode.

3. A precise control of the temperature: between +/- 3°C.
4. A shut off switch which disconnects power immediately after water has boiled. In the event that en empty kettle is switched on,, boil-dry protection will prevent the heating elements from overheating.

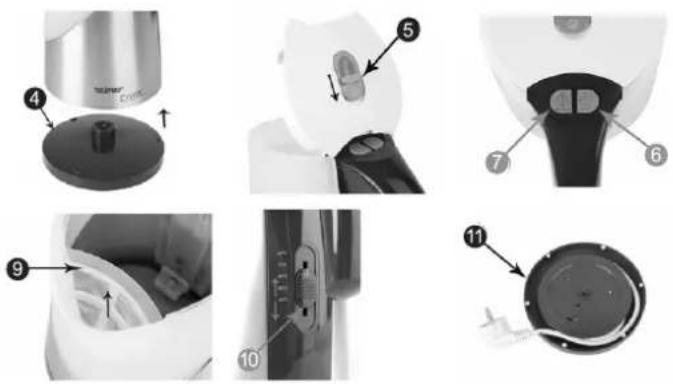

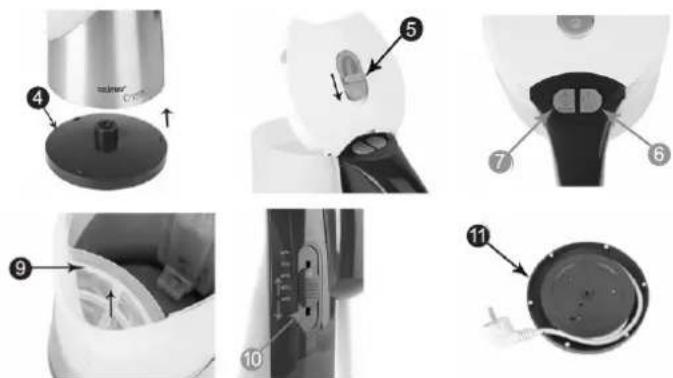

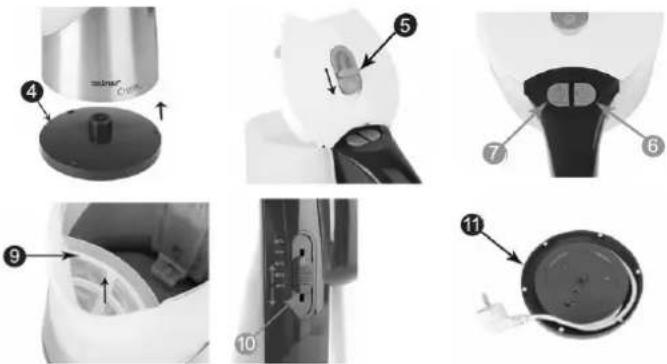

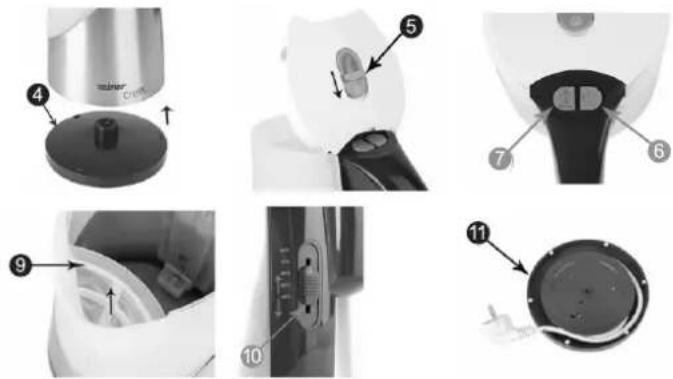

Structure of the kettle

1. Spout.
2. Kettle body.
3. Water level indicator.
4. Revolving power base.
5. Lid release button.
6. ON/OFF button.
7. KEEP WARM button.
8. Handle
9. Anti-scale filter.
10. Temperature regulator.
11. Storage space for the connecting cord.

Preparation of the electric kettle for operation

Before the first use, wash the kettle inside (for washing instructions see "Cleaning and maintenance"), fill it with water up to the "max" level, and let it boil four times (use fresh water each time) and wash again.

Operating instructions of the electric kettle

• Move the lid release button (5) in the direction shown on the diagram and open the kettle lid.
• Place the filter (9) in the kettle – if it was taken out before.
  Fill the kettle up with the desired amount of water (the level is visible – on the indicator (3)).
  Do not boil the water if it is below the minimum level or beyond – the maximum level on the indicator (3).
  Close the lid. -
• Place the kettle on the power base (4).
  Put the plug of the connecting cord into a mains socket with an earth pin.
• Set the temperature with the regulator (10).
• Switch the kettle on by pressing button (6) – the light will come on.

The kettle switches off automatically when the water has reached the boiling point, the switch returns to its starting position – the light comes off.

If further use of the kettle is anticipated, it is not necessary to remove – the plug of the connecting cord from the power socket.

WARNING: Be careful not to fill up with water beyond the nominal capacity when pouring water into the kettle. The rising of the water level in the kettle is delayed in relation to the speed of pouring the water. It is caused by the filter slowing down the speed of the flow. This can be prevented by pouring the last portions of water extremely carefully before it reaches the maximum level on the indicator.

In the event that an empty kettle is switched on, it will be switched off by a thermal device automatically.

In order to switch the kettle on again after it has cooled down (approx. 15 minutes), take it off the base, replace it and switch the kettle on by pressing switch (6). The cooling down of the kettle can be accelerated by puring cold water into the kettle.

1. Description of the function selection buttons: keep warm/boiling Both switches (boiling and keeping warm) may be used together or separately to allow activation of different functions.

- Press the boiling button (6) – the kettle will automatically switch off after the water has boiled.

- Press the "keep warm" button (7) – the kettle will quickly warm up water to the pre-set temperature and will keep it warm at this temperature.

Press both buttons together – first the kettle will boil the water and – then, after reaching the pre-set temperature, it will keep the temperature.

- Press the boiling button (6) or "keep warm" button (7) again to cancel the settings.

Each activity, pressing a button or another action, is accompanied by a signal sound.

1. „Keep warm“

The number of settings and the temperature of different settings is changeable; it may be adjusted to an individual customer's needs.

-3. Lighting:

-Boiling mode – change of colour from blue to red.

- Keep warm mode – soft, changing lighting illumination.

- Keep warm function – the color of the lamp indicates the set temperature.

Cleaning and maintenance

-Always clean a cold kettle!

-Remove the plug of the connecting cord from the power socket.

- Take out the filter (9).

- Clean the outside surfaces with a soft cloth moistened with washing-up liquid.

In order to remove the build-up of hard water film from the outside – and inside walls of the kettle, wipe them with a cloth moistened with vinegar.

-Rinse the kettle with fresh water.

Filter replacement – descaling

In the event that scale builds up on the bottom of the kettle, it needs to be removed. 6% or 10% vinegar is used for this purpose.

- Open the lid (5).

- Take out the filter (9).

—Wash the filter under running water.

—Pour 0.5 l of vinegar and switch on the kettle.

—Boil the vinegar and leave in the kettle for about 30 minutes.

—Pour the vinegar out and rinse the kettle with fresh water.

Fill the kettle up with fresh water, boil the water and pour it out after - is has boiled.

- Repeat the above procedure if there still is scale on the bottom.

- When the procedure is finished, replace the filter (9) in the kettle, following the procedure of taking the filter out in reverse order.

Negligence in descaling the kettle may results in its damage.

Ecology – Environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!!!

The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling.

The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.

GW17-027
