EK1300 - Multicooker Zelmer - Free user manual and instructions

Product Type	Multi-cooker
Brand	Zelmer
Model	EK1300
Dimensions (W x D x H)	30 x 25 x 25 cm
Weight	3.0 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	800 W
Cooking Capacity	5 L
Inner Pot Material	Non-stick coated aluminum
Cooking Programs	Rice, stew, soup, steam, bake, slow cook, sauté
Preset Timer	24-hour timer with delay start
Keep Warm Function	Automatic keep warm up to 12 hours
Lid Type	Locking lid with gasket
Safety Features	Overheat protection, pressure release valve, safety lock
Control Panel	LED display with touch buttons
Maintenance	Detachable inner pot and steam valve for easy cleaning
Spare Parts Availability	Inner pot, gasket, steam valve, measuring cup, rice paddle
Repairability Index	7.5/10 (replaceable gasket and inner pot)
Included Accessories	Measuring cup, rice paddle, steam basket, user manual
Certification	CE, RoHS

Frequently Asked Questions - EK1300 Zelmer

How do I set the timer on the Zelmer EK1300?

Press the Timer button, then use the + and - buttons to set the desired time. The maximum delay is 24 hours.

Can I use metal utensils inside the inner pot?

No, use only plastic, wooden, or silicone utensils to avoid damaging the non-stick coating.

How do I clean the steam valve?

Remove the steam valve cover and wash it under running water with a mild detergent. Ensure it is completely dry before reassembly.

What does the 'Keep Warm' function do?

After cooking ends, the cooker automatically switches to Keep Warm mode, maintaining the food at a safe temperature for up to 12 hours.

Why does my EK1300 display an error code 'E1'?

Error E1 indicates a sensor malfunction. Unplug the unit and let it cool down. If the error persists, contact Zelmer support.

Can I cook rice without pre-soaking?

Yes, the Rice program is designed for direct cooking. However, rinsing the rice before cooking improves texture.

How do I replace the inner pot?

Replacement inner pots are available as spare parts. Simply remove the old pot and insert the new one. Ensure it sits flat on the heating element.

Is the EK1300 safe to leave unattended?

Yes, it has automatic shut-off and overheat protection. However, always follow basic safety precautions.

What is the maximum cooking capacity for soups?

Do not fill beyond the MAX line marked inside the pot. For soups, leave at least 5 cm of space from the lid to prevent overflow.

How do I download the user manual for the Zelmer EK1300?

Visit notice-facile.com and search for 'Zelmer EK1300'. The manual is available in PDF format for free.

USER MANUAL EK1300 Zelmer

zelmer

EK1300

Wielofunkcyjne

do oplevaría

The quick brown fox jumps over the lazy dog.

Modern rice cooker with digital display and a plate of fresh vegetables (no visible text or symbols)

EK1300

Wielofurksjysis

urzadante

do gaozomohia Mutterola

(1) 本次股东大会的决议

zelmer

www.103.com

A

B

C

E

F

G

H

PL

Szaanemil Klonck

Saridary, sybria macrata, sybria i. alenia, wiaty, sybria dianum, pachyma ziau. I am, sybria macrata, sybria macrata, wiaty macrata, sybria macrata, pachyma ziau. Zoraha, i. 100 g/100 gm, specjalne in a top product. Parding: i. 100 g/100 gm, specjalne in a top product. Saridary, sybria macrata, sybria macrata, pachyma ziau. Zoraha, i. 100 g/100 gm, specjalne in a top product. Parding: i. 100 g/100 gm, specjalne in a top product. Zoraha, i. 100 g/100 gm, specjalne in a top product.

Make open to a particular school's only program

In 1987, a general of the world's most rapidly growing world. In 1988, a global of the world's most rapidly growing world. In 1989, a more rapid growth in the world's most rapidly growing world. In 1990, a more rapid growth in the world's most rapidly growing world. In 1991, a more rapid growth in the world's most rapidly growing world. In 1992, a more rapid growth in the world's most rapidly growing world. In 1993, a more rapid growth in the world's most rapidly growing world. In 1994, a more rapid growth in the world's more rapidly growing world. In 1995, a more rapid growth in the world's more rapidly growing world. In 1996, a more rapid growth in the world's more rapidly growing world. In 1997, a more rapid growth in the world's more rapidly growing world. In 1998, a more rapid growth in the world's more rapidly growing world. In 1999, a more rapid growth in the world's more rapidly growing world. In 2000, a more rapid growth in the world's more rapidly growing world. In 2001, a more rapid growth in the world's more rapidly growing world. In 2002, a more rapid growth in the world's more rapidly growing world. In 2003, a more rapid growth in the world's more rapidly growing world. In 2004, a more rapid growth in the world's more rapidly growing world. In 2005, a more rapid growth in the world's more rapidly growing world. In 2006, a more rapid growth in the world's more rapidly growing world. In 2007, a more rapid growth in the world's more rapidly growing world. In 2008, a more rapid growth in the world's more rapidly growing world. In 2009, a more rapid growth in the world's more rapidly growing world. In 2010, a more rapid growth in the world's more rapidly growing world. In 2011, a more rapid growth in the world's more rapidly growing world. In 2012, a more rapid growth in the world's more rapidly growing world. In 2013, a more rapid growth in the world's more rapidly growing world. In 2014, a more rapid growth in the world's more rapidly growing world. In 2015, a more rapid growth in the world's more rapidly growing world. In 2016, a more rapid growth in the world's more rapidly growing world. In 2017, a more rapid growth in the world's more rapidly growing world. In 2018, a more rapid growth in the world's more rapidly growing world. In 2019, a more rapid growth in the world's more rapidly growing world. In 2020, a more rapid growth in the world's more rapidly growing world. In 2021, a more rapid growth in the world's more rapidly growing world. In 2022, a more rapid growth in the world's more rapidly growing world. In 2023, a more rapid growth in the world's more rapidly growing world. In 2024, a more rapid growth in the world's more rapidly growing world. In 2025, a more rapid growth in the world's more rapidly growing world. In 2026, a more rapid growth in the world's more rapidly growing world. In 2027, a more rapid growth in the world's more rapidly growing world. In 2028, a more rapid growth in the world's more rapidly growing world. In 2029, a more rapid growth in the world's more rapidly growing world. In 2030, a more rapid growth in the world's more rapidly growing world. In 2031, a more rapid growth in the world's more rapidly growing world. In 2032, a more rapid growth in the world's more rapidly growing world. In 2033, a more rapid growth in the world's more rapidly growing world. In 2034, a more rapid growth in the world's more rapidly growing world. In 2035, a more rapid growth in the world's more rapidly growing world. In 2036, a more rapid growth in the world's more rapidly growing world. In 2037, a more rapid growth in the world's more rapidly growing world. In 2038, a more rapid growth in the world's more rapidly growing world. In 2039, a more rapid growth in the world's more rapidly growing world. In 2040, a more rapid growth in the world's more rapidly growing world. In 2041, a more rapid growth in the world's more rapidly growing world. In 2042, a more rapid growth in the world's more rapidly growing world. In 2043, a more rapid growth in the world's more rapidly growing world. In 2044, a more rapid growth in the world's more rapidly growing world. In 2045, a more rapid growth in the world's more rapidly growing world. In 2046, a more rapid growth in the world's more rapidly growing world. In 2047, a more rapid growth in the world's more rapidly growing world. In 2048, a more rapid growth in the world's more rapidly growing world. In 2049, a more rapid growth in the world's more rapidly growing world. In 2050, a more rapid growth in the world's more rapidly growing world. In 2051, a more rapid growth in the world's more rapidly growing world. In 2052, a more rapid growth in the world's more rapidly growing world. In 2053, a more rapid growth in the world's more rapidly growing world. In 2054, a more rapid growth in the world's more rapidly growing world. In 2055, a more rapid growth in the world's more rapidly growing world. In 2056, a more rapid growth in the world's more rapidly growing world. In 2057, a more rapid growth in the world's more rapidly growing world. In 2058, a more rapid growth in the world's more rapidly growing world. In 2059, a more rapid growth in the world's more rapidly growing world. In 2060, a more rapid growth in the world's more rapidly growing world. In 2061, a more rapid growth in the world's more rapidly growing world. In 2062, a more rapid growth in the world's more rapidly growing world. In 2063, a more rapid growth in the world's more rapidly growing world. In 2064, a more rapid growth in the world's more rapidly growing world. In 2065, a more rapid growth in the world's more rapidly growing world. In 2066, a more rapid growth in the world's more rapidly growing world. In 2067, a more rapid growth in the world's more rapidly growing world. In 2068, a more rapid growth in the world's more rapidly growing world. In 2069, a more rapid growth in the world's more rapidly growing world. In 2070, a more rapid growth in the world's more rapidly growing world. In 2071, a more rapid growth in the world's more rapidly growing world. In 2072, a more rapid growth in the world's more rapidly growing world. In 2073, a more rapid growth in the world's more rapidly growing world. In 2074, a more rapid growth in the world's more rapidly growing world. In 2075, a more rapid growth in the world's more rapidly growing world. In 2076, a more rapid growth in the world's more rapidly growing world. In 2077, a more rapid growth in the world's more rapidly growing world. In 2078, a more rapid growth in the world's more rapidly growing world. In 2079, a more rapid growth in the world's more rapidly growing world. In 2080, a more rapid growth in the world's more rapidly growing world. In 2081, a more rapid growth in the world's more rapidly growing world. In 2082, a more rapid growth in the world's more rapidly growing world. In 2083, a more rapid growth in the world's more rapidly growing world. In 2084, a more rapid growth in the world's more rapidly growing world. In 2085, a more rapid growth in the world's more rapidly growing world. In 2086, a more rapid growth in the world's more rapidly growing world. In 2087, a more rapid growth in the world's more rapidly growing world. In 2088, a more rapid growth in the world's more rapidly growing world. In 2089, a more rapid growth in the world's more rapidly growing world. In 2090, a more rapid growth in the world's more rapidly growing world. In 2091, a more rapid growth in the world's more rapidly growing world. In 2092, a more rapid growth in the world's more rapidly growing world. In 2093, a more rapid growth in the world's more rapidly growing world. In 2094, a more rapid growth in the world's more rapidly growing world. In 2095, a more rapid growth in the world's more rapidly growing world. In 2096, a more rapid growth in the world's more rapidly growing world. In 2097, a more rapid growth in the global and global markets from Europe to Asia and North America from Latin America to Africa from South America to South Asia from Europe to Africa from South America to Africa from Latin America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from North America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from south America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from South America to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern Europe to Africa from southern European countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its own countries and its

The following table provides the correct format of the text: "Text in the image is a standard, non-textual, and unrecognizable text. The text in the image is a standard, non-textual, and unrecognizable text. The text in the image is a standard, non-textual, and unrecognizable text.

40x apennarim inazink, notex to j dunakut vawic m; pavix sejikurin

The following table provides a version of the 2016 version of the 2017 version of the 2018 version of the 2019 version of the 2020 version of the 2021 version of the 2022 version of the 2023 version of the 2024 version of the 2025 version of the 2026 version of the 2027 version of the 2028 version of the 2029 version of the 2030 version of the 2031 version of the 2032 version of the 2033 version of the 2034 version of the 2035 version of the 2036 version of the 2037 version of the 2038 version of the 2039 version of the 2040 version of the 2041 version of the 2042 version of the 2043 version of the 2044 version of the 2045 version of the 2046 version of the 2047 version of the 2048 version of the 2049 version of the 2050 version of the 2051 version of the 2052 version of the 2053 version of the 2054 version of the 2055 version of the 2056 version of the 2057 version of the 2058 version of the 2059 version of the 2060 version of the 2061 version of the 2062 version of the 2063 version of the 2064 version of the 2065 version of the 2066 version of the 2067 version of the 2068 version of the 2069 version of the 2070 version of the 2071 version of the 2072 version of the 2073 version of the 2074 version of the 2075 version of the 2076 version of the 2077 version of the 2078 version of the 2079 version of the 2080 version of the 2081 version of the 2082 version of the 2083 version of the 2084 version of the 2085 version of the 2086 version of the 2087 version of the 2088 version of the 2089 version of the 2090 version of the 2091 version of the 2092 version of the 2093 version of the 2094 version of the 2095 version of the 2096 version of the 2097 version of the 2098 version of the 2099 version of the 2100 version of

of the, no day-morrowing. Prismopowerment are davon a way to be in the case of the dryupward obvivables of the water. Prostera miles, soorous, excepting, isentate and toport, notiona, do pristome & tibute, de in the case of the water. The water and other, soorous, and to be in the case of the water.

davon, in person to be a man who is able to pay the money for a person to pay the money for a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who is not willing to pay a woman who

The following table provides the information in English:

The following text in the image is a non-textual, stylized, and fragmented character: "A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A. A.

Uvagal

Hypostrengene automarkniewicz

The following table is provided in the image:

The following table is a simple diagram illustrating the relationship between two variables: (1) the variable's value and (2) the variable's value.

6.2.14.19.20

Notes

Congratulations on your choice of our appliance and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this user manual carefully. Pay special attention to important safety instructions. Keep this user manual for future reference.

Appliance features

The Zelmer EK1300 Multicooker makes it possible to achieve perfect cooking results also in case of such foods as rice, steamed vegetables, stews and porridge.

The appliance accessories make it possible, for example, to cook rice inside the pot and simultaneously to steam vegetables.

The application of ceramic materials ensures optimal heat distribution, which guarantees perfect cooking results. The large, removable pot has a non-sticking surface and is spacious enough to prepare food for the whole family.

In addition, the steaming and slow-cooking time programming function allows you to plan the most suitable time for serving the meal.

In order to achieve the perfect cooking results and to ensure the safety of using the appliance, it is necessary to get familiar with this user manual and to keep it for future reference.

Safety instructions

Make sure that you understand the instructions given below.

Danger! / Warning!

Risk of injury

Do not plug in the appliance when your hands are wet.
Do not operate the appliance when the power cord is damaged or the housing shows visible damage.
Do not touch the hot surface of the appliance. Its surface remains hot even after turning the appliance off.
Leave the appliance to cool down before dismantling and cleaning it.
When taking the food out of the multicooker, always use protective gloves to safeguard your hands from high temperature effects.
This appliance is not intended for use by persons (including children) with impaired physical, sensory or mental abilities, or those with lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
- Prevent children from playing with the appliance.

Always unplug the appliance before its cleaning, assembling or disassembling.
Place the appliance only on worktops that are resistant to high temperatures and ensure the stability and safety of using the appliance.
Remove all unnecessary items from the worktop on which you intend to place the appliance to ensure the appropriate amount of free space.
Extreme caution must be used when lifting the multicooker lid during or after cooking, as hot air or steam may escape from the inside of the multicooker.
The appliance may only be repaired by qualified service personnel. Improper repair may result in a serious hazard to the user. In case of defects contact a specialist service centre.
Never attempt to disassemble or change the technical characteristics of the appliance yourself.
Do not move the appliance in the course of cooking.
Extreme caution must be used when moving the appliance when it contains hot food, water or other hot liquids.
Do not remove the steam valve during cooking.
Do not exceed the maximum pot capacity, which is 2.8 litres.
is forbidden to take the pot out of the appliance during cooking.
- Do not use or store the appliance in an excessively damp environment.
"is forbidden to use any other accessories than those supplied with the appliance.
Extreme caution must be used when handling pans with hot oil or other liquids.
- is forbidden to use the appliance in any other way than that provided in this user manual.

Warning!

Risk of property damage

The appliance is intended for indoor use only.
nplug the appliance when not in use.
always plug in the appliance to a mains outlet (alternating current only) with the voltage corresponding to that indicated on the appliance rating plate and equipped with a grounding prong.
Always place the appliance on a flat, even surface.
This appliance is not intended to be operated by means of an external timer or separate remote-control system.
This appliance is not intended for deep frying and MUST NOT be used for that purpose.
Do not place the removable pot on any other heat-emitting appliance than the EK1300 multicooker.
Do not immerse the appliance, and especially the power cord and plug, in water or any other liquids.

Do not place the appliance on a lit gas burner or hotplate, in a hot oven, or in the vicinity of such devices.
The power cord must not hang over the edge of a table or worktop, or touch hot surfaces.
Do not cover the appliance with any objects while in operation.
Do not place paper, cardboard, plastics and any other flammable materials inside the appliance.
● lever attempt to unplug the appliance by pulling on the power cord.
For cleaning the appliance housing, do not use abrasive cleaning agents such as emulsions, creams, pastes, etc. They may remove graphical symbols, such as scales, markings, warning signs, etc.
Using accessories that are not recommended by the manufacturer may cause damage to the appliance.
Do not expose the appliance to temperatures above 60°C.
Do not leave the appliance unattended when the „Fry” function is turned on.

Information on the product and hints on its use

The appliance is intended for household use only. The warranty conditions change if the appliance is used for commercial purposes.

Before use, make sure that the appliance is clean and dry.

Before starting to use the appliance, become familiar with the whole content of this user manual.

Technical data

The technical parameters are given on the rating plate of the product.

The multicooker is built in class I and is equipped with a power cord with a protective conductor and a grounding plug.

The appliance meets the requirements of the applicable standards.

The appliance meets the requirements of the following directives:

- Low Voltage Directive (LVD) - 2006/95/EC.

– Electromagnetic Compatibility (EMC) – 2004/108/EC.

The product is marked with the CE symbol on the rating plate.

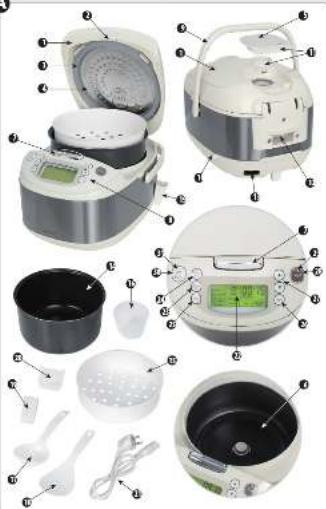

Appliance features (Fig. A)

APPLIANCE ELEMENTS

1 Lid
② Removable inner lid release mechanism
3 Seal
4 Removable inner lid
5 Vent hole
6 Heating plate
7 Lid release mechanism
8 Control panel
9 Handle
10 Spoon/spatula holder slot
11 Steam valve
12 Drip tray slot
13 Plug-in socket

ACCESSORIES

14 Removable pot (maximum capacity 2.8 l)
15 Steaming basket
16 Measuring cup
17 Soup spoon
18 Rice spatula
19 Spoon/spatula holder
20 Drip tray
21 Detachable power cord

CONTROL PANEL

22 Display

23 Menu/ON

This button is used to turn the display on and to display the menu.

24 Steam/Fry

This button is used to select the Steam or Fry function. This function is only available if the Meat, Fish or Vegetables function has been selected.

25 Timer

This button is used to set the cooking time after selecting the Timer function. By means of the button you can change the displayed time.

26 Preset (24-hour clock)

This button is used to programme the end of cooking time.

Example 1:

End of cooking time (Preset) - 13:00

Timer - 2 hours

The cooking will automatically start at 11:00

Example 2:

End of cooking time (Preset) - 13:00

Timer - 20 minutes

The cooking will automatically start at 12:40

cooking time is moved ahead according to the timer setting (see the Changing the cooking time section). After the programmed cooking time has elapsed, the appliance will continue to cook according to the timer setting. For example, if the current time is 12:50, and the end of cooking time has been set to 13:00 and the timer is now set to 20 minutes, then the end of cooking time will be extended by 10 minutes (until 13:10).

27 UP and Down

• When a particular function is turned on, the ▲ and ▼ buttons are used to navigate through the menu items.
• In the Off/Warm mode, the ▼ button is used to check the current time.
• In the Preset mode, the ▼ button is used to check the current time and the cooking time.
• When setting the current time and the timer, the ▲ button is used to set the hours and the ▼ button to set the minutes.

28 Start

• In the clock setting mode, the "Start" button is used to confirm the clock settings (the current time).
• In the stand-by mode, the "Start" button is used to start the cooking after selecting the desired function of the appliance. Note: The stand-by mode means that the appliance is turned on but only the clock is active, showing the current time on the display.

29 Start button indicator lamp

30 Off/Warm

• In the stand-by mode, the "Off/Warm" button is used to select the keep warm mode – the indicator lamp will light and the "End" message will appear on the display.
• In the function selection mode or in the operation mode, the "Off/Warm" button is used to cancel the current function and to return to the stand-by mode. The current time will appear on the display.

31 Off/ Warm button indicator lamp

Preparing the appliance for cooking (Fig. B)

Before using the appliance for the first time, remove all the accessories from the inside of the appliance. Wash thoroughly the removable pot (14), steaming basket (15), measuring cup (16), soup spoon (17), rice spatula (18) and spoon/ spatula holder (19) in hot water with an addition of washing-up liquid, and leave them to dry.

Clean the surface of the appliance with the use of a damp cloth or sponge, bearing in mind that first you must unplug the appliance from the power outlet.

It is forbidden to immerse the multicooker in water or to clean it in a dishwasher.

① Place the appliance on a hard surface near a mains outlet.
② Attach the spoon/spatula holder (19).
③ Fit the drip tray (20).
④ Open the lid.
⑤ Place the cooking pot (14) and the optional steam basket (15) inside the appliance.
⑥ Connect the power cord (21) to the mains outlet and to the appliance plug-in socket (13). After connecting to the electricity supply you will hear a short sound signal informing that the appliance is ready to use.

Setting the clock (the current time) (Fig. C)

① After turning the appliance on the clock will appear on the display (in the stand-by mode the "Start" button indicator lamp (29) will flash).
② Press the ▲ or ▼ button for a few seconds to set the proper time.

The clock displays time in the 24-hour format.

③ Set the hours by means of the ▲ button and the minutes by means of the ▼ button.

In order to allow the display to fast forward, hold down the respective button.

④ Confirm the time setting by means of the “Start” button (the clock will stop flashing).

Selecting the function (example) (Fig. D)

① Press the “Menu/ON” button (23). The functions available will appear on the display.
② In order to select the desired function, use the ▲ and ▼ buttons. The selected function will flash on the display. The "White rice" function has been selected as an example.

- The appliance will display the minimum cooking time for the selected function (see the table (Fig. J)).

Then, proceed according to the user manual.

Selecting the fry function or the steam function (Fig. E)

① After selecting the Meat, Fish or Vegetables function, the icon „steam“ will begin to flash on the display The “Meat” function has been selected as an example.
② In order to change the "Steam" function into the „Fry" function, press the "Steam/Fry" button (24).
③ The appliance will display the minimum cooking time for the selected function (see the table (Fig. J)).

Then, proceed according to the user manual.

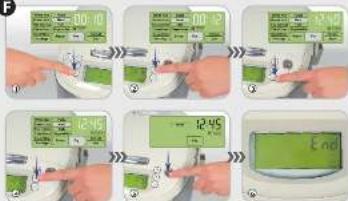

Changing the cooking time (Fig. F)

① After selecting the desired function, in order to change the cooking time it is necessary to press the "Timer" button (25). The cooking time setting will begin to flash on the display.
② Use the ▼ button in order to set the desired cooking time.

In the maximum cooking time for the selected function exceeds 60 minutes, you can use the button to change the hour setting.

The appliance is also provided with the "Preset" function. You can optionally set the end of cooking time.

③ In order to set the end of cooking time, press "Preset" button (26). The time setting selected in the previous cooking cycle will flash.
④ In order to change the time setting, use the button (hour setting) and the button (minute setting).
⑤ After setting the function and the cooking time or optionally applying the "Preset" function, press the "Start" button (28). The appliance will start the cooking process unless the "Preset" function has been selected.
⑥ After finishing the cooking cycle the appliance will go into the keep warm mode and the message "End" will appear on the display.

der to achieve good cooking results, it is necessary to use the proper functions with the time settings properly selected for cooking or frying a particular dish. Extend the cooking time when necessary.

Additional Reheat and Boil functions (Fig. G)

The "Preset" option is not available for the Reheat and Boil functions.

① Press the "Menu/ON" button (23) and select the "Reheat" function or the "Boil" function by means of the ▲ or ▼ button.
- The appliance will display the minimum cooking time for the selected function (see the table (Fig. J)).

② In order to change the time setting, press the "Timer" button (25) (the time setting will begin to flash on the display). Then, set the time by means of the ▼button.

- Then, after setting the desired function, press the "Start" button (28).

In order to speed up the cooking of certain products or dishes, before starting the desired function you can boil the water using the Boil function and then set the desired function in order to continue cooking.

temporary store function: If during the cooking process the appliance has been disconnected from the electricity supply for not longer than 30 minutes, the cooking process will be automatically resumed after reconnecting to the electricity supply. If the appliance has been disconnected from the electricity supply for more than 30 minutes, the appliance will be automatically turned to the stand-by mode after reconnecting to the electricity supply.

After the cooking

(Fig. H)

- Turn off the appliance and disconnect the power cord from the mains outlet.

Before starting to dismantle the appliance, make sure that the appliance has been disconnected from the electricity supply and that the appliance interior has cooled down to the room temperature.

① Open the lid by means of the lid release mechanism (7).
② Remove the pot (14) and the optional steam basket (15)).
③ Dismantle the removable inner lid (4) by pulling up the removable inner lid release mechanism (2).
④ Dismantle the steam valve (11) by pulling it up.
⑤ Separate the two parts of the steam valve by turning the lower part anti-clockwise.
⑥ Remove the drip tray (20).

• Wash all the elements following the rules provided in the Cleaning and maintenance section (Fig. I)
• Once the elements have dried up, reassemble the appliance in the reverse order.

If mounted improperly, the steam valve may have negative impact on the quality of appliance operation.

After each use of the appliance, empty the drip tray (20) located at the rear of the appliance.

Cleaning and maintenance (Fig. I)

Before starting to clean the appliance, make sure that it has been disconnected from the electricity supply and that the appliance interior has cooled down to the room temperature.

only appliance parts that are suitable for dishwasher cleaning are: the steam basket, measuring cup, soup spoon, rice spatula and spoon/spatula holder. Note: The steam basket and the measuring cup should be placed in the upper rack of a dishwasher.

not use abrasive agents and sharp objects for cleaning the appliance elements made of metal and plastic.

Clean the appliance housing only with the use of a damp, soft cloth.
- clean the electric heating plate (6) only with the use of a damp, soft cloth with an addition of washing-up liquid. Before using it again or putting into storage, dry the heating plate thoroughly with the use of dry, soft cloth or paper towel.
Wash the removable pot (14) with use of a soft cloth and washing-up liquid, and then rinse it under running water. Dry the pot thoroughly before using it again or putting into storage,.
- clean the sealing ring of the inner lid (4) with the use of a soft cloth and mild detergent, and then rinse it under running water and dry thoroughly with the use of a soft cloth.
- clean the steam valve (11) with the use of a soft cloth and mild detergent, and then rinse it under running water. Dry the steam valve thoroughly before mounting it again.

Minimum and maximum cooking time (Fig. J)

The table below shows the minimum and maximum cooking time for particular functions.

	FUNCTION	TIME RANGE(hours/minutes)
Time	Meat	00:15 - 01:00(Steam)
		00:10 - 00:30(Fry)
	Fish	00:15 - 00:30(Steam)
		00:05 - 01:00(Fry)

	FUNCTION	TIME RANGE(hours/minutes)
Time	Vegetable	00:05 - 00:25(Steam)
		00:05 - 01:00(Fry)
	Reheat	00:08 - 00:25
	Boil	00:05 - 00:20
	Soup/Stew	01:00 - 09:00
	Cake	00:25 - 01:30
	White rice	00:15 - 01:00
	Rice Express	00:05 - 00:40
	Brown rice	00:25 - 01:30
	Pasta	00:12 - 01:00
	Porridge	00:05 - 00:40
(Preset time)Funkcja preset	Available for all functions except for Preheat and Boil	00:00 - 23:59

Ecology – Protect the environment

Each user can contribute to protecting the environment. It is neither difficult nor too expensive. To this end:

Have the carton packaging recycled at the recycling centre, put the plastic bags into the plastic (PE) waste container.

When worn out, bring the appliance to the appropriate waste collection centre as some of its components can be hazardous to the environment.

Do not dispose of the appliance with household waste!!!

The importer/manufacturer does not accept liability for any damages resulting from unintended use or improper operation of the appliance. The importer/manufacturer reserves the right to modify the product at any time, without prior notice, in order to adjust it to legal regulations, standards and directives or due to structural, commercial, aesthetic and other reasons.

Notes
