Product Type	Multicooker
Brand	Vitek
Model	VT-4212 BK
Power Supply	220-240 V ~ 50/60 Hz
Max Power Consumption	900 W
Bowl Capacity	5 L
Non-Stick Coating	Yes
Cooking Programs	14: Rice, Soup, Jelly, Heating, Boiling, Roasting, Milk Porridge, Porridge, Yogurt, Bakery, Steaming, Stewing, Multicook (35-150°C), Keep Warm
Delayed Start	Up to 24 hours (not available for Baking, Roasting, Yogurt)
Keep Warm Function	Up to 24 hours (not for Yogurt and Multicook below 75°C)
Display	Digital LED
Control Panel	Touch buttons with indicators
Lid Type	Automatic with button release
Steam Valve	Removable, adjustable
Condensation Collector	Yes
Carrying Handle	Yes
Accessories Included	Spatula, soup ladle, measuring cup, steam basket, 6 yogurt cups with lids
Safety Features	Auto shut-off, overheat protection, recommend RCD installation
Bowl Material	Aluminum with non-stick coating
Package Contents	Multicooker, power cord, bowl, steam basket, ladle, spatula, measuring cup, 6 yogurt cups with lids, manual

Frequently Asked Questions - VT-4212 BK Vitek

How do I set the delayed start?

Select the desired program and set cooking time. Then press the DELAYED START button (18) and use the - and + buttons (15/20) to set the time (in hours) when you want cooking to finish. The unit will start automatically so that it finishes at that time. Note: This function is not available for Baking, Roasting, and Yogurt programs.

What cooking programs does the Multicooker have?

The VT-4212 BK offers 13 automatic programs: Rice, Soup, Jelly, Heating, Boiling, Roasting, Milk Porridge, Porridge, Yogurt, Bakery, Steaming, Stewing, and Multicook (adjustable temperature 35-150°C). Additionally, it has a Keep Warm function.

Can I use the Keep Warm function for Yogurt?

No, the Keep Warm function automatically activates after cooking, but it is not available for the Yogurt program. Also, for the Multicook program, if you set a temperature below 75°C, Keep Warm will not activate. To avoid spoiling, turn off Keep Warm immediately after Bakery and Yogurt programs finish.

How do I clean the steam valve?

First, unplug the multicooker and let it cool down. Remove the steam valve (6) by pulling it upward. Open the valve by turning its lower part to the 'LOOSEN' position. Wash it in warm water with a neutral detergent, rinse, and dry thoroughly. Reassemble by turning the lower part clockwise until it clicks ('T' position) before reinstalling.

Is the cooking bowl dishwasher safe?

No, the bowl (12) is not intended for washing in a dishwasher. Hand wash it with a soft sponge and neutral detergent, then rinse and dry. Avoid using abrasive cleaners or metal utensils that could damage the non-stick coating.

What should I do if the multicooker does not turn on?

Check that the power cord is securely plugged into both the multicooker and a working wall socket. Ensure the bowl is properly installed and the lid is closed. If it still does not turn on, press the STOP button (19) to reset. If the issue persists, contact an authorized service center.

Can I cook without any liquid in the bowl?

No, never operate the multicooker without sufficient liquid in the bowl. Dry heating can damage the unit and the non-stick coating. Always add at least the minimum amount of water or other liquid as specified in recipes.

How do I adjust the cooking time manually?

After selecting a program, use the - (15) and + (20) buttons to increase or decrease the cooking time. Press and hold for faster adjustment. Note: Time adjustment is not available for the Rice program; it uses a preset time.

What is the Multicook program?

The Multicook program allows you to set your own cooking temperature (from 35°C to 150°C) and time (from 5 minutes to 10 hours). Press the MULTICOOK button twice, then use -/+ to set temperature first, then time. This is ideal for recipes that require specific heat levels.

How can I prevent burning or scorching?

Avoid using too little liquid, especially for programs like Porridge or Milk Porridge. Stir ingredients occasionally with the plastic spatula. For the Roasting program, watch the process and stop when ready. After cooking, turn off Keep Warm for Bakery and Yogurt to prevent overcooking.

USER MANUAL VT-4212 BK Vitek

ENGLISH

MULTICOOKER

The main purpose of the multicooker is swift and quality food cooking.

DESCRIPTION

1. Body
2. Control panel
3. Display
4. Lid
5. Lid opening button
6. Steam valve
7. Carrying handle
8. Condensation collector
9. Power cord connector
10. Heating element
11. Temperature sensor
12. Cooking bowl

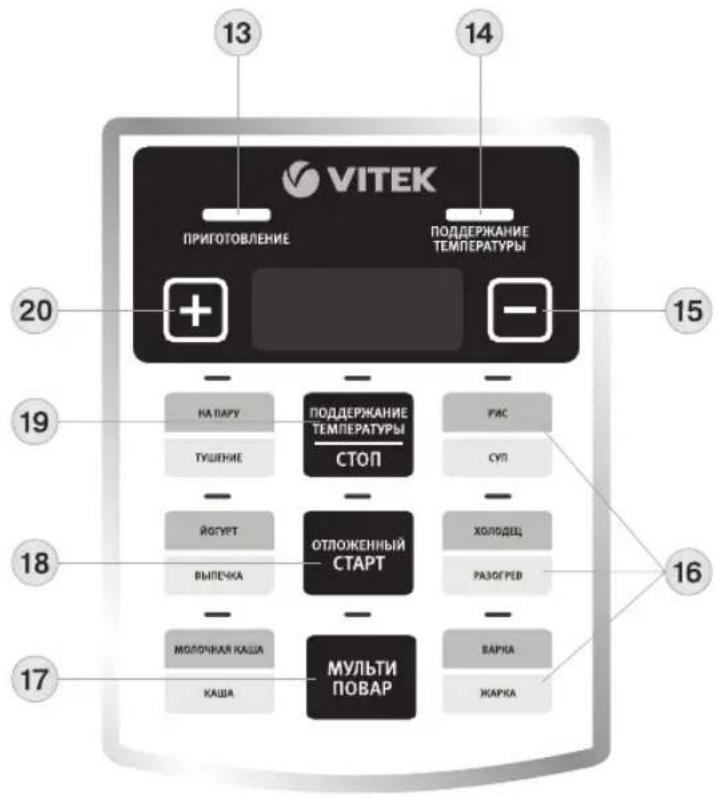

Control panel

1. «COOKING» indicator
2. «KEEP WARM» indicator
3. Selected setting decrease button «-»
4. Cooking program buttons
5. «MULTICOOK» button
6. «DELAYED START» button
7. «KEEP WARM/STOP» button
8. Selected setting increase button «+»

Accessories

1. Spatula
2. Soup ladle
3. Measuring cup
4. Steam cooking basket
5. Yogurt cups
6. Yogurt cup lids

ATTENTION!

For additional protection it is reasonable to install a residual current device (RCD) with nominal operation current not exceeding 30 mA, to install RCD contact a specialist.

SAFETY MEASURES

Before using the unit, read this instruction manual carefully and keep it for future reference.

Use the unit according to its intended purpose only, as it is stated in this user manual. Mishandling the unit can lead to its breakage and cause harm to the user or damage to his property.

• Before using the unit, closely examine the power cord and the power cord connector located on the unit body and make sure that they are not damaged. Never use the unit if the power cord or power cord connector is damaged.
• Before switching the unit on make sure that your home mains voltage corresponds to the unit operating voltage.

• Power cord is equipped with «euro plug»; plug it into the socket with reliable grounding contact.
  • Do not use adapters for plugging the unit in.

• Make sure that the power cord is properly inserted into the connector on the unit body and into the mains socket.

• Use only the supplied power cord, do not use power cords of other units.
  • Use only the removable parts supplied with the unit.
• Place the unit on a flat heat-resistant surface away from moisture and heat sources and open flame.
• Place the unit with free access to the mains socket.
  • Use the unit in places with proper ventilation.
• Do not expose the unit to direct sunlight.
• Do not place the unit close to walls and furniture. Free space above the multicooker should be at least 30-40 cm.
• Provide that the power cord does not contact with hot surfaces and sharp furniture edges. Avoid damaging the isolation of the power cord.
• Do not touch the power cord or power plug with wet hands.
• Do not immerse the unit, the power cord and power plug into water or any other liquids.
• If the unit was dropped into water, unplug it immediately. And only then you can take it out of water. Apply to the authorized service center for further use of the unit.
• Do not insert foreign objects into the steam valve opening, and make sure that foreign objects do not get between the lid and body of the multicooker.
• Do not leave the operating unit unattended, always switch off and unplug the unit when you do not use it.
• To avoid burns do not bend over the steam release lid. Be very careful when opening the multicooker lid during and right after cooking. Danger of burns by hot steam!
• When the unit operates in the «Roasting» mode, do not bend over the multicooker bowl to avoid burns.
• Keep the steam valve clean, clean it when it gets dirty.
• Never use the unit without the installed bowl and the steam valve. Do not switch the multicooker on without products and sufficient amount of liquid in the bowl.
• Do not use the multicooker if the silicone gasket on the inner surface of the lid is damaged.
• Follow the recommendations for amount of dry products and liquids.
• Do not remove the bowl during operation.
• Do not cover the multicooker during operation.
• Attention! When steaming food, watch the level of liquid in the bowl, add water to the bowl as needed. Do not leave the unit unattended!
• Do not carry the unit during operation. Use the carrying handle, having unplugged the unit, removed the bowl with food and let the unit cool down preliminarily.
• The lid, the bowl and body parts heat up during operation, do not touch them. If you need to take out hot bowl, use potholders.
• Clean the unit regularly.

ENGLISH

• Never allow children to use the unit as a toy.
• For children safety reasons do not leave polyethylene bags, used as a packaging, unattended.
• Attention! Do not allow children to play with polyethylene bags or packaging film. Danger of suffocation!
• This unit is not intended for usage by children or disabled persons unless they are given all the necessary and understandable instructions by a person who is responsible for their safety on safety measures and information about danger that can be caused by improper usage of the unit.
  • Do not use the unit outdoors.
• To avoid damages, transport the unit in original package only.
• Never pull the power cord, when disconnecting the unit from the mains, take the power plug and carefully pull it out of the socket.
• Never use the unit if the power cord or the power plug is damaged, the unit works improperly or after it was dropped. Do not try to repair the unit by yourself. Contact an authorized service center for all repair issues.
• Keep the unit away from children in a dry cool place.

• Use the multicooker and its removable parts for the intended purposes only.
• Do not use the bowl (12) with other heating units or cooking surfaces.
• Do not use other containers for cooking instead of the bowl (12).
  • Always make sure that the heating element (9) surface and the bottom of the bowl (12) are clean and dry.
• To avoid damage of the non-stick coating never chop hard products in the bowl (12).
• Never leave or keep any foreign objects in the bowl (12).
• When cooking food in the bowl (12) stir it only with the spatula (21) or soup ladle (22). You can also use wooden, plastic or silicone kitchen accessories.
• Do not stir products in the bowl (12) with metal objects which can scratch the non-stick coating.
  • After cooking dishes with spices and seasonings wash the bowl (12) right after cooking.
• Do not put the bowl (12) into cold water right after cooking, let it cool down first. It will help to avoid damage of the non-stick coating.
• The bowl (12) is not intended for washing in the dishwashing machine.

BEFORE THE FIRST USE

After unit transportation or storage at low temperature it is necessary to keep it for at least two hours at room temperature before switching on.

- Unpack the unit, remove any stickers and package materials that can prevent normal operation of the multicooker.

• Place the unit on a flat, heat-resistant surface away from all kitchen heat sources (such as a gas cooker, electric cooker or cooking unit).
• Place the multicooker keeping at least 20 cm gap between the multicooker body and the wall and 30-40 cm gap above the unit.
• Do not place the multicooker close to the objects that can be damaged by the released steam of high temperature.

Attention! Do not place the unit near bath tubs, kitchen sinks or other containers filled with water.

• Open the lid (4) by pressing the button (5) and remove the bowl (12).
• Remove the steam valve (6) and open it by turning its lower part in position «LOOSEN».
• Wash all removable parts in warm water with a neutral detergent: steam valve (6), bowl (12), spatula (21), soup ladle (22), measuring cup (23), steam cooking basket (24), cups (25), and lids (26). Then rinse them under running water.
• Scald the cups (25) and lids (26) before making yogurt.
  – Dry all the removable parts thoroughly.
• Clean the unit body with a damp cloth, then wipe it dry.
• Assemble the steam valve (6) by turning the lower part of the valve clockwise until it is fixed (position «T»). Install the steam valve (6) back to its place.

CONTROL PANEL BUTTONS (2)

Cooking program buttons (16)

To select a cooking program, press the appropriate button (16) once or twice. The time of default program will be shown on display (3).

Example: Press the «RICE/SOUP» button once to choose the «Rice» program, the button indicator will light up green.

Press the «RICE/SOUP» button twice to choose the

«Soup» program, the button indicator will light up red. Attention!

• The multicooker automatically switches to the operating mode in about 10 seconds after you switch one of the buttons (16), change program operating time with buttons (15) «-»/(20) «+» or set the delayed start time with the «DELAYED START» button (18), and the «COOKING» indicator (13) will light up.
• To reset program settings or cancel the cooking program, BE SURE to press the «STOP» button (19), the «8888» symbols will light up on the display.
• Never leave the unit connected to the mains unattended.

«MULTICOOK» button (17)

The «Multicook» program allows the user to set his own temperature and cooking time.

• Press the «MULTICOOK» button (17).
• Press the «MULTICOOK» button (17) again, the «100°C» symbols will be shown on the display (3),

ENGLISH

set the desired temperature for cooking within the range from 35°C to 150°C).

- Use the buttons (15) «-» and (20) «+» to set the operation time.

Buttons (15) «-» and (20) «+»

By pressing or holding the buttons (15) «-» and (20) «+» set the cooking time or cooking temperature (only for the «Multicook» program), and set the delayed start time.

Note: Setting of cooking time for the «Rice» program is not available.

«KEEP WARM/STOP» button (19)

Switching off/canceling wrong program settings

Use the button (19) to reset wrong settings before cooking starts or switch the cooking program/keep warm mode off.

Keep warm

When cooking is finished, the unit will automatically switch to the keep warm mode, and indicator (14) will light up. The unit keeps temperature of a cooked dish up to 24 hours. This function is not available for the «Yogurt» and «Multicook» programs (if the user has set the temperature lower than 75 C).

To switch from the standby mode to the keep warm mode, press the button (19).

To switch the keep warm off press the button (19) again.

Notes:

• Do not use the keep warm function to heat up cold products.
• To avoid scorching and food spoiling, turn the keep warm off when the «Bakery» and «Yogurt» programs are finished.

«DELAYED START» button (18)

You can pre-set the cooking end time. The delayed start time is set in hours. This function is not available for «Baking», «Roasting» and «Yogurt» programs.

• Select the program and set cooking time (see the «Use of the multicooker» section).
• Press the «DELAYED START» button (18) and set the time needed for the cooking to be finished with the buttons (15) «-» and (20) «+».
• The unit will automatically switch to operating mode in about 10 seconds after the settings are finished (indicator of the button (18) will light up, and count-

Cooking programs and cooking time

Program Time (in hours)	Set by default (in hours)	Delayed start Keep warm
Rice - - + +
Soup 1:00 – 4:00	1:00	++
Jelly	4:00 – 8:00	4:00	++
Heating	0:15 – 0:40	0:20	++
Boiling	0:10 – 2:00	1:10	++
Roasting	0:05 – 0:45	0:20	- +
Milk porridge	0:20 – 1:10	0:55	++
Porridge	0:20 – 1:10	0:55	++
Yogurt	6:00 – 12:00	8:00	- -
Bakery	0:40 – 2:00	0:45	- +
Steaming	0:30 – 2:30	0:30	++
Stewing	0:30 – 2:30	1:10	++
Multicook Temperature: 35°C – 150°C. By default: 100°C.	0:05 – 10:00	0:30	++
	(if the user has set temperature from 75°C)

Note:

- Do not open the lid (4) until the «Bakery» program finishes.

- To avoid scorching and food spoiling, turn the keep warm off when the «Bakery» and «Yogurt» programs are finished. To do it press the «STOP» button (19).

- In the «Roasting» program the unit operates similarly to a kitchen stove. Watch the cooking process. Switch the multicooker off when the products are ready.

- See recipes of dishes in the recipe book (supplied with the unit). All recipes are non-regulatory as the required amount and proportions of the ingredients may vary depending on local peculiarities of products and altitude above sea level.

ENGLISH

down of the time needed for the cooking to be finished will start on the display (3)).

Example:

If you set the cooking end time for 1 hour, and duration of the selected program is 55 minutes, the unit will be switched to the cooking mode in 5 minutes after the settings are finished (the «KEEP WARM» indicator (14) will go out, the «COOKING» indicator (13) will light up).

USING OF THE MULTICOOKER

1. Put the products into the bowl (12) following the recommendations given in the recipe (see «Recipe book»).

Note: Make sure that the products and liquids level does not exceed the level of maximal mark «10» and is not lower than the level of minimal mark «4». Maximal level mark for porridges (except rice) is «8».

General example of loading porridges and required amount of water (as example rice is considered).

- Measure rice with the measuring cup (23) (one measuring cup is equal to approximately 160 g of rice), wash it and place in the casserole.

- Add water using the scale with marks in cups (CUP). Example: Put four measuring cups of rice, pour water up to the graduating mark «4 CUP».

- For cooking liquid milk porridges the recommended proportion of rice and water is 1:3.

1. Make sure that the outer surface of the bowl (12) is clean and dry, insert the bowl (12) into the process chamber of the unit. The bowl should be placed evenly and in secure contact with the heating element (9) surface.

Note:

• Do not use the bowl (12) for washing cereals and do not chop products in it, this can damage the non-stick coating;
• Make sure that there are no foreign objects, dirt or moisture in the process chamber and on the bottom of the bowl (12).
• Wipe the outer surface and the bottom of the bowl (12) dry before use.
• In the middle of the heating element (9) there is a temperature sensor (10). Make sure that free movement of the sensor (10) is not limited.
• If you steam products, pour water into the bowl (12) so that boiling water does not reach the bottom of the basket (24). Put the basket (24) with food into the bowl (12).
• Close the lid (4) until click.
• Insert the power cord jack into the connector (9) and the power cord plug into the socket.
• Select the cooking program by pressing once or twice the corresponding button. See the «Cooking program buttons (16)» section. Set the «Multicook» program as it is described in the «Multicook» button (17)» section.
• Cooking time in each program is set by default but it may be changed (except the «RICE» program). To

set the cooking time, press or hold the buttons (15) «-» and (20) «+».

Note: Setting of cooking time is not available in the «Rice» program, switch to the next step.

1. Set the delayed start function as described in the «Delayed start» button (18) section. If you want to start cooking immediately, skip this step.
2. The multicooker will be automatically switched to the cooking mode in 10 seconds upon termination of settings, and the «COOKING» indicator (13) will light up.

Attention!

• The multicooker is automatically switched to the operating mode in about 10 seconds after you push one of the buttons (16), or change program operating time with buttons (15) «-»/ (20) «+» or set the delayed start time with the «DELAYED START» button (18), while the «COOKING» indicator (13) will light up.
• To reset program settings or cancel the cooking program, BE SURE to press the «STOP» button (19) (the «8888» symbols will light up on the display).
• Never leave the unit connected to the mains unattended!
• Watch the cooking process, stir the products with the plastic spatula (21) or plastic soup ladle (22). Do not use metal objects that can scratch the non-stick coating of the bowl (12).
• If you want to stop cooking, press the «STOP» button (19).

Attention!

• Never leave the operating unit unattended.
- To avoid burns, be careful when opening the lid (4). Do not bend over the steam valve (6) during operation of the multicooker and do not place open parts of your body above the bowl (12)!
- During the first operation of the multicooker some foreign smell from the heating element can appear. It is normal.
12. Upon termination of the cooking program the multi-cooker will be switched to the keep warm mode, and the «KEEP WARM» indicator (14) will light up.

Notes:

• Despite the unit keeps the ready dish warm for 24 hours, it is not recommended to leave the cooked products in the bowl for a long time, because this may spoil the products.
• Do not use the keep warm mode to heat up cold products.
  • After steam cooking, do not remove products with bare hands, use kitchen tools.

RECOMMENDATIONS

You can use the «Yogurt» and «Multicook» programs for dough proofing.

Dough proofing is a stage of dough making that takes place right before baking. During the proofing stage the dough ferments intensively, restores its structure and

ENGLISH

grows in size significantly. One of the main conditions of successful process is no draughts and maintenance of constant temperature (about 40°C), which is maintained in the «Yogurt» and «Multicook» programs.

Dough recipe:

400 g of flour

350 ml of milk (can be mixed with water)

Salt

Sugar

1.5 teaspoons of yeast powder

1.5 tablespoons of butter

• Mix all dry ingredients, then add milk. Knead thoroughly and put it into the bowl (12).
• Select the «Yogurt» or «Multicook» program.
• Set the operation time of 1 hour with the buttons (15) «-» and (20) «+».
• Set 35°C – 45°C temperature for the «Multicook» program (see the «Multicook» button (17) section).
• Approximately in 10 seconds after the settings are finished the unit will be switched to the cooking mode.

Note: For the best result do not open the multicooker lid (4) till the program is finished.

CLEANING AND CARE

• Unplug the unit and let it cool down.
- Clean the unit body (1) and lid (4) with a slightly damp cloth, and then wipe dry.
- As the condensation collector (8) is filled up, pour the water out of it.
- Wash all removable parts with a soft sponge and a neutral detergent, then rinse under running water.
- Dry the steam valve (6) thoroughly before installing it back to its place.
- Do not place the bowl (12) in the dishwashing machine.
- Wipe the surface of the heating element (only when it is cold), never let water get inside the unit body.
- Do not immerse the unit body, power cord and plug into water or any other liquids.
- Do not use abrasive and aggressive detergents to wash the unit and accessories.

STORAGE

• Unplug the unit and clean it.
- Keep the unit away from children in a dry cool place.

DELIVERY SET

Multicooker - 1 pc.

Power cord - 1 pc.

Bowl - 1 pc.

Steam cooking basket - 1 pc.

Soup ladle - 1 pc.

Spatula - 1 pc.

Measuring cup - 1pc.

Yogurt cups with lids - 6 pcs.

Instruction manual - 1 pc.

TECHNICAL SPECIFICATIONS

Power supply: 220-240 V \~ 50/60 Hz

Maximal power consumption: 900 W

Bowl capacity: 5 L

The manufacturer preserves the right to change the specifications of the unit without a preliminary notification.

Unit operating life is 3 years

Guarantee

Details regarding guarantee conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

This product conforms to the EMC-Requirements as laid down by the Council Directive 2004/108/EC and to the Low Voltage Regulation (2006/95/EC)

DEUTSCH

MULTIKOCHER

A production date of the item is indicated in the serial number on the technical data plate. A serial number is an eleven-unit number, with the first four figures indicating the production date. For example, serial number 0606xxxxxxx means that the item was manufactured in June (the sixth month) 2006.

DE
