Product Type	Impact Drill
Rated Power	710 W
Max Power	900 W
Power Supply	230 V ~ 50 Hz
No-Load Speed	0 - 1300 rpm
Impact Rate	48000 bpm
Max Drilling Diameter in Metal	10 mm
Max Drilling Diameter in Wood	25 mm
Max Drilling Diameter in Concrete	13 mm
Sound Pressure Level (LpA)	92 dB(A) (K=5 dB)
Vibration Emission (drilling)	ahd = 2.93 m/s², ahid = 13.87 m/s² (K=1.5 m/s²)
Weight	1.9 kg
Permissible Operating Time	15 min operation / 30 min pause
Chuck Type	Keyed chuck (with chuck key)
Additional Handle	Included
Depth Gauge	Included
Rotation Direction	Forward/Reverse (switch)
Speed Control	Variable trigger with max speed knob
Impact Drilling Mode	Switchable on/off
Cleaning Instructions	Wipe with dry cloth or blow with compressed air; keep vents clean
Safety Features	Double insulation? (Not stated but standard), lock-off switch, safety glasses and ear protection recommended
Warranty	Standard manufacturer warranty (contact service)

Frequently Asked Questions - ID8010 BLAUPUNKT

How do I change the drill bit?

Ensure the drill is unplugged. Loosen the chuck by turning the chuck key counterclockwise. Insert the desired bit, then tighten the chuck securely by turning the key clockwise.

How do I use the depth gauge?

Loosen the additional handle mounting, insert the depth gauge, and adjust its position so that the gauge tip aligns with the desired drilling depth. Tighten the handle to secure.

When should I use impact drilling?

Use impact drilling for hard materials like concrete or masonry. Switch the impact mode on. For wood or metal, turn impact off to avoid damage.

How do I reverse the drill direction?

The rotation direction switch is located near the trigger. Slide it to the right for forward (clockwise) rotation and to the left for reverse (counterclockwise). Never change direction while the motor is running.

What should I do if the drill bit gets stuck?

Immediately release the trigger and switch the drill to reverse. Gently pull the drill while applying reverse rotation to free the bit. If stuck, unplug the drill and manually turn the chuck to release.

What safety equipment should I use?

Always wear safety glasses (EN166) and hearing protection (85+ dB). Use a dust mask (EN149) when drilling materials that produce dust. Avoid loose clothing and tie back long hair.

Can I use this drill for screwdriving?

This is an impact drill designed primarily for drilling. While it can drive screws with a suitable bit, it lacks a clutch, so be careful not to overtighten or strip screws. Use low speed and gentle pressure.

What is the maximum drilling capacity?

Maximum diameters: metal 10 mm, wood 25 mm, concrete 13 mm. Exceeding these may overload the motor or cause bit breakage.

How do I clean and maintain the drill?

Unplug the drill before cleaning. Wipe the exterior with a dry cloth or use compressed air to blow dust from vents. Clean the chuck with a brush. Do not use water or solvents. Lubricate chuck periodically with light oil.

Where can I get spare parts or service?

Contact Blaupunkt service at [e-mail] or call [phone]. Only use original accessories recommended by the manufacturer to ensure safety and compatibility.

USER MANUAL ID8010 BLAUPUNKT

Blue BAUPUNKT power tool with black handle and red buttons, no visible text or symbols on the device itself.

Enjoy it.

Ütvefúró

Smūginis gręžtuvas

Triecienurbjmašina

Perforator cu percutie

Príklepová vřtačka

Udarni vrtalnik

Wiertarka udarowa

Ударна бормашина

Příklepová vrtačka

Κρουστικό δράπανο

Impact drill

Lööktrell

Udarna bušilica

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.
• The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.
  • Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.
• Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Keep your workplace tidy and well lit.

• Disorder and insufficient lighting lead to accidents.

- Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.

- A moment of carelessness may cause losing control of your tool.

- If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.

- Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.

- Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.

- Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.

- Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating

part of the power tool may cause personal injury.

- Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.

- Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.

- Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.

- Ensure that the vents are free from debris.

- The device may only be used in a dry, well-lit environment.

- This tool should not be used by anyone under the age of 16. The device is intended for outdoor use only. Do not use for other than its intended purpose.

- When carrying out work where the tool or clamping attachment could come into contact with concealed electric wires, hold the power tool only by insulated surfaces. Contact of the tool or clamping attachment with a live electrical conductor may cause voltage to be transmitted to non-insulated metal parts of the power tool, causing a risk of electric shock.

- Loss of control of the power tool may result in personal injury.

- Use appropriate detectors to locate the installation or seek assistance from your local service provider. Contact with live wires may result in a fire or electric shock. Damage to the gas tube may lead to an explosion. Bursting of a water pipe leads to material damage.

- Hold the power tool firmly. High reaction torques may periodically occur while tightening and loosening screws

and bolts.

- Secure the workpiece. Clamping the workpiece in a clamping device or vice is safer than holding it by hand.

- The power tool is designed for drilling in wood, metal, concrete, ceramic tiles and plastics.

• Make sure that the power tool is fully stopped before putting it down.

- In the event of work tool jamming, switch off the power tool immediately. A jammed tool can lead to a high-reaction torque causing a kickback.

- Do not operate the tool at a higher rotation speed than the maximum rotation speed of the drill bit you are using. If the speed is too high, the drill bit may break.

• Always start drilling at a low speed and keep the drill bit in contact with the workpiece.

- Only apply pressure in line with the drill bit. Do not push the drill or the drill bit too hard.

- It is recommended to use an additional handle. It reduces the risk of losing control of the power tool.

- Wear hearing protection while impact drilling.

- Use only clean and sharp cutting tools (such as drill bits). Using blunted tools reduces work efficiency and increases the risk of accidents.

- Select the operating mode and the work tool according to the type of the workpiece.

- Check the condition of the dust cover. In the event of damage, replace it with a new one or send the device to a professional service centre.

- Working on some materials generates dust that may pose health risks, cause allergic reactions or respiratory diseases, and contribute to developing cancer. Ensure good ventilation at the work station and use dust masks with an appropriate protection rating.

- Materials containing asbestos must be handled by properly

trained personnel.

• The machine can only be used in indoors with a functioning ventilation system.
  • Take special care when changing the work tool. It can be very hot and/or sharp immediately after use. It is recommended to use protective gloves.

SYMBOLS

• The following symbols may appear in the operating instructions or on the tool's nameplate.
  • These signs contain important information about the product and instructions on how to use it.

	Read the user manual.		Use ear protection
			Wear protective glovesGeneral warning
	Fire hazard		Wear protective clothing
	Electric shock hazard		Wear a protective mask
	Wear safety glasses		Wear respiratory protection

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

WEAR PERSONAL PROTECTIVE EQUIPMENT

• Wear safety glasses according to En166
• Use protective masks in accordance with En149
• Use other types of proper personal protective equipment, depending on the type of work involved.

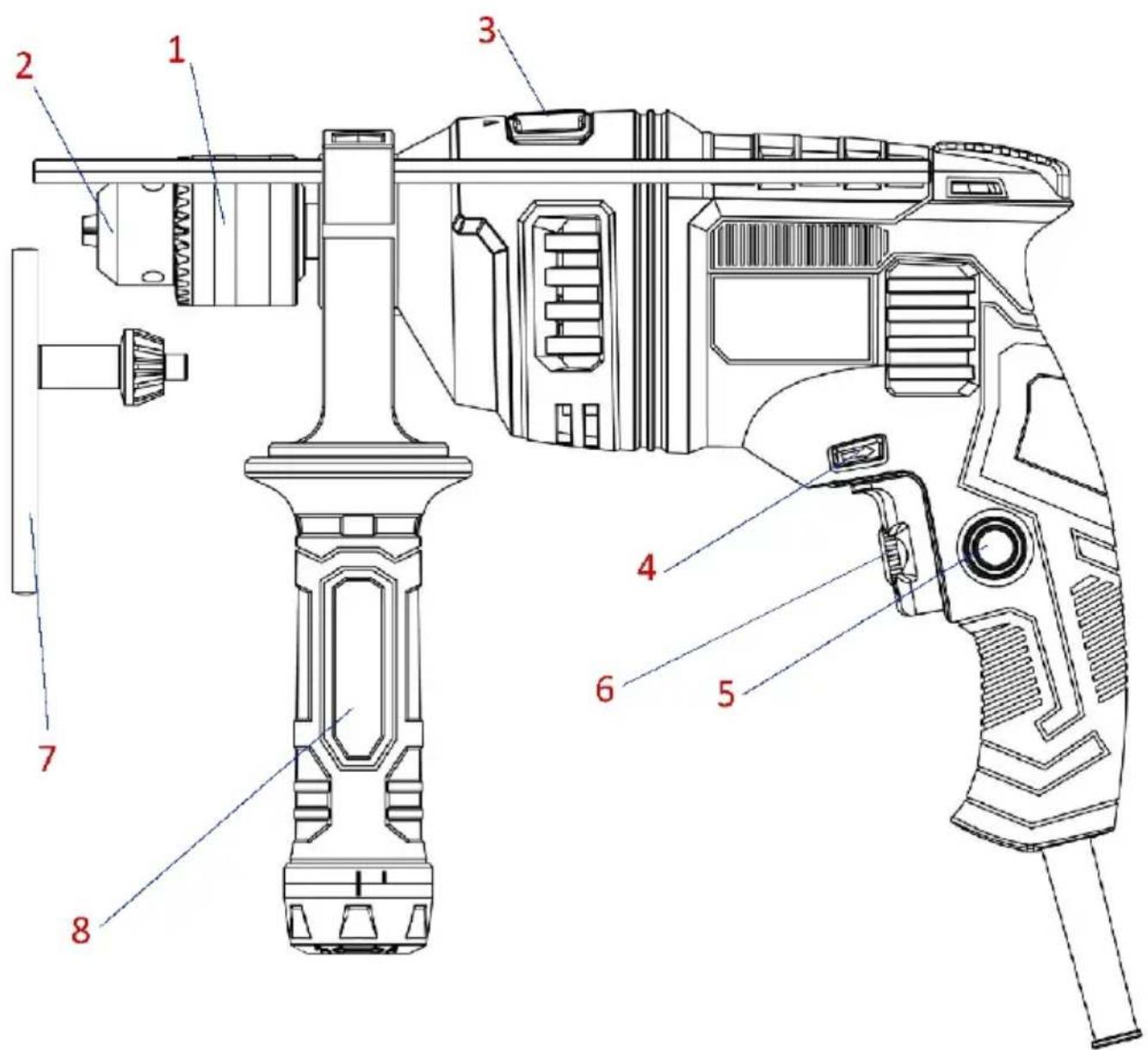

Description of the device

1. Work tool chuck

2. Work tool chuck clamp

3. Impact drilling switch

4. Rotation direction switch

5. Switch lock button

6. Maximum speed control knob

7. Chuck clamp key

8. Additional handle

Preparing the Device for Operation

Note: While installing or replacing the work tool, the device should be disconnected from the power source.

1. Loosen the chuck (1) with the key (2).
2. Insert the appropriate work tool (drill bit) into the chuck.
3. Tighten the chuck with the key to hold the tool securely.
4. Set the direction of rotation to "right."

Installing the Depth Gauge

To install the depth gauge, loosen the additional chuck mounting. Insert the gauge, adjusting its position to the expected depth of the hole and the length of the drill.

OPERATION

When the device is ready for operation, connect the power cord to the power source.

Make sure that there are no wires, pipes or other sensitive infrastructure elements in the drilling area. Start drilling by applying the tip of the drill bit to the workpiece and lightly pressing the drill bit in line with the drill bit. Pressing the drill trigger controls the speed; the harder the trigger is squeezed, the higher the speed. Pay attention to the discharge of drilled material. When drilling in the floor or in the case of deeper holes, ensure that the drilled material is discharged or that the hole is blown through before deepening the hole.

Impact drilling is recommended when drilling in concrete. When drilling in brittle materials, impact drilling can be switched off.

You can change the direction of drilling using the switch. Do not change the switch setting while drilling.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, make sure the device is disconnected from the power source. Keep the ventilation apertures (air inlets and outlets) of the device free of dirt. Wipe the device with a dry cloth or blow it with compressed air. Keep the work tool chuck free of dust. It is recommended to clean the device after each use. Do not immerse in water or other liquids. Do not use aggressive cleaning agents or solvents.

SPECIFICATIONS

Supply Voltage 230 V\~ 50 Hz

Rated Power 710 W Max:900 W

Revolutions per Minute 0-1300

Impact rate 48000 bpm

Max. Drilling Diameter:

- in metal 10 mm

- in wood 25 mm

- in concrete 13 mm

Noise

Typical A-weighted noise level measured in accordance with En62841:

Sound pressure level (LpA): 92 dB (A)

Measurement uncertainty (K): 5 dB (A)

Noise level during operation may exceed: 85 dB (A).

Wear hearing protection!

Vibrations

Total vibration value measured in accordance with EN 62841:

Vibration emission: ahd = 2,93 m/s ^2 ; ahid = 13,87 m/s ^2

Measurement uncertainty (K): 1,5 m/s²

Weight 1.9 kg

Permissible Operating Time: 15 minutes of operation, 30 minutes off.

The declared vibrations has been measured according to the standard test method and can be used to compare tools.

The declared vibrations can also be used in the initial exposure assessment.

WAŻNE INFORMACJE

POUŽÍVAJTE OSOBNÉ OCHRANNÉ PROSTRIEDKY

EC – DECLARATION OF CONFORMITY

01/2022/ID8010

MANUFACTURER:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

Authorized person to prepare the technical documentation:

Tomasz Jakóbczyk

ul. Puławska 403A

02-801 Warsaw, Poland

We declare under our sole responsibility that our product:

Type of device:

Impact drill

Name:

ID8010

If used for its intended use complies with the essential protection requirements relating to the:

2014/30/EU (EMC Directive)

2014/35/EU (LVD Directive)

2006/42/EC (MD Machinery Directive)

2011/65/EU (RoHS Directive) and its Annex II amending directive 2015/863/EU

The assessment of this product has been based on the following standards:

EMC standards:

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN IEC 55014-1:2017+A1:2020

EN IEC 55014-2:2015

MD and LVD standards:

EN ISO 12100:2010

EN 62841-1:2015

EN 62841-2-1:2018+A11:2019

RoHS standards:

EN IEC 63000:2018

Warsaw, 17.10.2022

BLAUPUNKT

02-801 Warsaw, Poland

Correspondence address:

Puławska 12

05-532 Banlocha, Poland

Phone [phone]

DEKLARACJA ZGODNOŚCI WE

01/2022/ID8010

PRODUCENT:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warszawa, Polska

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

Email:[e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
