Product Type	Cordless Reciprocating Saw
Model	CR7010
Brand	Blaupunkt
Voltage	18 V
No-Load Speed	0 – 3000 rpm
Stroke Length	22 mm
Blade Changing System	SDS (tool-free)
Max Cutting Thickness (Wood)	100 mm
Undercutting Settings	0 – 1 (step)
Adjustable Foot	Yes
Battery Type	18 V Li-Ion (BP1820 2.0 Ah or BP1840 4.0 Ah recommended)
Accessories Included	1 x wood saw blade, 1 x metal saw blade
Dimensions (L x W x H)	46 x 7.5 x 15 cm
Weight	1.9 kg
Sound Pressure Level (LpA)	86 dB(A) (uncertainty K=5 dB)
Sound Power Level (LWA)	97 dB(A) (uncertainty K=5 dB)
Vibration Emission (ah, B)	13.9 m/s² (uncertainty K=1.5 m/s²)
Permissible Operating Time	15 min on / 30 min off
Speed Control	Variable speed trigger
Cleaning	Wipe with dry cloth; keep vents clean; do not immerse in water
Safety Features	Switch lock, insulated handle, overheat protection
Storage	Store in dry place, remove battery, avoid frost and high temp

Frequently Asked Questions - CR7010 BLAUPUNKT

What battery does the Blaupunkt CR7010 use?

The CR7010 uses an 18 V Li-Ion battery. Compatible models include BP1820 (2.0 Ah) and BP1840 (4.0 Ah, recommended). Battery is not included.

How do I change the blade on the CR7010?

First ensure the tool is disconnected from power. Turn the SDS chuck ring, insert the blade, then release the ring. Always verify the blade is secure before use.

Can I cut metal with this saw?

Yes, the saw comes with a metal cutting blade. Use appropriate blade for material. Max cutting thickness in wood is 100 mm; for metal, refer to blade specifications.

How do I adjust the foot plate?

Press the foot adjustment button (located near the handle) and slide the foot to the desired length. This allows better control for different cutting depths.

What does the undercutting switch do?

The undercutting switch enables or disables a feature that allows the saw to cut closer to walls or obstacles. It adjusts the blade angle slightly.

Is the CR7010 suitable for heavy-duty use?

The saw is designed for domestic use. It has a duty cycle of 15 minutes operation followed by 30 minutes rest. For extended use, consider a higher capacity battery.

How do I check the battery charge level?

Press the state of charge indicator button on the battery pack. The LEDs will show the charge level: 4 LEDs = 75-100%, 3 = 50-75%, etc.

What safety precautions should I take while using the CR7010?

Always wear eye and ear protection. Keep hands away from blade. Use both hands to hold the saw. Secure workpiece. Disconnect battery when changing blade or cleaning.

How do I clean and maintain the saw?

Disconnect power. Wipe with a dry cloth. Keep ventilation slots free of dust. Use compressed air to blow out debris. Do not use aggressive cleaners or immerse in water.

What should I do if the saw blade gets stuck?

Release the trigger immediately. Disconnect the battery. Remove the blade and inspect for damage. Ensure the blade is sharp and appropriate for the material. Do not force the saw.

USER MANUAL CR7010 BLAUPUNKT

Blue and black Blaupunkt 2.0 Ah power tool with saw, shown against white background (no text or symbols on device body)

Enjoy it.

Σπαθοσέγες Саблен трион Ferăstrău sabie Pjūklas Tikksaag Zobenzāgis

Reciprocating saw Piła szablasta Šavlová pila Chvostová pila Orrfúrész Sabljasta žaga Sabljasta pila

	75% to 100%
	50% to 75%
	25% to 50%
	0% to 25%
	Charge the battery.

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.
• If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.
• Do not let cord hang over edge of counter, or touch any hot surface.
• The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.
• Before maintenance work always disconnect the unit from the power supply.

• When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source without supervision.

• Never put the power cable, the plug or the whole device into the water or any other liquids.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.
• The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.
  • Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.
• Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Keep your workplace tidy and well lit.
  • Disorder and insufficient lighting lead to accidents.
• Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.
• A moment of carelessness may cause losing control of your tool.
• If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.
• Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.
• Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.
• Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.
• Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating

part of the power tool may cause personal injury.

- Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.

- Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.

- Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.

- Ensure that the vents are free from debris.

- The device may only be used in a dry, well-lit environment.

• This tool should not be used by anyone under the age of 16.

- Use only sharp blades in perfect condition. Condition to replace: cracked, distorted or blunt.

- Choose the right blade for the material, stroke frequency and pendulum.

• Make sure that the saw blade does not touch other objects when the tool is switched on.

- Hold the device by the insulated handle as the blade may run over the electrical wires or its own power cord when cutting.

• After finishing work, always wait for the device to come to complete stop.

- Do not turn off the power tool during operation, it may get stuck and you may lose control of the device if you try to switch it on again.

- Do not saw objects with a larger diameter/thickness than the length of the blade.

- Use the blades according to their intended use, and before cutting the material, inspect them carefully for foreign objects such as nails or screws.

1. Do not reach under the workpiece.

2. Set the cutting depth to match the workpiece thickness. There shall be at least one full blade tooth visible under the workpiece.

3. Never hold the workpiece in your hands or on your lap while cutting. Secure the workpiece to a stable fixture platform.

4. Hold the power tool only by the insulated parts of the grip while handling.

5. Always use a length stop or edge guide when cutting long workpieces. This will improve the quality of cut and reduce the risk of jamming the saw blade.

6. Large, flat workpieces like panels need to be supported on a sufficient surface to minimise the risk of jamming the saw blade and kickback. Panels tend to bend under their weight. Support the panel workpiece from below, on both sides of the tool, close to the cut line and near the panel edges.

7. Handle the saw with both hands when operating.

8. Any modification or alteration of the power tool or its battery pack is prohibited.

Charger and battery pack safety instructions

To connect the battery pack for charging, insert the battery pack into the charger dock and plug the charger to a power source.

- Keep the charger away from rain and moisture. The charger may only be used indoors.

- Keep the charger clean.

- Do not operate the charger on readily combustible objects and surfaces (e.g. paper) or areas with flammable/explosive

atmospheres.

• Always ensure adequate ventilation when charging; fumes or battery acid can be released from the battery pack if the latter is compromised by poor handling or damage.
- When charging is complete, unplug the charger from the power source. Do not leave it connected to a power source for longer than necessary.
- Store and charge the battery pack in a dry place and make sure it will not be flooded by water.
- Keep the battery pack terminals clean and free of dirt.
- Protect the battery pack from shocks and moisture; never open the battery pack or expose it to any damage.

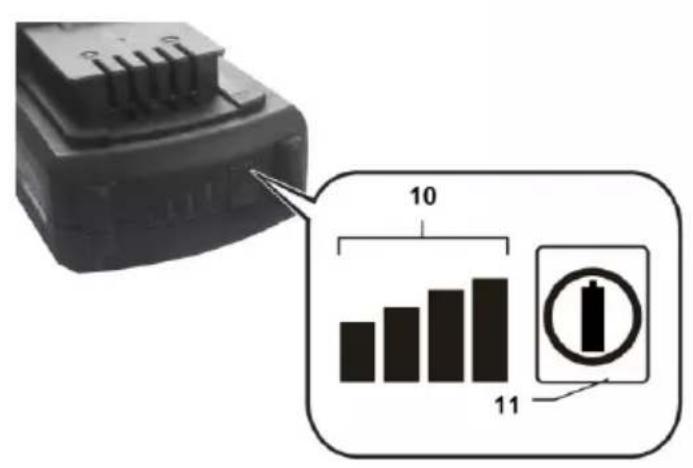

The battery pack charge level can be displayed with the number of charge indicator LEDs by pressing the state of charge indicator button on the pack; if required, charge the battery pack for as long as required to reach the desired charge level and the expected operating time of the cordless power tool.

Kickback:

The kickback is sudden and uncontrollable, the device reacts to the jamming or blockage of the cutting device. Jamming or blocking results in a sudden jerk, in the direction opposite to the rotation of the disc.

Kickback is the result of not reading the safety instruction.

To avoid kickback, follow the safety instructions and use methods to prevent it

Methods to prevent kickback.

a) Hold the device by the two handles firmly and securely. Always use the additional handle. – The operator can control the torque and the resultant kickback forces if appropriate precautions are taken.
b) Keep hands away from the cutting part of the device.

CAUTION: The device may injure the user if used improperly. c) The user should stand in such a position that, in the event of a kickback, they are not within reach of the grinder disc.

SYMBOLS

• The following symbols may appear in the operating instructions or on the tool's nameplate.
  • These signs contain important information about the product and instructions on how to use it.

	Read the user manual.		Use ear protection
			Wear protective glovesGeneral warning
	Fire hazard		Wear protective clothing
	Electric shock hazard		Wear a protective mask
	Wear safety glasses		Wear respiratory protection

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

WEAR PERSONAL PROTECTIVE EQUIPMENT

• Wear safety glasses according to En166
• Use protective masks in accordance with En149

- Use other types of proper personal protective equipment, depending on the type of work involved.

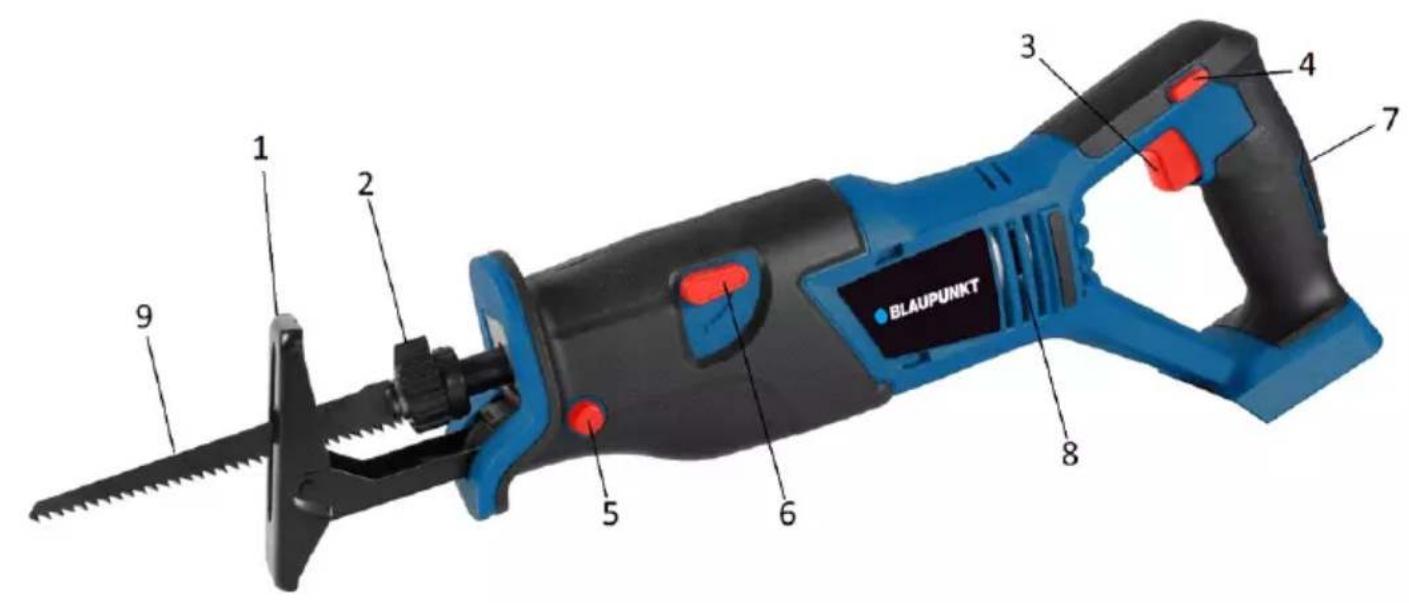

Description of equipment

1. Foot
2. SDS chuck
3. Power & speed control switch
4. Switch locki
5. Foot adjustment button
6. Undercutting switch
7. Handle grip
8. Air vent
9. Blade
10. Battery charge indicator
11. State of charge indicator button
12. Battery pack latch release button

Storage

Store cordless tools in a dry place and out of the reach of children. For safety concerns, remove the battery pack from the cordless tool before storage. When left connected to a cordless tool, the battery pack is drained faster. Protect the battery pack and power tools from frost, high temperatures, moisture and water.

Do not attempt to repair a failed battery pack. Only the original manufacturer or an authorised service may repair the battery pack.

Recharge the battery packs using only the chargers specified by the manufacturer.

Storage or operation of the battery pack in unsuitable conditions may result in a battery acid leak.

Never attempt to use a damaged or modified battery pack. Damaged or modified battery packs may cause unpredictable effects during operation, resulting in health hazards. Keep the battery pack away from open flames and high temperature. If exposed to fire or temperatures above 130°C, the battery pack may explode.

Installing the battery pack

Tip: Using a battery pack incompatible with the power tool may result in abnormal performance or failure of the power tool.

Insert the battery pack into the handle until the battery pack latch clicks (the battery pack should be flush with the receptacle edges on the power tool).

Line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Blade installation:

Make sure the device is disconnected from the power source.

The device is equipped with a rapid blade installation system (SDS).

Turn the SDS chuck.

Place the blade in the chuck.

Release the SDS clamping ring.

When replacing the blade make sure that:

The blade holder is free from other materials

Always check that the blade is securely clamped before use.

Blade removal:

Remember to wait after work because the blade may be hot. Make sure the device is disconnected from the power source.

Rotate the saw blade chuck SDS ring

and remove the blade from the chuck.

Operating the device:

Press the button (3) to turn the device on

The foot length can be adjusted by pressing the button (5).

Release the button (3) to stop the device.

The undercutting can be enabled/disabled by pressing the switch (6).

Secure the workpiece with clamps.

Always hold the device with both hands and

make sure that you have a secure backrest when cutting.

Incorrect operation can cause damage to the machine.

Speed control

The cutting speed control is in the trigger switch. Pressing the switch deeper in increases the saw speed; releasing the switch increases the saw speed.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, make sure the device is disconnected from the power source.

Keep the ventilation apertures (air inlets and outlets) of the device free of dirt. Wipe the device with a dry cloth or blow it with compressed air. Keep the work tool chuck free of dust. It is recommended to clean the device after each use. Do not immerse in water or other liquids. Do not use aggressive cleaning agents or solvents.

SPECIFICATIONS

Voltage: 18 V

No-load speed: 0-3000 rpm

Stroke: 22 mm

SDS blade changing system

Max. cut thickness: wood: 100 mm

Undercutting settings: 0 - 1

Adjustable foot

Battery type: 18 V Li-Ion; BP1820 2.0Ah (not included), BP1840 4.0 Ah recommended (not included)

Accessories: 1 x wood saw blade, 1 x metal saw blade

Dimensions: 46 x 7.5 x 15 cm

Weight: 1.9 Kg

Noise

Typical A-weighted noise level measured in accordance with ISO/TR 11688-1:

Sound pressure level (LpA): 86 dB (A) ; LWA: 97 dB (A)

Measurement uncertainty (K): 5.0 dB (A); K_WA : 5.0 dB (A)

KWA: 5.0 dB (A)Noise level during operation may exceed: 97 dB (A).

Wear hearing protection!

Vibrations

Total vibration value measured in accordance with En1299:

Vibration emission: ah, B = 13.9 m/s ; ^2

Measurement uncertainty (K): Km=1.5 m/s ; KB=1.5 m/s

Permissible Operating Time: 15 minutes of operation, 30 minutes off.

The declared vibrations has been measured according to the standard test method and can be used to compare tools.

The declared vibrations can also be used in the initial exposure assessment.

WAŻNE INFORMACJE

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Montaż brzeszczotu:

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

POUŽÍVAJTE OSOBNÉ OCHRANNÉ PROSTRIEDKY

Line drawing of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Line drawing of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a vehicle interior showing airflow direction arrows (no text or symbols)

Snemanje lista:

Preden odstranite list, počakajte, da se list ohladi.

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

Montaža lista pile:

Line drawing of a hand pressing down on a device with arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Монтаж на острието:

Line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Montajul pânzei de fierăstrău:

Line drawing of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Keerake SDS padrunit.

Line drawing of a car interior with directional arrows indicating movement or force (no text or symbols)

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

Asmens demontāža

EU – DECLARATION OF CONFORMITY

01/2023/CR7010

MANUFACTURER:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

Authorized person to prepare the technical documentation:

Tomasz Jakóbczyk

ul. Puławska 403A

02-801 Warsaw, Poland

We declare under our sole responsibility that our product:

Type of device:

Name:

Cordless Reciprocating Saw 18V

CR7010

If used for its intended use complies with the essential protection requirements relating to the:

2014/30/EU (EMC Directive)

2006/42/EC (MD Machinery Directive)

2011/65/EU (RoHS Directive) and its Annex II amending directive 2015/863/EU

The assessment of this product has been based on the following standards:

EMC standards:

EN 55014-1:2017+A11:2020 | EN IEC 55014-1:2021

EN 55014-2:1997+A1:2001+A2:2008 | EN IEC 55014-2:2021

MD and LVD standards:

ISO 12100:2010

EN 62841-1:2015

EN 62841-2-11:2011+A1:2020

EN 62233:2008

RoHS standards:

IEC EN 63000:2018

Warsaw, 14.02.2023

BLAUPUNKT

Blaupunkt Competence Center ZN-Everpol Sp. z o.o.

Registered office:

Puławska 403A

02-801 Warsaw, Poland

Corespondence address:

Puławska 12

05-532 Baniocha, Poland

Phone [phone]

DEKLARACJA ZGODNOŚCI UE

01/2023/CR7010

PRODUCENT:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warszawa, Polska

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

Email:[e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
