Jaar BK5S - Blender Eldom - Free user manual and instructions

Product Type	Multifunctional Blender
Brand	Eldom
Model	Jaar BK5S
Power	350 W (Motor block power: 700 W)
Supply Voltage	220-240 V ~ 50/60 Hz
Max Continuous Operation	1 minute
Idle Time Before Restart	1 minute
Jug Capacity	1000 ml
Container Capacity	600 ml
Blade Material	Stainless steel
Housing Material	Plastic
Safety Features	Safety lock prevents operation without jug/container properly placed
Operation Type	Pulse operation (press and hold)
Intended Use	Preparing drinks, smoothies, and liquid-based mixtures
Cleaning Method	Hand wash only; no dishwasher
Accessories Included	Jug, lid with stopper, container, universal screw cap
Warranty	Domestic use only; improper use voids warranty
Compliance	CE marked

Frequently Asked Questions - Jaar BK5S Eldom

What is the maximum capacity of the blender jug?

The jug has a maximum capacity of 1000 ml. The container (bottle) has a maximum capacity of 600 ml.

Can I blend hot liquids with the BK5S blender?

No, do not blend liquids above 50°C. Hot liquids can cause pressure buildup and damage the blender.

How long can I run the blender continuously?

The maximum continuous operation time is 1 minute. After that, let the appliance rest for at least 1 minute before using again.

Can I crush ice or blend frozen fruit?

Yes, you can blend ice cream and thawed fruits. However, avoid blending hard frozen items or ice cubes alone; always add liquid first.

Is the blender safe to use if the jug is not locked properly?

The blender has a safety lock that prevents operation if the jug or container is not correctly placed and locked. It will not turn on unless properly assembled.

How do I clean the blender?

For quick cleaning, fill the jug or container with water and pulse several times. For thorough cleaning, disassemble and wash all parts by hand with warm soapy water. Do not put any parts in the dishwasher. The blade is sharp, handle with care.

Can I use the container as a drinking bottle?

Yes, the container can be fitted with the universal screw cap which has a mouthpiece and a hanger, making it a portable bottle ideal for on-the-go.

Can I grind dry ingredients like coffee beans or spices?

No, the blender is not designed for grinding dry ingredients without liquid. Doing so may damage the blade. Always add liquid first.

What should I do if the blade gets blocked?

Immediately turn off and unplug the blender. Allow it to cool for at least 15 minutes, then remove the cause of the blockage. Do not operate with blocked blade.

Is the blender suitable for chopping raw meat?

No, the manual states not to chop raw meat or meat with bones. The blender is intended for soft fruits, vegetables, and liquids only.

USER MANUAL Jaar BK5S Eldom

Line drawing of a blender with three different sizes (no text or symbols)

/PL/

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems). This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/DE/

1

2

3

Line drawing of a blender with internal components and directional arrows indicating motion (no text or symbols)

4

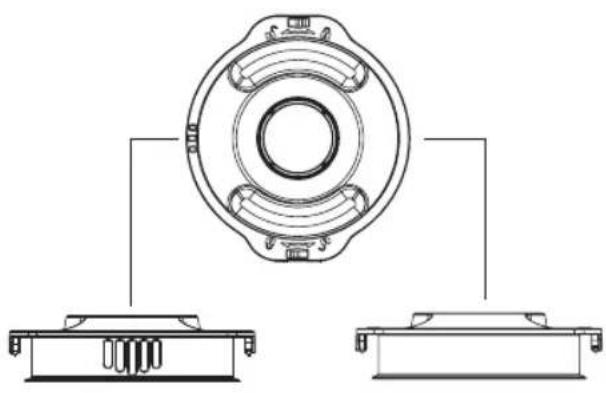

Technical line drawing of a mechanical component with two views: top view shows a circular housing with four side supports, bottom view shows a rectangular base with internal components (no text or symbols)

5

6

78

Illustration of a hand holding a blender with liquid, showing a curved arrow indicating rotation (no text or symbols)

□

Line drawing of a portable kitchen appliance with a side view showing internal components and arrows indicating parts (no text or symbols)

□

Illustration of two hands holding a small container with liquid, showing internal components and a separate view (no text or symbols)

4

WSKAZÓWKI BEZPIECZEŃSTWA

1. Before first use thoroughly read all instructions.
2. Connect the power cord only to a wall socket with an earthing pin whose parameters comply with those indicated in the instructions.
3. Pay attention not to add too many receivers to one power circuit.
4. Regularly check whether the power cord or the entire appliance (in particular the blade) is not damaged. Do not use the appliance if there is any damage.
5. Do not use in the open air.
6. Do not route the cord near hot surfaces.
7. Always use the appliance on a flat and level surface.
8. During operation, keep your hand on the container and press it lightly.
9. Before removing the container from the socket, turn off the appliance and wait until it stops completely.
10. Do not turn the appliance on without products.
11. Never turn the appliance on if the container has not been properly placed in the socket or if the blade is not mounted properly.
12. Do not leave the appliance unattended.
13. Use only the supplied original accessories.
14. The appliance can be used by children aged 8 and older, by persons with limited physical and mental capabilities, and by persons who have no experience nor knowledge of the equipment, only under supervision or if instructed on the safe use of the appliance in way that guarantees that the associated risks are understood. Children shall not play with the appliance. Children shall not clean nor maintain the device without supervision.

15. Never exceed the maximum duration of continuous operation of the appliance (1 minute). If this time is exceeded, immediately turn off the device and wait at least 1 min. before turning it on again.

16. Do not insert materials such as paper, cardboard, plastic, metal, etc into the container.

17. Do not use the appliance to mince products that are too hard for fragmentation (e.g. raw meat, meat with bones, etc.).
18. Do not pour in hot liquids.
19. Do not place large food items nor metal objects into the appliance. It might jam the cutting mechanism, start fire or electrocute the user.
20. Before cleaning, or if the appliance is not in use, remove the plug from the wall socket.
21. The blade is sharp; exercise caution when cleaning.
22. Do not immerse the cord or the motor housing in water nor in any other liquid. Always wipe with a damp cloth. Do not clean the appliance with metal items, whose pieces may break off and short-circuit the electrical parts, which can cause an electric shock.
23. The device can be repaired only at an authorised service centre (the list of service centres is provided in the appendix and on the website: www.eldom.eu). Carrying out any upgrades or using any non-original spare parts or components is forbidden and jeopardises the safety of use.
24. Appliance for home use only.
25. Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

EN

INSTRUCTION MANUAL MULTIFUNCTIONAL BLENDER BK5S

GENERAL DESCRIPTION

1. Stopper
2. Jug lid
3. Jug
4. Blade (cutting unit)
5. Socket
6. Base
7. Power switch
8. Universal screw cap
9. Container

TECHNICAL DETAILS

power: 350 W

MBP - motor block power: 700 W

supply voltage: 220-240V \~ 50/60Hz

max. time of continuous operation: 1 minute

idle time before recommencing operation: 1 minute

INTENDED USE

The BK5S blender is designed for the quick preparation of tasty and nutritious drinks. Drinks can be prepared in a jug or directly in a container. The universal screw cap (8) allows the container to be transformed (9) into a handy bottle, equipped with a convenient mouthpiece for drinking and a hanger enabling it to be attached to a belt or a backpack etc.

OPERATION

• Place the base (6) on a flat, hard and stable surface.
• Make sure that the blender is turned off (the power switch (7) is not pressed) and unplugged from the mains.

Operation with the jug (3):

• Install the blade (4) in the jug (3) – Fig. 1.
• Turn the jug (3) and place it on a flat surface.

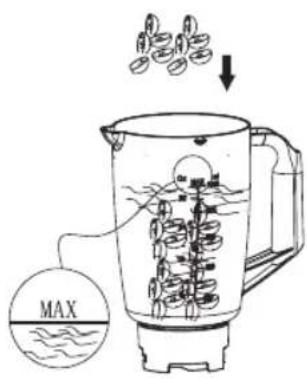

• Put the food into the jug (3) and pour in the liquid, making sure that the amount does not exceed the maximum level marked on the jug – Fig. 2.
• Suggested proportions of individual ingredients:

Products Liquid Total capacity
100-400 g 150-600 ml 1000 ml

Caution:

Do not turn on the appliance if there is no liquid (e.g., water, juice, etc.) in the jug (3).

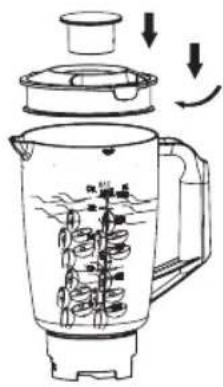

- Put the lid (2) on the jug (3) and lock it by turning it to the right; place the stopper (1) in the lid – Fig. 3.

Caution:

In the lid (2), there are openings making it possible to pour out the contents of the jug without removing the lid – Fig. 4. When the blender is being operating, the lid (2) should be put on so that the openings are near the handle. Otherwise, the liquid may escape through the openings in the lid during operation.

- Put the jug (3) into the socket (5) as indicated and lock it by turning it to the right – Fig. 8.

Caution

The appliance has a safety device preventing it from being turned on without the jug (3) properly in place.

• Plug the base (6) into the mains socket compliant with the parameters specified in the instructions manual.
• The appliance starts operation after pressing and holding the power switch (7). The appliance operates as long as the power switch (7) is pressed. The best effect is obtained with the pulse operation.
• The maximum continuous operation time is 1 minute.

Caution

Do not turn on the appliance with an empty jug (3) or without the lid (2) on.

Observe the continuous operation time of the appliance. Exceeding the operation time and lack of sufficient breaks can lead to irreversible motor damage.

• If the blade (4) is blocked, turn off the appliance immediately, disconnect it from the mains and leave it to cool for at least 15 minutes. Eliminate the cause of the blockage.
• Wait until the blade stops before removing the jug (3) from the base (6).
• Disconnect the power cord plug from the electric socket.
• To remove the jug (3) from the base, turn it to the left and lift it up.
• Remove the lid (2) by turning to the left and reassemble it, this time so that the openings (Fig. 4) are located at the spout of the jug (3).
• Pour the contents into a glass.
• Clean all components when finished.

Operation with the container (9):

• Place the container (9) on a flat, horizontal surface with the opening facing up and put the products in it and pour in the liquid.
• Cut the products into small pieces. Do not place ingredients above the maximum level (600 ml) marked on the container (9).

- Put the blade (4) onto the container (9) and screw it on – Fig. 5.

Caution:

Do not turn on the appliance if there is no liquid (e.g., water, juice, etc.) in the container (9).

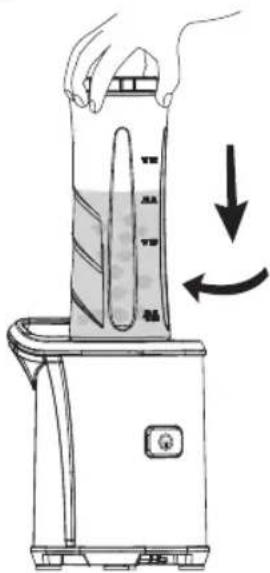

- Turn the container (9) and place it in the socket (5) as indicated and lock it by turning it to the right – Fig. 8.

Caution:

The appliance has a safety device preventing it from being turned on without the jug (3) properly in place.

• Plug the base (6) into the mains socket compliant with the parameters specified in the instructions manual.
• The appliance starts operation after pressing and holding the power switch (7). The appliance operates as long as the power switch (7) is pressed. The best effect is obtained with the pulse operation.
• The maximum continuous operation time is 1 minute.

Caution:

Do not turn on the appliance with an empty container (9). Observe the continuous operation time of the appliance. Exceeding the operation time and lack of sufficient breaks can lead to irreversible motor damage.

• If the blade (4) is blocked, turn off the appliance immediately, disconnect it from the mains and leave it to cool for at least 15 minutes. Eliminate the cause of the blockage.
• Wait until the blade stops before removing the container (9) from the base (6).
• Disconnect the power cord plug from the electric socket.
• To remove the container (9) from the base, turn it to the left and lift it up.
• Turn the container (9), place it on a flat surface and unscrew the blade (4) – Fig. 6.

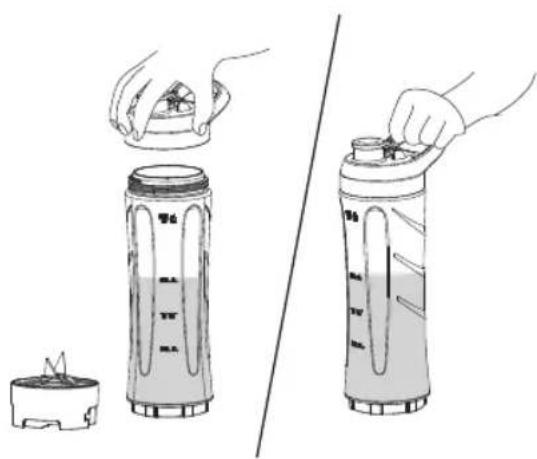

• Pour the contents into a glass or fit the screw cap (8). The screw cap (8) is equipped with a practical mouthpiece with a stopper and a handle (Fig. 9).
• Clean all components when finished.

HANDY TIPS

Caution:

Do not perform the following actions in the appliance:

• beat eggs,
• prepare mash,
• mix hot liquids (above 50°C),
• chop fruits with seeds or a hard skin – they can damage the blade,
• chop the raw meat,
• only chop the dry ingredients,

- Unless otherwise specified in the recipe, first pour the liquid into the jug (3) or container

(9) then add the fresh ingredients, thawed products and ice cream.

• For best results, add ingredients in the following order: liquids, fresh fruit and vegetables, yoghurt.
• Cut the hard fruits and vegetables into small pieces of 1.8 to 2.5 cm.

• CLEANING AND MAINTENANCE

Simple jug cleaning (3):

• Empty the jug (3), fill it with water and install the lid (2) with the stopper (1).
• Place the jug (3) in the socket (5), connect the base (6) to the mains and press the power switch (7) several times.
• Pour out the water from the jug (3) and rinse.

Simple container cleaning (9):

• Empty the container (9), fill it with water and install the blade (4).
• Place the container (9) in the socket (5), connect the base (6) to the mains and press the power switch (7) several times.
• Pour out the water from the container (9) and rinse.

Thorough cleaning of the appliance:

Caution:

No parts of the appliance are dishwasher-safe!

• It is easiest to clean the appliance right after use.
• Before cleaning, turn off the appliance, pull the plug out of the electric socket and wait until the blade (4) stops rotating.
• Do not use abrasives, cleaning powders, acetone, alcohol, etc. for cleaning the appliance.
• Clean the components (1, 2, 3, 8, 9) with a brush in warm water with a small amount of dishwashing liquid, and rinse under running water.
• Maintain extreme caution when cleaning the blade (4) as it is very sharp. Do not completely immerse the blade (4) in the water.
• Clean the appliance base (6) with a damp cloth. Never immerse the base (6) in water or wash under running water.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.
