Product Type	Chainsaw Chain Sharpener
Brand	Cocraft
Model	HC85 (Art.no 18-3057, 30-9678)
Power Supply	230 V AC, 50 Hz, 85 W
Weight	2.4 kg
Grinding Wheel Outer Diameter	108 mm
Grinding Wheel Inner Diameter (Bore)	23 mm
Grinding Wheel Thickness	3.2 mm
Max. Spindle Speed	4800 RPM
Sound Power Level (Lwa)	93 dB(A)
Sound Pressure Level (LpA)	80 dB(A)
Compatible Chain Pitches	1/4", 0.325", 3/8", 0.404"
Filing Angle Adjustment	Yes, 30° or 35° typical (adjustable via vice rotation)
Vice Type	Adjustable chain vice with locking lever
Depth Stop	Adjustable with lock nut
Chain Stop	Adjustable via length adjustment screw
Safety Features	Grinding wheel guard, on/off switch, emergency stop, safety glasses required
Maintenance	Keep clean of dust and metal filings; replace grinding wheel when worn to ∅75 mm
Spare Parts Availability	Grinding wheels (108x23x3.2 mm), flange nut, guard screws
Repair	Should only be carried out by qualified technician using original spares
Disposal	Do not dispose with household waste; recycle at local facility
Warranty	Refer to manufacturer's warranty card (not specified in manual)

Frequently Asked Questions - HC85 Cocraft

What type of chainsaw chains can I sharpen with the Cocraft HC85?

The HC85 is compatible with chain pitches of 1/4", 0.325", 3/8", and 0.404". Always verify your chain pitch before use.

How do I set the correct filing angle?

Loosen the vice locking knob at the bottom, rotate the vice to the desired angle (typically 30° or 35° depending on your chain), then retighten the knob. Refer to your chain manufacturer's recommendation.

Do I need to use safety glasses?

Yes, always wear safety glasses and ear protection when operating the sharpener. The grinding process produces sparks and noise.

How do I replace the grinding wheel?

Unplug the machine, raise the grinding wheel arm, remove the guard screws, unscrew the flange nut anticlockwise, replace the wheel with a new one (108 mm outer, 23 mm bore, 3.2 mm thick), tighten the flange nut by hand, and reattach the guard. Never overtighten as it may damage the wheel.

Why does my grinding wheel vibrate?

Vibration may indicate an unbalanced or damaged wheel. Stop the machine immediately and inspect the wheel. If damaged, replace it. Ensure the wheel is centered and the flanges are clean.

How often should I adjust the raker clearance?

After sharpening the chain 2 to 4 times, check the raker height. Use a flat file and depth gauge to file down the rakers to maintain proper clearance (typically 0.5-0.7 mm). Consult your chain manual for exact specifications.

Can I use a different grinding wheel?

Only use grinding wheels recommended by the manufacturer with the correct diameter (108 mm), bore (23 mm), and thickness (3.2 mm) rated for at least 4800 RPM. Using incorrect wheels can be hazardous.

What should I do if the chain gets caught in the vice?

Unplug the machine before adjusting. Loosen the vice locking lever slightly, reposition the chain, and retighten. Ensure the chain stop is properly engaged.

How do I clean the sharpener?

Keep the sharpener free of dust and metal filings by wiping with a dry cloth or using a soft brush. Do not use flammable solvents. Store in a dry place out of children's reach.

The chain is not sharpening evenly. What could be wrong?

Check that the filing angle is set correctly for both sides of the chain. Ensure the depth stop is adjusted properly and that the chain is securely clamped. Also verify the grinding wheel is not worn or damaged.

USER MANUAL HC85 Cocraft

FOR 1/4", 3/8" AND .325" CHAINSAW CHAINS

KEDJESLIPMASKIN KJEDESLIPEMASKIN TERÄKETJUN HIOMAKONE KETTENSCHLEIFMASCHINE

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Two horizontal color swatches: one black with gradient squares, one yellow with solid squares (no text or symbols)

Two isolated black crosshair symbols on white background, no text or labels present

Pure geometric lines forming a crosshair symbol (no text or labels)

Chainsaw Sharpener

Art.no 18-3057 Model 2002-UK

30-9678 2002

Please read the entire instruction manual before using and save for future use. We apologise for any text or photo errors and any changes of technical data. If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse.)

Safety

General Safety Instructions

Warning:

When using this tool all basic safety precautions must be followed to avoid the risk of fire, electrocution and personal injury. Read these instructions carefully before using the product and keep them for future reference.

• Keep the working area clean. Cluttered areas and benches invite accidents.
• Consider your work area environment. Do not expose the tool to rain. Do not use the tool in moist or wet areas. Keep the working area well lit. Never operate the tool near flammable liquid or gas.
• Avoid electric shocks. Avoid body contact with earthed objects, such as pipes, radiators, ovens or refrigerators.
• Keep other people at a safe distance. Do not allow anyone not involved in the work process to touch the tool or its electric cable, especially children. Keep all bystanders at a distance.
• Store the tool in a safe place. When your tools are not in use, keep them in a locked, dry area, away from children.
• Do not overload the tool. The correct feed rate makes the tool work better and safer.
• Use the correct tool for the job. Do not try to use small tools to perform jobs requiring more powerful tools. Do not use a tool for a purpose for which it was not designed, e.g. using a circular saw for lopping branches off trees.
• Wear suitable clothing. Do not wear loose-fitting clothing or jewellery, that could get caught in moving parts. Non-slip shoes are recommended for outdoor work. Wear a hairnet or similar if you have long hair.
• Always use safetywear. Wear safety glasses. Use a face mask or dust filter when working in dusty environments.
• Use dust extractors. If the tool is equipped with or connected to a dust extractor/collector, make sure that it is turned on and used correctly.
• Do not abuse the lead. Do not jerk the lead, grip the plug itself when disconnecting the power. Make sure that the mains lead does not come into contact with heat, oil, or sharp edges.
• Firmly secure the workpiece. If possible use vices or clamps to hold the workpiece in place. This is much safer than holding the workpiece in one hand.

• Do not overreach. Make sure that you stand steady and balanced all times.

• Look after you tools. Make sure that they are clean and that the edges are sharp for maximum effect and best results. Follow the manuals recommendations regarding lubrication and replacement of accessories. Inspect the mains lead regularly. If it is damaged it should be replaced by a qualified service technician. Inspect all leads and cables regularly to check for any damage. Make sure that the machine's/tool's handles and controls are clean, dry and free from oil and grease.

• Turn the power off. Pull out the plug and push in the emergency stop button before servicing or changing any blades, drill bits, cutters or sanding discs.
• Remove all spanners and repair tools. Make a habit of checking to make sure that the machine is free of all spanners and tools before turning the power on.
• Avoid accidental starting. Do not walk around with your finger on the trigger of a power tool if it is plugged in. Make sure that the on/off switch is set to OFF before plugging in any power tool.
• Use the correct extension leads. If you use extension leads outdoors, only use those designed for outdoor use. Only use extension leads with thick enough diameter core wires and roll out the whole lead.
• Use common sense and be careful. Think before carrying out any task, so that it is carried out safely. Never operate machines/power tools when you are tired or under the influence of medicine.

• Check the following before turning the tool on:

• That all guards and other parts are whole and in working order.

• That moving parts are free and correctly aligned.
• That no moving parts can get caught.
• That no defects are apparent.

Other factors that can influence work execution. A safety guard or any other part that is damaged should be repaired by a tradesman or replaced. Damaged power leads and switches must always be replaced by a tradesman. Never operate a tool if you cannot stop or start the tool comfortably.

• Use only recommended accessories. The use of non-recommended accessories can cause accidents and personal injury.
• Should only be repaired by a qualified technician. The tool conforms to current safety requirements. Repairs to the tool should only be carried out by a tradesman using original spares; otherwise the tool could cause accidents and personal injury.

Specific Safety Rules

• Always use safety glasses.
- Never use damaged grinding discs.
- Never use the chainsaw sharpener unless the guard is attached and undamaged.
- Only use grindings discs recommended by the manufacturer and that are rated at the same or higher speed than the maximum rated speed of the machine.
- Read the manufacturer's instructions accompanying the grinding disc.

Before Starting the Machine

• Make sure that the power switch is set on 0 before connecting the machine to a wall socket. Only connect the machine to an earthed wall socket.
• Make sure that the grinding wheel is well centred and undamaged and that the guard is attached and intact before use.
• Use only grinding wheels with the correct diameter and which are approved for the speed of the machine.
• Protect the grinding wheel from moisture and blows.
• Make sure that the grinding wheel can rotate freely before starting the machine.
  • Always pull the plug out of the wall socket before servicing and adjusting the chainsaw sharpener.

Whilst Operating the Machine

• Pull out the plug if the machine is left unattended.
• Stand steady and hold the machine firmly in both hands.
• Keep an eye on the electric cable whilst using the machine so that it is not damaged by the grinding wheel or the sharp edges of the chain.
• Grip the chain securely in the vice before starting to grind.
• Do not use the machine around flammable materials. The grinding process causes sparks which can ignite fires or explosions.
• Position the sharpener below eye level in a well-lit place.
• Wait until the grinding wheel arm is completely raised before feeding the chain forward to the next link.
• Bear in mind that the links of the chain are sharp, keep fingers well clear when feeding the chain forward to the next link.
• This sharpener is only intended for sharpening chainsaw chains, the grinding or cutting of items other than these chains is not permitted. Do not use grinding tools other than grinding wheels.

Turn the machine off immediately if...

• The machine starts to behave strangely, e.g. emits smoke, sparks, strange noises or starts vibrating.
• The machine's power switch or electric cable is damaged.

Product safety symbols and their meaning

Read the entire instruction manual before using the product.

Always use safety glasses. Always use ear protection.

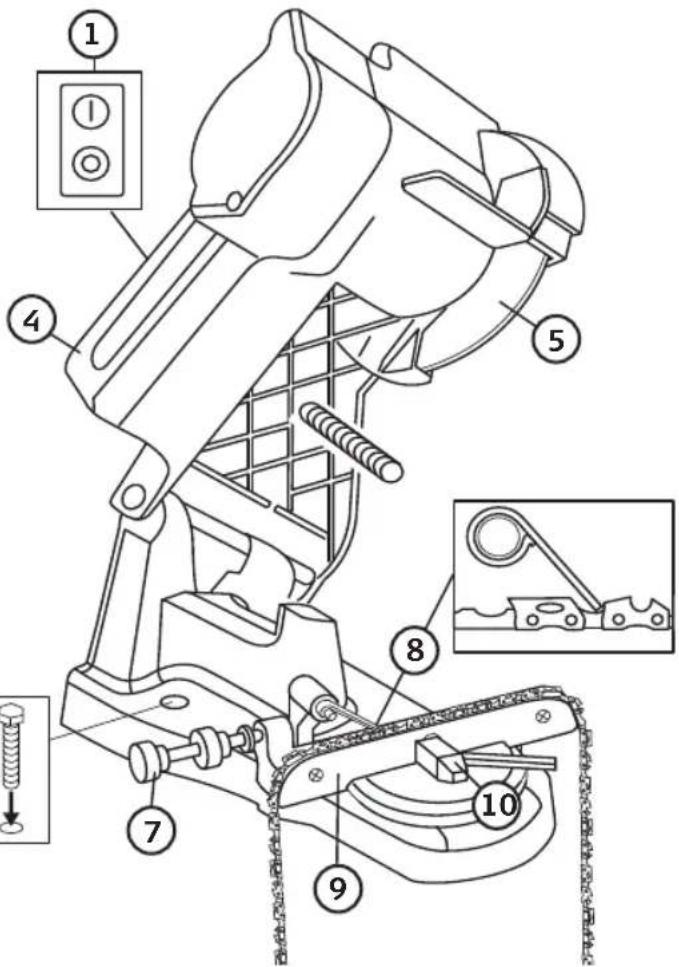

Product Description

1. Power Switch Off (0) / On (I)
2. Vice Locking Knob
3. Grinding Wheel Guard
4. Grinding Wheel Arm
5. Grinding Wheel
6. Depth Stop with Lock Nut
7. Length Adjustment Screw with Lock Nut
8. Chain Stop
9. Chain Vice
10. Chain Locking Lever

Not included

Installation, mounting

1. Position the sharpener on the workbench in such a way that the two feet on the bottom rest against the lip of the workbench and the vice locking knob (2) is accessible. Bear in mind that work area needs to be well-lit for adjusting and using the sharpener.
2. Bolt the chainsaw sharpener to the workbench using the two holes in the base.

Fitting and replacing the grinding wheel

1. Raise the grinding wheel arm (4) to maximum elevation.
2. Undo the two screws holding the grinding wheel guard (3) in place and remove it, keep the screws safe.

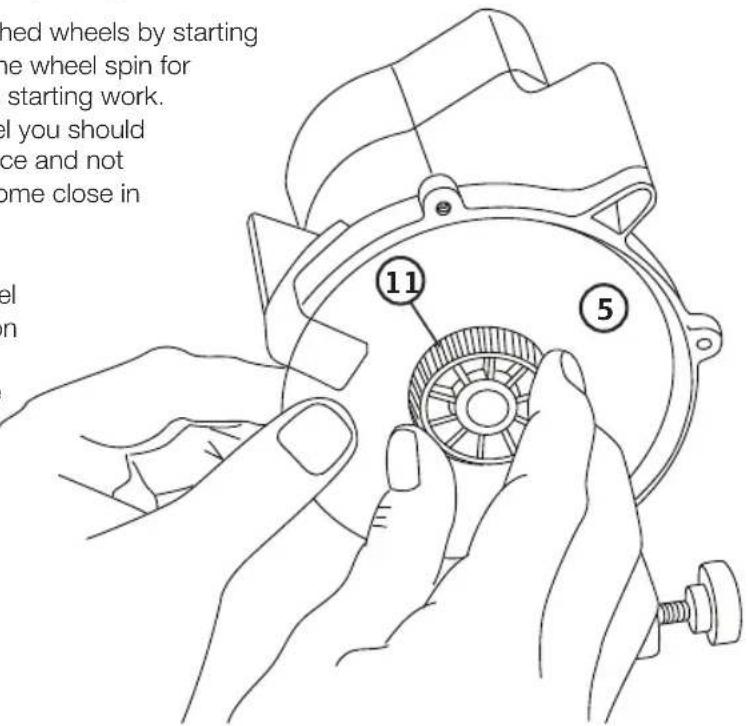

3. Unscrew the flange nut (11) holding the grinding wheel (5) in place and remove both the lock nut and grinding wheel. (turn the lock nut anticlockwise to undo it).
4. Insert a new grinding wheel onto the spindle making sure that it is centred and that the flanges are clean and flat. Tighten the flange nut (11) by hand, if the flanges are tightened too much the grinding wheel could become damaged, which could lead to the operator being seriously injured if the wheel shatters during use. Use only recommended grinding wheels according to the specifications. Make sure that the flange nut (11) is the right way round; the cupped side should be facing the grinding wheel.
5. Screw the grinding wheel guard (3) back on.
6. Always test newly attached wheels by starting the motor and letting the wheel spin for a minute or two before starting work. Whilst testing the wheel you should remain at a safe distance and not allow anyone else to come close in case the disc shatters.

If you notice that the wheel vibrates when turned on or during operation, the machine should be stopped immediately and the wheel should be inspected.

Warning:

Never try to stop the grinding wheel with your hand even if you are wearing safety gloves. Contact with a grinding wheel spinning at high speed can cause burns and scrapes.

Adjustment

Warning:

All adjustments should be made when the machine is turned off and unplugged.

1. Check which type of chain you have, set the correct filing angle (most chains have a filing angle of 30^ or 35^ ), tighten the locking knob (2) on the bottom.

Pure mechanical diagram showing a tool interacting with a curved surface, no text or symbols present

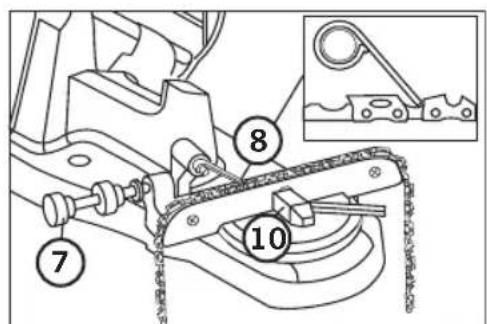

1. Lay the chain in the vice and lower the chain stop (8) behind the link to be sharpened first.
2. Carefully lower the grinding wheel arm (4) (all adjustments should be made with the motor turned off). The chain stop (8) should rest against the back of the link to be sharpened, adjust the chain stop (8) using the length adjuster screw (7) so that the grinding wheel will come into contact with the cutting edge of the link when it is lowered.
3. Fix the length adjuster screw (7) by tightening the lock nut.
4. Tighten the vice lock knob to hold the chain in place, if it gets caught on your arm it can be adjusted as follows: Undo the chain locking lever and move it to the desired position.

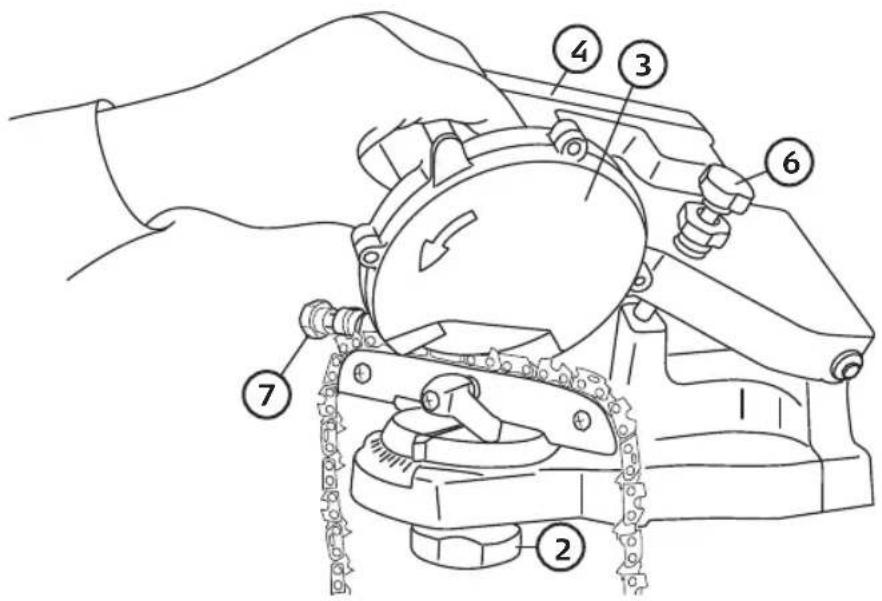

5. Carefully lower the grinding wheel arm (4) again and set the desired cutting depth using the depth stop (6), tighten the lock nut.
6. Lower the grinding wheel arm (4) and test if the setting is correct before starting the motor.
7. The sharpener is now set up.

Use

Warning:

Never try to stop the grinding wheel with your hand even if you are wearing safety gloves.

Contact with a grinding wheel spinning at high speed can cause burns and scrapes.

1. Clean the chain thoroughly before sharpening, do not use a flammable solvent. Allow the chain to dry before starting to sharpen it.

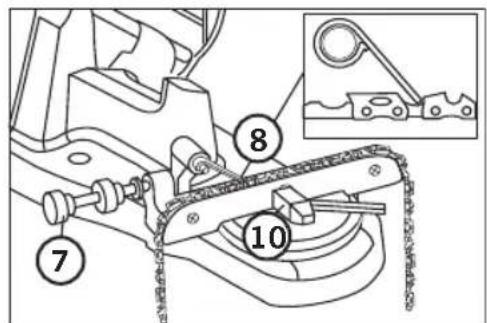

2. Lay the chain in the vice (9), lower the chain stop (8) against the back of the link and stretch the chain backwards toward the chain stop, tighten the vice locking lever (10) so that the chain is locked in place.

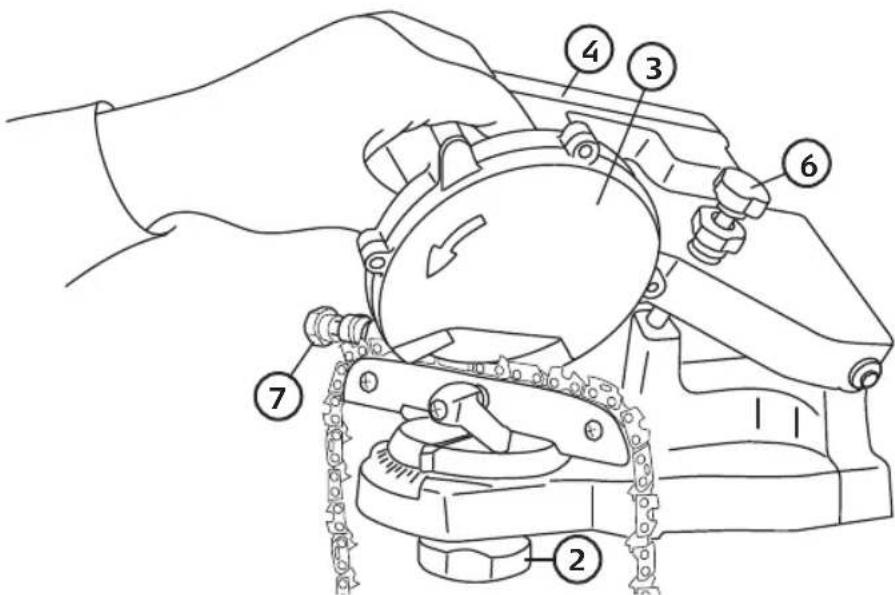

3. Lower the grinding wheel arm (4) and test if the setting is correct before starting the motor. Remember to put your safety glasses on before starting the motor!
4. Push the green start button to start the motor and let it come up to speed.
5. Carefully lower the grinding wheel arm and test it on one of the links, carefully raise the arm again, check the results, turn the motor off and adjust if necessary. If the settings are correct you can continue sharpening. Bear in mind that best results are achieved if the contact between the grinding wheel and the chain link occurs gradually and gently, do not grind the same link for too long.
6. Fully elevate the grinding wheel arm, undo the vice locking lever (10) and move the chain forwards to the next link (which is facing the same way) stretch the chain backwards against the chain stop (8), tighten the vice locking lever (10).
7. Take your hand off the chain and continue sharpening.
8. Continue in the same way with all the cutting links that are facing the same way.
9. Undo the locking knob (2) on the bottom, turn the vice (9) and set the correct filing angle for the rest of the cutting links that face the other way, tighten the locking knob (2) on the bottom. Continue until the whole chain is sharpened. Remember to unplug the machine after use.
10. Discard the chain if the cutting edge is ground down to under 3 mm.

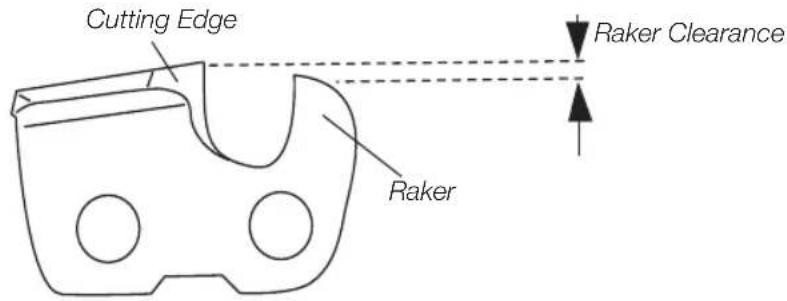

Raker Clearance, Setting the Cutting Depth of the Chain

It is the relationship between the cutting edge of the link and the height of the raker that determines how much material is removed by the chain. It is therefore very important that this relationship is maintained for the life of the chain. The correct clearance is very important both for safety and optimum stock removal.

If the chain has been grinded 2 to 4 times (depending upon how much material has been ground away) the rakers might need to be filed down to maintain the same raker clearance (and depth of cut). Use a flat file and a file guide/depth gauge to file the rakers.

If you do not have a file guide for setting the raker clearance you can use a flat file and file two strokes off each of the rakers as shown in the figure.

Care and Maintenance

• Keep the sharpener free of dust and metal filings.
• Replace the grinding wheel when it is worn down to ∅ 75 mm.
• Store the sharpener in a dry place out of children's reach.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Transportation

The packaging that this machine comes in can be recycled. The package should be handled with care as it must not be subjected to knocks during its transportation.

Specifications

Electrical grinder for sharpening chainsaw chains.

Power Supply 230 V AC, 50 Hz, 85 W

Output Power 85 W

Weight 2.4 kg

Grinding Wheel Size Outer diameter 108 mm, inner diameter (bore) 23 mm

Grinding Wheel Thickness 3.2 mm

Max. Speed 4800 RPM

Sound Power (Lwa) 93 dB(A)

Sound Pressure (LpA) 80 dB(A)

Compatible with these sizes of chain: Chain Pitch 1/4" - 0.325" - 3/8" - 0.404"
