USER MANUAL HJ 801-T Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Blue Cocracraft utility tool with visible model number HJ 801-T, resting on a textured surface (no text or symbols on the device body)

Art.no 41-2584

Model M1Q-TD2-80D2

Ver. 202301 31

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you experience any technical problems or have questions, please contact our customer service team (address on the back).

Table of contents

1. Safety......4

1.1 General safety requirements - EN 62841-1......4

1.2 Particular safety requirements for reciprocating saws (jigsaws) – EN 62841-2-11....6

1.3 Guide to product safety symbols ...... 6

1. Product description......7

2. Assembly and setup 8

3.1 Changing the blade....8

3.2 Fitting the parallel guide......8

3.3 Adjusting the bevel angle of the shoe 9

3.4 Setting the pendulum action 9

3.5 LED light 10

3.6 Setting the blade speed....10

3.7 Switching on/off....10

3.8 Vacuum cleaner dust extraction 10

1. Useful tips ...... 11

4.1 Preparations....11

4.2 Sawing....11

4.3 Plunge cutting....11

4.4 Sawing metal 11

1. Troubleshooting 12

2. Care and maintenance....13

3. Responsible disposal 13

4. Specifications....13

1. Safety

1.1 General safety requirements - EN 62841-1

Warning: Read all safety warnings and instructions. Failure to comply with the following instructions can lead to electric shocks, fires and/or serious injury. The term ‘power tool’ in the warnings below refers to your handheld mains operated or battery operated tool.

SAVE THESE INSTRUCTIONS.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered and poorly lit areas increase the risk of accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose concentration and control of the tool.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Never use any adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of electric shocks.
b) Avoid body contact with earthed or grounded objects, such as pipes, radiators, ovens and refrigerators. There is an increased risk of electric shock if your body is earthed.
c) Do not expose the power tool to rain or other wet conditions. after entering a power tool will increase the risk of electric shock.
d) Do not abuse the power cord. Never use the power cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord that is suitable for outdoor use. The use of an extension cord designed for outdoor use decreases the risk of electric shocks.

3) Personal safety

a) Pay attention to what you are doing and use common sense when using a power tool. Never use a power tool if you are tired or under the influence of drugs, alcohol or medication. One moment of inattention while using a power tool may result in serious injury.
b) Use personal protective equipment. Always wear eye protection. Using protective clothing such as dust masks, non-slip safety shoes, helmets and ear defenders when needed decreases the risk of injury.

c) Prevent unintentional starting. Make sure that the power trigger or switch is set to OFF before plugging the power tool into a wall socket. Never carry a power tool with your finger on the trigger and never connect the power tool to a wall socket when the switch is set to ON, as doing so increases the risk of an accident occurring.
d) Remove all service tools/keys before switching the power tool on. A service tool left on a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Wear suitable clothing. Do not wear loose-fitting clothing or jewellery.

Keep hair, clothes and gloves away from moving parts. Loose clothes, jewellery or long hair can become caught in moving parts.

g) If equipment for dust extraction and collection is available, make sure that it is connected and used properly. The use of such equipment can decrease dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer if used at the rate for which it was designed.
b) Never use the power tool if the power switch does not switch the tool on and off properly. Any power tool that cannot be controlled by the power switch is dangerous and must be repaired.
c) Unplug the cord from the wall socket, before making any adjustments, changing accessories or storing the power tool. These precautions reduce the risk of the power tool starting unexpectedly.
d) Store idle power tools out of the reach of children and do not allow people who are unfamiliar with the power tool or these instructions to operate the tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, broken parts or anything else which may cause the power tool to malfunction. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and similar in accordance with these instructions and in an appropriate way suitable for the type of power tool used, taking into account the working conditions and the work to be performed. Using the power tool for a purpose other than that for which it is intended could result in a dangerous situation.

5) Maintenance

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This guarantees that the safety of the power tool is maintained.

1.2 Particular safety requirements for reciprocating saws (jigsaws) - EN 62841-2-11

Warning: Always disconnect the plug from the mains before adjusting, servicing or performing maintenance on the machine.

1. Hold the power tool by its isolated gripping surfaces whenever there is a risk of the saw blade coming into contact with hidden live wires or its own power cord. If the saw blade comes into contact with live wires it may electrify the metal parts of the power tool which can give the user an electric shock.
2. If the power cord is damaged it should only be replaced by the retailer.
3. Keep your hands away from the blade and other moving parts.
4. Do not reach under the workpiece being sawn. Be extra-careful if the blade or your hand is out of sight. Make sure that the underside of the workpiece is free of obstacles.
5. Do not use blunt or damaged saw blades. Bent saw blades can easily break or cause kickback.
6. Start the saw and let it run up to speed before starting to cut.
7. Make sure that the shoe is in constant contact with the workpiece during sawing. Be extra careful when cutting with a tilted shoe as it is easy to exert too much lateral force on the saw blade.
8. Secure the workpiece with a clamp, vice, etc.
9. Make sure that the settings are correct and that the blade is securely fastened in the blade holder before beginning to saw.
10. Make sure that the saw blade has come to a complete stop before removing the saw from the cut. The saw blade should not be stopped by applying lateral force to the side of the blade.

1.3 Guide to product safety symbols

Read the entire instruction manual.

Always wear eye protection.

Always wear hearing protection.

Always wear a dust mask.

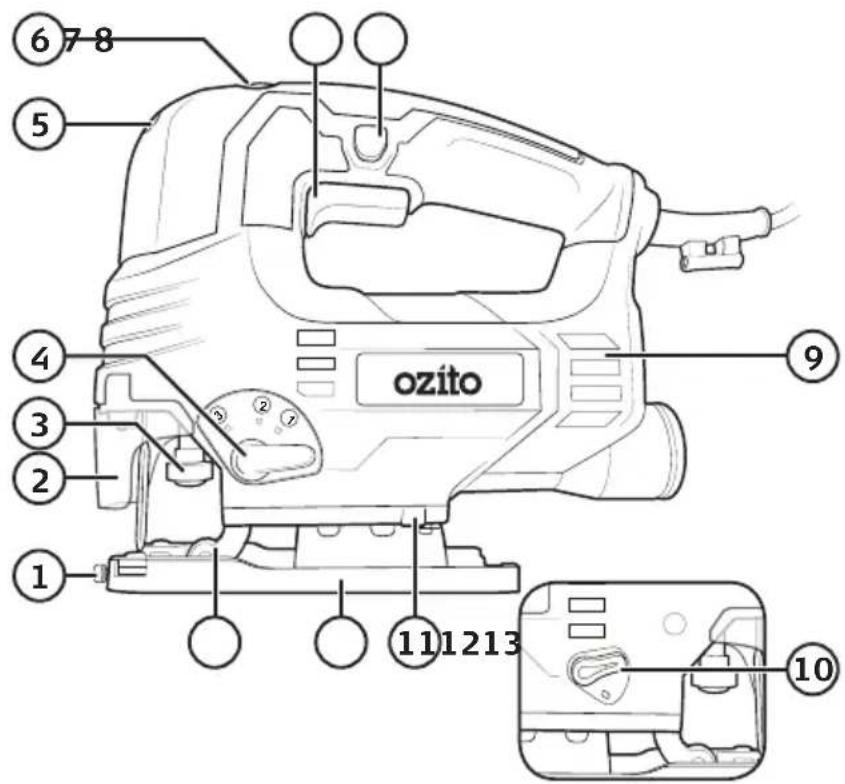

2. Product description

• Pendulum Jigsaw
• LED light
• Blower and dust extraction port
  • Keyless blade holder for quick and easy blade changes

• Comes with parallel guide and saw blade

• Parallel guide slots with set screws

• Chip guard
• Keyless blade holder lock (3B)
• Pendulum action control
• LED light on/off switch
• Speed selector
• Power trigger
• Trigger lock button

• Motor cooling vents

• Sawdust deflector switch. The switch should be set to 0 to blow dust away from the sawing line and set to 1 when a dust collector is attached.

• Bevel angle scale

• Shoe
• Blade guide roller
• Parallel guide

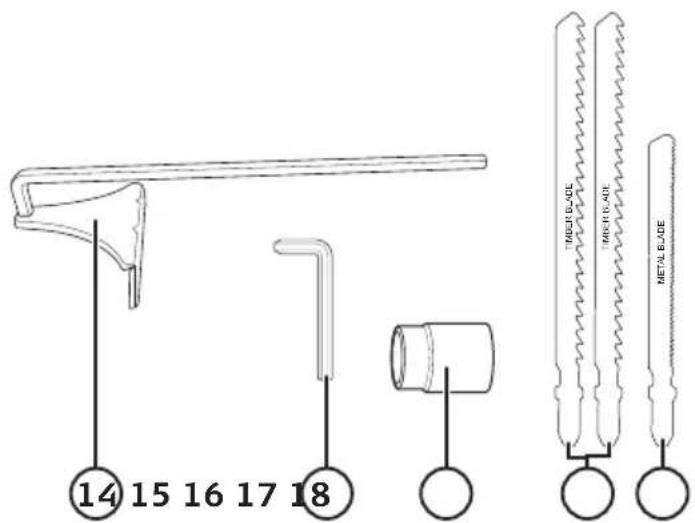

• Hex key
• Dust extraction port
• Wood cutting blade
• Metal cutting blade

3. Assembly and setup

Warning: Unplug the jigsaw from the electrical socket before carrying out any adjustment, servicing or maintenance.

3.1 Changing the blade

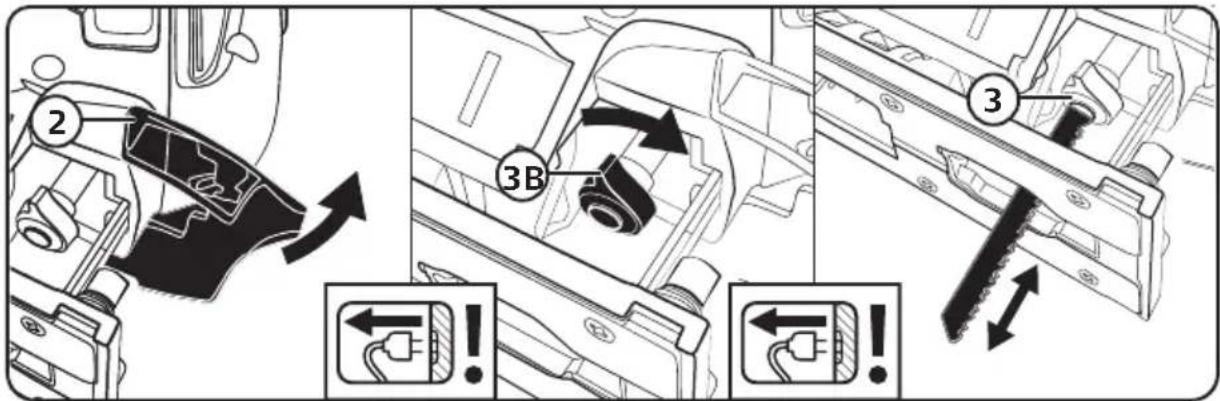

1. Raise the chip guard (2).
2. Undo the blade holder lock (3B) by turning the tab on the ring to the middle. Remove the used blade.

3. Insert the new blade as far up into the blade holder (3) as it will go. Check that the back of the blade runs along the guide roller (13).

4. Release the blade lock.

5. Check that the blade is held securely by trying to pull it.

Note: The saw blade will be locked as soon as the blade holder lock is released.

3.2 Fitting the parallel guide

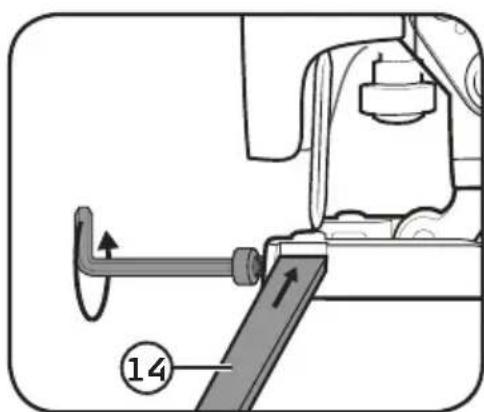

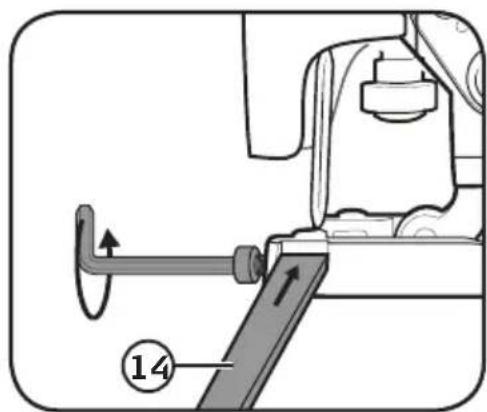

1. Undo the two set screws (1) but do not remove them. Use the hex key (15) which is kept in a holder on the power cord.

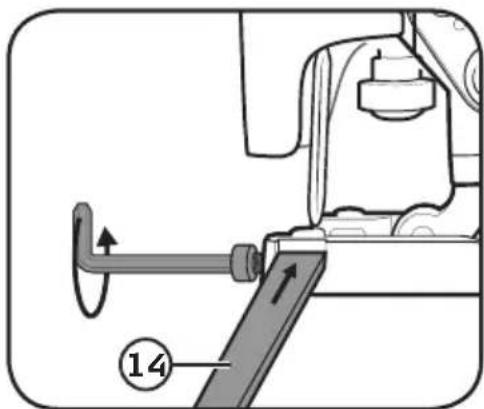

2. Slide the parallel guide (14) into the slots in the shoe.
3. Set the desired length.
4. Tighten the set screws.
5. Check that the saw is set correctly by test-cutting a piece of scrap wood/metal before sawing the actual workpiece. Adjust the parallel guide if necessary.

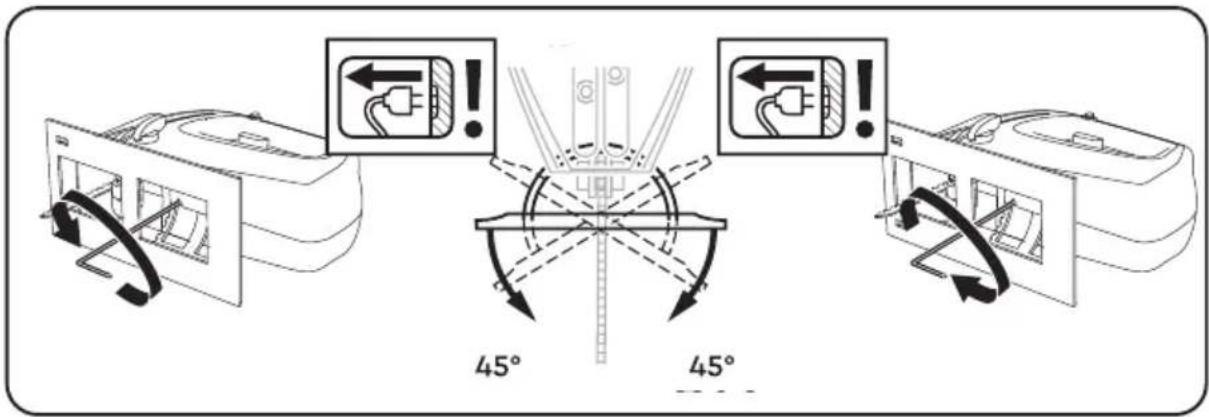

3.3 Adjusting the bevel angle of the shoe

The shoe (12) can be tilted up to 45° to the right or left.

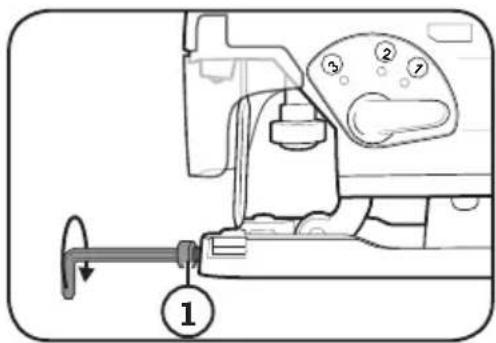

1. Loosen the socket head screw on the bottom of the shoe.

1. Slide the shoe backwards and set the desired angle. There are fixed settings for -45^, -30^, 0^, 30^ , and 45^ .

2. Tighten the socket head screw.

3. Check that the saw is set correctly by test-cutting a piece of scrap wood/metal before sawing the actual workpiece. Adjust the angle if necessary.

Do NOT pull the shoe forwards if you want to set an angle other than the fixed settings. Set the desired bevel angle and then tighten.

3.4 Setting the pendulum action

The pendulum action can improve cutting efficiency and the setting can be adjusted until the optimum setting for the material being cut has been found. However, the swing of the pendulum action does create a rougher finish, so if a really fine finish is required the pendulum action should be set to 0.

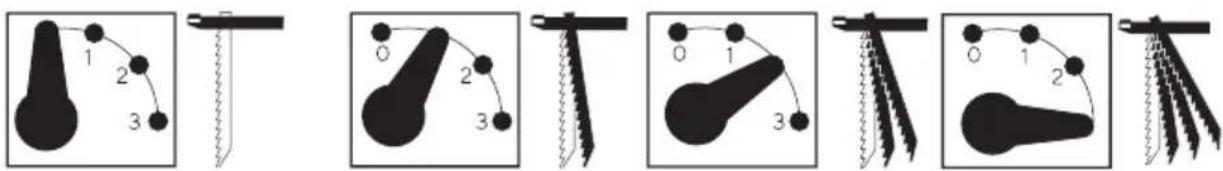

The pendulum action selector (4) sets the degree of pendulum swing.

There are 4 fixed settings, turn the selector carefully until it clicks into a setting.

• 0 – sheet metal, steel or rubber
  • 1 – non-ferrous metals, hard woods, plastics
• 2 - wood
  • 3 – wood (highest stock removal rate)

3.5 LED light

Press the power switch (6) to switch the LED light on/off.

3.6 Setting the blade speed

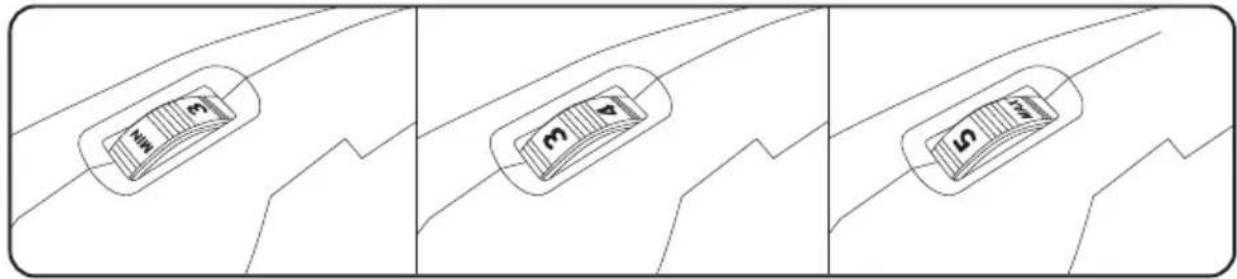

The blade speed can be adjusted to suit the material by rotating the speed selector control (7), even during operation. 1 = lowest speed, 6 = highest speed.

After cutting at low speed for a long time, the jigsaw should be run at maximum speed for about 3 minutes to cool down the motor.

3.7 Switching on/off

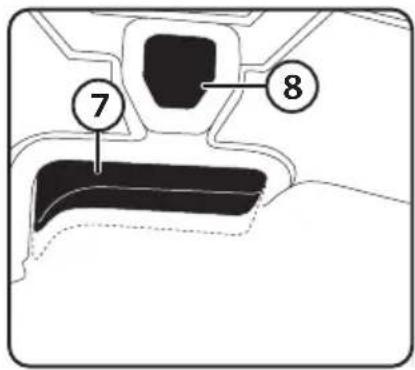

Switching on: squeeze the power trigger (7) to switch the jigsaw on. Switching off: release the power trigger to switch the jigsaw off.

The jigsaw is equipped with a lock button (8) to lock the trigger on for long cuts.

To lock the power trigger in the on position: Press the trigger lock button and power trigger simultaneously and then release the trigger before releasing the trigger lock button.

Stopping when the trigger is locked:

To disengage the trigger lock and stop the jigsaw, pull the power trigger and then release it.

3.8 Vacuum cleaner dust extraction

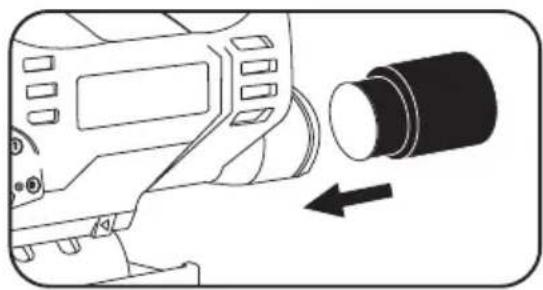

1. A vacuum cleaner or dust extraction system can be attached to the dust extractor port.

2. Set the sawdust deflector switch (10) to position 1.

Note: The switch should be set to 0 if a vacuum cleaner is not used; the air used to cool the motor will then be directed to blow the sawing line clean.

Line drawing of a camera with an arrow indicating left motion (no text or symbols)

4. Useful tips

4.1 Preparations

• Measure and mark out the sawing line carefully before starting to cut.
- Small workpieces should be securely clamped. Make sure that the power cord does not impede working operations or come into contact with the blade during use.
- Check that the shoe is locked at the desired bevel angle before you begin sawing.
- If you are unsure about the choice of blade speed or type of blade, test-cut a piece of scrap of the same material as the workpiece.

4.2 Sawing

• Hold the jigsaw in a firm grip. Make sure that the saw blade is not in contact with the workpiece and then pull the trigger to start the saw. Let the motor come up to speed before starting to cut.
• Never apply excessive forward pressure to the tool – always let the blade do the work.
• Keep your hands in sight, never put a hand under the workpiece where the blade cannot be seen.

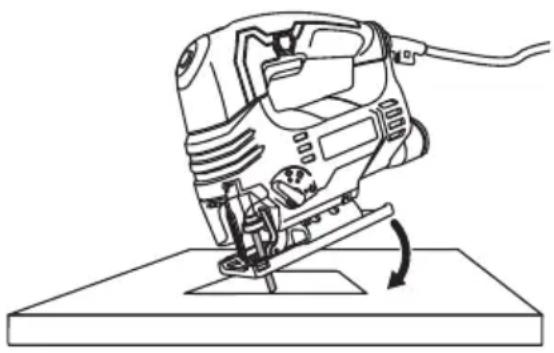

4.3 Plunge cutting

Great care should be taken when plunge cutting. Plunge cutting is only possible in soft materials such as wood.

1. Rest the front of the shoe on the workpiece and tilt the saw forwards. Make sure that the saw blade is not in contact with the workpiece.
2. Switch the jigsaw on and slowly pivot it downwards so the blade starts to cut into the material, then slowly lower the entire shoe onto the workpiece.

Line drawing of a hand operating a(J)J523 tool on a base, showing mechanical components and motion direction (no text or symbols)

(Alternatively, a hole can be drilled in the material to provide a starting point for the blade.)

4.4 Sawing metal

• Be careful, saw blades can easily bend when sawing metal.
• Use a finer toothed blade if the jigsaw vibrates a lot during operation.
• Lower the speed if the saw blade becomes very hot.
• The use of some kind of lubrication/coolant is recommended, e.g. alcohol for aluminium and cutting oil for steel.

• When cutting thin sheet metal, it is advisable to clamp the sheet to a sheet of thin plywood or similar on either side of the metal. Then saw through all the layers.

• Troubleshooting

Problem Possible cause Action
The jigsaw will not start.	No power from the wall socket.	Check to see if there is power at the wall socket.
	Worn brushes Contact our electrical workshop in the case of motor or electrical faults.
	Short circuit.
	Faulty power trigger.
The jigsaw runs slowly.	Worn or damaged saw blade.	Replace the saw blade.
	Speed too low. Increase the blade speed.
	The motor is overheated. Feed the jigsaw forward with less force.
Strange noise.	Mechanical fault. Contact our electrical workshop.
	Faulty windings.
Heavy vibrations.	Loose blade. Check the saw blade and make sure it is fitted correctly.
Sparks from the motor.	Brushes jammed. Contact our electrical workshop.
	Windings short circuited
	Dirty commutator

6. Care and maintenance

• Unplug the power cord before cleaning the product.
• Wipe the product using a moist, soft cloth. Use a mild cleaning agent – never use a solvent or strong, abrasive cleaning agent as these could damage the product.
  • Always keep the ventilation openings of the motor free of dust and debris.

7. Responsible disposal

This symbol indicates that the product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

8. Specifications

Rated voltage 220–240 V AC, 50/60 Hz

Power 810 W

Variable speed 1000–2900 strokes/min

Adjustable pendulum action 4 settings

Saw blade holder T-shank

Adjustable shoe angle max 45°

Sawing capacity wood 80 mm, steel 8 mm

Noise levels LwA = 96 dB(A), K = 3 dB(A)

$$ \mathrm{LpA} = 8 5 \mathrm{dB(A)}, K = 3 \mathrm{dB(A)} $$

Vibration level cutting board a cutting steel, metal a

Weight 2.3 kg

$$ \mathrm{h}, \mathrm{B} = 1 2. 0 6 \mathrm{m} / \mathrm{s} ^ {2}, \mathrm{K} = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

$$ h, M = 9. 8 \mathrm{m} / \mathrm{s} ^ {2}, K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

Pendelsticksåg

Art.nr 41-2584 Modell M1Q-TD2-80D2

3.5 LED-belysning

Line drawing of a camera with an arrow indicating left motion (no text or symbols)

4. Användningstips

4.1 Förberedelser

Line drawing of a hand operating a manual power tool on a workbench, showing mechanical components and motion direction (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

8. Specifikationer

3.5 LED-lykt

Line drawing of a camera with an arrow indicating direction (no text or symbols)

4. Brukertips

4.1 Forberedelser

• Mål opp og marker sagelinjen før du starter sagingen.
• Små arbeidsemner bør festes med f.eks. tvinger. Pass på at ikke verktøyets ledning kommer nær sagbladet mens du sager.
• Kontroller at fotplaten er låst i ønsket vinkel før du begynner å sage.
• Hvis du er usikker på valg av hastighet eller type sagblad bør du teste ut på et testeemne av samme materiale.

4.2 Saging

Line drawing of a hand operating a(J) on a workbench, showing mechanical components and motion direction (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

8. Spesifikasjoner

Strømforsyning 220–240 V AC, 50/60 Hz

Effekt 810 W

Trinnløs hastighet 1000–2900 slag/min

Justerbar pendelbevegelse 4 trinn

Sagbladfeste Type T

Justerbar fotplate Maks 45°

3.5 LED-valo

Line drawing of a camera with an arrow indicating direction (no text or symbols)

4. Käyttövinkkejä

4.1 Esivalmistelut

Line drawing of a hand operating a manual power shaver on a workbench (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

8. Tekniset tiedot

EC Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer.

EU-försäkran om överensstämmelse utfärdas på tillverkarens eget ansvar. / Egenerkläringen er utstedt under produsentens eget ansvar. / Tämä vaatimustenmukaisuusvakuutus on annettu valmistajan yksinomaisella vastuulla

Manufacturer and person authorised to compile technical file: Clas Ohlson AB, SE-793 85 Insjön, Sweden

Name	Jig Saw Cocraft
Type/Model	MIQ-TD2-80D2
Clas Ohlson Article Number	412584000

The product satisfies the provision for CE-marking according to the following directive(s) / regulation(s) including amendments / Produkten uppfyller kraven för CE-märkning enligt följande direktiv / förordningar inklusive ändringar/ Produktet tilfredsstiller bestemmelsen om CE-merking i henhold til fölgende direktiv (er) / forskrifter, inkludert endringer / Tupte täyttää seuraavien direktiivien / asetusten mukaiset CE-merkintää koskevat vaatimukset, mukaan lukien muutokset;

Machinery Directive 2006/42/EC
EMC Directive 2014/30/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared. Hänvisning till de harmoniserade standarder som använts eller hänvisningar till de specifikationer som försäkran om överensstämmelse deklareras: / Referere til harmoniserte standarder som brukes, eller henvisninger til spesifikasjonene der samsvarserklæring er erklärt: / Viittaus yhdenmukaistettuihin standardeihin tai viittaus eritelmiin, jossa vaatimustenmukaisuusvakuutus on julistettu; MD: EN 62841-1: 2015 + AC:15, EN 62841-2-11: 2016 + A1:2020

EMC: EN IEC 55014-1: 2021, EN IEC 55014-2: 2021, EN IEC 61000-3-2: 2019 + A1: 2021, EN 61000-3-3: 2013 + A2: 2021

Signed for and on behalf of;

Product Compliance & Sustainability Manager

Clas Ohlson AB, SE-793 85 Insjön, Sweden

Place and date: 2022-09-10

Sverige
