M1H-ZP2-4-250 - Saw Cocraft - Free user manual and instructions
Find the device manual for free M1H-ZP2-4-250 Cocraft in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Circular Saw |
| Brand | Cocraft |
| Model | M1H-ZP2-4-250 |
| Power Rating | 1200 W |
| Blade Diameter | 185 mm (7.25") |
| Max Depth of Cut (90°) | 64 mm (2.5") |
| Max Depth of Cut (45°) | 45 mm (1.8") |
| Bevel Capacity | 0° - 45° |
| No-Load Speed | 5500 rpm |
| Weight | 4.5 kg |
| Power Supply | 230 V AC, 50 Hz |
| Safety Features | Blade guard, spindle lock, double insulation |

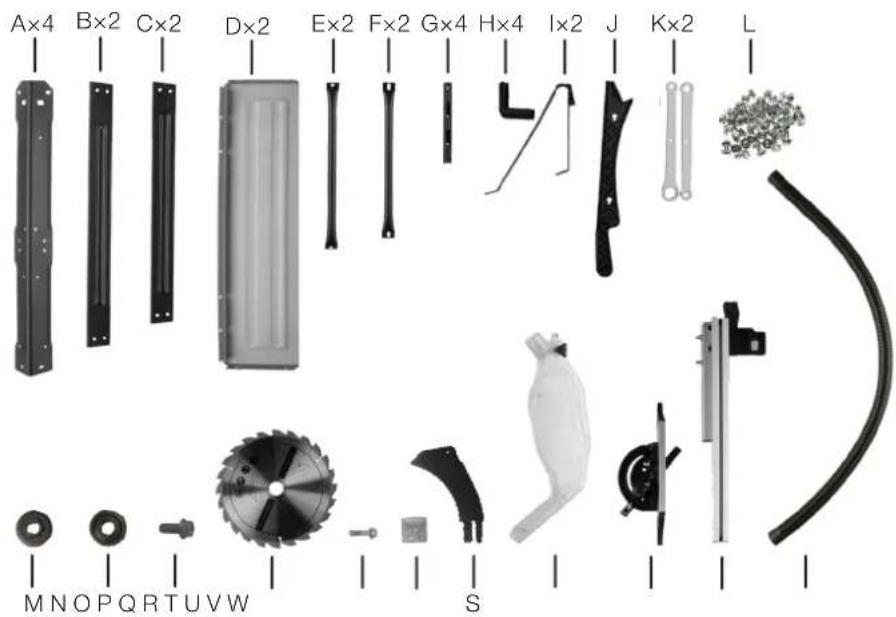

| Included Accessories | Saw blade, rip fence, wrench |
| Material | Aluminum and plastic |
| Maintenance | Clean after use, check carbon brushes regularly |
| Repairability | Spare parts available via service centers |
Frequently Asked Questions - M1H-ZP2-4-250 Cocraft

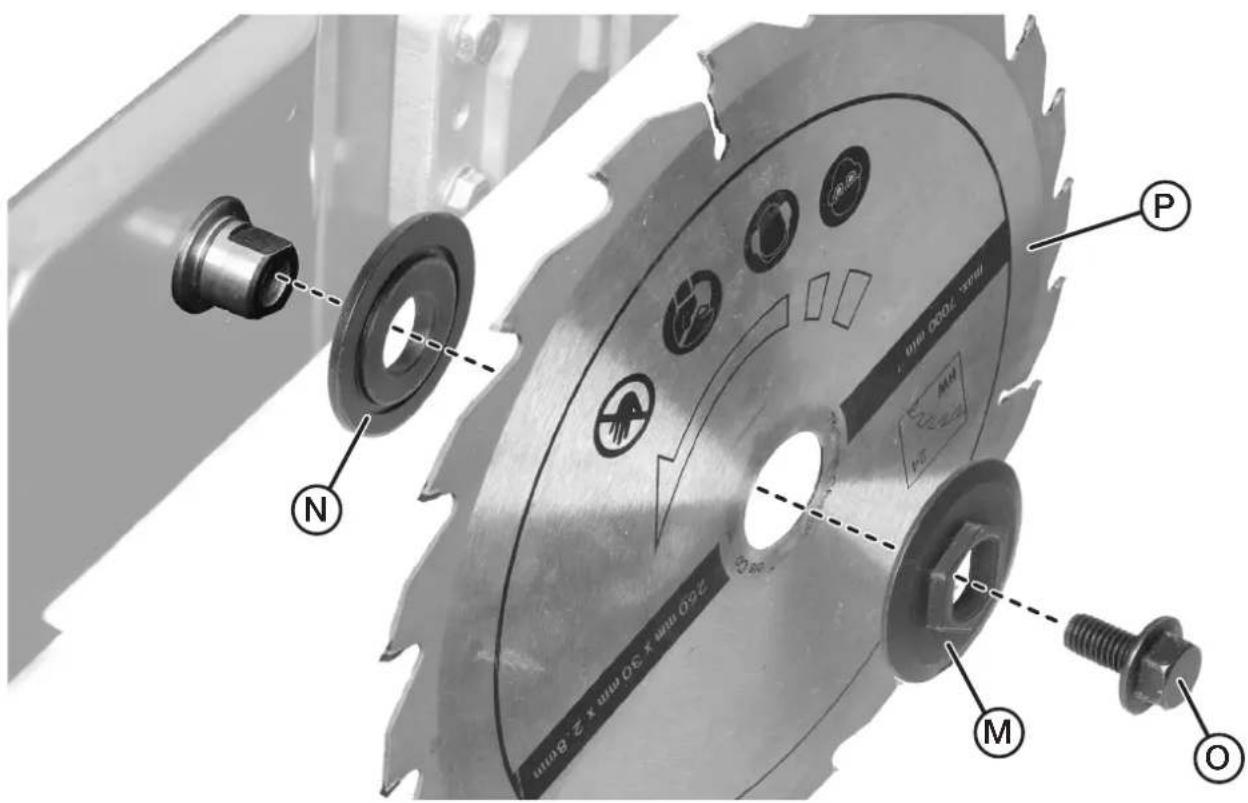

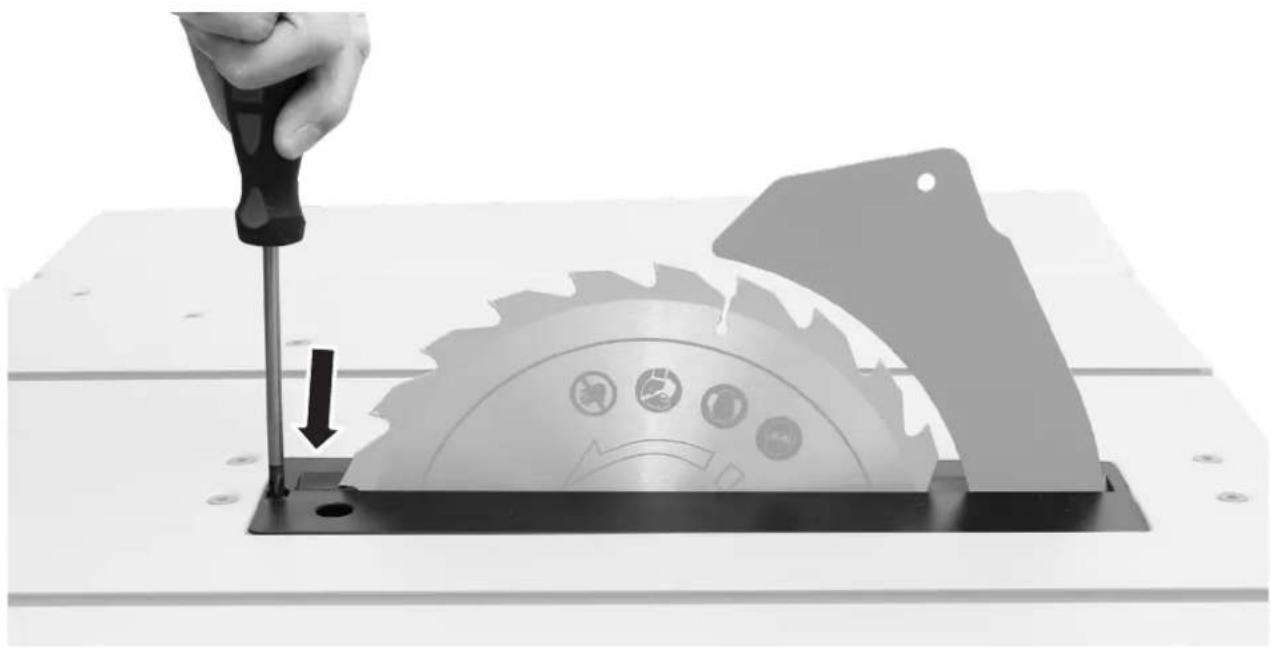

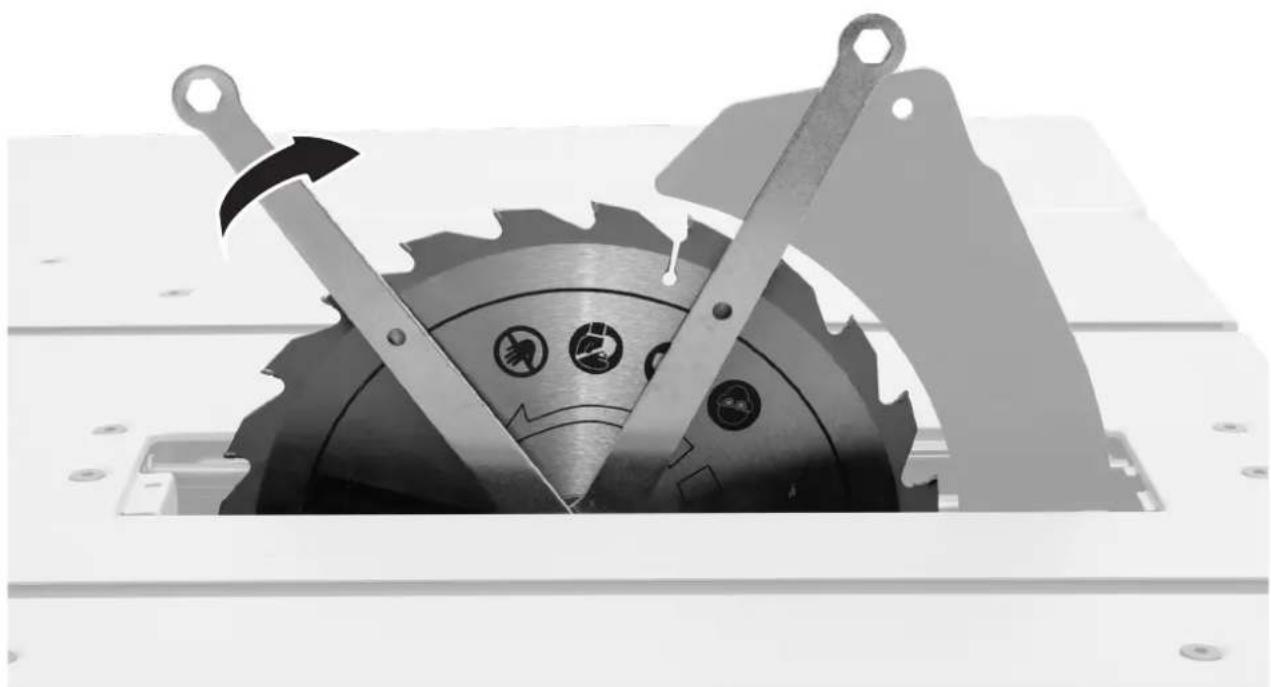

How do I change the saw blade?

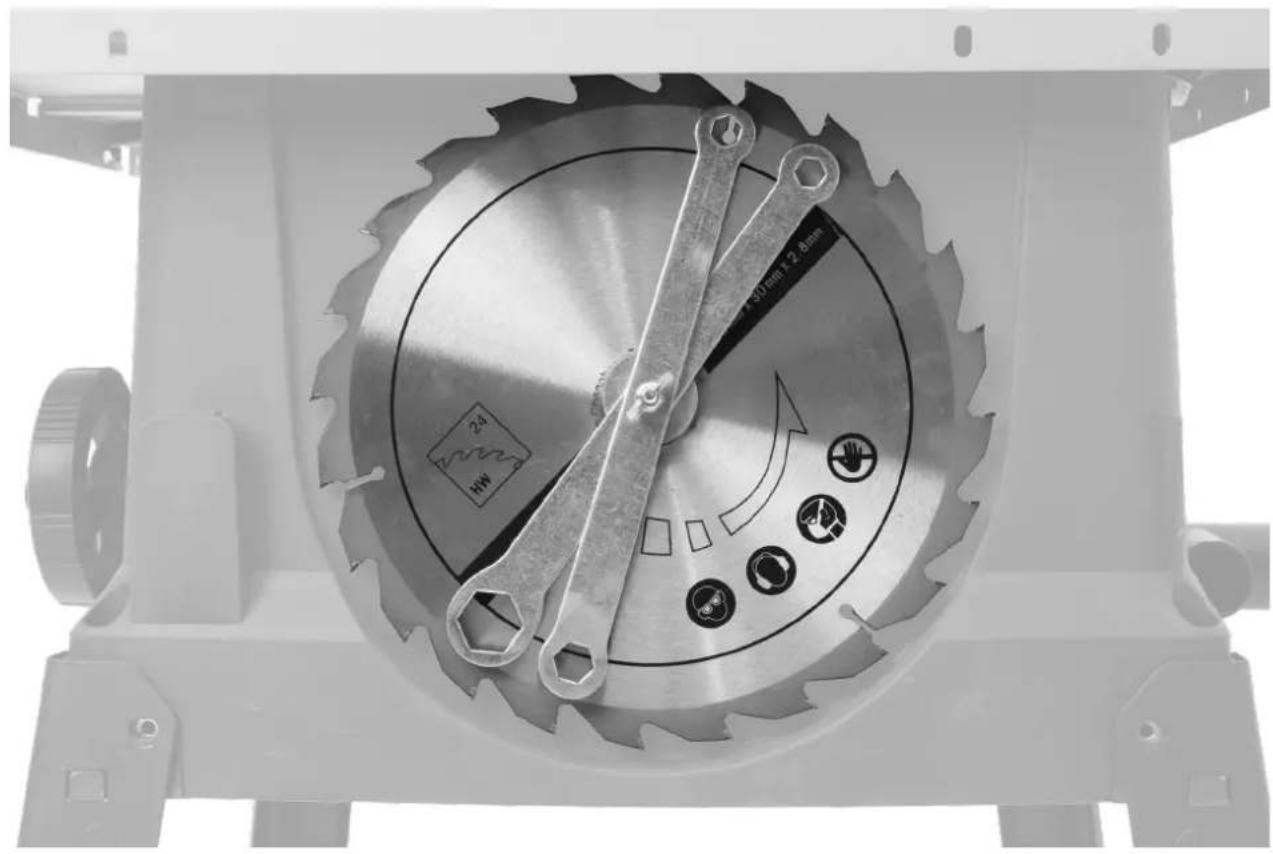

Unplug the saw. Press the spindle lock to hold the blade. Use the wrench to loosen the arbor bolt. Remove the outer flange and old blade. Install new blade with teeth facing forward. Tighten the bolt securely.
How do I adjust the bevel angle?
Loosen the bevel adjustment knob on the front or rear of the saw. Tilt the base to the desired angle (0° to 45°). Retighten the knob. Use the bevel scale for accuracy.
What is the maximum cutting depth?
At 90° (straight cut), the max depth is 64 mm. At 45° bevel, it reduces to 45 mm.
Can I use this saw for cutting metal?
The saw is designed for wood and wood-based materials. For metal, you need a special blade and slower speed. Check the manual for suitable blades.
How do I clean and maintain the saw?
After use, remove dust with a brush or air hose. Clean the air vents. Inspect the carbon brushes every 50 hours and replace if worn. Lubricate moving parts sparingly.
What should I do if the saw does not start?
First, check the power cord and plug. Ensure the safety switch is not locked. If it still doesn't start, the brushes may be worn or the motor damaged. Contact service center.
How do I set the depth of cut?
Unplug the saw. Loosen the depth adjustment lever. Move the shoe up or down to the desired depth. The blade should protrude about 3-6 mm below the work piece. Tighten the lever.
What is the recommended blade for general wood cutting?
Use a 24-tooth carbide-tipped blade for ripping or a 40-tooth for crosscuts. Always choose a blade with the correct kerf and bore size (20 mm).
How do I store the saw safely?
Store in a dry place away from moisture. Use the blade guard to cover the blade. Keep it out of reach of children. Do not store with the power cord wrapped tightly.
Where can I find spare parts?
Spare parts are available through Cocraft service centers or authorized dealers. Provide the model number M1H-ZP2-4-250 when ordering. Common parts include brushes, blade flanges, and switches.
User questions about M1H-ZP2-4-250 Cocraft
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Saw in PDF format for free! Find your manual M1H-ZP2-4-250 - Cocraft and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. M1H-ZP2-4-250 by Cocraft.
