Product Type	Corded Circular Saw
Brand	Cocraft
Model	HB920D
Power Supply	230V AC, 50Hz
Power Consumption	1200 W
Blade Diameter	190 mm
Arbor Size	20 mm
No-Load Speed	5000 rpm
Max Depth of Cut at 90°	65 mm
Max Depth of Cut at 45°	45 mm
Bevel Capacity	0° to 45°
Weight	4.5 kg
Dimensions (L x W x H)	350 x 250 x 300 mm
Cable Length	2 m
Features	Laser guide, spindle lock, dust extraction port, safety guard
Safety	Double insulation, trigger lock-off
Maintenance	Clean after use, inspect carbon brushes every 50 hours
Spare Parts Availability	Contact Cocraft service or authorized dealers
Warranty	2 years (check local regulations)

Frequently Asked Questions - HB920D Cocraft

How do I change the blade on the Cocraft HB920D saw?

First, unplug the saw. Press the spindle lock to prevent the blade from rotating. Use the provided wrench to loosen the arbor nut (turn clockwise as viewed from the blade side). Remove the outer flange and old blade. Install the new blade with teeth facing the rotation direction (indicated on the guard). Reassemble and tighten the nut securely while holding the spindle lock.

How do I adjust the depth of cut?

Loosen the depth adjustment lever located near the base plate. Slide the base plate up or down to set the desired depth. The scale shows the cutting depth. Retighten the lever. For most materials, set the blade to extend about 5 mm below the workpiece thickness.

Can I use the HB920D to cut metal?

Yes, but you must use a ferrous metal cutting blade (e.g., diamond or carbide-tipped). Reduce the sawing speed and apply light pressure. Always wear appropriate PPE, including safety glasses and gloves. Ensure the material is securely clamped.

How should I clean and maintain the saw?

After each use, unplug and wipe the saw with a dry cloth. Use compressed air to blow dust from the motor vents and blade guard. Periodically check the carbon brushes: if they are worn down to less than 6 mm, replace both brushes. Lubricate the bevel mechanism with light oil if needed.

What should I do if the saw doesn't start?

Check the power cord and plug for damage. Ensure the outlet is live. Verify that the safety lock-off button is disengaged. If the saw still won't start, the brushes may be worn or the switch faulty. Contact Cocraft service for repair.

How do I use the laser guide?

The laser guide projects a red line indicating the cut path. Slide the laser switch to the ON position. The laser is factory-set; if it needs adjustment, use the screws near the laser housing to align the line with the blade's cut. The laser requires two AAA batteries (not included).

When should I replace the carbon brushes?

Replace the carbon brushes when they are worn to less than 6 mm in length, or if the saw sparks excessively. Always replace both brushes at the same time. Use genuine Cocraft brushes (part number available in the manual). Insert the new brushes with the curved side against the commutator.

What is the warranty period for the Cocraft HB920D?

The standard warranty is 2 years from the date of purchase, covering manufacturing defects. It does not cover normal wear and tear, misuse, or damage from unauthorized repairs. Keep your receipt as proof of purchase.

Can I use an extension cord with this saw?

Yes, but use a heavy-duty cord rated for at least 15 amps and suitable for outdoor use if necessary. Keep the extension cord as short as possible to avoid voltage drop. Do not use cords longer than 30 meters (100 feet). Ensure the cord is fully unwound to prevent overheating.

What is the maximum cutting capacity of the saw?

At 90° (perpendicular to the base), the saw can cut up to 65 mm depth. At a 45° bevel, the maximum cut depth is 45 mm. For panel sawing, the width is limited only by the workpiece size; use a guide rail for long cuts.

USER MANUAL HB920D Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Blue Cocraft H8920D industrial power tool with black handle and circular head (no visible text or symbols on device body)

Art.no

18-3615

41-1232

Model

HBS76CV-UK

HBS76CV

Ver. 20180705

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Power Tool Safety Warnings

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Repairs and service should only be performed by qualified persons, and only with original spare parts. This guarantees the safety of the electrical hand tool.

Specific Safety Regulations for Belt Sanders

• Hold power tool by insulated gripping surfaces, because the belt may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Wear safety goggles and a dust mask whenever sanding. Prolonged exposure to the dust caused by sanding is detrimental to your health; certain types of wood dust are toxic and hazardous even after minimal exposure.
  • Make sure that the sanding belt is intact and well centred.
• Make sure that the sanding belt is not touching anything when switching the machine on. Switch it on and let it come up to speed before starting to sand.
• Hold the machine firmly in both hands.
  • Make sure that there are no nails or foreign bodies in the workpiece before starting to sand.
• Keep the air vents of the motor clean and free of obstructions to prevent the motor from overheating.
• Wear a dust mask whenever sanding and a dust extractor connected to the machine should also be used wherever possible.
• Extra care should be taken when sanding paint containing lead or when sanding wood, metal, or other material which could produce toxic dust. Make sure that anyone in the vicinity of the work area is also protected from dust and toxins.
• Wood dust can be very flammable when mixed with air.

Warning: Never use the extractor when sanding metal, sparks could ignite the hose or dust bag.

Vibration

• The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Guide to Safety Symbols

Read the entire instruction manual.

Always use ear protection, safety glasses or a visor and wear a dust mask.

Operating Instructions Attaching/changing the sanding belt

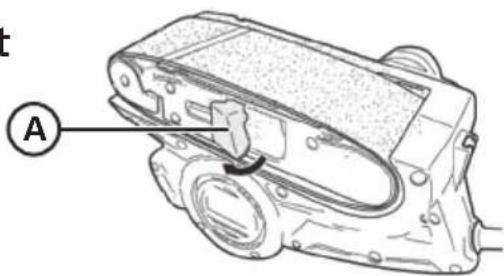

1. Release the tensioner (A).
2. Fit the sanding belt over the rollers.
3. Lock the tensioner again.

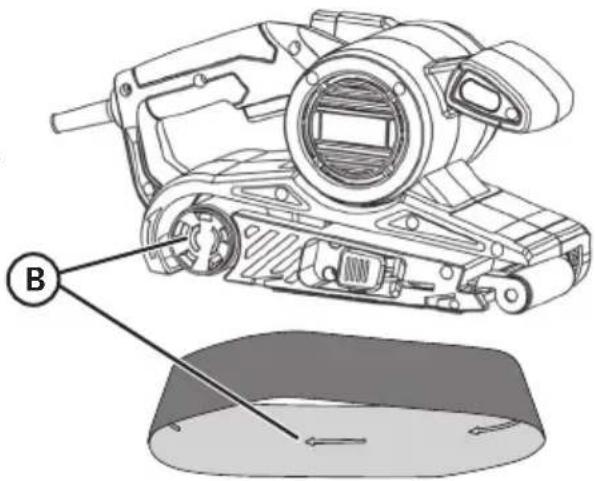

Note: Make sure that the sanding belt is fitted the right way round. Both the sander and the sanding belt (75 × 533 mm) are marked with the direction of rotation (B), both marks should be pointing the same way.

Centre the sanding belt

1. Turn the sander upside down.
2. Depress the power switch and check how the belt runs.

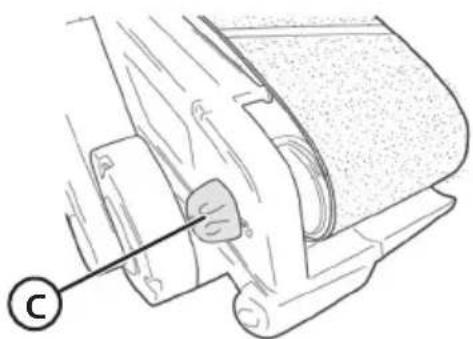

3. Turn the adjustment knob (C) clockwise or anticlockwise to centre the belt if required.

Note:

The belt must be centred otherwise it will fray at the edges and soon need to be replaced.

Technical line drawing of a mechanical assembly with labeled component (C), no readable text or symbols present

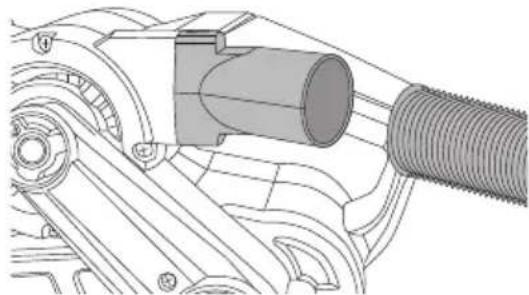

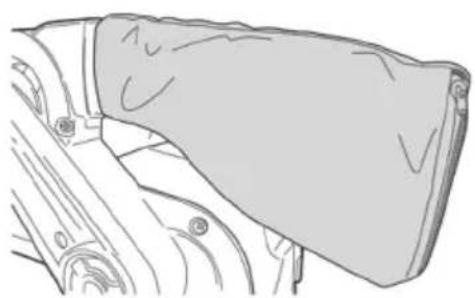

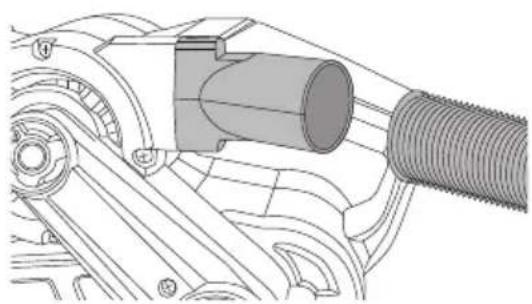

Attaching a dust bag or dust extraction equipment

Line drawing of a mechanical component or bracket with no visible text or symbols

Technical line drawing of a mechanical assembly with a coiled tube and housing (no text or symbols)

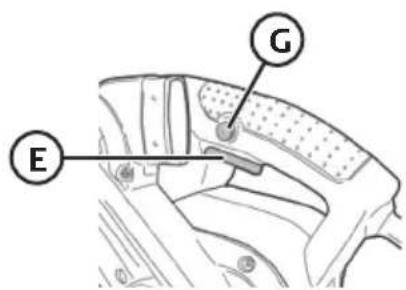

Start and stop the machine using the power switch

Switching on:

Press the power switch (E) to start the belt sander.

Switching off:

Release the power switch to stop the belt sander.

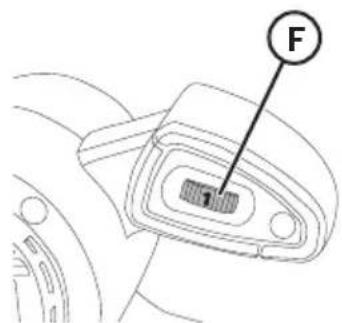

Variable speed control: Set the desired speed using the speed selector knob (F).

Constant use

Switching on: Push and hold in the power switch (E) and then push the lock-on button (G), the power button can now be released.

Switching off: Push in the power switch and release it without touching the lock-on button.

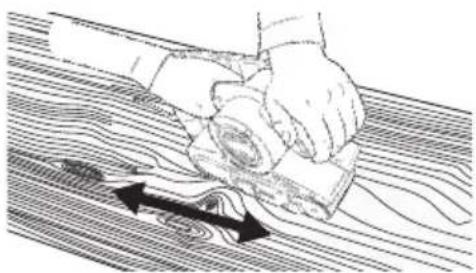

Sanding

• Hold the machine firmly in both hands.
• Move the machine back and forth, parallel with the grain of the wood.
• Do not press down on the sander, the weight of the sander is enough, too high a feed rate can burn the workpiece and leave ugly marks.

Illustration of a hand using a tool to cut or spread material on a wooden surface, with arrows indicating direction (no text or symbols)

Care and maintenance

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Unplug the mains lead before changing the sanding belt or carrying out any maintenance, or service.
• Keep the motor ventilation openings free from contaminants.
• Wipe the exterior of the belt sander clean with a dry cloth and vacuum clean it if needed.
• Store the belt sander in a dry place out of children's reach whenever it is not to be used for a long time.

Troubleshooting guide

Sander doesn’t start. • Make sure that the mains lead is undamaged and securely plugged into a wall socket.• Is the wall socket live?

The sander runs slowly. • Do not apply too much downward pressure on the sanding belt.

Poor sanding result. • Is the sanding belt worn? Replace if necessary.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications

Voltage 230 V AC, 50 Hz

Power 920 W

Belt speed 150–270 m/min

Sanding area 75 × 130 mm

Weight 2.7 kg

Sanding belt 75 × 533 mm (3" × 21")

LpA (sound pressure) 90.3 dB(A), K = 3 dB(A)

LwA (sound power) 101.3 dB(A), K = 3 dB(A)

Vibration value a_h=2.5 m/s^2, K=1.5 m/s^2

Bandslipmaskin

Art.nr 18-3615 Modell HBS76CV-UK

41-1232

HBS76CV

Centrera slipbandet

Technical line drawing of a mechanical assembly with labeled component (C), no readable text or symbols present

Line drawing of a mechanical component with a curved blade and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and threaded tube (no text or symbols)

Slipning

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Specifikationer

Technical line drawing of a mechanical assembly with labeled component (C), no readable text or symbols present

Line drawing of a mechanical component or bracket with no visible text or symbols

Technical line drawing of a mechanical assembly with a cylindrical component and threaded tube (no text or symbols)

Illustration of hands using a tool to cut or spread material on a wooden surface, with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical device with labeled component (C), no readable text or symbols present

Line drawing of a mechanical component or bracket with no visible text or symbols

Technical line drawing of a mechanical assembly with a cylindrical component and threaded shaft (no text or symbols)

Line drawing of a hand using a tool to cut wood grain with directional arrows indicating flow or movement (no text or symbols)

Huolto ja ylläpito

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Technical line drawing of a mechanical device with a labeled component (C), no readable text or symbols present.

Hinweis:

Line drawing of a mechanical component with a curved blade and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and threaded shaft (no text or symbols)

Line drawing of a hand using a tool to cut or spread wood on a wooden surface, with arrows indicating direction (no text or symbols)

Pflege und Wartung

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Machinery Directive 2006/42/EC

EN 60745-1: 2009

+A11:2010

EN 60745-2-4: 2009

+A11:2011

EMC Directive 2014/30/EU

EN 55014-1: 2006/A2: 2011

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3:2013

Low Voltage Directive 2014/35/EU

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2018-07-05
