USER MANUAL SKM 3W A1 SILVERCREST
GB
Operation and safety notes
FI
BLUETOOTH®- KARAOKEMIKROFONI
GB Operation and safety notes Page 5
Warnings and symbols used ..... Page 7
Introduction Page 9
Intended use.... Page 9
Trademark notices.... Page 9
Scope of delivery.... Page 10
Description of parts ...... Page 10
Technical data ...... Page 11
Safety instructions.... Page 12
Safety instructions for built-in rechargeable
batteries ...... Page 15
Before use Page 16
Unpacking Page 16
Charging the rechargeable battery ..... Page 16
Operation...... Page 16
Switching on/off....Page 16
Establishing a Bluetooth ^® connection..... Page 17
Function overview..... Page 17
Mode selection ...... Page 18
microSD card mode .... Page 19
USB flash drive mode..... Page 19
Voice effect mode .... Page 19
Phone holder.... Page 20
Output via an external speaker.... Page 21
Cleaning Page 21
Storage during non use...... Page 21
Troubleshooting...... Page 22
Disposal Page 23
Simplified EU declaration of conformity.... Page 24
Warranty Page 24
Warranty claim procedure.... Page 25
Service Page 26
| Warnings and symbols usedThe following warnings are used in the user manual, short manual, quick start guide, on the packaging, and on the product: | |
 | DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury. |
 | WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury. |
 | CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury. |
 | ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage. |
 | NOTE: This symbol in combination with “Note” provides additional useful information. |
| Direct current/voltage | |
 | This mandatory sign indicates to wear suitable protective gloves! Follow the instructions of this warning to avoid hand injuries caused by objects or contact with hot or chemical materials. |
 | This symbol means that the operating instructions must be observed before using the product. |
 | WARNING! EXPLOSION HAZARD! A warning with this symbol and word “WARNING! EXPLOSION HAZARD” indicates the potential threat of explosion.Failure to observe this warning may result in serious or fatal injuries and potential property damage.■ Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage! |
 | CE mark indicates conformity with relevant EU directives applicable for this product. |
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
This Bluetooth ^® karaoke microphone (hereinafter called "product") is a consumer electronic device and is intended to render audio transmitted via Bluetooth ^® . Own vocals can be mixed in via the microphone. The built-in rechargeable battery allows for cordless operation.
The product is designed for private use, and must not be used for commercial purposes. Any other use is considered improper.
Any claims resulting from improper use or due to unauthorised modification of the product will be considered unwarranted. Any such use is at your own risk.
Trademark notices
USB® is a registered trademark of USB Implementers Forum, Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by OWIM GmbH & Co. KG is under license.
The microSD® trademarks and logos are registered trademarks owned by SD-3C, LLC.
The SilverCrest trademark and trade name is the property of their respective owners.
■ Any other names and products are trademarks or registered trademarks of their respective owners.
- Scope of delivery
After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.
1 Bluetooth ^® karaoke microphone
1 Charging cable (USB Type-C/USB Type-A)
1 3.5 mm AUX connection cable
1 Instruction for use
1 Quick start guide
• Description of parts
Before reading, unfold the page containing the illustration and familiar yourself with all the functions of the product.
1 Microphone
2 ECHO volume slide switch
3 VOL volume slide switch
4 button (next track/fast forward)
5 button (LED on/off)
6 button (on/off/mode selection)
7 button (play/pause)
8 button (previous track/fast backward)
9 MIC VOL slide switch
10Speaker
11 LED light
12 Phone holder
13USB Type-C charging socket
14|microSD card slot
15USB socket (for audio playback only)
163.5 mm AUX output socket
17 Charging cable (USB Type-C/USB Type-A)
183.5 mm AUX output cable
19 Quick start guide
20 Instruction for use
21 Charging LED
- Technical data
Power supply
(USB-C socket): 5 V
= - = (direct current)
Rechargeable battery: 1 × 3.7 V rechargeable lithium polymer battery with 1200 mAh (not replaceable)
Charging socket: USB Type-C
Speaker: max. 3 W RMS
Audio output: 3.5 mm AUX jack socket
Supported audio format: .MP3
USB flash drive capacity: max. 64 GB
MicroSD card capacity: max. 64 GB
Wireless standard: Bluetooth ^® 5.1
Frequency band: 2400 MHz to 2483.5 MHz
Max. transmitted power: <20 mW
Bluetooth ^® range: approx. 10 m
Dimensions: approx. 76 × 75 × 282 mm
Weight: approx. 407 g
Operating conditions: -5 to +35 °C, 40 to 85 % rel. humidity
Storage temperature: -20 to +60 °C
Charging time: approx. 4 hours
Operating time: approx. 8 hours (at 50 % volume)
Safety instructions
This chapter provides important safety information for handling the product. Improper use can result in personal injury and property damage.
Before using the product, familiarise yourself with all of the safety instructions and instructions for use! When passing this product on to others, also include all the documents!
DANGER! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!
DANGER!
RISK OF SUFFOCATION! Packaging materials are not a toy. Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children shall not play with the product. The product is not a toy.
WARNING!
- Never open the housing of the product! It has no internal parts requiring maintenance.
- Do not throw the product into fire and do not expose it to high temperatures.
RISK OF DAMAGE!
This product does not contain any parts which can be serviced by the user. The rechargeable battery cannot be replaced.
- Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!
If you notice anything unusual during use (e.g. unusual noise, strange odour or smoke), switch the product off immediately and disconnect all cables. Do not use the product anymore.
■ Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again!
- Do not place burning candles or open fire on or near the product.
- Do not use the product near heat sources such as radiators or other devices emitting heat!
- Only use/charge the product in a dry environment as it is not protected from drip and splash water.
WARNING!
Radio interference
Switch the product off on airplanes, in hospitals, service rooms (e.g. boiler room, electric supply room), or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics. Keep the product at least 20 cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers. The radio waves transmitted could cause interference in hearing aids.
Do not place the product near flammable gases or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire.
ATTENTION!
The range of the radio waves varies by environmental conditions. In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded. OWIM GmbH & Co. KG is not responsible for interference with radios or televisions due to unauthorised modification of the product.
OWIM GmbH & Co. KG further assumes no liability for using or replacing cables and devices not distributed by OWIM. The user of the product is fully responsible for correcting interference caused by such unauthorised modification of the product, as well as replacement of such devices.
Safety instructions for built-in rechargeable batteries
■ Never open the product, repairs may only be carried out by qualified personnel.
WARNING! RISK OF EXPLOSION! Do not throw the product into fire.
- Avoid extreme environmental conditions and temperatures, which could affect rechargeable batteries, e.g. radiators/direct sunlight.
If rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
- Do not cover the product during operation or charging. Otherwise the product can be overheated
This product contains a rechargeable battery, which can lead to fire, explosion or leakage of hazardous substances in case of incorrect application.
Before use
Unpacking
■ Remove all packaging materials (including foils).
- Verify the package contents are complete and undamaged!
● Charging the rechargeable battery
NOTE: Charge the rechargeable battery prior to first use.
- Insert the USB Type-C plug of the charging cable 17 into the USB Type-C charging socket 13.
During charging, the charging LED21 lights up red.
As soon as the charging process is finished, the red charging LED goes off.
NOTE: When the battery is drained, the charging LED will flash red. In this case, charge the battery as soon as possible.
Operation
- Switching on/off
■ Press and hold the ⏻ button 6 for 2 seconds.
- Establishing a Bluetooth connection
- Switch on the product. The LED light 11 flashes blue and an acoustic signal sounds to indicate that Bluetooth® is activated.
Open the Bluetooth® settings on your mobile phone, tablet or computer. Select SKM 3W A1 from the device list and establish the connection.
NOTE: If a password is required, enter 0000.
■ Once the connection has been established, an acoustic signal sounds.
- Start the music playback and adjust the volume on your mobile phone, tablet or computer.
- Adjust the product's volume and echo (see "Function overview").
Start singing.
Function overview
| Function Action | |
| Switching on/off | Press and hold the ⏻ button 6 for 2 seconds. |
| Enable/disable Bluetooth® | When power ON and automatically enter into Bluetooth mode for pairing.When the product is turned off, the Bluetooth connection is also disconnected. |
| Start/pause playback | Briefly press ▶ button 7. |
| Select next track | Press button ➤1 4 during playback. |
| Select previous track | Press button ➤8 2× in quick succession during playback. |
| Auto mute when incoming call | Automatically |
| Amplify echo of your voice | Slide ECHO slide switch 2 towards +. |
| Attenuate echo of your voice | Slide ECHO slide switch towards - . |
| Increase master volume | Slide VOL volume slide switch 3 towards +. |
| Reduce master volume | Slide VOL volume slide switch towards - . |
| Increase microphone volume | Slide MIC VOL slide switch 9 towards +. |
| Reduce microphone volume | Slide MIC VOL slide switch towards - . |
Mode selection
Switch on the product.
Briefly press the ⏻ button 6 to select one of the following modes:
-Bluetooth®
-microSD card
-USB flash drive
NOTE: The "microSD card" and "USB stick" modes can only be selected if corresponding storage media are inserted into the product.
microSD card mode
■ Only the .MP3 file format is supported.
Insert a microSD card that has music stored on it into the microSD card slot 14. "microSD card" sounds from the speaker 10.
The product automatically starts playing the music from the microSD card.
How to skip to the next/previous track and start/pause playback can be found in the chapter "Function overview".
USB flash drive mode
■ Only the .MP3 file format is supported.
- Insert a USB flash drive that has music stored on it into the USB socket 15.
The product automatically starts playing the music from the USB flash drive.
How to skip to the next/previous track and start/pause playback can be found in the chapter "Function overview".
Voice effect mode
Enter voice effect mode: Press the ⏻ button 6 2×.
- Briefly press the ⏻ button to change the voice effect. 4 different voice effects are available:
Voice effect mode
Press 1× Change to baby vocal voice
Press 2× Change from male vocal to female vocal voice
Press 3× Change from female vocal to male vocal voice
Press 4× Change to robot vocal voice
- Exit voice effect mode: Press the ⏻ button 2×.

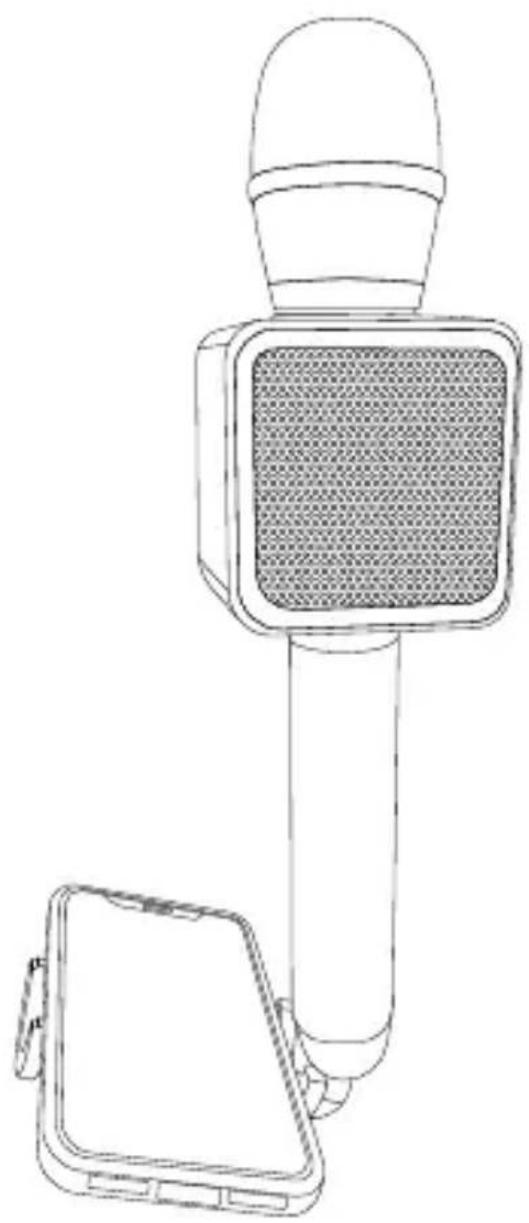

- Phone holder
A
NOTE: To provide better stability, remove the protective cover from your mobile phone.
Output via an external speaker
■ Connect one end of the 3.5 mm AUX cable 18 to the 3.5 mm AUX output socket 16.
■ Connect the other end of the 3.5 mm AUX cable to the AUX-IN socket of your external speaker or stereo system.
The music and your voice are output via the external speaker or stereo system.
- Adjust the overall volume via the external speaker or stereo system.
- Cleaning
Before cleaning: Switch the product off and remove all cables.
Only clean the outside of the product using a clean, dry cloth for cleaning the product. Never use any corrosive liquids or abrasive cleaning agents. Use a slightly moistened cloth and a mild cleaning agent to remove stubborn dirt.
● Storage during non use
- Store the product in a dry environment when not in use. Protect it from dust and direct sunlight. The rechargeable battery needs to be charged regularly.
Troubleshooting
● = Fault
● = Possible cause
O = Action
● = No functions
● = Battery drained.
O = Recharge the rechargeable battery as described in "Charging the rechargeable battery".
● = No Bluetooth® connection
● = Error operating the product.
O = Switch the product off and on again.
● = Playback device error.
O = Check if the product was detected by the playback device.
O = Check if the playback device detects other devices with Bluetooth® Standard 5.1.
O = The product and the playback device may need to be reconnected.
● = No music playback via Bluetooth®
● = Error operating the product.
O = Switch the product off and on again.
● = Plug remaining in the 3.5 mm AUX output socket 16.
O = Remove plug from the 3.5 mm AUX output socket.
● = Error operating the playback device.
O = Increase the volume on the playback device.
● = Music is played back, but voice is not audible.
● = Error operating the product.
O = Increase the microphone volume.
NOTE: If your Bluetooth ^® playback device does not reconnect to the product, you need to manually restore the connection to your Bluetooth ^® playback device. Refer to the operating instructions of your Bluetooth ^® playback device for a detailed description.
● Disposal
Packaging:
The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.
Product:
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.
This disposal is free of charge to you.
Protect the environment and dispose of properly.
Batteries/accumulators:
Environmental damage through incorrect disposal of the batteries/accumulators!
Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are:
Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.
● Simplified EU declaration of conformity
Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY declares that the product BLUETOOTH® KARAOKE MICROPHONE, HG09354 is in compliance with Directive 2014/53/EU and 2011/65/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.owim.com
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.
Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
● Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN 415508_2201) available as proof of purchase.
You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
Service Great Britain
Tel.: 0800 0569216
E-Mail: owim@lidl.co.uk
